NISSAN PICK-UP 2001 Repair Manual

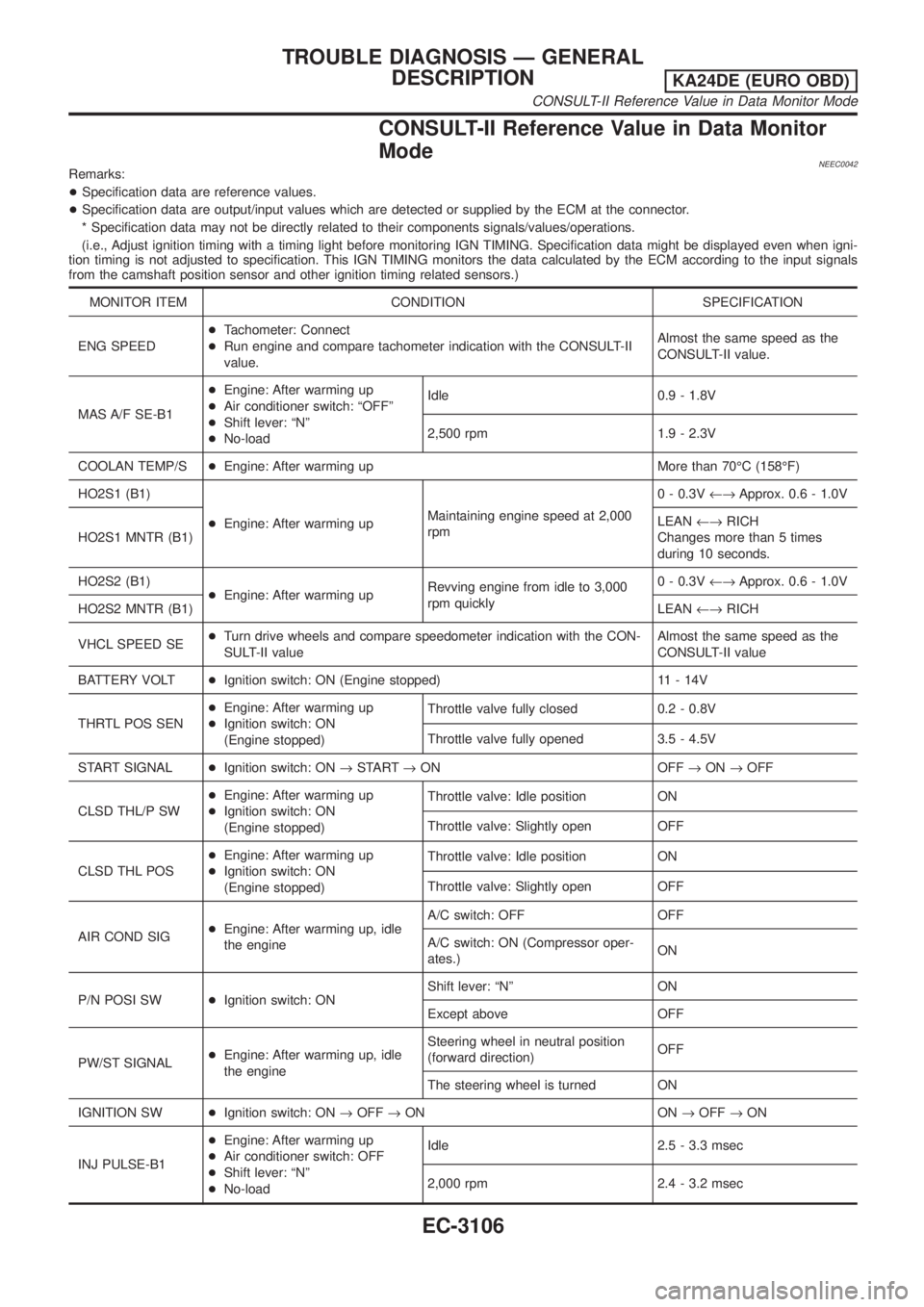

CONSULT-II Reference Value in Data Monitor
Mode
NEEC0042Remarks:
+Specification data are reference values.
+Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
(i.e., Adjust ignition timing with a timing light before monitoring IGN TIMING. Specification data might be displayed even when igni-
tion timing is not adjusted to specification. This IGN TIMING monitors the data calculated by the ECM according to the input signals
from the camshaft position sensor and other ignition timing related sensors.)
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED+Tachometer: Connect
+Run engine and compare tachometer indication with the CONSULT-II
value.Almost the same speed as the
CONSULT-II value.
MAS A/F SE-B1+Engine: After warming up
+Air conditioner switch: ªOFFº
+Shift lever: ªNº
+No-loadIdle 0.9 - 1.8V
2,500 rpm 1.9 - 2.3V
COOLAN TEMP/S+Engine: After warming up More than 70ÉC (158ÉF)
HO2S1 (B1)
+Engine: After warming upMaintaining engine speed at 2,000
rpm0 - 0.3V¨Approx. 0.6 - 1.0V
HO2S1 MNTR (B1)LEAN¨RICH
Changes more than 5 times
during 10 seconds.
HO2S2 (B1)
+Engine: After warming upRevving engine from idle to 3,000
rpm quickly0 - 0.3V¨Approx. 0.6 - 1.0V
HO2S2 MNTR (B1)LEAN¨RICH
VHCL SPEED SE+Turn drive wheels and compare speedometer indication with the CON-
SULT-II valueAlmost the same speed as the
CONSULT-II value
BATTERY VOLT+Ignition switch: ON (Engine stopped) 11 - 14V
THRTL POS SEN+Engine: After warming up
+Ignition switch: ON
(Engine stopped)Throttle valve fully closed 0.2 - 0.8V
Throttle valve fully opened 3.5 - 4.5V
START SIGNAL+Ignition switch: ON®START®ON OFF®ON®OFF
CLSD THL/P SW+Engine: After warming up
+Ignition switch: ON
(Engine stopped)Throttle valve: Idle position ON
Throttle valve: Slightly open OFF
CLSD THL POS+Engine: After warming up
+Ignition switch: ON
(Engine stopped)Throttle valve: Idle position ON
Throttle valve: Slightly open OFF
AIR COND SIG+Engine: After warming up, idle
the engineA/C switch: OFF OFF
A/C switch: ON (Compressor oper-
ates.)ON
P/N POSI SW+Ignition switch: ONShift lever: ªNº ON
Except above OFF
PW/ST SIGNAL+Engine: After warming up, idle
the engineSteering wheel in neutral position
(forward direction)OFF
The steering wheel is turned ON
IGNITION SW+Ignition switch: ON®OFF®ON ON®OFF®ON
INJ PULSE-B1+Engine: After warming up
+Air conditioner switch: OFF
+Shift lever: ªNº
+No-loadIdle 2.5 - 3.3 msec
2,000 rpm 2.4 - 3.2 msec
TROUBLE DIAGNOSIS Ð GENERAL
DESCRIPTION
KA24DE (EURO OBD)
CONSULT-II Reference Value in Data Monitor Mode
EC-3106

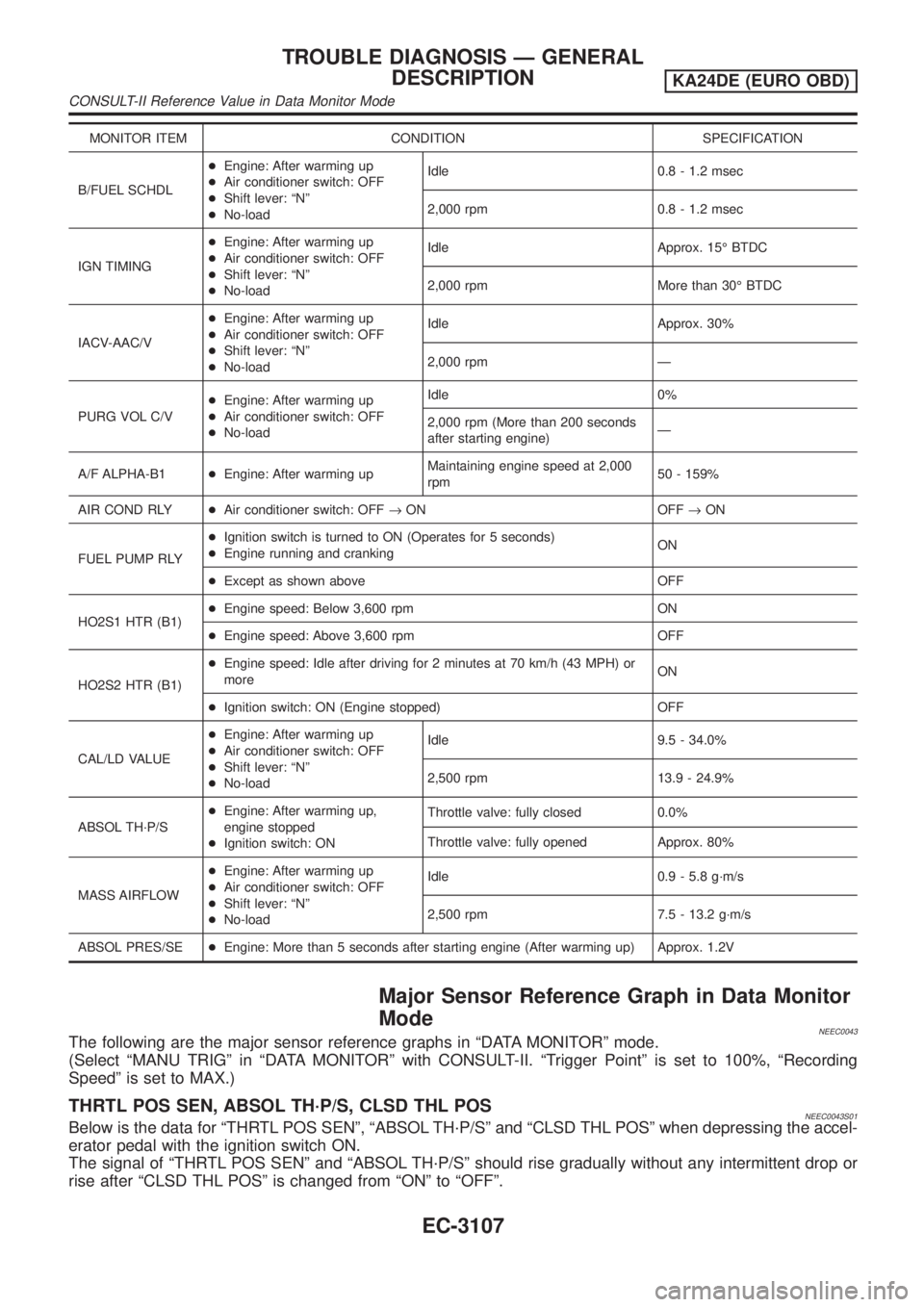

MONITOR ITEM CONDITION SPECIFICATION
B/FUEL SCHDL+Engine: After warming up
+Air conditioner switch: OFF
+Shift lever: ªNº
+No-loadIdle 0.8 - 1.2 msec
2,000 rpm 0.8 - 1.2 msec
IGN TIMING+Engine: After warming up
+Air conditioner switch: OFF
+Shift lever: ªNº
+No-loadIdle Approx. 15É BTDC
2,000 rpm More than 30É BTDC
IACV-AAC/V+Engine: After warming up
+Air conditioner switch: OFF
+Shift lever: ªNº
+No-loadIdle Approx. 30%
2,000 rpm Ð
PURG VOL C/V+Engine: After warming up
+Air conditioner switch: OFF
+No-loadIdle 0%
2,000 rpm (More than 200 seconds
after starting engine)Ð
A/F ALPHA-B1+Engine: After warming upMaintaining engine speed at 2,000
rpm50 - 159%
AIR COND RLY+Air conditioner switch: OFF®ON OFF®ON
FUEL PUMP RLY+Ignition switch is turned to ON (Operates for 5 seconds)
+Engine running and crankingON
+Except as shown above OFF
HO2S1 HTR (B1)+Engine speed: Below 3,600 rpm ON
+Engine speed: Above 3,600 rpm OFF
HO2S2 HTR (B1)+Engine speed: Idle after driving for 2 minutes at 70 km/h (43 MPH) or
moreON
+Ignition switch: ON (Engine stopped) OFF
CAL/LD VALUE+Engine: After warming up
+Air conditioner switch: OFF
+Shift lever: ªNº
+No-loadIdle 9.5 - 34.0%
2,500 rpm 13.9 - 24.9%
ABSOL TH´P/S+Engine: After warming up,
engine stopped
+Ignition switch: ONThrottle valve: fully closed 0.0%
Throttle valve: fully opened Approx. 80%
MASS AIRFLOW+Engine: After warming up
+Air conditioner switch: OFF
+Shift lever: ªNº
+No-loadIdle 0.9 - 5.8 g´m/s
2,500 rpm 7.5 - 13.2 g´m/s
ABSOL PRES/SE+Engine: More than 5 seconds after starting engine (After warming up) Approx. 1.2V
Major Sensor Reference Graph in Data Monitor
Mode
NEEC0043The following are the major sensor reference graphs in ªDATA MONITORº mode.
(Select ªMANU TRIGº in ªDATA MONITORº with CONSULT-II. ªTrigger Pointº is set to 100%, ªRecording
Speedº is set to MAX.)
THRTL POS SEN, ABSOL TH´P/S, CLSD THL POSNEEC0043S01Below is the data for ªTHRTL POS SENº, ªABSOL TH´P/Sº and ªCLSD THL POSº when depressing the accel-
erator pedal with the ignition switch ON.
The signal of ªTHRTL POS SENº and ªABSOL TH´P/Sº should rise gradually without any intermittent drop or
rise after ªCLSD THL POSº is changed from ªONº to ªOFFº.
TROUBLE DIAGNOSIS Ð GENERAL
DESCRIPTION
KA24DE (EURO OBD)
CONSULT-II Reference Value in Data Monitor Mode
EC-3107

SEF306Y

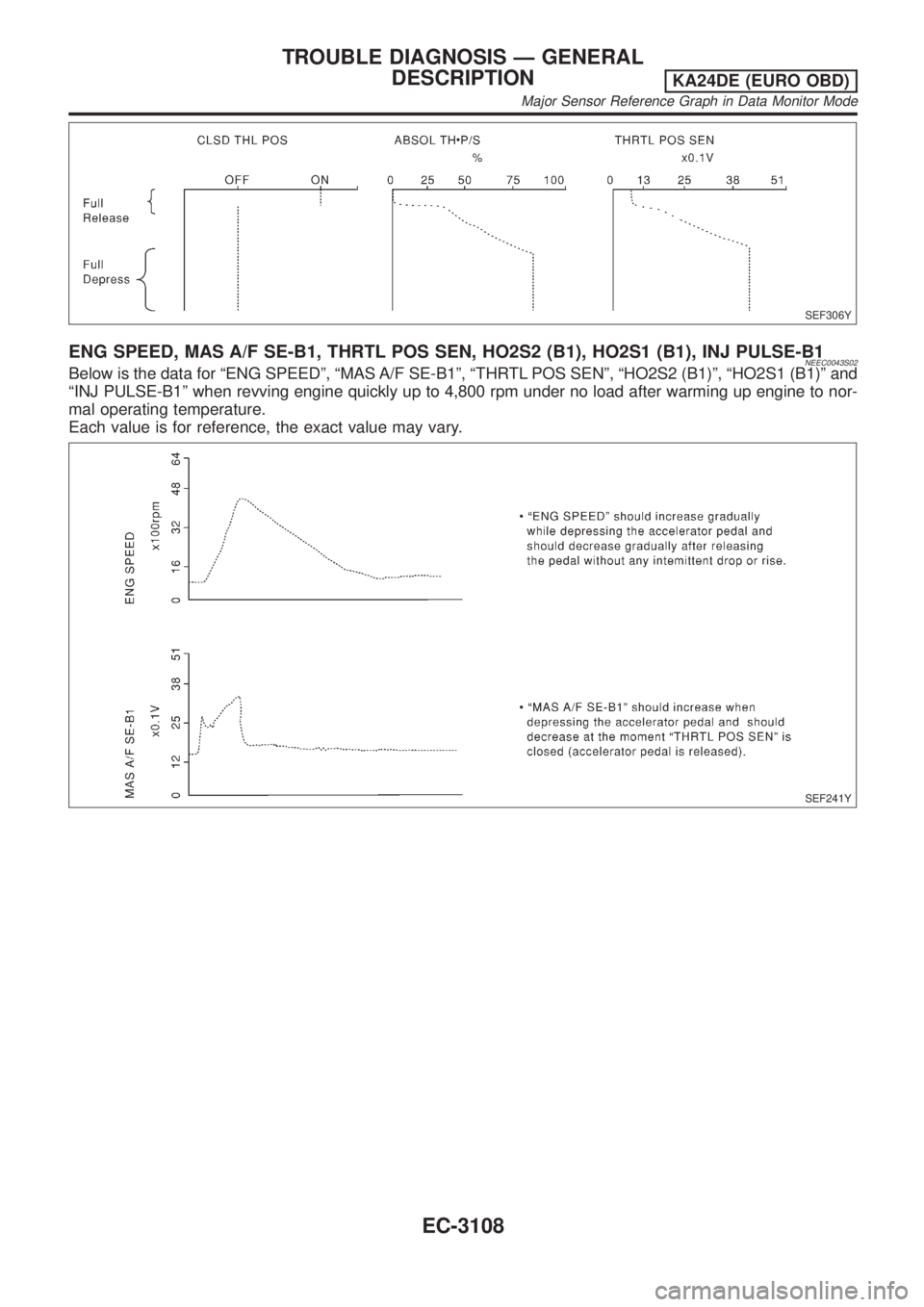

ENG SPEED, MAS A/F SE-B1, THRTL POS SEN, HO2S2 (B1), HO2S1 (B1), INJ PULSE-B1NEEC0043S02Below is the data for ªENG SPEEDº, ªMAS A/F SE-B1º, ªTHRTL POS SENº, ªHO2S2 (B1)º, ªHO2S1 (B1)º and
ªINJ PULSE-B1º when revving engine quickly up to 4,800 rpm under no load after warming up engine to nor-
mal operating temperature.
Each value is for reference, the exact value may vary.
SEF241Y
TROUBLE DIAGNOSIS Ð GENERAL
DESCRIPTION
KA24DE (EURO OBD)

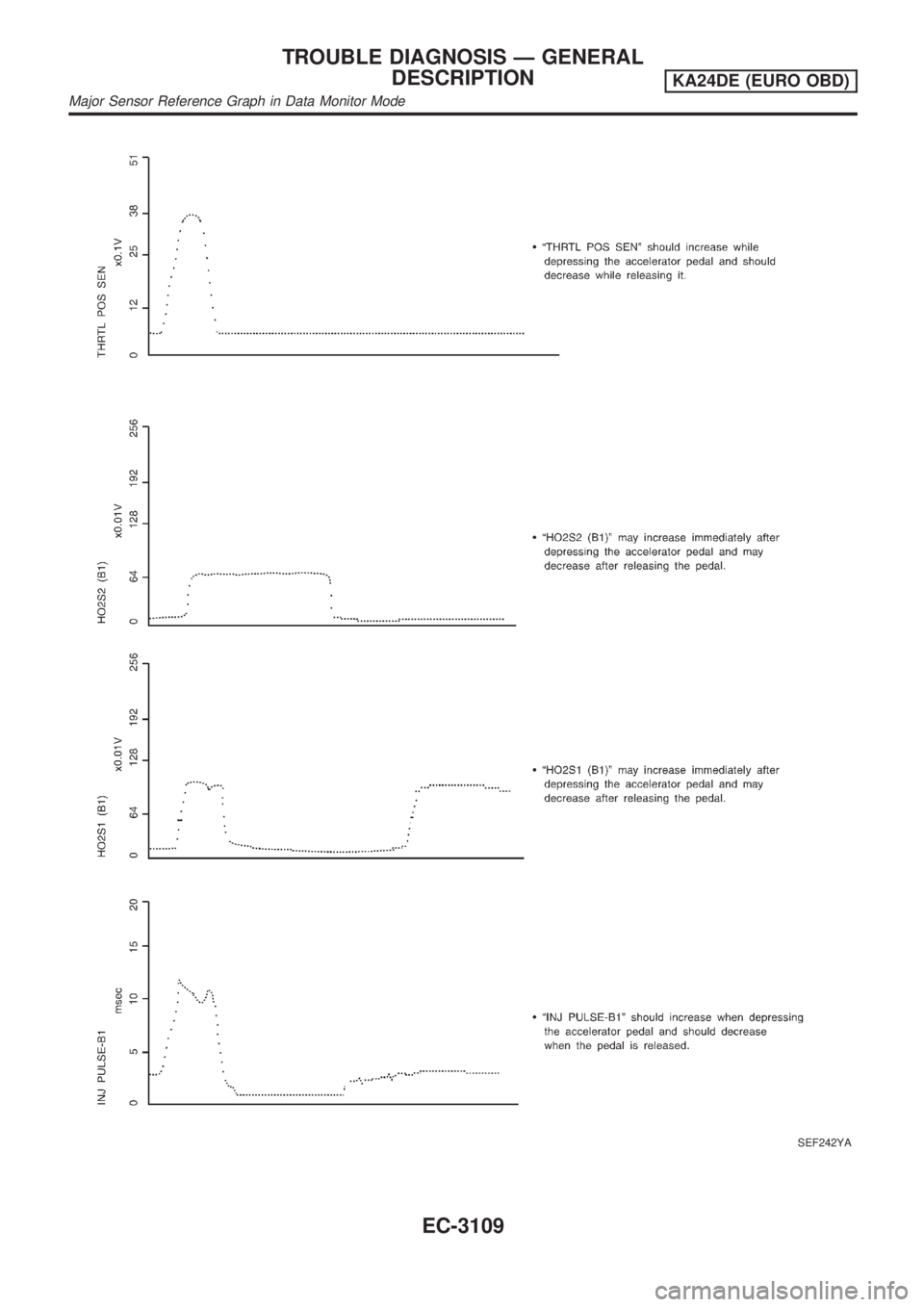

Major Sensor Reference Graph in Data Monitor Mode
EC-3108

SEF242YA
TROUBLE DIAGNOSIS Ð GENERAL
DESCRIPTION
KA24DE (EURO OBD)
Major Sensor Reference Graph in Data Monitor Mode
EC-3109

LEC106A
ECM Terminals and Reference ValueNEEC0044PREPARATIONNEEC0044S011. ECM is located behind the instrument lower cover. For this
inspection:
+Remove instrument lower cover.
AEC913
2. Remove ECM harness protector.
SEF367I
3. Perform all voltage measurements with the connector con-
nected. Extend tester probe as shown to perform tests easily.
+Open harness securing clip to make testing easier.
+Use extreme care not to touch 2 pins at one time.
+Data is for comparison and may not be exact.
TROUBLE DIAGNOSIS Ð GENERAL
DESCRIPTION
KA24DE (EURO OBD)
ECM Terminals and Reference Value
EC-3110

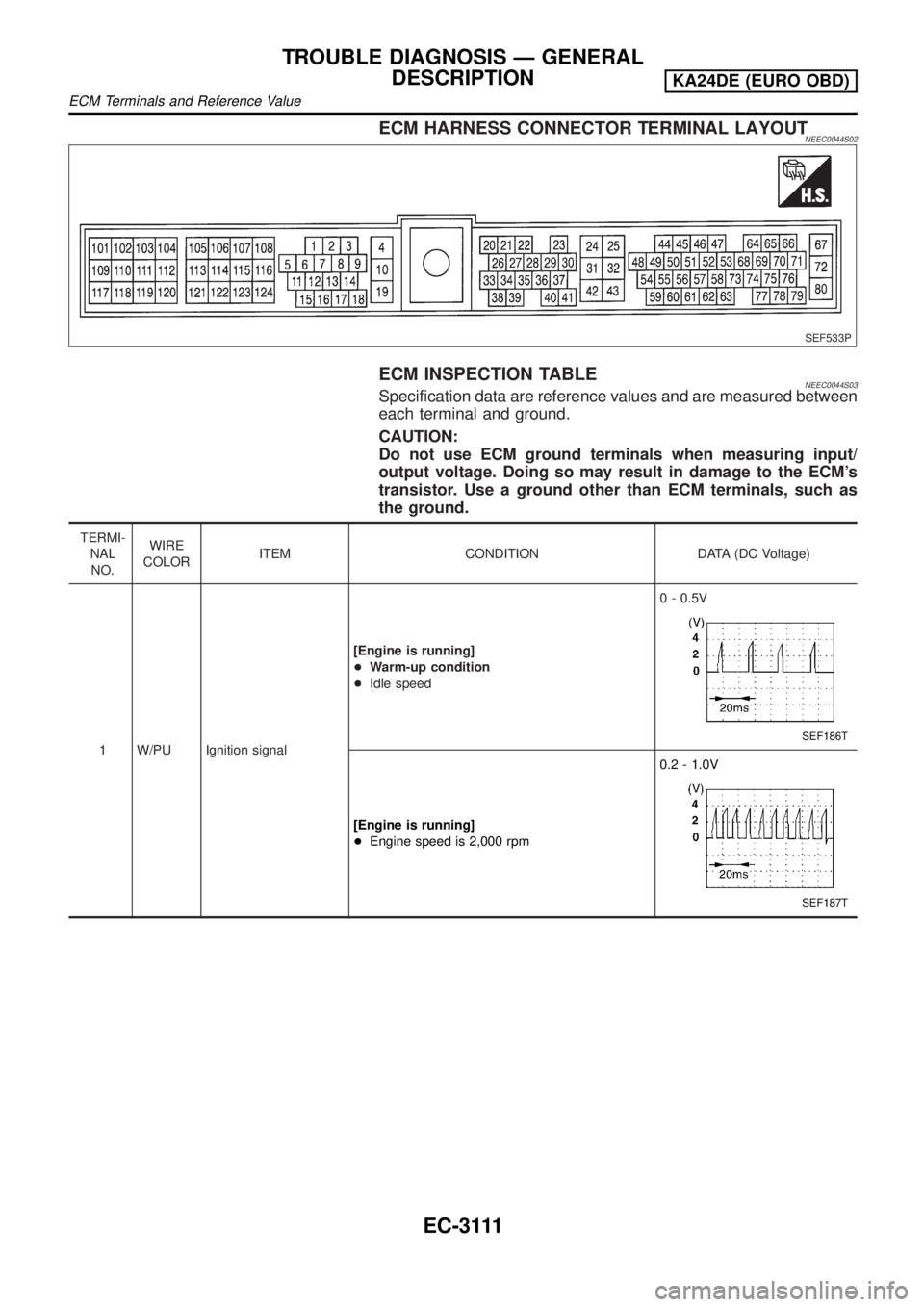

ECM HARNESS CONNECTOR TERMINAL LAYOUTNEEC0044S02
SEF533P
ECM INSPECTION TABLENEEC0044S03Specification data are reference values and are measured between
each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the ECM's
transistor. Use a ground other than ECM terminals, such as
the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1 W/PU Ignition signal[Engine is running]
+Warm-up condition
+Idle speed0 - 0.5V
SEF186T
[Engine is running]
+Engine speed is 2,000 rpm0.2 - 1.0V
SEF187T
TROUBLE DIAGNOSIS Ð GENERAL
DESCRIPTION
KA24DE (EURO OBD)
ECM Terminals and Reference Value
EC-3111

TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
3 W Tachometer[Engine is running]
+Warm-up condition
+Idle speed0-1V
SEF190T
[Engine is running]
+Engine speed is 2,000 rpm0.5-2V
SEF191T
4 L/BECM relay (Self shut-
off)[Engine is running]
[Ignition switch OFF]
+For a few seconds after turning ignition switch
OFF0-1V
[Ignition switch OFF]
+More than a few seconds after turning ignition
switch OFFBATTERY VOLTAGE
(11 - 14V)
5 W/PUEVAP canister purge
volume control sole-
noid valve[Engine is running]
+Idle speedBATTERY VOLTAGE
(11 - 14V)
SEF109V
[Engine is running]
+Engine speed is 2,000 rpm (More than 200
seconds after starting engine)12 - 13V
SEF110V
TROUBLE DIAGNOSIS Ð GENERAL
DESCRIPTION
KA24DE (EURO OBD)
ECM Terminals and Reference Value
EC-3112

TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)

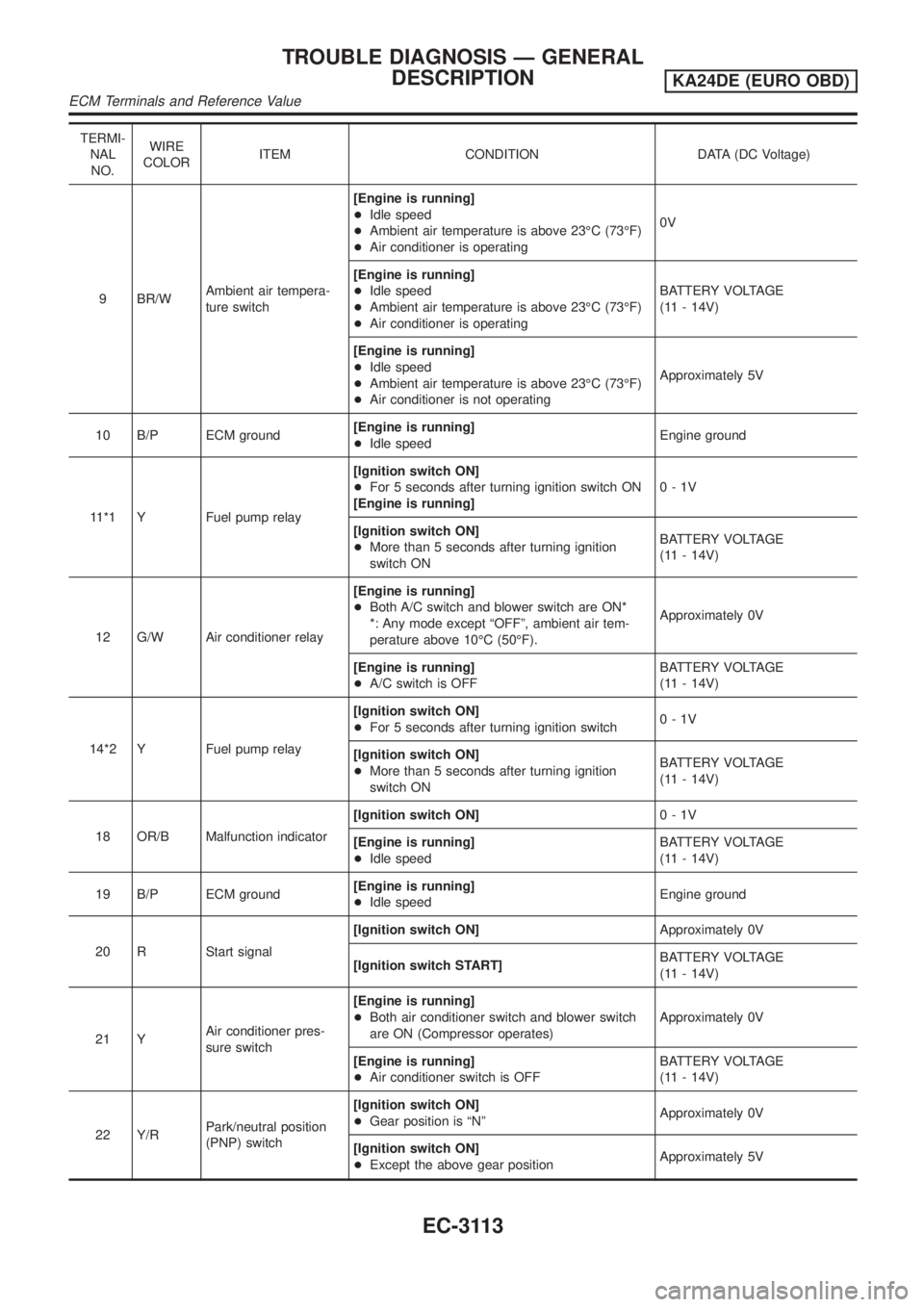

9 BR/WAmbient air tempera-
ture switch[Engine is running]
+Idle speed
+Ambient air temperature is above 23ÉC (73ÉF)
+Air conditioner is operating0V
[Engine is running]
+Idle speed
+Ambient air temperature is above 23ÉC (73ÉF)
+Air conditioner is operatingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
+Idle speed
+Ambient air temperature is above 23ÉC (73ÉF)
+Air conditioner is not operatingApproximately 5V
10 B/P ECM ground[Engine is running]
+Idle speedEngine ground
11*1 Y Fuel pump relay[Ignition switch ON]
+For 5 seconds after turning ignition switch ON
[Engine is running]0-1V
[Ignition switch ON]
+More than 5 seconds after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
12 G/W Air conditioner relay[Engine is running]
+Both A/C switch and blower switch are ON*
*: Any mode except ªOFFº, ambient air tem-
perature above 10ÉC (50ÉF).Approximately 0V
[Engine is running]
+A/C switch is OFFBATTERY VOLTAGE
(11 - 14V)
14*2 Y Fuel pump relay[Ignition switch ON]
+For 5 seconds after turning ignition switch0-1V
[Ignition switch ON]
+More than 5 seconds after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
18 OR/B Malfunction indicator[Ignition switch ON]0-1V
[Engine is running]
+Idle speedBATTERY VOLTAGE
(11 - 14V)
19 B/P ECM ground[Engine is running]
+Idle speedEngine ground
20 R Start signal[Ignition switch ON]Approximately 0V
[Ignition switch START]BATTERY VOLTAGE
(11 - 14V)
21 YAir conditioner pres-
sure switch[Engine is running]
+Both air conditioner switch and blower switch
are ON (Compressor operates)Approximately 0V
[Engine is running]
+Air conditioner switch is OFFBATTERY VOLTAGE
(11 - 14V)
22 Y/RPark/neutral position
(PNP) switch[Ignition switch ON]
+Gear position is ªNºApproximately 0V
[Ignition switch ON]
+Except the above gear positionApproximately 5V
TROUBLE DIAGNOSIS Ð GENERAL
DESCRIPTION
KA24DE (EURO OBD)
ECM Terminals and Reference Value
EC-3113

TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)

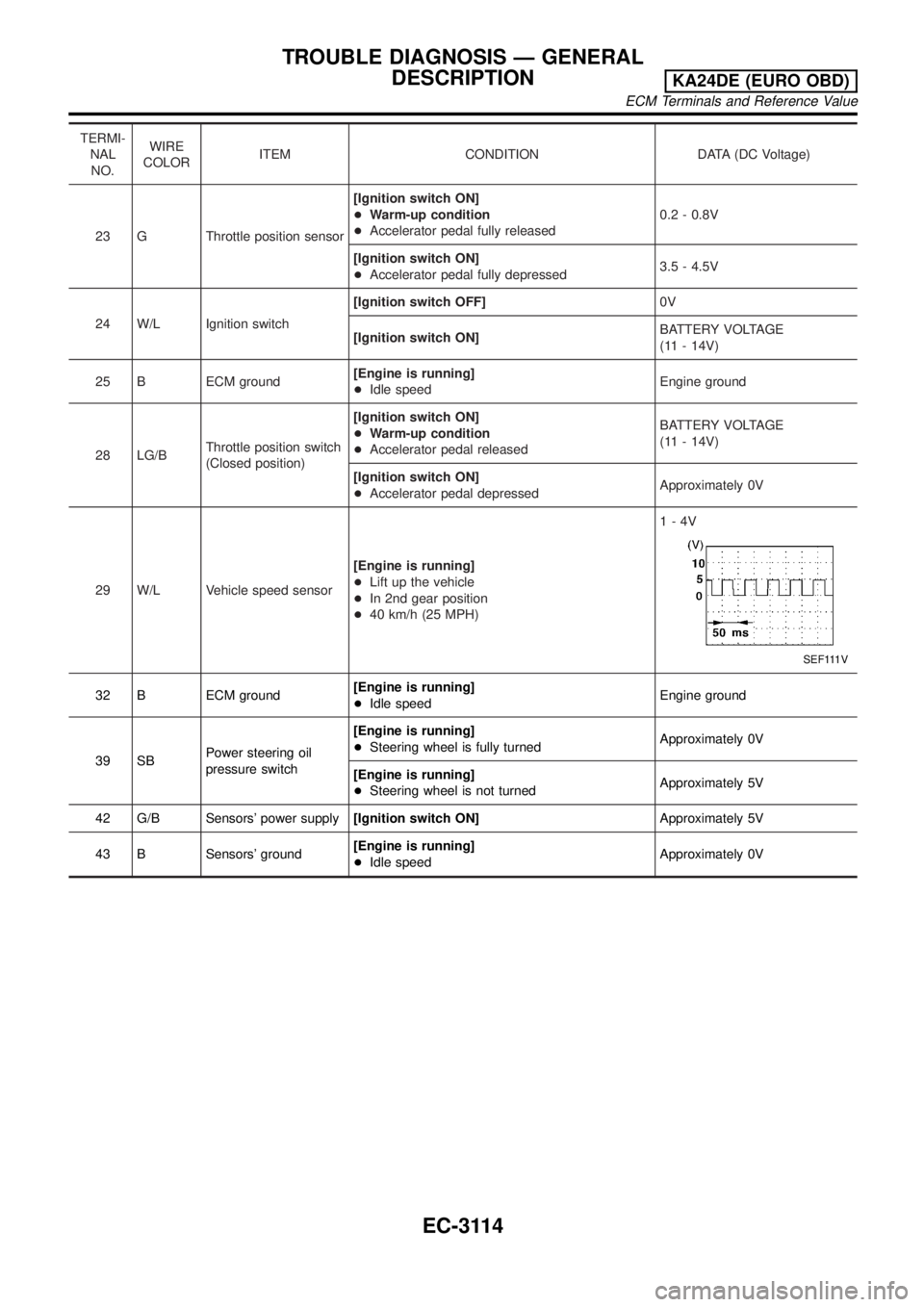

23 G Throttle position sensor[Ignition switch ON]
+Warm-up condition
+Accelerator pedal fully released0.2 - 0.8V
[Ignition switch ON]
+Accelerator pedal fully depressed3.5 - 4.5V
24 W/L Ignition switch[Ignition switch OFF]0V
[Ignition switch ON]BATTERY VOLTAGE
(11 - 14V)
25 B ECM ground[Engine is running]
+Idle speedEngine ground
28 LG/BThrottle position switch
(Closed position)[Ignition switch ON]
+Warm-up condition
+Accelerator pedal releasedBATTERY VOLTAGE
(11 - 14V)
[Ignition switch ON]
+Accelerator pedal depressedApproximately 0V
29 W/L Vehicle speed sensor[Engine is running]
+Lift up the vehicle
+In 2nd gear position
+40 km/h (25 MPH)1-4V
SEF111V
32 B ECM ground[Engine is running]
+Idle speedEngine ground
39 SBPower steering oil
pressure switch[Engine is running]
+Steering wheel is fully turnedApproximately 0V
[Engine is running]
+Steering wheel is not turnedApproximately 5V
42 G/B Sensors' power supply[Ignition switch ON]Approximately 5V
43 B Sensors' ground[Engine is running]
+Idle speedApproximately 0V
TROUBLE DIAGNOSIS Ð GENERAL
DESCRIPTION
KA24DE (EURO OBD)
ECM Terminals and Reference Value
EC-3114

TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)

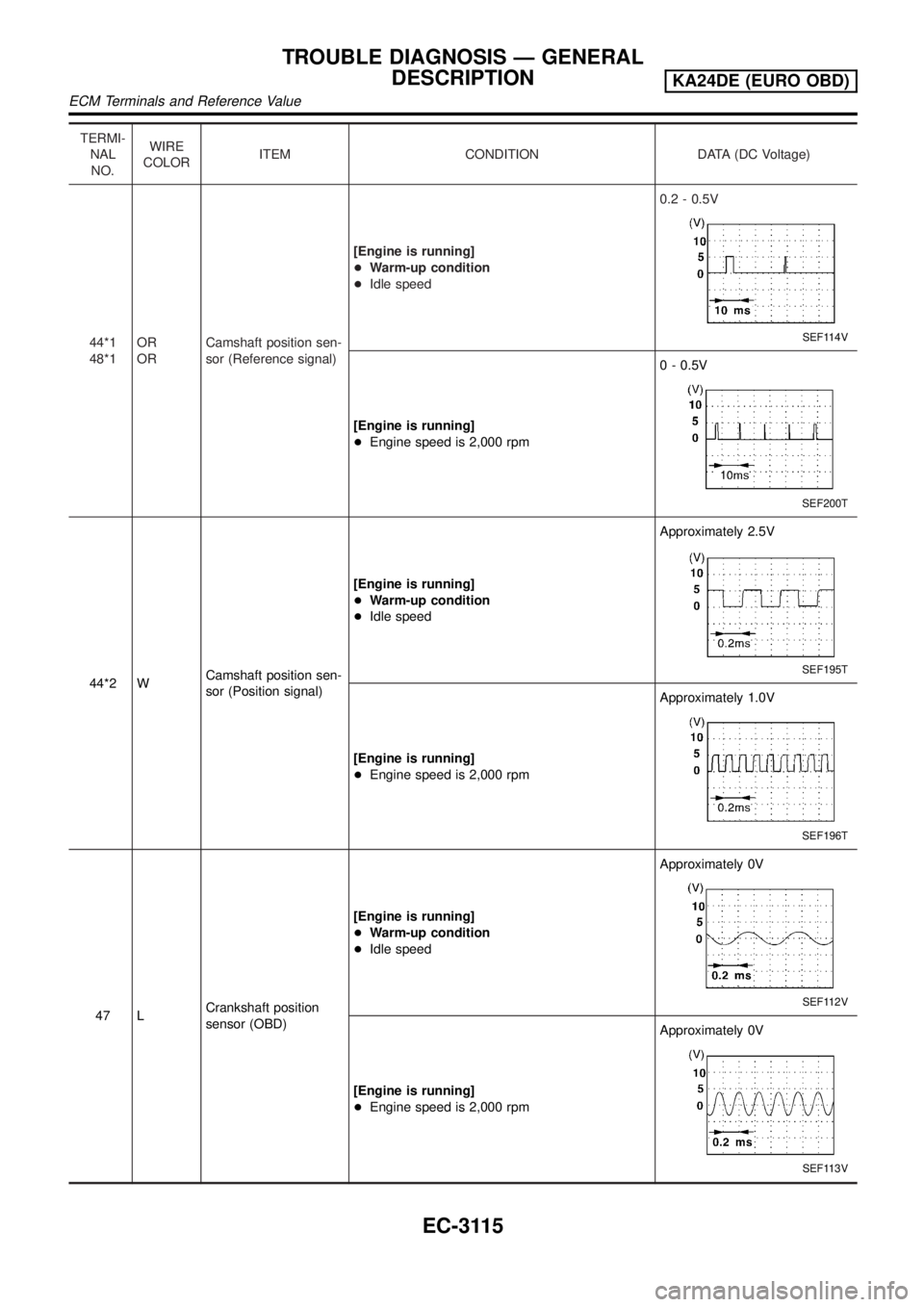

44*1
48*1OR
ORCamshaft position sen-
sor (Reference signal)[Engine is running]
+Warm-up condition
+Idle speed0.2 - 0.5V
SEF114V
[Engine is running]
+Engine speed is 2,000 rpm0 - 0.5V
SEF200T
44*2 WCamshaft position sen-
sor (Position signal)[Engine is running]
+Warm-up condition
+Idle speedApproximately 2.5VSEF195T
[Engine is running]
+Engine speed is 2,000 rpmApproximately 1.0V
SEF196T
47 LCrankshaft position
sensor (OBD)[Engine is running]
+Warm-up condition
+Idle speedApproximately 0VSEF112V
[Engine is running]
+Engine speed is 2,000 rpmApproximately 0V
SEF113V
TROUBLE DIAGNOSIS Ð GENERAL
DESCRIPTION
KA24DE (EURO OBD)
ECM Terminals and Reference Value
EC-3115
