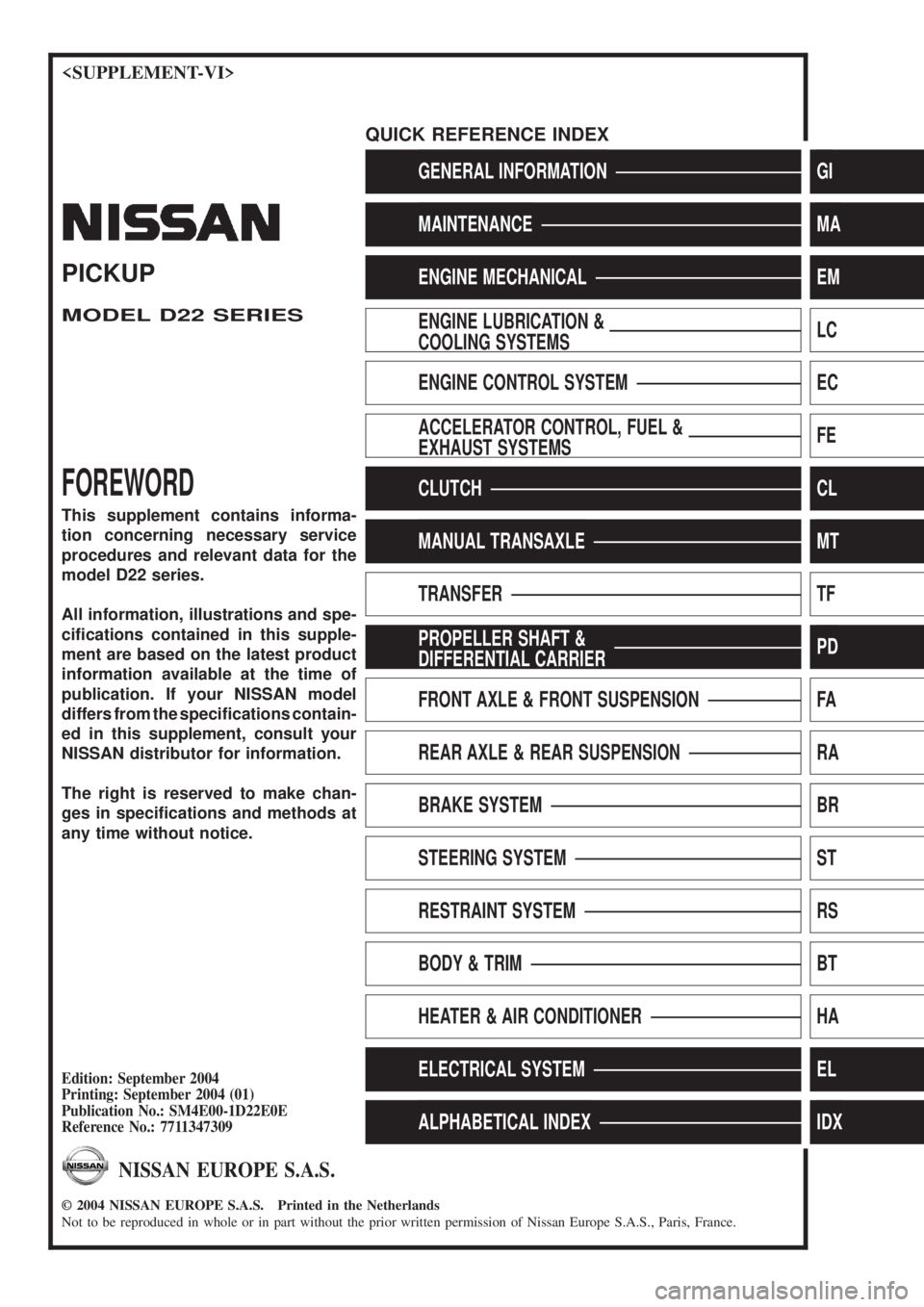

QUICK REFERENCE INDEX
Page 2 of 53

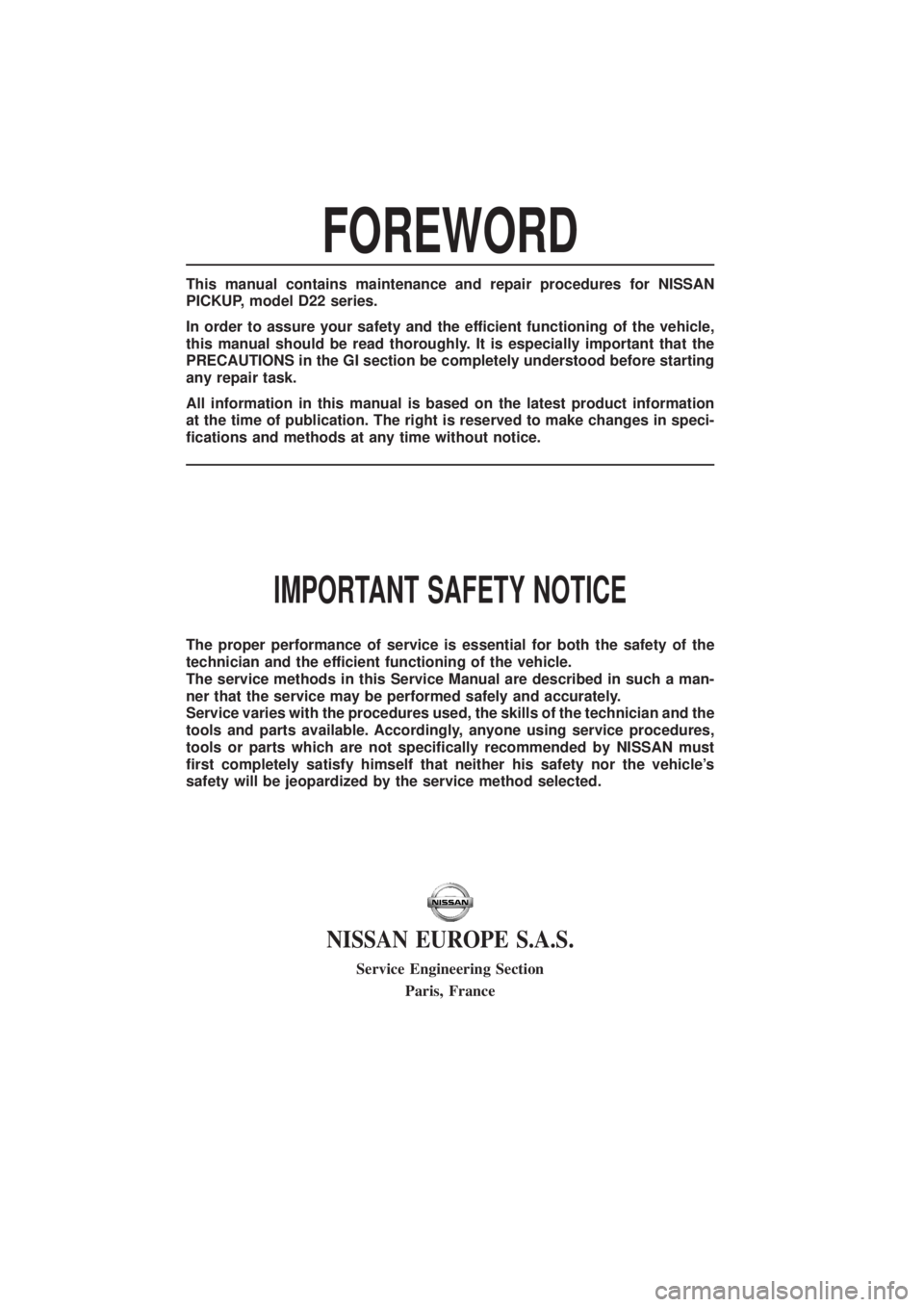

FOREWORD
This manual contains maintenance and repair procedures for NISSAN
PICKUP, model D22 series.
In order to assure your safety and the efficient functioning of the vehicle,
this manual should be read thoroughly. It is especially important that the
PRECAUTIONS in the GI section be completely understood before starting
any repair task.
All information in this manual is based on the latest product information
at the time of publication. The right is reserved to make changes in speci-
®cations and methods at any time without notice.
IMPORTANT SAFETY NOTICE
The proper performance of service is essential for both the safety of the
technician and the efficient functioning of the vehicle.
The service methods in this Service Manual are described in such a man-
ner that the service may be performed safely and accurately.
Service varies with the procedures used, the skills of the technician and the
tools and parts available. Accordingly, anyone using service procedures,
tools or parts which are not speci®cally recommended by NISSAN must
®rst completely satisfy himself that neither his safety nor the vehicle's
safety will be jeopardized by the service method selected.
NISSAN EUROPE S.A.S.
Service Engineering Section
Paris, France
Page 3 of 53

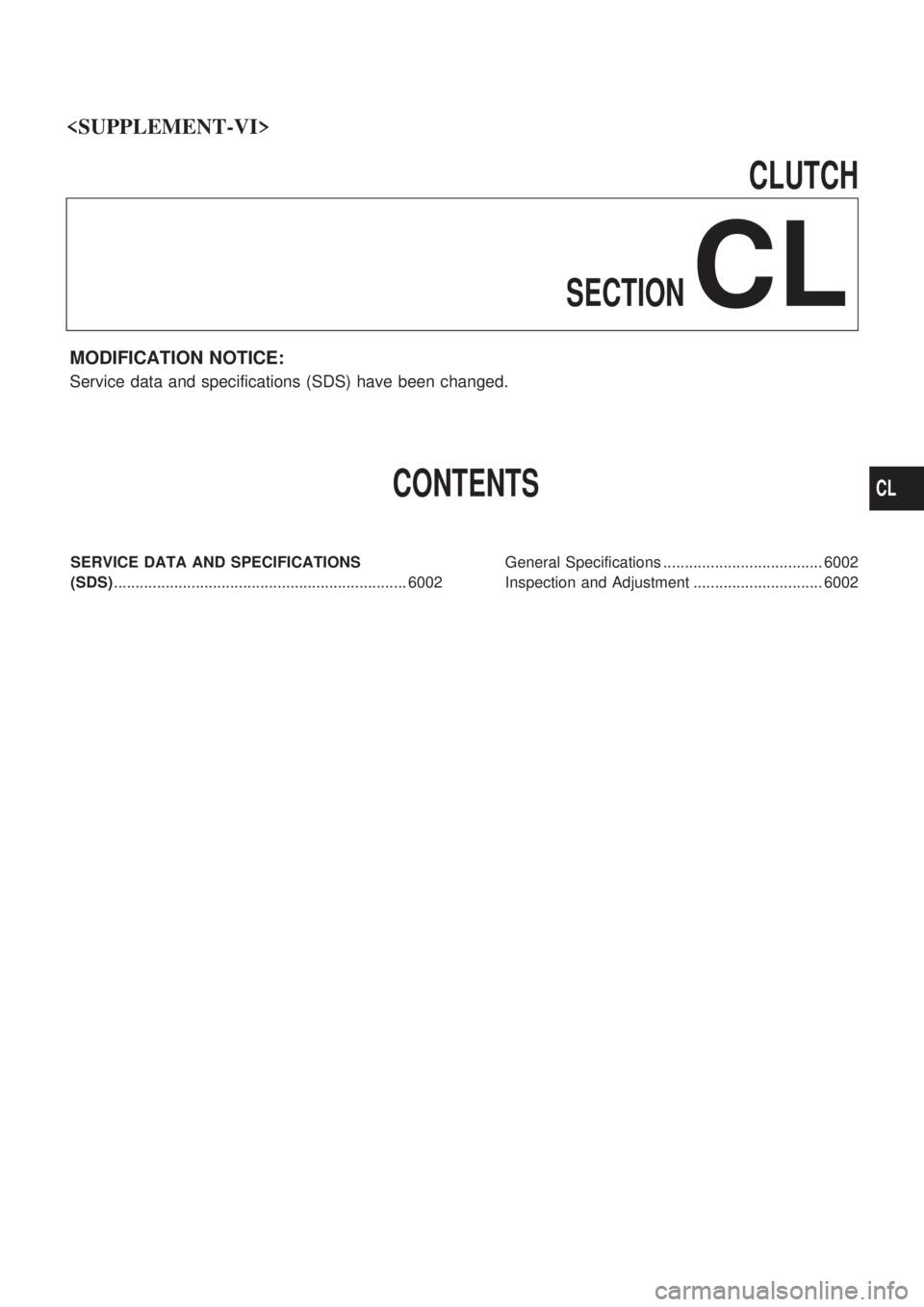

CLUTCH
SECTION
CL
MODIFICATION NOTICE:
Service data and specifications (SDS) have been changed.
CONTENTS
SERVICE DATA AND SPECIFICATIONS
(SDS).................................................................... 6002General Specifications ..................................... 6002
Inspection and Adjustment .............................. 6002
CL
Page 4 of 53

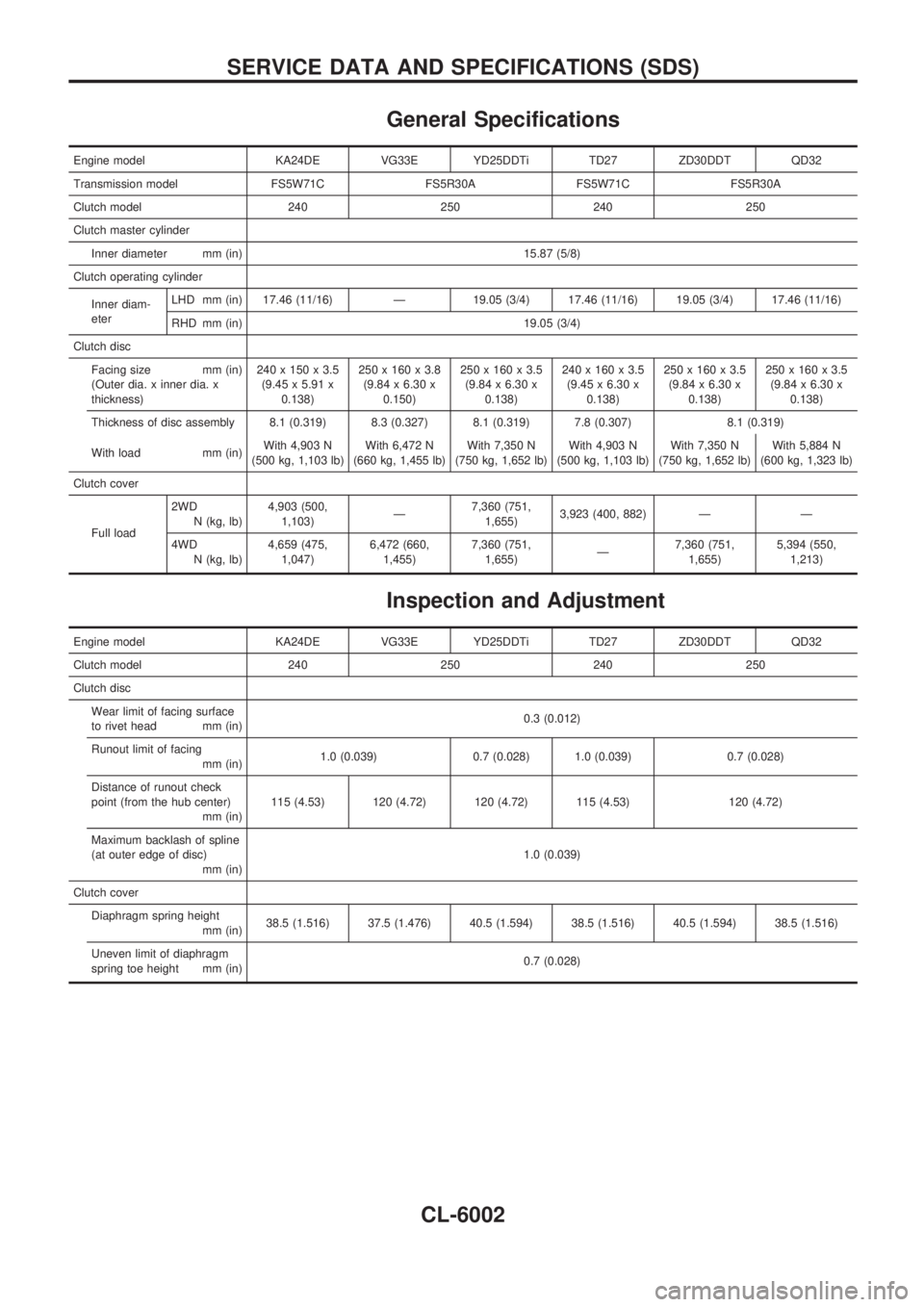

General Specifications
Engine model KA24DE VG33E YD25DDTi TD27 ZD30DDT QD32
Transmission model FS5W71C FS5R30A FS5W71C FS5R30A
Clutch model 240 250 240 250
Clutch master cylinder
Inner diameter mm (in) 15.87 (5/8)
Clutch operating cylinder
Inner diam-
eterLHD mm (in) 17.46 (11/16) Ð 19.05 (3/4) 17.46 (11/16) 19.05 (3/4) 17.46 (11/16)
RHD mm (in) 19.05 (3/4)
Clutch disc
Facing size mm (in)
(Outer dia. x inner dia. x
thickness)240 x 150 x 3.5
(9.45 x 5.91 x
0.138)250 x 160 x 3.8
(9.84 x 6.30 x
0.150)250 x 160 x 3.5
(9.84 x 6.30 x
0.138)240 x 160 x 3.5
(9.45 x 6.30 x
0.138)250 x 160 x 3.5
(9.84 x 6.30 x
0.138)250 x 160 x 3.5
(9.84 x 6.30 x
0.138)
Thickness of disc assembly 8.1 (0.319) 8.3 (0.327) 8.1 (0.319) 7.8 (0.307) 8.1 (0.319)
With load mm (in)With 4,903 N
(500 kg, 1,103 lb)With 6,472 N
(660 kg, 1,455 lb)With 7,350 N
(750 kg, 1,652 lb)With 4,903 N
(500 kg, 1,103 lb)With 7,350 N
(750 kg, 1,652 lb)With 5,884 N
(600 kg, 1,323 lb)
Clutch cover
Full load2WD
N (kg, lb)4,903 (500,
1,103)Ð7,360 (751,
1,655)3,923 (400, 882) Ð Ð
4WD
N (kg, lb)4,659 (475,
1,047)6,472 (660,
1,455)7,360 (751,
1,655)Ð7,360 (751,
1,655)5,394 (550,
1,213)
Inspection and Adjustment
Engine model KA24DE VG33E YD25DDTi TD27 ZD30DDT QD32
Clutch model 240 250 240 250
Clutch disc
Wear limit of facing surface
to rivet head mm (in)0.3 (0.012)
Runout limit of facing
mm (in)1.0 (0.039) 0.7 (0.028) 1.0 (0.039) 0.7 (0.028)
Distance of runout check
point (from the hub center)
mm (in)115 (4.53) 120 (4.72) 120 (4.72) 115 (4.53) 120 (4.72)
Maximum backlash of spline
(at outer edge of disc)
mm (in)1.0 (0.039)
Clutch cover
Diaphragm spring height
mm (in)38.5 (1.516) 37.5 (1.476) 40.5 (1.594) 38.5 (1.516) 40.5 (1.594) 38.5 (1.516)
Uneven limit of diaphragm
spring toe height mm (in)0.7 (0.028)
SERVICE DATA AND SPECIFICATIONS (SDS)
CL-6002
Page 5 of 53

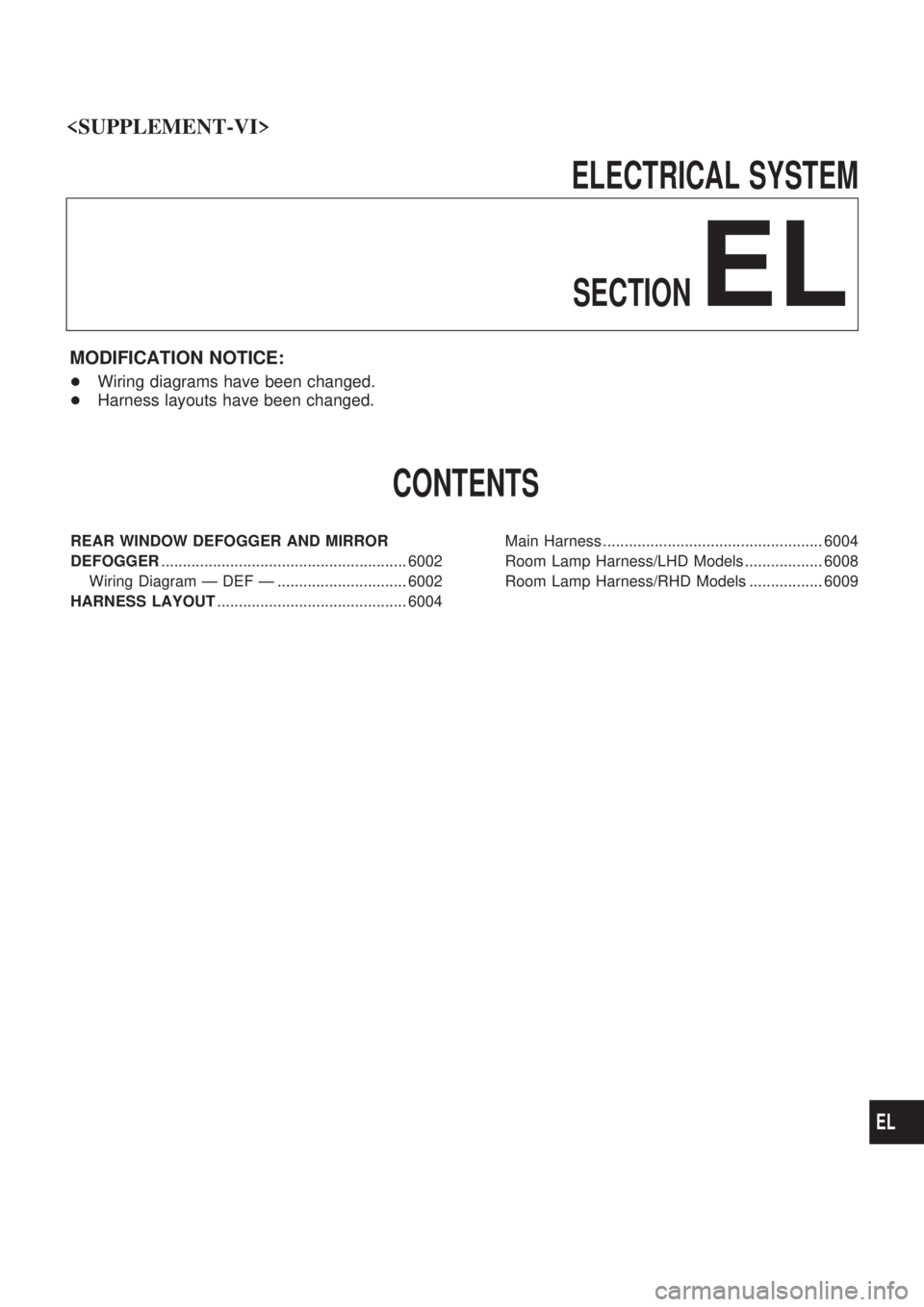

ELECTRICAL SYSTEM
SECTION
EL
MODIFICATION NOTICE:
+Wiring diagrams have been changed.
+Harness layouts have been changed.
CONTENTS
REAR WINDOW DEFOGGER AND MIRROR
DEFOGGER......................................................... 6002
Wiring Diagram Ð DEF Ð .............................. 6002
HARNESS LAYOUT............................................ 6004Main Harness ................................................... 6004
Room Lamp Harness/LHD Models .................. 6008
Room Lamp Harness/RHD Models ................. 6009
EL
Page 6 of 53
Wiring Diagram Ð DEF Ð
GEL042B
REAR WINDOW DEFOGGER AND MIRROR DEFOGGER
EL-6002
Page 7 of 53
NOTE
REAR WINDOW DEFOGGER AND MIRROR DEFOGGER
EL-6003
Page 8 of 53
Main Harness
INSTRUMENT PANEL Ð LHD MODELS
HEL139C
HARNESS LAYOUT
EL-6004
Page 9 of 53
HEL140C
HARNESS LAYOUT
Main Harness (Cont'd)
EL-6005
Page 10 of 53
INSTRUMENT PANEL Ð RHD MODELS
HEL084C
HARNESS LAYOUT
Main Harness (Cont'd)
EL-6006
