NISSAN PRIMERA 1999 Electronic Repair Manual

Schematic
YEL197C
: With rear power window
POWER WINDOW MAIN SWITCH
DRIVER’S SIDEPASSENGER
SIDEREAR LH REAR RH
AUTO AMP.
ILLUP
RELAYDOWN
RELAYBATTERY
(Via fusible link)IGNITION SWITCH
ON or START
FUSIBLE LINK
CIRCUIT
BREAKER-1
POWER WIN-
DOW RELAY
FRONT POWER WIN-
DOW SUB-SWITCHFRONT POWER WIN-
DOW
REGULATOR (PASSEN-
GER’S SIDE)
REAR POWER
WINDOW
SUB-SWITCH LHREAR POWER
WINDOW
REGULATOR LH
REAR POWER
WINDOW
SUB-SWITCH RHREAR POWER
WINDOW
REGULATOR RH
FRONT POWER
WINDOW
REGULATOR
(DRIVER’S SIDE) LOCK
SWITCH
POWER WINDOW
EL-239

Wiring Diagram—WINDOW—
YEL894C
POWER WINDOW
EL-240

YEL895C
POWER WINDOW
Wiring Diagram—WINDOW—(Cont’d)
EL-241

YEL896C
POWER WINDOW
Wiring Diagram—WINDOW—(Cont’d)
EL-242

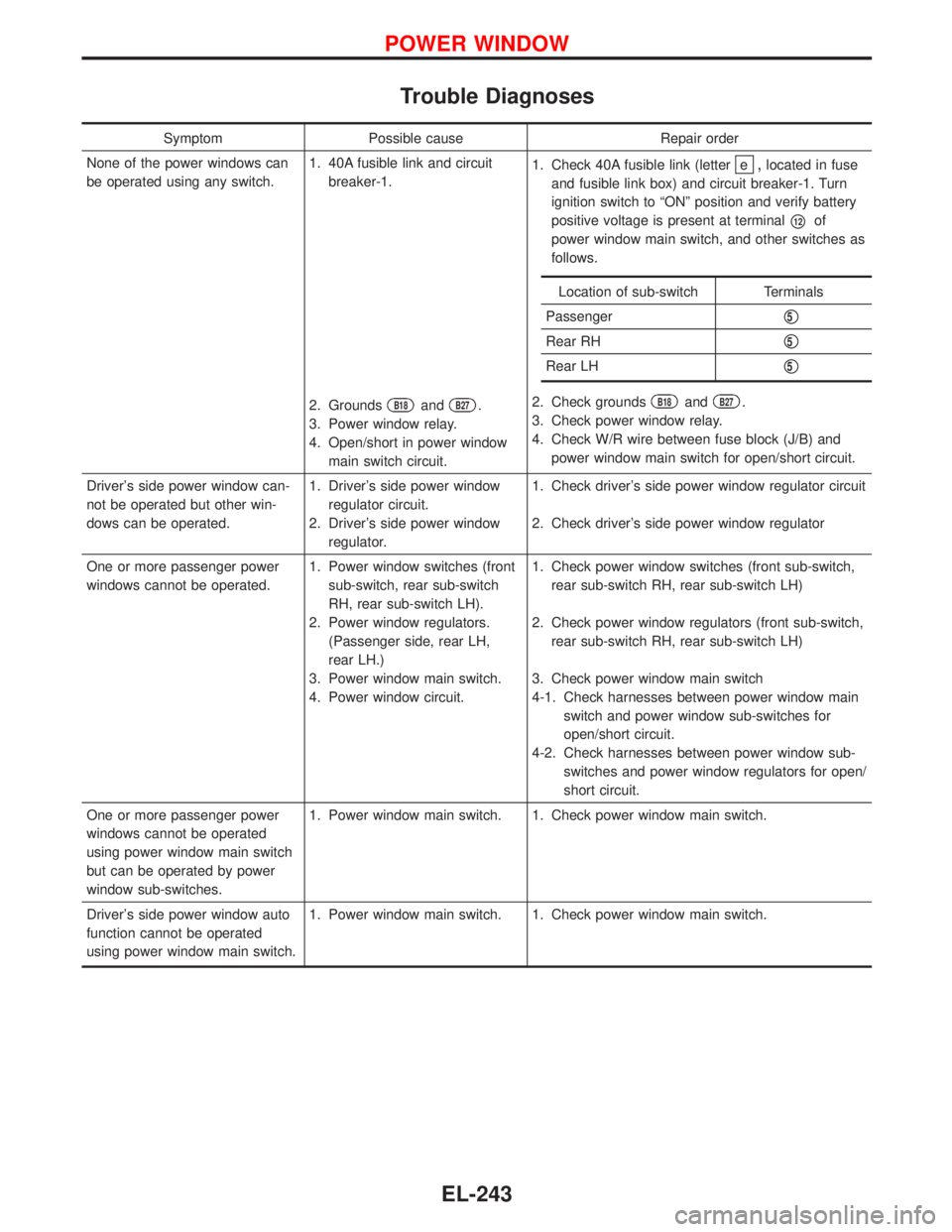

Trouble Diagnoses
Symptom Possible cause Repair order
None of the power windows can
be operated using any switch.1. 40A fusible link and circuit
breaker-1.
2. Grounds
B18andB27.
3. Power window relay.
4. Open/short in power window
main switch circuit.1. Check 40A fusible link (letter
e,located in fuse
and fusible link box) and circuit breaker-1. Turn
ignition switch to“ON”position and verify battery
positive voltage is present at terminal

12of
power window main switch, and other switches as
follows.
2. Check grounds
B18andB27.
3. Check power window relay.
4. Check W/R wire between fuse block (J/B) and
power window main switch for open/short circuit.
Driver’s side power window can-
not be operated but other win-
dows can be operated.1. Driver’s side power window
regulator circuit.
2. Driver’s side power window
regulator.1. Check driver’s side power window regulator circuit
2. Check driver’s side power window regulator
One or more passenger power
windows cannot be operated.1. Power window switches (front
sub-switch, rear sub-switch
RH, rear sub-switch LH).
2. Power window regulators.
(Passenger side, rear LH,
rear LH.)
3. Power window main switch.
4. Power window circuit.1. Check power window switches (front sub-switch,
rear sub-switch RH, rear sub-switch LH)
2. Check power window regulators (front sub-switch,
rear sub-switch RH, rear sub-switch LH)
3. Check power window main switch
4-1. Check harnesses between power window main
switch and power window sub-switches for
open/short circuit.
4-2. Check harnesses between power window sub-
switches and power window regulators for open/
short circuit.
One or more passenger power
windows cannot be operated
using power window main switch
but can be operated by power
window sub-switches.1. Power window main switch. 1. Check power window main switch.
Driver’s side power window auto
function cannot be operated
using power window main switch.1. Power window main switch. 1. Check power window main switch.
Location of sub-switch Terminals
Passenger

5
Rear RH
5
Rear LH
5
POWER WINDOW
EL-243

NOTE
POWER WINDOW
EL-244

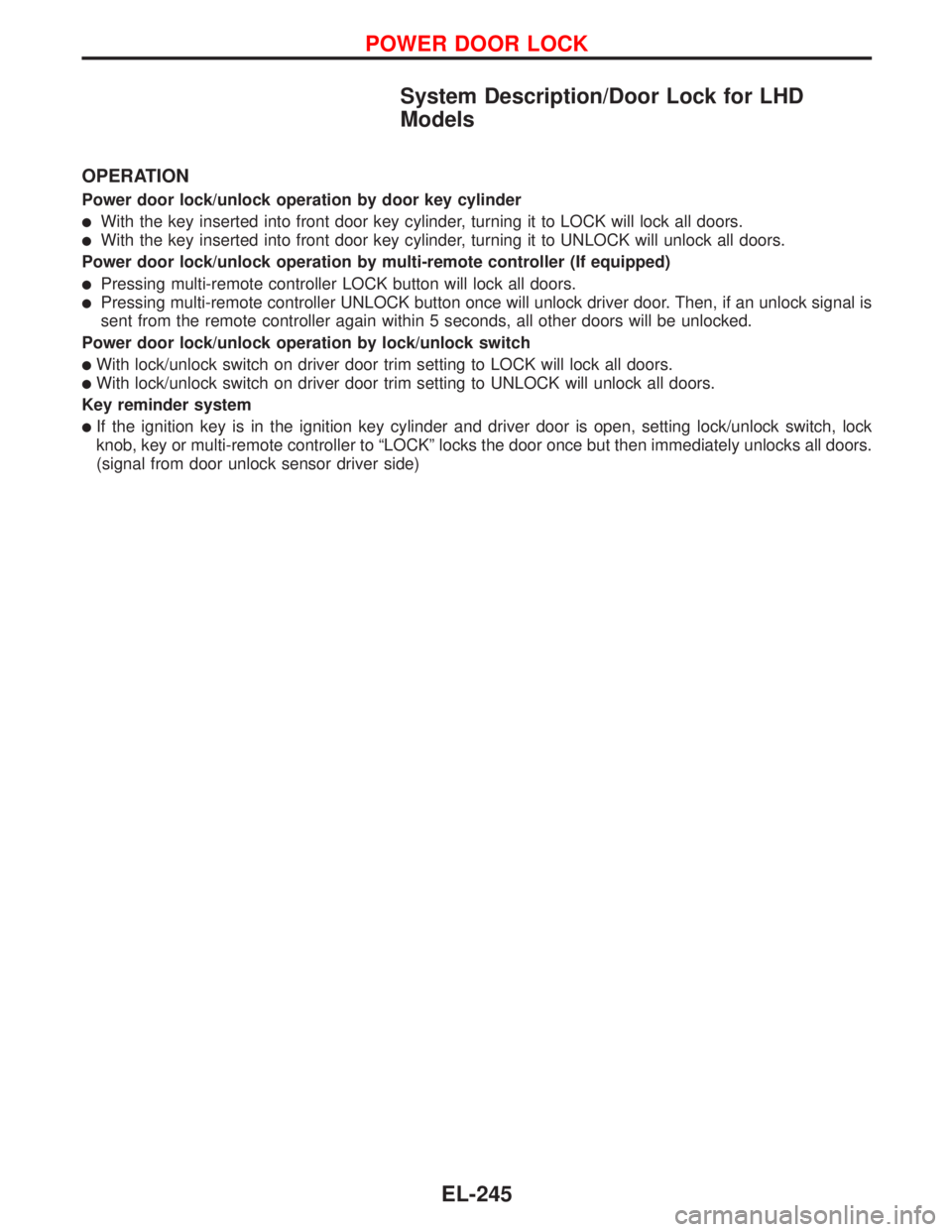

System Description/Door Lock for LHD
Models
OPERATION
Power door lock/unlock operation by door key cylinder

With the key inserted into front door key cylinder, turning it to LOCK will lock all doors.

With the key inserted into front door key cylinder, turning it to UNLOCK will unlock all doors.
Power door lock/unlock operation by multi-remote controller (If equipped)

Pressing multi-remote controller LOCK button will lock all doors.

Pressing multi-remote controller UNLOCK button once will unlock driver door. Then, if an unlock signal is
sent from the remote controller again within 5 seconds, all other doors will be unlocked.
Power door lock/unlock operation by lock/unlock switch

With lock/unlock switch on driver door trim setting to LOCK will lock all doors.

With lock/unlock switch on driver door trim setting to UNLOCK will unlock all doors.
Key reminder system

If the ignition key is in the ignition key cylinder and driver door is open, setting lock/unlock switch, lock
knob, key or multi-remote controller to“LOCK”locks the door once but then immediately unlocks all doors.
(signal from door unlock sensor driver side)
POWER DOOR LOCK
EL-245

Schematic
YEL897C
POWER DOOR LOCK
EL-246

YEL898C
POWER DOOR LOCK
Schematic (Cont’d)
EL-247

Wiring Diagram—D/LOCK—
YEL899C
POWER DOOR LOCK
EL-248
