NISSAN QASHQAI 2017 Owner´s Manual

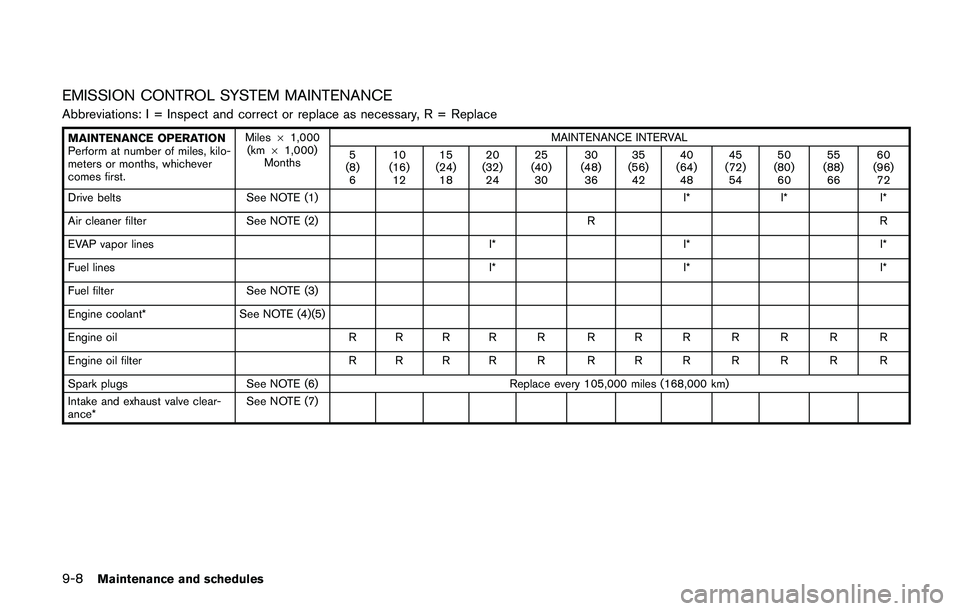

9-8Maintenance and schedules
EMISSION CONTROL SYSTEM MAINTENANCE
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATION
Perform at number of miles, kilo-
meters or months, whichever
comes first.Miles61,000
(km61,000)
MonthsMAINTENANCE INTERVAL
5
(8)
610
(16)
1215
(24)
1820
(32)
2425
(40)
3030
(48)
3635
(56)
4240
(64)
4845
(72)
5450
(80)
6055
(88)
6660
(96)
72
Drive belts See NOTE (1) I* I* I*
Air cleaner filter See NOTE (2) R R
EVAP vapor lines I* I* I*
Fuel linesI* I* I*
Fuel filter See NOTE (3)
Engine coolant* See NOTE (4)(5)
Engine oil R R R R R R R R R R R R
Engine oil filter R R R R R R R R R R R R
Spark plugs See NOTE (6) Replace every 105,000 miles (168,000 km)
Intake and exhaust valve clear-
ance*See NOTE (7)

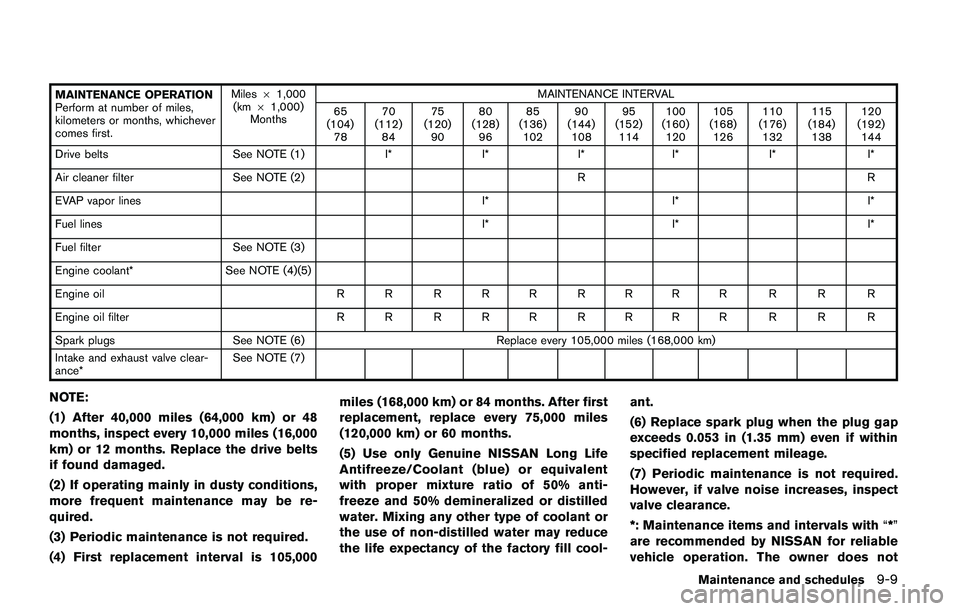

MAINTENANCE OPERATION
Perform at number of miles,
kilometers or months, whichever
comes first.Miles61,000
(km61,000)
MonthsMAINTENANCE INTERVAL
65
(104)
7870
(112)
8475
(120)
9080
(128)
9685
(136)
10290
(144)
10895
(152)
114100
(160)
120105
(168)
126110
(176)
132115
(184)
138120
(192)
144
Drive belts See NOTE (1) I* I* I* I* I* I*
Air cleaner filter See NOTE (2) R R
EVAP vapor lines I* I* I*
Fuel linesI* I* I*
Fuel filter See NOTE (3)
Engine coolant* See NOTE (4)(5)
Engine oil R R R R R R R R R R R R
Engine oil filter R R R R R R R R R R R R
Spark plugs See NOTE (6) Replace every 105,000 miles (168,000 km)
Intake and exhaust valve clear-
ance*See NOTE (7)
NOTE:
(1) After 40,000 miles (64,000 km) or 48
months, inspect every 10,000 miles (16,000
km) or 12 months. Replace the drive belts
if found damaged.
(2) If operating mainly in dusty conditions,
more frequent maintenance may be re-
quired.
(3) Periodic maintenance is not required.
(4) First replacement interval is 105,000miles (168,000 km) or 84 months. After first
replacement, replace every 75,000 miles
(120,000 km) or 60 months.
(5) Use only Genuine NISSAN Long Life
Antifreeze/Coolant (blue) or equivalent
with proper mixture ratio of 50% anti-
freeze and 50% demineralized or distilled
water. Mixing any other type of coolant or
the use of non-distilled water may reduce
the life expectancy of the factory fill cool-ant.
(6) Replace spark plug when the plug gap
exceeds 0.053 in (1.35 mm) even if within
specified replacement mileage.
(7) Periodic maintenance is not required.
However, if valve noise increases, inspect
valve clearance.
*: Maintenance items and intervals with“*”
are recommended by NISSAN for reliable
vehicle operation. The owner does not
Maintenance and schedules9-9

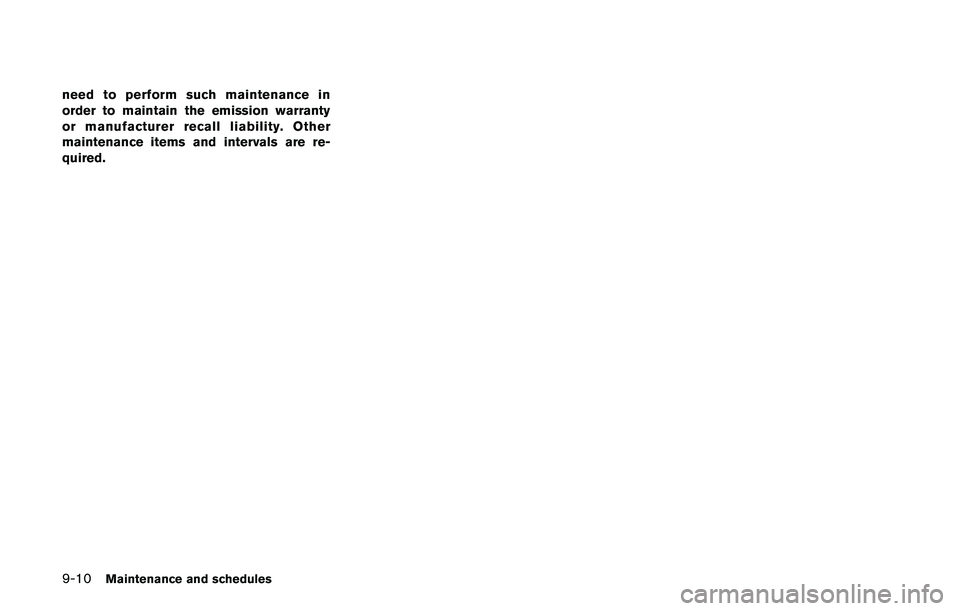

9-10Maintenance and schedules
need to perform such maintenance in
order to maintain the emission warranty
or manufacturer recall liability. Other
maintenance items and intervals are re-
quired.

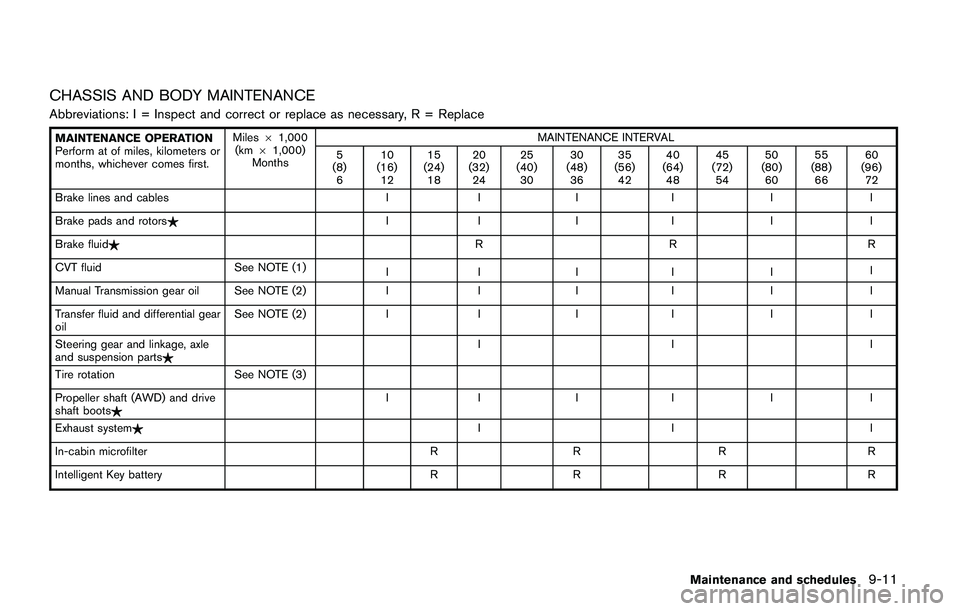

CHASSIS AND BODY MAINTENANCE
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATION
Perform at of miles, kilometers or
months, whichever comes first.Miles61,000
(km61,000)
MonthsMAINTENANCE INTERVAL
5
(8)
610
(16)
1215
(24)
1820
(32)
2425
(40)
3030
(48)
3635
(56)
4240
(64)
4845
(72)
5450
(80)
6055
(88)
6660
(96)
72
Brake lines and cables I I I I I I
Brake pads and rotors$II I I I I
Brake fluid$RR R
CVT fluid See NOTE (1)
II I I II
Manual Transmission gear oil See NOTE (2) I I I I I I
Transfer fluid and differential gear
oilSee NOTE (2) I I I I I I
Steering gear and linkage, axle
and suspension parts$II I
Tire rotation See NOTE (3)
Propeller shaft (AWD) and drive
shaft boots$II I I I I
Exhaust system$II I
In-cabin microfilter R R R R
Intelligent Key battery R R R R
Maintenance and schedules9-11

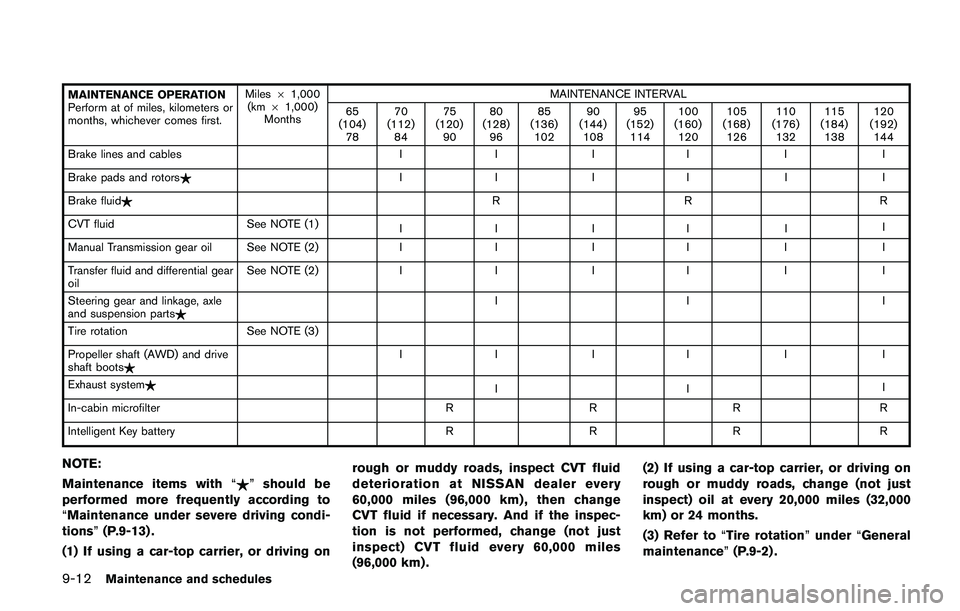

9-12Maintenance and schedules
MAINTENANCE OPERATION
Perform at of miles, kilometers or
months, whichever comes first.Miles61,000
(km61,000)
MonthsMAINTENANCE INTERVAL
65
(104)
7870
(112)
8475
(120)
9080
(128)
9685
(136)
10290
(144)
10895
(152)
114100
(160)
120105
(168)
126110
(176)
132115
(184)
138120
(192)
144
Brake lines and cables I I I I I I
Brake pads and rotors$II II I I
Brake fluid$RR R
CVT fluid See NOTE (1)
II II II
Manual Transmission gear oil See NOTE (2) I I I I I I
Transfer fluid and differential gear
oilSee NOTE (2) I I I I I I
Steering gear and linkage, axle
and suspension parts$II I
Tire rotation See NOTE (3)
Propeller shaft (AWD) and drive
shaft boots$II II I I
Exhaust system$
III
In-cabin microfilter R R R R
Intelligent Key battery R R R R
NOTE:
Maintenance items with“$”should be
performed more frequently according to
“Maintenance under severe driving condi-
tions”(P.9-13) .
(1) If using a car-top carrier, or driving onrough or muddy roads, inspect CVT fluid
deterioration at NISSAN dealer every
60,000 miles (96,000 km) , then change
CVT fluid if necessary. And if the inspec-
tion is not performed, change (not just
inspect) CVT fluid every 60,000 miles
(96,000 km) .(2) If using a car-top carrier, or driving on
rough or muddy roads, change (not just
inspect) oil at every 20,000 miles (32,000
km) or 24 months.
(3) Refer to“Tire rotation”under“General
maintenance”(P.9-2) .

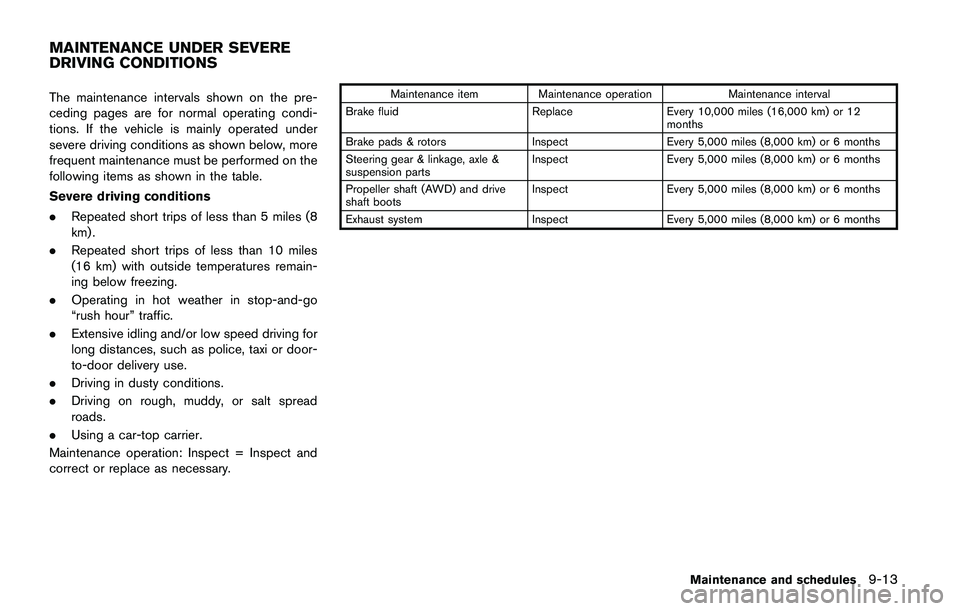

The maintenance intervals shown on the pre-
ceding pages are for normal operating condi-
tions. If the vehicle is mainly operated under
severe driving conditions as shown below, more
frequent maintenance must be performed on the
following items as shown in the table.
Severe driving conditions
.Repeated short trips of less than 5 miles (8
km) .
.Repeated short trips of less than 10 miles
(16 km) with outside temperatures remain-
ing below freezing.
.Operating in hot weather in stop-and-go
“rush hour” traffic.
.Extensive idling and/or low speed driving for
long distances, such as police, taxi or door-
to-door delivery use.
.Driving in dusty conditions.
.Driving on rough, muddy, or salt spread
roads.
.Using a car-top carrier.
Maintenance operation: Inspect = Inspect and
correct or replace as necessary.Maintenance item Maintenance operation Maintenance interval
Brake fluid Replace Every 10,000 miles (16,000 km) or 12
months
Brake pads & rotors Inspect Every 5,000 miles (8,000 km) or 6 months
Steering gear & linkage, axle &
suspension partsInspect Every 5,000 miles (8,000 km) or 6 months
Propeller shaft (AWD) and drive
shaft bootsInspect Every 5,000 miles (8,000 km) or 6 months
Exhaust system Inspect Every 5,000 miles (8,000 km) or 6 months
Maintenance and schedules9-13
MAINTENANCE UNDER SEVERE
DRIVING CONDITIONS

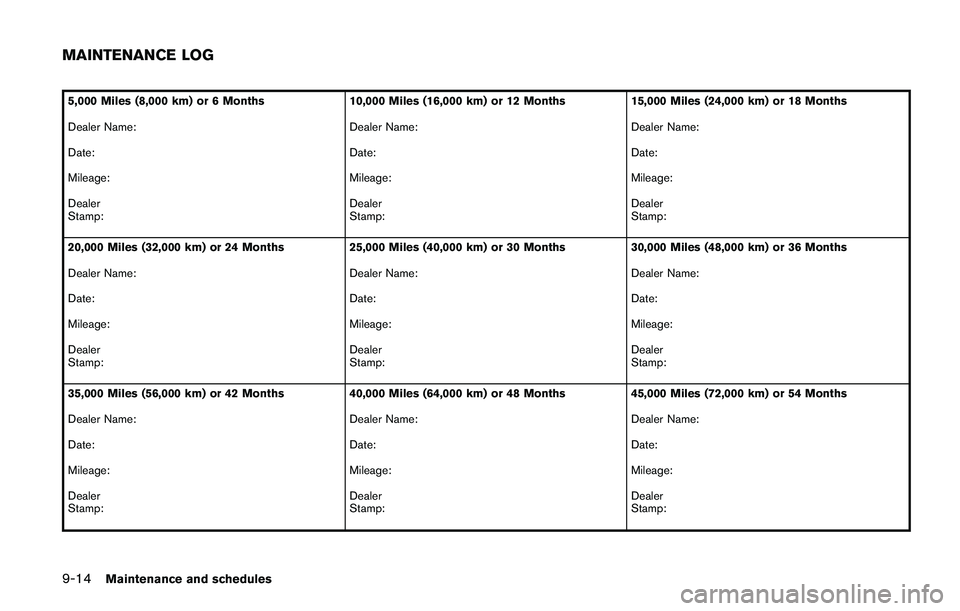

9-14Maintenance and schedules
5,000 Miles (8,000 km) or 6 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:10,000 Miles (16,000 km) or 12 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:15,000 Miles (24,000 km) or 18 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
20,000 Miles (32,000 km) or 24 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:25,000 Miles (40,000 km) or 30 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:30,000 Miles (48,000 km) or 36 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
35,000 Miles (56,000 km) or 42 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:40,000 Miles (64,000 km) or 48 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:45,000 Miles (72,000 km) or 54 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
MAINTENANCE LOG

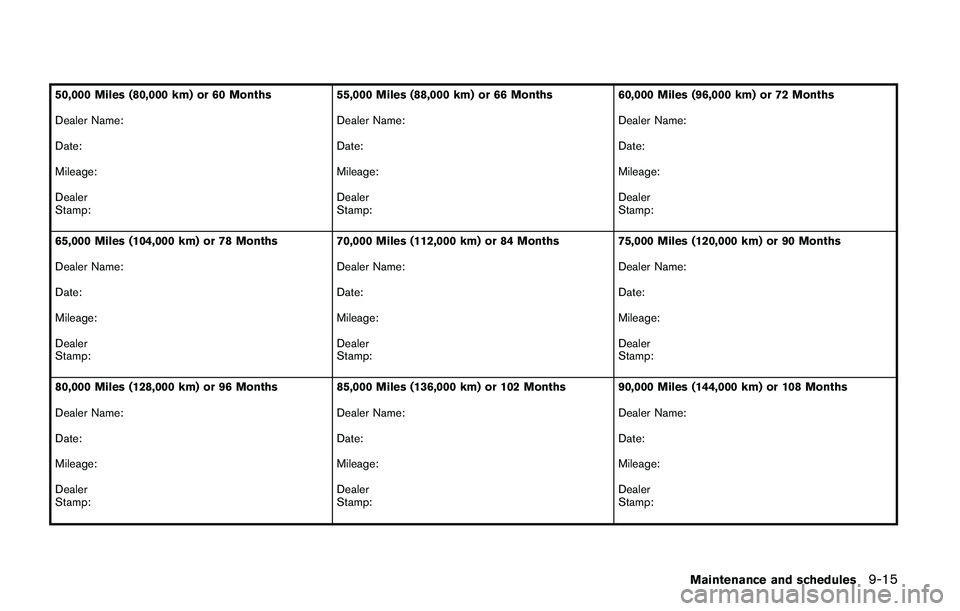

50,000 Miles (80,000 km) or 60 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:55,000 Miles (88,000 km) or 66 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:60,000 Miles (96,000 km) or 72 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
65,000 Miles (104,000 km) or 78 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:70,000 Miles (112,000 km) or 84 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:75,000 Miles (120,000 km) or 90 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
80,000 Miles (128,000 km) or 96 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:85,000 Miles (136,000 km) or 102 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:90,000 Miles (144,000 km) or 108 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
Maintenance and schedules9-15

9-16Maintenance and schedules

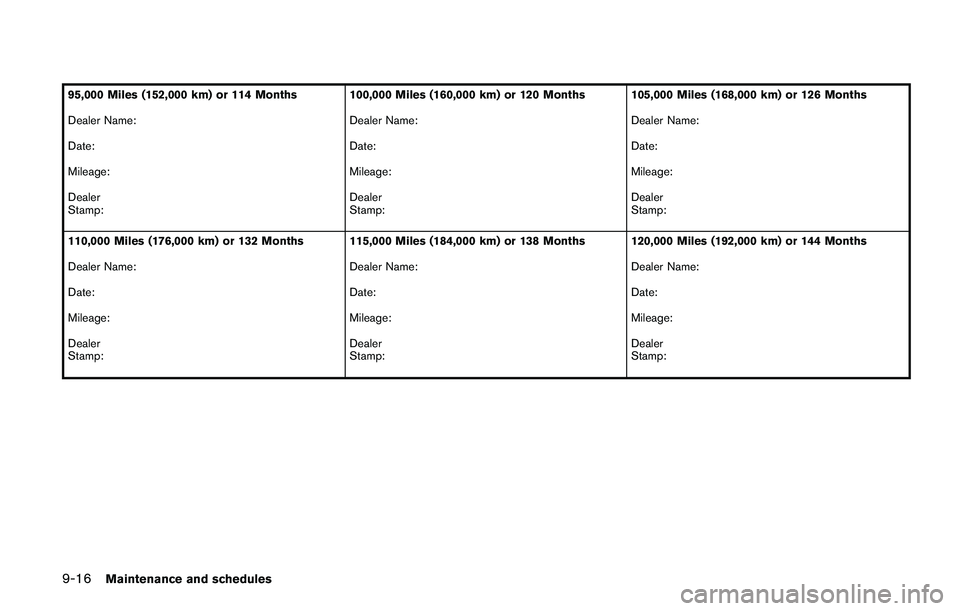

95,000 Miles (152,000 km) or 114 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:100,000 Miles (160,000 km) or 120 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:105,000 Miles (168,000 km) or 126 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
110,000 Miles (176,000 km) or 132 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:115,000 Miles (184,000 km) or 138 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:120,000 Miles (192,000 km) or 144 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:

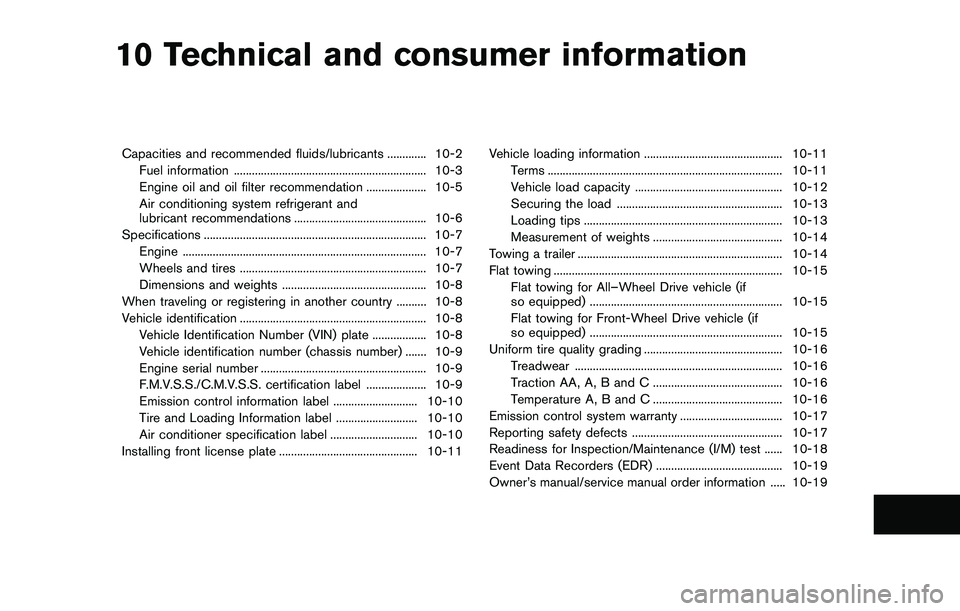

10 Technical and consumer information
Capacities and recommended fluids/lubricants ............. 10-2
Fuel information ................................................................ 10-3
Engine oil and oil filter recommendation .................... 10-5
Air conditioning system refrigerant and
lubricant recommendations ............................................ 10-6
Specifications .......................................................................... 10-7
Engine ................................................................................. 10-7
Wheels and tires .............................................................. 10-7
Dimensions and weights ................................................ 10-8
When traveling or registering in another country .......... 10-8
Vehicle identification .............................................................. 10-8
Vehicle Identification Number (VIN) plate .................. 10-8
Vehicle identification number (chassis number) ....... 10-9
Engine serial number ....................................................... 10-9
F.M.V.S.S./C.M.V.S.S. certification label .................... 10-9
Emission control information label ............................ 10-10
Tire and Loading Information label ........................... 10-10
Air conditioner specification label ............................. 10-10
Installing front license plate .............................................. 10-11Vehicle loading information .............................................. 10-11
Terms .............................................................................. 10-11
Vehicle load capacity ................................................. 10-12
Securing the load ....................................................... 10-13
Loading tips .................................................................. 10-13
Measurement of weights ........................................... 10-14
Towing a trailer .................................................................... 10-14
Flat towing ............................................................................ 10-15
Flat towing for All–Wheel Drive vehicle (if
so equipped) ................................................................ 10-15
Flat towing for Front-Wheel Drive vehicle (if
so equipped) ................................................................ 10-15
Uniform tire quality grading .............................................. 10-16
Treadwear ..................................................................... 10-16
Traction AA, A, B and C ........................................... 10-16
Temperature A, B and C ........................................... 10-16
Emission control system warranty .................................. 10-17
Reporting safety defects .................................................. 10-17
Readiness for Inspection/Maintenance (I/M) test ...... 10-18
Event Data Recorders (EDR) .......................................... 10-19
Owner’s manual/service manual order information ..... 10-19
