Page 301 of 491
> ( G L W 0 R G H O ( ' @

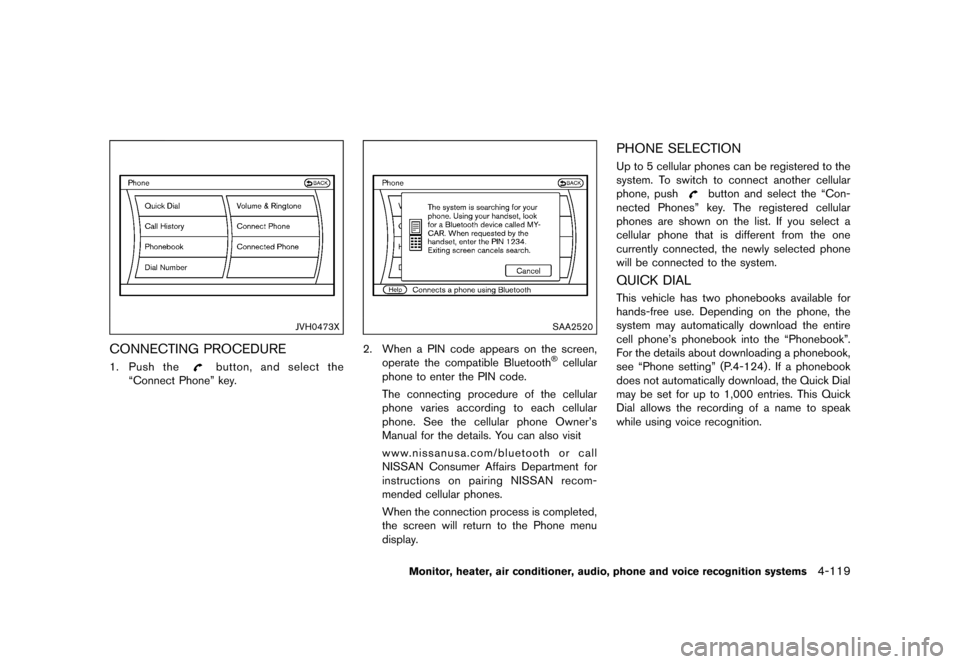

JVH0473X
CONNECTING PROCEDUREGUID-21176BFE-792B-4765-B92B-3205D8DDC7DE1.Push thebutton, and select the
ªConnect Phoneº key.
SAA2520
2. When a PIN code appears on the screen,
operate the compatible Bluetooth

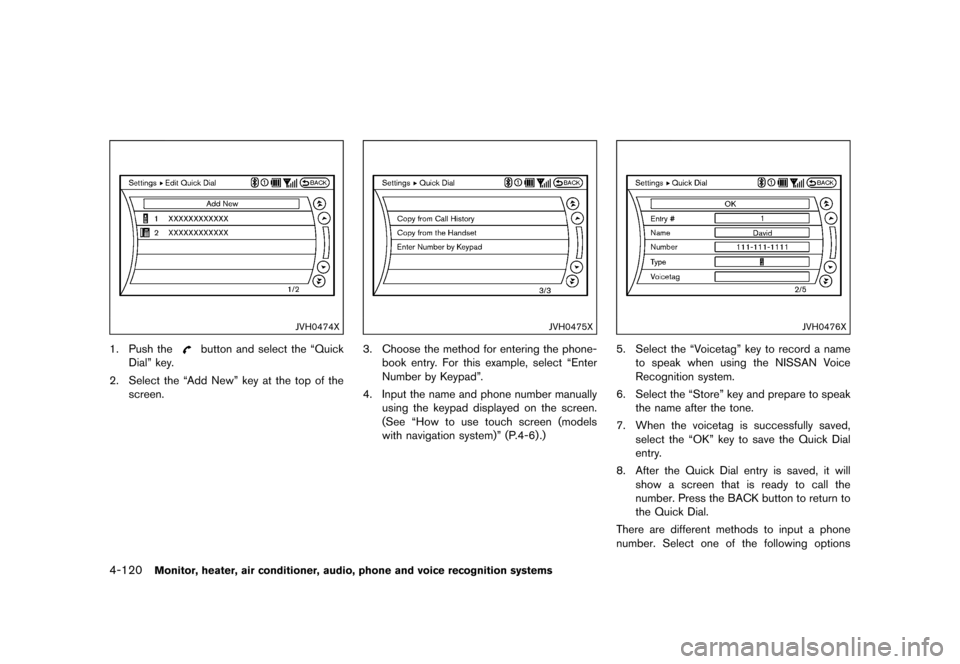

Page 302 of 491
> ( G L W 0 R G H O ( ' @
4-120Monitor, heater, air conditioner, audio, phone and voice recognition systems
JVH0474X
1. Push thebutton and select the ªQuick
Dialº key.
2. Select the ªAdd Newº key at the top of the screen.
JVH0475X
3. Choose the method for entering the phone-
book entry. For this example, select ªEnter
Number by Keypadº.
4. Input the name and phone number manually using the keypad displayed on the screen.
(See ªHow to use touch screen (models
with navigation system)º (P.4-6) .)
JVH0476X
5. Select the ªVoicetagº key to record a name
to speak when using the NISSAN Voice
Recognition system.
6. Select the ªStoreº key and prepare to speak the name after the tone.
7. When the voicetag is successfully saved, select the ªOKº key to save the Quick Dial
entry.
8. After the Quick Dial entry is saved, it will show a screen that is ready to call the
number. Press the BACK button to return to
the Quick Dial.
There are different methods to input a phone
number. Select one of the following options
& R Q G L W L R Q

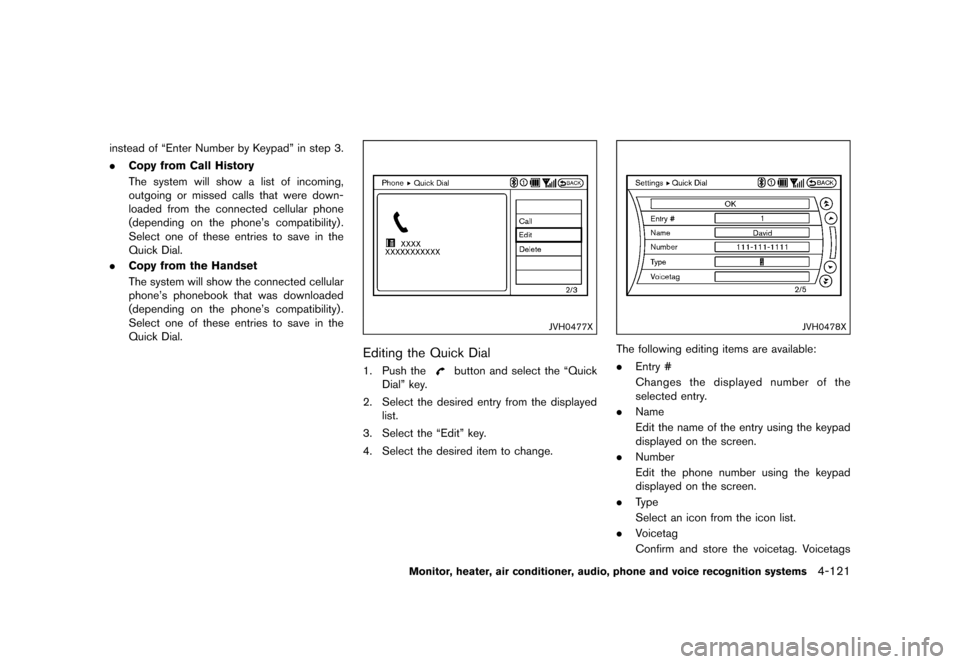

Page 303 of 491
> ( G L W 0 R G H O ( ' @
instead of ªEnter Number by Keypadº in step 3.
.Copy from Call History
The system will show a list of incoming,
outgoing or missed calls that were down-
loaded from the connected cellular phone
(depending on the phone's compatibility) .
Select one of these entries to save in the
Quick Dial.
. Copy from the Handset
The system will show the connected cellular
phone's phonebook that was downloaded
(depending on the phone's compatibility) .
Select one of these entries to save in the
Quick Dial.
JVH0477X
Editing the Quick DialGUID-DCA53C75-BAF5-473E-9820-3B6F07F337A61. Push thebutton and select the ªQuick
Dialº key.
2. Select the desired entry from the displayed list.
3. Select the ªEditº key.
4. Select the desired item to change.
JVH0478X
The following editing items are available:
. Entry #
Changes the displayed number of the
selected entry.
. Name
Edit the name of the entry using the keypad
displayed on the screen.
. Number
Edit the phone number using the keypad
displayed on the screen.
. Type
Select an icon from the icon list.
. Voicetag
Confirm and store the voicetag. Voicetags
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-121
& R Q G L W L R Q

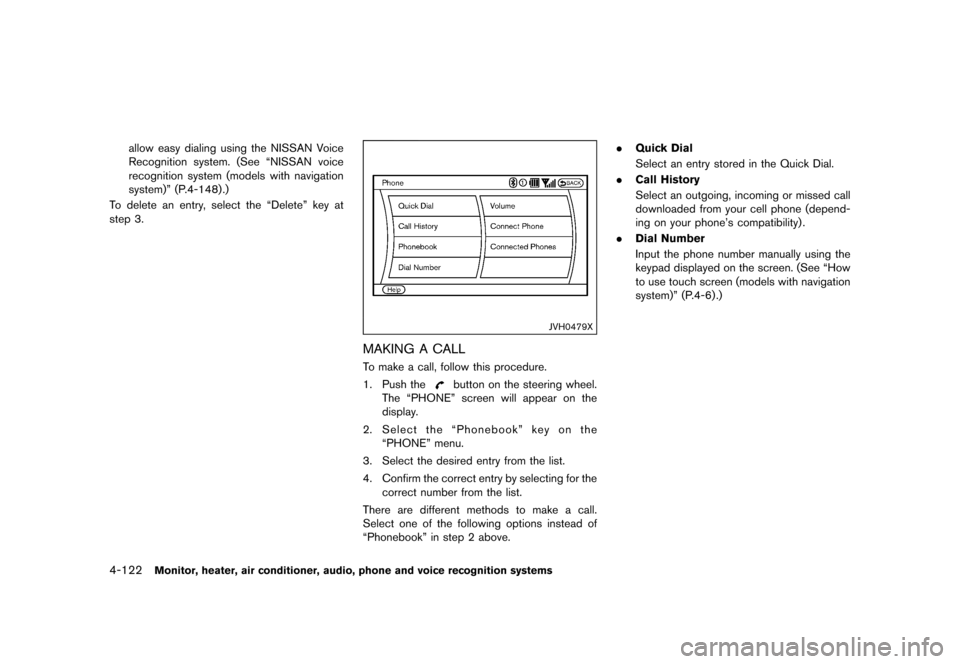

Page 304 of 491
> ( G L W 0 R G H O ( ' @
4-122Monitor, heater, air conditioner, audio, phone and voice recognition systems
allow easy dialing using the NISSAN Voice
Recognition system. (See ªNISSAN voice
recognition system (models with navigation
system)º (P.4-148) .)
To delete an entry, select the ªDeleteº key at
step 3.
JVH0479X
MAKING A CALLGUID-5F54DB75-9326-47BC-A871-B23ED8640ECDTo make a call, follow this procedure.
1. Push the
button on the steering wheel.
The ªPHONEº screen will appear on the
display.
2. Select the ªPhonebookº key on the
ªPHONEº menu.
3. Select the desired entry from the list.
4. Confirm the correct entry by selecting for the correct number from the list.
There are different methods to make a call.
Select one of the following options instead of
ªPhonebookº in step 2 above. .
Quick Dial
Select an entry stored in the Quick Dial.
. Call History
Select an outgoing, incoming or missed call
downloaded from your cell phone (depend-
ing on your phone's compatibility) .
. Dial Number
Input the phone number manually using the
keypad displayed on the screen. (See ªHow
to use touch screen (models with navigation
system)º (P.4-6) .)
& R Q G L W L R Q

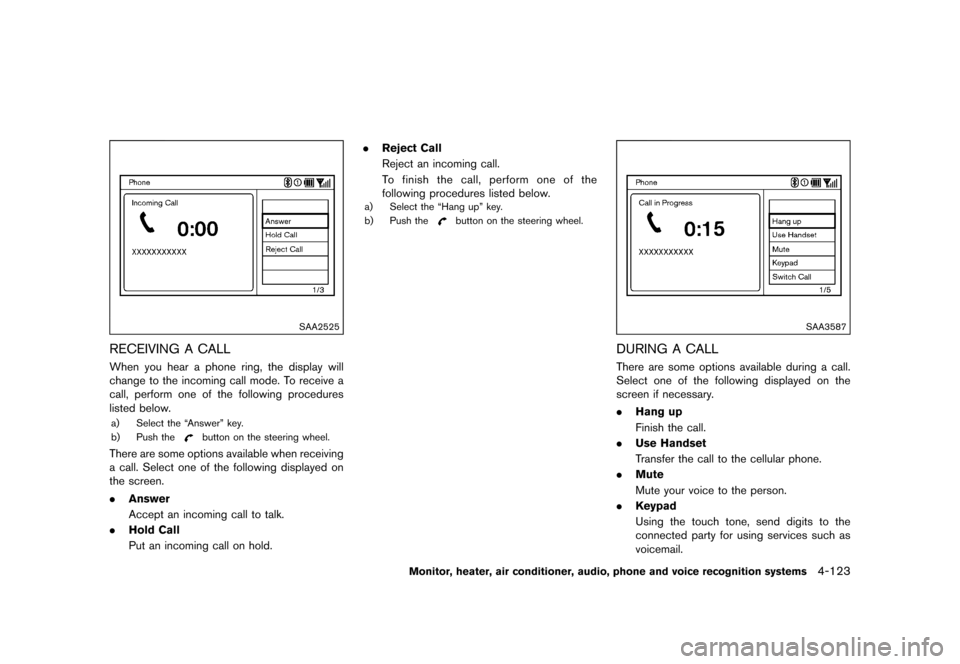

Page 305 of 491
> ( G L W 0 R G H O ( ' @
SAA2525
RECEIVING A CALLGUID-F40E182B-7233-40B7-BF81-7AF4F052ECBBWhen you hear a phone ring, the display will
change to the incoming call mode. To receive a
call, perform one of the following procedures
listed below.
a) Select the ªAnswerº key.
b) Push the
button on the steering wheel.
There are some options available when receiving
a call. Select one of the following displayed on
the screen.
.Answer
Accept an incoming call to talk.
. Hold Call
Put an incoming call on hold. .
Reject Call
Reject an incoming call.
To finish the call, perform one of the
following procedures listed below.
a) Select the ªHang upº key.
b) Push the
button on the steering wheel.
SAA3587
DURING A CALLGUID-CD16AE29-C092-4D4C-B4F8-BE1BCA13F8E5There are some options available during a call.
Select one of the following displayed on the
screen if necessary.
.Hang up
Finish the call.
. Use Handset
Transfer the call to the cellular phone.
. Mute
Mute your voice to the person.
. Keypad
Using the touch tone, send digits to the
connected party for using services such as
voicemail.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-123
& R Q G L W L R Q

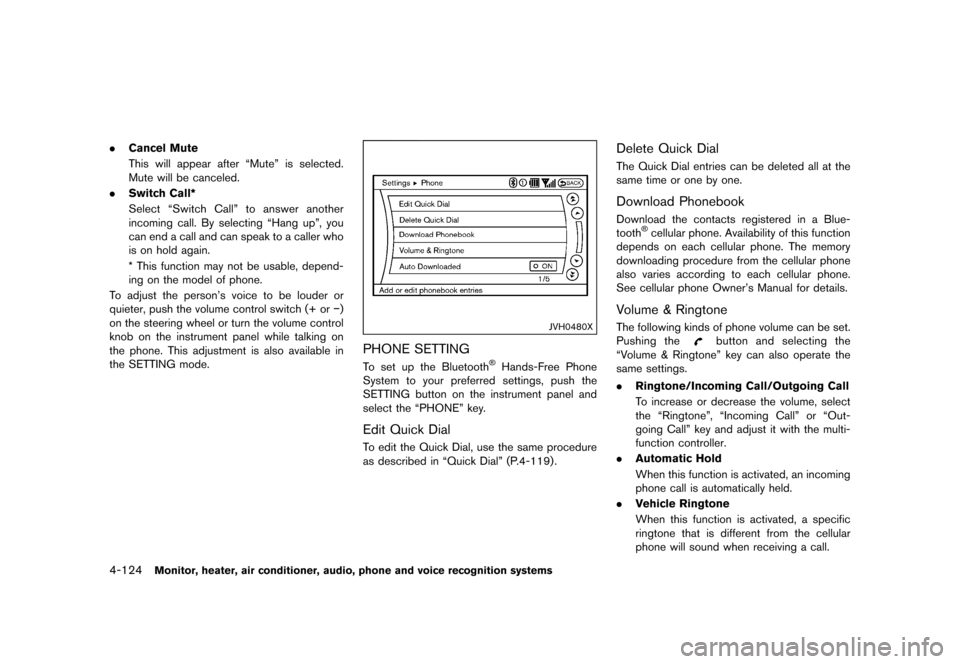

Page 306 of 491
> ( G L W 0 R G H O ( ' @
4-124Monitor, heater, air conditioner, audio, phone and voice recognition systems
.Cancel Mute
This will appear after ªMuteº is selected.
Mute will be canceled.
. Switch Call*
Select ªSwitch Callº to answer another
incoming call. By selecting ªHang upº, you
can end a call and can speak to a caller who
is on hold again.
* This function may not be usable, depend-
ing on the model of phone.
To adjust the person's voice to be louder or
quieter, push the volume control switch (+ or

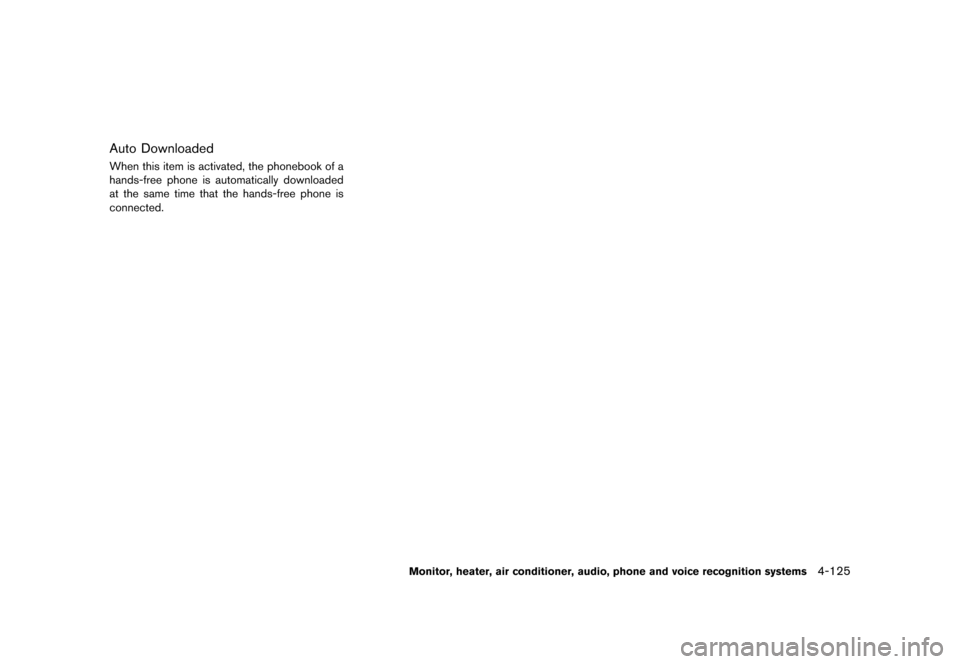

Page 307 of 491
> ( G L W 0 R G H O ( ' @
Auto DownloadedGUID-75043781-6D31-473A-AA5E-C5693BCE9F6CWhen this item is activated, the phonebook of a
hands-free phone is automatically downloaded
at the same time that the hands-free phone is
connected.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-125
& R Q G L W L R Q

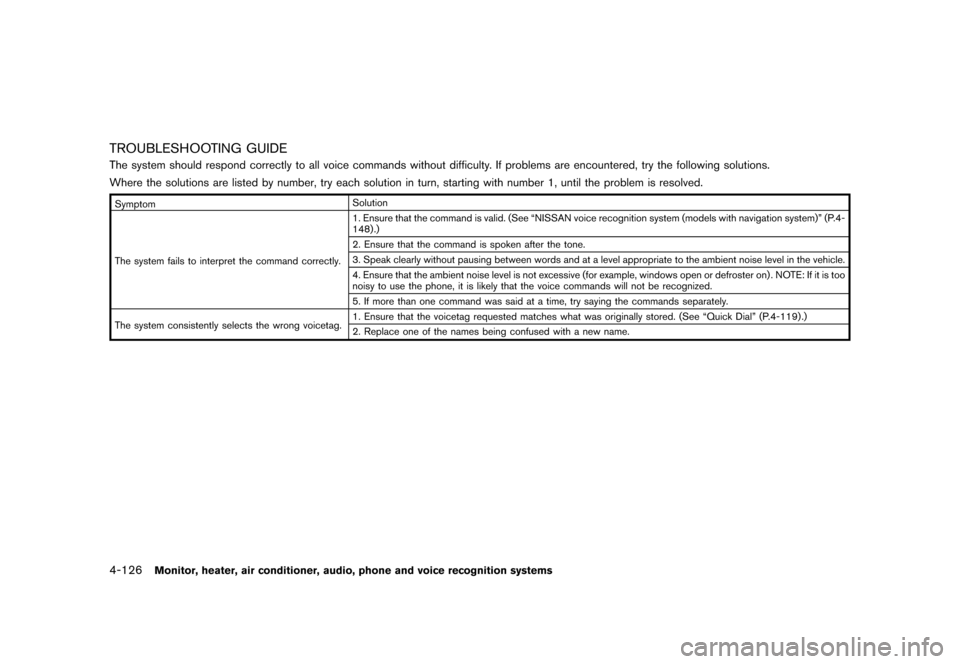

Page 308 of 491
> ( G L W 0 R G H O ( ' @
4-126Monitor, heater, air conditioner, audio, phone and voice recognition systems
TROUBLESHOOTING GUIDEGUID-B762F3AA-D406-41E7-8EB6-DD02D266D9E5The system should respond correctly to all voice commands without difficulty. If problems are encountered, try the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is resolved.
SymptomSolution
The system fails to interpret the command correctly. 1. Ensure that the command is valid. (See ªNISSAN voice recognition system (models with navigation system)º (P.4-
148) .)
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on) . NOTE: If it is too
noisy to use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
The system consistently selects the wrong voicetag. 1. Ensure that the voicetag requested matches what was originally stored. (See ªQuick Dialº (P.4-119) .)
2. Replace one of the names being confused with a new name.
& R Q G L W L R Q
Page 309 of 491
> ( G L W 0 R G H O ( ' @

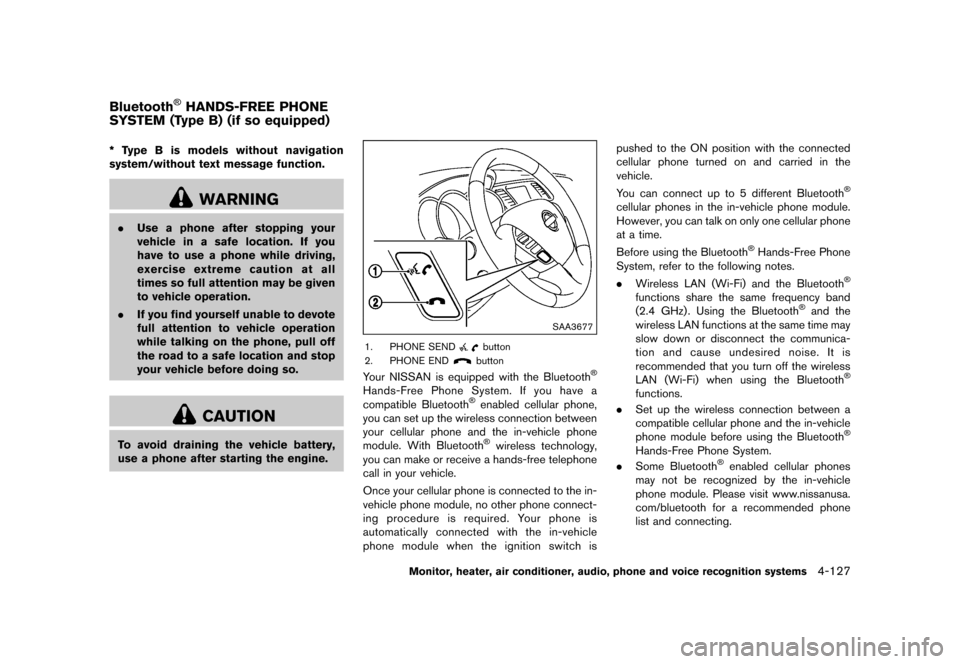

GUID-CB2433AC-F184-4F3C-A0AF-4350B0B4D115* Type B is models without navigation
system/without text message function.
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you find yourself unable to devote
full attention to vehicle operation
while talking on the phone, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
SAA3677
1. PHONE SENDbutton
2. PHONE END
button
Your NISSAN is equipped with the Bluetooth

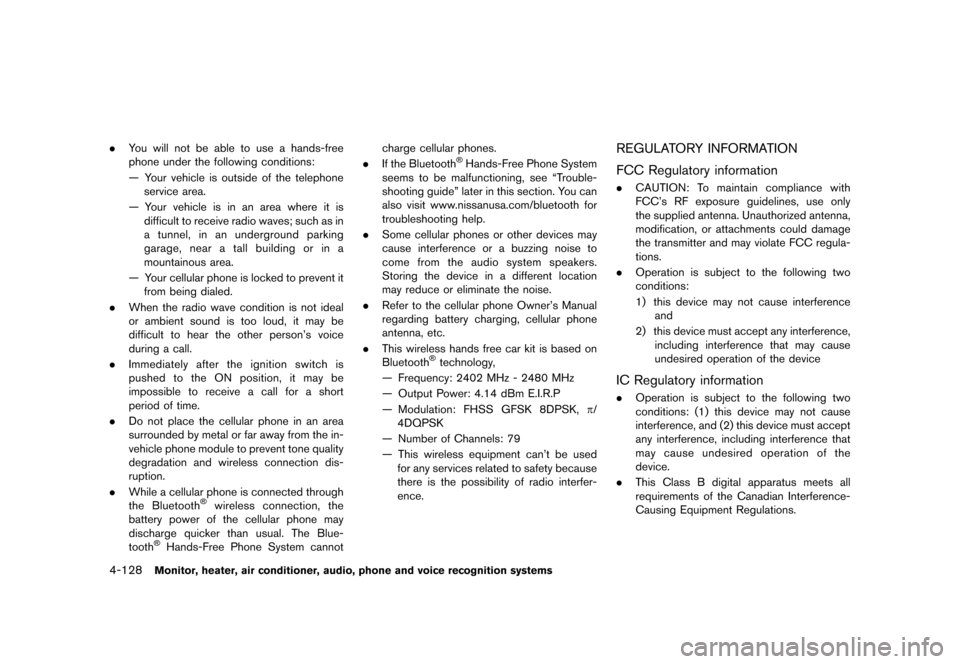

Page 310 of 491
> ( G L W 0 R G H O ( ' @
4-128Monitor, heater, air conditioner, audio, phone and voice recognition systems
.You will not be able to use a hands-free
phone under the following conditions:
Ð Your vehicle is outside of the telephone
service area.
Ð Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking
garage, near a tall building or in a
mountainous area.
Ð Your cellular phone is locked to prevent it from being dialed.
. When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person's voice
during a call.
. Immediately after the ignition switch is
pushed to the ON position, it may be
impossible to receive a call for a short
period of time.
. Do not place the cellular phone in an area
surrounded by metal or far away from the in-
vehicle phone module to prevent tone quality
degradation and wireless connection dis-
ruption.
. While a cellular phone is connected through
the Bluetooth
