NISSAN QUEST 2015 RE52 / 4.G Owners Manual
Manufacturer: NISSAN, Model Year: 2015, Model line: QUEST, Model: NISSAN QUEST 2015 RE52 / 4.GPages: 491, PDF Size: 4.54 MB
Page 311 of 491
> ( G L W 0 R G H O ( ' @

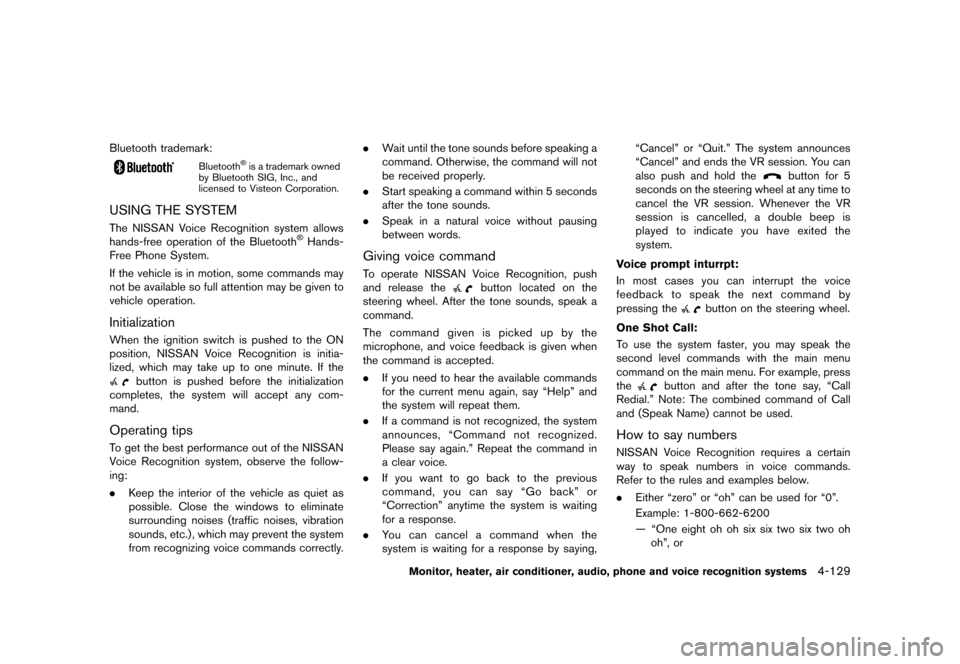

Bluetooth trademark:
Bluetooth
Page 312 of 491
> ( G L W 0 R G H O ( ' @

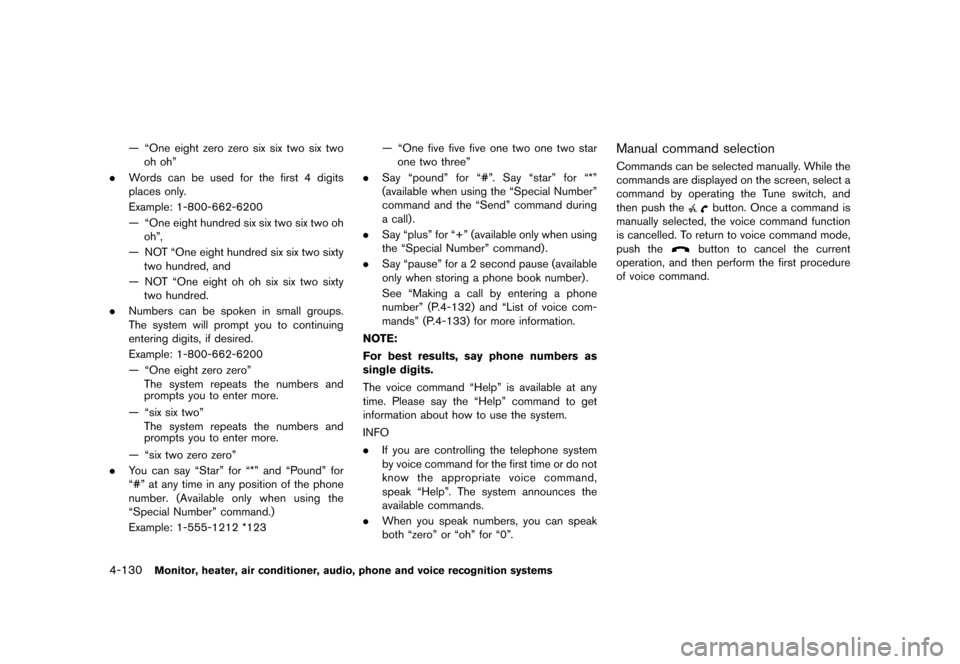

4-130Monitor, heater, air conditioner, audio, phone and voice recognition systems
Ð ªOne eight zero zero six six two six twooh ohº
. Words can be used for the first 4 digits
places only.
Example: 1-800-662-6200
Ð ªOne eight hundred six six two six two oh
ohº,
Ð NOT ªOne eight hundred six six two sixty two hundred, and
Ð NOT ªOne eight oh oh six six two sixty two hundred.
. Numbers can be spoken in small groups.
The system will prompt you to continuing
entering digits, if desired.
Example: 1-800-662-6200
Ð ªOne eight zero zeroº
The system repeats the numbers and
prompts you to enter more.
Ð ªsix six twoº The system repeats the numbers and
prompts you to enter more.
Ð ªsix two zero zeroº
. You can say ªStarº for ª*º and ªPoundº for
ª#º at any time in any position of the phone
number. (Available only when using the
ªSpecial Numberº command.)
Example: 1-555-1212 *123 Ð ªOne five five five one two one two star
one two threeº
. Say ªpoundº for ª#º. Say ªstarº for ª*º
(available when using the ªSpecial Numberº
command and the ªSendº command during
a call) .
. Say ªplusº for ª+º (available only when using
the ªSpecial Numberº command) .
. Say ªpauseº for a 2 second pause (available
only when storing a phone book number) .
See ªMaking a call by entering a phone
numberº (P.4-132) and ªList of voice com-
mandsº (P.4-133) for more information.
NOTE:
For best results, say phone numbers as
single digits.
The voice command ªHelpº is available at any
time. Please say the ªHelpº command to get
information about how to use the system.
INFO
. If you are controlling the telephone system
by voice command for the first time or do not
know the appropriate voice command,
speak ªHelpº. The system announces the
available commands.
. When you speak numbers, you can speak
both ªzeroº or ªohº for ª0º.Manual command selectionGUID-AEB01510-6F8C-44AC-B23E-16356BBFEA8ACommands can be selected manually. While the
commands are displayed on the screen, select a
command by operating the Tune switch, and
then push the
button. Once a command is
manually selected, the voice command function
is cancelled. To return to voice command mode,
push the
button to cancel the current
operation, and then perform the first procedure
of voice command.
& R Q G L W L R Q
Page 313 of 491
> ( G L W 0 R G H O ( ' @

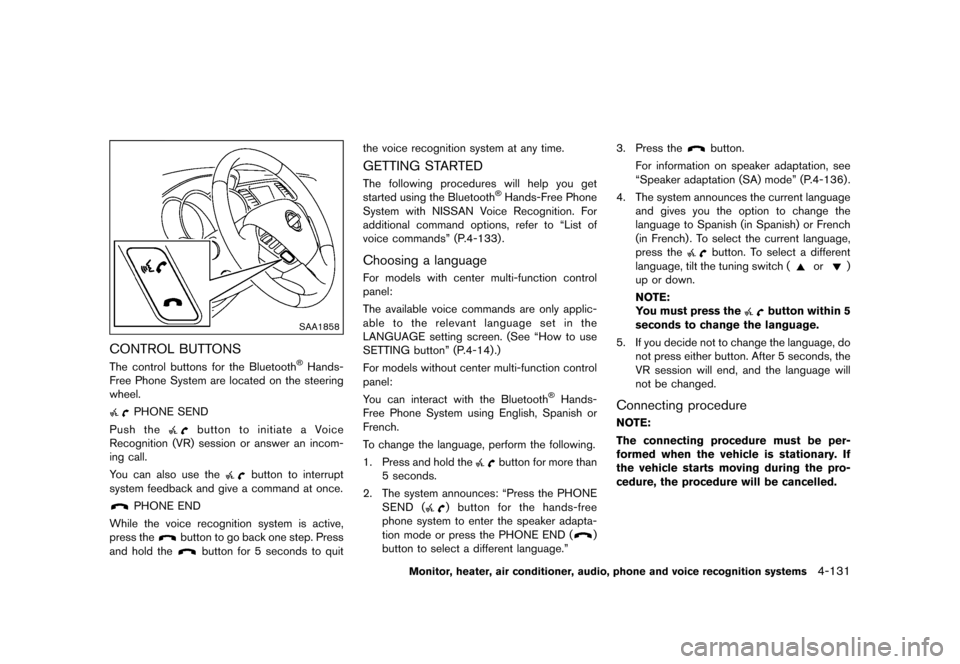

SAA1858
CONTROL BUTTONSGUID-1E7F6DCF-3CF5-4DC4-976E-0463D905B41FThe control buttons for the Bluetooth
Page 314 of 491
> ( G L W 0 R G H O ( ' @

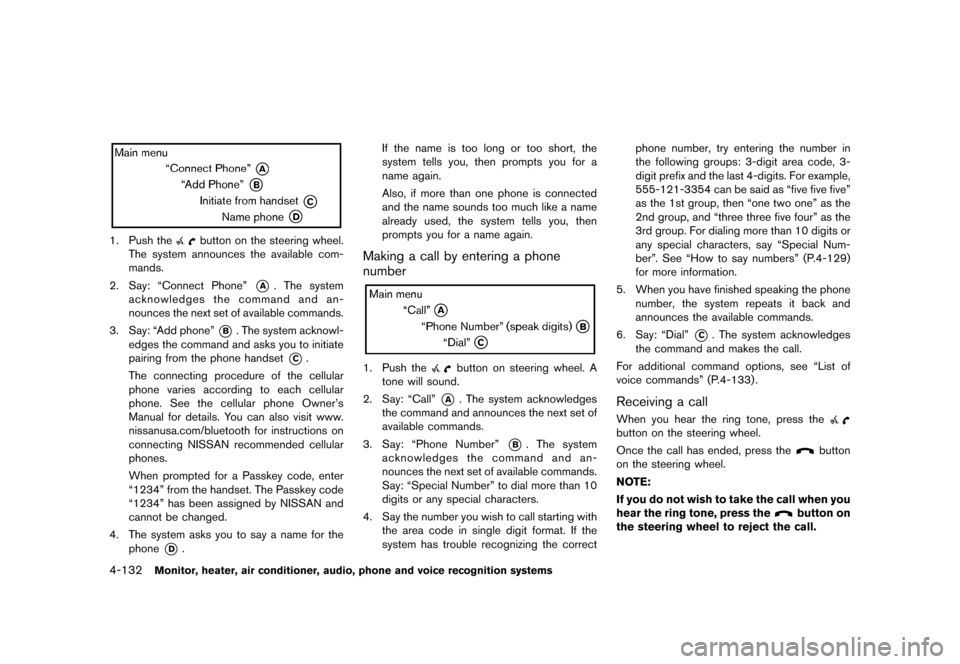

4-132Monitor, heater, air conditioner, audio, phone and voice recognition systems
NOS2623
1. Push thebutton on the steering wheel.
The system announces the available com-
mands.
2. Say: ªConnect Phoneº
*A. The system
acknowledges the command and an-
nounces the next set of available commands.
3. Say: ªAdd phoneº
*B. The system acknowl-
edges the command and asks you to initiate
pairing from the phone handset
*C.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner's
Manual for details. You can also visit www.
nissanusa.com/bluetooth for instructions on
connecting NISSAN recommended cellular
phones.
When prompted for a Passkey code, enter
ª1234º from the handset. The Passkey code
ª1234º has been assigned by NISSAN and
cannot be changed.
4. The system asks you to say a name for the phone
*D. If the name is too long or too short, the
system tells you, then prompts you for a
name again.
Also, if more than one phone is connected
and the name sounds too much like a name
already used, the system tells you, then
prompts you for a name again.
Making a call by entering a phone
number
GUID-E86F36A9-830C-4B10-95AA-DAA46434BD8F
NOS2624
1. Push thebutton on steering wheel. A
tone will sound.
2. Say: ªCallº
*A. The system acknowledges
the command and announces the next set of
available commands.
3. Say: ªPhone Numberº
*B. The system
acknowledges the command and an-
nounces the next set of available commands.
Say: ªSpecial Numberº to dial more than 10
digits or any special characters.
4. Say the number you wish to call starting with the area code in single digit format. If the
system has trouble recognizing the correct phone number, try entering the number in
the following groups: 3-digit area code, 3-
digit prefix and the last 4-digits. For example,
555-121-3354 can be said as ªfive five fiveº
as the 1st group, then ªone two oneº as the
2nd group, and ªthree three five fourº as the
3rd group. For dialing more than 10 digits or
any special characters, say ªSpecial Num-
berº. See ªHow to say numbersº (P.4-129)
for more information.
5. When you have finished speaking the phone number, the system repeats it back and
announces the available commands.
6. Say: ªDialº
*C. The system acknowledges
the command and makes the call.
For additional command options, see ªList of
voice commandsº (P.4-133) .
Receiving a callGUID-6B217C4D-18F6-441E-A0DB-127696EB93E9When you hear the ring tone, press the
button on the steering wheel.
Once the call has ended, press the
button
on the steering wheel.
NOTE:
If you do not wish to take the call when you
hear the ring tone, press the
button on
the steering wheel to reject the call.
& R Q G L W L R Q
Page 315 of 491
> ( G L W 0 R G H O ( ' @

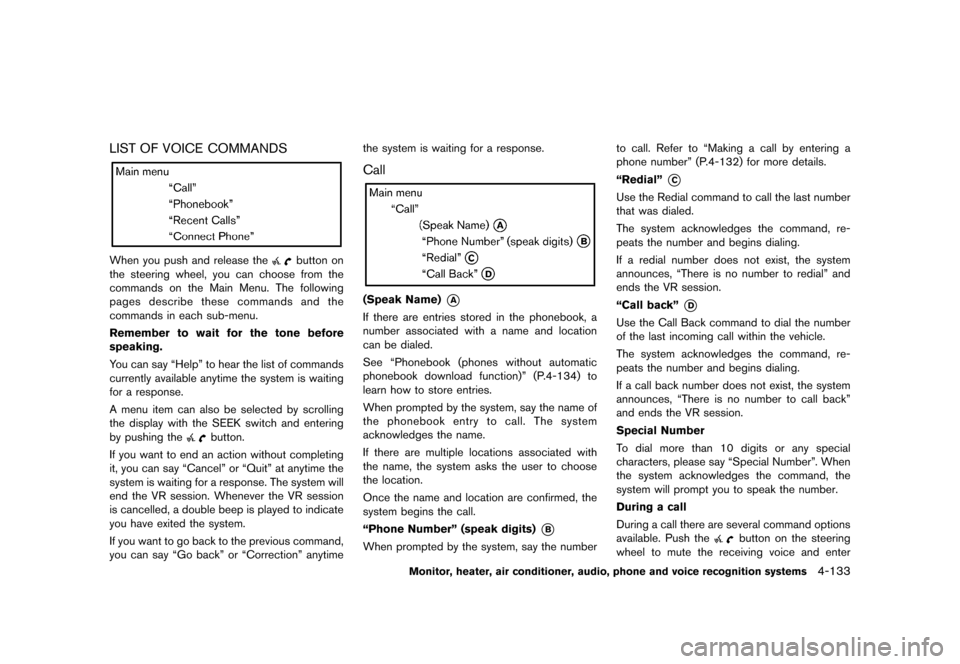

LIST OF VOICE COMMANDSGUID-E95D665D-547C-4F45-91E0-D4A28A820E92
NOS2625
When you push and release thebutton on
the steering wheel, you can choose from the
commands on the Main Menu. The following
pages describe these commands and the
commands in each sub-menu.
Remember to wait for the tone before
speaking.
You can say ªHelpº to hear the list of commands
currently available anytime the system is waiting
for a response.
A menu item can also be selected by scrolling
the display with the SEEK switch and entering
by pushing the
button.
If you want to end an action without completing
it, you can say ªCancelº or ªQuitº at anytime the
system is waiting for a response. The system will
end the VR session. Whenever the VR session
is cancelled, a double beep is played to indicate
you have exited the system.
If you want to go back to the previous command,
you can say ªGo backº or ªCorrectionº anytime the system is waiting for a response.
CallGUID-76E7E70A-365D-47AC-B16E-FAB7BE3A3423
JI0189
(Speak Name)*A
If there are entries stored in the phonebook, a
number associated with a name and location
can be dialed.
See ªPhonebook (phones without automatic
phonebook download function)º (P.4-134) to
learn how to store entries.
When prompted by the system, say the name of
the phonebook entry to call. The system
acknowledges the name.
If there are multiple locations associated with
the name, the system asks the user to choose
the location.
Once the name and location are confirmed, the
system begins the call.
ªPhone Numberº (speak digits)
*B
When prompted by the system, say the number
to call. Refer to ªMaking a call by entering a
phone numberº (P.4-132) for more details.
ªRedialº
*C
Use the Redial command to call the last number
that was dialed.
The system acknowledges the command, re-
peats the number and begins dialing.
If a redial number does not exist, the system
announces, ªThere is no number to redialº and
ends the VR session.
ªCall backº
*D
Use the Call Back command to dial the number
of the last incoming call within the vehicle.
The system acknowledges the command, re-
peats the number and begins dialing.
If a call back number does not exist, the system
announces, ªThere is no number to call backº
and ends the VR session.
Special Number
To dial more than 10 digits or any special
characters, please say ªSpecial Numberº. When
the system acknowledges the command, the
system will prompt you to speak the number.
During a call
During a call there are several command options
available. Push the
button on the steering
wheel to mute the receiving voice and enter
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-133
& R Q G L W L R Q
Page 316 of 491
> ( G L W 0 R G H O ( ' @

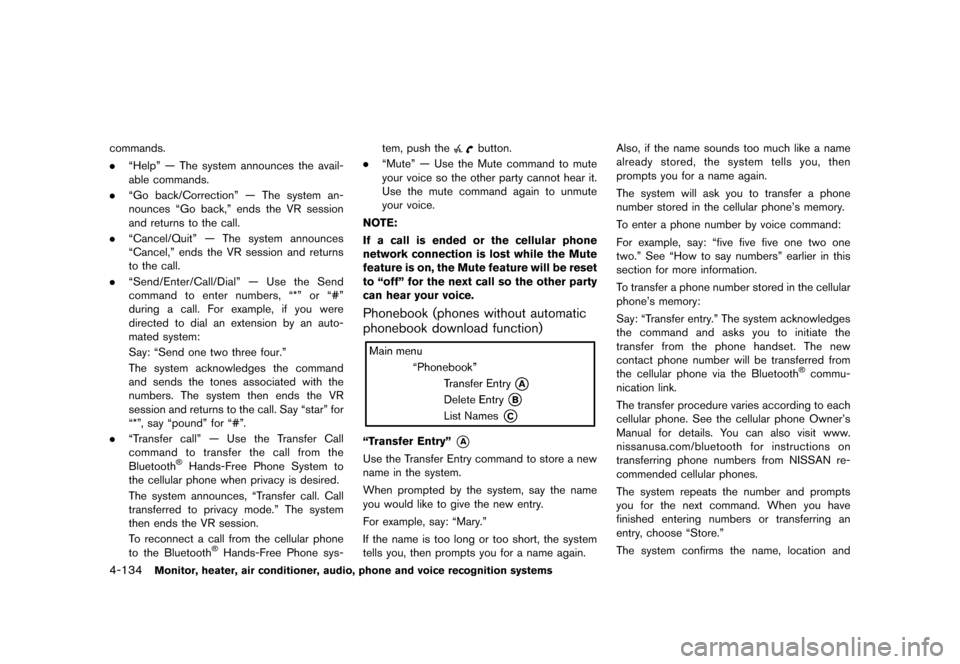

4-134Monitor, heater, air conditioner, audio, phone and voice recognition systems
commands.
.ªHelpº Ð The system announces the avail-
able commands.
. ªGo back/Correctionº Ð The system an-
nounces ªGo back,º ends the VR session
and returns to the call.
. ªCancel/Quitº Ð The system announces
ªCancel,º ends the VR session and returns
to the call.
. ªSend/Enter/Call/Dialº Ð Use the Send
command to enter numbers, ª*º or ª#º
during a call. For example, if you were
directed to dial an extension by an auto-
mated system:
Say: ªSend one two three four.º
The system acknowledges the command
and sends the tones associated with the
numbers. The system then ends the VR
session and returns to the call. Say ªstarº for
ª*º, say ªpoundº for ª#º.
. ªTransfer callº Ð Use the Transfer Call
command to transfer the call from the
Bluetooth
Page 317 of 491
> ( G L W 0 R G H O ( ' @

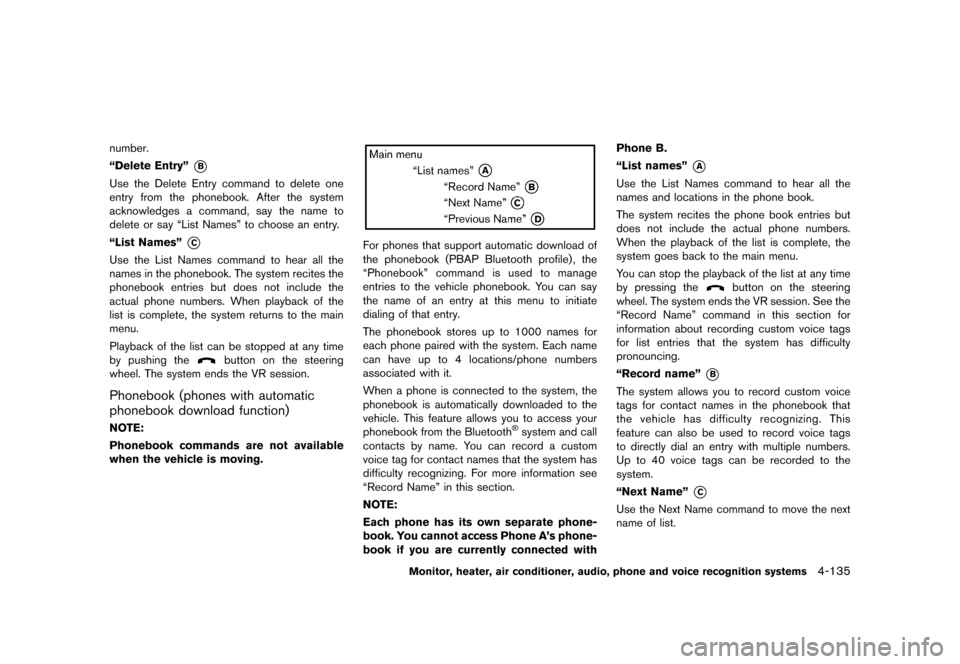

number.
ªDelete Entryº
*B
Use the Delete Entry command to delete one
entry from the phonebook. After the system
acknowledges a command, say the name to
delete or say ªList Namesº to choose an entry.
ªList Namesº
*C
Use the List Names command to hear all the
names in the phonebook. The system recites the
phonebook entries but does not include the
actual phone numbers. When playback of the
list is complete, the system returns to the main
menu.
Playback of the list can be stopped at any time
by pushing the
button on the steering
wheel. The system ends the VR session.
Phonebook (phones with automatic
phonebook download function)
GUID-FCDF9BA5-19BC-4FC3-8C13-450D2FE9E431NOTE:
Phonebook commands are not available
when the vehicle is moving.
JI0200
For phones that support automatic download of
the phonebook (PBAP Bluetooth profile) , the
ªPhonebookº command is used to manage
entries to the vehicle phonebook. You can say
the name of an entry at this menu to initiate
dialing of that entry.
The phonebook stores up to 1000 names for
each phone paired with the system. Each name
can have up to 4 locations/phone numbers
associated with it.
When a phone is connected to the system, the
phonebook is automatically downloaded to the
vehicle. This feature allows you to access your
phonebook from the Bluetooth
Page 318 of 491
> ( G L W 0 R G H O ( ' @

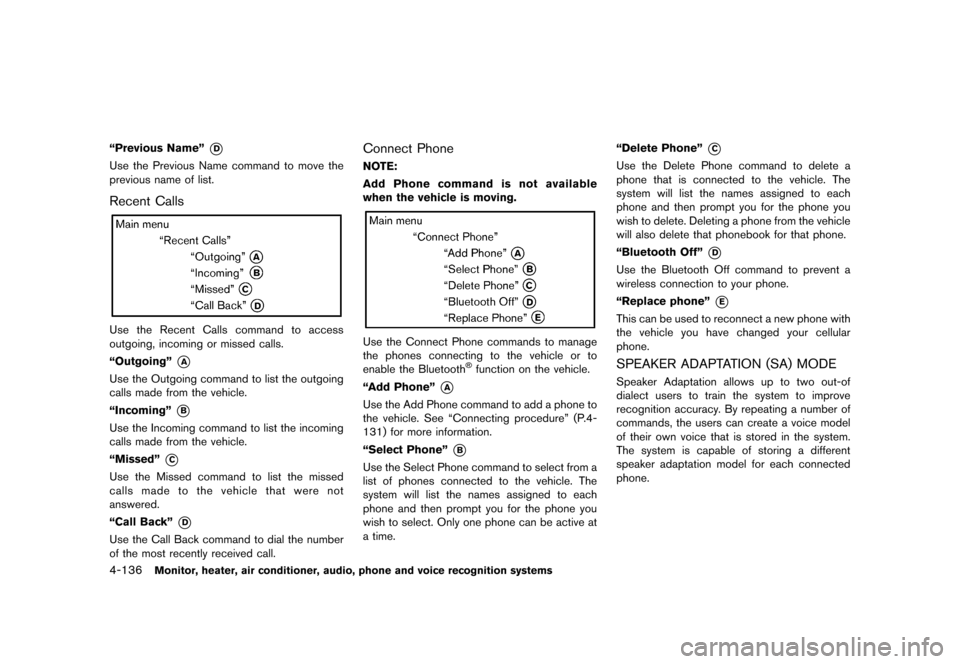

4-136Monitor, heater, air conditioner, audio, phone and voice recognition systems
ªPrevious Nameº*D
Use the Previous Name command to move the
previous name of list.
Recent CallsGUID-64BC3C59-16C1-4F63-9A3A-A168804350EF
JI0201
Use the Recent Calls command to access
outgoing, incoming or missed calls.
ªOutgoingº
*A
Use the Outgoing command to list the outgoing
calls made from the vehicle.
ªIncomingº
*B
Use the Incoming command to list the incoming
calls made from the vehicle.
ªMissedº
*C
Use the Missed command to list the missed
calls made to the vehicle that were not
answered.
ªCall Backº
*D
Use the Call Back command to dial the number
of the most recently received call.
Connect PhoneGUID-B506C8EB-F6C0-46EF-A799-3FD7BF097D09NOTE:
Add Phone command is not available
when the vehicle is moving.
JI0202
Use the Connect Phone commands to manage
the phones connecting to the vehicle or to
enable the Bluetooth
Page 319 of 491
> ( G L W 0 R G H O ( ' @

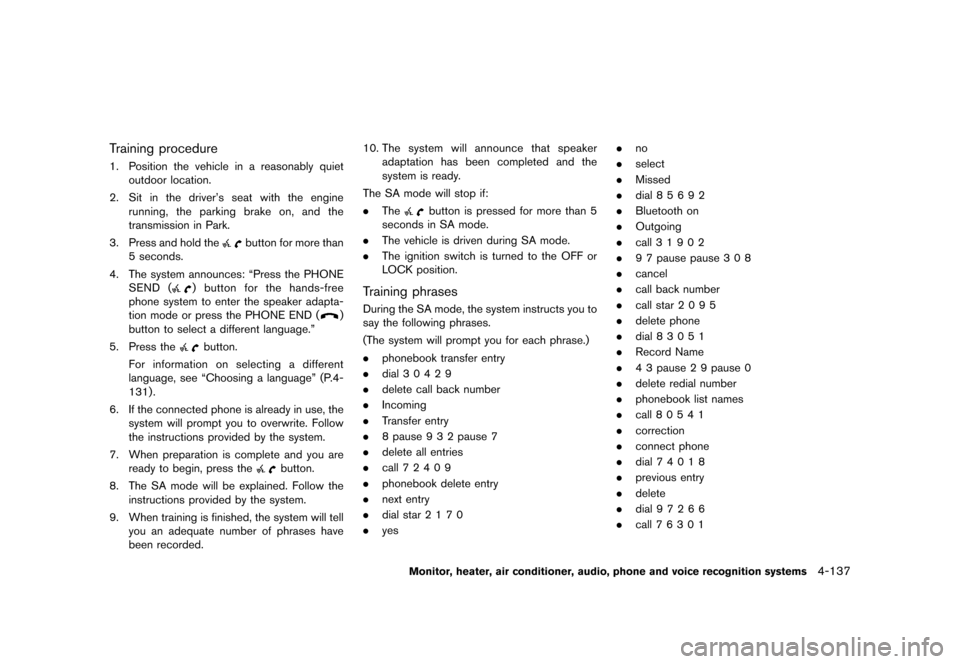

Training procedureGUID-47CDCFE5-CC6F-4B92-B0F8-8DE0C35F469E1. Position the vehicle in a reasonably quietoutdoor location.
2. Sit in the driver's seat with the engine
running, the parking brake on, and the
transmission in Park.
3. Press and hold the
button for more than
5 seconds.
4. The system announces: ªPress the PHONE SEND (
) button for the hands-free
phone system to enter the speaker adapta-
tion mode or press the PHONE END (
)
button to select a different language.º
5. Press the
button.
For information on selecting a different
language, see ªChoosing a languageº (P.4-
131) .
6. If the connected phone is already in use, the system will prompt you to overwrite. Follow
the instructions provided by the system.
7. When preparation is complete and you are ready to begin, press the
button.
8. The SA mode will be explained. Follow the instructions provided by the system.
9. When training is finished, the system will tell you an adequate number of phrases have
been recorded. 10.
The system will announce that speaker
adaptation has been completed and the
system is ready.
The SA mode will stop if:
. The
button is pressed for more than 5
seconds in SA mode.
. The vehicle is driven during SA mode.
. The ignition switch is turned to the OFF or
LOCK position.
Training phrasesGUID-D5E64D24-377B-46E7-9041-C3AF7ABD397FDuring the SA mode, the system instructs you to
say the following phrases.
(The system will prompt you for each phrase.)
.phonebook transfer entry
. dial 3 0 4 2 9
. delete call back number
. Incoming
. Transfer entry
. 8 pause 9 3 2 pause 7
. delete all entries
. call 7 2 4 0 9
. phonebook delete entry
. next entry
. dial star 2 1 7 0
. yes .
no
. select
. Missed
. dial 8 5 6 9 2
. Bluetooth on
. Outgoing
. call 3 1 9 0 2
. 9 7 pause pause 3 0 8
. cancel
. call back number
. call star 2 0 9 5
. delete phone
. dial 8 3 0 5 1
. Record Name
. 4 3 pause 2 9 pause 0
. delete redial number
. phonebook list names
. call 8 0 5 4 1
. correction
. connect phone
. dial 7 4 0 1 8
. previous entry
. delete
. dial 9 7 2 6 6
. call 7 6 3 0 1
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-137
& R Q G L W L R Q
Page 320 of 491
> ( G L W 0 R G H O ( ' @

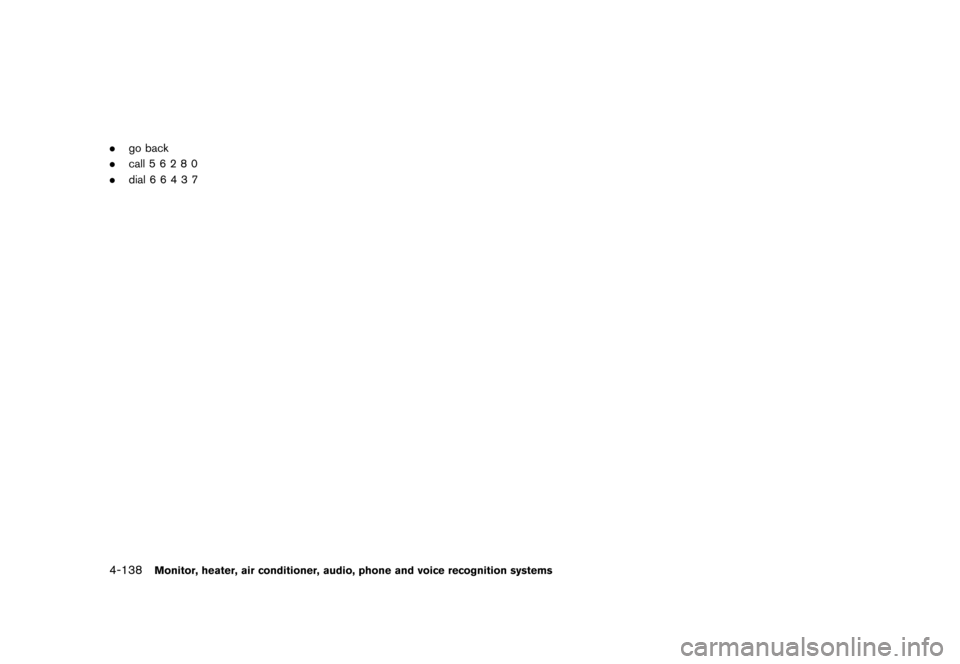

4-138Monitor, heater, air conditioner, audio, phone and voice recognition systems
.go back
. call 5 6 2 8 0
. dial 6 6 4 3 7
& R Q G L W L R Q
