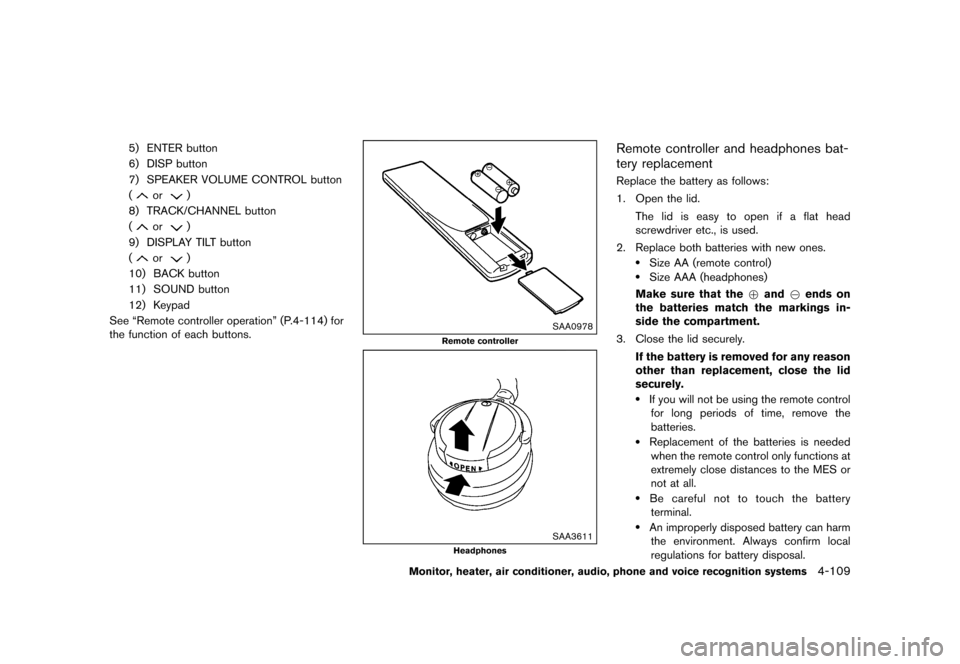

5) ENTER button
6) DISP button
7) SPEAKER VOLUME CONTROL button
(
or)
8) TRACK/CHANNEL button
(
or)
9) DISPLAY TILT button
(
or)
10) BACK button
11) SOUND button
12) Keypad
See ªRemote controller operationº (P.4-114) for
the function of each buttons.
SAA0978
Remote controller
SAA3611
Headphones
Remote controller and headphones bat-
tery replacement
GUID-8A1D3DE9-0E1F-4753-9D1D-E5F067E6239FReplace the battery as follows:
1. Open the lid.
The lid is easy to open if a flat head
screwdriver etc., is used.
2. Replace both batteries with new ones.
.Size AA (remote control).Size AAA (headphones)
Make sure that the +and 7ends on
the batteries match the markings in-
side the compartment.
3. Close the lid securely.
If the battery is removed for any reason
other than replacement, close the lid
securely.
.If you will not be using the remote controlfor long periods of time, remove the
batteries.
.Replacement of the batteries is neededwhen the remote control only functions at
extremely close distances to the MES or
not at all.
.Be careful not to touch the batteryterminal.
.An improperly disposed battery can harm the environment. Always confirm local
regulations for battery disposal.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-109
& R Q G L W L R Q
Page 292 of 491
> ( G L W 0 R G H O ( ' @

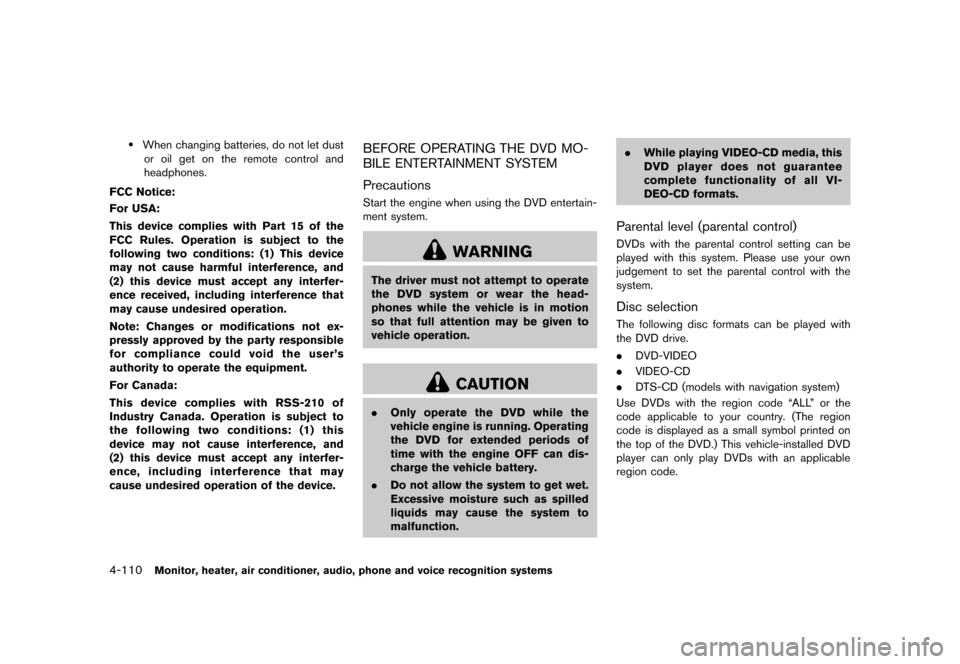

4-110Monitor, heater, air conditioner, audio, phone and voice recognition systems
.When changing batteries, do not let dustor oil get on the remote control and
headphones.
FCC Notice:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
BEFORE OPERATING THE DVD MO-
BILE ENTERTAINMENT SYSTEM
GUID-388A77D2-69A0-4B20-A0E4-DDCE2B1067DC
PrecautionsGUID-5D3D657D-6968-44A5-A144-3182D0634837Start the engine when using the DVD entertain-
ment system.
WARNING
The driver must not attempt to operate
the DVD system or wear the head-
phones while the vehicle is in motion
so that full attention may be given to
vehicle operation.
CAUTION
. Only operate the DVD while the
vehicle engine is running. Operating
the DVD for extended periods of
time with the engine OFF can dis-
charge the vehicle battery.
. Do not allow the system to get wet.
Excessive moisture such as spilled
liquids may cause the system to
malfunction. .
While playing VIDEO-CD media, this
DVD player does not guarantee
complete functionality of all VI-
DEO-CD formats.
Parental level (parental control)GUID-A58211E7-DD2A-4035-81DA-19A2C8A67243DVDs with the parental control setting can be
played with this system. Please use your own
judgement to set the parental control with the
system.
Disc selectionGUID-1F9B68E6-F4DF-443B-BE00-D8AD25A6E450The following disc formats can be played with
the DVD drive.
.DVD-VIDEO
. VIDEO-CD
. DTS-CD (models with navigation system)
Use DVDs with the region code ªALLº or the
code applicable to your country. (The region
code is displayed as a small symbol printed on
the top of the DVD.) This vehicle-installed DVD
player can only play DVDs with an applicable
region code.
& R Q G L W L R Q
Page 293 of 491
> ( G L W 0 R G H O ( ' @

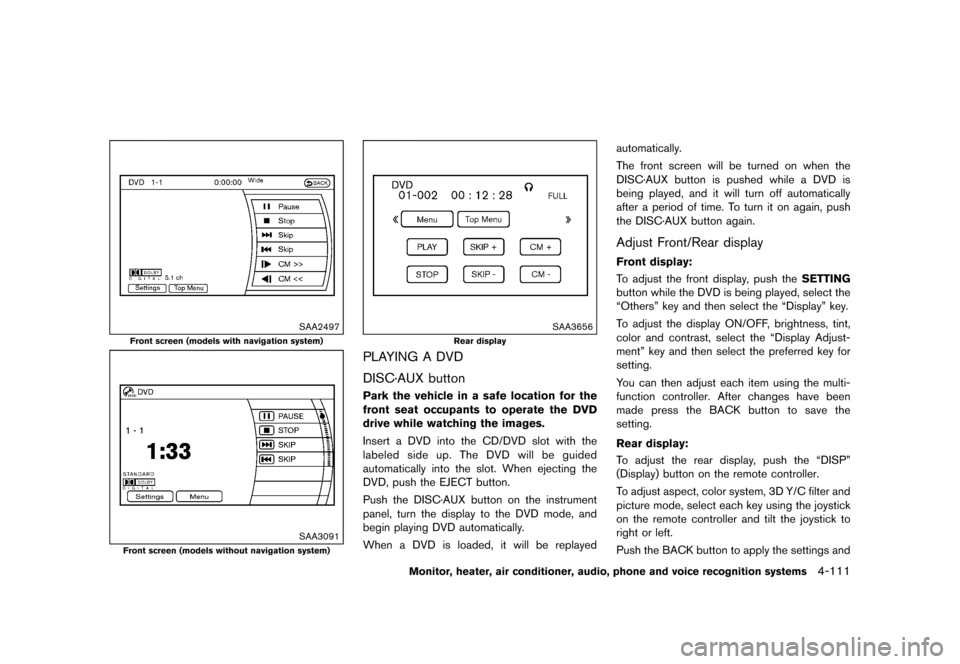

SAA2497
Front screen (models with navigation system)
SAA3091
Front screen (models without navigation system)
SAA3656
Rear display
PLAYING A DVDGUID-8F95C3F1-CBC0-4993-966D-B8CAD8A4BB3F
DISC´AUX buttonGUID-B86663CA-BC07-4E91-929F-99AD6ABA7280Park the vehicle in a safe location for the
front seat occupants to operate the DVD
drive while watching the images.
Insert a DVD into the CD/DVD slot with the
labeled side up. The DVD will be guided
automatically into the slot. When ejecting the
DVD, push the EJECT button.
Push the DISC´AUX button on the instrument
panel, turn the display to the DVD mode, and
begin playing DVD automatically.
When a DVD is loaded, it will be replayedautomatically.
The front screen will be turned on when the
DISC´AUX button is pushed while a DVD is
being played, and it will turn off automatically
after a period of time. To turn it on again, push
the DISC´AUX button again.
Adjust Front/Rear displayGUID-D354ED4E-B9CD-431D-845A-31A5483116CD
Front display:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the front display, push the
SETTING
button while the DVD is being played, select the
ªOthersº key and then select the ªDisplayº key.
To adjust the display ON/OFF, brightness, tint,
color and contrast, select the ªDisplay Adjust-
mentº key and then select the preferred key for
setting.
You can then adjust each item using the multi-
function controller. After changes have been
made press the BACK button to save the
setting.
Rear display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the rear display, push the ªDISPº
(Display) button on the remote controller.
To adjust aspect, color system, 3D Y/C filter and
picture mode, select each key using the joystick
on the remote controller and tilt the joystick to
right or left.
Push the BACK button to apply the settings and
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-111
& R Q G L W L R Q
Page 294 of 491
> ( G L W 0 R G H O ( ' @

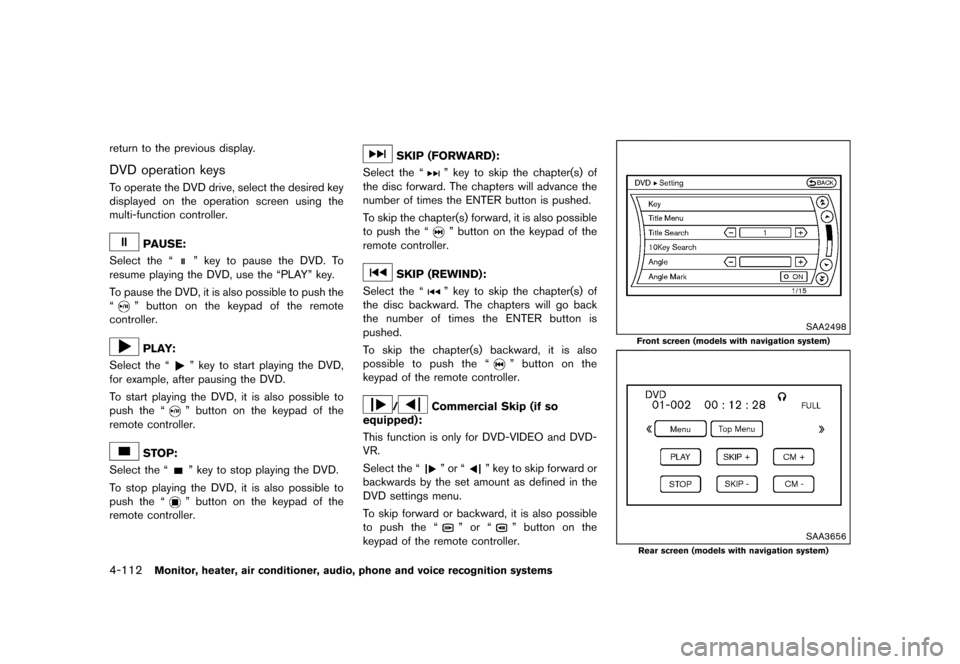

4-112Monitor, heater, air conditioner, audio, phone and voice recognition systems
return to the previous display.
DVD operation keysGUID-B86DB395-DEC5-4D6C-A71D-E9C3F49F2777To operate the DVD drive, select the desired key
displayed on the operation screen using the
multi-function controller.
PAUSE:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªº key to pause the DVD. To
resume playing the DVD, use the ªPLAYº key.
To pause the DVD, it is also possible to push the
ª
º button on the keypad of the remote
controller.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªº key to start playing the DVD,
for example, after pausing the DVD.
To start playing the DVD, it is also possible to
push the ª
º button on the keypad of the
remote controller.
STOP:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªº key to stop playing the DVD.
To stop playing the DVD, it is also possible to
push the ª
º button on the keypad of the
remote controller.
SKIP (FORWARD):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªº key to skip the chapter(s) of
the disc forward. The chapters will advance the
number of times the ENTER button is pushed.
To skip the chapter(s) forward, it is also possible
to push the ª
º button on the keypad of the
remote controller.
SKIP (REWIND):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªº key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the ENTER button is
pushed.
To skip the chapter(s) backward, it is also
possible to push the ª
º button on the
keypad of the remote controller.
/Commercial Skip (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This function is only for DVD-VIDEO and DVD-
VR.
Select the ª
º or ªº key to skip forward or
backwards by the set amount as defined in the
DVD settings menu.
To skip forward or backward, it is also possible
to push the ª
º or ªº button on the
keypad of the remote controller.
SAA2498
Front screen (models with navigation system)
SAA3656
Rear screen (models with navigation system)
& R Q G L W L R Q
Page 295 of 491
> ( G L W 0 R G H O ( ' @

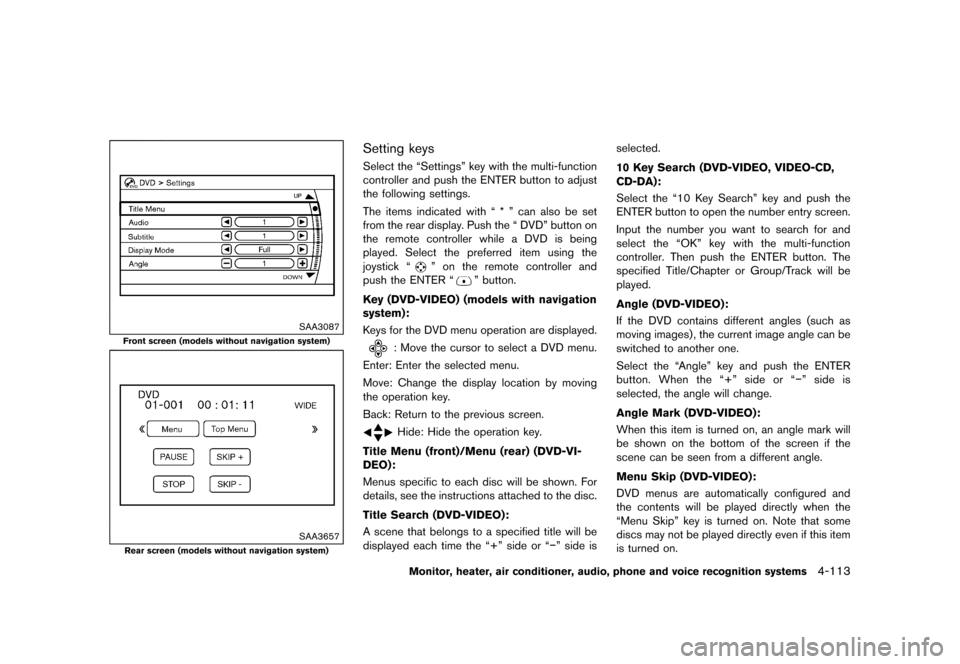

SAA3087
Front screen (models without navigation system)
SAA3657
Rear screen (models without navigation system)
Setting keysGUID-D63AE974-8FAC-4DB4-92D2-3F23ED97403DSelect the ªSettingsº key with the multi-function
controller and push the ENTER button to adjust
the following settings.
The items indicated with ª * º can also be set
from the rear display. Push the ª DVDº button on
the remote controller while a DVD is being
played. Select the preferred item using the
joystick ª
º on the remote controller and
push the ENTER ª
º button.
Key (DVD-VIDEO) (models with navigation
system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Keys for the DVD menu operation are displayed.
: Move the cursor to select a DVD menu.
Enter: Enter the selected menu.
Move: Change the display location by moving
the operation key.
Back: Return to the previous screen.
Hide: Hide the operation key.
Title Menu (front)/Menu (rear) (DVD-VI-
DEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Menus specific to each disc will be shown. For
details, see the instructions attached to the disc.
Title Search (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407A scene that belongs to a specified title will be
displayed each time the ª+º side or ª
Page 296 of 491
> ( G L W 0 R G H O ( ' @

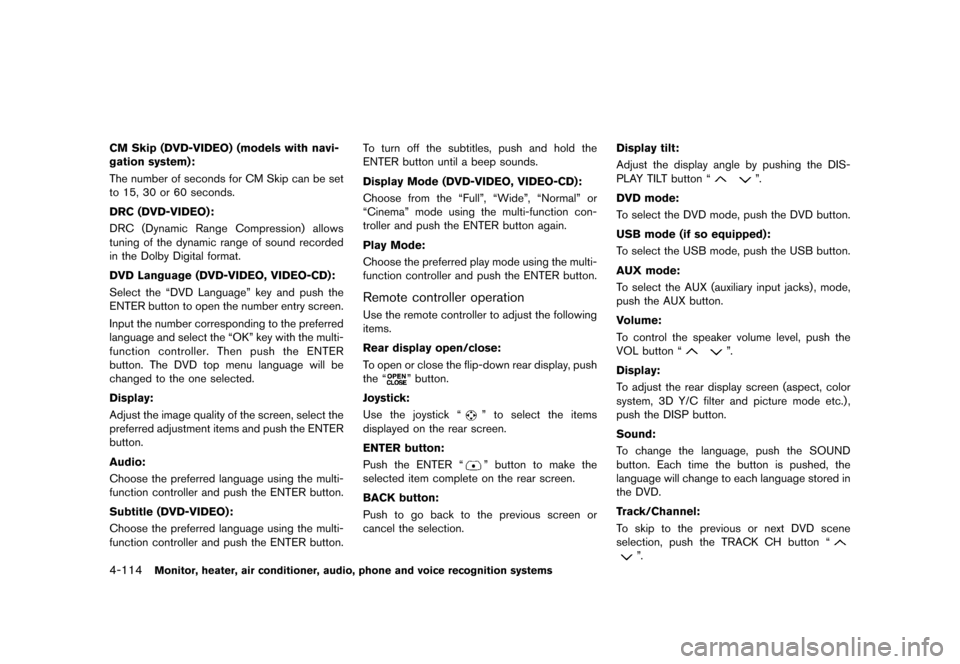

4-114Monitor, heater, air conditioner, audio, phone and voice recognition systems
CM Skip (DVD-VIDEO) (models with navi-
gation system) :
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The number of seconds for CM Skip can be set
to 15, 30 or 60 seconds.
DRC (DVD-VIDEO) :
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407DRC (Dynamic Range Compression) allows
tuning of the dynamic range of sound recorded
in the Dolby Digital format.
DVD Language (DVD-VIDEO, VIDEO-CD):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªDVD Languageº key and push the
ENTER button to open the number entry screen.
Input the number corresponding to the preferred
language and select the ªOKº key with the multi-
function controller. Then push the ENTER
button. The DVD top menu language will be
changed to the one selected.
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the image quality of the screen, select the
preferred adjustment items and push the ENTER
button.
Audio:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the preferred language using the multi-
function controller and push the ENTER button.
Subtitle (DVD-VIDEO) :
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the preferred language using the multi-
function controller and push the ENTER button.To turn off the subtitles, push and hold the
ENTER button until a beep sounds.
Display Mode (DVD-VIDEO, VIDEO-CD):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose from the ªFullº, ªWideº, ªNormalº or
ªCinemaº mode using the multi-function con-
troller and push the ENTER button again.
Play Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the preferred play mode using the multi-
function controller and push the ENTER button.
Remote controller operationGUID-816E5A31-1B94-4815-A03C-0AB03B00B3A9Use the remote controller to adjust the following
items.
Rear display open/close:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To open or close the flip-down rear display, push
the ª
º button.
Joystick:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use the joystick ªº to select the items
displayed on the rear screen.
ENTER button:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the ENTER ªº button to make the
selected item complete on the rear screen.
BACK button:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push to go back to the previous screen or
cancel the selection. Display tilt:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the display angle by pushing the DIS-
PLAY TILT button ª
º.
DVD mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To select the DVD mode, push the DVD button.
USB mode (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To select the USB mode, push the USB button.
AUX mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To select the AUX (auxiliary input jacks) , mode,
push the AUX button.
Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To control the speaker volume level, push the
VOL button ª
º.
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the rear display screen (aspect, color
system, 3D Y/C filter and picture mode etc.) ,
push the DISP button.
Sound:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To change the language, push the SOUND
button. Each time the button is pushed, the
language will change to each language stored in
the DVD.
Track/Channel:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To skip to the previous or next DVD scene
selection, push the TRACK CH button ª
º.
& R Q G L W L R Q
Page 297 of 491
> ( G L W 0 R G H O ( ' @

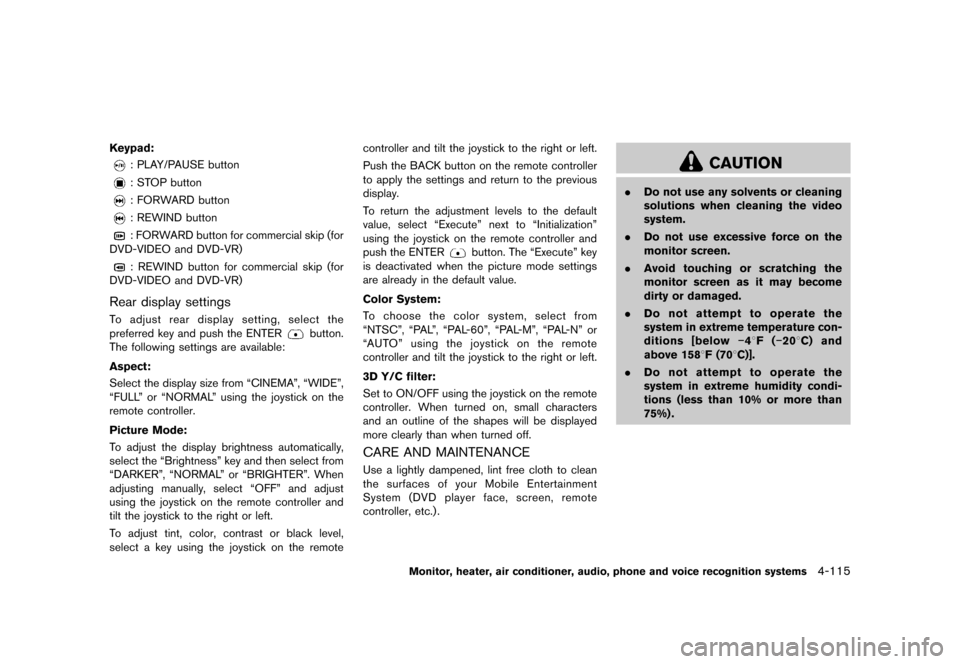

Keypad:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407: PLAY/PAUSE button
: STOP button
: FORWARD button
: REWIND button
: FORWARD button for commercial skip (for
DVD-VIDEO and DVD-VR)
: REWIND button for commercial skip (for
DVD-VIDEO and DVD-VR)
Rear display settingsGUID-00567E6D-1555-4281-8A99-57190FBFC391To adjust rear display setting, select the
preferred key and push the ENTER
button.
The following settings are available:
Aspect:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the display size from ªCINEMAº, ªWIDEº,
ªFULLº or ªNORMALº using the joystick on the
remote controller.
Picture Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display brightness automatically,
select the ªBrightnessº key and then select from
ªDARKERº, ªNORMALº or ªBRIGHTERº. When
adjusting manually, select ªOFFº and adjust
using the joystick on the remote controller and
tilt the joystick to the right or left.
To adjust tint, color, contrast or black level,
select a key using the joystick on the remote controller and tilt the joystick to the right or left.
Push the BACK button on the remote controller
to apply the settings and return to the previous
display.
To return the adjustment levels to the default
value, select ªExecuteº next to ªInitializationº
using the joystick on the remote controller and
push the ENTER
button. The ªExecuteº key
is deactivated when the picture mode settings
are already in the default value.
Color System:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To choose the color system, select from
ªNTSCº, ªPALº, ªPAL-60º, ªPAL-Mº, ªPAL-Nº or
ªAUTOº using the joystick on the remote
controller and tilt the joystick to the right or left.
3D Y/C filter:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Set to ON/OFF using the joystick on the remote
controller. When turned on, small characters
and an outline of the shapes will be displayed
more clearly than when turned off.
CARE AND MAINTENANCEGUID-A7F955DE-E9EA-46F4-9DFB-E580911AB596Use a lightly dampened, lint free cloth to clean
the surfaces of your Mobile Entertainment
System (DVD player face, screen, remote
controller, etc.) .
CAUTION
. Do not use any solvents or cleaning
solutions when cleaning the video
system.
. Do not use excessive force on the
monitor screen.
. Avoid touching or scratching the
monitor screen as it may become
dirty or damaged.
. Do not attempt to operate the
system in extreme temperature con-
ditions [below
Page 298 of 491
> ( G L W 0 R G H O ( ' @

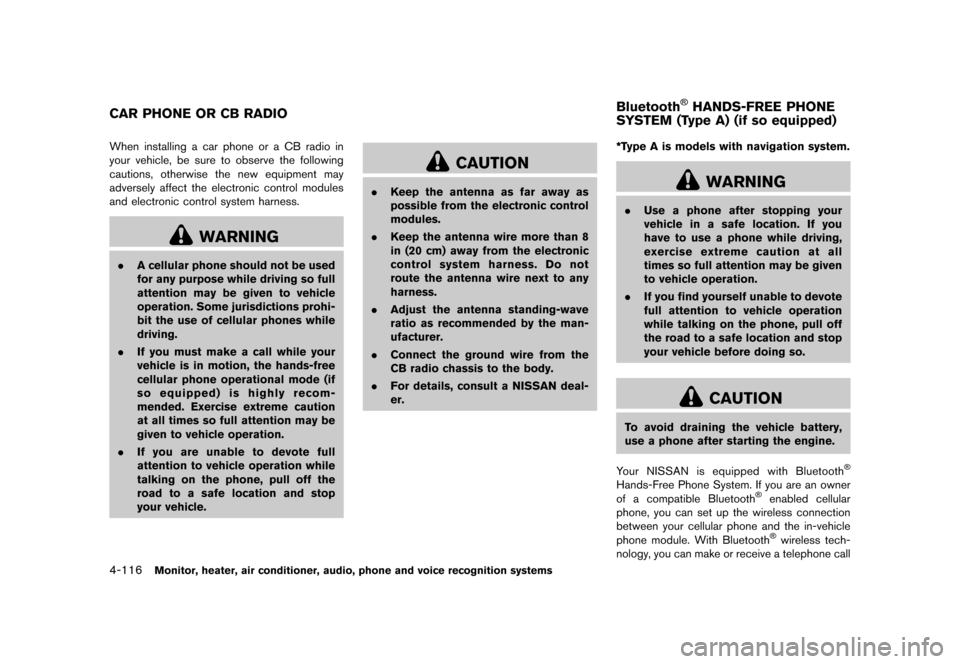

4-116Monitor, heater, air conditioner, audio, phone and voice recognition systems
GUID-105D6E67-2A52-412D-A202-BB6065AD5B2BWhen installing a car phone or a CB radio in
your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
.A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if
so equipped) is highly recom-
mended. Exercise extreme caution
at all times so full attention may be
given to vehicle operation.
. If you are unable to devote full
attention to vehicle operation while
talking on the phone, pull off the
road to a safe location and stop
your vehicle.
CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.
. Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.
. Connect the ground wire from the
CB radio chassis to the body.
. For details, consult a NISSAN deal-
er.
GUID-983C61FF-2D71-4F38-99B2-426D4B127A2D*Type A is models with navigation system.
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you find yourself unable to devote
full attention to vehicle operation
while talking on the phone, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
Your NISSAN is equipped with Bluetooth
Page 299 of 491
> ( G L W 0 R G H O ( ' @

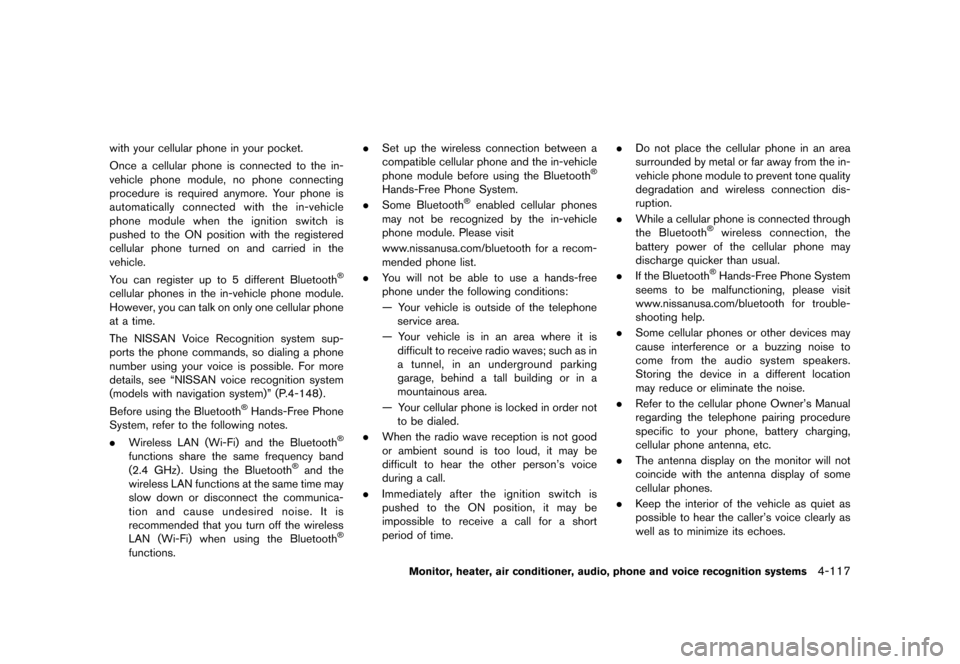

with your cellular phone in your pocket.
Once a cellular phone is connected to the in-
vehicle phone module, no phone connecting
procedure is required anymore. Your phone is
automatically connected with the in-vehicle
phone module when the ignition switch is
pushed to the ON position with the registered
cellular phone turned on and carried in the
vehicle.
You can register up to 5 different Bluetooth
Page 300 of 491
> ( G L W 0 R G H O ( ' @

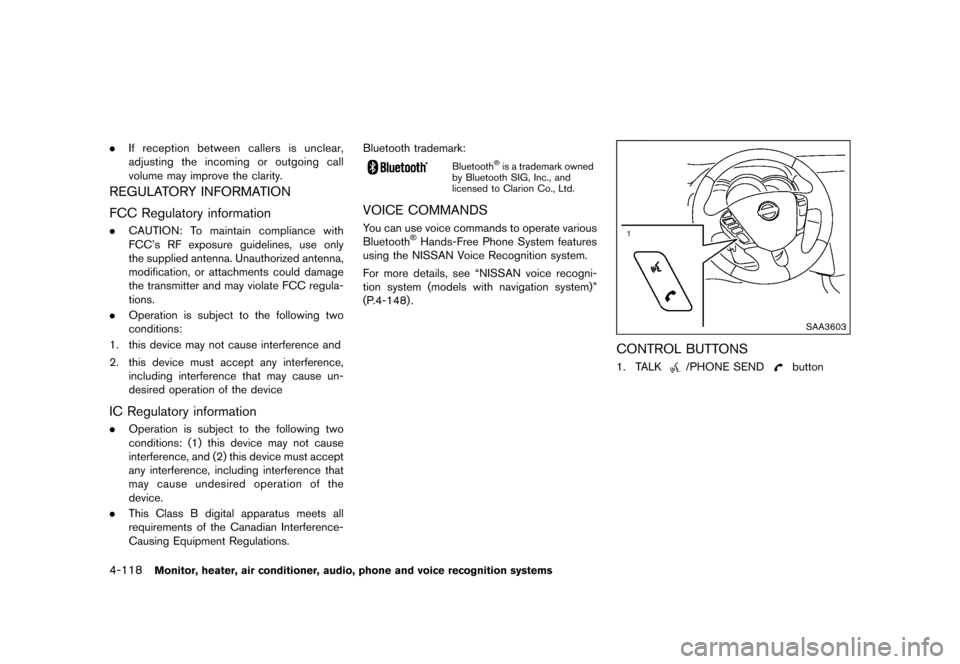

4-118Monitor, heater, air conditioner, audio, phone and voice recognition systems
.If reception between callers is unclear,
adjusting the incoming or outgoing call
volume may improve the clarity.
REGULATORY INFORMATIONGUID-862365A4-73C3-4F77-A5BF-38C30FE38AAE
FCC Regulatory informationGUID-FB6526D6-1BE9-483D-95DB-A49FA94DDF01.CAUTION: To maintain compliance with
FCC's RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.
. Operation is subject to the following two
conditions:
1. this device may not cause interference and
2. this device must accept any interference, including interference that may cause un-
desired operation of the device
IC Regulatory informationGUID-D053C761-A3AB-4F99-99B1-35EAE4E4988A.Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the
device.
. This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations. Bluetooth trademark:
Bluetooth
