NISSAN QUEST 2015 RE52 / 4.G Owners Manual


> (GLW    0RGHO (' @

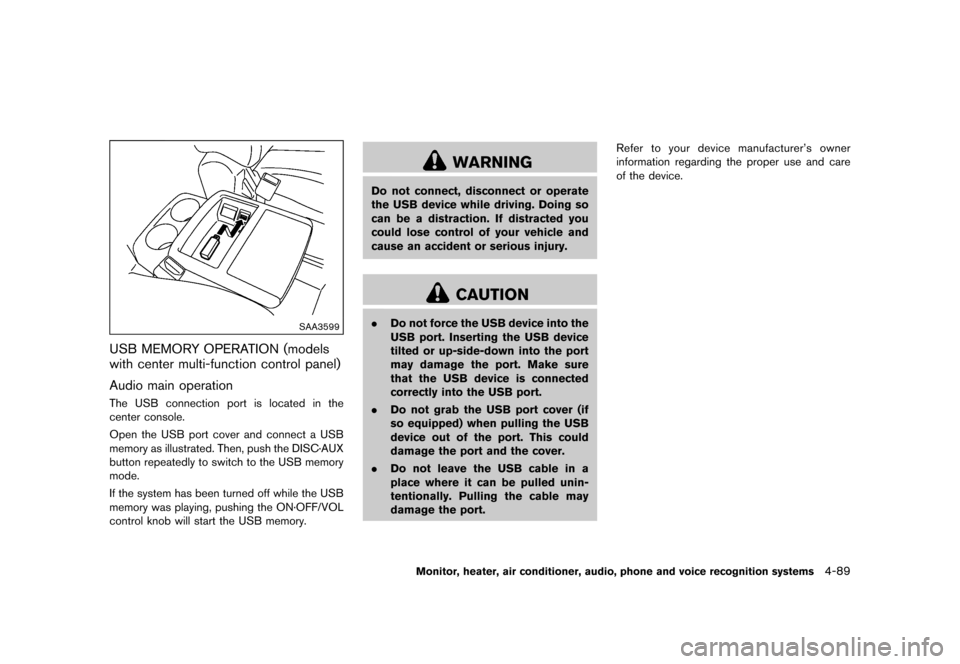

SAA3599
USB MEMORY OPERATION (models
with center multi-function control panel)
GUID-F93512CA-61A3-4728-9257-47C64BB70259
Audio main operationGUID-FF8D4D19-09EE-4E91-906B-DCD0791005EBThe USB connection port is located in the
center console.
Open the USB port cover and connect a USB
memory as illustrated. Then, push the DISC´AUX
button repeatedly to switch to the USB memory
mode.
If the system has been turned off while the USB
memory was playing, pushing the ON´OFF/VOL
control knob will start the USB memory.
WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover (if
so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port. Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-89
&RQGLWLRQ


> (GLW    0RGHO (' @

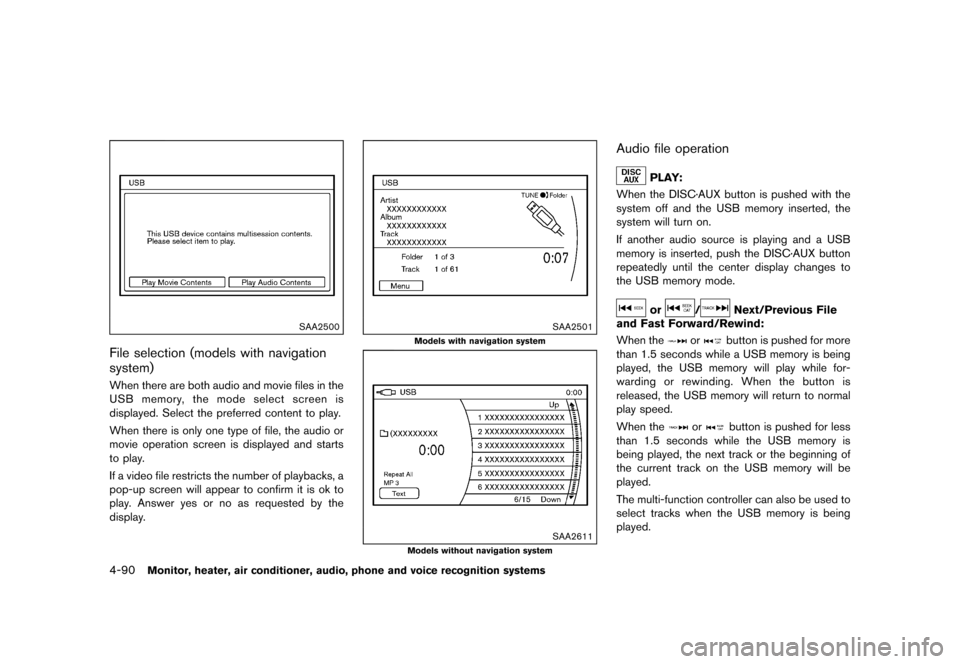

4-90Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2500
File selection (models with navigation
system)
GUID-FF76DC31-BF7F-4693-BB1A-51956EC49808When there are both audio and movie files in the
USB memory, the mode select screen is
displayed. Select the preferred content to play.
When there is only one type of file, the audio or
movie operation screen is displayed and starts
to play.
If a video file restricts the number of playbacks, a
pop-up screen will appear to confirm it is ok to
play. Answer yes or no as requested by the
display.
SAA2501
Models with navigation system
SAA2611
Models without navigation system
Audio file operationGUID-2A9A36BA-CEC7-4FF7-89F6-8C170CE6D9DE
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC´AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC´AUX button
repeatedly until the center display changes to
the USB memory mode.
or/Next/Previous File
and Fast Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When theorbutton is pushed for more
than 1.5 seconds while a USB memory is being
played, the USB memory will play while for-
warding or rewinding. When the button is
released, the USB memory will return to normal
play speed.
When the
orbutton is pushed for less
than 1.5 seconds while the USB memory is
being played, the next track or the beginning of
the current track on the USB memory will be
played.
The multi-function controller can also be used to
select tracks when the USB memory is being
played.
&RQGLWLRQ


> (GLW    0RGHO (' @

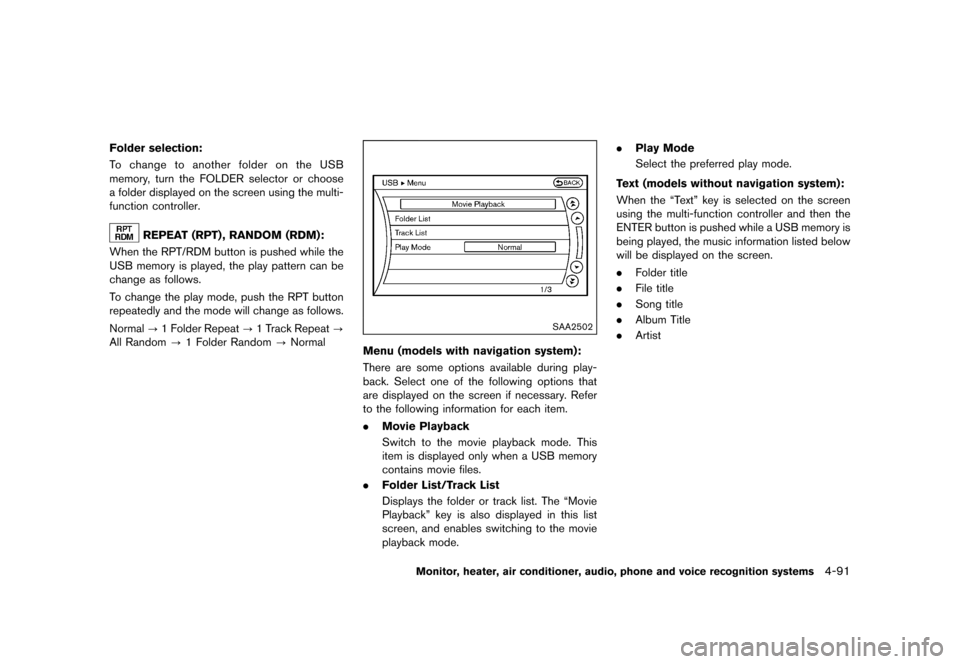

Folder selection:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To change to another folder on the USB
memory, turn the FOLDER selector or choose
a folder displayed on the screen using the multi-
function controller.
REPEAT (RPT) , RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT/RDM button is pushed while the
USB memory is played, the play pattern can be
change as follows.
To change the play mode, push the RPT button
repeatedly and the mode will change as follows.
Normal?1 Folder Repeat ?1 Track Repeat ?
All Random ?1 Folder Random ?Normal
SAA2502
Menu (models with navigation system):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407There are some options available during play-
back. Select one of the following options that
are displayed on the screen if necessary. Refer
to the following information for each item.
. Movie Playback
Switch to the movie playback mode. This
item is displayed only when a USB memory
contains movie files.
. Folder List/Track List
Displays the folder or track list. The ªMovie
Playbackº key is also displayed in this list
screen, and enables switching to the movie
playback mode. .
Play Mode
Select the preferred play mode.
Text (models without navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ªTextº key is selected on the screen
using the multi-function controller and then the
ENTER button is pushed while a USB memory is
being played, the music information listed below
will be displayed on the screen.
. Folder title
. File title
. Song title
. Album Title
. Artist
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-91
&RQGLWLRQ


> (GLW    0RGHO (' @

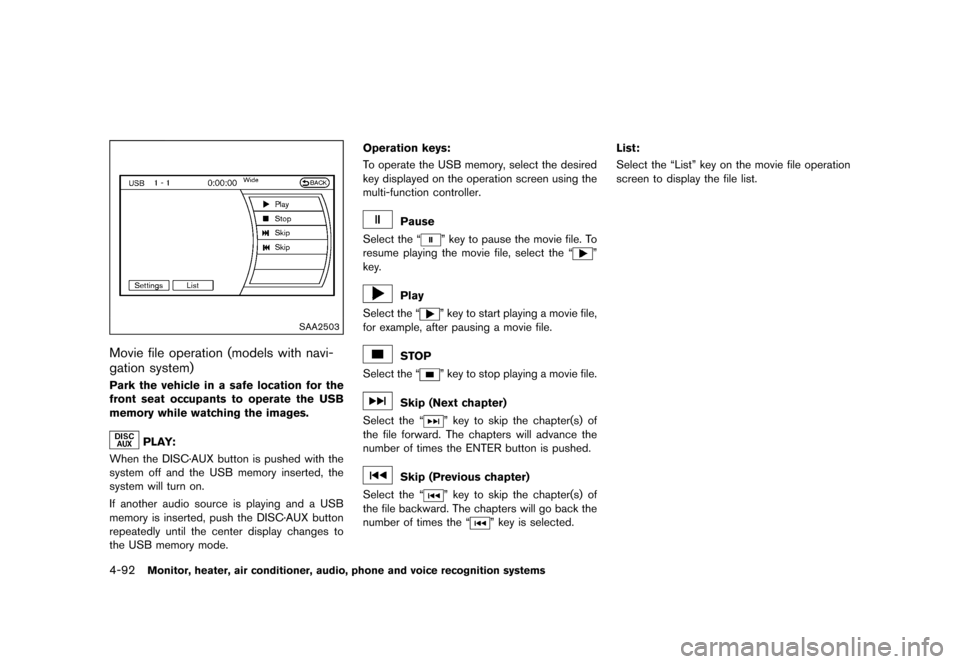

4-92Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2503
Movie file operation (models with navi-
gation system)
GUID-F07B95C9-71B5-480D-9C83-AF29300659FBPark the vehicle in a safe location for the
front seat occupants to operate the USB
memory while watching the images.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC´AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC´AUX button
repeatedly until the center display changes to
the USB memory mode.Operation keys:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To operate the USB memory, select the desired
key displayed on the operation screen using the
multi-function controller.
Pause
Select the ª
º key to pause the movie file. To
resume playing the movie file, select the ª
º
key.
Play
Select the ª
º key to start playing a movie file,
for example, after pausing a movie file.
STOP
Select the ª
º key to stop playing a movie file.
Skip (Next chapter)
Select the ª
º key to skip the chapter(s) of
the file forward. The chapters will advance the
number of times the ENTER button is pushed.
Skip (Previous chapter)
Select the ª
º key to skip the chapter(s) of
the file backward. The chapters will go back the
number of times the ª
º key is selected. List:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªListº key on the movie file operation
screen to display the file list.
&RQGLWLRQ


> (GLW    0RGHO (' @

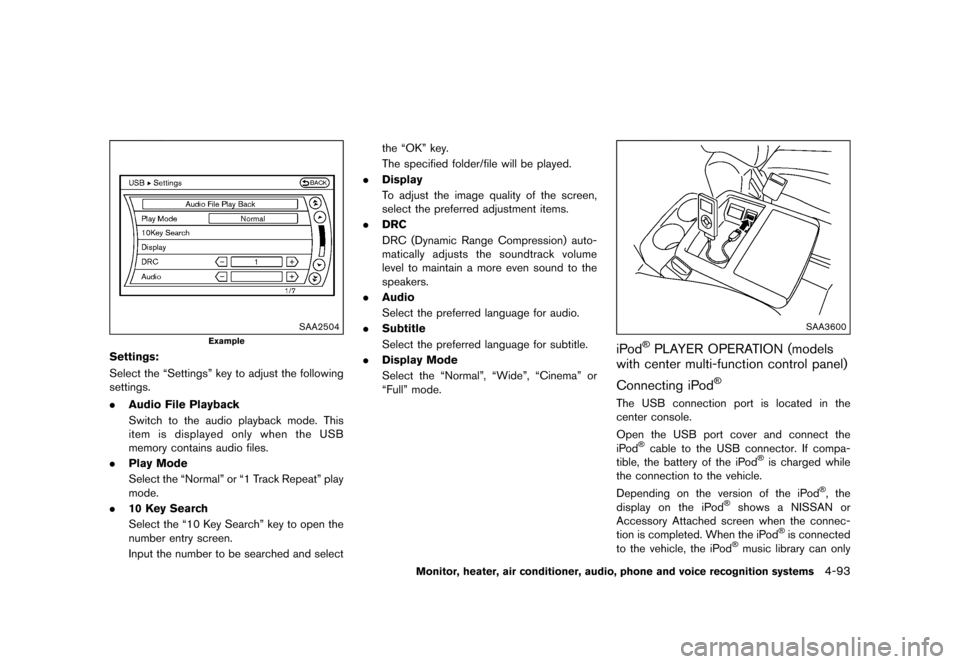

SAA2504
Example
Settings:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªSettingsº key to adjust the following
settings.
.Audio File Playback
Switch to the audio playback mode. This
item is displayed only when the USB
memory contains audio files.
. Play Mode
Select the ªNormalº or ª1 Track Repeatº play
mode.
. 10 Key Search
Select the ª10 Key Searchº key to open the
number entry screen.
Input the number to be searched and select the ªOKº key.
The specified folder/file will be played.
. Display
To adjust the image quality of the screen,
select the preferred adjustment items.
. DRC
DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.
. Audio
Select the preferred language for audio.
. Subtitle
Select the preferred language for subtitle.
. Display Mode
Select the ªNormalº, ªWideº, ªCinemaº or
ªFullº mode.
SAA3600
iPod


> (GLW    0RGHO (' @

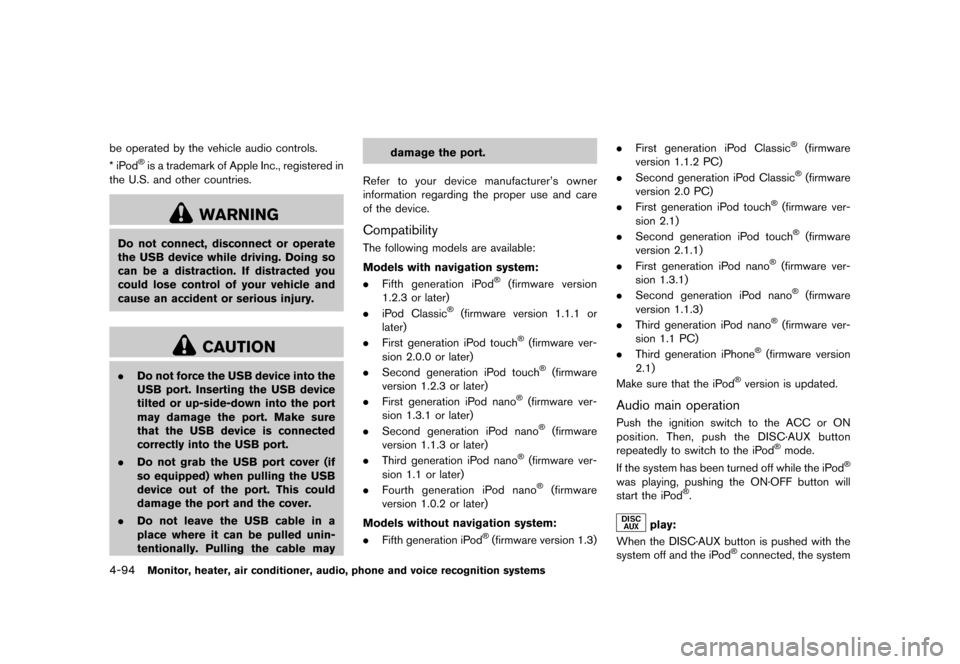

4-94Monitor, heater, air conditioner, audio, phone and voice recognition systems
be operated by the vehicle audio controls.
* iPod


> (GLW    0RGHO (' @

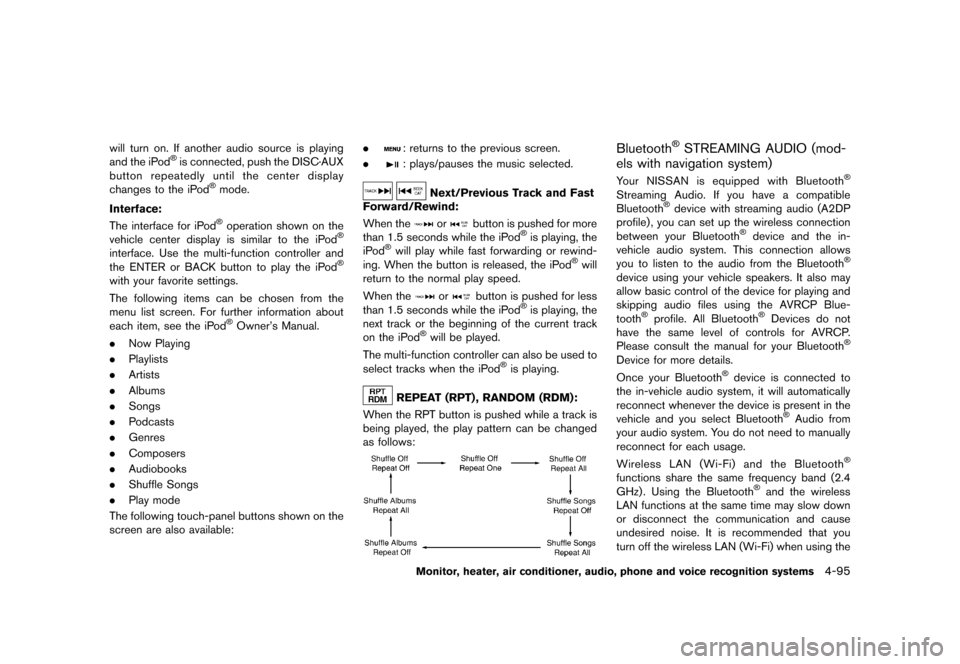

will turn on. If another audio source is playing
and the iPod


> (GLW    0RGHO (' @
4-96Monitor, heater, air conditioner, audio, phone and voice recognition systems
Bluetooth


> (GLW    0RGHO (' @

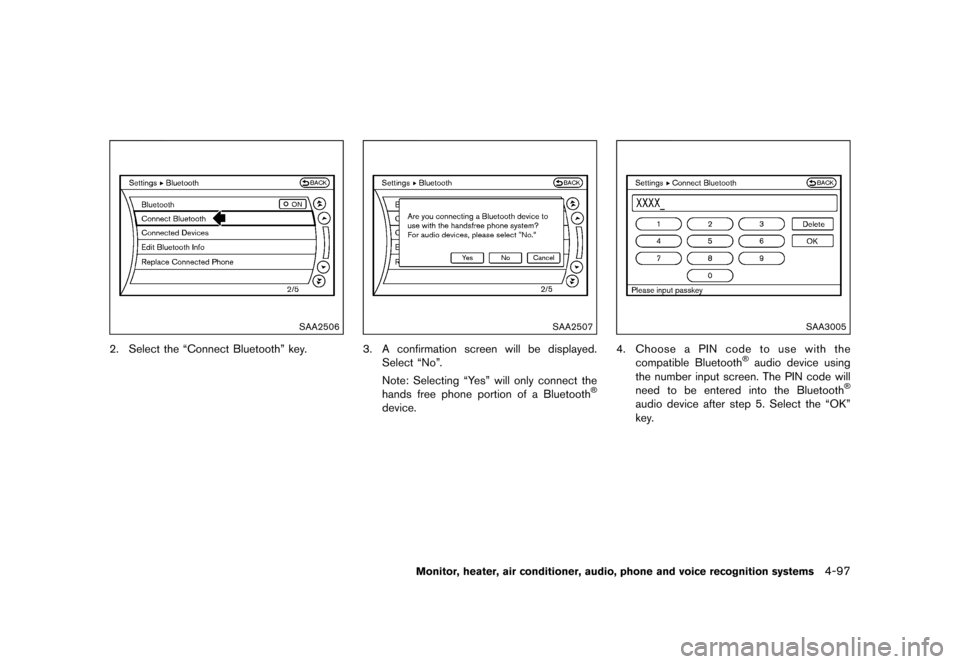

SAA2506
2. Select the ªConnect Bluetoothº key.
SAA2507
3. A confirmation screen will be displayed.Select ªNoº.
Note: Selecting ªYesº will only connect the
hands free phone portion of a Bluetooth


> (GLW    0RGHO (' @

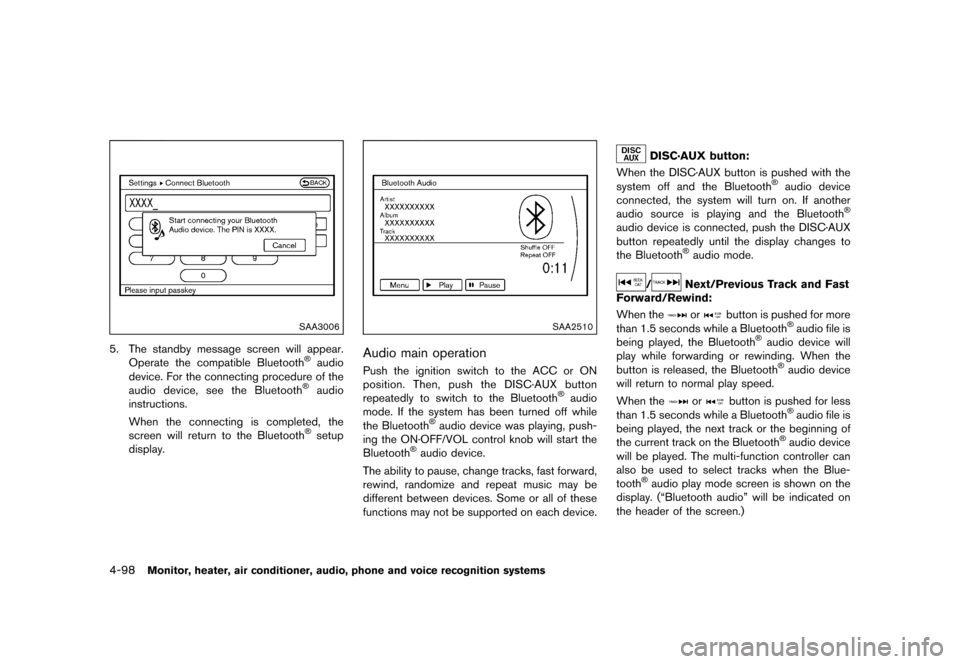

4-98Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3006
5. The standby message screen will appear.Operate the compatible Bluetooth
