trip computer NISSAN ROGUE 2010 Owner´s Manual

Black plate (10,1)
Model "S35-D" EDITED: 2009/ 9/ 4

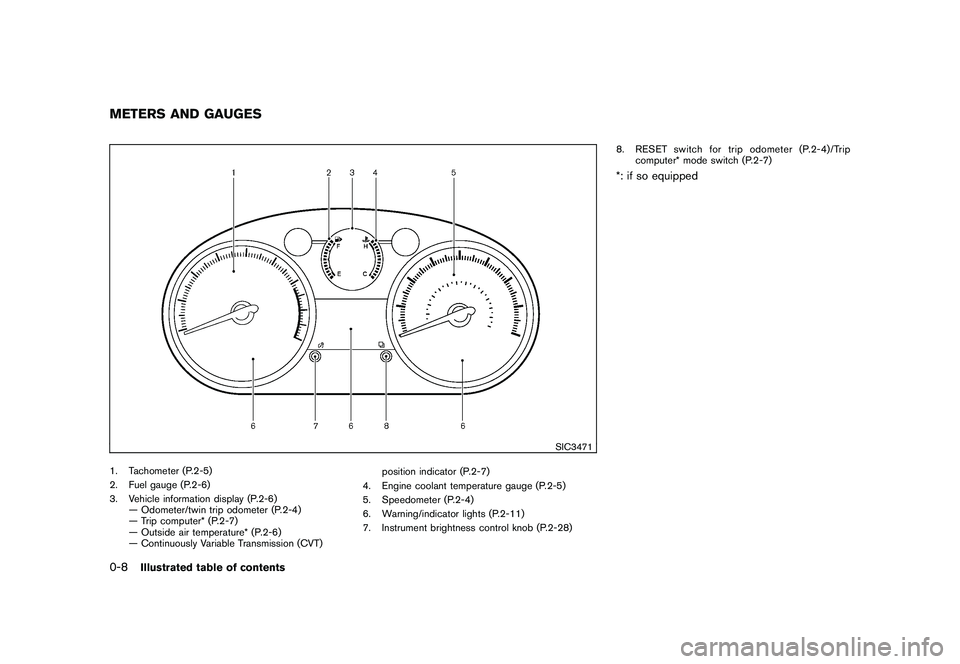

SIC3471
1. Tachometer (P.2-5)
2. Fuel gauge (P.2-6)
3. Vehicle information display (P.2-6)— Odometer/twin trip odometer (P.2-4)
— Trip computer* (P.2-7)
— Outside air temperature* (P.2-6)
— Continuously Variable Transmission (CVT) position indicator (P.2-7)
4. Engine coolant temperature gauge (P.2-5)
5. Speedometer (P.2-4)
6. Warning/indicator lights (P.2-11)
7. Instrument brightness control knob (P.2-28) 8. RESET switch for trip odometer (P.2-4)/Trip
computer* mode switch (P.2-7)
*: if so equipped
METERS AND GAUGES0-8

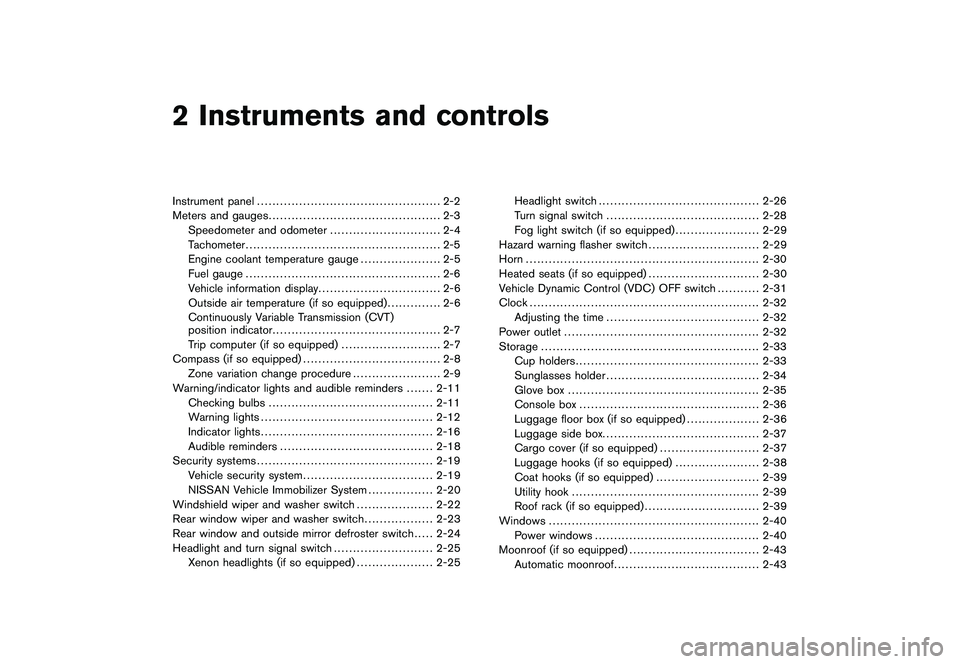

Illustrated table of contents

Black plate (7,1)
2 Instruments and controls
Model "S35-D" EDITED: 2009/ 9/ 4
Instrument panel................................................ 2-2
Meters and gauges ............................................. 2-3
Speedometer and odometer ............................. 2-4
Tachometer ................................................... 2-5
Engine coolant temperature gauge ..................... 2-5
Fuel gauge ................................................... 2-6
Vehicle information display ................................ 2-6
Outside air temperature (if so equipped) .............. 2-6
Continuously Variable Transmission (CVT)
position indicator ............................................ 2-7
Trip computer (if so equipped) .......................... 2-7
Compass (if so equipped) .................................... 2-8
Zone variation change procedure ....................... 2-9
Warning/indicator lights and audible reminders ....... 2-11
Checking bulbs ........................................... 2-11
Warning lights ............................................. 2-12
Indicator lights ............................................. 2-16
Audible reminders ........................................ 2-18
Security systems .............................................. 2-19
Vehicle security system .................................. 2-19
NISSAN Vehicle Immobilizer System ................. 2-20
Windshield wiper and washer switch .................... 2-22
Rear window wiper and washer switch .................. 2-23
Rear window and outside mirror defroster switch ..... 2-24
Headlight and turn signal switch .......................... 2-25
Xenon headlights (if so equipped) .................... 2-25Headlight switch
.......................................... 2-26
Turn signal switch ........................................ 2-28
Fog light switch (if so equipped) ...................... 2-29
Hazard warning flasher switch ............................. 2-29
Horn ............................................................. 2-30
Heated seats (if so equipped) ............................. 2-30
Vehicle Dynamic Control (VDC) OFF switch ........... 2-31
Clock ............................................................ 2-32
Adjusting the time ........................................ 2-32
Power outlet ................................................... 2-32
Storage ......................................................... 2-33
Cup holders ................................................ 2-33
Sunglasses holder ........................................ 2-34
Glove box .................................................. 2-35
Console box ............................................... 2-36
Luggage floor box (if so equipped) ................... 2-36
Luggage side box ......................................... 2-37
Cargo cover (if so equipped) .......................... 2-37
Luggage hooks (if so equipped) ...................... 2-38
Coat hooks (if so equipped) ........................... 2-39
Utility hook ................................................. 2-39
Roof rack (if so equipped) .............................. 2-39
Windows ....................................................... 2-40
Power windows ........................................... 2-40
Moonroof (if so equipped) .................................. 2-43
Automatic moonroof ...................................... 2-43

Black plate (71,1)
Model "S35-D" EDITED: 2009/ 9/ 4

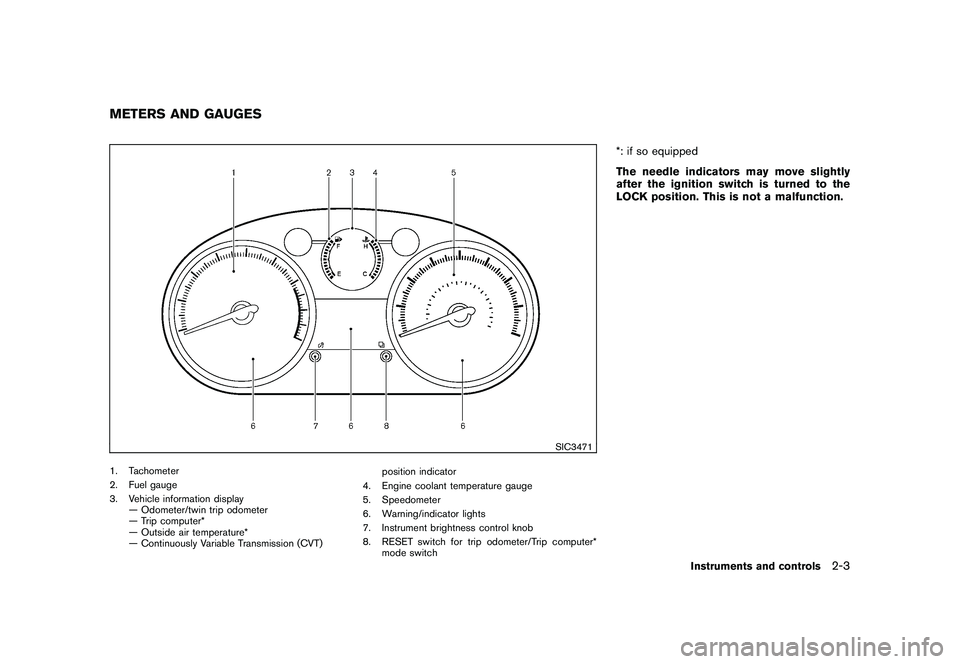

SIC3471
1. Tachometer
2. Fuel gauge
3. Vehicle information display— Odometer/twin trip odometer
— Trip computer*
— Outside air temperature*
— Continuously Variable Transmission (CVT) position indicator
4. Engine coolant temperature gauge
5. Speedometer
6. Warning/indicator lights
7. Instrument brightness control knob
8. RESET switch for trip odometer/Trip computer* mode switch
*: if so equipped
The needle indicators may move slightly
after the ignition switch is turned to the
LOCK position. This is not a malfunction.
METERS AND GAUGES
Instruments and controls
2-3

Black plate (72,1)
Model "S35-D" EDITED: 2009/ 9/ 4

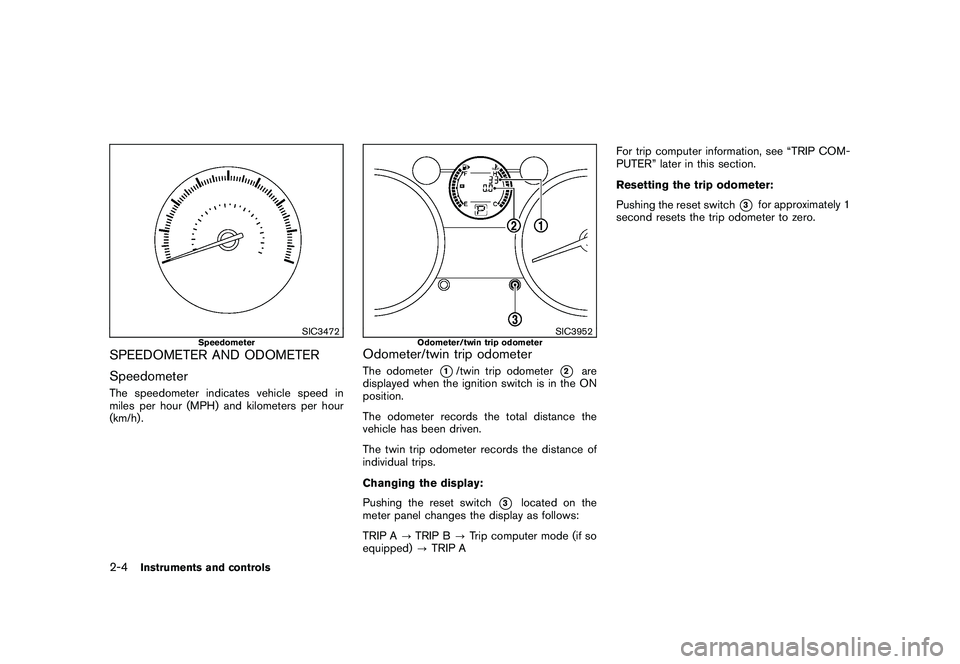

SIC3472
Speedometer
SPEEDOMETER AND ODOMETER
SpeedometerThe speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h) .
SIC3952
Odometer/twin trip odometer
Odometer/twin trip odometerThe odometer
*1/twin trip odometer
*2
are
displayed when the ignition switch is in the ON
position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display:
Pushing the reset switch
*3
located on the
meter panel changes the display as follows:
TRIP A ?TRIP B ?Trip computer mode (if so
equipped) ?TRIP A For trip computer information, see “TRIP COM-
PUTER” later in this section.
Resetting the trip odometer:
Pushing the reset switch
*3
for approximately 1
second resets the trip odometer to zero.
2-4
Instruments and controls

Black plate (74,1)
Model "S35-D" EDITED: 2009/ 9/ 4
SIC3954

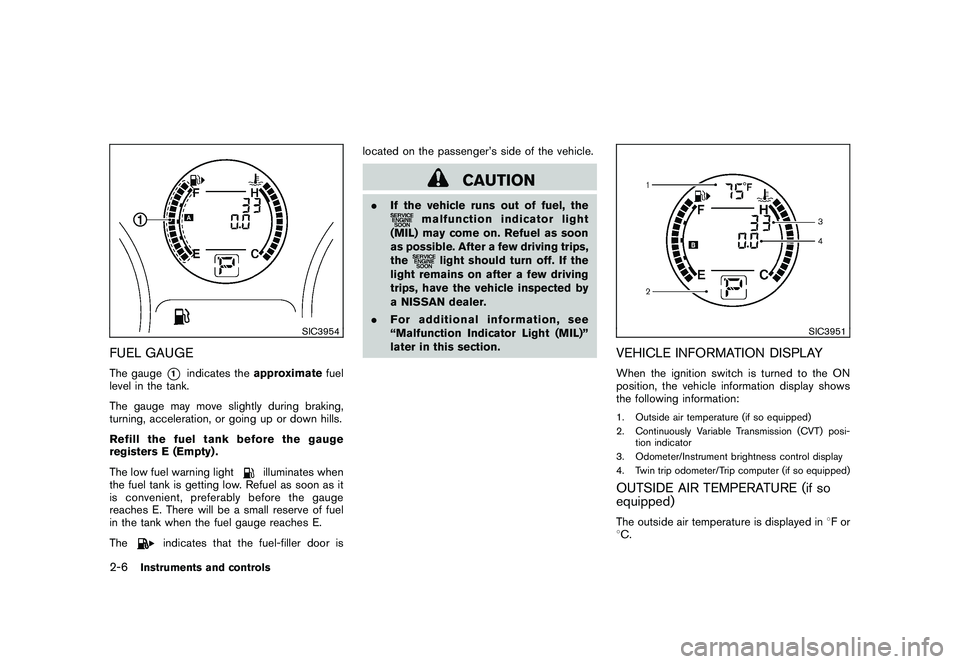

FUEL GAUGEThe gauge
*1
indicates theapproximate fuel
level in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
Refill the fuel tank before the gauge
registers E (Empty) .
The low fuel warning light
illuminates when
the fuel tank is getting low. Refuel as soon as it
is convenient, preferably before the gauge
reaches E. There will be a small reserve of fuel
in the tank when the fuel gauge reaches E.
The
indicates that the fuel-filler door is located on the passenger’s side of the vehicle.
CAUTION
.
If the vehicle runs out of fuel, the
malfunction indicator light
(MIL) may come on. Refuel as soon
as possible. After a few driving trips,
the
light should turn off. If the
light remains on after a few driving
trips, have the vehicle inspected by
a NISSAN dealer.
. For additional information, see
“Malfunction Indicator Light (MIL)”
later in this section.
SIC3951
VEHICLE INFORMATION DISPLAYWhen the ignition switch is turned to the ON
position, the vehicle information display shows
the following information:1. Outside air temperature (if so equipped)
2. Continuously Variable Transmission (CVT) posi-
tion indicator
3. Odometer/Instrument brightness control display
4. Twin trip odometer/Trip computer (if so equipped)OUTSIDE AIR TEMPERATURE (if so
equipped)The outside air temperature is displayed in 8For
8 C.
2-6
Instruments and controls

Black plate (75,1)
Model "S35-D" EDITED: 2009/ 9/ 4

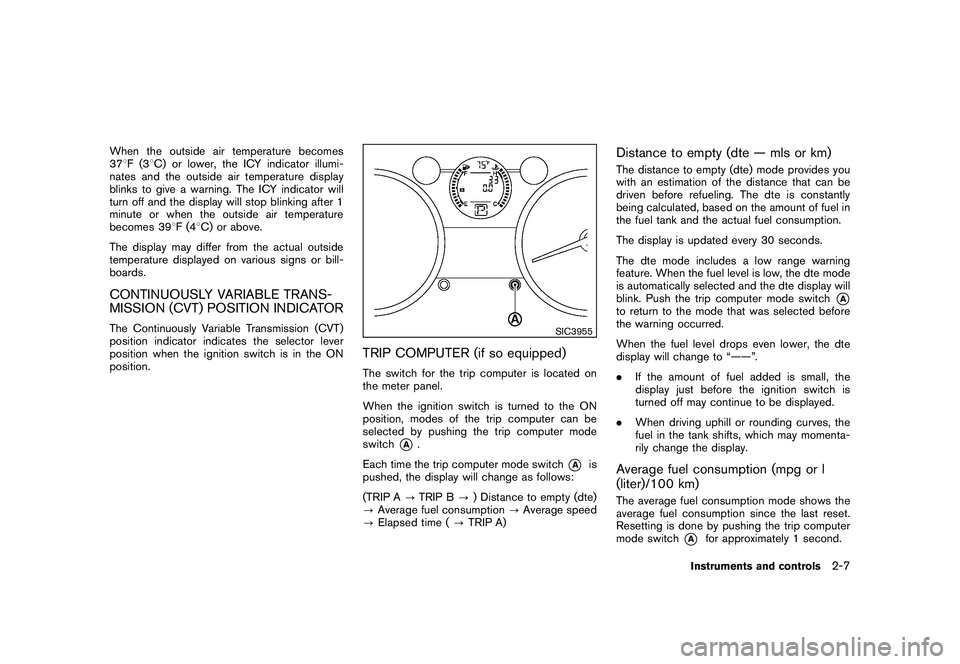

When the outside air temperature becomes
378F(3 8C) or lower, the ICY indicator illumi-
nates and the outside air temperature display
blinks to give a warning. The ICY indicator will
turn off and the display will stop blinking after 1
minute or when the outside air temperature
becomes 39 8F(4 8C) or above.
The display may differ from the actual outside
temperature displayed on various signs or bill-
boards.CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT) POSITION INDICATORThe Continuously Variable Transmission (CVT)
position indicator indicates the selector lever
position when the ignition switch is in the ON
position.
SIC3955
TRIP COMPUTER (if so equipped)The switch for the trip computer is located on
the meter panel.
When the ignition switch is turned to the ON
position, modes of the trip computer can be
selected by pushing the trip computer mode
switch
*A
.
Each time the trip computer mode switch
*A
is
pushed, the display will change as follows:
(TRIP A ?TRIP B ?) Distance to empty (dte)
? Average fuel consumption ?Average speed
? Elapsed time ( ?TRIP A)
Distance to empty (dte — mls or km)The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. When the fuel level is low, the dte mode
is automatically selected and the dte display will
blink. Push the trip computer mode switch
*A
to return to the mode that was selected before
the warning occurred.
When the fuel level drops even lower, the dte
display will change to “——”.
. If the amount of fuel added is small, the
display just before the ignition switch is
turned off may continue to be displayed.
. When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.Average fuel consumption (mpg or l
(liter)/100 km)The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the trip computer
mode switch
*A
for approximately 1 second.
Instruments and controls
2-7

Black plate (76,1)
Model "S35-D" EDITED: 2009/ 9/ 4

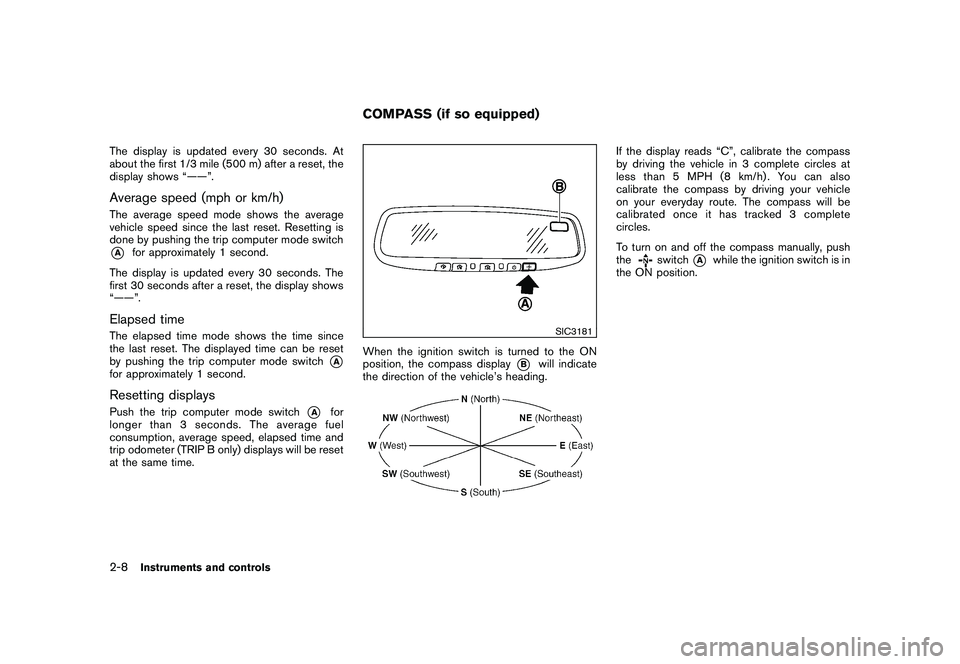

The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “——”.Average speed (mph or km/h)The average speed mode shows the average
vehicle speed since the last reset. Resetting is
done by pushing the trip computer mode switch*A
for approximately 1 second.
The display is updated every 30 seconds. The
first 30 seconds after a reset, the display shows
“——”.
Elapsed timeThe elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the trip computer mode switch
*A
for approximately 1 second.Resetting displaysPush the trip computer mode switch
*A
for
longer than 3 seconds. The average fuel
consumption, average speed, elapsed time and
trip odometer (TRIP B only) displays will be reset
at the same time.
SIC3181
When the ignition switch is turned to the ON
position, the compass display
*B
will indicate
the direction of the vehicle’s heading.
If the display reads “C”, calibrate the compass
by driving the vehicle in 3 complete circles at
less than 5 MPH (8 km/h). You can also
calibrate the compass by driving your vehicle
on your everyday route. The compass will be
calibrated once it has tracked 3 complete
circles.
To turn on and off the compass manually, push
the
switch
*A
while the ignition switch is in
the ON position.
COMPASS (if so equipped)
2-8
Instruments and controls

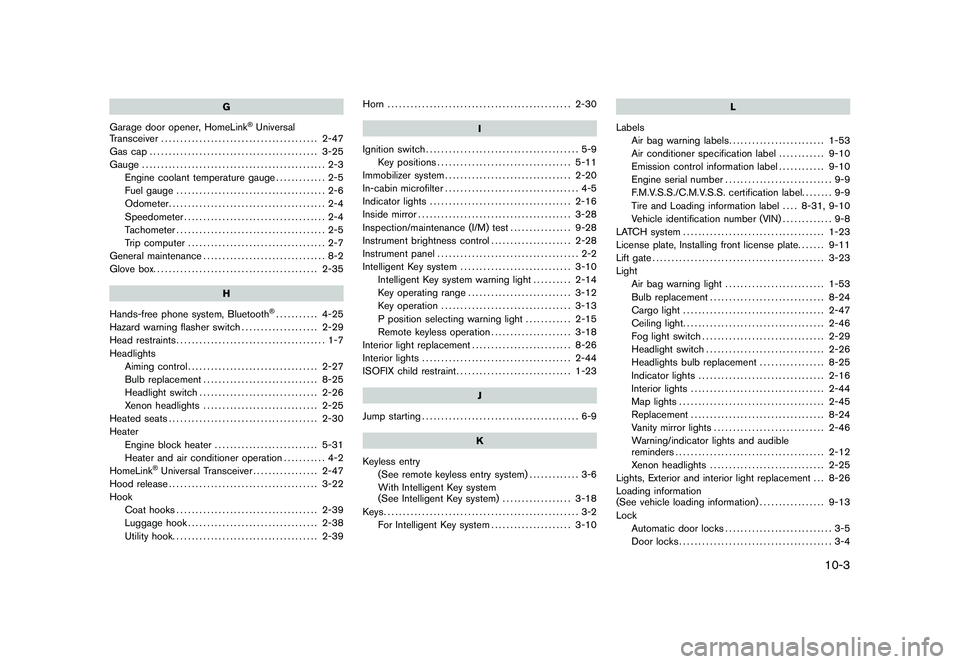

Black plate (3,1)
G
Garage door opener, HomeLink
®Universal
Transceiver ......................................... 2-47
Gas cap ............................................ 3-25
Gauge ................................................ 2-3
Engine coolant temperature gauge ............. 2-5
Fuel gauge ....................................... 2-6
Odometer ......................................... 2-4
Speedometer ..................................... 2-4
Tachometer ....................................... 2-5
Trip computer .................................... 2-7
General maintenance ................................ 8-2
Glove box. .......................................... 2-35
H
Hands-free phone system, Bluetooth®........... 4-25
Hazard warning flasher switch .................... 2-29
Head restraints ....................................... 1-7
Headlights Aiming control .................................. 2-27
Bulb replacement .............................. 8-25
Headlight switch ............................... 2-26
Xenon headlights .............................. 2-25
Heated seats ....................................... 2-30
Heater
Engine block heater ........................... 5-31
Heater and air conditioner operation ........... 4-2
HomeLink
®Universal Transceiver ................. 2-47
Hood release ....................................... 3-22
Hook Coat hooks ..................................... 2-39
Luggage hook .................................. 2-38
Utility hook ...................................... 2-39 Horn
................................................ 2-30
I
Ignition switch ........................................ 5-9
Key positions ................................... 5-11
Immobilizer system ................................. 2-20
In-cabin microfilter ................................... 4-5
Indicator lights ..................................... 2-16
Inside mirror ........................................ 3-28
Inspection/maintenance (I/M) test ................ 9-28
Instrument brightness control ..................... 2-28
Instrument panel ..................................... 2-2
Intelligent Key system ............................. 3-10
Intelligent Key system warning light .......... 2-14
Key operating range ........................... 3-12
Key operation .................................. 3-13
P position selecting warning light ............ 2-15
Remote keyless operation ..................... 3-18
Interior light replacement .......................... 8-26
Interior lights ....................................... 2-44
ISOFIX child restraint .............................. 1-23
J
Jump starting ......................................... 6-9
K
Keyless entry (See remote keyless entry system) ............. 3-6
With Intelligent Key system
(See Intelligent Key system) .................. 3-18
Keys................................................... 3-2 For Intelligent Key system ..................... 3-10 L
Labels Air bag warning labels ......................... 1-53
Air conditioner specification label ............ 9-10
Emission control information label ............ 9-10
Engine serial number ............................ 9-9
F.M.V.S.S./C.M.V.S.S. certification label. ....... 9-9
Tire and Loading information label .... 8-31, 9-10
Vehicle identification number (VIN) ............. 9-8
LATCH system ..................................... 1-23
License plate, Installing front license plate. ...... 9-11
Lift gate ............................................. 3-23
Light Air bag warning light .......................... 1-53
Bulb replacement .............................. 8-24
Cargo light ..................................... 2-47
Ceiling light ..................................... 2-46
Fog light switch ................................ 2-29
Headlight switch ............................... 2-26
Headlights bulb replacement ................. 8-25
Indicator lights ................................. 2-16
Interior lights ................................... 2-44
Map lights ...................................... 2-45
Replacement ................................... 8-24
Vanity mirror lights ............................. 2-46
Warning/indicator lights and audible
reminders ....................................... 2-12
Xenon headlights .............................. 2-25
Lights, Exterior and interior light replacement . . . 8-26
Loading information
(See vehicle loading information) ................. 9-13
Lock Automatic door locks ............................ 3-5
Door locks ........................................ 3-4
10-3
Model "S35-D" EDITED: 2009/ 9/ 4

Black plate (4,1)

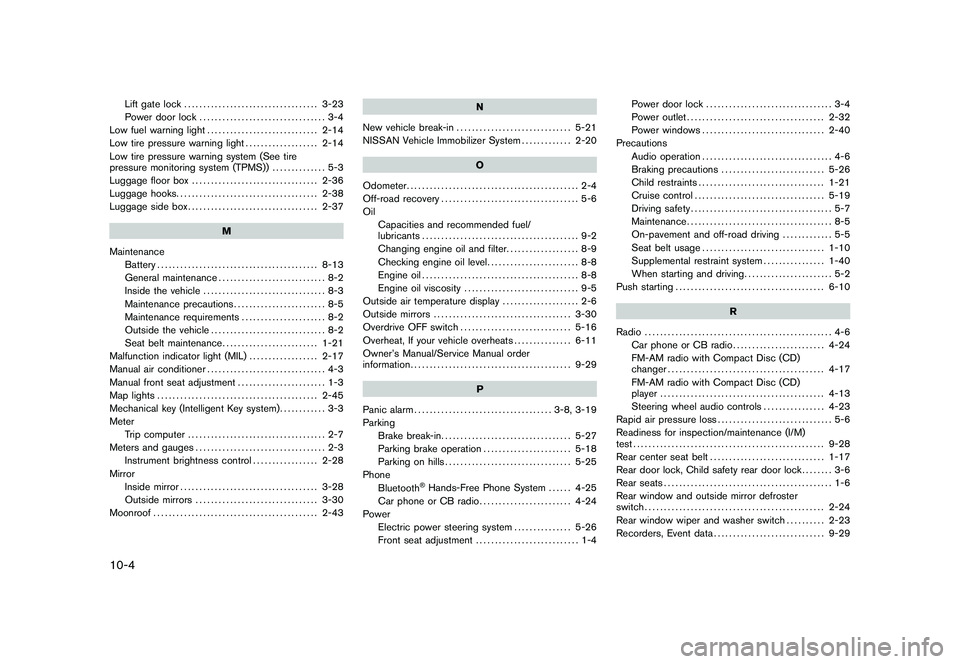

10-4
Lift gate lock................................... 3-23
Power door lock ................................. 3-4
Low fuel warning light ............................. 2-14
Low tire pressure warning light ................... 2-14
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) .............. 5-3
Luggage floor box ................................. 2-36
Luggage hooks ..................................... 2-38
Luggage side box .................................. 2-37
M
Maintenance Battery .......................................... 8-13
General maintenance ............................ 8-2
Inside the vehicle ................................ 8-3
Maintenance precautions ........................ 8-5
Maintenance requirements ...................... 8-2
Outside the vehicle .............................. 8-2
Seat belt maintenance ......................... 1-21
Malfunction indicator light (MIL) .................. 2-17
Manual air conditioner ............................... 4-3
Manual front seat adjustment ....................... 1-3
Map lights .......................................... 2-45
Mechanical key (Intelligent Key system) ............ 3-3
Meter Trip computer .................................... 2-7
Meters and gauges .................................. 2-3
Instrument brightness control ................. 2-28
Mirror Inside mirror .................................... 3-28
Outside mirrors ................................ 3-30
Moonroof ........................................... 2-43 N
New vehicle break-in .............................. 5-21
NISSAN Vehicle Immobilizer System ............. 2-20
O
Odometer ............................................. 2-4
Off-road recovery .................................... 5-6
Oil Capacities and recommended fuel/
lubricants ......................................... 9-2
Changing engine oil and filter ................... 8-9
Checking engine oil level ........................ 8-8
Engine oil ......................................... 8-8
Engine oil viscosity .............................. 9-5
Outside air temperature display .................... 2-6
Outside mirrors .................................... 3-30
Overdrive OFF switch ............................. 5-16
Overheat, If your vehicle overheats ............... 6-11
Owner’s Manual/Service Manual order
information .......................................... 9-29
P
Panic alarm .................................... 3-8, 3-19
Parking Brake break-in .................................. 5-27
Parking brake operation ....................... 5-18
Parking on hills ................................. 5-25
Phone Bluetooth
®Hands-Free Phone System ...... 4-25
Car phone or CB radio ........................ 4-24
Power Electric power steering system ............... 5-26
Front seat adjustment ........................... 1-4 Power door lock
................................. 3-4
Power outlet .................................... 2-32
Power windows ................................ 2-40
Precautions Audio operation .................................. 4-6
Braking precautions ........................... 5-26
Child restraints ................................. 1-21
Cruise control .................................. 5-19
Driving safety ..................................... 5-7
Maintenance ...................................... 8-5
On-pavement and off-road driving ............. 5-5
Seat belt usage ................................ 1-10
Supplemental restraint system ................ 1-40
When starting and driving ....................... 5-2
Push starting ....................................... 6-10
R
Radio ................................................. 4-6
Car phone or CB radio ........................ 4-24
FM-AM radio with Compact Disc (CD)
changer ......................................... 4-17
FM-AM radio with Compact Disc (CD)
player ........................................... 4-13
Steering wheel audio controls ................ 4-23
Rapid air pressure loss .............................. 5-6
Readiness for inspection/maintenance (I/M)
test .................................................. 9-28
Rear center seat belt .............................. 1-17
Rear door lock, Child safety rear door lock ........ 3-6
Rear seats ............................................ 1-6
Rear window and outside mirror defroster
switch ............................................... 2-24
Rear window wiper and washer switch .......... 2-23
Recorders, Event data ............................. 9-29
Model "S35-D" EDITED: 2009/ 9/ 4

Black plate (6,1)

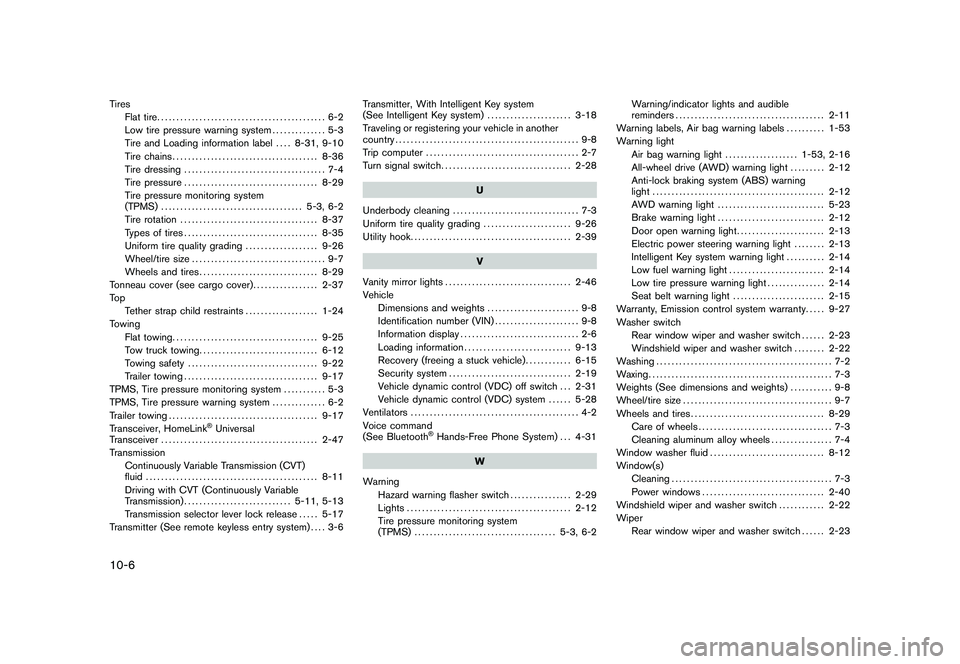

10-6TiresFlat tire ............................................ 6-2
Low tire pressure warning system .............. 5-3
Tire and Loading information label .... 8-31, 9-10
Tire chains ...................................... 8-36
Tire dressing ..................................... 7-4
Tire pressure ................................... 8-29
Tire pressure monitoring system
(TPMS) ..................................... 5-3, 6-2
Tire rotation .................................... 8-37
Types of tires ................................... 8-35
Uniform tire quality grading ................... 9-26
Wheel/tire size ................................... 9-7
Wheels and tires ............................... 8-29
Tonneau cover (see cargo cover) ................. 2-37
To p
Tether strap child restraints ................... 1-24
Towing Flat towing ...................................... 9-25
Tow truck towing ............................... 6-12
Towing safety .................................. 9-22
Trailer towing ................................... 9-17
TPMS, Tire pressure monitoring system ........... 5-3
TPMS, Tire pressure warning system .............. 6-2
Trailer towing ....................................... 9-17
Transceiver, HomeLink
®Universal
Transceiver ......................................... 2-47
Transmission Continuously Variable Transmission (CVT)
fluid ............................................. 8-11
Driving with CVT (Continuously Variable
Transmission) ............................ 5-11, 5-13
Transmission selector lever lock release ..... 5-17
Transmitter (See remote keyless entry system) .... 3-6Transmitter, With Intelligent Key system
(See Intelligent Key system)
...................... 3-18
Traveling or registering your vehicle in another
country ................................................ 9-8
Trip computer ........................................ 2-7
Turn signal switch .................................. 2-28
U
Underbody cleaning ................................. 7-3
Uniform tire quality grading ....................... 9-26
Utility hook .......................................... 2-39
V
Vanity mirror lights ................................. 2-46
Vehicle Dimensions and weights ........................ 9-8
Identification number (VIN) ...................... 9-8
Information display ............................... 2-6
Loading information ............................ 9-13
Recovery (freeing a stuck vehicle) ............ 6-15
Security system ................................ 2-19
Vehicle dynamic control (VDC) off switch . . . 2-31
Vehicle dynamic control (VDC) system ...... 5-28
Ventilators ............................................ 4-2
Voice command
(See Bluetooth
®Hands-Free Phone System) . . . 4-31
W
Warning Hazard warning flasher switch ................ 2-29
Lights ........................................... 2-12
Tire pressure monitoring system
(TPMS) ..................................... 5-3, 6-2 Warning/indicator lights and audible
reminders
....................................... 2-11
Warning labels, Air bag warning labels .......... 1-53
Warning light Air bag warning light ................... 1-53, 2-16
All-wheel drive (AWD) warning light ......... 2-12
Anti-lock braking system (ABS) warning
light ............................................. 2-12
AWD warning light ............................ 5-23
Brake warning light ............................ 2-12
Door open warning light ....................... 2-13
Electric power steering warning light ........ 2-13
Intelligent Key system warning light .......... 2-14
Low fuel warning light ......................... 2-14
Low tire pressure warning light ............... 2-14
Seat belt warning light ........................ 2-15
Warranty, Emission control system warranty ..... 9-27
Washer switch Rear window wiper and washer switch ...... 2-23
Windshield wiper and washer switch ........ 2-22
Washing .............................................. 7-2
Waxing ................................................ 7-3
Weights (See dimensions and weights) ........... 9-8
Wheel/tire size ....................................... 9-7
Wheels and tires ................................... 8-29
Care of wheels ................................... 7-3
Cleaning aluminum alloy wheels ................ 7-4
Window washer fluid .............................. 8-12
Window(s) Cleaning .......................................... 7-3
Power windows ................................ 2-40
Windshield wiper and washer switch ............ 2-22
Wiper Rear window wiper and washer switch ...... 2-23
Model "S35-D" EDITED: 2009/ 9/ 4
