VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
AT-83
D
E
F
G
H
I
J
K
L
MA
B
AT

Data are reference value and are measured between each terminal and ground.
Diagnostic ProcedureBCS0010L
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE-A/T” while driving.
Check the value changes according to driving speed.
OK or NG
OK >> GO TO 8.
NG >> GO TO 2.
2. CHECK REVOLUTION SENSOR
With CONSULT-II
1. Start engine.
2. Check power supply to revolution sensor by voltage between TCM connector terminals. Refer to AT- 1 5 8 ,
"Wiring Diagram — AT — MAIN" .
3. If OK check the pulse when vehicle cruises.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
Terminal Wire color Item ConditionJudgement standard
(Approx.)
29 W/R Revolution sensorWhen moving at 20 km/h
(12 MPH)450 Hz
42 B Sensor ground Always 0 V
Item name Condition Display value
VHCL/S SE-A/T During drivingApproximately matches the speedometer
reading.
SCIA4730E
Item Connector TerminalJudgement standard
(Approx.)
TCM con-
nectorF10510 - 42
Battery voltage
19 - 42
Name Condition
Revolution sensorWhen moving at 20 km/h (12 MPH), use the CONSULT-II
pulse frequency measuring function.
CAUTION:
Connect the diagnosis data link cable to the data link
connector.
Item Connector Terminal Data (Approx.)
TCM connector F105 29 450 Hz
SCIA4939E

AT-84
VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)

3. CHECK POWER AND SENSOR GROUND
1. Turn ignition switch OFF.
2. Disconnect revolution sensor harness connector.
3. Turn ignition switch ON. (Do not start engine.)
4. Check voltage between revolution sensor harness connector
terminals.
5. Check voltage between revolution sensor harness connector
terminal and ground.
6. If OK, check harness for short to ground and short power.
7. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG - 1 >> Battery voltage is not supplied between terminals 1 and 3, terminals 1 and ground: GO TO 6.
NG - 2 >> Battery voltage is not supplied between terminals 1 and 3 only: GO TO 7.
4. CHECK HARNESS BETWEEN TCM AND REVOLUTION SENSOR
1. Turn ignition switch OFF.
2. Disconnect TCM connector and revolution sensor harness connector.
3. Check continuity between TCM connector terminal and revolu-
tion sensor harness connector terminal.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
Item Connector TerminalData
(Approx.)
Revolution sensor harness
connectorF15 1 - 3Battery volt-
age
SCIA5589E
Item Connector TerminalData
(Approx.)
Revolution sensor harness
connectorF15 1 - groundBattery volt-
age
SCIA5590E
Item Connector Terminal Continuity
TCM connector F105 29
Ye s
Revolution sensor harness
connectorF15 2
SCIA2616E

VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
AT-85
D
E
F
G
H
I
J
K
L
MA
B
AT

6. CHECK HARNESS BETWEEN TCM AND REVOLUTION SENSOR (POWER)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and revolution sensor harness connector.
3. Check continuity between TCM connector terminals and revolu-
tion sensor harness connector terminal. Refer to AT- 4 2 , "
Circuit
Diagram" and AT- 1 5 8 , "Wiring Diagram — AT — MAIN" .
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> 10A fuse (No.83, located in the IPDM E/R) or ignition switch are malfunctioning.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK HARNESS BETWEEN TCM AND REVOLUTION SENSOR (SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and revolution sensor harness connector.
3. Check continuity between TCM connector terminal and revolu-
tion sensor harness connector terminal.
4. If OK, check harness for short to ground and short power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK DTC
Perform AT- 8 0 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
Item Connector Terminal Continuity
TCM connector F104 10
Ye s
Revolution sensor harness
connectorF15 1
TCM connector F104 19
Ye s
Revolution sensor harness
connectorF15 1
SCIA2617E
Item Connector Terminal Continuity
TCM connector F105 42
Ye s
Revolution sensor harness
connectorF15 3
SCIA2618E

AT-86
VEHICLE SPEED SENSOR MTR

VEHICLE SPEED SENSOR MTRPFP:24814
DescriptionBCS0010M
Vehicle speed sensor·MTR is built into speedometer assembly. Sensor functions is an auxiliary device to the
revolution sensor when it is malfunctioning. TCM will then use a signal sent from vehicle speed sensor·MTR.
CONSULT-II Reference ValueBCS0010N
On Board Diagnosis LogicBCS0010O
Diagnostic trouble code “VHCL SPEED SEN-MTR” with CONSULT-II or 2nd judgement flicker without CON-
SULT-II is detected when TCM does not receive the proper voltage signal from the sensor.
Possible CauseBCS0010P

Harness or connector
(Sensor circuit is open or shorted.)

Vehicle speed sensor
DTC Confirmation ProcedureBCS0010Q
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm that the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Start engine and accelerate vehicle from 0 to 25 km/h (0 to 16
MPH).
4. If DTC is detected, go to AT- 8 8 , "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever position: “D” position
Vehicle speed: Higher than 25 km/h (16 MPH)
3. Perform self-diagnosis. Refer to AT- 7 6 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 8 8 , "
Diagnostic Procedure" .
Item name Condition Display value
VHCL/S SE-MTR During driving Approximately matches the speedometer reading.
BCIA0031E

VEHICLE SPEED SENSOR MTR
AT-87
D
E
F
G
H
I
J
K
L
MA
B
AT

Wiring Diagram — AT — VSSMTRBCS0010R
TCWM0515E

AT-88
VEHICLE SPEED SENSOR MTR

Data are reference value and are measured between each terminal and ground.
Diagnostic ProcedureBCS0010S
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE-MTR” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING ITEM
Check the following items:

Unified meter and A/C amp. Refer to DI-27, "UNIFIED METER AND A/C AMP" .

Harness for short or open between TCM and unified meter and A/C amp.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. CHECK DTC
Perform AT- 8 6 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
Terminal Wire color Item ConditionJudgement standard
(Approx.)
40 L/B Vehicle speed sensorWhen moving vehicle at 2
to 3 km/h (1 to 2 MPH) for
1 m (3 ft) or more.Voltage varies between
less than 0 V and more
than 4.5 V
Item name Condition Display value
VHCL/S SE·MTR During drivingApproximately matches
the speedometer reading.
ItemConnec-
torTerminal ConditionJudgement stan-
dard (Approx.)
TCM con-
nectorF10540 -
GroundWhen moving vehi-
cle at 2 to 3 km/h (1
to 2 MPH) for 1 m
(3 ft) or more.Voltage varies
between less
than 0 V and
more than 4.5 V
SCIA4730E
SCIA4940E

VEHICLE SPEED SENSOR MTR
AT-89
D
E
F
G
H
I
J
K
L
MA
B
AT

4. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.

AT-90
SHIFT SOLENOID VALVE A

SHIFT SOLENOID VALVE APFP:31940
DescriptionBCS00110
Shift solenoid valves A and B are turned ON or OFF by TCM in response to signals sent from PNP switch,
vehicle speed and ECM (throttle opening). Gears will then be shifted to the optimum position.
CONSULT-II Reference ValueB C S 0 0 111
On Board Diagnosis LogicBCS00112
Diagnostic trouble code “SHIFT SOLENOID/V A” with CONSULT-II or 4th judgement flicker without CON-
SULT-II is detected when TCM detects an improper voltage drop when it tries to operate the solenoid valve.
Possible CauseBCS00113

Harness or connector
(Solenoid circuit is open or shorted.)

Shift solenoid valve A
DTC Confirmation ProcedureBCS00114
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm that the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Start engine.
4. Drive vehicle in “D” position and allow the transmission to shift 1
→ 2 (“GEAR”).
5. If DTC is detected, go to AT- 9 2 , "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle in D
1 → D2 position.
3. Perform self-diagnosis. Refer to AT- 7 6 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 9 2 , "
Diagnostic Procedure" .
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Item name ConditionDisplay value
SHIFT S/V AWhen shift solenoid valve A operates. (When driving in “D
1 ” or “D4 ”.) ON
When shift solenoid valve A does not operate. (When driving in “D
2 ” or “D3 ”.) OFF
BCIA0031E

SHIFT SOLENOID VALVE A
AT-91
D
E
F
G
H
I
J
K
L
MA
B
AT

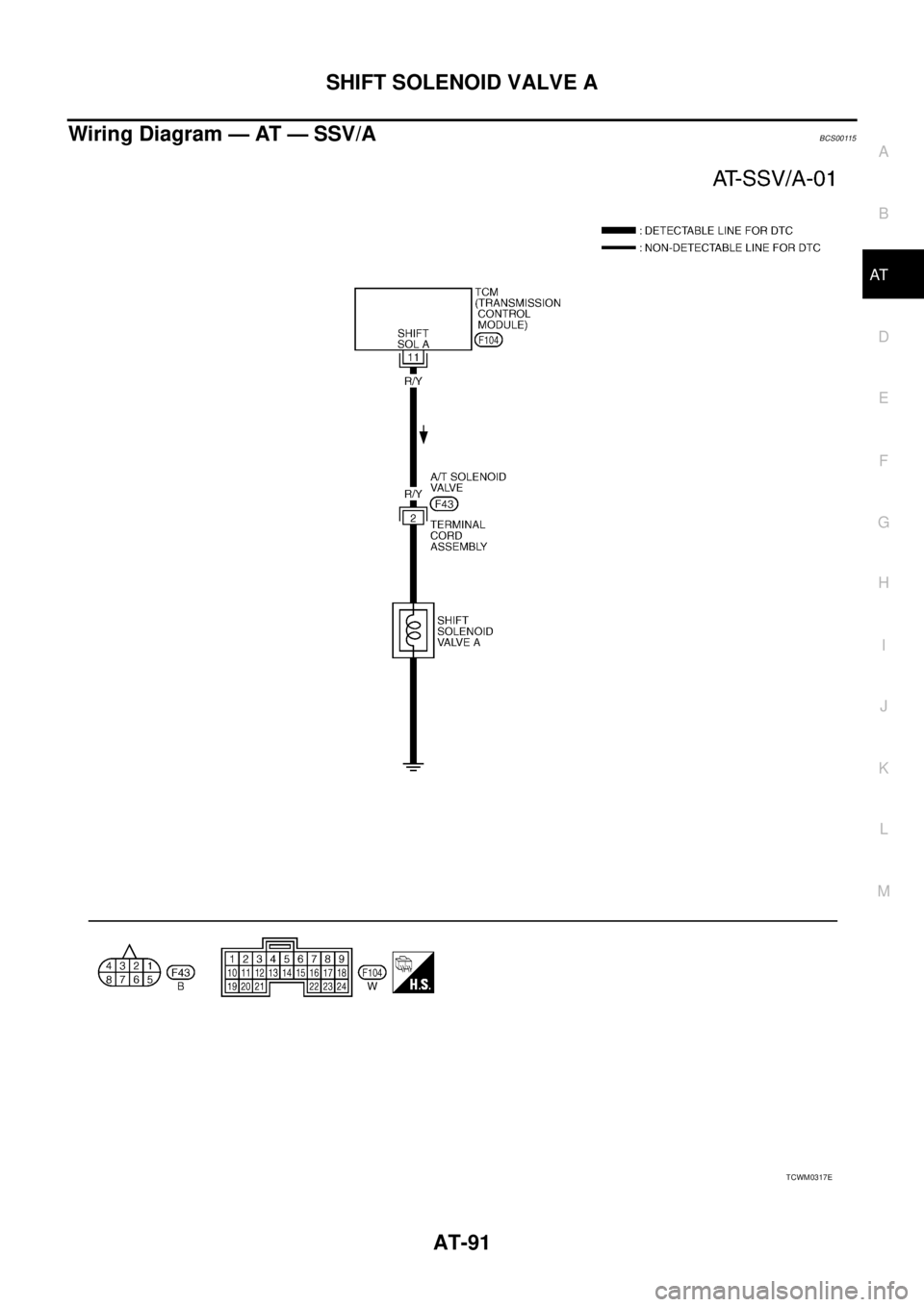

Wiring Diagram — AT — SSV/ABCS00115
TCWM0317E

AT-92
SHIFT SOLENOID VALVE A

Data are reference value and are measured between each terminal and ground.
Diagnostic ProcedureBCS00116
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “SHIFT S/V A” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Terminal Wire color Item ConditionJudgement standard
(Approx.)
11 R/Y Shift solenoid valve AWhen shift solenoid valve
A operates. (When driving
in “D
1 ” or “D4 ”.)Battery voltage
When shift solenoid valve
A does not operate. (When
driving in “D
2 ” or “D3 ”.)0V
Item name Condition Display value
SHIFT S/V AWhen shift solenoid valve A operates.
(When driving in “D
1 ” or “D4 ”.)ON
When shift solenoid valve A does not operate.
(When driving in “D
2 ” or “D3 ”.)OFF
SCIA3251E
ItemConnec-
torTerminal ConditionJudgement
standard
(Approx.)
TCM con-
nectorF10411 -
GroundWhen shift solenoid
valve A operates.
(When driving in “D
1 ”
or “D
4 ”.)Battery volt-
age
When shift solenoid
valve A does not oper-
ate.
(When driving in “D
2 ”
or “D
3 ”.)0V
SCIA3248E
