NISSAN TEANA 2003 Service Manual

SHIFT SOLENOID VALVE A
AT-93
D
E
F
G
H
I
J
K
L
MA
B
AT

2. CHECK SHIFT SOLENOID VALVE A CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector and TCM connector.
3. Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between ground and transaxle assembly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly connector in engine room.
3. Check resistance between terminal cord assembly harness con-
nector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK DTC
Perform AT- 9 0 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
Solenoid Valve Connector TerminalResistance
(Approx.)
Shift solenoid valve A F104 11 - Ground 20 - 30 Ω
SCIA3249E
Item Connector Terminal Continuity
TCM connector F104 11
Ye s
Terminal cord assembly
harness connectorF43 2
SCIA3250E
Solenoid valve Connector Terminal Resistance (Approx.)
Shift solenoid valve A F43 2 - Ground 20 - 30 Ω
SCIA4942E

AT-94
SHIFT SOLENOID VALVE A

6. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Component InspectionBCS00117
SHIFT SOLENOID VALVE A
For removal, refer to AT- 2 2 5 , "Control Valve Assembly and Accumulators" .
Resistance
Check resistance between terminal and ground.
Operation
Check solenoid valve by listening for its operating sound while apply-
ing battery voltage to the terminal and ground.
Solenoid valve Connector TerminalResistance
(Approx.)
Shift solenoid valve A F43 2 - Ground 20 - 30Ω
SCIA2049E
SCIA2052E

SHIFT SOLENOID VALVE B
AT-95
D
E
F
G
H
I
J
K
L
MA
B
AT

SHIFT SOLENOID VALVE BPFP:31940
DescriptionBCS00118
Shift solenoid valves A and B are turned ON or OFF by TCM in response to signals sent from PNP switch,
vehicle speed and ECM (throttle opening). Gears will then be shifted to the optimum position.
CONSULT-II Reference ValueBCS00119
On Board Diagnosis LogicBCS0011A
Diagnostic trouble code “SHIFT SOLENOID/V B” with CONSULT-II or 5th judgement flicker without CON-
SULT-II is detected when TCM detects an improper voltage drop when it tries to operate the solenoid valve.
Possible CauseBCS0011B

Harness or connector
(Solenoid circuit is open or shorted.)

Shift solenoid valve B

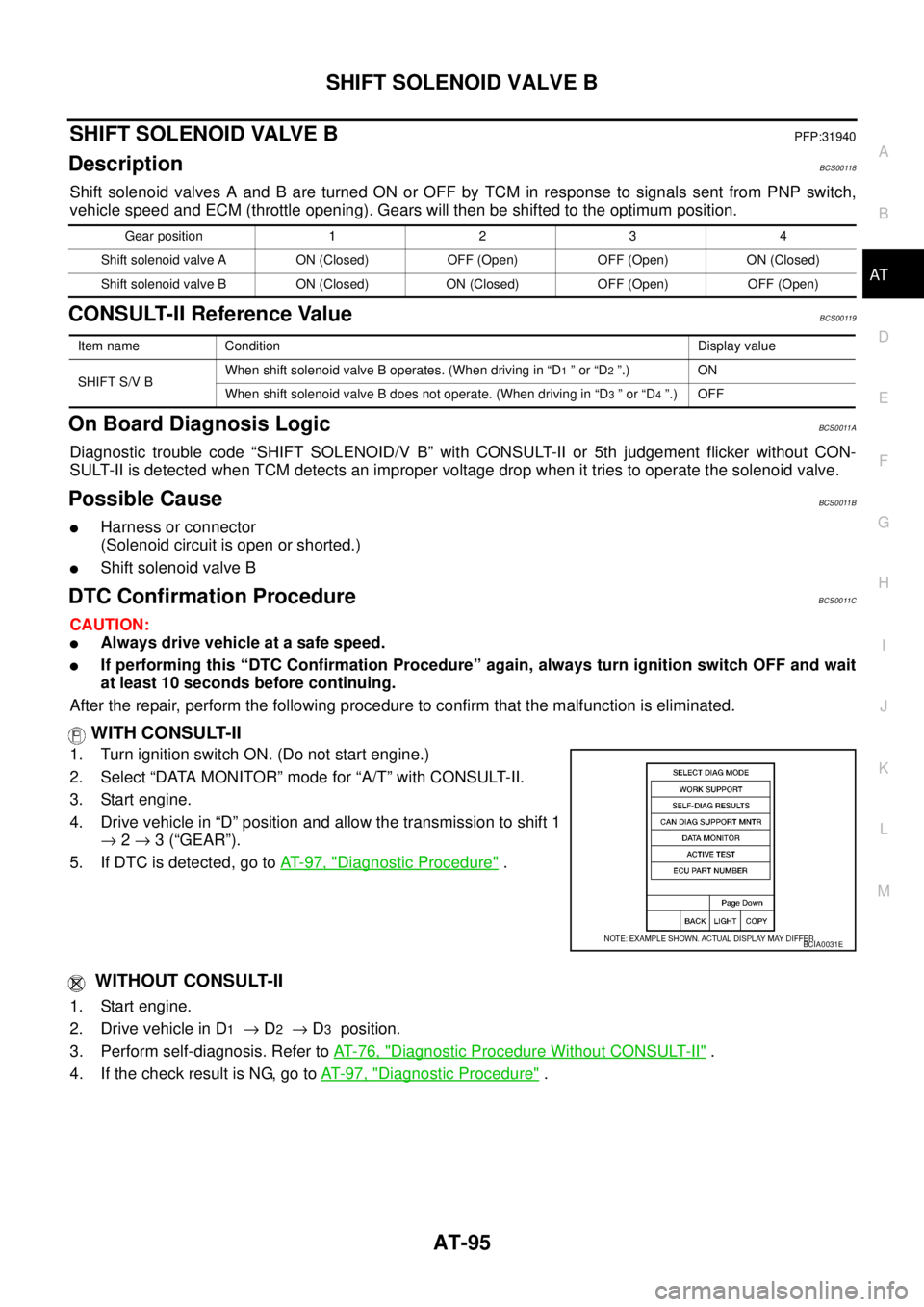

DTC Confirmation ProcedureBCS0011C
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm that the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Start engine.
4. Drive vehicle in “D” position and allow the transmission to shift 1
→ 2 → 3 (“GEAR”).
5. If DTC is detected, go to AT- 9 7 , "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle in D
1 → D2 → D3 position.
3. Perform self-diagnosis. Refer to AT- 7 6 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 9 7 , "
Diagnostic Procedure" .
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Item name ConditionDisplay value
SHIFT S/V BWhen shift solenoid valve B operates. (When driving in “D
1 ” or “D2 ”.) ON
When shift solenoid valve B does not operate. (When driving in “D
3 ” or “D4 ”.) OFF
BCIA0031E

AT-96
SHIFT SOLENOID VALVE B

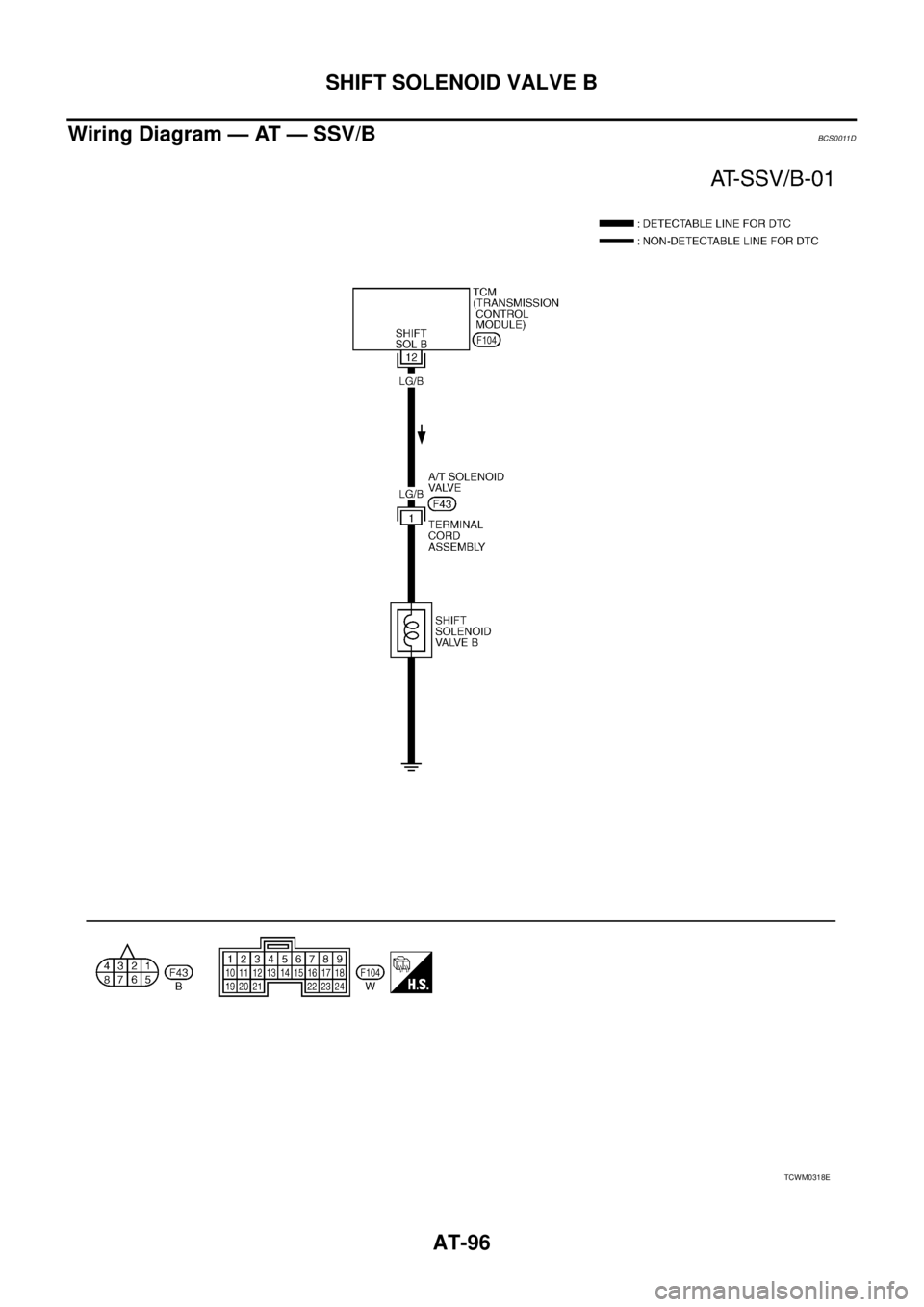

Wiring Diagram — AT — SSV/BBCS0011D
TCWM0318E

SHIFT SOLENOID VALVE B
AT-97
D
E
F
G
H
I
J
K
L
MA
B
AT

Data are reference value and are measured between each terminal and ground.

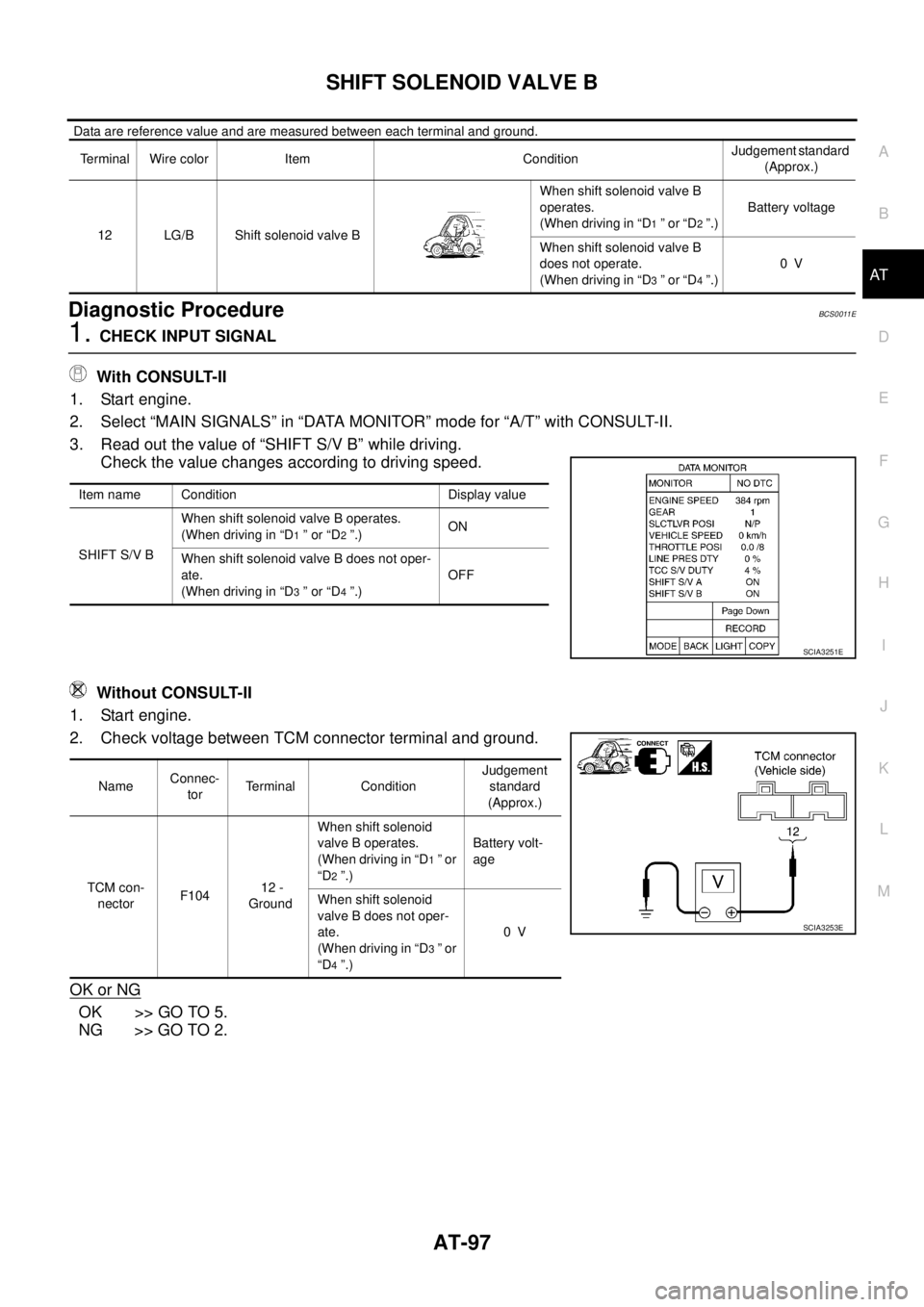

Diagnostic ProcedureBCS0011E

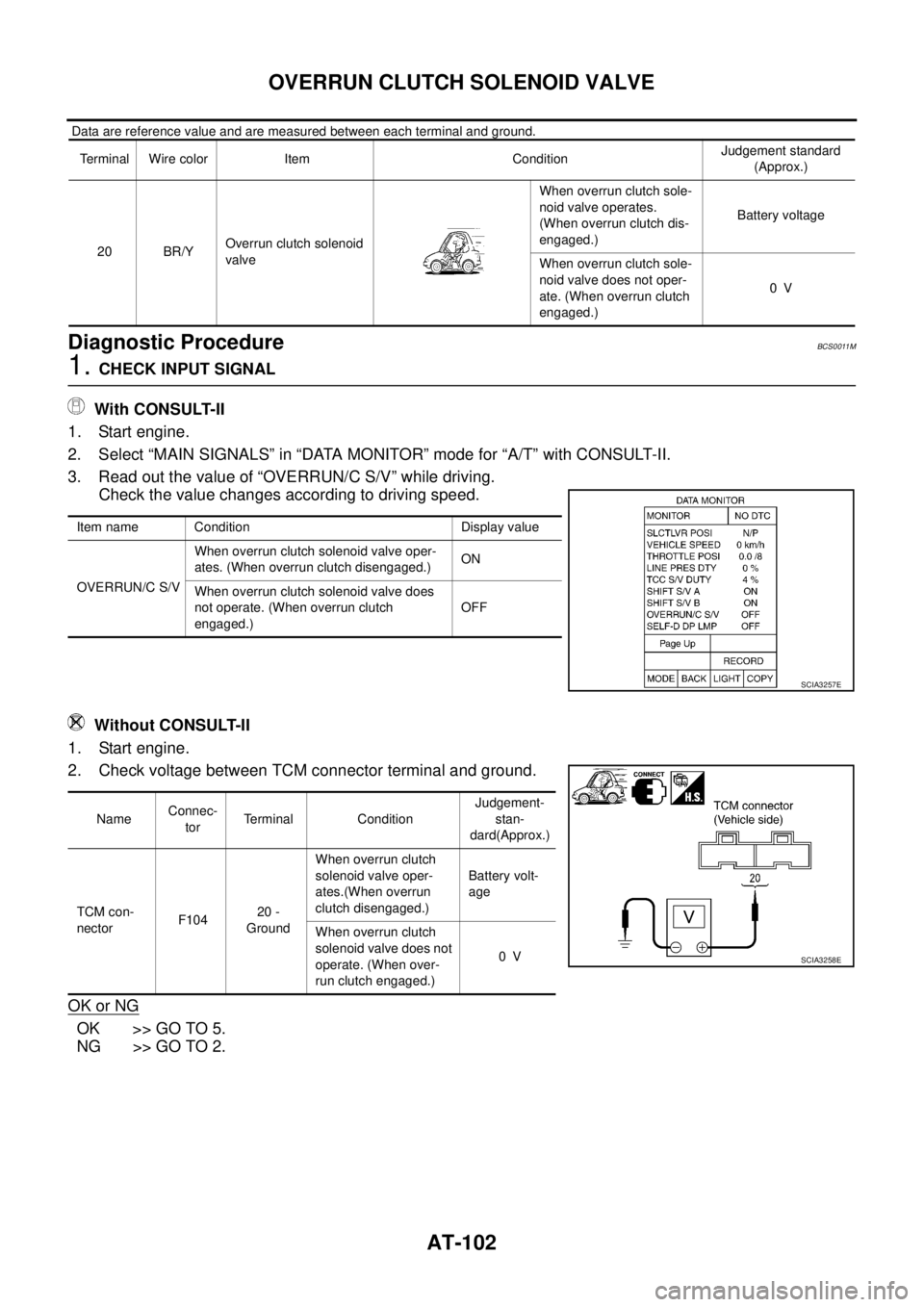

1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “SHIFT S/V B” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Terminal Wire color Item ConditionJudgement standard
(Approx.)
12 LG/B Shift solenoid valve BWhen shift solenoid valve B
operates.
(When driving in “D
1 ” or “D2 ”.)Battery voltage
When shift solenoid valve B
does not operate.
(When driving in “D
3 ” or “D4 ”.)0V
Item name Condition Display value
SHIFT S/V BWhen shift solenoid valve B operates.
(When driving in “D
1 ” or “D2 ”.)ON
When shift solenoid valve B does not oper-
ate.
(When driving in “D
3 ” or “D4 ”.)OFF
SCIA3251E
NameConnec-
torTerminal ConditionJudgement
standard
(Approx.)
TCM con-
nectorF104 12 -
GroundWhen shift solenoid
valve B operates.
(When driving in “D
1 ” or
“D
2 ”.)Battery volt-
age
When shift solenoid
valve B does not oper-
ate.
(When driving in “D
3 ” or
“D
4 ”.)0V
SCIA3253E

AT-98
SHIFT SOLENOID VALVE B

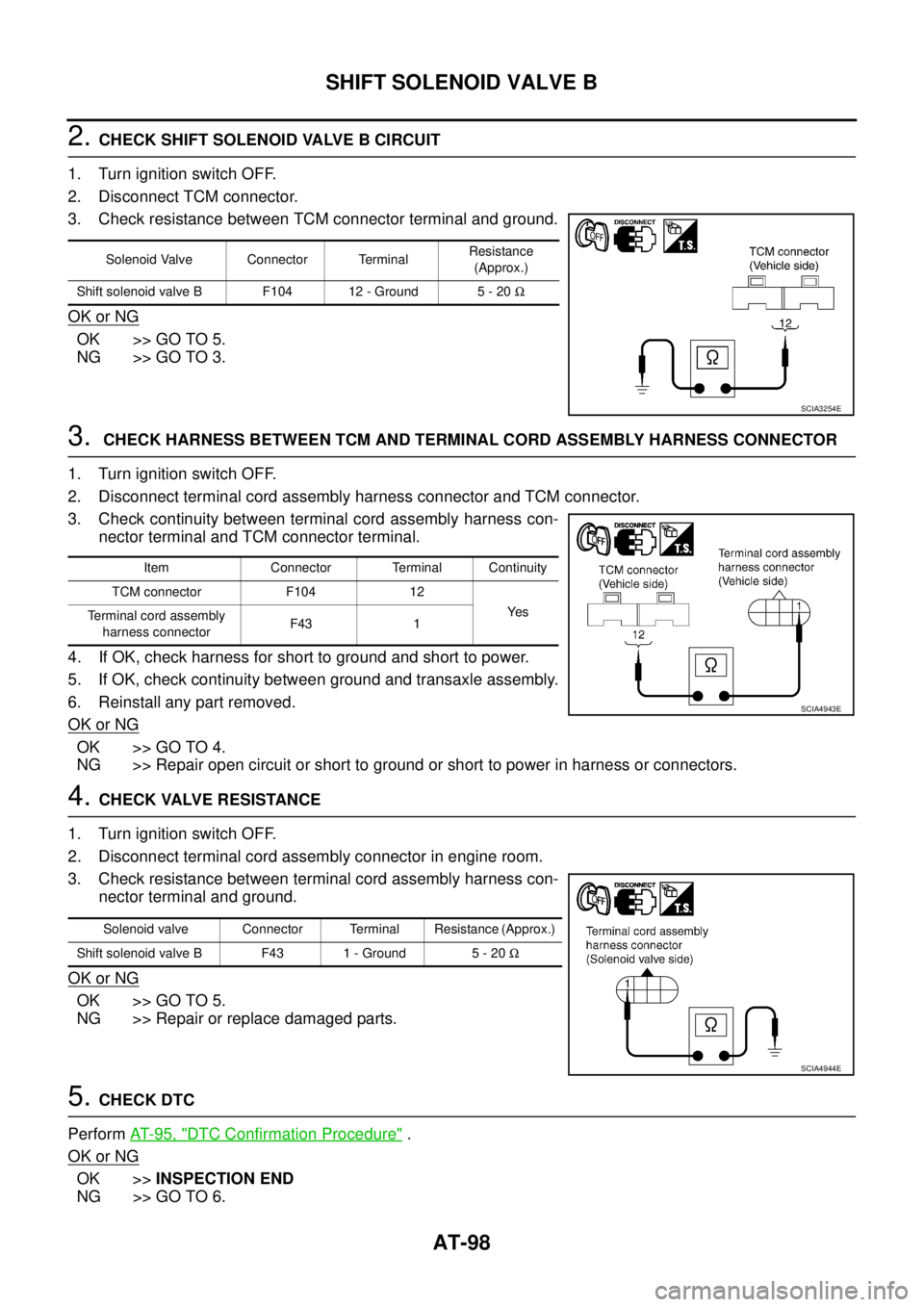

2. CHECK SHIFT SOLENOID VALVE B CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector and TCM connector.
3. Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.
4. If OK, check harness for short to ground and short to power.
5. If OK, check continuity between ground and transaxle assembly.
6. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly connector in engine room.
3. Check resistance between terminal cord assembly harness con-
nector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK DTC
Perform AT- 9 5 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
Solenoid Valve Connector TerminalResistance
(Approx.)
Shift solenoid valve B F104 12 - Ground 5 - 20 Ω
SCIA3254E
Item Connector Terminal Continuity
TCM connector F104 12
Ye s
Terminal cord assembly
harness connectorF43 1
SCIA4943E
Solenoid valve Connector Terminal Resistance (Approx.)
Shift solenoid valve B F43 1 - Ground 5 - 20 Ω
SCIA4944E

SHIFT SOLENOID VALVE B
AT-99
D
E
F
G
H
I
J
K
L
MA
B
AT

6. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.

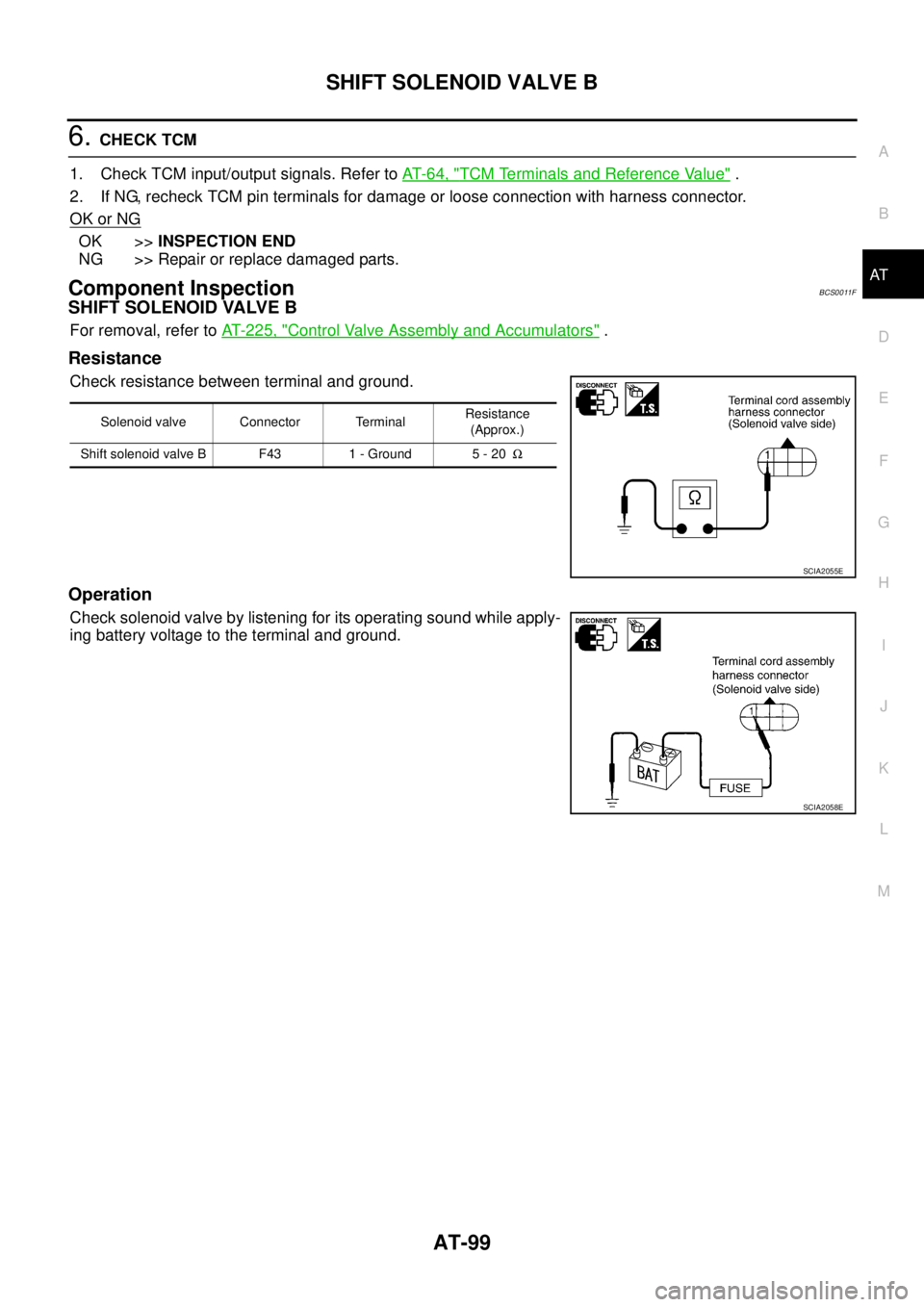

Component InspectionBCS0011F
SHIFT SOLENOID VALVE B
For removal, refer to AT- 2 2 5 , "Control Valve Assembly and Accumulators" .
Resistance
Check resistance between terminal and ground.
Operation
Check solenoid valve by listening for its operating sound while apply-
ing battery voltage to the terminal and ground.
Solenoid valve Connector TerminalResistance
(Approx.)
Shift solenoid valve B F43 1 - Ground 5 - 20Ω
SCIA2055E
SCIA2058E

AT-100
OVERRUN CLUTCH SOLENOID VALVE

OVERRUN CLUTCH SOLENOID VALVEPFP:31940
DescriptionBCS0011G
Overrun clutch solenoid valve is activated by TCM in response to signals sent from PNP switch, 3rd position
switch, vehicle speed and ECM (throttle opening). Overrun clutch operation will then be controlled.
CONSULT-II Reference ValueBCS0011H
On Board Diagnosis LogicBCS0011I
Diagnostic trouble code “OVERRUN CLUTCH S/V” with CONSULT-II or 6th judgement flicker without CON-
SULT-II is detected when TCM detects an improper voltage drop when it tries to operate the solenoid valve.
Possible CauseBCS0011J

Harness or connector
(Solenoid circuit is open or shorted.)

Overrun clutch solenoid valve

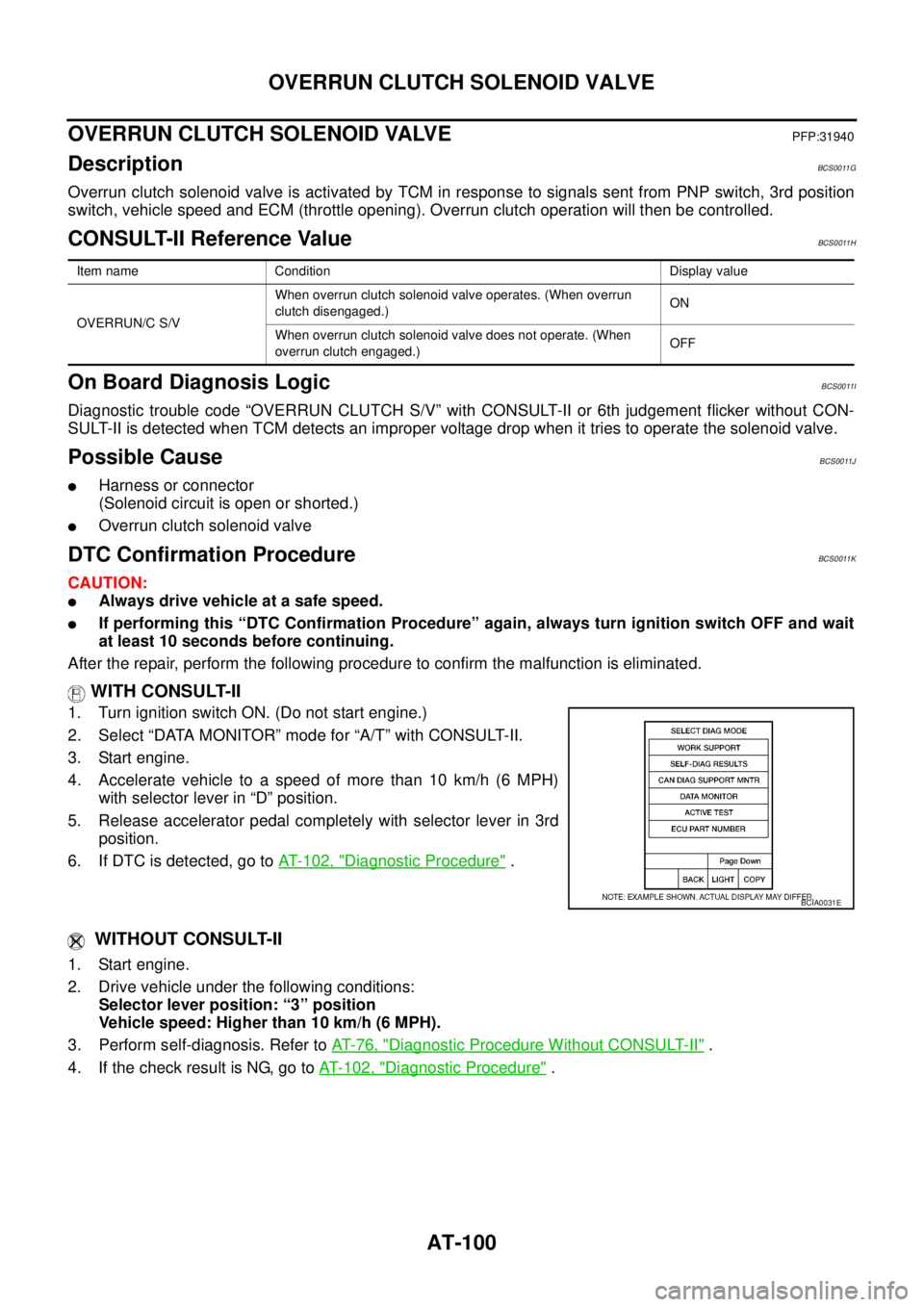

DTC Confirmation ProcedureBCS0011K
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Start engine.
4. Accelerate vehicle to a speed of more than 10 km/h (6 MPH)
with selector lever in “D” position.
5. Release accelerator pedal completely with selector lever in 3rd
position.
6. If DTC is detected, go to AT- 1 0 2 , "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever position: “3” position
Vehicle speed: Higher than 10 km/h (6 MPH).
3. Perform self-diagnosis. Refer to AT- 7 6 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 1 0 2 , "
Diagnostic Procedure" .
Item name Condition Display value
OVERRUN/C S/VWhen overrun clutch solenoid valve operates. (When overrun
clutch disengaged.)ON
When overrun clutch solenoid valve does not operate. (When
overrun clutch engaged.)OFF
BCIA0031E

OVERRUN CLUTCH SOLENOID VALVE
AT-101
D
E
F
G
H
I
J
K
L
MA
B
AT

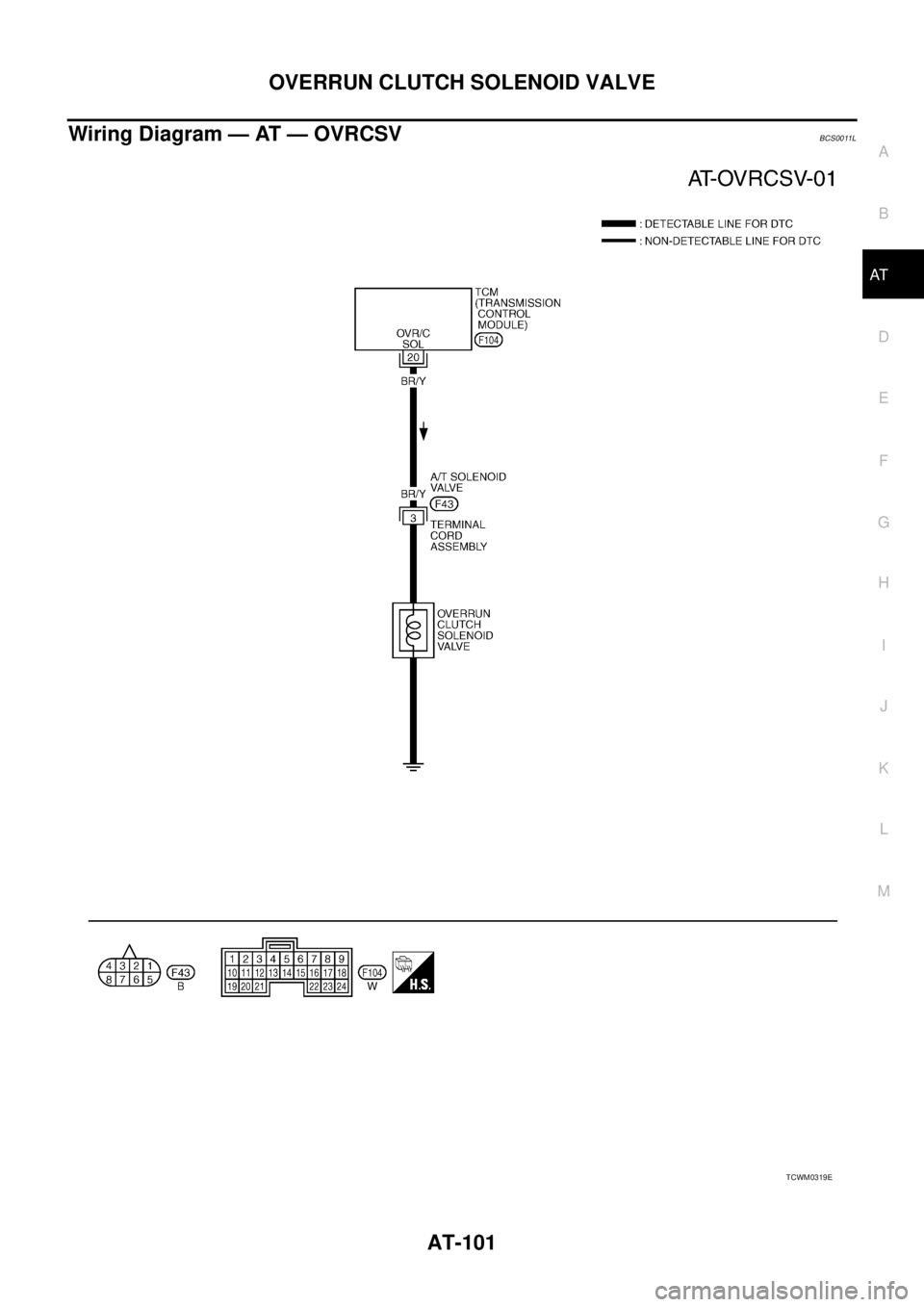

Wiring Diagram — AT — OVRCSVBCS0011L
TCWM0319E

AT-102
OVERRUN CLUTCH SOLENOID VALVE

Data are reference value and are measured between each terminal and ground.
Diagnostic ProcedureBCS0011M
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “OVERRUN/C S/V” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Terminal Wire color Item ConditionJudgement standard
(Approx.)
20 BR/YOverrun clutch solenoid
valveWhen overrun clutch sole-
noid valve operates.
(When overrun clutch dis-
engaged.)Battery voltage
When overrun clutch sole-
noid valve does not oper-
ate. (When overrun clutch
engaged.)0V
Item name Condition Display value
OVERRUN/C S/VWhen overrun clutch solenoid valve oper-
ates. (When overrun clutch disengaged.)ON
When overrun clutch solenoid valve does
not operate. (When overrun clutch
engaged.)OFF
SCIA3257E
NameConnec-
torTerminal ConditionJudgement-
stan-
dard(Approx.)
TCM con-
nectorF10420 -
GroundWhen overrun clutch
solenoid valve oper-
ates.(When overrun
clutch disengaged.)Battery volt-
age
When overrun clutch
solenoid valve does not
operate. (When over-
run clutch engaged.)0V
SCIA3258E
