TROUBLE DIAGNOSIS
ATC-47
C
D
E
F
G
H
I
K
L
MA
B
AT C

FUNCTION CONFIRMATION PROCEDURE
1. SET IN SELF-DIAGNOSIS MODE
1. Turn ignition switch ON.
2. Set in self-diagnosis mode as follows. Within 10 seconds after starting engine (ignition switch is turned
ON.), press A/C switch for at least 5 seconds.
CAUTION:

Press A/C switch after indicating LED of intake switch.

If battery voltage drops below 12 V during diagnosis STEP-3, door motor speed becomes slower
and as a result, the system may generate an error even when operation is normal. To avoid this,
start engine before performing this diagnosis.

Former STEP-1 (LEDs and display screen are checked) does not exist in this self-diagnosis func-
tion.
>> GO TO 2.

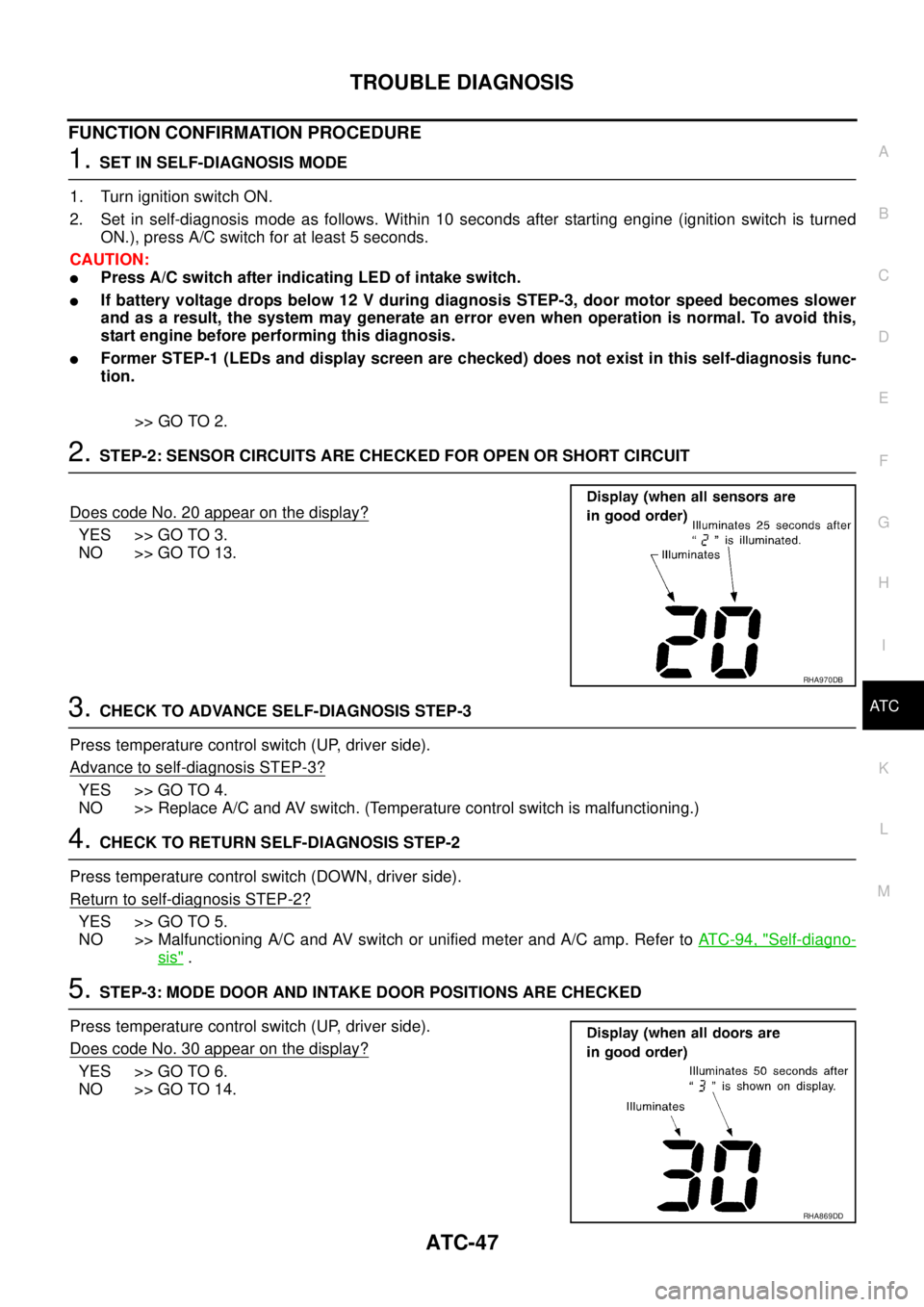

2. STEP-2: SENSOR CIRCUITS ARE CHECKED FOR OPEN OR SHORT CIRCUIT
Does code No. 20 appear on the display?
YES >> GO TO 3.
NO >> GO TO 13.
3. CHECK TO ADVANCE SELF-DIAGNOSIS STEP-3
Press temperature control switch (UP, driver side).
Advance to self
-diagnosis STEP-3?
YES >> GO TO 4.
NO >> Replace A/C and AV switch. (Temperature control switch is malfunctioning.)
4. CHECK TO RETURN SELF-DIAGNOSIS STEP-2
Press temperature control switch (DOWN, driver side).
Return to self
-diagnosis STEP-2?
YES >> GO TO 5.
NO >> Malfunctioning A/C and AV switch or unified meter and A/C amp. Refer to AT C - 9 4 , "
Self-diagno-
sis" .
5. STEP-3: MODE DOOR AND INTAKE DOOR POSITIONS ARE CHECKED
Press temperature control switch (UP, driver side).
Does code No. 30 appear on the display?
YES >> GO TO 6.
NO >> GO TO 14.
RHA970DB
RHA869DD

TROUBLE DIAGNOSIS
ATC-49
C
D
E
F
G
H
I
K
L
MA
B
AT C

8. STEP-5: TEMPERATURE OF EACH SENSOR IS CHECKED
1. Press temperature control switch (UP, driver side).
2. Code No. 51 appears on the display.
>> GO TO 9.

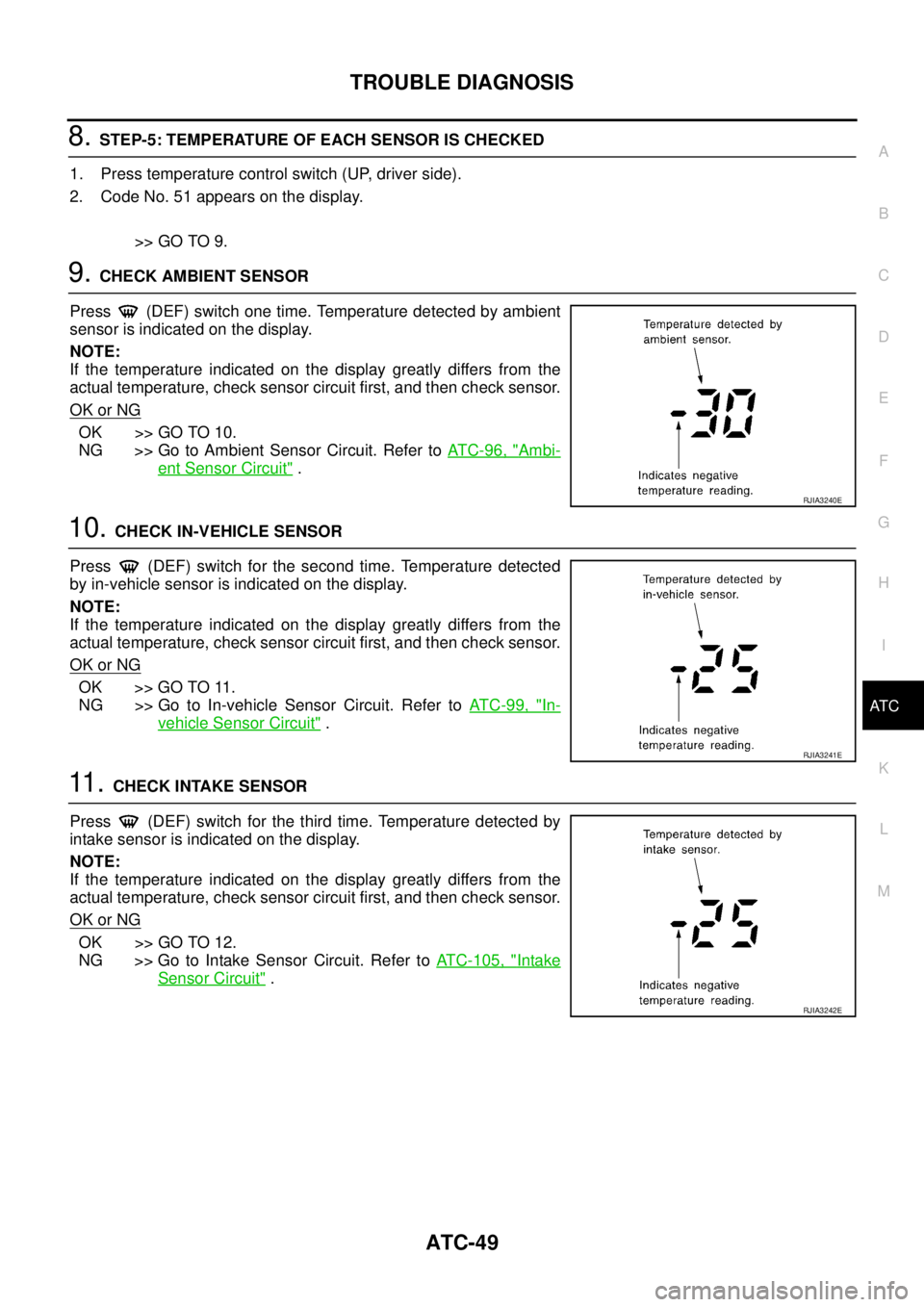

9. CHECK AMBIENT SENSOR
Press (DEF) switch one time. Temperature detected by ambient
sensor is indicated on the display.
NOTE:
If the temperature indicated on the display greatly differs from the
actual temperature, check sensor circuit first, and then check sensor.
OK or NG
OK >> GO TO 10.
NG >> Go to Ambient Sensor Circuit. Refer to AT C - 9 6 , "
Ambi-
ent Sensor Circuit" .
10. CHECK IN-VEHICLE SENSOR
Press (DEF) switch for the second time. Temperature detected
by in-vehicle sensor is indicated on the display.
NOTE:
If the temperature indicated on the display greatly differs from the
actual temperature, check sensor circuit first, and then check sensor.
OK or NG
OK >> GO TO 11.
NG >> Go to In-vehicle Sensor Circuit. Refer to AT C - 9 9 , "
In-
vehicle Sensor Circuit" .
11 . CHECK INTAKE SENSOR
Press (DEF) switch for the third time. Temperature detected by
intake sensor is indicated on the display.
NOTE:
If the temperature indicated on the display greatly differs from the
actual temperature, check sensor circuit first, and then check sensor.
OK or NG
OK >> GO TO 12.
NG >> Go to Intake Sensor Circuit. Refer to ATC-105, "
Intake
Sensor Circuit" .
RJIA3240E
RJIA3241E
RJIA3242E

ATC-50
TROUBLE DIAGNOSIS

12. CHECK CAN COMMUNICATION ERROR
1. Press intake switch.
2. CAN communication error between the unified meter and A/C
amp. and the display unit or display control unit can be detected
as self-diagnosis results. (If plural errors occur, the display of
each error will blink twice for 0-5 second intervals.) .
OK or NG
OK >> 1. Turn ignition switch OFF or AUTO switch ON.
2. INSPECTION END
NG >> Go to CAN communication. Refer to LAN-49, "
CAN Sys-
tem Specification Chart" .

Unified meter and A/C amp. - Display unit or Display
control unit.
13. CHECK MALFUNCTIONING SENSOR
Refer to the following chart for malfunctioning code No.
(If two or more sensors malfunction, corresponding code Nos. blink respectively twice.)
*1: Perform self-diagnosis STEP-2 under sunshine.
When performing indoors, aim a light (more than 60 W) at sunload sensor, otherwise code No. 25 will indicate
despite that sunload sensor is functioning properly.
*2: AT C - 9 6 , "
DIAGNOSIS PROCEDURE FOR AMBIENT SENSOR" .
*3: ATC-100, "
DIAGNOSIS PROCEDURE FOR IN-VEHICLE SENSOR" .
*4: ATC-105, "
DIAGNOSIS PROCEDURE FOR INTAKE SENSOR" .
*5: ATC-102, "
DIAGNOSIS PROCEDURE FOR SUNLOAD SENSOR" .
*6: AT C - 6 8 , "
DIAGNOSIS PROCEDURE FOR AIR MIX DOOR MOTOR PBR" .
>> INSPECTION END
RJIA1762E
Code No. Malfunctioning sensor (Including circuits) Reference page
21 / −21 Ambient sensor *2
22 / −22 In-vehicle sensor *3
24 / −24 Intake sensor *4
25 / −25
Sunload sensor
*1*5
26 / −26 Air mix door motor PBR (Driver side)
*6
27 / −27 Air mix door motor PBR (Passenger side)
PJIA0022E

TROUBLE DIAGNOSIS
ATC-57
C
D
E
F
G
H
I
K
L
MA
B
AT C

COMPONENT DESCRIPTION
Unified Meter and A/C amp. (Automatic Amplifier)
The unified meter and A/C amp. has a built-in microcomputer which
processes information sent from various sensors needed for air con-
ditioner operation. The air mix door motor, mode door motor, intake
door motor, blower motor and compressor are then controlled.
When the various switches and temperature contorol switch are
operated, data is input to the unified meter and A/C amp. from the
display unit / display control unit using CAN communication.
Self-diagnosis functions are also built into unified meter and A/C
amp. to provide quick check of malfunctions in the auto air condi-
tioner system.

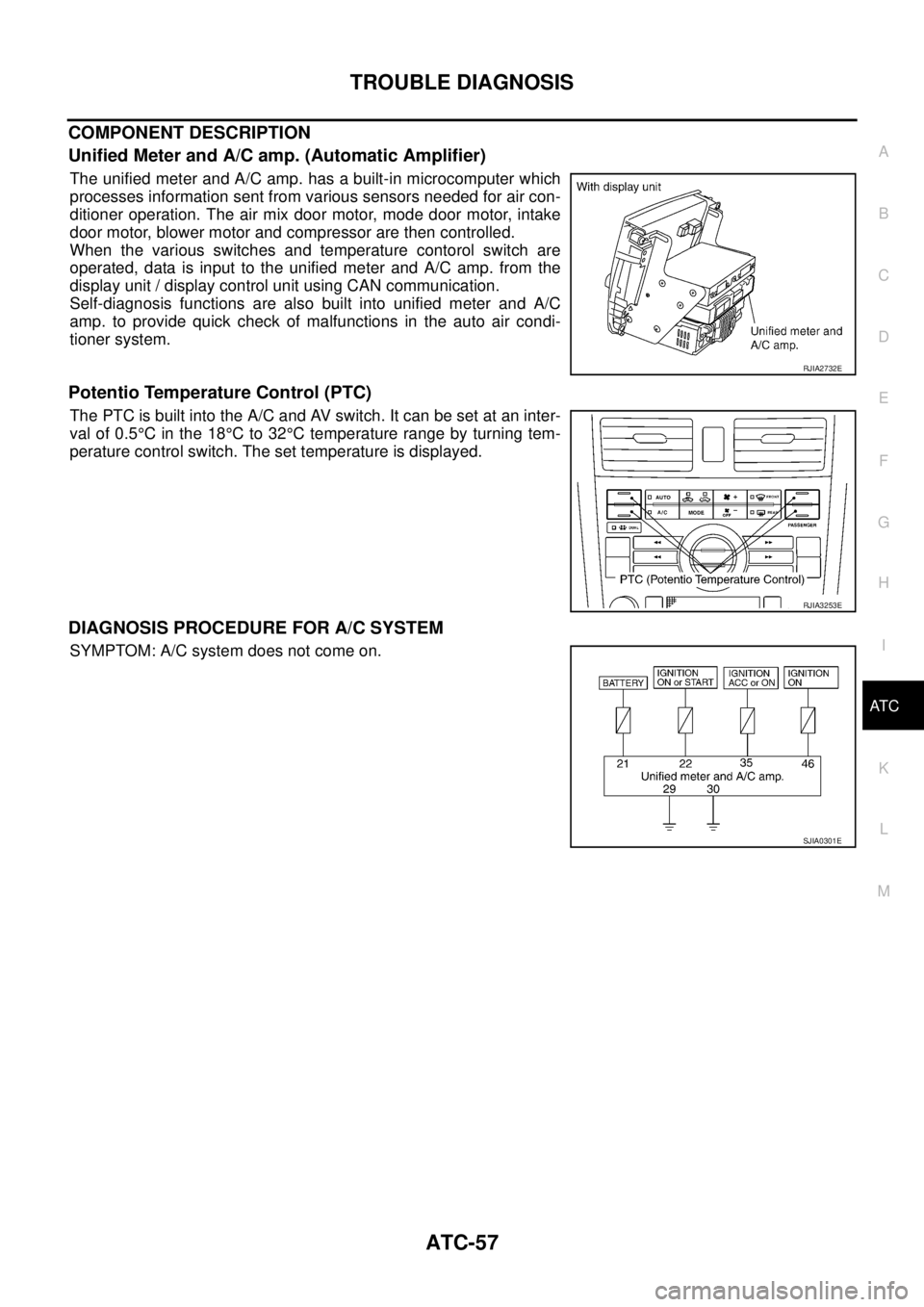

Potentio Temperature Control (PTC)
The PTC is built into the A/C and AV switch. It can be set at an inter-
val of 0.5°C in the 18°C to 32°C temperature range by turning tem-
perature control switch. The set temperature is displayed.
DIAGNOSIS PROCEDURE FOR A/C SYSTEM
SYMPTOM: A/C system does not come on.
RJIA2732E
RJIA3253E
SJIA0301E

TROUBLE DIAGNOSIS
ATC-63
C
D
E
F
G
H
I
K
L
MA
B
AT C

Mode Door Motor CircuitBJS000G1
SYMPTOM

Air outlet does not change.

Mode door motor does not operate normally.

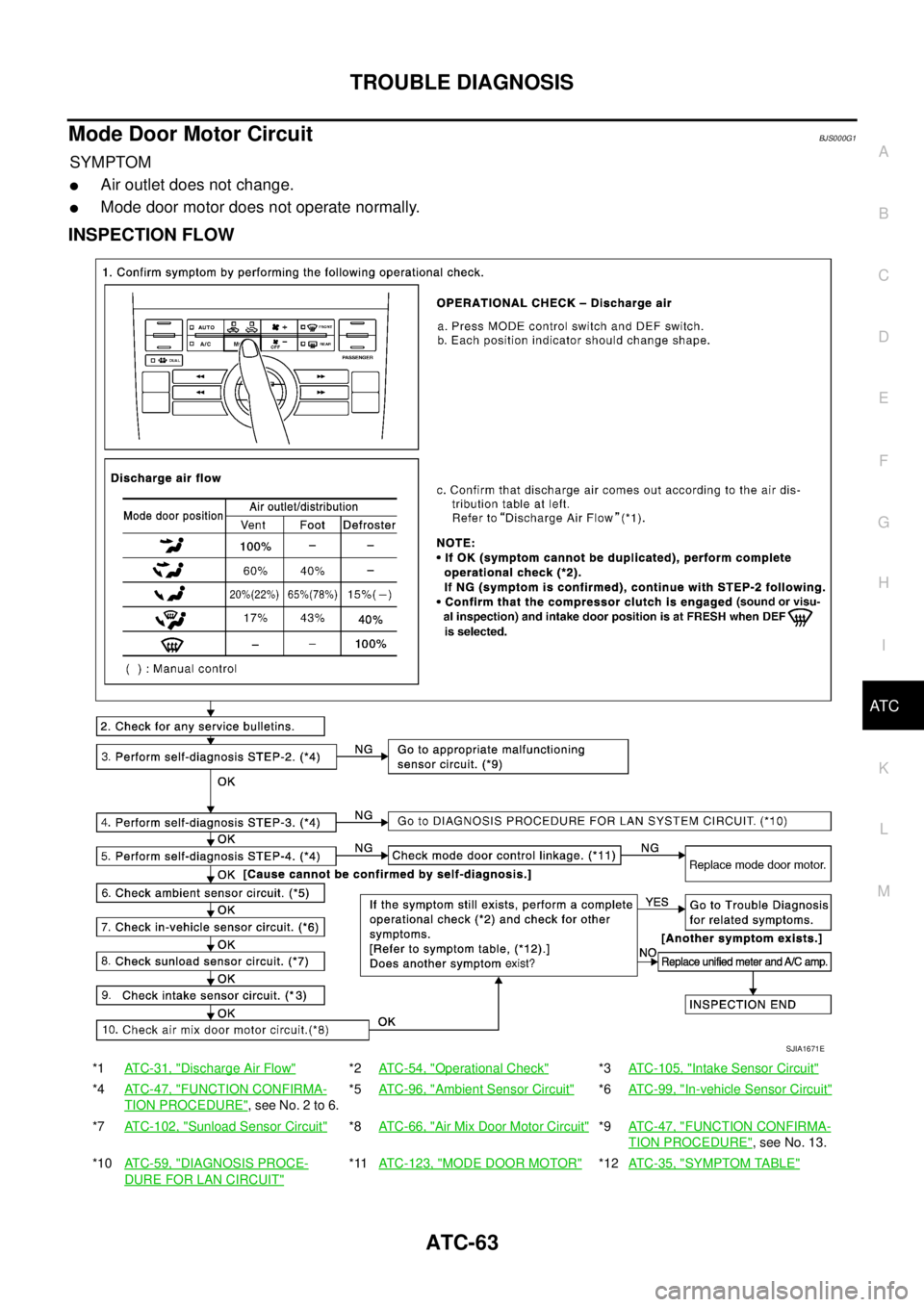

INSPECTION FLOW
*1ATC-31, "Discharge Air Flow"*2ATC-54, "Operational Check"*3ATC-105, "Intake Sensor Circuit"
*4ATC-47, "FUNCTION CONFIRMA-
TION PROCEDURE", see No. 2 to 6.*5ATC-96, "
Ambient Sensor Circuit"*6ATC-99, "In-vehicle Sensor Circuit"
*7ATC-102, "Sunload Sensor Circuit"*8ATC-66, "Air Mix Door Motor Circuit"*9ATC-47, "FUNCTION CONFIRMA-
TION PROCEDURE", see No. 13.
*10ATC-59, "
DIAGNOSIS PROCE-
DURE FOR LAN CIRCUIT"
*11ATC-123, "MODE DOOR MOTOR"*12ATC-35, "SYMPTOM TABLE"
SJIA1671E

ATC-64
TROUBLE DIAGNOSIS

SYSTEM DESCRIPTION
Component Parts
Mode door control system components are:

Unified meter and A/C amp.

Mode door motor (LCU)

A/C LAN system (PBR built-in mode door motor, air mix door motor and intake door motor)

In-vehicle sensor

Ambient sensor

Sunload sensor

Intake sensor

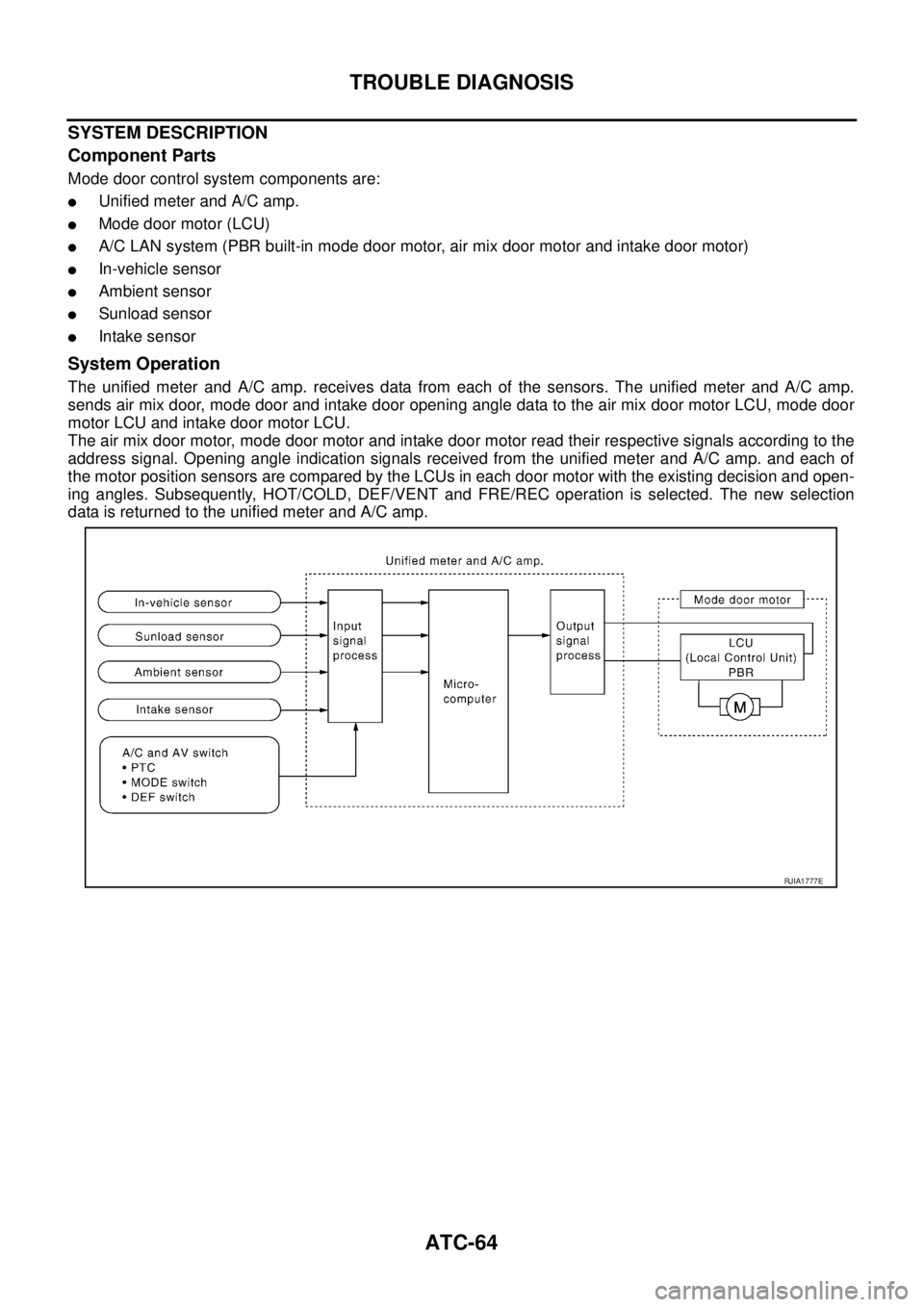

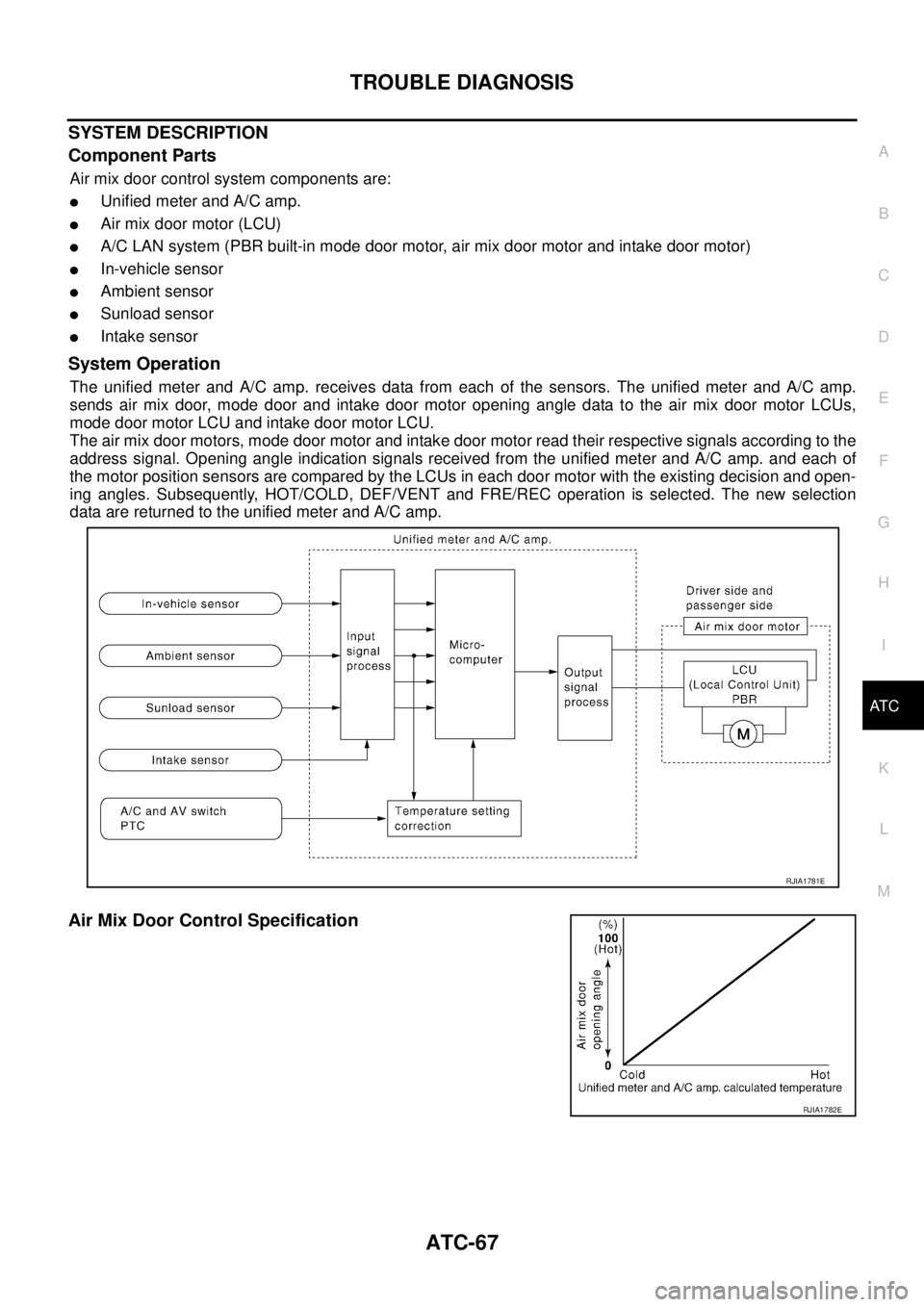

System Operation
The unified meter and A/C amp. receives data from each of the sensors. The unified meter and A/C amp.
sends air mix door, mode door and intake door opening angle data to the air mix door motor LCU, mode door
motor LCU and intake door motor LCU.
The air mix door motor, mode door motor and intake door motor read their respective signals according to the
address signal. Opening angle indication signals received from the unified meter and A/C amp. and each of
the motor position sensors are compared by the LCUs in each door motor with the existing decision and open-
ing angles. Subsequently, HOT/COLD, DEF/VENT and FRE/REC operation is selected. The new selection
data is returned to the unified meter and A/C amp.
RJIA1777E

ATC-66
TROUBLE DIAGNOSIS

Air Mix Door Motor CircuitBJS000G2
SYMPTOM

Discharge air temperature does not change.

Air mix door motor does not operate normally.

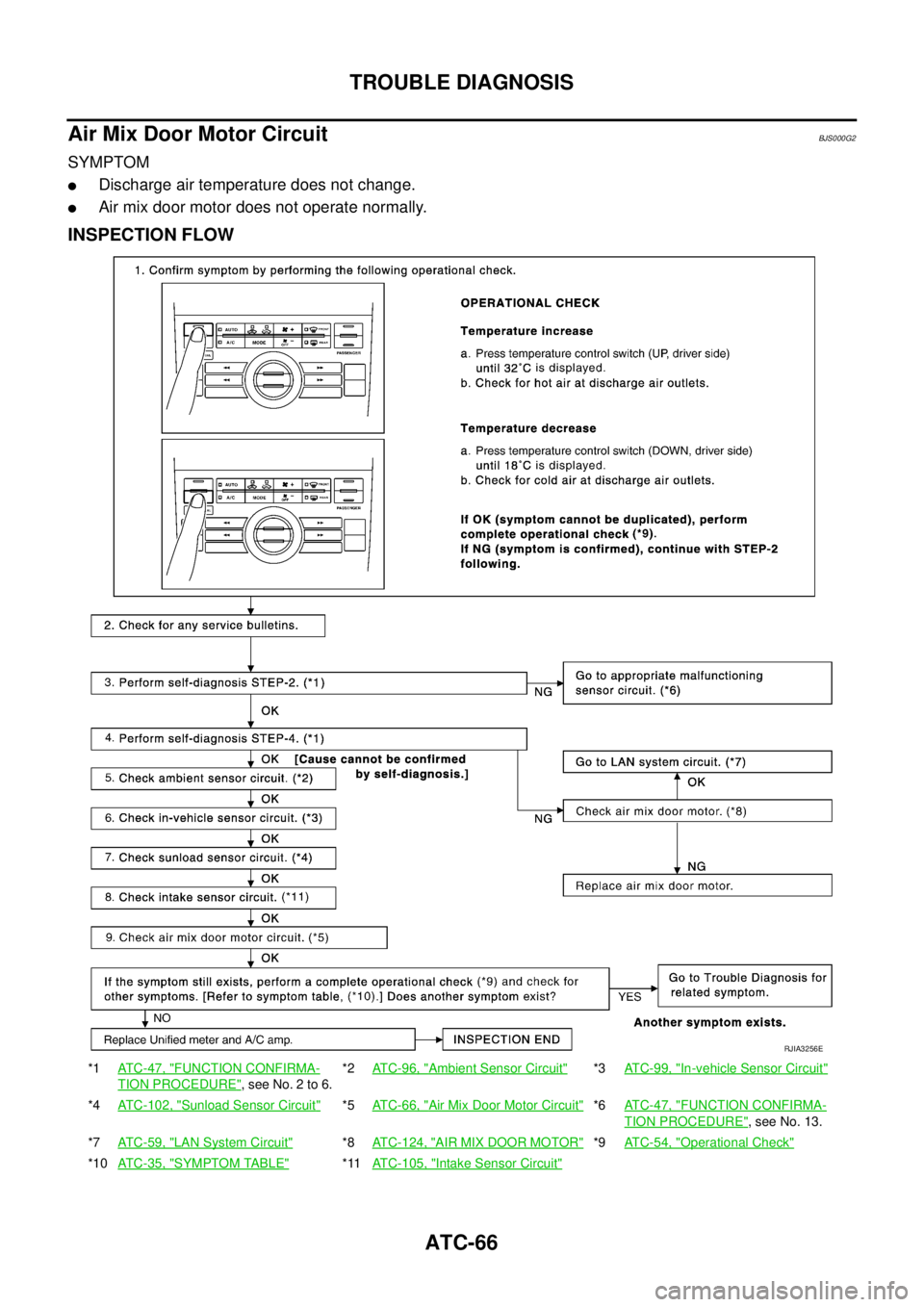

INSPECTION FLOW
*1ATC-47, "FUNCTION CONFIRMA-
TION PROCEDURE", see No. 2 to 6.*2ATC-96, "
Ambient Sensor Circuit"*3ATC-99, "In-vehicle Sensor Circuit"
*4ATC-102, "Sunload Sensor Circuit"*5ATC-66, "Air Mix Door Motor Circuit"*6ATC-47, "FUNCTION CONFIRMA-
TION PROCEDURE", see No. 13.
*7ATC-59, "
LAN System Circuit"*8ATC-124, "AIR MIX DOOR MOTOR"*9ATC-54, "Operational Check"
*10ATC-35, "SYMPTOM TABLE"*11ATC-105, "Intake Sensor Circuit"
RJIA3256E

TROUBLE DIAGNOSIS
ATC-67
C
D
E
F
G
H
I
K
L
MA
B
AT C

SYSTEM DESCRIPTION
Component Parts
Air mix door control system components are:

Unified meter and A/C amp.

Air mix door motor (LCU)

A/C LAN system (PBR built-in mode door motor, air mix door motor and intake door motor)

In-vehicle sensor

Ambient sensor

Sunload sensor

Intake sensor
System Operation
The unified meter and A/C amp. receives data from each of the sensors. The unified meter and A/C amp.
sends air mix door, mode door and intake door motor opening angle data to the air mix door motor LCUs,
mode door motor LCU and intake door motor LCU.
The air mix door motors, mode door motor and intake door motor read their respective signals according to the
address signal. Opening angle indication signals received from the unified meter and A/C amp. and each of
the motor position sensors are compared by the LCUs in each door motor with the existing decision and open-
ing angles. Subsequently, HOT/COLD, DEF/VENT and FRE/REC operation is selected. The new selection
data are returned to the unified meter and A/C amp.
Air Mix Door Control Specification
RJIA1781E
RJIA1782E

TROUBLE DIAGNOSIS
ATC-69
C
D
E
F
G
H
I
K
L
MA
B
AT C

Intake Door Motor CircuitBJS000G4
SYMPTOM

Intake door does not change.

Intake door motor does not operate normally.
INSPECTION FLOW
*1AT C - 4 7 , "FUNCTION CONFIRMA-
TION PROCEDURE", see No. 2 to 6.*2AT C - 9 6 , "
Ambient Sensor Circuit"*3AT C - 9 9 , "In-vehicle Sensor Circuit"
*4ATC-102, "Sunload Sensor Circuit"*5AT C - 6 6 , "Air Mix Door Motor Circuit"*6AT C - 4 7 , "FUNCTION CONFIRMA-
TION PROCEDURE", see No. 13.
*7AT C - 5 9 , "
LAN System Circuit"*8AT C - 11 7 , "INTAKE DOOR MOTOR"*9AT C - 5 4 , "Operational Check"
*10AT C - 3 5 , "SYMPTOM TABLE"*11ATC-105, "Intake Sensor Circuit"
SJIA1650E

ATC-70
TROUBLE DIAGNOSIS

SYSTEM DESCRIPTION
Component Parts
Intake door control system components are:

Unified meter and A/C amp.

Intake door motor (LCU)

A/C LAN system (PBR built-in mode door motor, air mix door motor and intake door motor)

In-vehicle sensor

Ambient sensor

Sunload sensor

Intake sensor
System Operation
The intake door control determines intake door position based on the ambient temperature, the intake air tem-
perature and the in-vehicle temperature. When the DEF or OFF switches are pressed or A/C switch is OFF,
the unified meter and A/C amp. sets the intake door at the FRE position.

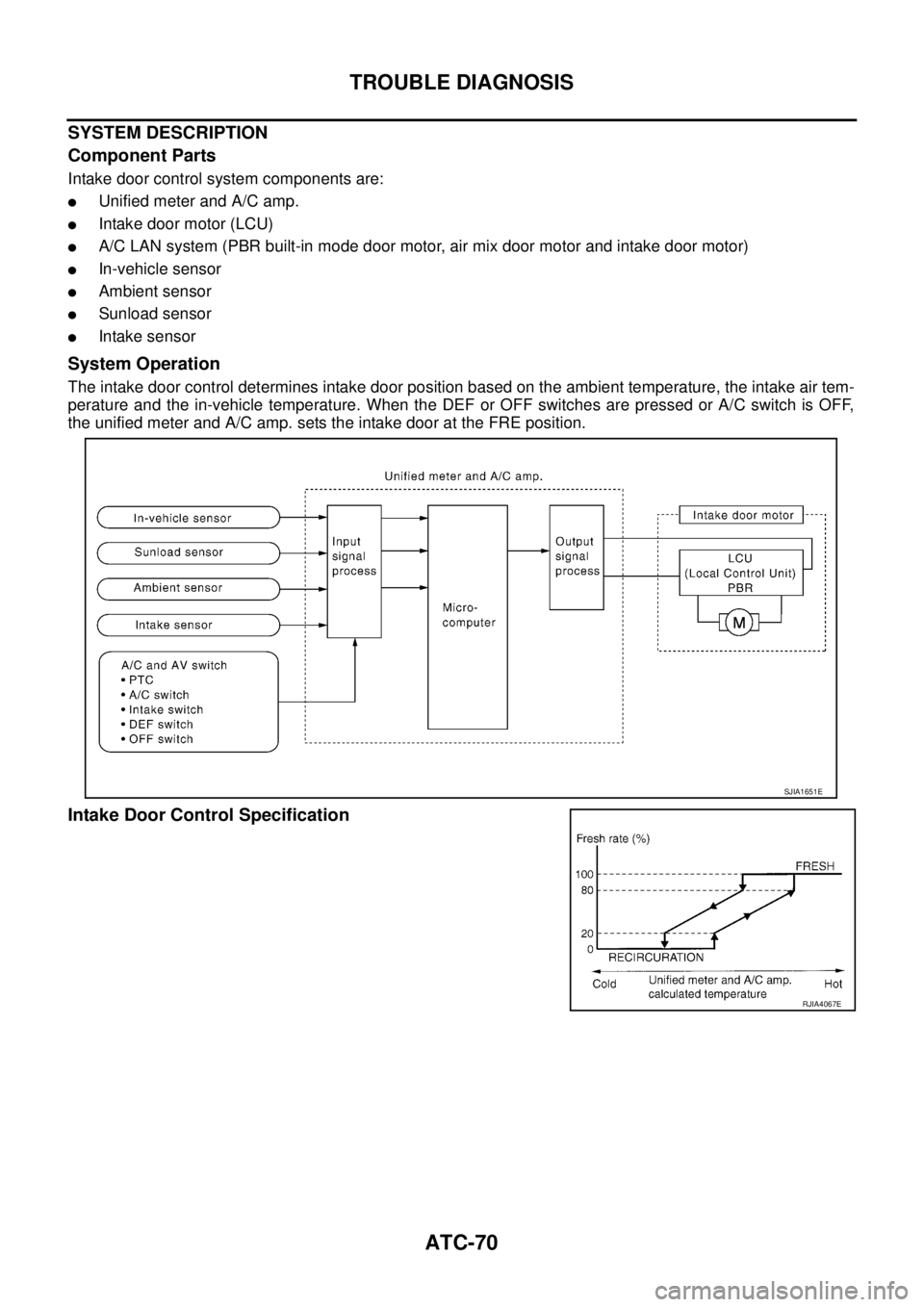

Intake Door Control Specification
SJIA1651E
RJIA4067E
