TRANSAXLE ASSEMBLY
AT-245
D
E
F
G
H
I
J
K
L
MA
B
AT


Align the positions of tightening bolts for drive plate with those of
torque converter, and temporarily tighten bolts. Then, tighten
bolts with the specified torque.
CAUTION:

When turning crankshaft, turn it clockwise as viewed from
front of engine.

When tightening the tighten bolts for the torque converter
after fixing crankshaft pulley bolts, be sure to confirm the
tightening torque of crankshaft pulley mounting bolts.
Refer to EM-53, "
TIMING CHAIN" (QR engine), EM-173, "TIMING CHAIN" (VQ engine).

After converter is installed to drive plate, rotate crankshaft several turns and make sure that tran-
saxle rotates freely without binding.

Install POS sensor. Refer to EM-145, "Removal and Installation" .

After completing installation, check for A/T fluid leakage, A/T fluid level, and positions of A/T. Refer to AT-
14, "Checking A/T Fluid" , AT- 2 1 5 , "Adjustment of A/T Position" , AT- 2 1 5 , "Checking of A/T Position" . : 52 N·m (5.3 kg-m, 38 ft-lb)
SCIA3138E

AT-250
OVERHAUL

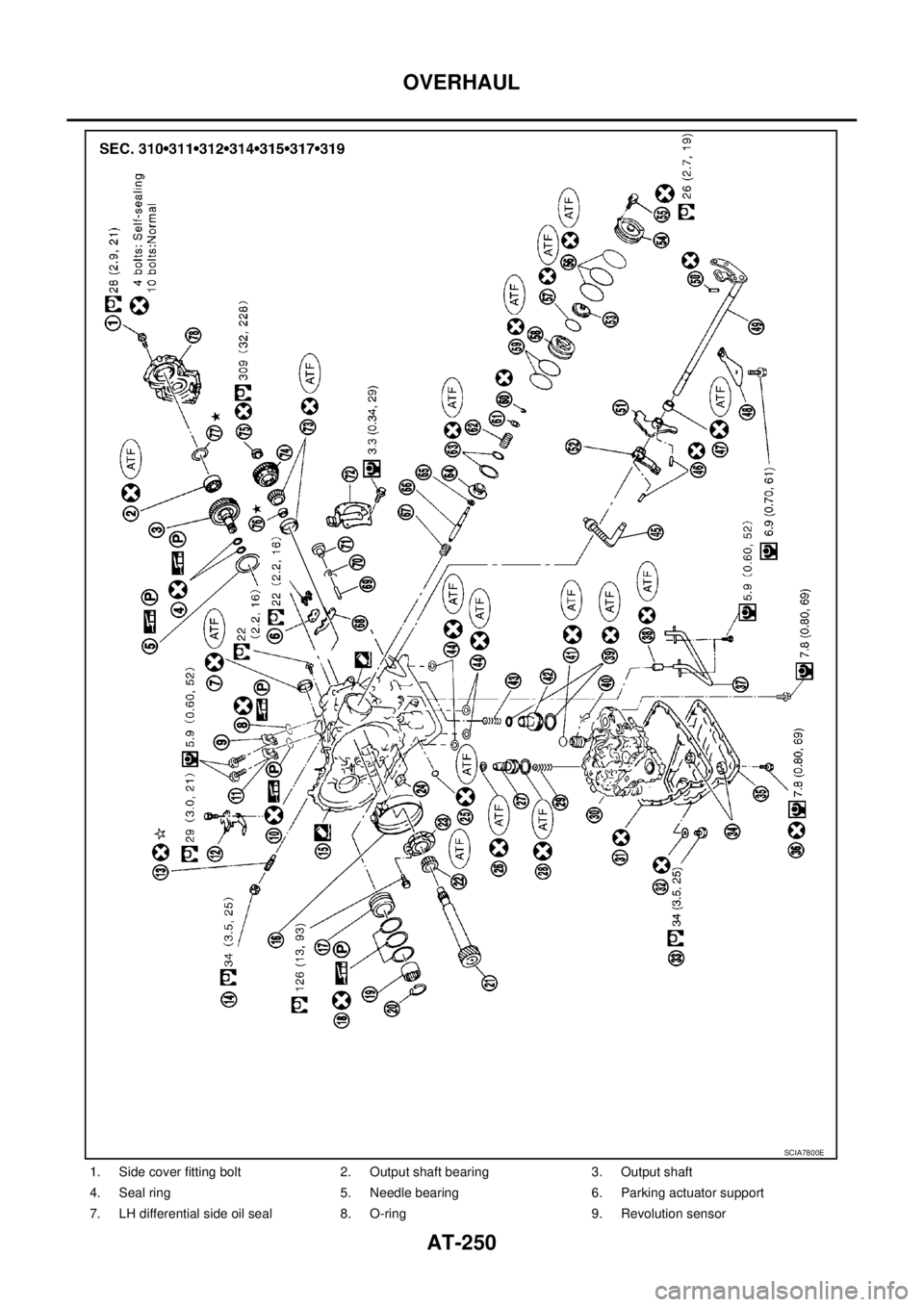

1. Side cover fitting bolt 2. Output shaft bearing 3. Output shaft
4. Seal ring 5. Needle bearing 6. Parking actuator support
7. LH differential side oil seal 8. O-ring 9. Revolution sensor
SCIA7800E

OVERHAUL
AT-251
D
E
F
G
H
I
J
K
L
MA
B
AT

10. O-ring 11. Turbine revolution sensor (power
train revolution sensor)12. Bracket
13. Anchor end pin 14. Lock nut 15. Transaxle case
16. Brake band 17. Bearing retainer 18. Seal ring
19. Radial needle bearing 20. Snap ring 21. Reduction pinion gear
22. Reduction pinion gear bearing inner
race23. Reduction pinion gear bearing outer
race24. Strut
25. O-ring 26. O-ring 27. Servo release accumulator piston
28. O-ring 29. Return spring 30. Control valve assembly
31. Oil pan gasket 32. Drain plug gasket 33. Drain plug
34. Magnet 35. Oil pan 36. Oil pan fitting bolt
37. Low & reverse brake tube 38. Oil sleeve 39. O-ring
40. Snap ring 41. O-ring 42. N-D accumulator piston
43. Return spring 44. Lip seal 45. Parking rod
46. Retaining pin 47. Manual shaft oil seal 48. Detent spring
49. Manual shaft 50. Retaining pin 51. Manual plate
52. Parking rod plate 53. O/D servo piston 54. O/D servo piston retainer
55. O/D servo piston retainer fitting bolt 56. O-ring 57. D-ring
58. Servo piston retainer 59. O-ring 60. E-ring
61. Spring retainer 62. O/D servo return spring 63. D-ring
64. Band servo piston 65. Band servo thrust washer 66. Band servo piston stem
67. 2nd servo return spring 68. Parking pawl 69. Parking shaft
70. Return spring 71. Paring pawl spacer 72. PNP switch
73. Idler gear bearing 74. Idler gear 75. Idler gear lock nut
76. Reduction pinion gear adjusting
shim77. Output shaft adjusting shim 78. Side cover
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-10, "
Components" .
However, refer to the following symbol for others.
: Apply locking sealant (Loctite #518).

AT-256
DISASSEMBLY

5. Set manual shaft to “P” position.
6. Remove PNP switch.
7. Remove bracket from transaxle case.
8. Remove revolution sensor from transaxle case.
9. Remove O-ring from revolution sensor.
10. Remove turbine revolution sensor (power train revolution sen-
sor) from transaxle case.
11. Remove O-ring from turbine revolution sensor (power train revo-
lution sensor).
12. Remove oil pan fitting bolts.
13. Remove oil pan and oil pan gasket.
14. Check foreign materials in oil pan to help determine causes of
malfunction. If the ATF is very dark, smells burned, or contains
foreign particles, frictional material (clutches, band) may need
replacement. A tacky film that will not wipe clean indicates var-
nish build up. Varnish can cause valves, servo, and clutches to
stick and can inhibit pump pressure.

If frictional material is detected, replace radiator after
repair of A/T.
15. Remove magnets from oil pan.
16. Remove control valve assembly according to the following procedures.
a. Remove snap ring from terminal body.
CAUTION:
Do not expand snap ring excessively.
b. Push terminal body into transaxle case and draw out terminal
cord assembly.
SCIA3154E
SCIA3476E
SCIA4866E
SCIA0801E

AT-284
REPAIR FOR COMPONENT PARTS


Check to see that retainer plates are properly positioned in con-
trol valve upper body.
Oil Strainer
Check wire netting of oil strainer for damage. Replace if necessary.
Shift Solenoid Valves “A” and “B”, Line Pressure Solenoid Valve, Torque Converter Clutch
Solenoid Valve and Overrun Clutch Solenoid Valve
Measure resistance.
A/T Fluid Temperature Sensor
Measure resistance.
SCIA4979E
SCIA3291E
Item TerminalResistance
(Approx.)
Shift solenoid valve A 2 Ground 20 - 30 Ω
Shift solenoid valve B 1 Ground 5 - 20Ω
Line pressure solenoid valve 4 Ground 2.5 - 5.0Ω
Torque converter clutch
solenoid valve5Ground5 - 20Ω
Overrun clutch solenoid
valve3 Ground 20 - 30Ω
SCIA7532E
Item Terminal Temperature°C (°F)Resistance
(Approx.)
A/T fluid tem-
perature sensor6 - 720 (68) 2.5 kΩ
80 (176) 0.3 kΩ
SCIA7533E

AT-360
ASSEMBLY

CAUTION:

Always replace oil pan fitting bolts as they are self-sealing bolts.

Tighten four bolts in a crisscross pattern to prevent dislocation of gasket.
e. Install drain plug gasket on drain plug.
CAUTION:
Do not reuse drain plug gasket.
f. Tighten drain plug to the specified torque. Refer to AT- 2 4 6 , "
Components" .
22. Install PNP switch according to the following procedures.
a. Set manual shaft in “P” position.
b. Temporarily install PNP switch on manual shaft.
c. Move selector lever to “N” position.
d. Use a pin [3 mm (0.12 in) dia.] for this adjustment.
i. Insert the pin straight into the manual shaft adjustment hole.
ii. Rotate PNP switch until the pin can also be inserted straight into
hole in PNP switch.
e. Tighten PNP switch fitting bolts. Refer to AT- 2 4 6 , "
Components"
.
f. Remove pin from adjustment hole after adjusting PNP switch.
23. Install bracket on transaxle case.
24. Install O-ring on revolution sensor.
CAUTION:

Do not reuse O-ring.

Apply petroleum jelly to O-ring.
25. Install revolution sensor on transaxle case.
26. Install O-ring on turbine revolution sensor (power train revolution sensor).
CAUTION:

Do not reuse O-ring.

Apply petroleum jelly to O-ring.
27. Install turbine revolution sensor (power train revolution sensor) on transaxle case.
28. Install bracket on transaxle case.
29. Install torque converter according to the following procedures.
a. Pour ATF into torque converter.
CAUTION:

Approximately 1 liter (7/8 Imp qt) of fluid is required for a
new torque converter.

When reusing old torque converter, add the same amount
of fluid as was drained.
SCIA3154E
SCIA4930E
SAT428DA

AT-368
SERVICE DATA AND SPECIFICATIONS (SDS)

Band ServoBCS001P9
RETURN SPRING
Unit: mm (in)
Output ShaftBCS001PA
SEAL RING CLEARANCE
SEAL RING
END PLAY
Bearing RetainerBCS001PB
SEAL RING CLEARANCE
Total End PlayBCS001PC
Reverse Clutch End PlayBCS001PD
Removal and InstallationBCS001PE
Shift Solenoid ValvesBCS001PK
Solenoid ValvesBCS001PL
A/T Fluid Temperature SensorBCS001PM
Return spring Free length Outer diameter
2nd servo return spring 32.5 (1.280) 25.9 (1.020)
OD servo return spring 62.6 (2.465) 21.7 (0.854)
Output shaft seal ring clearance mm
(in)Standard 0.10 - 0.25 (0.0039 - 0.0098)
Allowable limit 0.25 (0.0098)
Outer diameter mm (in) Inner diameter mm (in) Width mm (in)
33.71 (1.327) 30.25 (1.191) 1.95 (0.077)
Output shaft end play mm (in) 0 - 0.15 (0 - 0.0059)
Bearing retainer seal ring
clearance mm (in)Standard 0.10 - 0.30 (0.0039 - 0.0118)
Allowable limit 0.30 (0.0118)
Total end play mm (in) 0.25 - 0.55 (0.0098 - 0.0217)
Reverse clutch end play mm (in) 0.61 - 1.0 (0.0240 - 0.039)
Distance between end of converter housing
and torque converter mm (in)QR20DE engine models 19 (0.75)
VQ23DE engine models 14 (0.55)
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Solenoid valves Resistance (Approx.)ΩTe r m i n a l N o .
Shift solenoid valve A 20 - 30 2
Shift solenoid valve B 5 - 20 1
Overrun clutch solenoid valve 20 - 30 3
Line pressure solenoid valve 2.5 - 5 4
Torque converter clutch solenoid valve 5 - 20 5
Condition Specification (Approx.)
Cold [20°C (68°F)]
↓
Hot [80°C (176°F)]1.5 V
↓
0.5 V2.5 kΩ
↓
0.3 kΩ

SERVICE DATA AND SPECIFICATIONS (SDS)
AT-369
D
E
F
G
H
I
J
K
L
MA
B
AT

Revolution SensorBCS001PN
Dropping ResistorBCS001PO
Turbine Revolution Sensor (Power Train Revolution Sensor)BCS001PP
Condition Judgement standard
When moving at 20 km/h (12 MPH) 450 Hz (Approx.)
Resistance12 Ω (Approx.)
Condition Judgement standard
When moving at 20 km/h (12 MPH) 240 Hz (Approx.)

ATC-1
AUTOMATIC AIR CONDITIONER
J AIR CONDITIONER
CONTENTS
C
D
E
F
G
H
I
K
L
M
SECTION AT C
A
B
AT C

AUTOMATIC AIR CONDITIONER
PRECAUTIONS .......................................................... 5
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 5
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect .......................................... 5
OPERATION PROCEDURE ................................. 5
Precautions for Working with HFC-134a (R-134a) ..... 5
General Refrigerant Precautions .............................. 6
Precautions for Refrigerant Connection ................... 6
ABOUT ONE-TOUCH JOINT ................................ 6
FEATURES OF NEW TYPE REFRIGERANT
CONNECTION ...................................................... 8
O-RING AND REFRIGERANT CONNECTION ..... 9
Precautions for Servicing Compressor .................... 11
Precautions for Service Equipment ........................ 12
RECOVERY/RECYCLING EQUIPMENT ............ 12
ELECTRICAL LEAK DETECTOR ....................... 12
VACUUM PUMP ................................................. 12
MANIFOLD GAUGE SET .................................... 12
SERVICE HOSES ............................................... 13
SERVICE COUPLERS ........................................ 13
REFRIGERANT WEIGHT SCALE ...................... 13
CALIBRATING ACR4 WEIGHT SCALE .............. 13
CHARGING CYLINDER ...................................... 14
Precautions for Leak Detection Dye ....................... 14
IDENTIFICATION ................................................ 14
IDENTIFICATION LABEL FOR VEHICLE ........... 14
PREPARATION ......................................................... 15
Special Service Tools ............................................. 15
HFC-134a (R-134a) Service Tools and Equipment ... 16
Commercial Service Tools ...................................... 18
REFRIGERATION SYSTEM ..................................... 19
Refrigerant Cycle ................................................... 19
REFRIGERANT FLOW ....................................... 19
FREEZE PROTECTION ..................................... 19
Refrigerant System Protection ............................... 19
REFRIGERANT PRESSURE SENSOR ............. 19
PRESSURE RELIEF VALVE ............................... 19
Component Layout ................................................. 20LUBRICANT .............................................................. 21
Maintenance of Lubricant Quantity in Compressor ... 21
LUBRICANT ........................................................ 21
LUBRICANT RETURN OPERATION .................. 21
LUBRICANT ADJUSTING PROCEDURE FOR
COMPONENTS REPLACEMENT EXCEPT
COMPRESSOR .................................................. 22
LUBRICANT ADJUSTING PROCEDURE FOR
COMPRESSOR REPLACEMENT ....................... 22
AIR CONDITIONER CONTROL ............................... 24
Description of Air Conditioner LAN Control System ... 24
System Construction .............................................. 24
OPERATION ........................................................ 24
TRANSMISSION DATA AND TRANSMISSION
ORDER ............................................................... 25
AIR MIX DOOR CONTROL (AUTOMATIC TEM-
PERATURE CONTROL) ..................................... 26
FAN SPEED CONTROL ...................................... 26
INTAKE DOOR CONTROL ................................. 26
MODE DOOR CONTROL ................................... 26
MAGNET CLUTCH CONTROL ........................... 27
SELF-DIAGNOSIS SYSTEM .............................. 27
Description of Control System ................................ 28
Control Operation ................................................... 29
DISPLAY SCREEN .............................................. 29
TEMPERATURE CONTROL SWITCH (POTEN-
TIO TEMPERATURE CONTROL) (DRIVER
SIDE) ................................................................... 29
TEMPERATURE CONTROL SWITCH (POTEN-
TIO TEMPERATURE CONTROL) (PASSEN-
GER SIDE) .......................................................... 29
AUTO SWITCH ................................................... 29
A/C SWITCH ....................................................... 29
FAN SWITCH ...................................................... 29
INTAKE SWITCH ................................................. 30
MODE SWITCH .................................................. 30
DEFROSTER (DEF) SWITCH ............................. 30
REAR WINDOW DEFOGGER SWITCH ............. 30
DUAL SWITCH .................................................... 30
Fail-safe Function ................................................... 30

ATC-2 Discharge Air Flow ................................................. 31
System Description ................................................. 32
SWITCHES AND THEIR CONTROL FUNCTION ... 32
CAN Communication System Description .............. 33
TROUBLE DIAGNOSIS ............................................ 34
CONSULT-II Function (BCM) .................................. 34
CONSULT-II BASIC OPERATION ....................... 34
DATA MONITOR .................................................. 34
How to Perform Trouble Diagnosis for Quick and
Accurate Repair ...................................................... 35
WORK FLOW ...................................................... 35
SYMPTOM TABLE .............................................. 35
Component Parts and Harness Connector Location ... 36
ENGINE COMPARTMENT .................................. 36
PASSENGER COMPARTMENT .......................... 37
Schematic ............................................................... 38
Wiring Diagram — A/C — ....................................... 39
Auto Amp. Terminals and Reference Value ............ 44
PIN CONNECTOR TERMINAL LAYOUT ............ 44
TERMINALS AND REFERENCE VALUE FOR
UNIFIED METER AND A/C AMP. ........................ 44
Self-diagnosis Function .......................................... 46
DESCRIPTION .................................................... 46
FUNCTION CONFIRMATION PROCEDURE ...... 47
AUXILIARY MECHANISM: TEMPERATURE
SETTING TRIMMER ........................................... 52
AUXILIARY MECHANISM: FOOT POSITION
SETTING TRIMMER ........................................... 53
AUXILIARY MECHANISM: INLET PORT MEM-
ORY FUNCTION ................................................. 53
Operational Check .................................................. 54
CHECKING MEMORY FUNCTION ..................... 54
CHECKING BLOWER ......................................... 54
CHECKING DISCHARGE AIR ............................ 54
CHECKING INTAKE AIR ..................................... 54
CHECKING TEMPERATURE DECREASE ......... 54
CHECKING TEMPERATURE INCREASE .......... 55
CHECKING A/C SWITCH ................................... 55
CHECKING AUTO MODE ................................... 55
Power Supply and Ground Circuit for Auto Amp. ... 56
INSPECTION FLOW ........................................... 56
COMPONENT DESCRIPTION ............................ 57
DIAGNOSIS PROCEDURE FOR A/C SYSTEM ... 57
LAN System Circuit ................................................ 59
DIAGNOSIS PROCEDURE FOR LAN CIRCUIT ... 59
Mode Door Motor Circuit ........................................ 63
INSPECTION FLOW ........................................... 63
SYSTEM DESCRIPTION .................................... 64
COMPONENT DESCRIPTION ............................ 65
DIAGNOSIS PROCEDURE FOR MODE DOOR
MOTOR ............................................................... 65
Air Mix Door Motor Circuit ...................................... 66
INSPECTION FLOW ........................................... 66
SYSTEM DESCRIPTION .................................... 67
COMPONENT DESCRIPTION ............................ 68
DIAGNOSIS PROCEDURE FOR AIR MIX DOOR
MOTOR ............................................................... 68
Air Mix Door Motor PBR Circuit .............................. 68DIAGNOSIS PROCEDURE FOR AIR MIX DOOR
MOTOR PBR ....................................................... 68
Intake Door Motor Circuit ........................................ 69
INSPECTION FLOW ............................................ 69
SYSTEM DESCRIPTION ..................................... 70
COMPONENT DESCRIPTION ............................ 71
DIAGNOSIS PROCEDURE FOR INTAKE DOOR
MOTOR ................................................................ 71
Blower Motor Circuit ................................................ 72
INSPECTION FLOW ............................................ 72
SYSTEM DESCRIPTION ..................................... 73
COMPONENT DESCRIPTION ............................ 74
DIAGNOSIS PROCEDURE FOR BLOWER
MOTOR ................................................................ 74
COMPONENT INSPECTION ............................... 77
Magnet Clutch Circuit .............................................. 78
INSPECTION FLOW ............................................ 78
SYSTEM DESCRIPTION ..................................... 79
DIAGNOSIS PROCEDURE FOR MAGNET
CLUTCH .............................................................. 79
COMPONENT INSPECTION ............................... 83
Insufficient Cooling .................................................. 84
INSPECTION FLOW ............................................ 84
PERFORMANCE TEST DIAGNOSIS .................. 85
PERFORMANCE CHART .................................... 87
TROUBLE DIAGNOSIS FOR UNUSUAL PRES-
SURE ................................................................... 88
Insufficient Heating ................................................. 91
INSPECTION FLOW ............................................ 91
Noise ....................................................................... 92
INSPECTION FLOW ............................................ 92
Self-diagnosis ......................................................... 94
INSPECTION FLOW ............................................ 94
Memory Function .................................................... 95
INSPECTION FLOW ............................................ 95
Ambient Sensor Circuit ........................................... 96
COMPONENT DESCRIPTION ............................ 96
AMBIENT TEMPERATURE INPUT PROCESS ... 96
DIAGNOSIS PROCEDURE FOR AMBIENT
SENSOR .............................................................. 96
COMPONENT INSPECTION ............................... 98
In-vehicle Sensor Circuit ......................................... 99
COMPONENT DESCRIPTION ............................ 99
DIAGNOSIS PROCEDURE FOR IN-VEHICLE
SENSOR ............................................................100
COMPONENT INSPECTION .............................101
Sunload Sensor Circuit .........................................102
COMPONENT DESCRIPTION ..........................102
SUNLOAD INPUT PROCESS ...........................102
DIAGNOSIS PROCEDURE FOR SUNLOAD
SENSOR ............................................................102
COMPONENT INSPECTION .............................104
Intake Sensor Circuit .............................................105
COMPONENT DESCRIPTION ..........................105
DIAGNOSIS PROCEDURE FOR INTAKE SEN-
SOR ...................................................................105
COMPONENT INSPECTION .............................106
