TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-195
D
E
F
G
H
I
J
K
L
MA
B
AT

Lock-up Is Not ReleasedBCS0014M
SYMPTOM:
Lock-up is not released when accelerator pedal is released on “Cruise Test — Part 1”.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to EC-82, "
SELF-DIAG RESULTS MODE" (QR engine) or EC-427, "SELF-
DIAG RESULTS MODE" (VQ engine).
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning systems. Refer to EC-82, "SELF-DIAG RESULTS MODE" (QR engine)
or EC-427, "
SELF-DIAG RESULTS MODE" (VQ engine).
NO >> GO TO 2.
2. SYMPTOM CHECK
Check again. Refer to AT- 5 0 , "
Cruise Test — Part 1" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Engine Speed Does Not Return To Idle (Light Braking D4 → D3 )BCS0014N
SYMPTOM:
Engine speed does not smoothly return to idle when A/T shifts from D4 to D3 on “Cruise Test — Part
1”.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 6 9 , "
SELF-DIAGNOSTIC RESULT MODE" or AT- 7 6 , "Diagnostic Proce-
dure Without CONSULT-II" .
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning systems. Refer to AT- 6 9 , "SELF-DIAGNOSTIC RESULT MODE" or AT-
77, "Judgement of Self-Diagnosis Code" .
NO >> GO TO 2.
2. CHECK ACCELERATOR PEDAL POSITION SENSOR
Check accelerator pedal position sensor. Refer to EC-272, "
DTC P2138 APP SENSOR" (QR engine) or EC-
652, "DTC P2138 APP SENSOR" (VQ engine).
OK or NG
OK >> GO TO 3.
NG >> Repair or replace accelerator pedal position sensor.

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-201
D
E
F
G
H
I
J
K
L
MA
B
AT

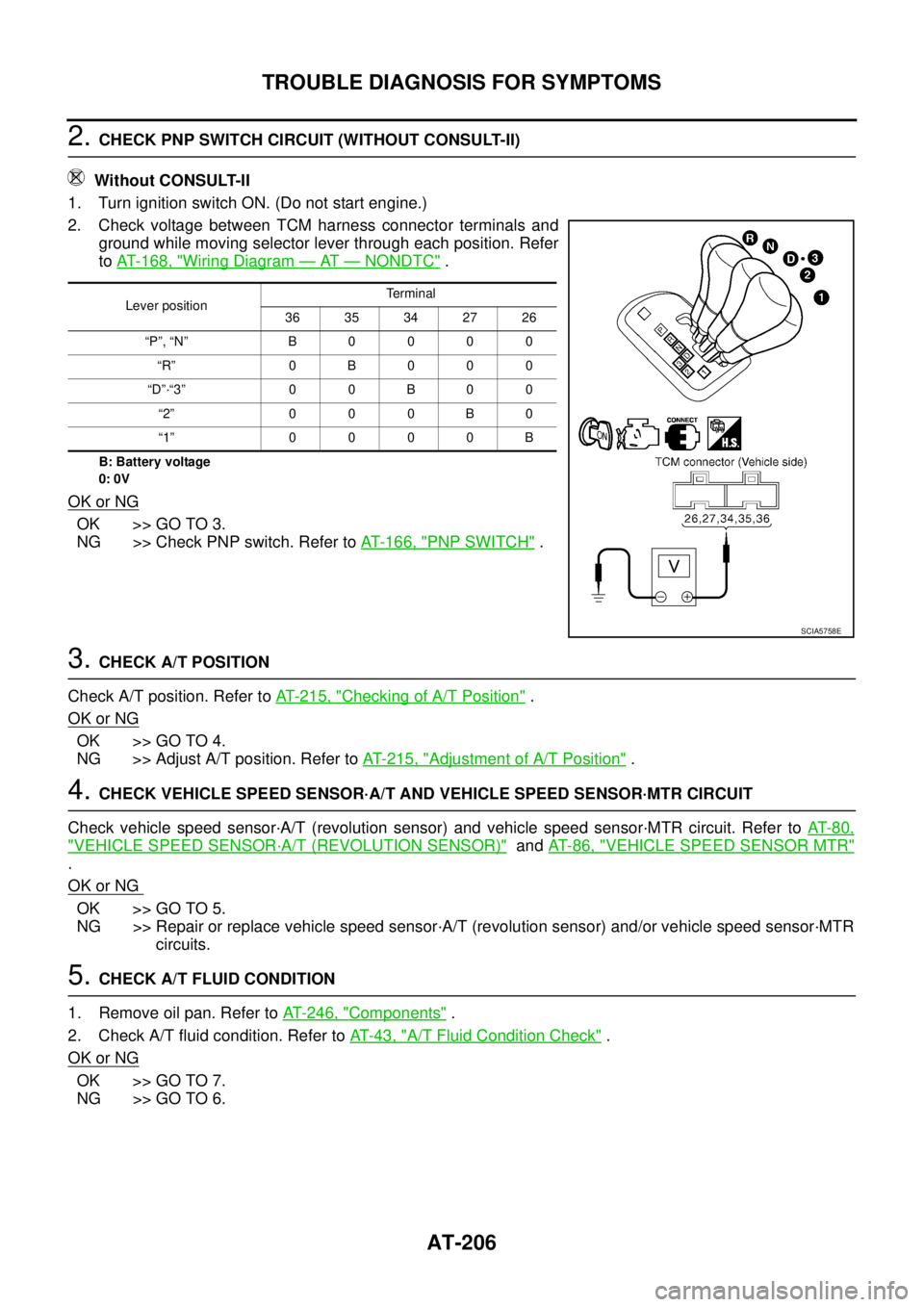

2. CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM harness connector terminals and
ground while moving selector lever through each position. Refer
to AT- 1 6 8 , "
Wiring Diagram — AT — NONDTC" .
B: Battery voltage
0: 0V
OK or NG
OK >> GO TO 3.
NG >> Check PNP switch. Refer to AT- 1 6 6 , "
PNP SWITCH" .
3. CHECK A/T POSITION
Check A/T position. Refer to AT- 2 1 5 , "
Checking of A/T Position" .
OK or NG
OK >> GO TO 4.
NG >> Adjust A/T position. Refer to AT- 2 1 5 , "
Adjustment of A/T Position" .
4. CHECK VEHICLE SPEED SENSOR·A/T AND VEHICLE SPEED SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 8 0 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 8 6 , "VEHICLE SPEED SENSOR MTR"
.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and/or vehicle speed sensor·MTR
circuits.
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 4 6 , "
Components" .
2. Check A/T fluid condition. Refer to AT- 4 3 , "
A/T Fluid Condition Check" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
Lever positionTerminal
36 35 34 27 26
“P”, “N” B 0 0 0 0
“R” 0 B 0 0 0
“D”·“3” 0 0 B 0 0
“2” 0 0 0 B 0
“1” 0 0 0 0 B
SCIA5758E

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-203
D
E
F
G
H
I
J
K
L
MA
B
AT

Vehicle Does Not Decelerate By Engine Brake (D4 → 33 )BCS0014S
SYMPTOM:
Vehicle does not decelerate by engine brake when A/T selector lever is in “3” position on “Cruise
Test— Part 3”.
DIAGNOSTIC PROCEDURE
1. CHECK 3RD POSITION SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “OVERDRIVE SW” switch moving selector lever to
each position.
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine)
2. Check voltage between A/T device harness connector terminal
and ground. Refer to AT- 1 6 8 , "
Wiring Diagram — AT — NON-
DTC" .
OK or NG
OK >> GO TO 2.
NG >> Check 3rd position switch. Refer to AT- 1 6 6 , "
3RD POSITION SWITCH" .
2. CHECK ACCELERATOR PEDAL POSITION SENSOR
Check accelerator pedal position sensor. Refer to EC-272, "
DTC P2138 APP SENSOR" (QR engine) or EC-
652, "DTC P2138 APP SENSOR" (VQ engine).
OK or NG
OK >> GO TO 3.
NG >> Repair or replace accelerator pedal position sensor.
3. CHECK VEHICLE SPEED SENSOR·A/T AND VEHICLE SPEED SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 8 0 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 8 6 , "VEHICLE SPEED SENSOR MTR"
.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and/or vehicle speed sensor·MTR
circuits.
Item name Condition Display value
OVERDRIVE SWWhen setting selector lever to
“3” and “2” positions.ON
When setting selector lever to
other positions.OFF
SCIA4730E
Item Connector Terminal ConditionData
(Approx.)
3rd posi-
tion switchM62 1 - GroundWhen setting
selector lever to “3”
and “2” positions.0V
When setting
selector lever to
other positions.Battery volt-
age
SCIA7858E

AT-206
TROUBLE DIAGNOSIS FOR SYMPTOMS

2. CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM harness connector terminals and
ground while moving selector lever through each position. Refer
to AT- 1 6 8 , "
Wiring Diagram — AT — NONDTC" .
B: Battery voltage
0: 0V
OK or NG
OK >> GO TO 3.
NG >> Check PNP switch. Refer to AT- 1 6 6 , "
PNP SWITCH" .
3. CHECK A/T POSITION
Check A/T position. Refer to AT- 2 1 5 , "
Checking of A/T Position" .
OK or NG
OK >> GO TO 4.
NG >> Adjust A/T position. Refer to AT- 2 1 5 , "
Adjustment of A/T Position" .
4. CHECK VEHICLE SPEED SENSOR·A/T AND VEHICLE SPEED SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 8 0 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 8 6 , "VEHICLE SPEED SENSOR MTR"
.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and/or vehicle speed sensor·MTR
circuits.
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 4 6 , "
Components" .
2. Check A/T fluid condition. Refer to AT- 4 3 , "
A/T Fluid Condition Check" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
Lever positionTe r m i n a l
36 35 34 27 26
“P”, “N” B 0 0 0 0
“R” 0B000
“D”·“3” 0 0 B 0 0
“2” 0 0 0 B 0
“1” 0 0 0 0 B
SCIA5758E

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-209
D
E
F
G
H
I
J
K
L
MA
B
AT

2. CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM harness connector terminals and
ground while moving selector lever through each position. Refer
to AT- 1 6 8 , "
Wiring Diagram — AT — NONDTC" .
B: Battery voltage
0: 0V
OK or NG
OK >> GO TO 3.
NG >> Check PNP switch. Refer to AT- 1 6 6 , "
PNP SWITCH" .
3. CHECK A/T POSITION
Check A/T position. Refer to AT- 2 1 5 , "
Checking of A/T Position" .
OK or NG
OK >> GO TO 4.
NG >> Adjust A/T position. Refer to AT- 2 1 5 , "
Adjustment of A/T Position" .
4. CHECK VEHICLE SPEED SENSOR·A/T AND VEHICLE SPEED SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 8 0 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 8 6 , "VEHICLE SPEED SENSOR MTR"
.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and/or vehicle speed sensor·MTR
circuits.
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 4 6 , "
Components" .
2. Check A/T fluid condition. Refer to AT- 4 3 , "
A/T Fluid Condition Check" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
Lever positionTerminal
36 35 34 27 26
“P”, “N” B 0 0 0 0
“R” 0 B 0 0 0
“D”·“3” 0 0 B 0 0
“2” 0 0 0 B 0
“1” 0 0 0 0 B
SCIA5758E

AT-210
TROUBLE DIAGNOSIS FOR SYMPTOMS

6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Overrun clutch solenoid valve
3. Disassemble A/T. Refer to AT- 2 5 5 , "
Disassembly" .
4. Check the following items:
–Overrun clutch assembly. Refer to AT- 3 0 7 , "Forward and Overrun Clutches" .
–Low & reverse brake assembly. Refer to AT- 3 1 5 , "Low & Reverse Brake" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. SYMPTOM CHECK
Check again. Refer to AT- 5 2 , "
Cruise Test — Part 3" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 8.
8. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
TCM Self-diagnosis Does Not ActivateBCS0014V
SYMPTOM:
A/T CHECK indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit
is good.
DESCRIPTION

PNP switch
PNP switch includes a transmission range switch. The transmission range switch detects the selector
lever position and sends a signal to the TCM.

3rd position switch
3rd position switch detects the 3rd position and sends a signal via CAN communication to the TCM.

Closed throttle position signal and wide-open throttle position signal.
ECM judges throttle opening based on a signal from accelerator pedal position (APP) sensor, and sends
the signal via CAN communication to TCM.

Stop lamp switch
Stop lamp switch detects the switch position (ON or OFF) and sends a signal via CAN communication to
the TCM.
DIAGNOSTIC PROCEDURE
NOTE:
The diagnostic procedure includes inspection for the park/neutral position (PNP) stitch, 3rd position switch,
stop lamp switch, closed throttle position signal and wide open throttle position signal circuit. Refer to AT- 1 6 1 ,
"PNP, 3RD POSITION SWITCH AND CLOSED THROTTLE, WIDE OPEN THROTTLE POSITION SIGNAL"
and AT- 1 6 7 , "BRAKE SIGNAL CIRCUIT" .

ON-VEHICLE SERVICE
AT-233
D
E
F
G
H
I
J
K
L
MA
B
AT

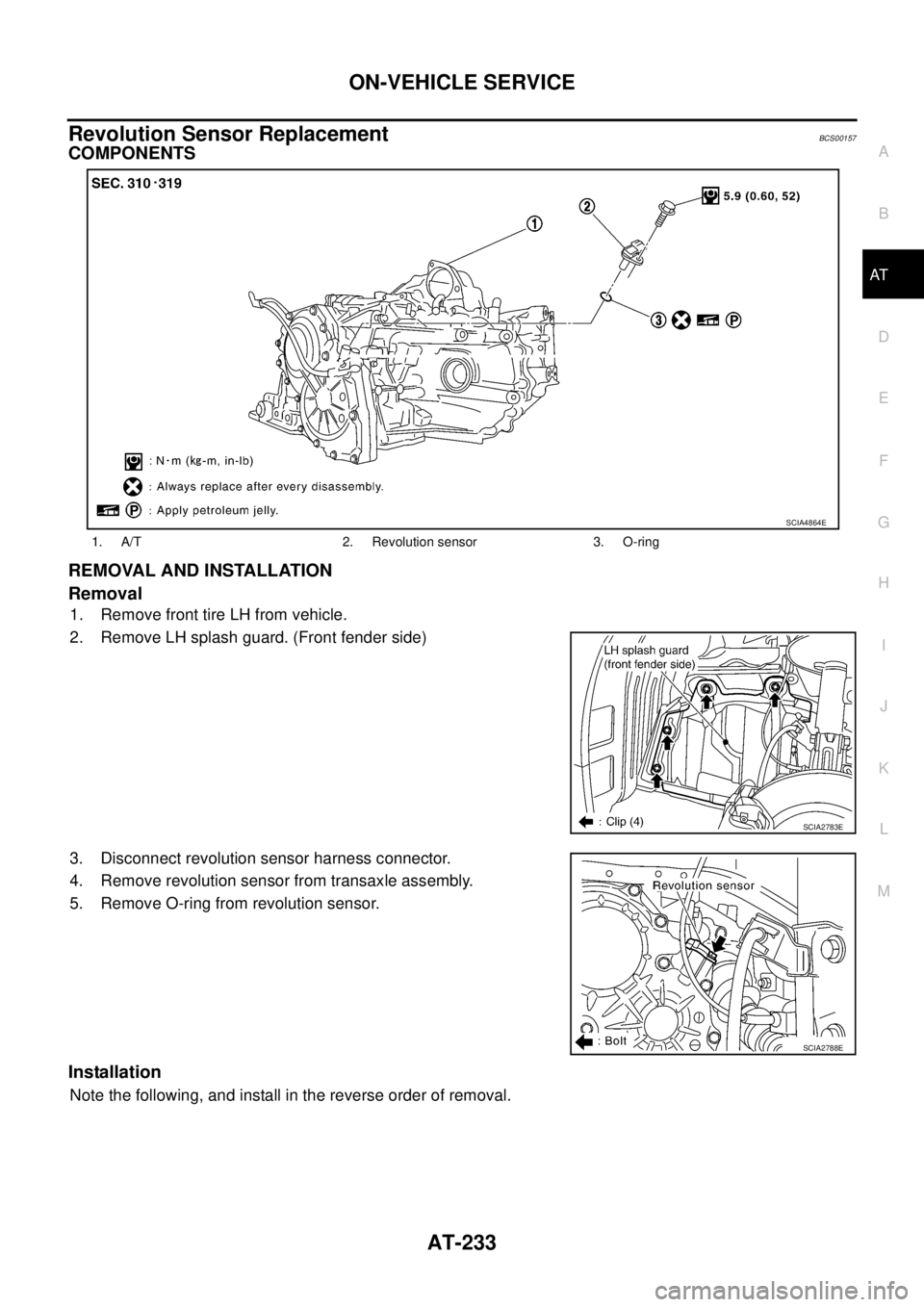

Revolution Sensor ReplacementBCS00157
COMPONENTS
REMOVAL AND INSTALLATION
Removal
1. Remove front tire LH from vehicle.
2. Remove LH splash guard. (Front fender side)
3. Disconnect revolution sensor harness connector.
4. Remove revolution sensor from transaxle assembly.
5. Remove O-ring from revolution sensor.
Installation
Note the following, and install in the reverse order of removal.
1. A/T 2. Revolution sensor 3. O-ring
SCIA4864E
SCIA2783E
SCIA2788E

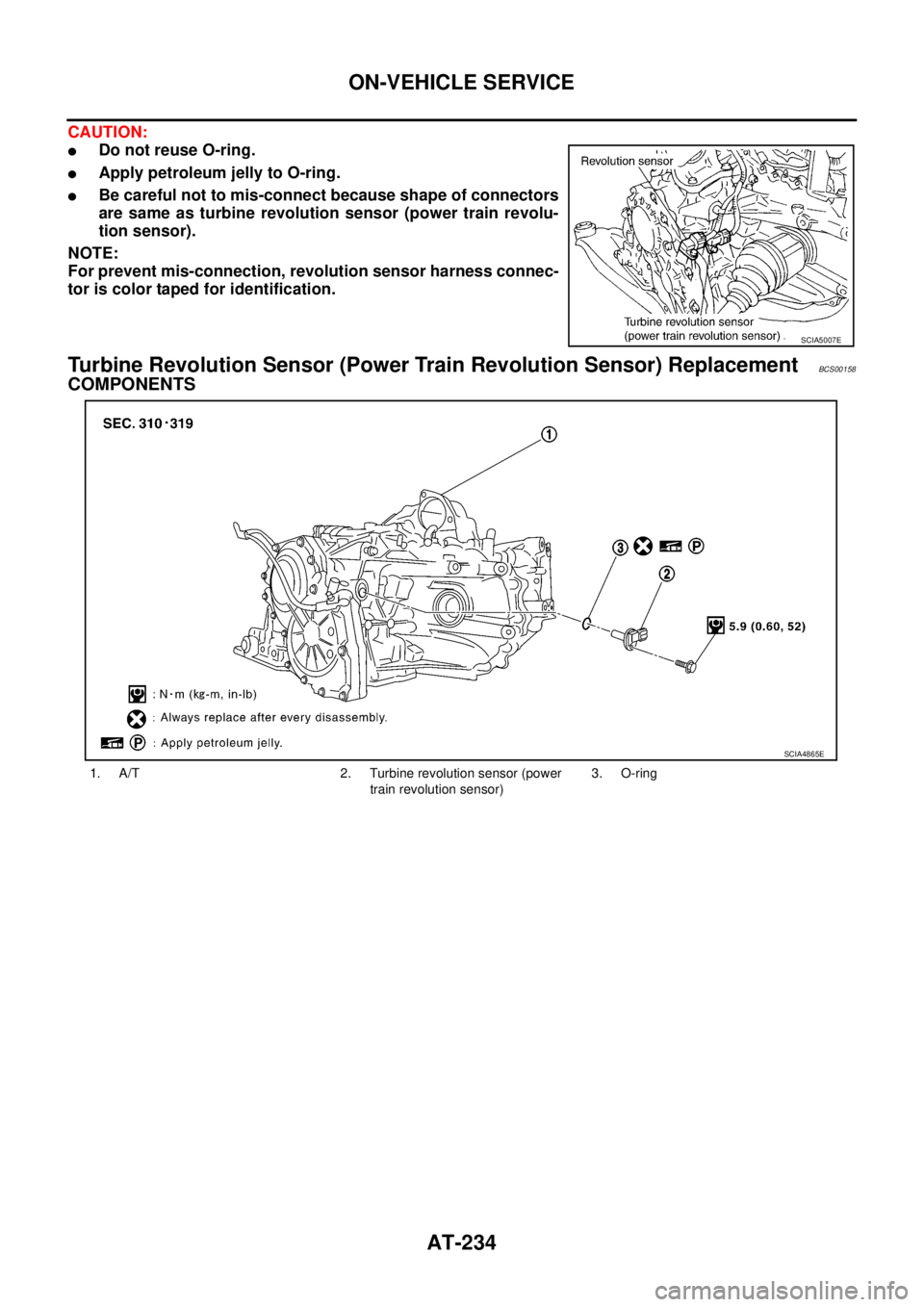

AT-234
ON-VEHICLE SERVICE

CAUTION:

Do not reuse O-ring.

Apply petroleum jelly to O-ring.

Be careful not to mis-connect because shape of connectors
are same as turbine revolution sensor (power train revolu-
tion sensor).
NOTE:
For prevent mis-connection, revolution sensor harness connec-
tor is color taped for identification.
Turbine Revolution Sensor (Power Train Revolution Sensor) ReplacementBCS00158
COMPONENTS
SCIA5007E
1. A/T 2. Turbine revolution sensor (power
train revolution sensor)3. O-ring
SCIA4865E

ON-VEHICLE SERVICE
AT-235
D
E
F
G
H
I
J
K
L
MA
B
AT

REMOVAL AND INSTALLATION
Removal
1. Remove front tire LH from vehicle.
2. Remove LH splash guard. (Front fender side)
3. Disconnect turbine revolution sensor (power train revolution
sensor) harness connector.
4. Remove turbine revolution sensor (power train revolution sen-
sor) from transaxle assembly.
5. Remove O-ring from turbine revolution sensor (power train revo-
lution sensor).
Installation
Note the following, and install in the reverse order of removal.
CAUTION:

Do not reuse O-ring.

Apply petroleum jelly to O-ring.

Be careful not to mis-connect because shape of connectors
are same as revolution sensor.
NOTE:
For prevent mis-connection, revolution sensor harness connec-
tor is color taped for identification.
SCIA2783E
SCIA2790E
SCIA5007E

TRANSAXLE ASSEMBLY
AT-243
D
E
F
G
H
I
J
K
L
MA
B
AT

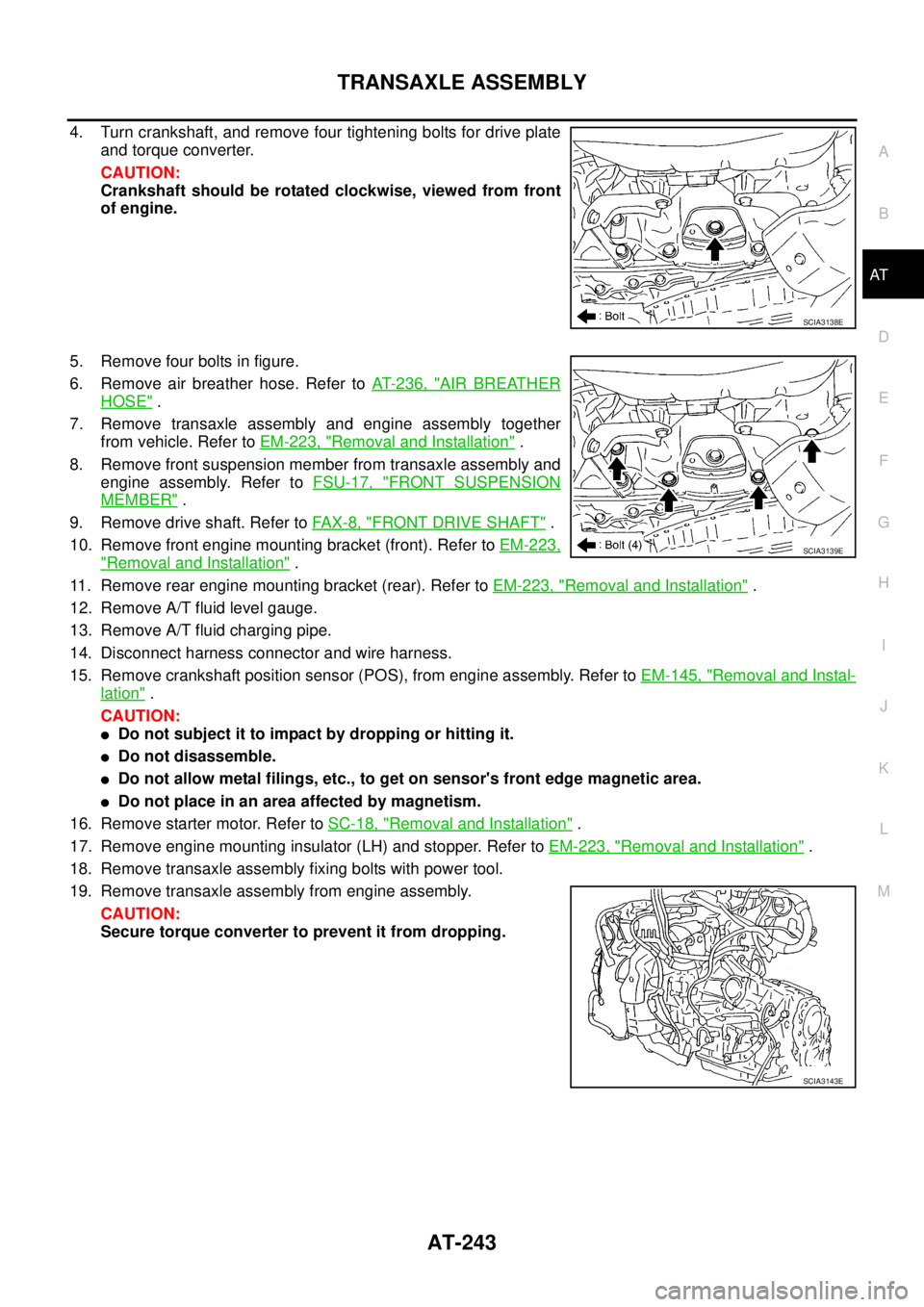

4. Turn crankshaft, and remove four tightening bolts for drive plate
and torque converter.
CAUTION:
Crankshaft should be rotated clockwise, viewed from front
of engine.
5. Remove four bolts in figure.
6. Remove air breather hose. Refer to AT- 2 3 6 , "
AIR BREATHER
HOSE" .
7. Remove transaxle assembly and engine assembly together
from vehicle. Refer to EM-223, "
Removal and Installation" .
8. Remove front suspension member from transaxle assembly and
engine assembly. Refer to FSU-17, "
FRONT SUSPENSION
MEMBER" .
9. Remove drive shaft. Refer to FA X - 8 , "
FRONT DRIVE SHAFT" .
10. Remove front engine mounting bracket (front). Refer to EM-223,
"Removal and Installation" .
11. Remove rear engine mounting bracket (rear). Refer to EM-223, "
Removal and Installation" .
12. Remove A/T fluid level gauge.
13. Remove A/T fluid charging pipe.
14. Disconnect harness connector and wire harness.
15. Remove crankshaft position sensor (POS), from engine assembly. Refer to EM-145, "
Removal and Instal-
lation" .
CAUTION:

Do not subject it to impact by dropping or hitting it.

Do not disassemble.

Do not allow metal filings, etc., to get on sensor's front edge magnetic area.

Do not place in an area affected by magnetism.
16. Remove starter motor. Refer to SC-18, "
Removal and Installation" .
17. Remove engine mounting insulator (LH) and stopper. Refer to EM-223, "
Removal and Installation" .
18. Remove transaxle assembly fixing bolts with power tool.
19. Remove transaxle assembly from engine assembly.
CAUTION:
Secure torque converter to prevent it from dropping.
SCIA3138E
SCIA3139E
SCIA3143E
