DTC P2135 TP SENSOR
EC-269
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT-I
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.
3. Check voltage between electric throttle control actuator terminal
1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3. CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 1 and ECM terminal 47.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace open circuit.
4. CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 5.
NG >> Repair short to ground or short to power in harness or connectors.
5. CHECK APP SENSOR
Refer to EC-264, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> GO TO 6.
PBIB2129E
Voltage: Approximately 5V
PBIB0082E
Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
47 Electric throttle control actuator terminal 1EC-267
91 APP sensor terminal 1EC-260
Page 1552 of 3502
![NISSAN TEANA 2003 Service Manual EC-270
[QR]
DTC P2135 TP SENSOR
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-47, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-47, "
T NISSAN TEANA 2003 Service Manual EC-270
[QR]
DTC P2135 TP SENSOR
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-47, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-47, "
T](/img/5/57392/w960_57392-1551.png)
EC-270
[QR]
DTC P2135 TP SENSOR
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-47, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-47, "
Throttle Valve Closed Position Learning" .
4. Perform EC-47, "
Idle Air Volume Learning" .
>>INSPECTION END
7. CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 5 and ECM terminal 66.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK THROTTLE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between electric throttle control actuator terminal 4 and ECM terminal 49, elec-
tric throttle control actuator terminal 2 and ECM terminal 68.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK THROTTLE POSITION SENSOR
Refer to EC-271, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-47, "
Throttle Valve Closed Position Learning" .
3. Perform EC-47, "
Idle Air Volume Learning" .
>>INSPECTION END
11 . CHECK INTERMITTENT INCIDENT
Refer to EC-105, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Continuity should exist.
Page 1553 of 3502
![NISSAN TEANA 2003 Service Manual DTC P2135 TP SENSOR
EC-271
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
Component InspectionBBS005HX
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-47, "
Throttle Valve C NISSAN TEANA 2003 Service Manual DTC P2135 TP SENSOR
EC-271
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
Component InspectionBBS005HX
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-47, "
Throttle Valve C](/img/5/57392/w960_57392-1552.png)
DTC P2135 TP SENSOR
EC-271
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
Component InspectionBBS005HX
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-47, "
Throttle Valve Closed Position Learning" .
3. Turn ignition switch ON.
4. Set selector lever to D position.
5. Check voltage between ECM terminals 49 (TP sensor 1 signal),
68 (TP sensor 2 signal) and ground under the following condi-
tions.
6. If NG, replace electric throttle control actuator and go to the next
step.
7. Perform EC-47, "
Throttle Valve Closed Position Learning" .
8. Perform EC-47, "
Idle Air Volume Learning" .
Removal and InstallationBBS005HY
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-19, "INTAKE MANIFOLD" .
Terminal Accelerator pedal Voltage
49
(Throttle position sensor 1)Fully released More than 0.36V
Fully depressed Less than 4.75V
68
(Throttle position sensor 2)Fully released Less than 4.75V
Fully depressed More than 0.36V
PBIB2170E
Page 1554 of 3502
![NISSAN TEANA 2003 Service Manual EC-272
[QR]
DTC P2138 APP SENSOR
DTC P2138 APP SENSORPFP:18002
Component DescriptionBBS005HZ
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. Th NISSAN TEANA 2003 Service Manual EC-272
[QR]
DTC P2138 APP SENSOR
DTC P2138 APP SENSORPFP:18002
Component DescriptionBBS005HZ
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. Th](/img/5/57392/w960_57392-1553.png)
EC-272
[QR]
DTC P2138 APP SENSOR
DTC P2138 APP SENSORPFP:18002
Component DescriptionBBS005HZ
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-II Reference Value in Data Monitor ModeBBS005I0
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.
On Board Diagnosis LogicBBS005I1
This self-diagnosis has the one trip detection logic.
NOTE:
If DTC P2138 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229. Refer to
EC-233
.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN 1
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.65 - 0.87V
Accelerator pedal: Fully depressed More than 4.3V
ACCEL SEN 2*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.56 - 0.96V
Accelerator pedal: Fully depressed More than 4.0V
CLSD THL POS
Ignition switch: ONAccelerator pedal: Fully released ON
Accelerator pedal: Slightly
depressedOFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2138
2138Accelerator pedal position sensor
circuit range/performanceRationally incorrect voltage is sent to ECM
compared with the signals from APP sensor
1 and APP sensor 2.
Harness or connector
(APP sensor 1 and 2 circuit is open
or shorted.)
(TP sensor circuit is shorted.)
Accelerator pedal position sensor
(APP sensor 1 and 2)
Electric throttle control actuator
(TP sensor 1 and 2)
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
Page 1555 of 3502
![NISSAN TEANA 2003 Service Manual DTC P2138 APP SENSOR
EC-273
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC Confirmation ProcedureBBS005I2
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and w NISSAN TEANA 2003 Service Manual DTC P2138 APP SENSOR
EC-273
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC Confirmation ProcedureBBS005I2
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and w](/img/5/57392/w960_57392-1554.png)
DTC P2138 APP SENSOR
EC-273
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC Confirmation ProcedureBBS005I2
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-275, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and let it idle for 1 second.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If DTC is detected, go to EC-275, "
Diagnostic Procedure" .
SEF058Y
Page 1556 of 3502
![NISSAN TEANA 2003 Service Manual EC-274
[QR]
DTC P2138 APP SENSOR
Wiring DiagramBBS005I3
TBWM1503E NISSAN TEANA 2003 Service Manual EC-274
[QR]
DTC P2138 APP SENSOR
Wiring DiagramBBS005I3
TBWM1503E](/img/5/57392/w960_57392-1555.png)

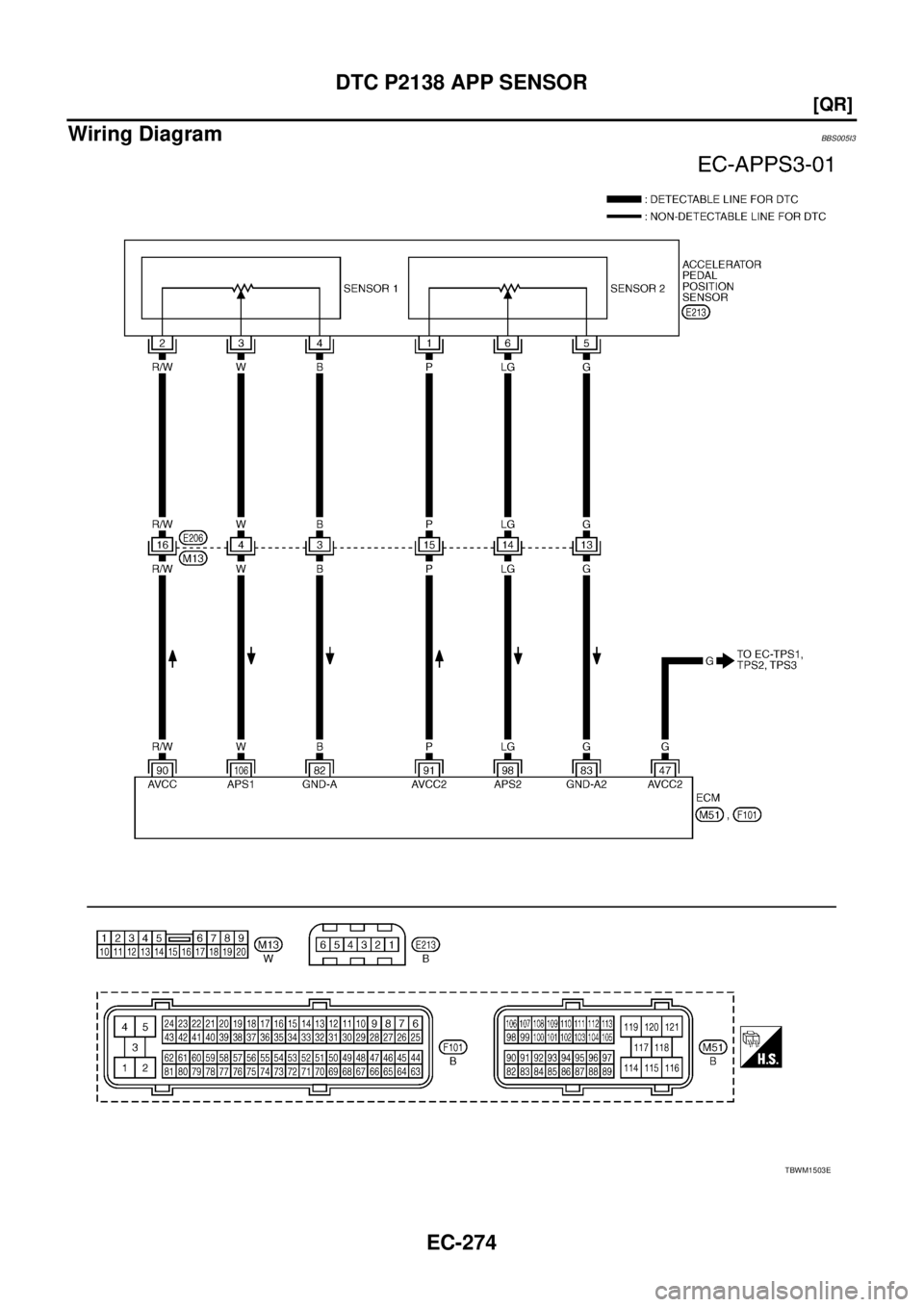

EC-274
[QR]
DTC P2138 APP SENSOR
Wiring DiagramBBS005I3
TBWM1503E
Page 1557 of 3502
![NISSAN TEANA 2003 Service Manual DTC P2138 APP SENSOR
EC-275
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when me NISSAN TEANA 2003 Service Manual DTC P2138 APP SENSOR
EC-275
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when me](/img/5/57392/w960_57392-1556.png)
DTC P2138 APP SENSOR
EC-275
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureBBS005I4
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to E C - 111 , "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
47 GSensor power supply
(Throttle position sensor)[Ignition switch: ON]Approximately 5V
82 BSensor ground
(Accelerator pedal position
sensor 1)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
83 GSensor ground
(Accelerator pedal position
sensor 2)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
90 R/WSensor power supply
(Accelerator pedal position
sensor 1)[Ignition switch: ON]Approximately 5V
91 PSensor power supply
(Accelerator pedal position
sensor 2)[Ignition switch: ON]Approximately 5V
98 LGAccelerator pedal position
sensor 2[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully released0.28 - 0.48V
[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully depressedMore than 2.0V
106 WAccelerator pedal position
sensor 1[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully released0.65 - 0.87V
[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully depressedMore than 4.3V
PBIB2160E
Page 1558 of 3502
![NISSAN TEANA 2003 Service Manual EC-276
[QR]
DTC P2138 APP SENSOR
2. CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage betw NISSAN TEANA 2003 Service Manual EC-276
[QR]
DTC P2138 APP SENSOR
2. CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage betw](/img/5/57392/w960_57392-1557.png)
EC-276
[QR]
DTC P2138 APP SENSOR
2. CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 2 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E206, M13
Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
Check voltage between APP sensor terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 5.
PBIB2467E
Voltage: Approximately 5V
PBIB2478E
Voltage: Approximately 5V
PBIB2477E
Page 1559 of 3502
![NISSAN TEANA 2003 Service Manual DTC P2138 APP SENSOR
EC-277
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
5. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity NISSAN TEANA 2003 Service Manual DTC P2138 APP SENSOR
EC-277
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
5. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity](/img/5/57392/w960_57392-1558.png)
DTC P2138 APP SENSOR
EC-277
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
5. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 1 and ECM terminal 91.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E206, M13
Harness for open between ECM and accelerator pedal position sensor
>> Repair or replace open circuit.
7. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 8.
NG >> Repair short to ground or short to power in harness or connectors.
8. CHECK THROTTLE POSITION SENSOR
Refer to EC-271, "
Component Inspection" .
OK or NG
OK >> GO TO 16.
NG >> GO TO 9.
9. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-47, "
Throttle Valve Closed Position Learning" .
3. Perform EC-47, "
Idle Air Volume Learning" .
>>INSPECTION END Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
91 APP sensor terminal 1EC-274
47 Electric throttle control actuator terminal 1EC-267
Page 1560 of 3502
![NISSAN TEANA 2003 Service Manual EC-278
[QR]
DTC P2138 APP SENSOR
10. CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sens NISSAN TEANA 2003 Service Manual EC-278
[QR]
DTC P2138 APP SENSOR
10. CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sens](/img/5/57392/w960_57392-1559.png)
EC-278
[QR]
DTC P2138 APP SENSOR
10. CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 4 and ECM terminal 82, APP sensor terminal 5
and ECM terminal 83.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 . DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E206, M13
Harness for open or short between APP sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
12. CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between APP sensor terminal 3 and ECM terminal 106, APP sensor terminal 6
and ECM terminal 98.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E206, M13
Harness for open or short between APP sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK APP SENSOR
Refer to EC-279, "
Component Inspection" .
OK or NG
OK >> GO TO 16.
NG >> GO TO 15.Continuity should exist.
Continuity should exist.
