NISSAN TEANA 2003 Service Manual

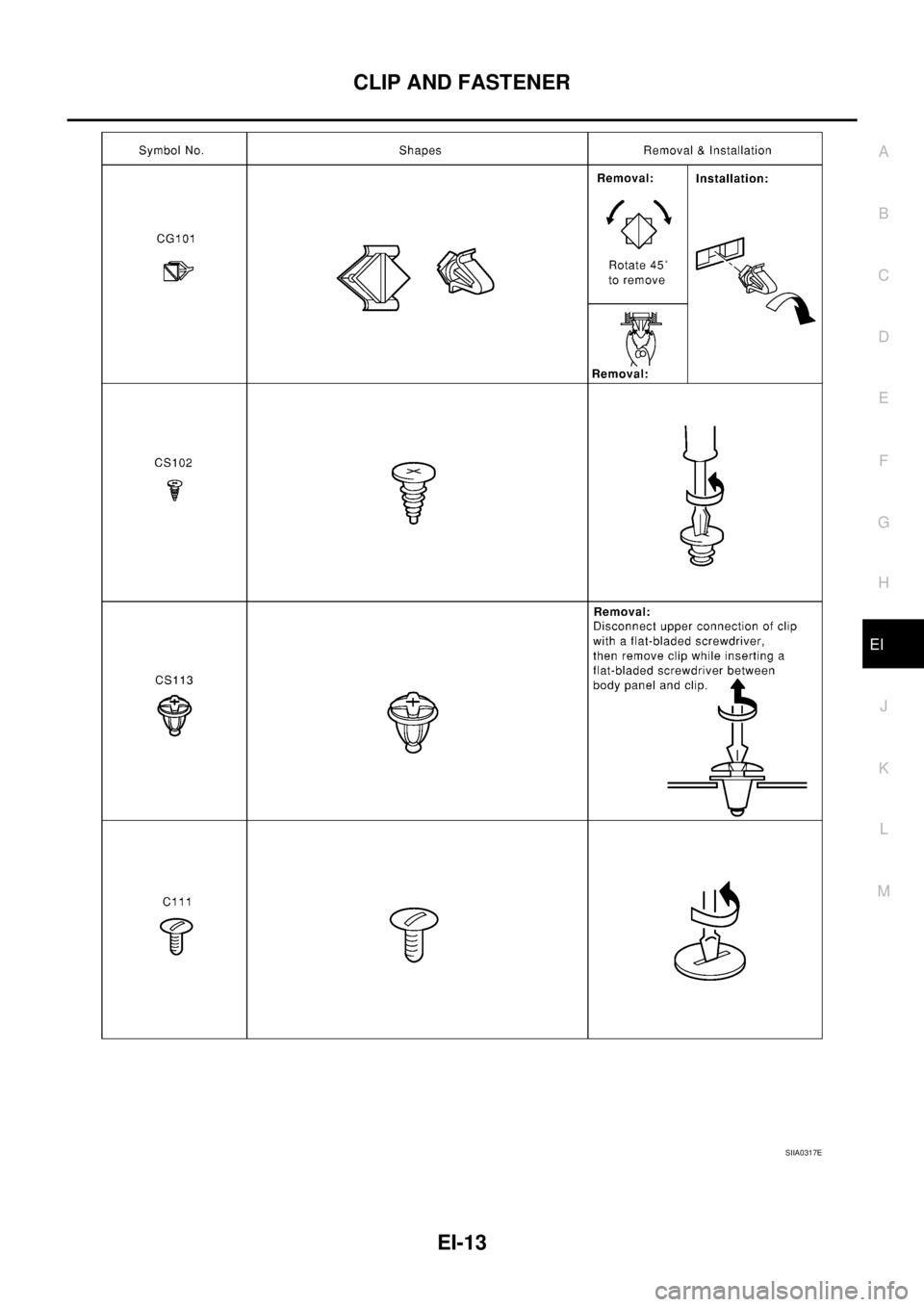

CLIP AND FASTENER
EI-13
C
D
E
F
G
H
J
K
L
MA
B
EI

SIIA0317E

EI-14
FRONT BUMPER

FRONT BUMPERPFP:F2022
Removal and InstallationBIS0011E
CAUTION:
Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.
PIIB8681E

FRONT BUMPER
EI-15
C
D
E
F
G
H
J
K
L
MA
B
EI

REMOVAL
1. Fully open hood assembly.
2. Remove front side of fender protector (LH/RH). Refer to EI-23, "
FENDER PROTECTOR" .
3. Disconnect the headlamp cleaner tube joint (1) of washer tank
(2). (With headlamp cleaner)
4. Remove clips of bumper fascia lower side.
5. Remove screws of bumper fascia left/right side.
6. Remove clips of bumper fascia upper side, and then pull out bumper fascia toward front of vehicle while
extending bumper fascia side surface toward vehicle outside.
7. Disconnect fog lamp harness connectors (LH/RH) after pulling out, and then remove bumper fascia.
CAUTION:
When removing bumper fascia, 2 workers are required so as to prevent it from dropping.
8. Remove fog lamp assembly (LH/RH). Refer to LT- 1 2 6 , "
FRONT FOG LAMP" .
9. Remove bumper energy absorber.
10. Remove bumper reinforcement mounting nuts and bumper reinforcement.
11. Unscrew bumper stay mounting bolts, and remove bumper stay (LH/RH).
12. Unscrew bumper side bracket mounting screws, and remove bumper side bracket (LH/RH).
INSTALLATION
Install in the reverse order of removal.
NOTE:

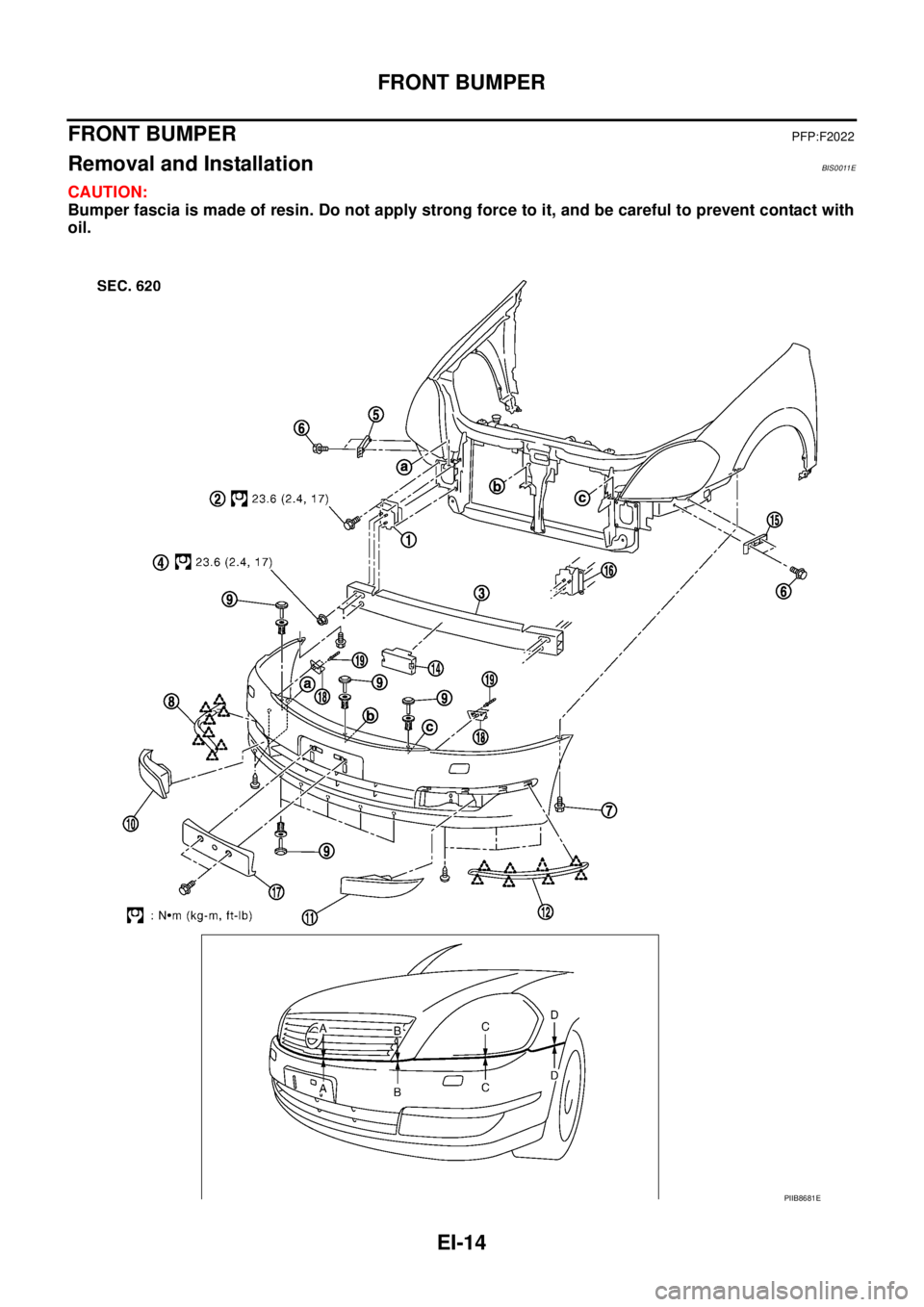

1. Bumper stay (RH) 2. Bolt 3. Bumper reinforcement
4. Nut 5. Bumper side bracket (RH) 6. Screw
7. Screw 8. Bumper molding (RH) 9. Clip (C205)
10. Fog lamp (RH) 11. Fog lamp (LH) 12. Bumper molding (LH)
13. Bumper fascia 14. Bumper energy absorber 15. Bumper side bracket (LH)
16. Bumper stay (LH) 17. License plate bracket 18. Bumper bracket
19. Rivet Pawl
PIIB8682E
Portion Clearance
Front bumper – Front grille A – A 4.0 – 8.0 mm (0.157 – 0.315 in)
Front bumper – Hood B – B 4.0 – 8.0 mm (0.157 – 0.315 in)
Front bumper – Headlamp C – C 0.8 – 3.2 mm (0.031 – 0.126 in)
Front bumper – Front fender D – D 0.0 – 0.7 mm (0.000 – 0.028 in)

EI-16
FRONT BUMPER

REMOVAL AND INSTALLATION OF FRONT BUMPER MOLDING
Removal
1. Remove front bumper fascia.
2. Disengage the joint between front bumper fascia and front
bumper molding, and then remove front bumper molding.
Installation
Install in the reverse order of removal.
PIIB8288J

REAR BUMPER
EI-17
C
D
E
F
G
H
J
K
L
MA
B
EI

REAR BUMPERPFP:H5022
Removal and InstallationBIS0011F
CAUTION:
Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.
PIIB8683E

EI-18
REAR BUMPER

REMOVAL
1. Fully open trunk lid assembly.
2. Remove trunk floor carpet, trunk box assembly, trunk floor spacer (LH/RH), trunk rear garnish, trunk rear
finisher, and trunk wheelhouse finisher. Refer to EI-58, "
TRUNK ROOM TRIM & TRUNK LID FINISHER" .
3. Remove rear combination lamp (LH/RH). Refer to LT- 2 1 6 , "
REAR COMBINATION LAMP" .
4. Remove clips of bumper fascia lower side.
5. Remove screws of bumper fascia left/right side.
6. Remove bumper fascia left/right bolt from trunk room inside.
7. Remove clip and bumper clamp from bumper fascia upper side, and then pull out bumper fascia toward
rear of vehicle.
8. Disconnect rear fog lamp harness connector after pulling out, and then remove bumper fascia.
CAUTION:
When removing bumper fascia, 2 workers are required so as to prevent it from dropping.
9. Remove the following parts after removing bumper fascia.

Bumper side bracket (LH/RH).

Rear bumper molding (LH/RH).
10. Remove bumper energy absorber.
11. Remove bumper reinforcement mounting nuts and bumper reinforcement.
12. Unscrew bumper stay mounting bolts, and remove bumper stay (LH/RH).
INSTALLATION
Install in the reverse order of removal.
NOTE:

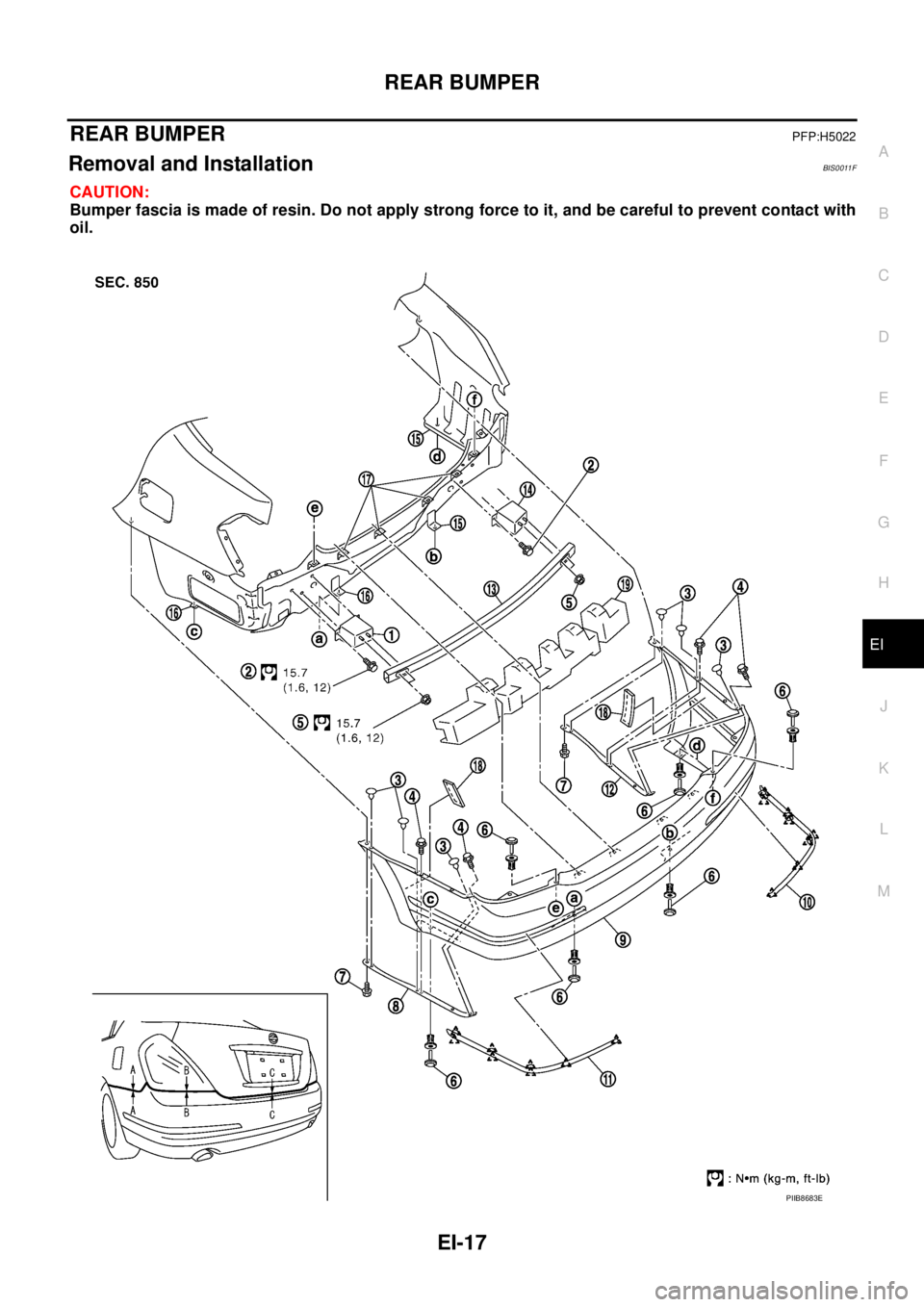

1. Bumper stay (LH) 2. Bolt 3. Clip (C103)
4. Bolt 5. Nut 6. Clip (C205)
7. Screw 8. Bumper side bracket (LH) 9. Bumper fascia
10. Rear bumper molding 11. Rear bumper molding (LH) 12. Bumper side bracket (RH)
13. Bumper reinforcement 14. Bumper stay (RH) 15. Bumper lower bracket (RH)
16. Bumper lower bracket (LH) 17. Bumper clamp 18. Rear bumper protector
19. Bumper energy absorber Pawl
Portion Clearance
Rear bumper – Rear fender A – A 0.0 – 0.7 mm (0.000 – 0.028 in)
Rear bumper – Rear combination lamp B – B 0.2 – 3.8 mm (0.008 – 0.150 in)
Rear bumper – Trunk lid C – C 5.0 – 9.0 mm (0.197 – 0.354 in)

REAR BUMPER
EI-19
C
D
E
F
G
H
J
K
L
MA
B
EI

REMOVAL AND INSTALLATION OF REAR BUMPER MOLDING
Removal
1. Remove rear bumper fascia.
2. Disengage the joint between rear bumper fascia and rear
bumper molding, and then remove rear bumper molding.
Installation
Install in the reverse order of removal.
PIIB8290J

EI-20
FRONT GRILLE

FRONT GRILLEPFP:62310
Removal and InstallationBIS0011G
REMOVAL
1. Fully open hood assembly.
2. Remove mounting nut from back of grille.
3. Pull out front grille toward front of vehicle.
INSTALLATION
Install in the reverse order of removal.
PIIB1761E
1. Nut 2. Stud bolt 3. Front grille

COWL TOP
EI-21
C
D
E
F
G
H
J
K
L
MA
B
EI

COWL TOPPFP:66100
Removal and InstallationBIS0011H
PIIB1762E

EI-22
COWL TOP

REMOVAL
1. Remove front wiper arm (LH/RH) from vehicle. Refer to WW-34, "Removal and Installation of Front Wiper
Arms, Adjustment of Wiper Arms Stop Location" .
2. Remove cowl top seal rubber together with mounting clips.
3. Remove food hinge cover (LH/RH).
4. Remove front end clips of cowl top cover (LH/RH).
5. Disengage cowl top cover (LH) rear end blind clip, and then remove it.
6. Disengage cowl top cover (RH) rear end blind clip, and then remove it.

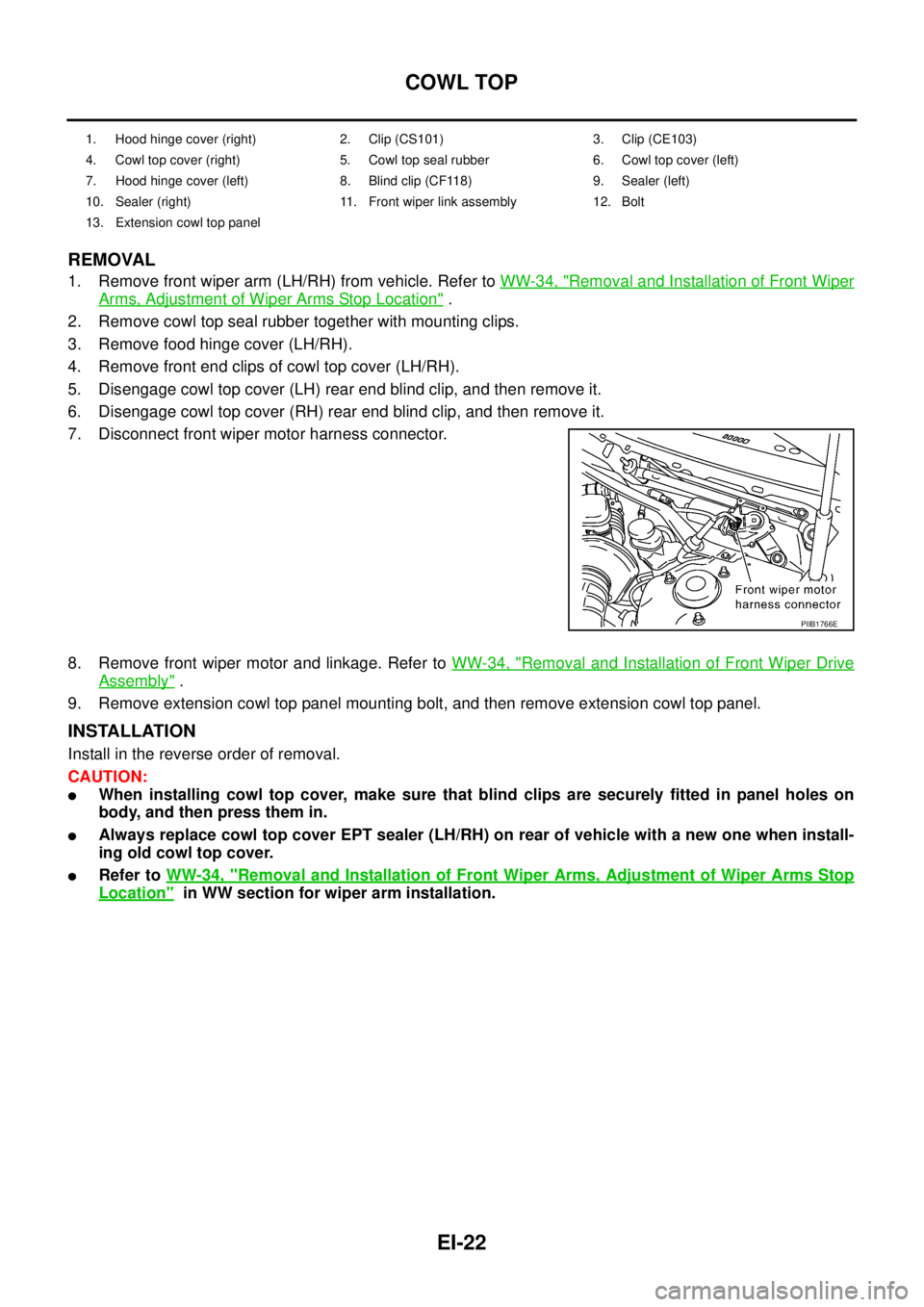

7. Disconnect front wiper motor harness connector.
8. Remove front wiper motor and linkage. Refer to WW-34, "
Removal and Installation of Front Wiper Drive
Assembly" .
9. Remove extension cowl top panel mounting bolt, and then remove extension cowl top panel.
INSTALLATION
Install in the reverse order of removal.
CAUTION:

When installing cowl top cover, make sure that blind clips are securely fitted in panel holes on
body, and then press them in.

Always replace cowl top cover EPT sealer (LH/RH) on rear of vehicle with a new one when install-
ing old cowl top cover.

Refer to WW-34, "Removal and Installation of Front Wiper Arms, Adjustment of Wiper Arms Stop
Location" in WW section for wiper arm installation.

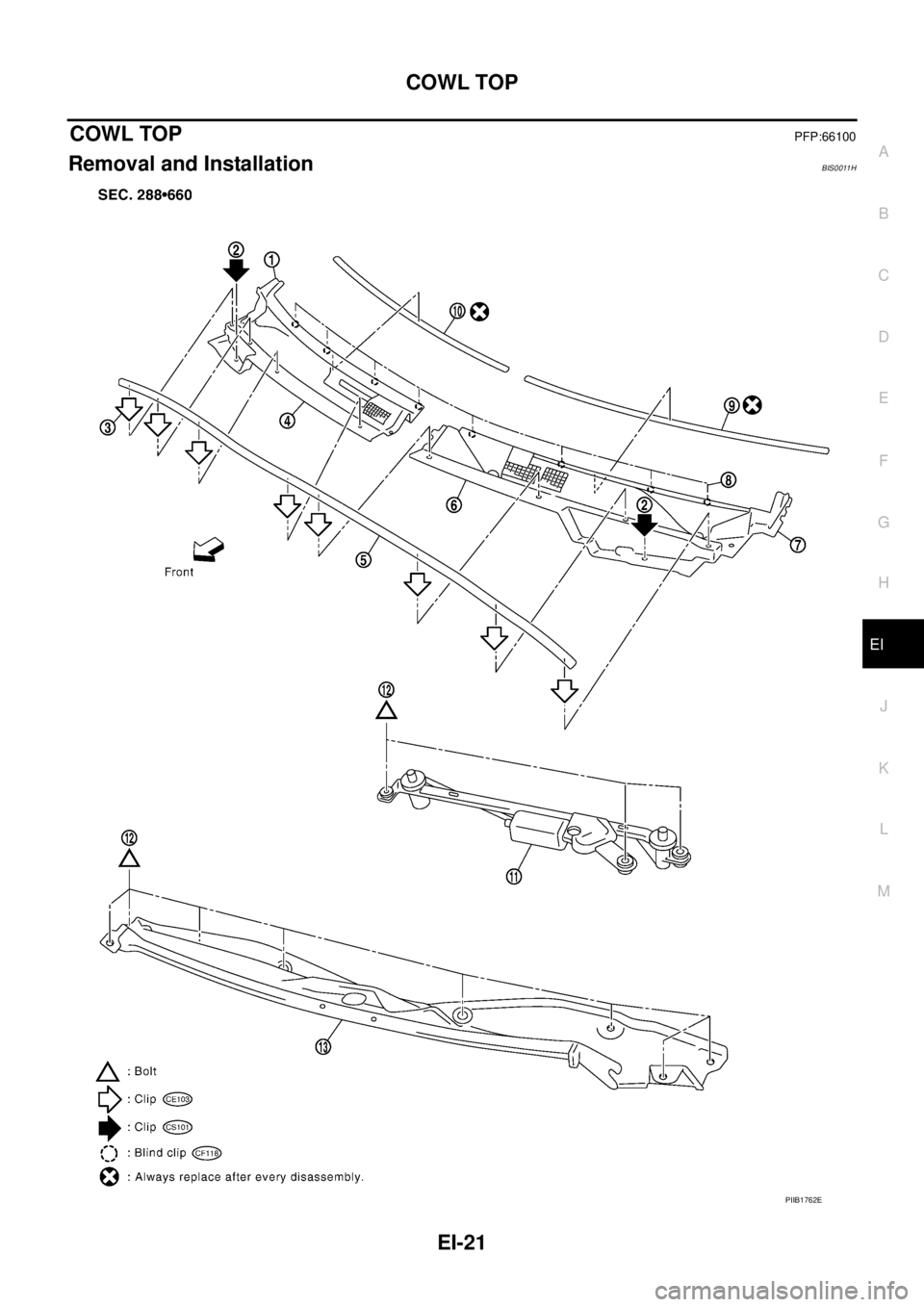

1. Hood hinge cover (right) 2. Clip (CS101) 3. Clip (CE103)
4. Cowl top cover (right) 5. Cowl top seal rubber 6. Cowl top cover (left)
7. Hood hinge cover (left) 8. Blind clip (CF118) 9. Sealer (left)
10. Sealer (right) 11. Front wiper link assembly 12. Bolt
13. Extension cowl top panel
PIIB1766E
