NISSAN TEANA 2003 Service Manual

POWER WINDOW SYSTEM
GW-17
C
D
E
F
G
H
J
K
L
MA
B
GW

POWER WINDOW SYSTEMPFP:25401

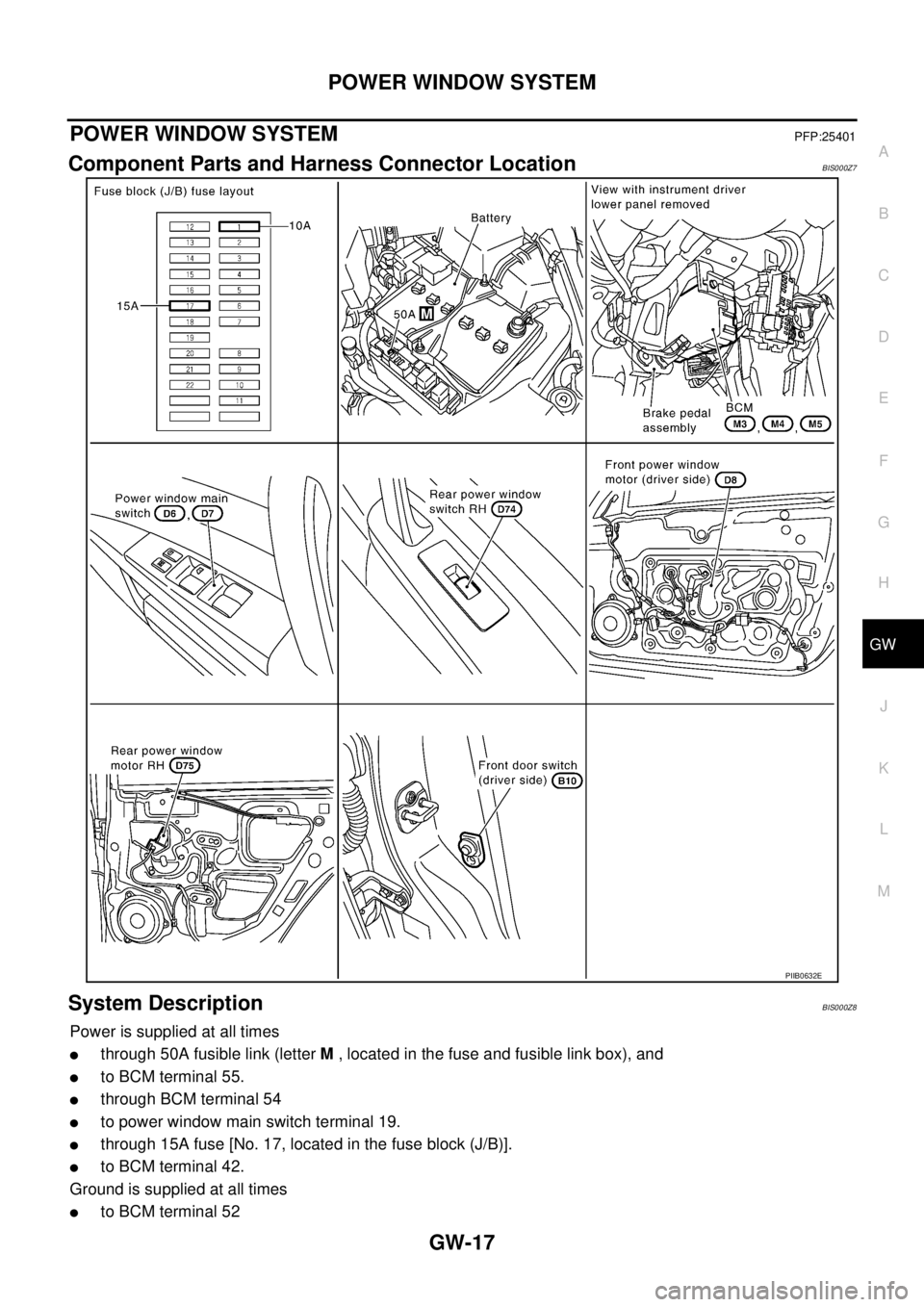

Component Parts and Harness Connector LocationBIS000Z7
System DescriptionBIS000Z8
Power is supplied at all times

through 50A fusible link (letter M , located in the fuse and fusible link box), and

to BCM terminal 55.

through BCM terminal 54

to power window main switch terminal 19.

through 15A fuse [No. 17, located in the fuse block (J/B)].

to BCM terminal 42.
Ground is supplied at all times

to BCM terminal 52
PIIB0632E

GW-18
POWER WINDOW SYSTEM


through grounds M71 and M72.

to power window main switch terminal 17

through grounds M71 and M72.
With ignition switch in ON or START position, power is supplied

through 10A fuse [No. 1, located in the fuse block (J/B)], and

to BCM terminal 38.

through BCM terminal 53

to power window main switch terminal 10,front power window switch (passenger side) terminal 1 and rear
power window switch (RH and LH) terminal 1.
MANUAL OPERATION
Driver Door
WINDOW UP
When the driver side switch in the power window main switch is operated in the up position,
Power is supplied

through power window main switch terminal 16

to front power window motor (driver side) terminal 1.
Ground is supplied

to front power window motor (driver side) terminal 2

through power window main switch terminal 12.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the driver side switch in the power window main switch is operated in the down position
Power is supplied

through power window main switch terminal 12

to front power window motor (driver side) terminal 2.
Ground is supplied

to front power window motor (driver side) terminal 1

through power window main switch terminal 16.
Then, the motor lowers the window until the switch is released.
Passenger Door
FRONT POWER WINDOW SWITCH (PASSENGER SIDE) OPERATION
WINDOW UP
When the front power window switch (passenger side) is operated in the up position,
Power is supplied

through front power window switch (passenger side) terminal 1 and 5

to front power window motor (passenger side) terminal 2.
Ground is supplied

to front power window motor (passenger side) terminal 1

through front power window switch (passenger side) terminal 4 and 3

through power window main switch terminal 11

through power window main switch terminal 17

through ground M71 and M72.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the front power window switch (passenger side) is operated in the down position,
Power is supplied

through front power window switch (passenger side) terminal 1 and 4

to front power window motor (passenger side) terminal 1.
Ground is supplied

to front power window motor (passenger side) terminal 2

through front power window switch (passenger side) terminal 5 and 2

POWER WINDOW SYSTEM
GW-19
C
D
E
F
G
H
J
K
L
MA
B
GW


through power window main switch terminal 8

through power window main switch terminal 17

through ground M71 and M72.
Then, the motor lowers the window until the switch is released.
POWER WINDOW MAIN SWITCH OPERATION
WINDOW UP
When the passenger side switch in the power window main switch is operated in the up position
Power is supplied

through power window main switch terminal 8

through front power window switch (passenger side) terminal 2 and 5

to front power window motor (passenger side) terminal 2.
Ground is supplied

to front power window motor (passenger side) terminal 1

through front power window switch (passenger side) terminal 4 and 3

through power window main switch terminal 11

through power window main switch terminal 17

through ground M71 and M72.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the passenger side switch in the power window main switch is operated in the down position,
Power is supplied

through power window main switch terminal 11

through front power window switch (passenger side) terminal 3 and 4

to front power window motor (passenger side) terminal 1.
Ground is supplied

to front power window motor (passenger side) terminal 2

through front power window switch (passenger side) terminal 5 and 2.

to power window main switch terminal 8

through power window main switch terminal 17

through ground M71 and M72.
Then, the motor raises the window until the switch is released.
Rear Door (RH or LH)
REAR POWER WINDOW SWITCH (RH OR LH) OPERATION
WINDOW UP
When the rear power window switch (RH or LH) is operated in the up position,
Power is supplied

through rear power window switch (RH or LH) terminal 1 and 5

to rear power window motor (RH or LH) terminal 2.
Ground is supplied

to rear power window motor (RH or LH) terminal 1

through rear power window switch (RH or LH) terminal 4 and 3

through power window main switch terminal 5 (RH) or 3 (LH)

through power window main switch terminal 17

through ground M71 and M72.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the rear power window switch (RH or LH) is operated in the down position,
Power is supplied

through rear power window switch (RH or LH) terminal 1 and 4

to rear power window motor (RH or LH) terminal 1.
Ground is supplied

GW-20
POWER WINDOW SYSTEM


to rear power window motor (RH or LH) terminal 2

through rear power window switch (RH or LH) terminal 5 and 2

through power window main switch terminal 7 (RH) or 1 (LH)

through power window main switch terminal 17

through ground M71 and M72.
Then, the motor lowers the window until the switch is released.
POWER WINDOW MAIN SWITCH OPERATION
WINDOW UP
When the rear RH or LH switch in the power window main switch is operated in the up position,
Power is supplied

through power window main switch terminal 7 (RH) or 1 (LH).

through rear power window switch (RH or LH) terminal 2 and 5

to rear power window motor (RH or LH) terminal 2.
Ground is supplied

to rear power window motor (RH or LH) terminal 1

through rear power window switch (RH or LH) terminal 4 and 3

through power window main switch terminal 5 (RH) or 3 (LH)

through power window main switch terminal 17

through ground M71 and M72.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the rear RH or LH switch in the power window main switch is operated in the down position,
Power is supplied

through power window main switch terminal 5 (RH) or 3 (LH)

through rear power window switch (RH or LH) terminal 3 and 4

to rear power window motor (RH or LH) terminal 1.
Ground is supplied

to rear power window motor (RH or LH) terminal 2

through rear power window switch (RH or LH) terminal 5 and 2.

to power window main switch terminal 7 (RH) or 1 (LH)

through power window main switch terminal 17

through ground M71 and M72.
Then, the motor raises the window until the switch is released.
POWER WINDOW LOCK
The power window lock is designed to lock operation of all windows except for driver door window.
When power window lock switch is in LOCK position, ground of passenger and rear power window switches in
the power window main switch are disconnected. This prevents the power window motors from operating.
TIMER FUNCTION
When the ignition switch is turned to OFF position from ON or START position, timer operates for 15 minutes.
Driver power window can be operated for 15 minutes.
Timer operation is canceled when one of the following conditions is satisfied.

ignition switch OFF→ ON

front door switch (driver side) ON → OFF

POWER WINDOW SYSTEM
GW-21
C
D
E
F
G
H
J
K
L
MA
B
GW

ANTI-PINCH SYSTEM
Power window main switch monitors the power window motor operation and the power window position (full
closed or other) for driver side power window by the signals from encoder and limit switch in front power win-
dow motor (driver side).
When power window main switch detects interruption during the following close operation,

automatic close operation when ignition switch is in the “ON” position

automatic close operation during retained power operation

manual close operation during retained power operation
power window main switch controls power window motor (driver side) for open and the power window will be
lowered about 150 mm (5.91 in).

GW-22
POWER WINDOW SYSTEM

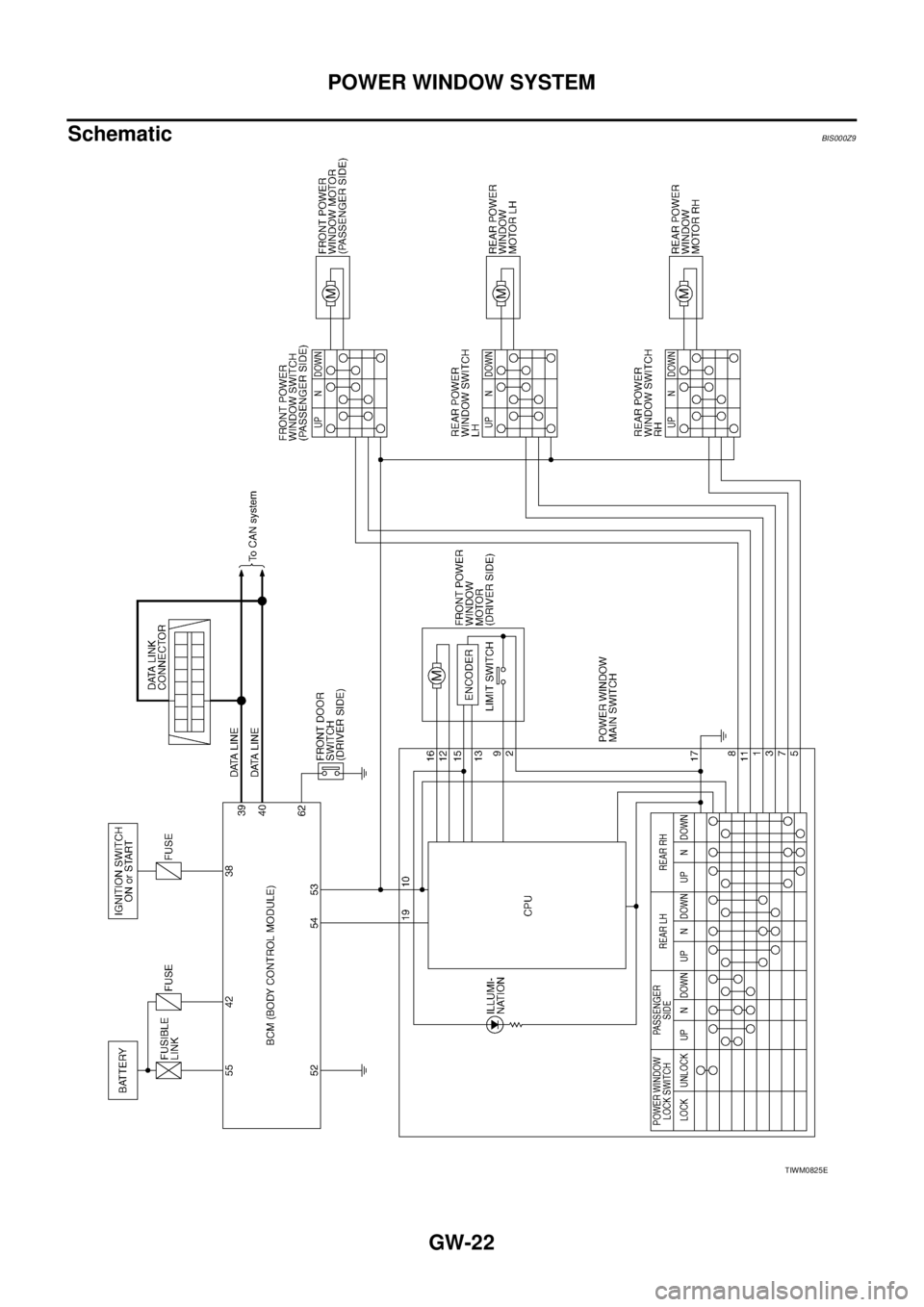

SchematicBIS000Z9
TIWM0825E

POWER WINDOW SYSTEM
GW-23
C
D
E
F
G
H
J
K
L
MA
B
GW

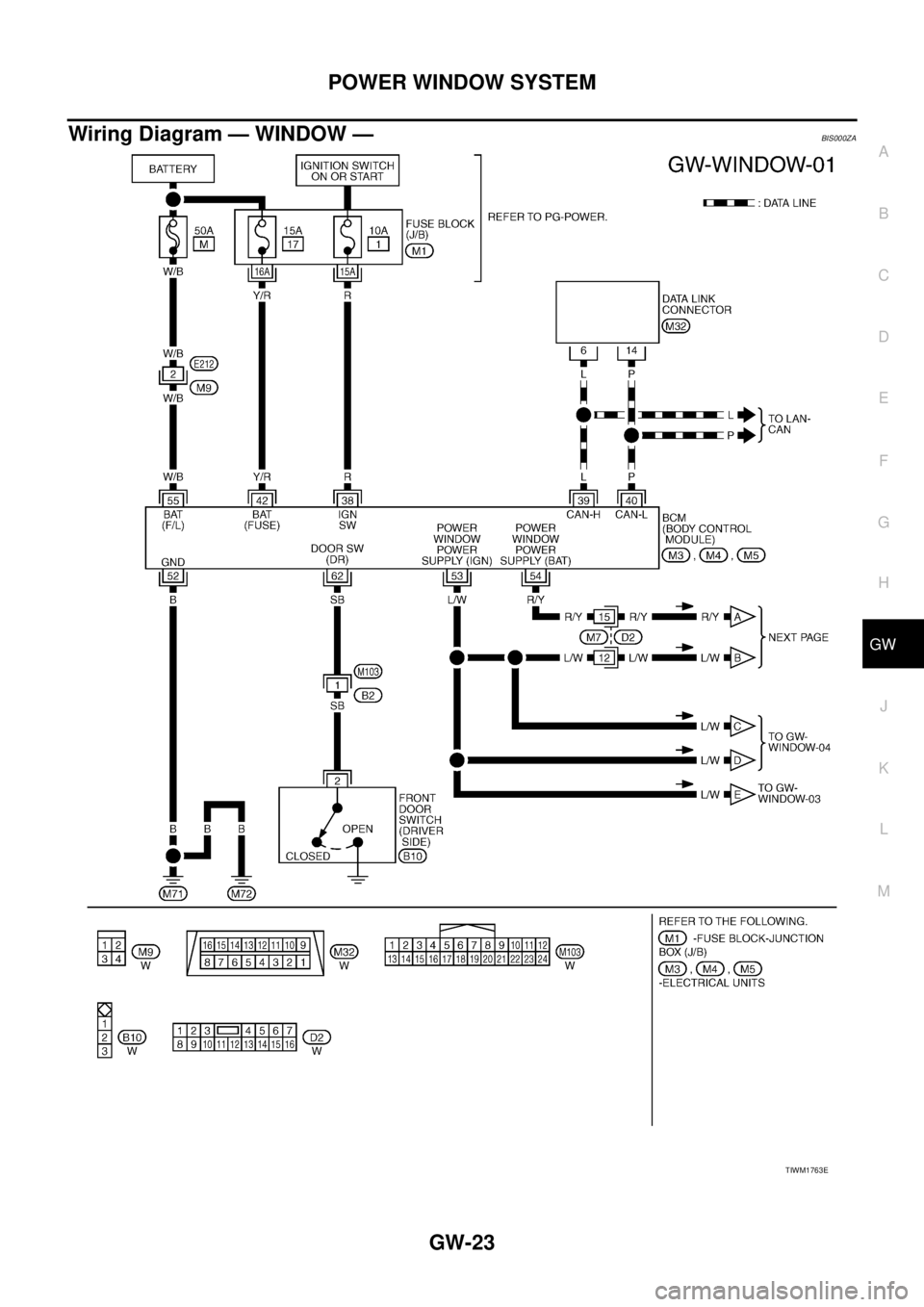

Wiring Diagram — WINDOW —BIS000ZA
TIWM1763E

GW-24
POWER WINDOW SYSTEM

TIWM1115E

POWER WINDOW SYSTEM
GW-25
C
D
E
F
G
H
J
K
L
MA
B
GW

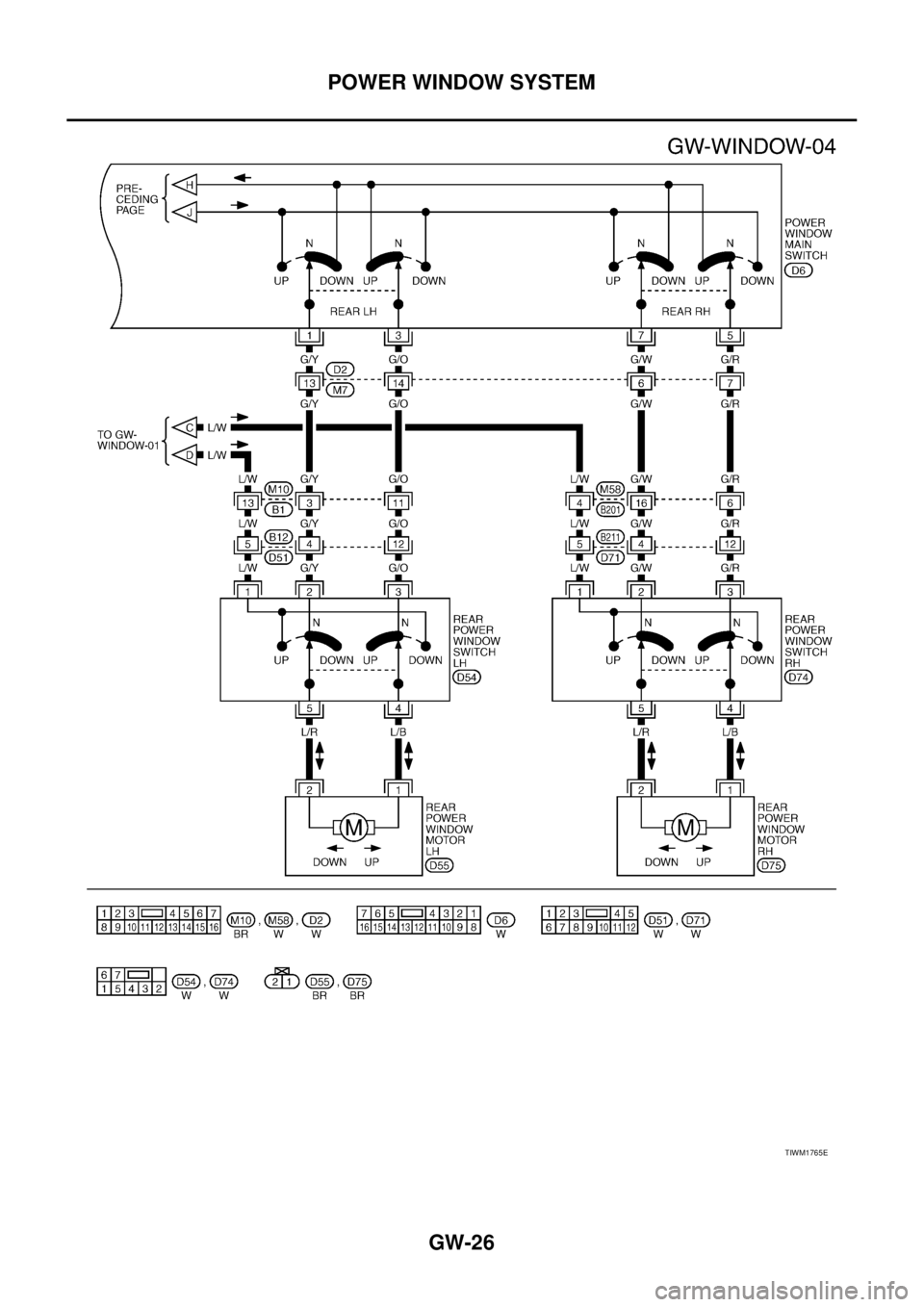

TIWM1764E

GW-26
POWER WINDOW SYSTEM

TIWM1765E
