FRONT DOOR GLASS AND REGULATOR
GW-47
C
D
E
F
G
H
J
K
L
MA
B
GW

4. While holding the door window, raise it at the rear end to pull the
glass out of the sash toward the outside of the door.
Installation
Install in the reverse order of removal.
REGULATOR ASSEMBLY
Removal
1. Remove the front door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Operate the power window main switch to raise/lower the door
window until the glass mounting bolts can be seen.
3. Remove the glass mounting bolts.
4. Raise up the door glass and hold with a suction lifter.
5. Disconnect the harness connector for the module assembly.
6. Remove the module assembly mounting bolts.
7. Remove the locating pin on the right/left of the module assembly
from the door panel.
SIIA0286J
PIIA6316E
PIIB1811E
PIIA6317E

GW-48
FRONT DOOR GLASS AND REGULATOR

8. While lifting the module assembly, pull forward the lower of the
module assembly to remove.
9. Unclip the harness from the back of module assembly.
Installation
Install in the reverse order of removal.
Inspection after Removal
Check the regulator assembly for the following. If a malfunction is
detected, replace or grease it.

Wire wear

Regulator deformation

Grease condition for each sliding part

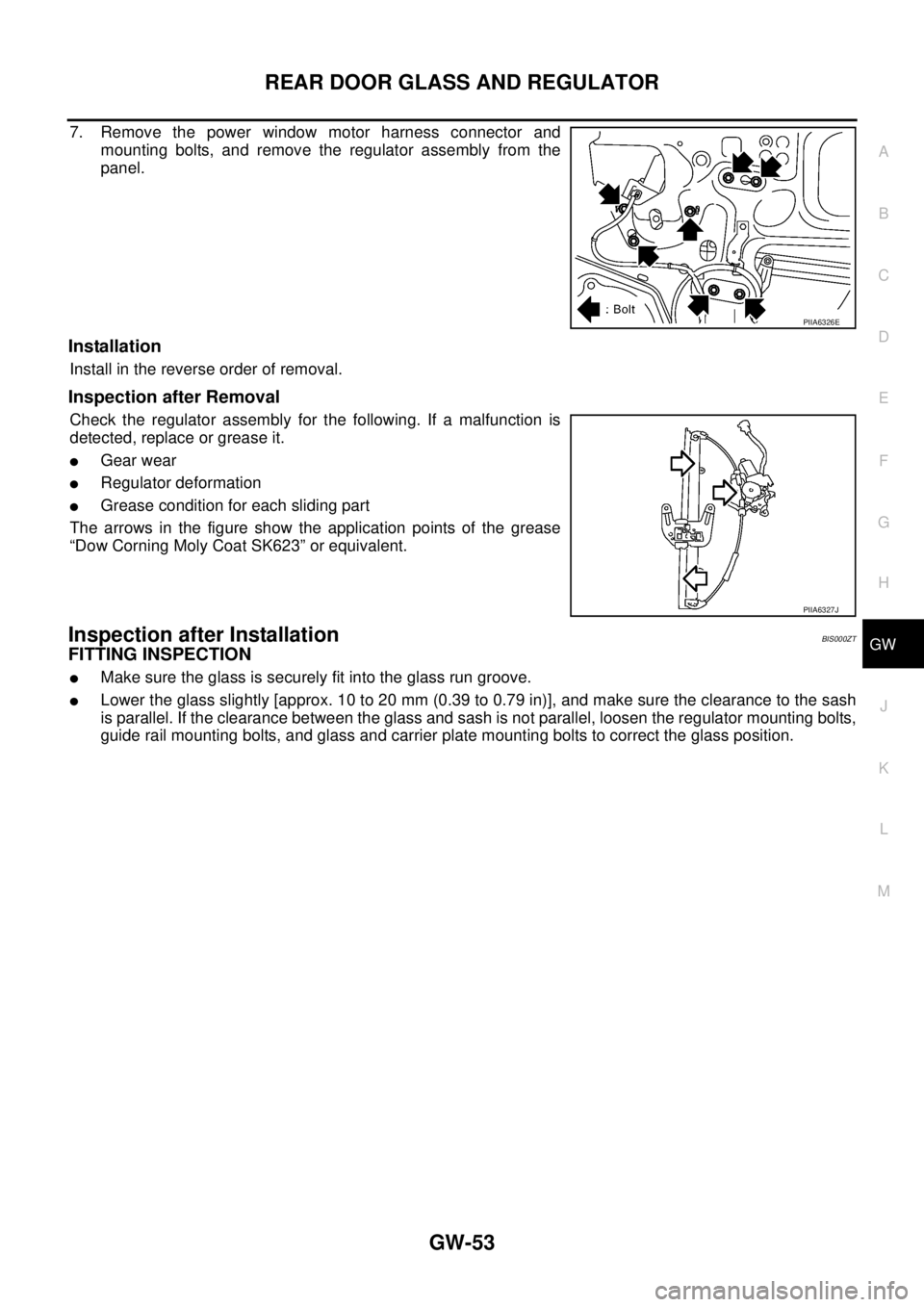

The arrows in the figure show the application points of the grease
“Multemp HL-D” or equivalent.
Disassembly and AssemblyBIS000ZQ
REGULATOR ASSEMBLY
Disassembly
Remove the power window motor and guide rail from the module
assembly.
Assembly
Assemble in the reverse order of disassembly.
PIIA6318E
PIIA6319E
PIIA6321J
PIIA6320E

FRONT DOOR GLASS AND REGULATOR
GW-49
C
D
E
F
G
H
J
K
L
MA
B
GW

Inspection after InstallationBIS000ZR
SETTING OF LIMIT SWITCH (DRIVER SIDE)
If any of the following work has been done, set the limit switch (integrated in the motor).

Removal and installation of the regulator assembly.

Removal and installation of the motor from the regulator.

Operate the regulators as a unit.

Installation of the new glass.

Installation of the new glass run.
Resetting
After removing the module assembly from the door panel, follow the steps below.
1. Remove the regulator assembly from the module assembly.
2. Remove the power window motor from the regulator assembly.
3. Connect the door harness to the power window motor, and rotate the motor unite for more than 5 turns in
glass raising direction.
4. Install the power window motor to the regulator.
5. Install the regulator assembly to the module.
6. Install the module assembly to the door panel, and install the door glass.
7. Raise the glass to the top position.
CAUTION:
Do not operate the glass automatically to raise the glass to the top.
FITTING INSPECTION

Make sure the glass is securely fit into the glass run groove.

Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)] and make sure the clearance to the sash is
parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,
guide rail mounting bolts, and glass and guide rail mounting bolts to correct the glass position.

GW-50
REAR DOOR GLASS AND REGULATOR

REAR DOOR GLASS AND REGULATORPFP:82300
Removal and InstallationBIS000ZS
DOOR GLASS
Removal
1. Remove the rear door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Remove the rear door speaker harness connector.
3. Remove the sealing screen.
NOTE:
If the sealing screen is reused, cut the butyl-tape so that a part of butyl-tape remains on the sealing
screen.

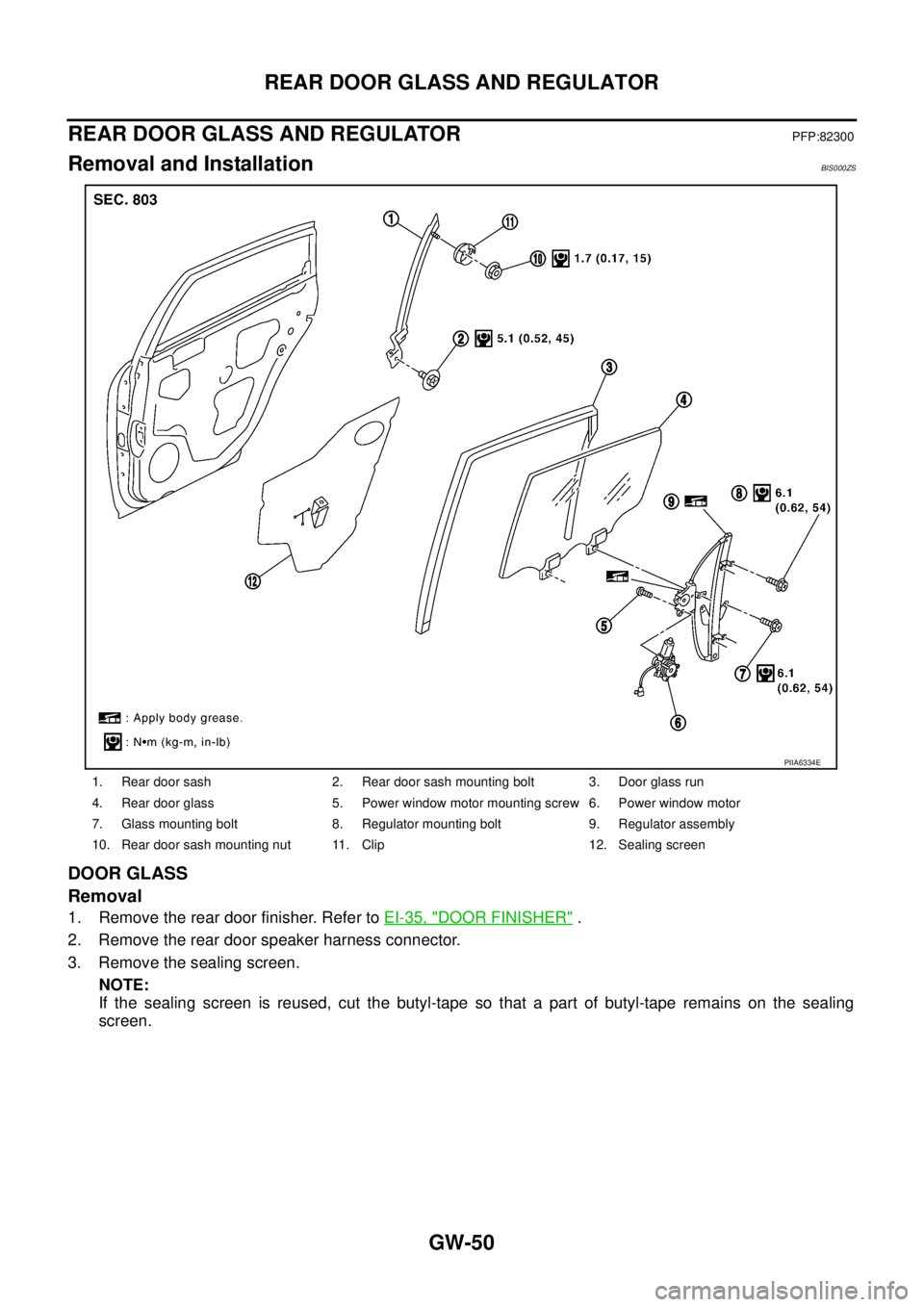

1. Rear door sash 2. Rear door sash mounting bolt 3. Door glass run
4. Rear door glass 5. Power window motor mounting screw 6. Power window motor
7. Glass mounting bolt 8. Regulator mounting bolt 9. Regulator assembly
10. Rear door sash mounting nut 11. Clip 12. Sealing screen
PIIA6334E

REAR DOOR GLASS AND REGULATOR
GW-51
C
D
E
F
G
H
J
K
L
MA
B
GW

4. Operate the power window switch to raise/lower the door win-
dow until the glass mounting bolts can be seen.
5. Remove the glass mounting bolts.
6. Remove the inner corner cover.
7. Remove the outer corner cover.
8. Pull out the door sash from the door panel.
PIIA6322E
PIIA6323E
: 2.5 N·m (0.26 kg-m, 22 in-lb)
PIIA6328E
PIIA6324E

GW-52
REAR DOOR GLASS AND REGULATOR

9. Unclip the harness at the lower of the door sash.
10. Pull out the rear door glass toward the outside of the door to remove.
11. Remove the door glass run from the door panel.
Installation
Install in the reverse order of removal.
REGULATOR ASSEMBLY
Removal
1. Remove the rear door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Remove the rear door speaker harness connector.
3. Remove the sealing screen.
NOTE:
If the sealing screen is reused, cut the butyl-tape so that a part of butyl-tape remains on the sealing screen.
4. Operate the power window switch to raise/lower the door win-
dow until the glass mounting bolts can be seen.
5. Remove the glass mounting bolts.
6. Raise up the door glass and hold with a suction lifter.
PIIA6325E
PIIA6322E
PIIB1817E

REAR DOOR GLASS AND REGULATOR
GW-53
C
D
E
F
G
H
J
K
L
MA
B
GW

7. Remove the power window motor harness connector and
mounting bolts, and remove the regulator assembly from the
panel.
Installation
Install in the reverse order of removal.
Inspection after Removal
Check the regulator assembly for the following. If a malfunction is
detected, replace or grease it.

Gear wear

Regulator deformation

Grease condition for each sliding part
The arrows in the figure show the application points of the grease
“Dow Corning Moly Coat SK623” or equivalent.
Inspection after InstallationBIS000ZT
FITTING INSPECTION

Make sure the glass is securely fit into the glass run groove.

Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)], and make sure the clearance to the sash
is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,
guide rail mounting bolts, and glass and carrier plate mounting bolts to correct the glass position.
PIIA6326E
PIIA6327J

GW-54
REAR WINDOW DEFOGGER

REAR WINDOW DEFOGGERPFP:25350

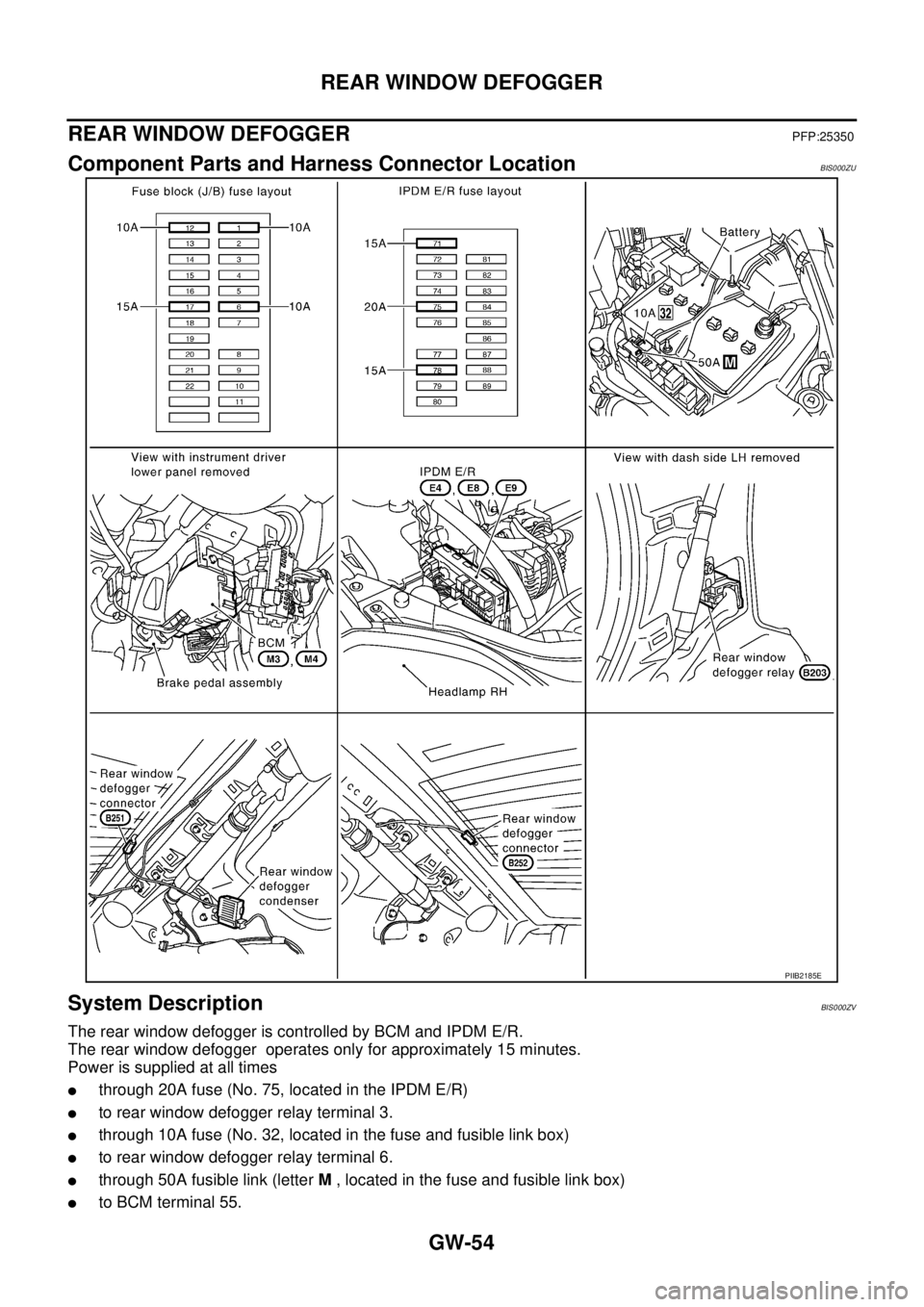

Component Parts and Harness Connector LocationBIS000ZU
System DescriptionBIS000ZV
The rear window defogger is controlled by BCM and IPDM E/R.
The rear window defogger operates only for approximately 15 minutes.
Power is supplied at all times

through 20A fuse (No. 75, located in the IPDM E/R)

to rear window defogger relay terminal 3.

through 10A fuse (No. 32, located in the fuse and fusible link box)

to rear window defogger relay terminal 6.

through 50A fusible link (letter M , located in the fuse and fusible link box)

to BCM terminal 55.
PIIB2185E

REAR WINDOW DEFOGGER
GW-55
C
D
E
F
G
H
J
K
L
MA
B
GW


through 15A fuse [No. 17, located in the fuse block (J/B)]

to BCM terminal 42.
With the ignition switch turned to ON or START position,
Power is supplied

through 10A fuse [No. 1, located in the fuse block (J/B)]

to BCM terminal 38.

through 10A fuse [No.12, located in the fuse block (J/B)]

to rear window defogger relay terminal 1.

through 10A fuse [No. 6, located in the fuse block (J/B)]

to A/C and AV switch terminal 7.
Ground is supplied

to BCM terminal 52

through grounds M71 and M72.

to A/C and AV switch terminal 13

through grounds M71 and M72.

to IPDM E/R terminals 38 and 60

through grounds E1 and E31.
When rear window defogger switch in A/C and AV switch is turned to ON,
Ground is supplied

to BCM terminal 9

through A/C and AV switch terminal 9

through A/C and AV switch terminal 13

through grounds M71 and M72.
Then rear window defogger switch is illuminated.
Then BCM recognizes that rear window defogger switch is turned to ON.
Then it sends rear window defogger switch signals to IPDM E/R and display unit (with out display control unit)
or display control unit (with display control unit) via DATA LINE (CAN H, CAN L).
When display unit or display control unit receives rear window defogger switch signals, indicator is displayed
on the screen.
When IPDM E/R receives rear window defogger switch signals,
Ground is supplied

to rear window defogger relay terminal 2

through IPDM E/R terminal 52

through IPDM E/R terminal 38 and 60

through grounds E1 and E31.
and then rear window defogger relay is activated.
When rear window defogger relay is turned ON,
Signals are transmitted,

through rear window defogger relay terminals 5

to rear window defogger terminal 1.
Rear window defogger terminal 2 is grounded through ground B253.
With power and ground supplied, rear window defogger filaments heat and defog the rear window.

through rear window defogger relay terminals 7

to door mirror defogger (driver side and passenger side) terminal 2.
Door mirror defogger (driver side and passenger side) terminal 3 are grounded through grounds M71 and
M72.
With power and ground supplied, door mirror defogger filaments heat and defog the mirror.

GW-56
REAR WINDOW DEFOGGER

CAN Communication System DescriptionBIS000ZW
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitBIS000ZX
Refer to LAN-49, "CAN System Specification Chart" .
