NISSAN TEANA 2003 Service Manual

POWER WINDOW SYSTEM
GW-27
C
D
E
F
G
H
J
K
L
MA
B
GW

Terminal and Reference Value for BCMBIS000ZB
Terminal and Reference Value for Power Window Main SwitchBIS000ZC
Te r m i -
nalWire
colorItemSignal
Input/
OutputConditionVoltage [V]
(Approx.)
38 R Ignition switch (ON or START) Input Ignition switch is ON or START Battery voltage
39 L CAN - HInput/
Output——
40 P CAN - LInput/
Output——
42 Y/R Power source (Fuse) Input — Battery voltage
52 B Ground — — 0
53 L/W Rap signal OutputWhen ignition switch ON Battery voltage
Within 15 minutes after ignition
switch is turned to OFFBattery voltage
When front door (LH) is open in
power window timer is operates.0
54 R/Y Power window power supply Output — Battery voltage
55 W/B Power source (Fusible link) Input — Battery voltage
62 S/BFront door switch
driver side signalInputON (Open) 0
OFF (Close) Battery voltage
Te r m i -
nalWire
colorItemSignal
Input/
OutputConditionVoltage [V]
(Approx.)
1 G/YRear LH power window motor
UP signalOutputWhen rear LH switch in
power window main switch is
operated in UP position.Battery voltage
Other than above
(Power window lock switch is
unlock position.)0
2 W/B Limit switch and encoder ground Input — 0
3G/ORear LH power window motor
DOWN signalOutputWhen rear LH switch in
power window main switch is
operated in DOWN position.Battery voltage
Other than above
(Power window lock switch is
unlock position.)0
5G/RRear RH power window motor
DOWN signalOutputWhen rear RH switch in
power window main switch is
operated in DOWN position. Battery voltage
Other than above
(Power window lock switch is
unlock position.)0
7G/WRear RH power window motor
UP signalOutputWhen rear RH switch in
power window main switch is
operated in UP position. Battery voltage
Other than above
(Power window lock switch is
unlock position.)0

GW-28
POWER WINDOW SYSTEM

Work FlowBIS000ZD
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to GW-17, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction.
Refer to GW-29, "
Trouble Diagnosis Symptom Chart" .
4. Does power window system operate normally?
YES: GO TO 5.
NO: GO TO 3.
5. INSPECTION END
8R/BFront power window motor (pas-
senger side) UP signalOutputWhen front LH switch in
power window main switch is
operated in UP position. Battery voltage
Other than above
(Power window lock switch is
unlock position.)0
9 G/W Limit switch signal InputDriver side door window is
between fully-open and just
before fully-closed position (ON)0
Driver side door window is
between just before fully-closed
position and fully-closed position
(OFF)5
10 L/W Rap signal InputWhen ignition switch ON Battery voltage
Within 15 minute after ignition
switch is turned to OFFBattery voltage
When front door (LH) is open in
power window timer is operates0
11 R / WFront power window motor (pas-
senger side) DOWN signalOutputWhen front LH switch in
power window main switch is
operated in DOWN position. Battery voltage
Other than above
(Power window lock switch is
unlock position.)0
12 L/BFront power window motor
(driver side) DOWN signalOutputWhen front RH switch in
power window main switch is
operated in DOWN position. Battery voltage
13 G/Y Encoder pulse signal InputWhen power window motor oper-
ates.
15 G/R Encoder power supply InputWhen ignition switch ON or
power window timer operates10
16 L/RFront power window motor
(driver side) UP signalOutputWhen front RH switch in
power window main switch is
operated in UP position. Battery voltage
17 B Ground — — 0
19 R/Y Battery power supply Input — Battery voltage Te r m i -
nalWire
colorItemSignal
Input/
OutputConditionVoltage [V]
(Approx.)
OCC3383D

POWER WINDOW SYSTEM
GW-29
C
D
E
F
G
H
J
K
L
MA
B
GW

Trouble Diagnosis Symptom ChartBIS000ZE
Make sure other systems using the signal of the following systems operate normally.
Symptom Repair orderReference
page
None of the power windows can be operated using any switch.1.Check BCM power supply and ground circuit GW-30
2. Check power window main switch power
supply and ground circuit GW-30
Driver side power window alone does not operated.1. Check front power window motor (driver
side) circuit GW-32
2. Replace power window main switchEI-35
Front passenger side power window alone does not operated.1. Check front power window motor (passen-
ger side) circuit GW-33
Rear RH side power window alone does not operated 1.Check rear power window motor (RH) circuit GW-35
Rear LH side power window alone does not operated 1. Check rear power window motor (LH) circuit GW-37
Anti-pinch system does not operate normally (driver side)1. Door window sliding part malfunction

A foreign material adheres to window glass
or glass run rubber.

Glass run rubber wear or deformation.

Sash is tilted too much, or not enough.—
2. Limit switch adjustmentGW-49
3. Check limit switch circuit (driver side)GW-40
4. Check encoder circuit (driver side)GW-42
5. Replace power window main switchEI-35
Timer function does not operate properly.1. Check door switch GW-442. Replace BCM.BCS-16
Power window lock switch does not function 1.Check power window lock switch GW-45
Auto operation does not operate but manual operates normally
(driver side)1. Check encoder circuit (driver side)GW-42
2. Replace power window main switch.EI-35

GW-30
POWER WINDOW SYSTEM

Check BCM Power Supply and Ground Circuit BIS000ZF
1. CHECK FUSE

10A fuse [No.1, located in fuse block (J/B)]

15A fuse [No.17, located in fuse block (J/B)]

50A fusible link (letter M , located in the fuse and fusible link box)
NOTE:
Refer to GW-17, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse.
Refer toPG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
Check voltage between BCM connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check BCM power supply circuit for open or short.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM connector M4 terminal 52 and
ground.
OK or NG
OK >> BCM power supply and ground circuit are OK.
NG >> Check BCM ground circuit for open.
Check Power Window Main Switch Power Supply and Ground Circuit BIS000ZG
1. CHECK POWER SUPPLY CIRCUIT
Check voltage between power window main switch connector and
ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
ConnectorTerminal (Wire color)
Condition of ignition
switchVoltage [V]
(Approx.)
(+) (-)
M338 (R)
GroundON
Battery voltage 42 (LG)
OFF
M4 55 (W/B)
PIIB1097E
52 (B) – Ground : Continuity should exist.
PIIB1099E
ConnectorTerminal (Wire color)
Condition of ignition
switchVoltage [V]
(Approx.)
(+) (-)
D6 10 (L/W)
GroundON
Battery voltage
D7 19 (R/Y) OFF
PIIB1144E

POWER WINDOW SYSTEM
GW-31
C
D
E
F
G
H
J
K
L
MA
B
GW

2. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window main switch connector.
3. Check continuity between power window main switch connector
D7 terminal 17 and ground.
OK or NG
OK >> Power window main switch power supply and ground
circuit are OK.
NG >> Repair or replace harness.
3. CHECK HARNESS CONTINUITY
1. Disconnect BCM connector.
2. Check continuity between BCM connector M4 terminal 53, 54
and power window main switch connector D6, D7 terminal 10,
19.
3. Check continuity between BCM connector M4 terminal 53, 54
and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Turn ignition switch ON.
3. Check voltage between BCM connector M4 terminal 53, 54 and
ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace BCM.17 (B) – Ground : Continuity should exist.
PIIA4172E
53 (L/W) – 10 (L/W) : Continuity should exist.
54 (R/Y) – 19 (R/Y) : Continuity should exist.
53 (L/W) – Ground : Continuity should not exist.
54 (R/Y) – Ground : Continuity should not exist.
PIIA6280E
53 (L/W) – Ground : Battery voltage
54 (R/Y) – Ground : Battery voltage
PIIA6154E

GW-32
POWER WINDOW SYSTEM

Check Front Power Window Motor (Driver Side) Circuit BIS000ZH
1. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front power window motor (driver side) connector.
3. Turn ignition switch ON.
4. Check voltage between power window main switch connector
and ground.
OK or NG
OK >> Replace front power window motor (driver side).
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect power window main switch connector.
3. Check continuity between power window main switch connector
D6 terminal 12, 16 and front power window motor (driver side)
connector D8 terminal 1, 2.
4. Check continuity between power window main switch connector
D6 terminal 12, 16 and ground.
OK or NG
OK >> Replace power window motor.
NG >> Repair or replace harness.
ConnectorTerminals (Wire color)
Condition of power
window main switchVoltage [V]
(Approx.)
(+) (-)
D81 (L/R)
GroundDOWN 0
UP Battery voltage
2 (L/B)DOWN Battery voltage
UP 0
PIIB0604E
12 (L/B) – 2 (L/B) : Continuity should exist.
16 (L/R) – 1 (L/R) : Continuity should exist.
12 (L/B) – Ground : Continuity should not exist.
16 (L/R) – Ground : Continuity should not exist.
PIIB0605E

POWER WINDOW SYSTEM
GW-33
C
D
E
F
G
H
J
K
L
MA
B
GW

Check Front Power Window Motor (Passenger Side) Circuit BIS000ZI
1. CHECK POWER WINDOW SWITCH OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front power window motor (passenger side) connector.
3. Turn ignition switch ON.
4. Check voltage between front power window motor (passenger
side) connector and ground.
*: Power window main switch or front power window switch (passenger side)
OK or NG
OK >> Replace front power window motor (passenger side).
NG >> GO TO 2.
2. CHECK FRONT POWER WINDOW SWITCH
1. Turn ignition switch OFF.
2. Disconnect front power window switch (passenger side) connector.
3. Check continuity between front power window switch (passen-
ger side) terminal 1, 2, 3 and 4, 5.
OK or NG
OK >> GO TO 3.
NG >> Replace front power window switch (passenger side).
3. CHECK HARNESS CONTINUITY 1
1. Check continuity between front power window switch (passen-
ger side) connector D36 terminal 4, 5 and front power window
motor (passenger side) connector D37 terminal 1, 2.
2. Check continuity between front power window switch (passen-
ger side) connector D36 terminal 4, 5 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
ConnectorTerminals (Wire color)
Condition of
switch*Voltage [V]
(Approx.)
(+) (-)
D371 (L/B)
GroundUP 0
DOWN Battery voltage
2 (L/R)UP Battery voltage
DOWN 0
PIIB0606E
Terminals Condition of switch Continuity
15 UP
Ye s 14 DOWN
2 5 No operation
3 4 No operation
PIIB0612E
4 (L/B) – 1 (L/B) : Continuity should exist.
5 (L/R) – 2 (L/R) : Continuity should exist.
4 (L/B) – Ground : Continuity should not exist.
5 (L/R) – Ground : Continuity should not exist.
PIIB0607E

GW-34
POWER WINDOW SYSTEM

4. CHECK FRONT POWER WINDOW SWITCH POWER SUPPLY
1. Turn ignition switch ON.
2. Check voltage between front power window switch (passenger
side) connector D36 terminal 1 and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. CHECK HARNESS CONTINUITY 2
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM connector M4 terminal 53 and
front power window switch (passenger side) connector D36 ter-
minal 1.
4. Check continuity between BCM connector M4 terminal 53 and
ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Repair or replace harness.
6. CHECK HARNESS CONTINUITY 3
1. Disconnect power window main switch connector.
2. Check continuity between power window main switch connector
D6 terminal 8, 11 and front power window switch (passenger
side) terminal 2, 3.
3. Check continuity between power window main switch connector
D6 terminal 8, 11 and ground.
OK or NG
OK >> GO TO 7.
NG >> Repair or replace harness.1 (L/W) – Ground : Battery voltage
PIIB0608E
53 (L/W) – 1 (L/W) : Continuity should exist.
53 (L/W) – Ground : Continuity should not exist.
PIIB0611E
8 (R/B) – 2 (R/B) : Continuity should exist.
11 (R/W) – 3 (R/W) : Continuity should exist.
8 (R/B) – Ground : Continuity should not exist.
11 (R/W) – Ground : Continuity should not exist.
PIIB0609E

POWER WINDOW SYSTEM
GW-35
C
D
E
F
G
H
J
K
L
MA
B
GW

7. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Connect power window main switch connector.
2. Turn ignition switch ON.
3. Check voltage between power window main switch connector
and ground when operating passenger side switch in power win-
dow main switch.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace power window main switch.
Check Rear Power Window Motor RH Circuit BIS000ZJ
1. CHECK POWER WINDOW SWITCH OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect rear power window motor RH connector.
3. Turn ignition switch ON.
4. Check voltage between rear power window motor RH connector
and ground.
OK or NG
OK >> Replace rear power window motor RH.
NG >> GO TO 2.
2. CHECK REAR POWER WINDOW SWITCH
1. Turn ignition switch OFF.
2. Disconnect rear power window switch RH connector.
3. Check continuity between rear power window switch RH termi-
nal 1, 2, 3 and 4, 5.
OK or NG
OK >> GO TO 3.
NG >> Replace rear power window switch RH.
ConnectorTerminals (Wire color)
Condition of
switchVoltage [V]
(Approx.)
(+) (-)
D68 (R/B)
GroundUP Battery voltage
DOWN 0
11 (R/W)UP 0
DOWN Battery voltage
PIIB0610E
ConnectorTerminals (Wire color)
Condition of
switchVoltage [V]
(Approx.)
(+) (-)
D751 (L/B)
GroundUP 0
DOWN Battery voltage
2 (L/R)UP Battery voltage
DOWN 0
PIIB0617E
Terminals Condition of switch Continuity
15 UP
Ye s 14 DOWN
2 5 No operation
3 4 No operation
PIIA4186E

GW-36
POWER WINDOW SYSTEM

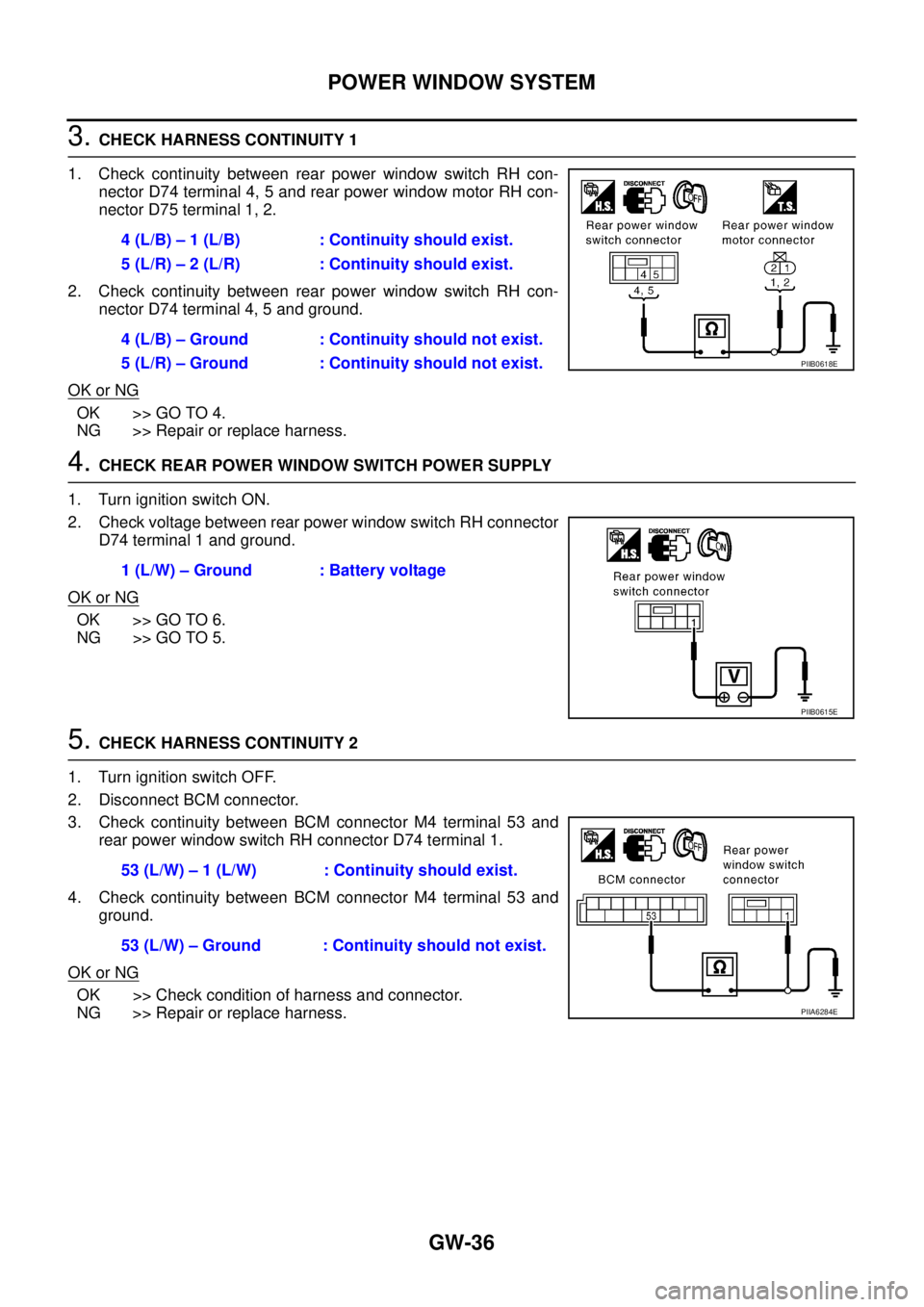

3. CHECK HARNESS CONTINUITY 1
1. Check continuity between rear power window switch RH con-
nector D74 terminal 4, 5 and rear power window motor RH con-
nector D75 terminal 1, 2.
2. Check continuity between rear power window switch RH con-
nector D74 terminal 4, 5 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK REAR POWER WINDOW SWITCH POWER SUPPLY
1. Turn ignition switch ON.
2. Check voltage between rear power window switch RH connector
D74 terminal 1 and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. CHECK HARNESS CONTINUITY 2
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM connector M4 terminal 53 and
rear power window switch RH connector D74 terminal 1.
4. Check continuity between BCM connector M4 terminal 53 and
ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Repair or replace harness.4 (L/B) – 1 (L/B) : Continuity should exist.
5 (L/R) – 2 (L/R) : Continuity should exist.
4 (L/B) – Ground : Continuity should not exist.
5 (L/R) – Ground : Continuity should not exist.
PIIB0618E
1 (L/W) – Ground : Battery voltage
PIIB0615E
53 (L/W) – 1 (L/W) : Continuity should exist.
53 (L/W) – Ground : Continuity should not exist.
PIIA6284E
