Page 3241 of 3502

NISSAN TEANA 2003  Service Manual STARTING SYSTEM
SC-23
C
D
E
F
G
H
I
J
L
MA
B
SC

INSPECTION
Magnetic Switch Check
Before starting to check, disconnect the battery cable from the negative terminal.
Disconnect “M” terminal of s

Page 3242 of 3502

NISSAN TEANA 2003  Service Manual SC-24
STARTING SYSTEM

BRUSH SPRING
Check brush spring tension with brush spring detached from
brush.
–Not within the specified values... Replace.
BRUSH HOLDER
1. Perform insulation test between b

Page 3243 of 3502

NISSAN TEANA 2003  Service Manual STARTING SYSTEM
SC-25
C
D
E
F
G
H
I
J
L
MA
B
SC

3. Check commutator surface.
Rough... Sand lightly with No. 500 - 600 emery paper.
4. Check diameter of commutator.
Less than specified value... Rep

Page 3244 of 3502

NISSAN TEANA 2003  Service Manual SC-26
STARTING SYSTEM

ASSEMBLY
Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling the
starter.
Carefully observe the following instructions.
Pinion

Page 3245 of 3502

NISSAN TEANA 2003  Service Manual CHARGING SYSTEM
SC-27
C
D
E
F
G
H
I
J
L
MA
B
SC

CHARGING SYSTEMPFP:23100
System DescriptionBKS001MJ
The alternator provides DC voltage to operate the vehicles electrical system and to keep the batt

Page 3246 of 3502

NISSAN TEANA 2003  Service Manual SC-28
CHARGING SYSTEM

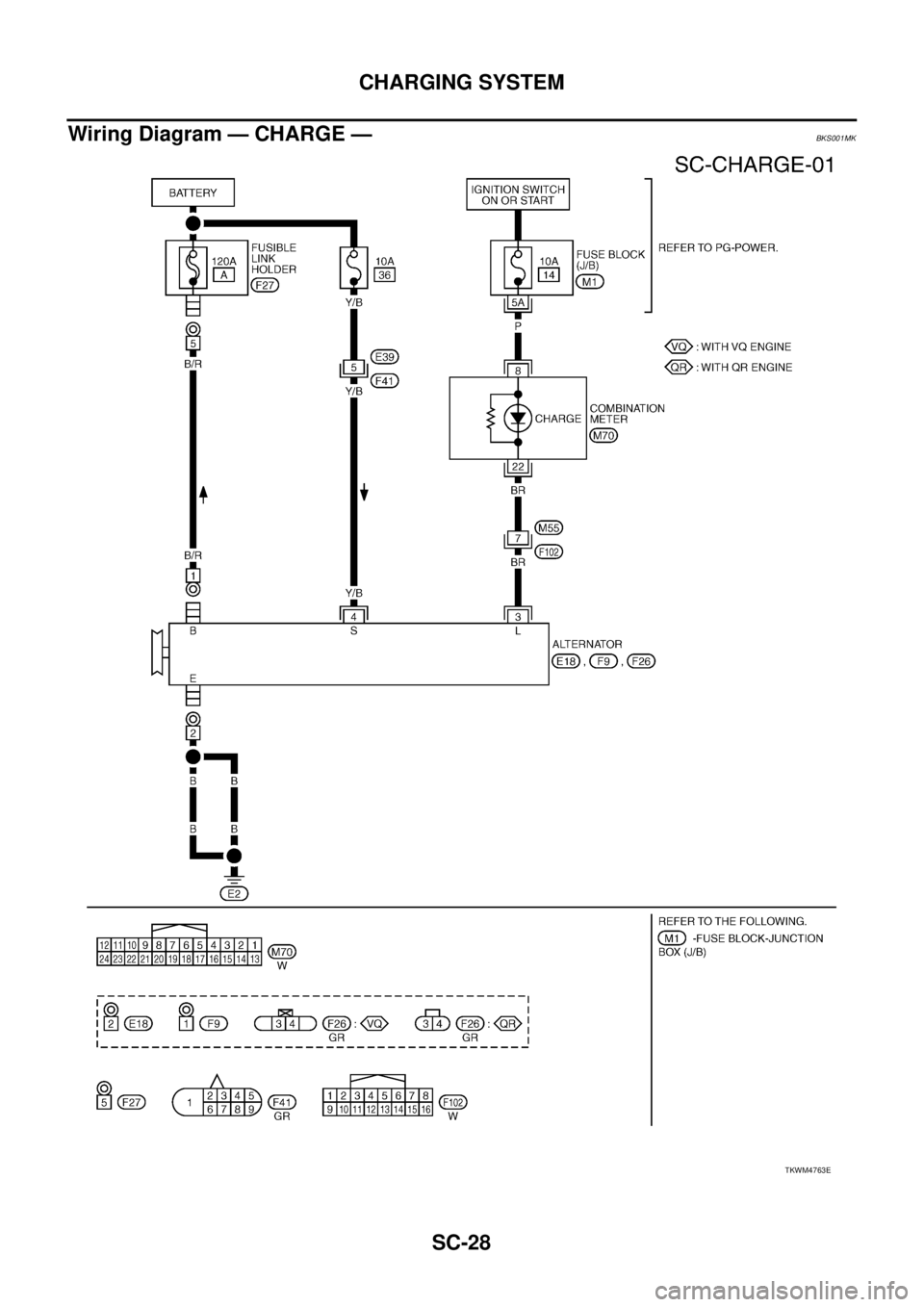

Wiring Diagram — CHARGE —BKS001MK
TKWM4763E

Page 3247 of 3502

NISSAN TEANA 2003  Service Manual CHARGING SYSTEM
SC-29
C
D
E
F
G
H
I
J
L
MA
B
SC

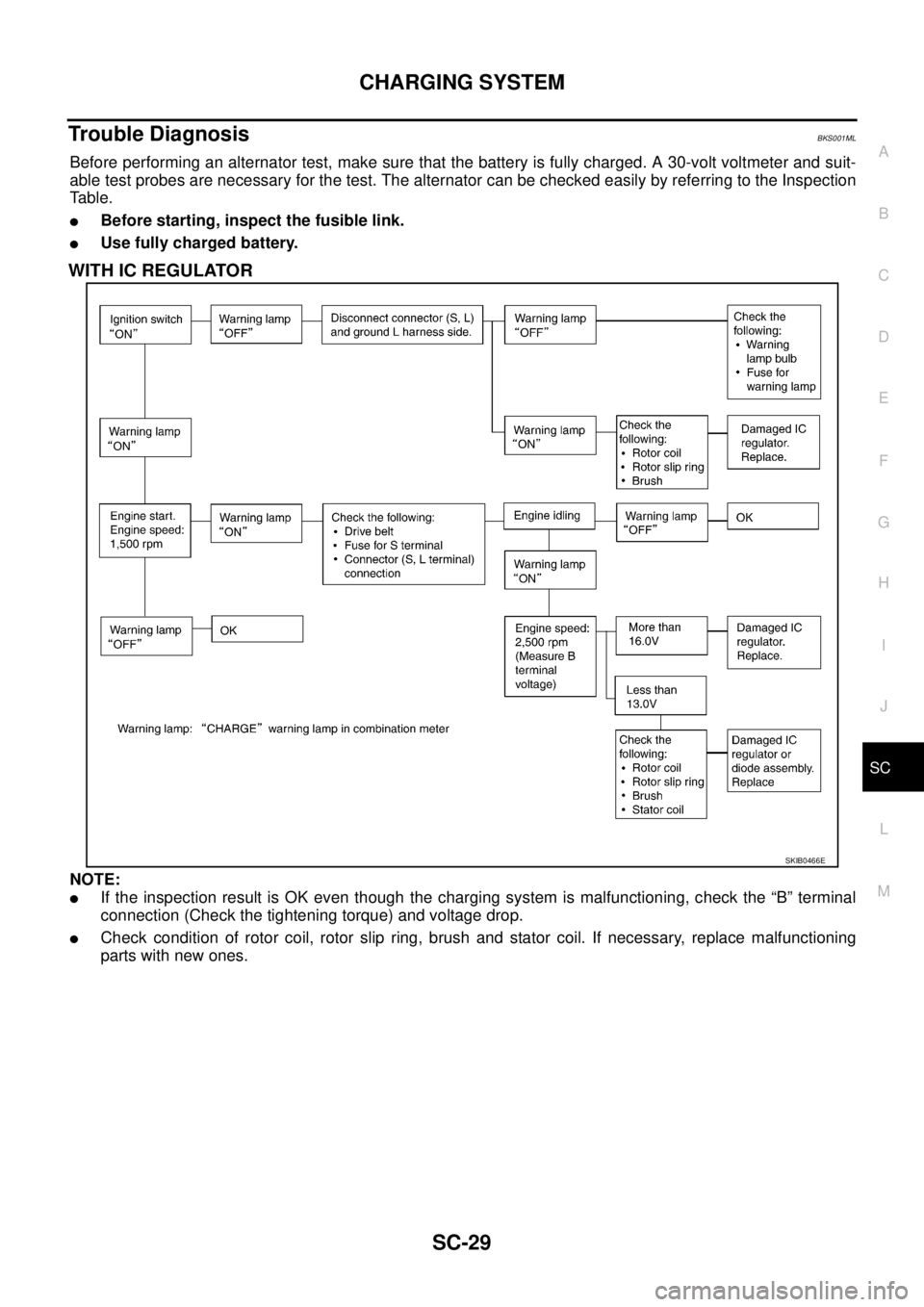

Trouble DiagnosisBKS001ML
Before performing an alternator test, make sure that the battery is fully charged. A 30-volt voltmeter and suit-
able test p

Page 3248 of 3502

NISSAN TEANA 2003  Service Manual SC-30
CHARGING SYSTEM

Removal and InstallationBKS0027E
VQ23DE AND VQ35DE MODELS
Removal
1. Disconnect negative battery cable.
2. Remove engine undercover, using power tools.
3. Remove radiator. Refe

Page 3249 of 3502

NISSAN TEANA 2003  Service Manual CHARGING SYSTEM
SC-31
C
D
E
F
G
H
I
J
L
MA
B
SC

11. Remove alternator mounting bolt, using power tools.
12. Remove alternator bracket mounting bolt and alternator bracket.
13. Remove alternator to t

Page 3250 of 3502

NISSAN TEANA 2003  Service Manual SC-32
CHARGING SYSTEM

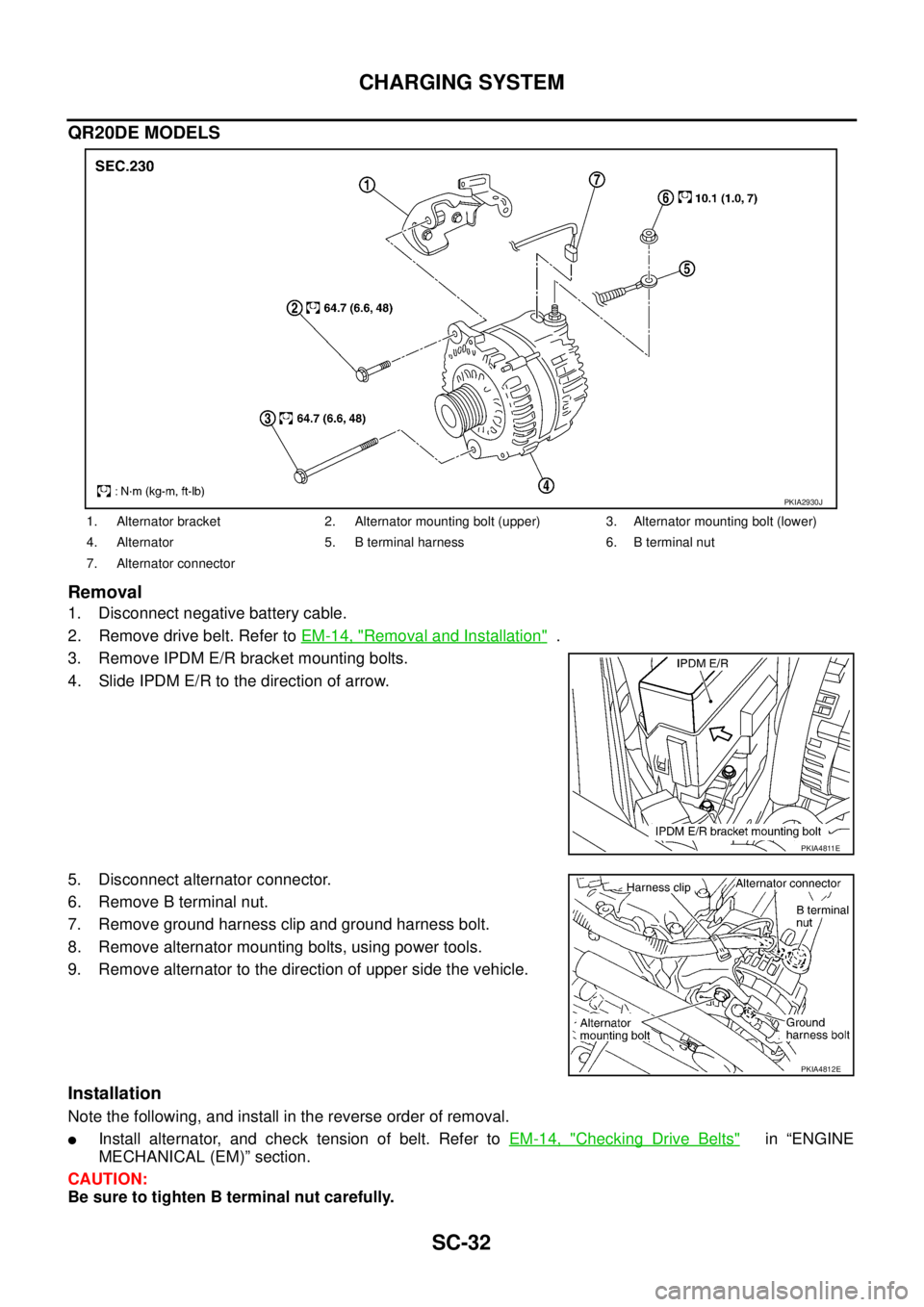

QR20DE MODELS
Removal
1. Disconnect negative battery cable.
2. Remove drive belt. Refer to EM-14, "
Removal and Installation"  .
3. Remove IPDM E/R bracket mounting bolts.
4. S
