NISSAN TEANA 2003 Service Manual

AUTOMATIC DRIVE POSITIONER

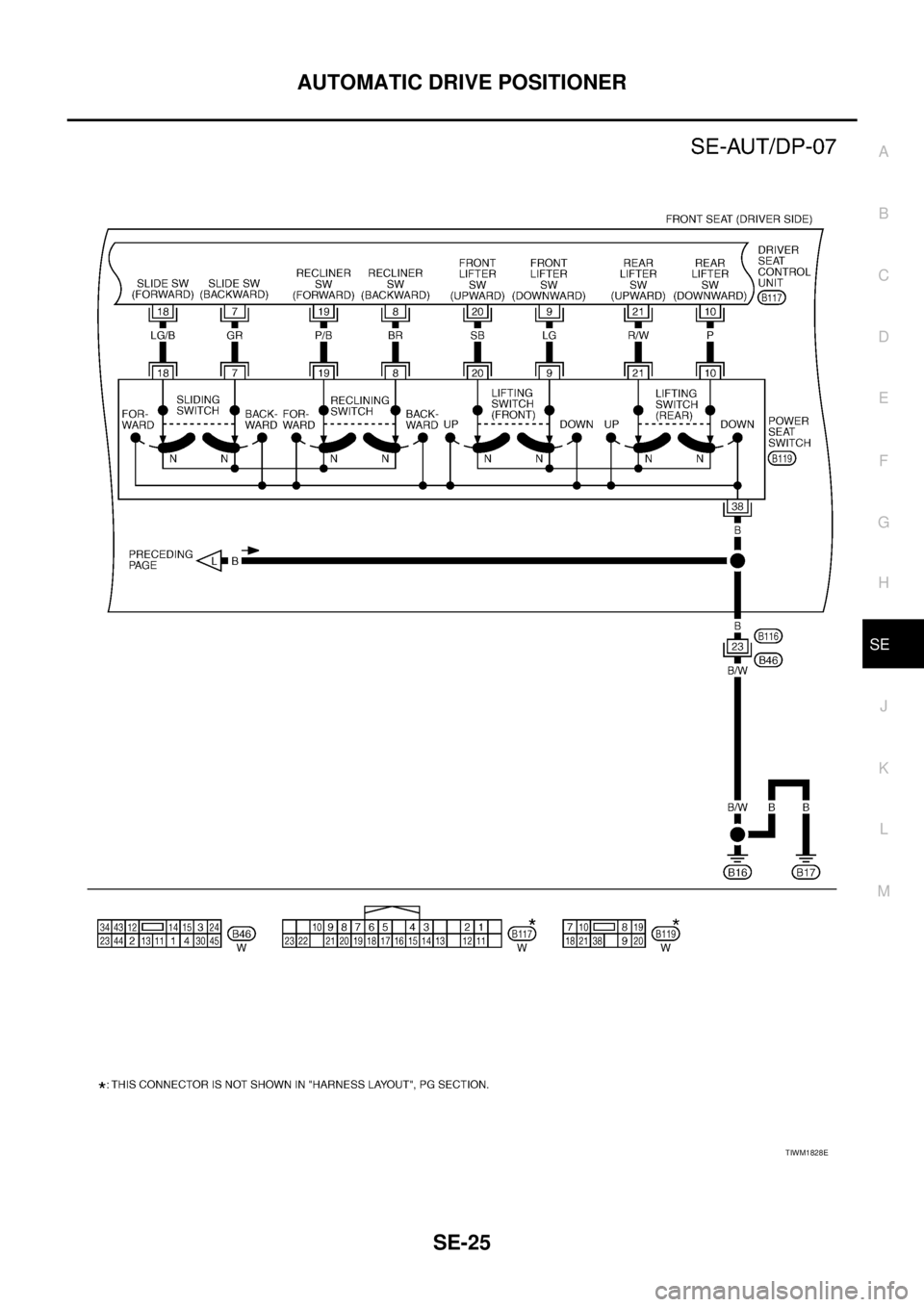

SE-25
C
D
E
F
G
H
J
K
L
MA
B
SE

TIWM1828E

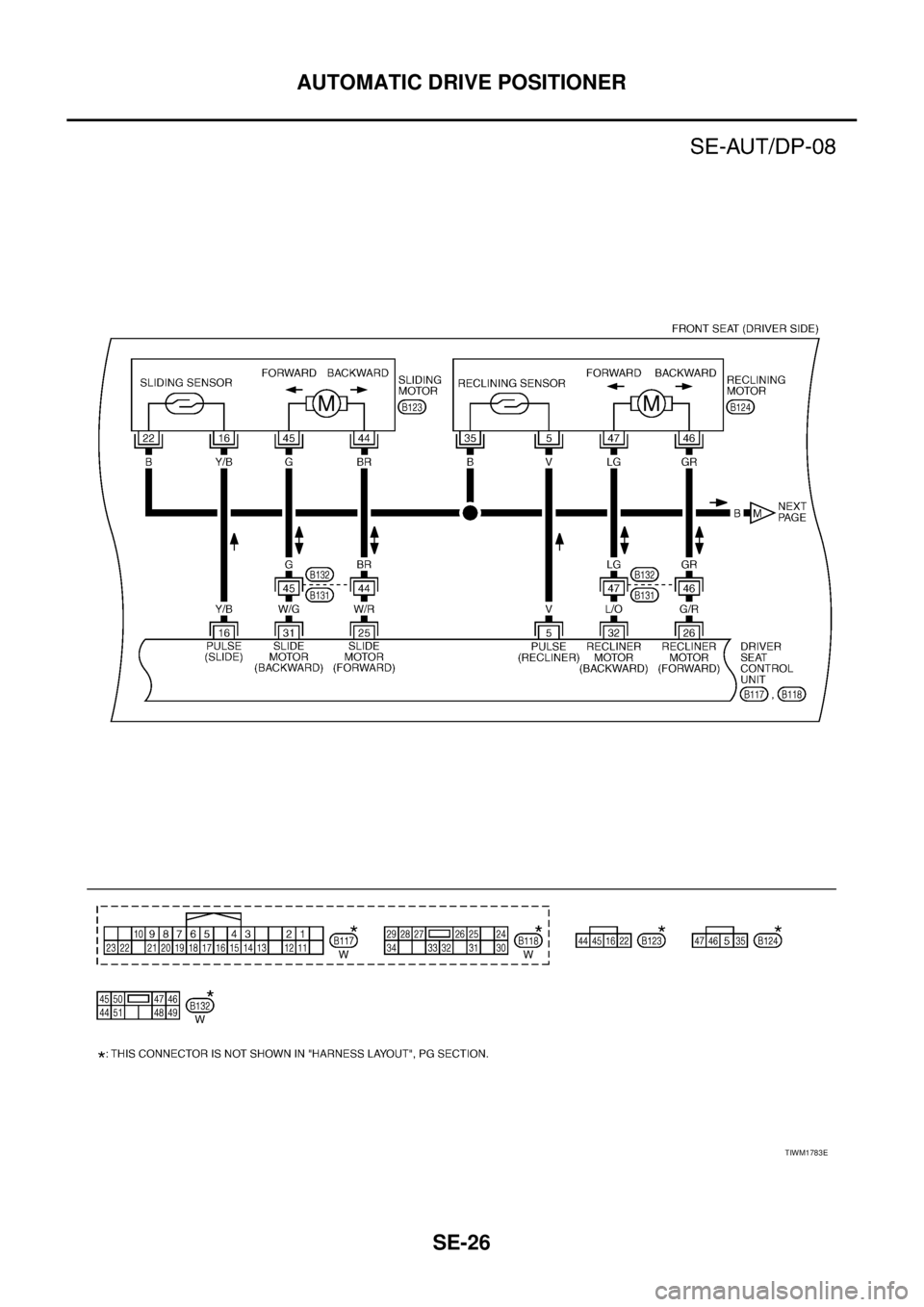

SE-26
AUTOMATIC DRIVE POSITIONER

TIWM1783E

AUTOMATIC DRIVE POSITIONER

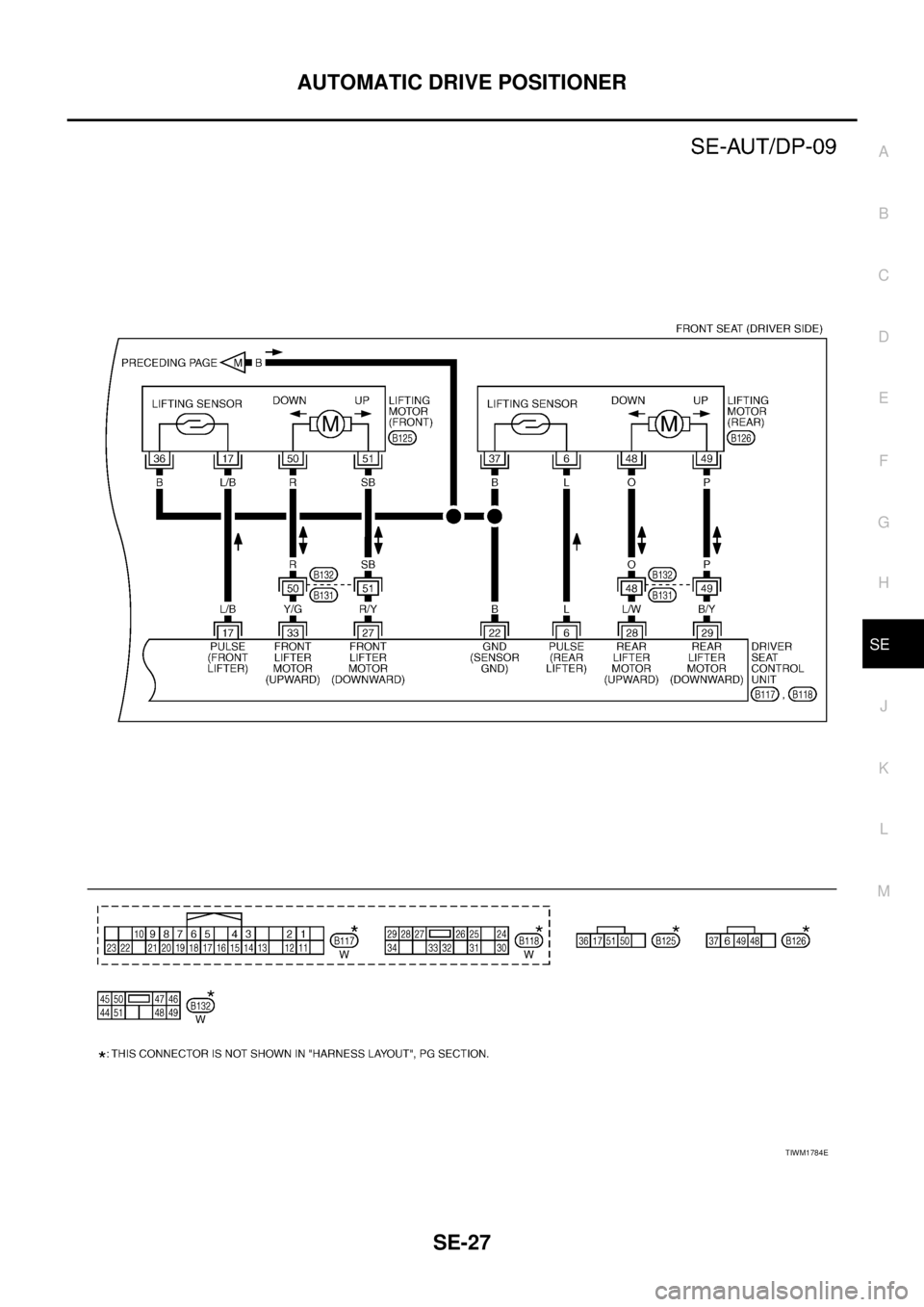

SE-27
C
D
E
F
G
H
J
K
L
MA
B
SE

TIWM1784E

SE-28
AUTOMATIC DRIVE POSITIONER

Terminals and Reference Values for BCMBIS0012M
*: With Intelligent Key
Terminals and Reference Values for Driver Seat Control UnitBIS0012N
TerminalWire
ColorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
11 V Ignition switch (ACC) InputIgnition switch
(ACC or ON position)Battery voltage
37B/R*
or
BRKey switch signal InputKey switch ON (key is inserted in
ignition key cylinder)Battery voltage
Key switch OFF (key is removed
from ignition key cylinder)0
38 R Ignition switch (ON) InputIgnition switch
(ON or START position)Battery voltage
39 L CAN-H Input/Output — —
40 P CAN-L Input/Output — —
42 Y/R Power source (Fuse) Input — Battery voltage
52 B Ground (Power) — — 0
55 W/B Power supply (Fusible link) Input — Battery voltage
62 SB Front door switch (driver side) Output ON (Open) → OFF (Closed) 0 → Battery voltage
Te r m i -
nal Wire
ColorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
1WSeat memory switch
indictor 1 signalOutputMemory switch 1: ON 1
Memory switch 1: OFF Battery voltage
2 R CAN-H Input/Output — —
3 G Ignition switch (START) Input Ignition switch (START position) Battery voltage
4YSeat memory switch 1
signalInputMemory switch 1: ON 0
Memory switch 1: OFF 5
5 V Reclining sensor signal InputON (reclining motor operation)
Other than above 0 or 5
6 L Rear lifting sensor signal InputON (rear lifting motor operation)
Other than above 0 or 5
7GRSeat sliding switch
BACKWARD signalInputWhen seat sliding switch
BACKWARD operation0
Other than above Battery voltage
8BRSeat reclining switch
BACKWARD signalInputWhen seat reclining switch
BACKWARD operation0
Other than above Battery voltage
PIIB2807E
PIIB2809E

AUTOMATIC DRIVE POSITIONER
SE-29
C
D
E
F
G
H
J
K
L
MA
B
SE

9LGFront lifting switch
DOWN signalInputWhen front lifting switch DOWN
operation0
Other than above Battery voltage
10 PRear lifting switch
DOWN signalInputWhen rear lifting switch DOWN
operation0
Other than above Battery voltage
11 OSeat memory switch
indictor 2 signalOutputMemory switch 2: ON 1
Memory switch 2: OFF Battery voltage
12 G/W CAN-L Input/Output — —
13 W/B Detention key switch InputSelector lever other than P position Battery voltage
Selector lever is on P position 0
14 R/BSeat memory switch 2
signalInputMemory switch 2: ON 0
Memory switch 2: OFF 5
15 G/B Set switch signal InputSet witch: ON 0
Set witch: OFF 5
16 Y/B Sliding sensor signal InputON (sliding motor operation)
Other than above 0 or 5
17 L/BFront lifting sensor
signalInputON (front lifting motor operation)
Other than above 0 or 5
18 LG/BSeat sliding switch
FORWARD signalInputWhen seat sliding switch
FORWARD operation0
Other than above Battery voltage
19 P/BSeat reclining switch
FORWARD signalInputWhen seat reclining switch
FORWARD operation0
Other than above Battery voltage
20 SBFront lifting switch UP
signalInputWhen front lifting switch UP
operation0
Other than above Battery voltage
21 R/WRear lifting switch UP
signalInputWhen rear lifting switch UP
operation0
Other than above Battery voltage
22 B Ground (Sensor) — — 0
23 B Ground (Signal) — — 0
24 B/R Power source (PTC) Input — Battery voltage Termi-
nal Wire
ColorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
PIIB2808E
PIIB2809E

SE-30
AUTOMATIC DRIVE POSITIONER

Work Flow BIS0012O
1. Check the symptom and customer's requests.
2. Understand the system description. Refer to SE-12, "
System Description" .
3. Perform the preliminary check, refer to SE-31, "
Preliminary Check" .
4. Perform the CAN communication inspection using CONSULT-II, refer to SE-33, "
CONSULT-II Function
(AUTO DRIVE POS.)" .
5. Perform the self-diagnosis. Refer to SE-35, "
Check CAN Communication System" .
6. Repair or replace depending on the self-diagnostic results.
7. Based on the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to SE-35,
"Symptom Chart" .
8. Does the automatic drive positioner system operate normally?
If it is normal, GO TO 8.
If it is not normal, GO TO 3.
9. INSPECTION END
25 W/RSliding motor
FORWARD signalOutputWhen sliding motor FORWARD
operationBattery voltage
Other than above 0
26 G/RReclining motor
FORWARD signalOutputWhen reclining motor FORWARD
operationBattery voltage
Other than above 0
27 R/YFront lifting motor
DOWN signalOutputWhen front lifting motor DOWN
operationBattery voltage
Other than above 0
28 L/WRear lifting motor UP
signalOutputWhen rear lifting motor UP
operationBattery voltage
Other than above 0
29 B/YRear lifting motor
DOWN signalOutputWhen rear lifting motor DOWN
operationBattery voltage
Other than above 0
30 R/L Power source (Fuse) Input — Battery voltage
31 W/GSliding motor
BACKWARD signalOutputWhen sliding motor BACKWARD
operationBattery voltage
Other than above 0
32 L/OReclining motor
BACKWARD signalOutputWhen reclining motor BACKWARD
operationBattery voltage
Other than above 0
33 Y/GFront lifting motor UP
signalOutputWhen front lifting motor UP
operationBattery voltage
Other than above 0
34 B Ground (Power) — — 0 Te r m i -
nal Wire
ColorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)

AUTOMATIC DRIVE POSITIONER
SE-31
C
D
E
F
G
H
J
K
L
MA
B
SE

Preliminary CheckBIS0012P
SETTING CHANGE FUNCTION
The settings of the automatic driving positioner system can be changed, using CONSULT-II.
×: Applicable –: Not applicable
It is possible to set sliding driver seat for entry/exit of vehicle by pressing set switch.
NOTE:
After the setting is registered, the new setting is effective, even if the battery is disconnected.
CHECK POWER SUPPLY AND GROUND
1. CHECK FUSE
Check if any of the following fuses in the BCM are blown.

Check 50A fusible link (letter M , located in the fuse and fusible link box.)

Check 15A fuse [No.17, located in the fuse block (J/B)]

Check 10A fuse [No.1, located in the fuse block (J/B)]

Check 10A fuse [No.6, located in the fuse block (J/B)]
NOTE:
Refer to SE-16, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
Setting item ContentCONSULT–II
(WORK SUPPORT)Factory
setting
Change seat sliding volume settingThe distance at retain operation can be selected from
the following 3 modes.40 mm×
80 mm —
150 mm —
Change the Entry/Exit seat slide function
settingThe seat sliding turnout and return at entry/exit can
be selected: ON (operated) – OFF (not operated)ON×
OFF —
Reset custom settings All settings to default. — —
Content Setting change operation Indicator LEDs
The seat sliding turnout at
entry/exit can be operated.
Press the set switch for more than 10 secondsBlinking twice
The seat sliding turnout at
entry/exit can be not operated.Blinking ones

SE-32
AUTOMATIC DRIVE POSITIONER

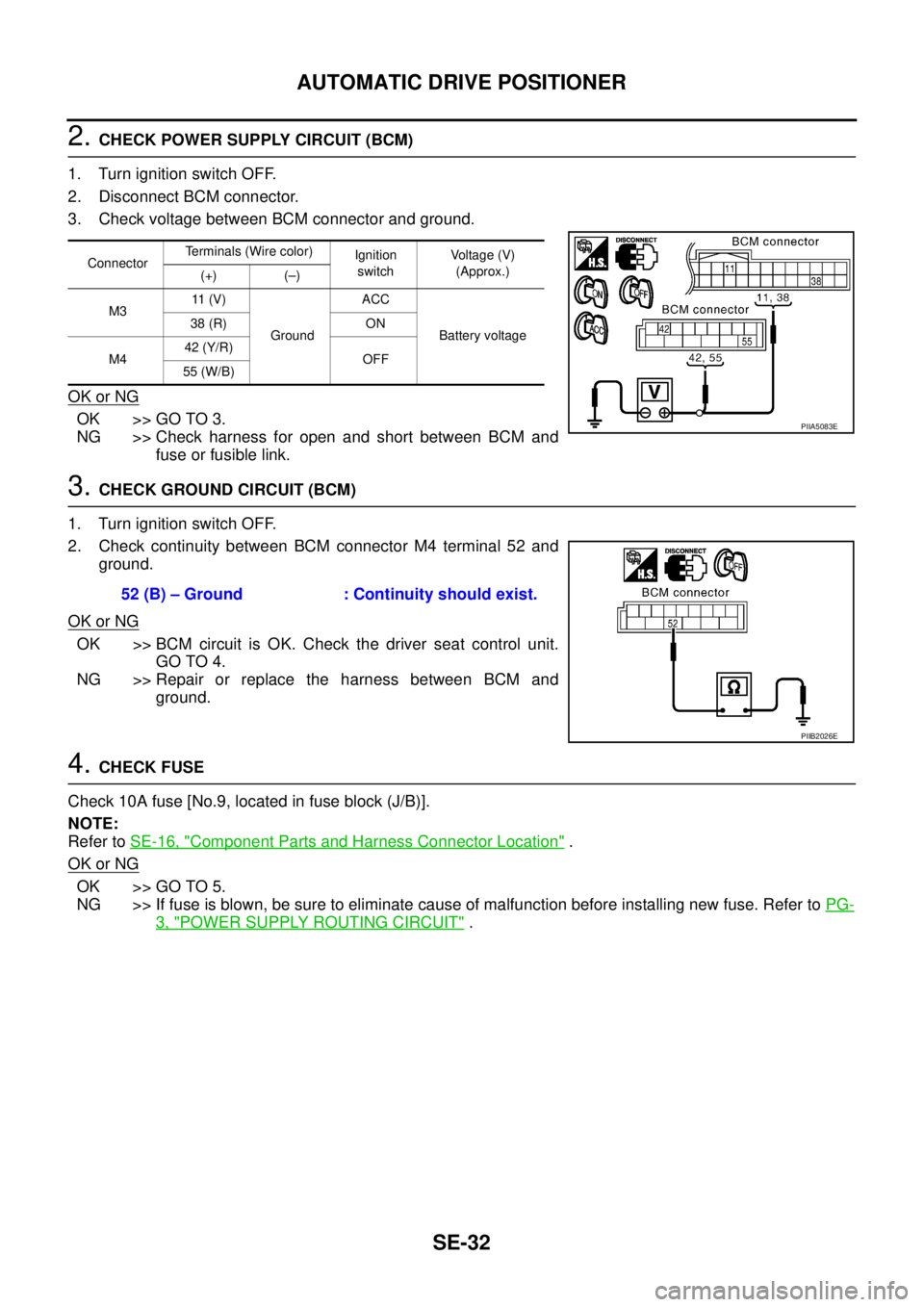

2. CHECK POWER SUPPLY CIRCUIT (BCM)
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open and short between BCM and
fuse or fusible link.
3. CHECK GROUND CIRCUIT (BCM)
1. Turn ignition switch OFF.
2. Check continuity between BCM connector M4 terminal 52 and
ground.
OK or NG
OK >> BCM circuit is OK. Check the driver seat control unit.
GO TO 4.
NG >> Repair or replace the harness between BCM and
ground.
4. CHECK FUSE
Check 10A fuse [No.9, located in fuse block (J/B)].
NOTE:
Refer to SE-16, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 5.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
ConnectorTerminals (Wire color)
Ignition
switchVoltage (V)
(Approx.)
(+) (–)
M311 ( V )
GroundACC
Battery voltage 38 (R) ON
M442 (Y/R)
OFF
55 (W/B)
PIIA5083E
52 (B) – Ground : Continuity should exist.
PIIB2026E

AUTOMATIC DRIVE POSITIONER
SE-33
C
D
E
F
G
H
J
K
L
MA
B
SE

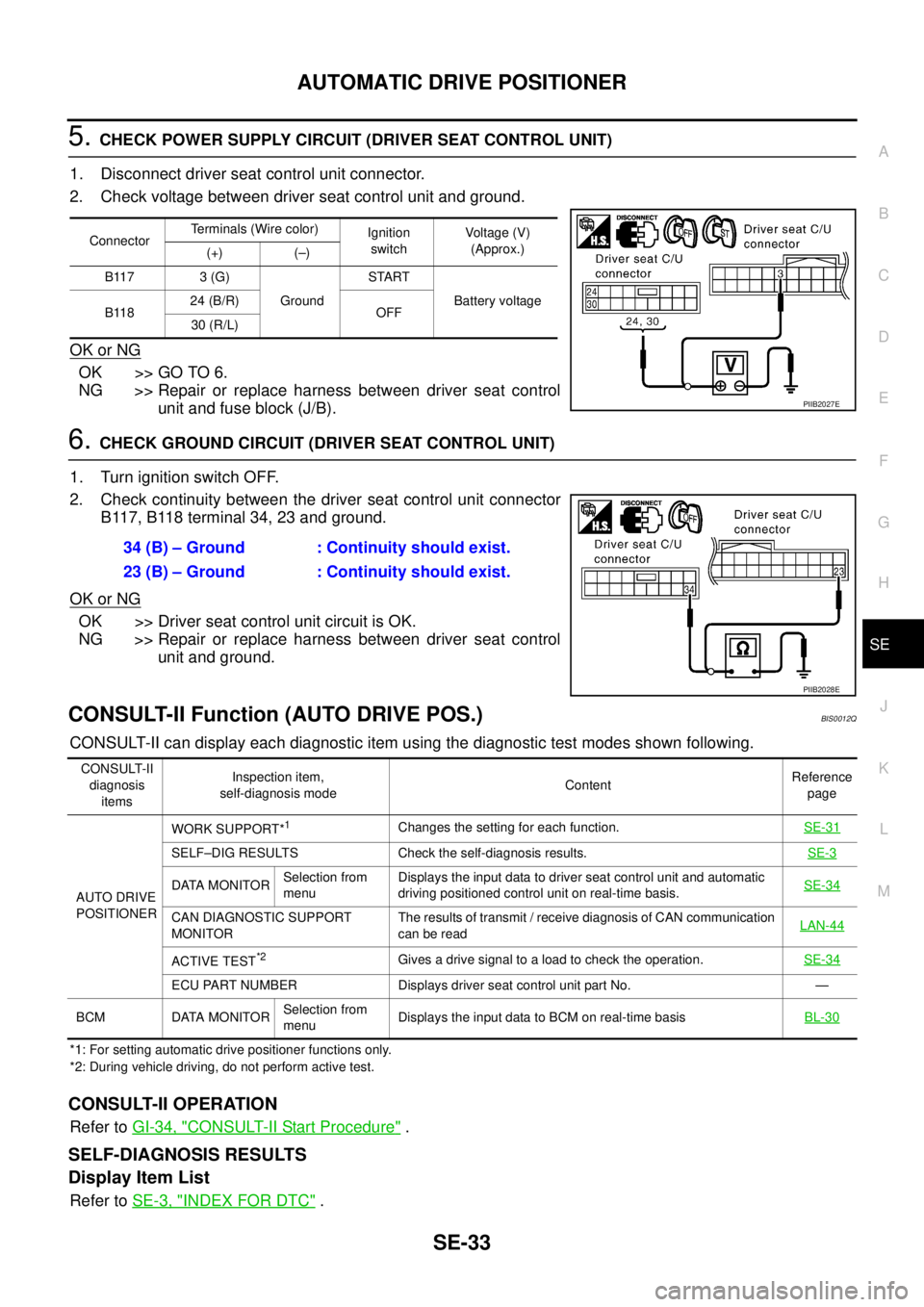

5. CHECK POWER SUPPLY CIRCUIT (DRIVER SEAT CONTROL UNIT)
1. Disconnect driver seat control unit connector.
2. Check voltage between driver seat control unit and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace harness between driver seat control
unit and fuse block (J/B).
6. CHECK GROUND CIRCUIT (DRIVER SEAT CONTROL UNIT)
1. Turn ignition switch OFF.
2. Check continuity between the driver seat control unit connector
B117, B118 terminal 34, 23 and ground.
OK or NG
OK >> Driver seat control unit circuit is OK.
NG >> Repair or replace harness between driver seat control
unit and ground.
CONSULT-II Function (AUTO DRIVE POS.)BIS0012Q
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
*1: For setting automatic drive positioner functions only.
*2: During vehicle driving, do not perform active test.
CONSULT-II OPERATION
Refer to GI-34, "CONSULT-II Start Procedure" .
SELF-DIAGNOSIS RESULTS
Display Item List
Refer to SE-3, "INDEX FOR DTC" .
ConnectorTerminals (Wire color)
Ignition
switchVoltage (V)
(Approx.)
(+) (–)
B117 3 (G)
GroundSTART
Battery voltage
B11824 (B/R)
OFF
30 (R/L)
PIIB2027E
34 (B) – Ground : Continuity should exist.
23 (B) – Ground : Continuity should exist.
PIIB2028E
CONSULT-II
diagnosis
itemsInspection item,
self-diagnosis modeContentReference
page
AUTO DRIVE
POSITIONERWORK SUPPORT*
1Changes the setting for each function.SE-31
SELF–DIG RESULTS Check the self-diagnosis results.SE-3
DATA MONITORSelection from
menuDisplays the input data to driver seat control unit and automatic
driving positioned control unit on real-time basis.SE-34
CAN DIAGNOSTIC SUPPORT
MONITORThe results of transmit / receive diagnosis of CAN communication
can be readLAN-44
ACTIVE TEST*2Gives a drive signal to a load to check the operation.SE-34
ECU PART NUMBER Displays driver seat control unit part No. —
BCM DATA MONITORSelection from
menuDisplays the input data to BCM on real-time basisBL-30

SE-34
AUTOMATIC DRIVE POSITIONER

DATA MONITOR
Selection from Menu
ACTIVE TEST
CAUTION:
During vehicle driving, do not perform active test.
NOTE:
If active test is performed, reset seat memory and key fob interlock drive positioner after performing work.
Display Item List
Monitor item [OPERATION or UNIT] Contents
SLIDE SW–FR “ON/OFF” ON/OFF status judged from the sliding switch (FR) signal is displayed.
SLIDE SW–RR “ON/OFF” ON/OFF status judged from the sliding switch (RR) signal is displayed.
RECLN SW–FR “ON/OFF” ON/OFF status judged from the reclining switch (FR) signal is displayed.
RECLN SW–RR “ON/OFF” ON/OFF status judged from the reclining switch (RR) signal is displayed.
LIFT FR SW–UP “ON/OFF” ON/OFF status judged from the FR lifter switch (UP) signal is displayed.
LIFT FR SW–DN “ON/OFF” ON/OFF status judged from the FR lifter switch (DOWN) signal is displayed.
LIFT RR SW–UP “ON/OFF” ON/OFF status judged from the RR lifter switch (UP) signal is displayed.
LIFT RR SW–DN “ON/OFF” ON/OFF status judged from the RR lifter switch (DOWN) signal is displayed.
SET SW “ON/OFF” ON/OFF status judged from the setting switch signal is displayed.
MEMORY SW1 “ON/OFF” ON/OFF status judged from the seat memory switch 1 signal is displayed.
MEMORY SW2 “ON/OFF” ON/OFF status judged from the seat memory switch 2 signal is displayed.
DETENT SW “ON/OFF”The selector lever position “OFF (P position) / ON (other than P position)” judged from the
detent switch signal is displayed.
STARTER SW “ON/OFF”Ignition key switch ON (START, ON) /OFF (ignition switch IGN, ACC, or OFF) status judged
from the ignition switch signal is displayed.
SLIDE PULSE —Value (32768) when battery connects is as standard. If it moves backward, the value
increases. If it moves forward, the value decreases.
RECLN RULSE —Value (32768) when battery connects is as standard. If it moves backward, the value
increases. If it moves forward, the value decreases.
LIFT FR PULSE —Value (32768) when battery connects is as standard. If it moves DOWN, the value increases.
If it moves UP, the value decreases.
LIFT RR PULSE —Value (32768) when battery connects is as standard. If it moves DOWN, the value increases.
If it moves UP, the value decreases.
Test item Description
SEAT SLIDE The sliding motor is activated by receiving the drive signal.
SEAT RECLINING The reclining motor is activated by receiving the drive signal.
SEAT LIFTER FR The front end lifter motor is activated by receiving the drive signal.
SEAT LIFTER RR The rear end lifter motor is activated by receiving the drive signal.
MEMORY SW INDCTR The memory switch indicator is lit by receiving the drive signal.
