A/C and AV Switch Self-Diagnosis FunctionBKS0020P
Performing self-diagnosis makes it possible to check operation of A/C and AV switch indicator (LED) and other
switches.
STARTING THE SELF-DIAGNOSIS MODE
1. Turn ignition switch OFF.
2. With three switches (DEF, REC/FRE and MODE) pressed simul-
taneously, turn the ignition switch to ACC.
DIAGNOSIS FUNCTION
The following are checked:

All the indicators (LED) in the A/C and AV switch.

Continuity of the switches by sounding the buzzer when pressing the A/C and AV switch.
NOTE:

Indicators (LED) of REC/FRE switch change to “FRE” → “REC” → “FRE” every time the REC/FRE switch
is pressed. (These two do not turn on at the same time.)

Impossible to check rear window defogger switch operation (No beep sound even under normal status).
EXITING THE SELF-DIAGNOSIS MODE

Turn ignition switch OFF.
SKIB1188E

AV-14
AUDIO (WITH INTEGRATED DISPLAY SYSTEM)

Symptom ChartBKS0020Q

The majority of the audio malfunctions are the result of outside causes (bad CD, electromagnetic interfer-
ence, etc.). Check the symptoms below to diagnose the malfunction.

The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunction-
ing. Check if noise is caused and/or changed by engine speed, ignition switch turned to each position, and
operation of each piece of electrical equipment, and then determine the cause.

CD-R is not guaranteed to play because they can contain compressed audio (MP3, WMA) or could be
incorrectly mastered by the customer on a computer.

Check if the CDs carry the Compact Disc Logo. If not, the disc is not mastered to the “red book” Compact
Disc Standard and may not play.

Make sure that other operation except audio system can be performed with A/C and AV switch. If these
operations are inoperative with A/C and AV switch, refer to AV- 5 8 , "
Unable to Operate System with A/C
and AV Switch" .
NOTE:
Noise resulting from variations in field strength, such as fading noise and multi-path noise, or external noise
from trains and other sources. It is not a malfunction.

Fading noise: This noise occurs because of variations in the field strength in a narrow range due to moun-
tains or buildings blocking the signal.

Multi-path noise: This noise results from a time difference between the broadcast waves directly from the
station arriving at the antenna and the waves reflected by mountains or buildings.
Symptom Possible malfunction location
Audio system does not work properly.

Audio unit power supply circuit

Communication signal circuit between audio unit and display unit

A/C and AV switch

Audio unit
No sound can be heard from all speakers. Audio unit
No sound can be heard from one or several speakers.

Audio signal circuit between audio unit and speaker

Speaker

Tw e e te r

Audio unit
No sound can be heard from radio or noise is caught.

Antenna amp. ON signal circuit

Antenna feeder

Rear window antenna

Antenna amp.

Audio unit

AUDIO (WITH INTEGRATED DISPLAY SYSTEM)
AV-15
C
D
E
F
G
H
I
J
L
MA
B
AV

Removal and Installation of Audio UnitBKS0020Z
REMOVAL
1. Remove instrument panel finishers (C, D). Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .

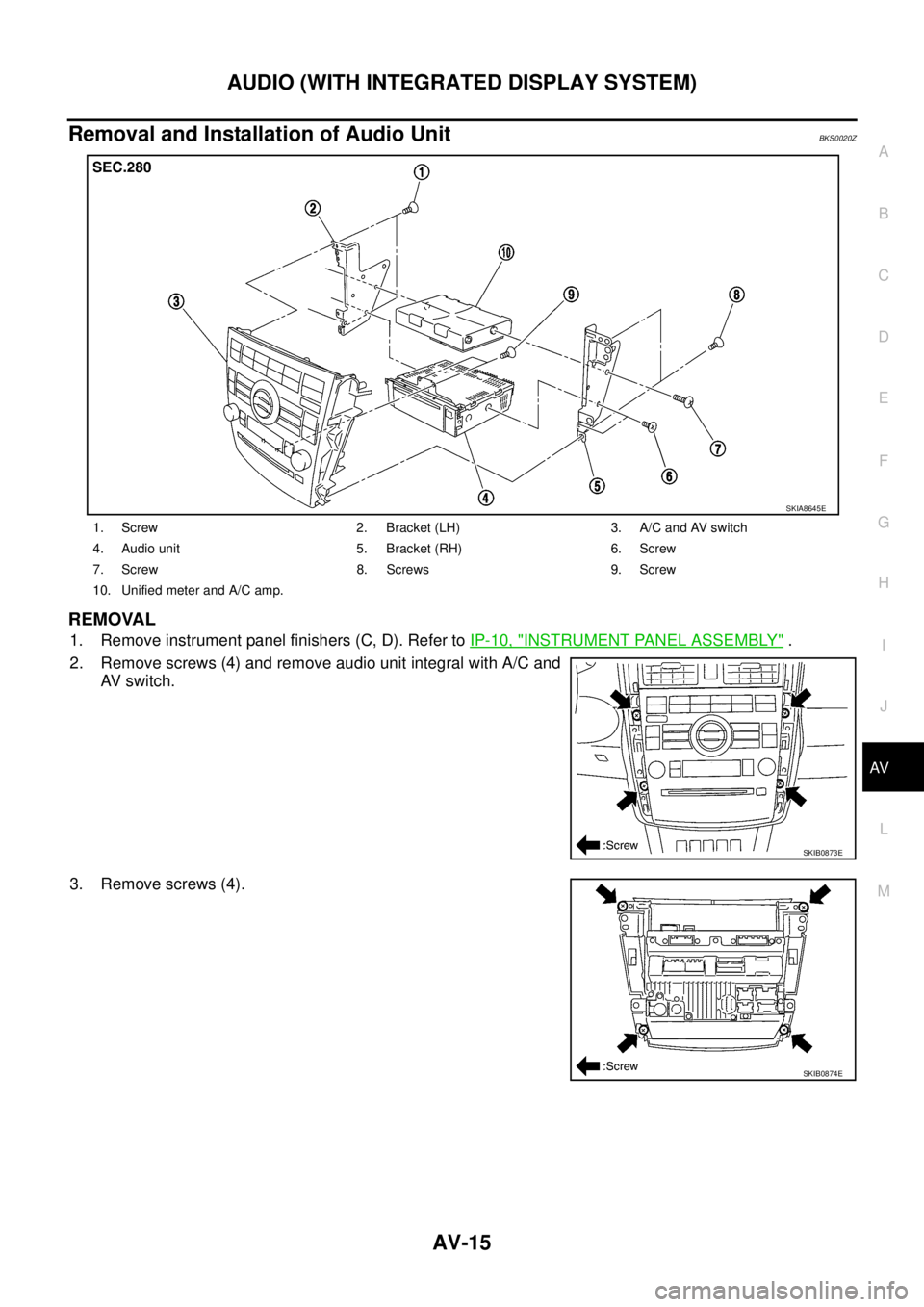

2. Remove screws (4) and remove audio unit integral with A/C and
AV switch.
3. Remove screws (4).
1. Screw 2. Bracket (LH) 3. A/C and AV switch
4. Audio unit 5. Bracket (RH) 6. Screw
7. Screw 8. Screws 9. Screw
10. Unified meter and A/C amp.
SKIA8645E
SKIB0873E
SKIB0874E

AV-16
AUDIO (WITH INTEGRATED DISPLAY SYSTEM)

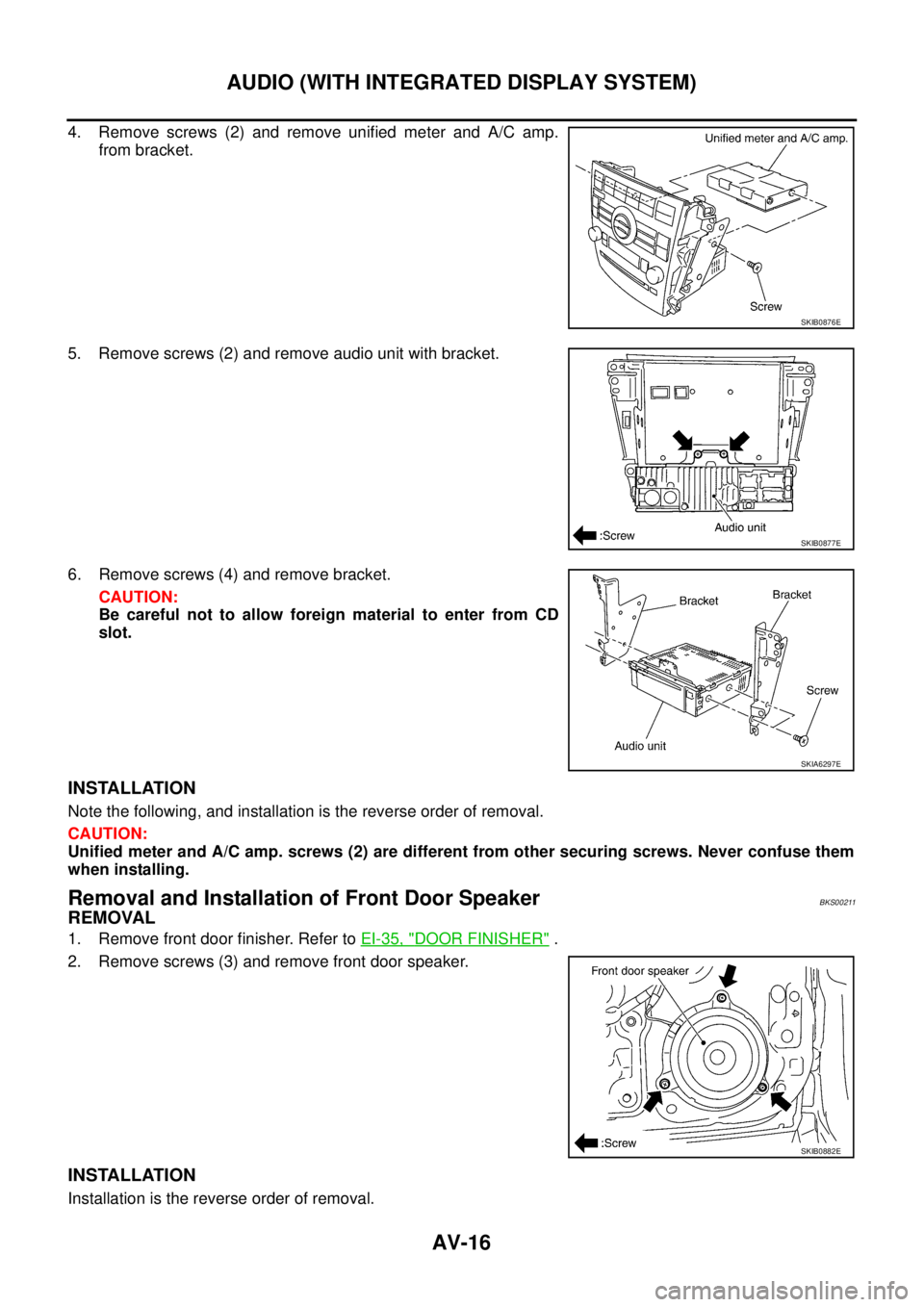

4. Remove screws (2) and remove unified meter and A/C amp.
from bracket.
5. Remove screws (2) and remove audio unit with bracket.
6. Remove screws (4) and remove bracket.
CAUTION:
Be careful not to allow foreign material to enter from CD
slot.
INSTALLATION
Note the following, and installation is the reverse order of removal.
CAUTION:
Unified meter and A/C amp. screws (2) are different from other securing screws. Never confuse them
when installing.
Removal and Installation of Front Door SpeakerBKS00211
REMOVAL
1. Remove front door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Remove screws (3) and remove front door speaker.
INSTALLATION
Installation is the reverse order of removal.
SKIB0876E
SKIB0877E
SKIA6297E
SKIB0882E

AUDIO (WITH INTEGRATED DISPLAY SYSTEM)
AV-17
C
D
E
F
G
H
I
J
L
MA
B
AV

Removal and Installation of Rear Door SpeakerBKS00212
REMOVAL

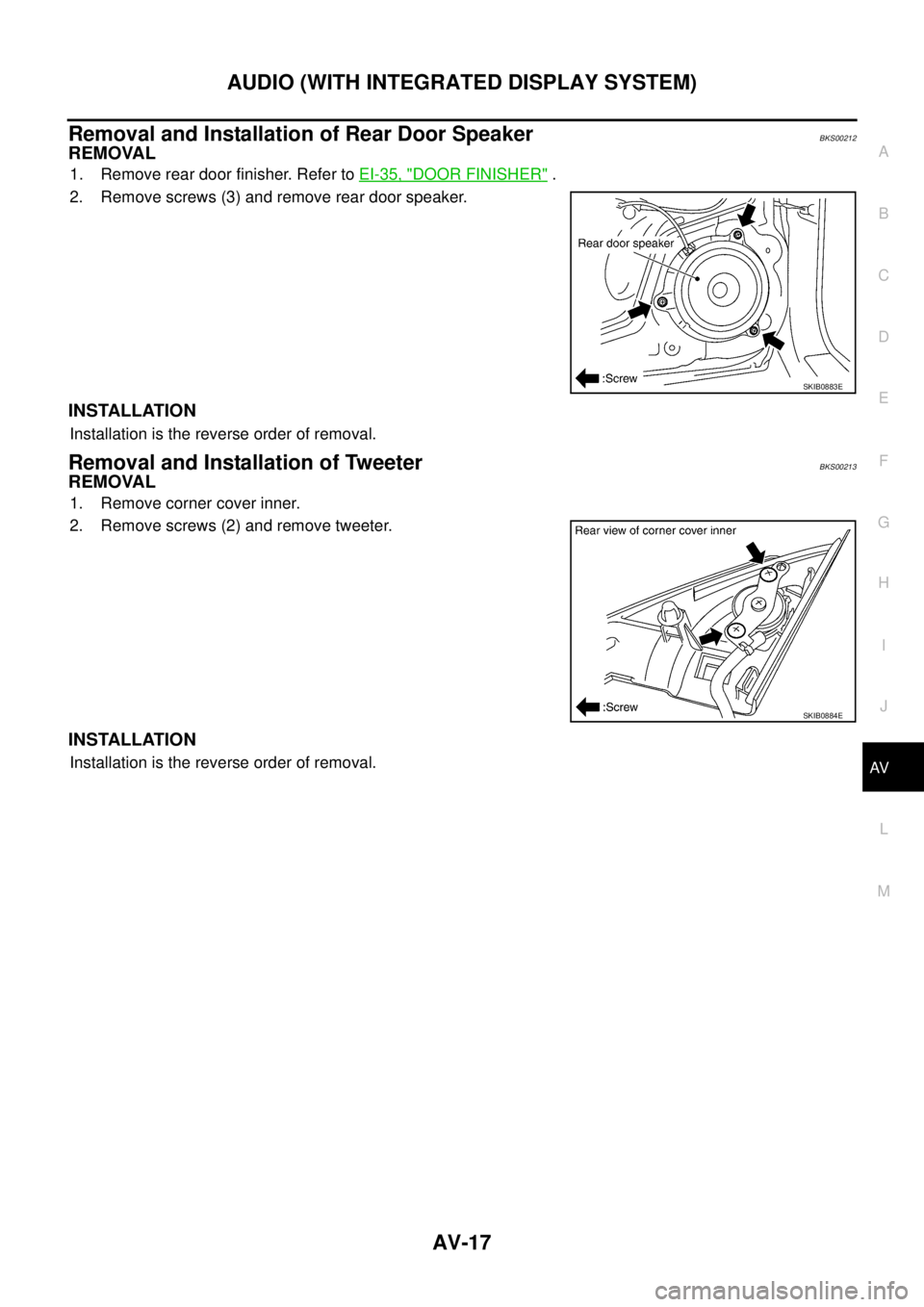

1. Remove rear door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Remove screws (3) and remove rear door speaker.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of TweeterBKS00213
REMOVAL
1. Remove corner cover inner.
2. Remove screws (2) and remove tweeter.
INSTALLATION
Installation is the reverse order of removal.
SKIB0883E
SKIB0884E

AV-18
AUDIO (WITH INTEGRATED COLOR DISPLAY SYSTEM)

AUDIO (WITH INTEGRATED COLOR DISPLAY SYSTEM)PFP:28185
System DescriptionBKS0028N

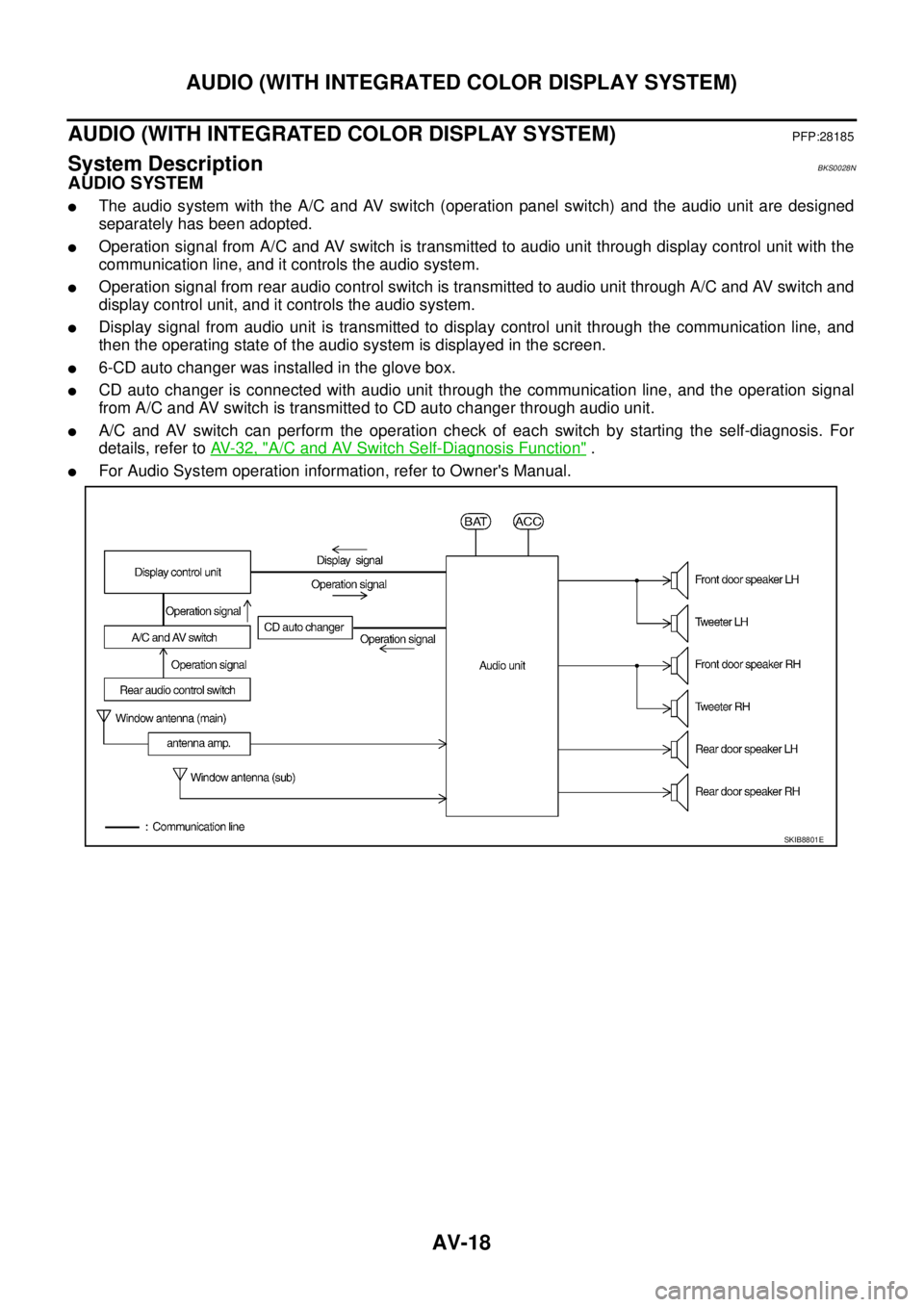

AUDIO SYSTEM

The audio system with the A/C and AV switch (operation panel switch) and the audio unit are designed
separately has been adopted.

Operation signal from A/C and AV switch is transmitted to audio unit through display control unit with the
communication line, and it controls the audio system.

Operation signal from rear audio control switch is transmitted to audio unit through A/C and AV switch and
display control unit, and it controls the audio system.

Display signal from audio unit is transmitted to display control unit through the communication line, and
then the operating state of the audio system is displayed in the screen.

6-CD auto changer was installed in the glove box.

CD auto changer is connected with audio unit through the communication line, and the operation signal
from A/C and AV switch is transmitted to CD auto changer through audio unit.

A/C and AV switch can perform the operation check of each switch by starting the self-diagnosis. For
details, refer to AV- 3 2 , "
A/C and AV Switch Self-Diagnosis Function" .

For Audio System operation information, refer to Owner's Manual.
SKIB8801E

AUDIO (WITH INTEGRATED COLOR DISPLAY SYSTEM)
AV-19
C
D
E
F
G
H
I
J
L
MA
B
AV

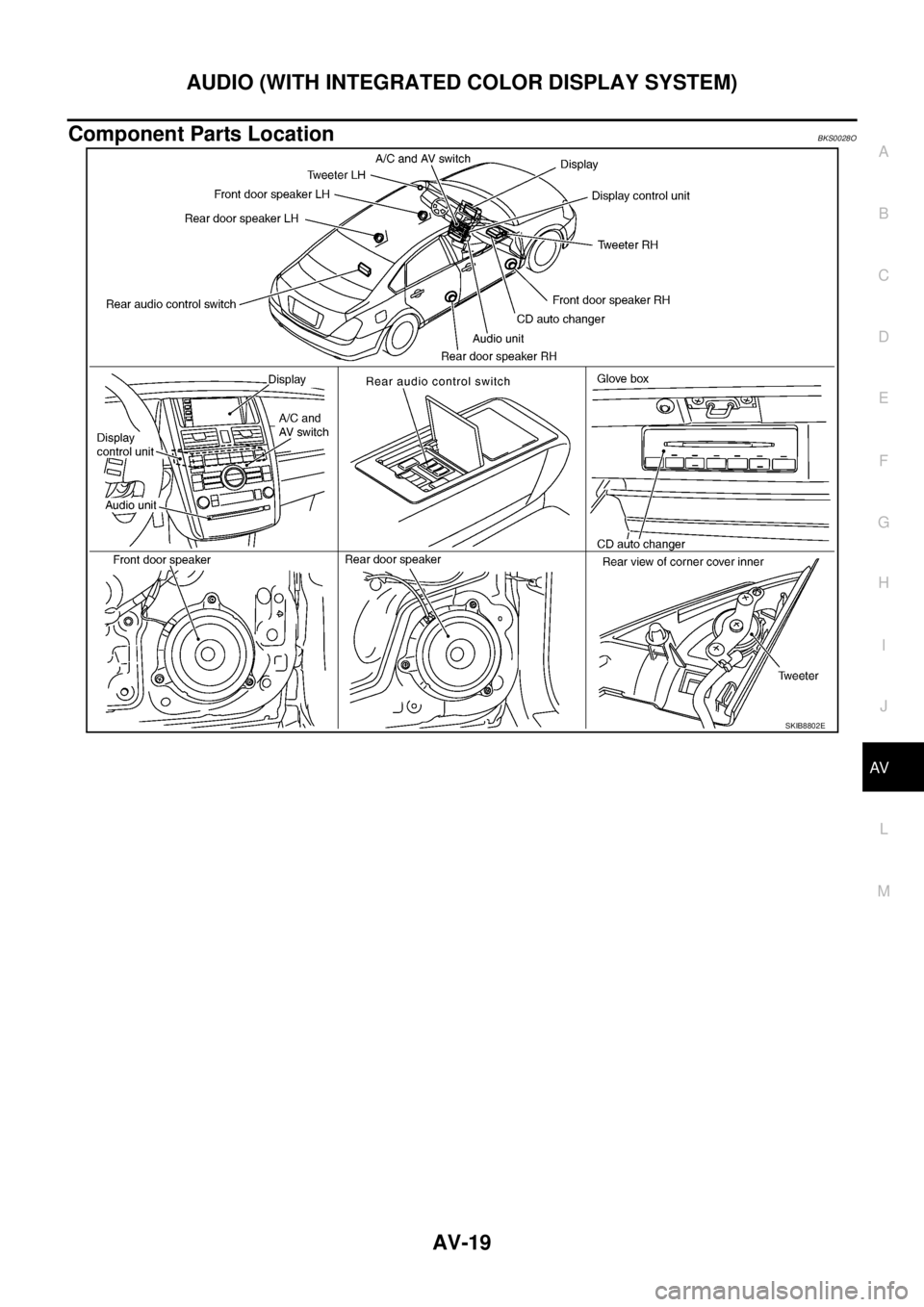

Component Parts LocationBKS0028O
SKIB8802E

AV-20
AUDIO (WITH INTEGRATED COLOR DISPLAY SYSTEM)

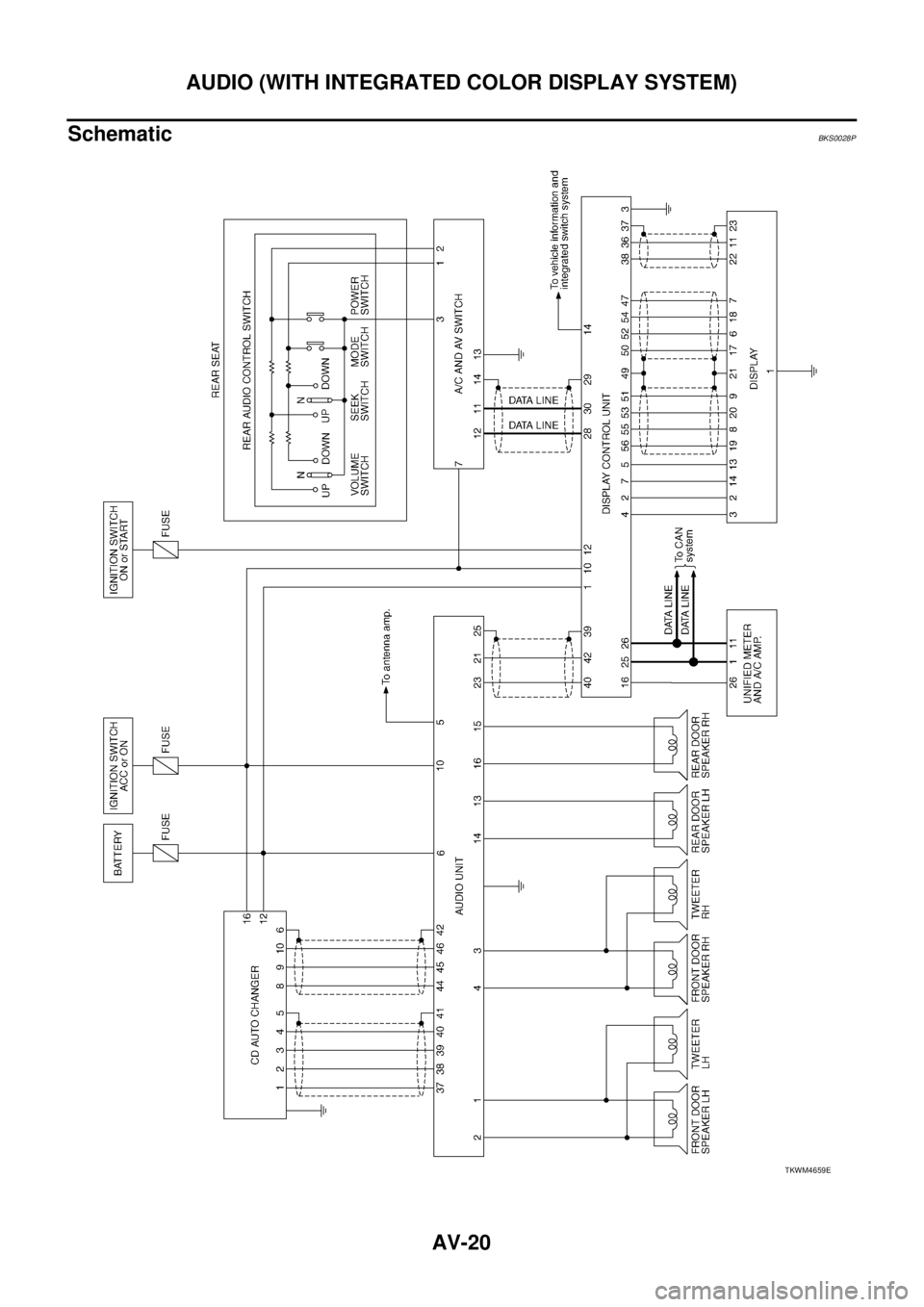

SchematicBKS0028P
TKWM4659E

AUDIO (WITH INTEGRATED COLOR DISPLAY SYSTEM)
AV-21
C
D
E
F
G
H
I
J
L
MA
B
AV

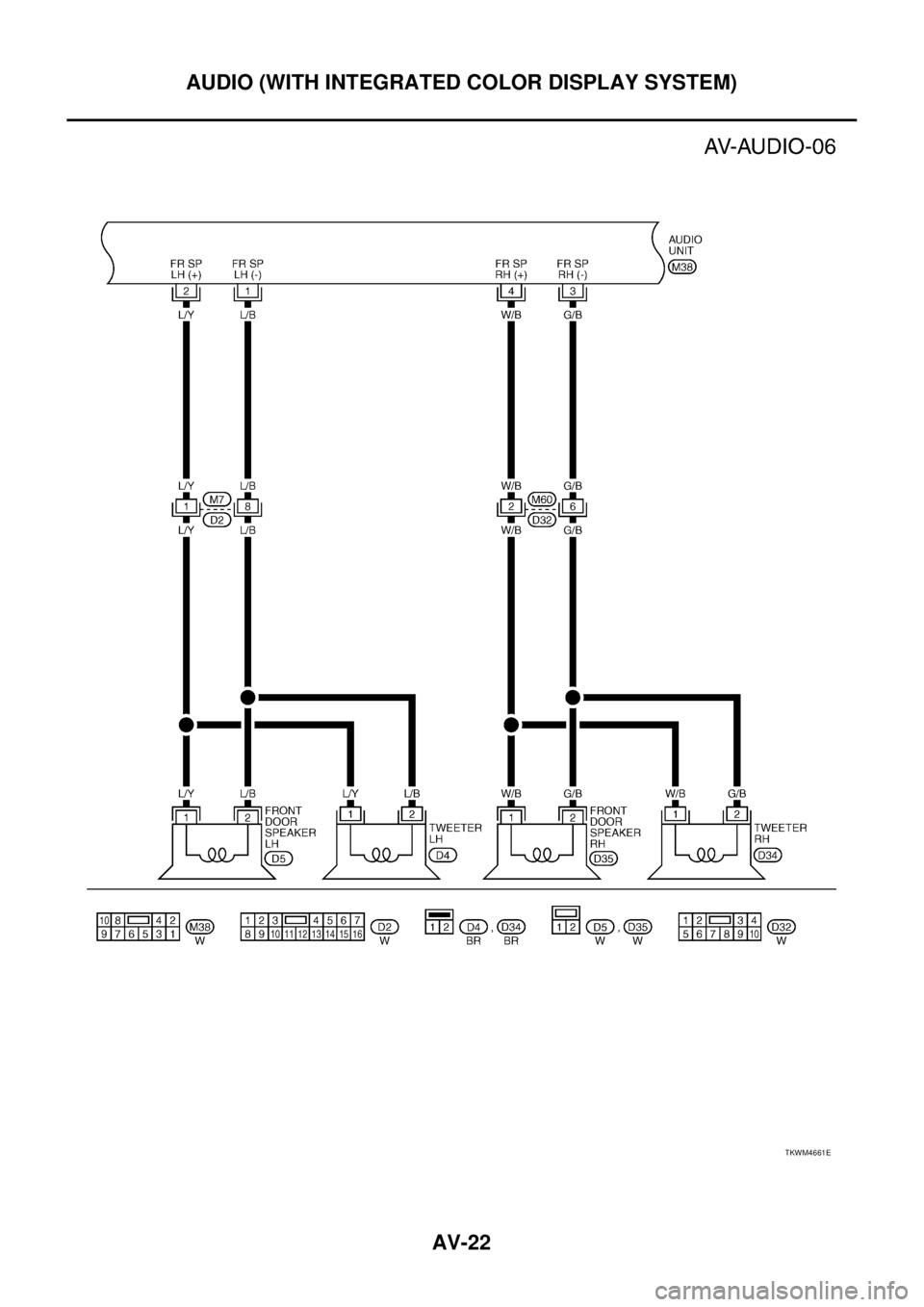

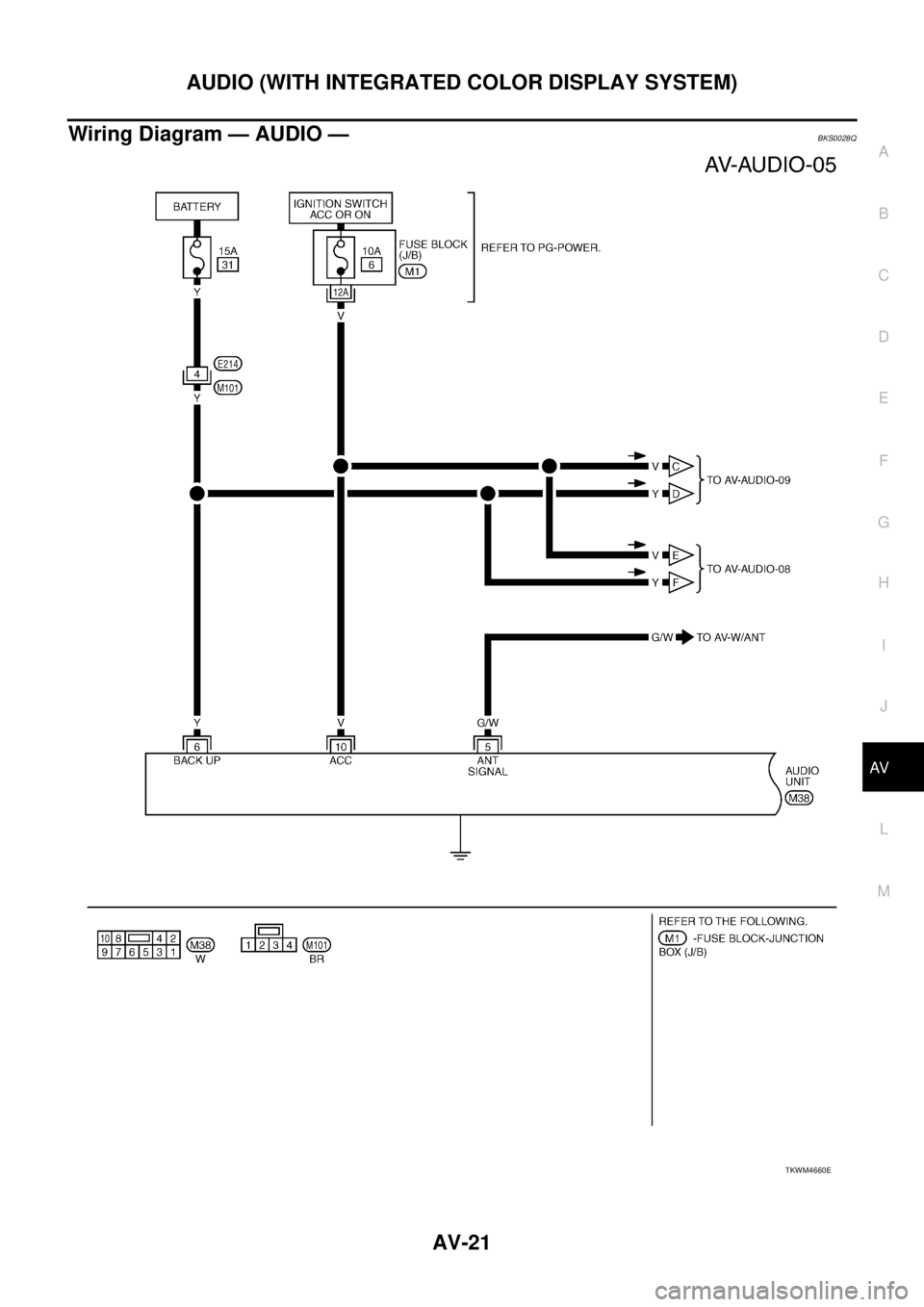

Wiring Diagram — AUDIO —BKS0028Q
TKWM4660E

AV-22
AUDIO (WITH INTEGRATED COLOR DISPLAY SYSTEM)

TKWM4661E
