NISSAN TEANA 2003 Service Manual

AUDIO (WITH INTEGRATED COLOR DISPLAY SYSTEM)
AV-33
C
D
E
F
G
H
I
J
L
MA
B
AV

Symptom ChartBKS0028V

The majority of the audio malfunctions are the result of outside causes (bad CD, electromagnetic interfer-
ence, etc.). Check the symptoms below to diagnose the malfunction.

The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunction-
ing. Check if noise is caused and/or changed by engine speed, ignition switch turned to each position, and
operation of each piece of electrical equipment, and then determine the cause.

CD-R is not guaranteed to play because they can contain compressed audio (MP3, WMA) or could be
incorrectly mastered by the customer on a computer.

Check if the CDs carry the Compact Disc Logo. If not, the disc is not mastered to the “red book” Compact
Disc Standard and may not play.

Make sure that other operation except audio system can be performed with A/C and AV switch. If these
operations are inoperative with A/C and AV switch, refer to AV- 9 7 , "
Unable to Operate System with A/C
and AV Switch" .
NOTE:
Noise resulting from variations in field strength, such as fading noise and multi-path noise, or external noise
from trains and other sources. It is not a malfunction.

Fading noise: This noise occurs because of variations in the field strength in a narrow range due to moun-
tains or buildings blocking the signal.

Multi-path noise: This noise results from a time difference between the broadcast waves directly from the
station arriving at the antenna and the waves reflected by mountains or buildings.
Symptom Possible malfunction location
Audio system does not work properly.

Audio unit power supply circuit

Communication signal circuit between audio unit and display unit

A/C and AV switch

Audio unit
CD auto changer does not work properly.

CD auto changer power supply circuit

Communication signal circuit between audio unit and CD auto changer

CD auto changer

Audio unit
No sound can be heard from all speakers. Audio unit
No sound can be heard from one or several speakers.

Audio signal circuit between audio unit and speaker

Speaker

Tweeter

Audio unit
No sound can be heard from radio or noise is caught.

Antenna amp. ON signal circuit

Antenna feeder

Rear window antenna

Antenna amp.

Audio unit
Unable to operate audio system with rear audio control
switch.

Remote control signal circuit between rear audio control switch and A/C
and AV switch

Rear audio control switch

A/C and AV switch

AV-34
AUDIO (WITH INTEGRATED COLOR DISPLAY SYSTEM)

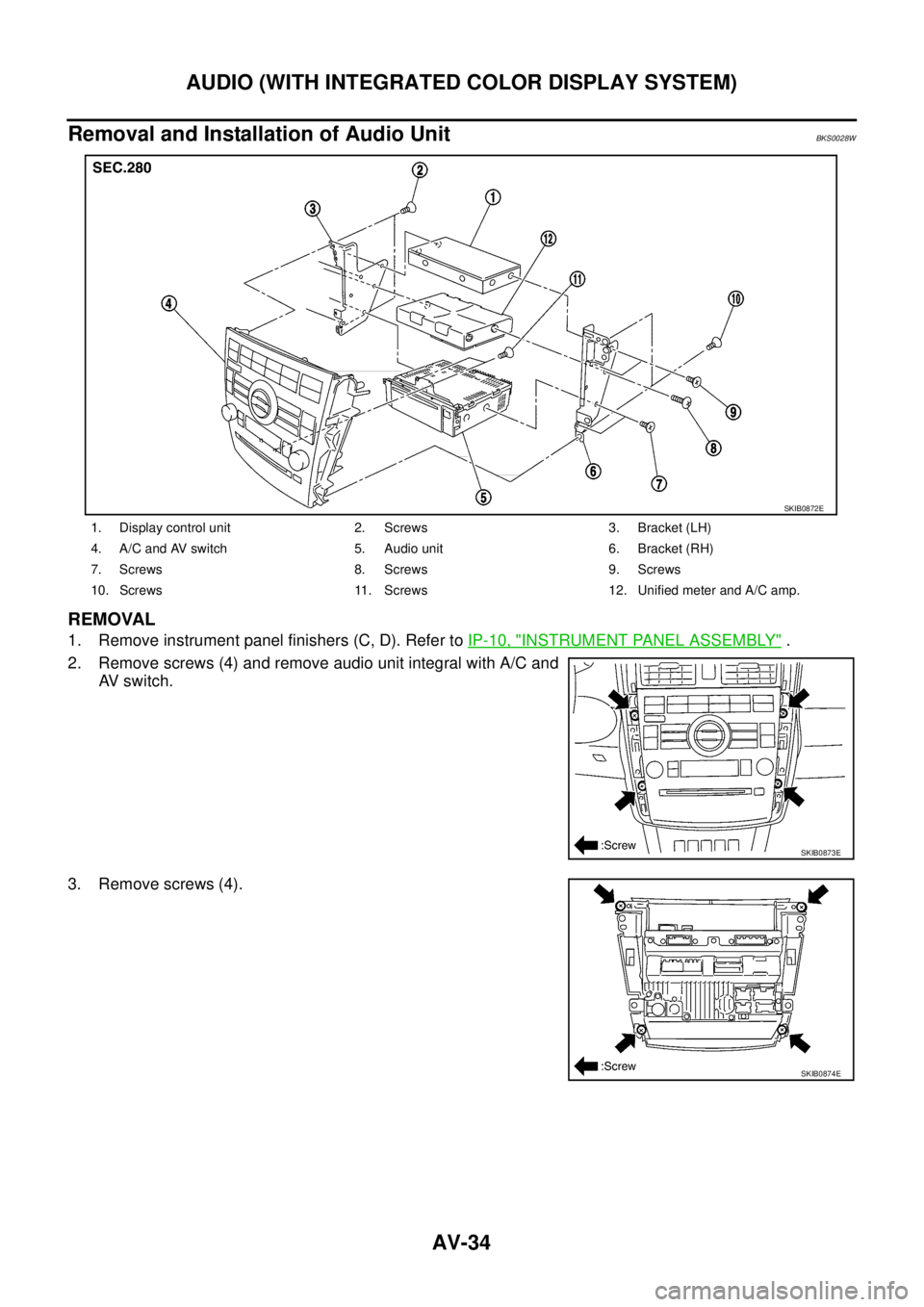

Removal and Installation of Audio UnitBKS0028W
REMOVAL
1. Remove instrument panel finishers (C, D). Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove screws (4) and remove audio unit integral with A/C and
AV switch.
3. Remove screws (4).
1. Display control unit 2. Screws 3. Bracket (LH)
4. A/C and AV switch 5. Audio unit 6. Bracket (RH)
7. Screws 8. Screws 9. Screws
10. Screws 11. Screws 12. Unified meter and A/C amp.
SKIB0872E
SKIB0873E
SKIB0874E

AUDIO (WITH INTEGRATED COLOR DISPLAY SYSTEM)
AV-35
C
D
E
F
G
H
I
J
L
MA
B
AV

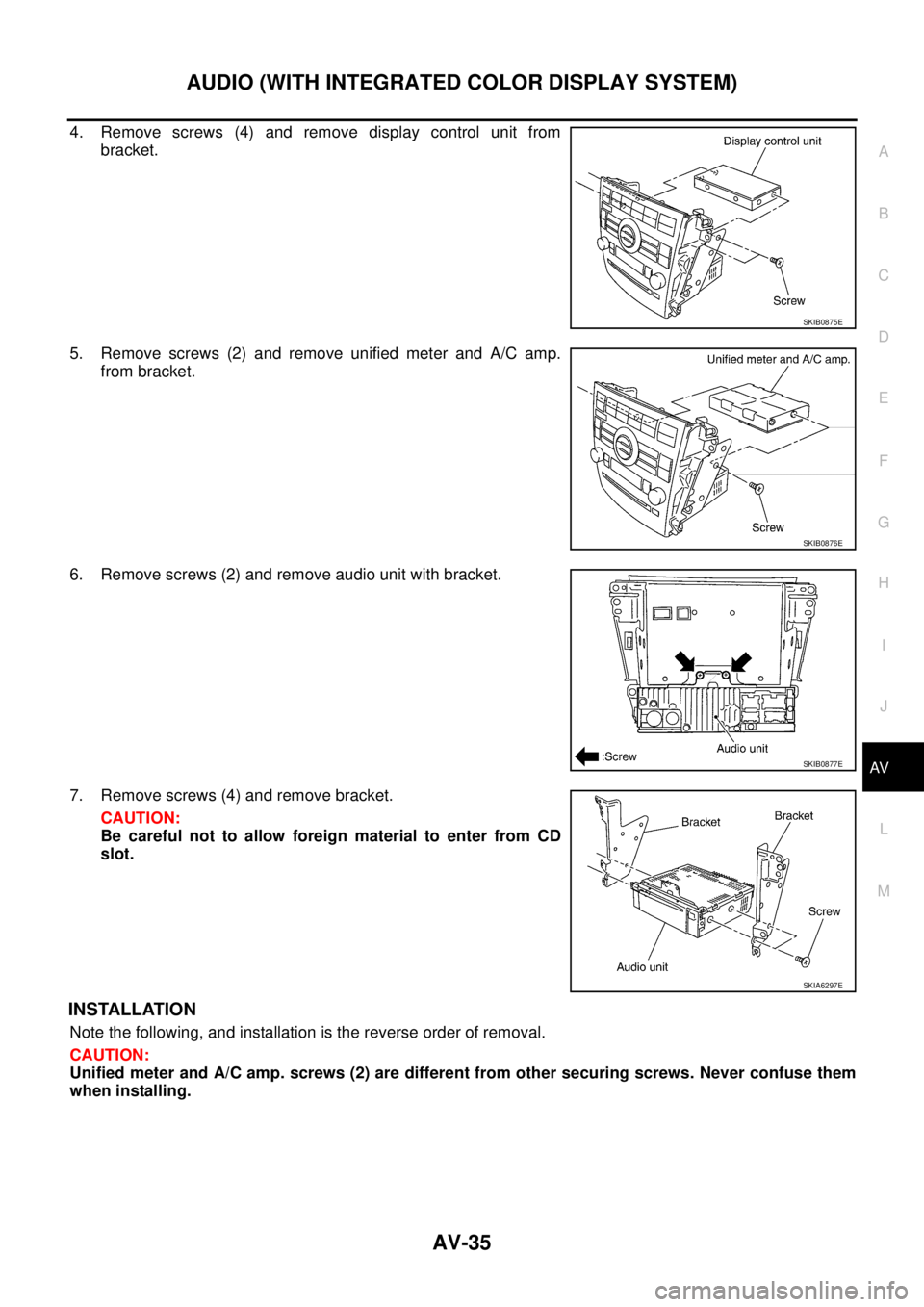

4. Remove screws (4) and remove display control unit from
bracket.
5. Remove screws (2) and remove unified meter and A/C amp.
from bracket.
6. Remove screws (2) and remove audio unit with bracket.
7. Remove screws (4) and remove bracket.
CAUTION:
Be careful not to allow foreign material to enter from CD
slot.
INSTALLATION
Note the following, and installation is the reverse order of removal.
CAUTION:
Unified meter and A/C amp. screws (2) are different from other securing screws. Never confuse them
when installing.
SKIB0875E
SKIB0876E
SKIB0877E
SKIA6297E

AV-36
AUDIO (WITH INTEGRATED COLOR DISPLAY SYSTEM)

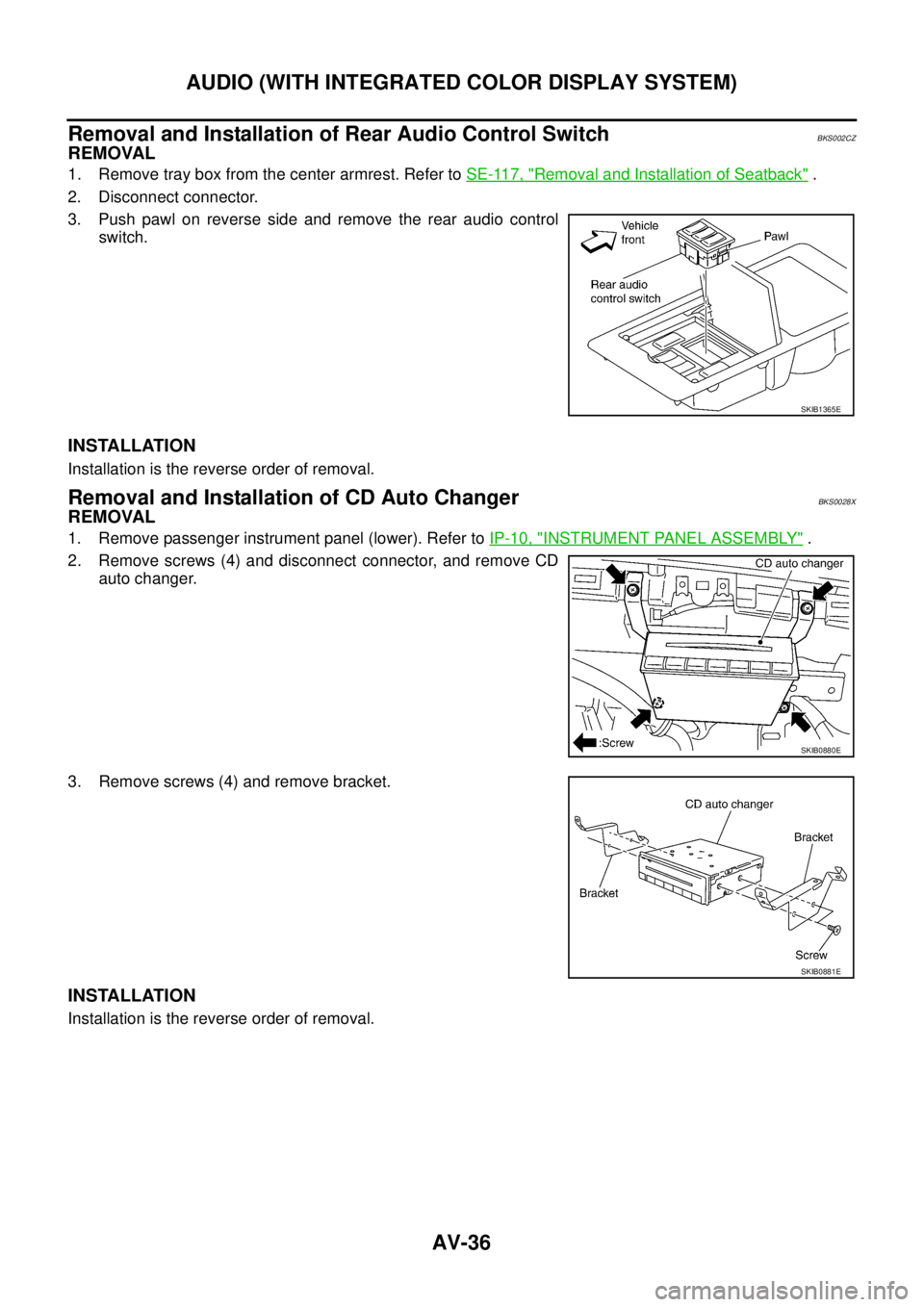

Removal and Installation of Rear Audio Control SwitchBKS002CZ
REMOVAL
1. Remove tray box from the center armrest. Refer to SE-117, "Removal and Installation of Seatback" .
2. Disconnect connector.
3. Push pawl on reverse side and remove the rear audio control
switch.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of CD Auto ChangerBKS0028X
REMOVAL
1. Remove passenger instrument panel (lower). Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove screws (4) and disconnect connector, and remove CD
auto changer.
3. Remove screws (4) and remove bracket.
INSTALLATION
Installation is the reverse order of removal.
SKIB1365E
SKIB0880E
SKIB0881E

AUDIO (WITH INTEGRATED COLOR DISPLAY SYSTEM)
AV-37
C
D
E
F
G
H
I
J
L
MA
B
AV

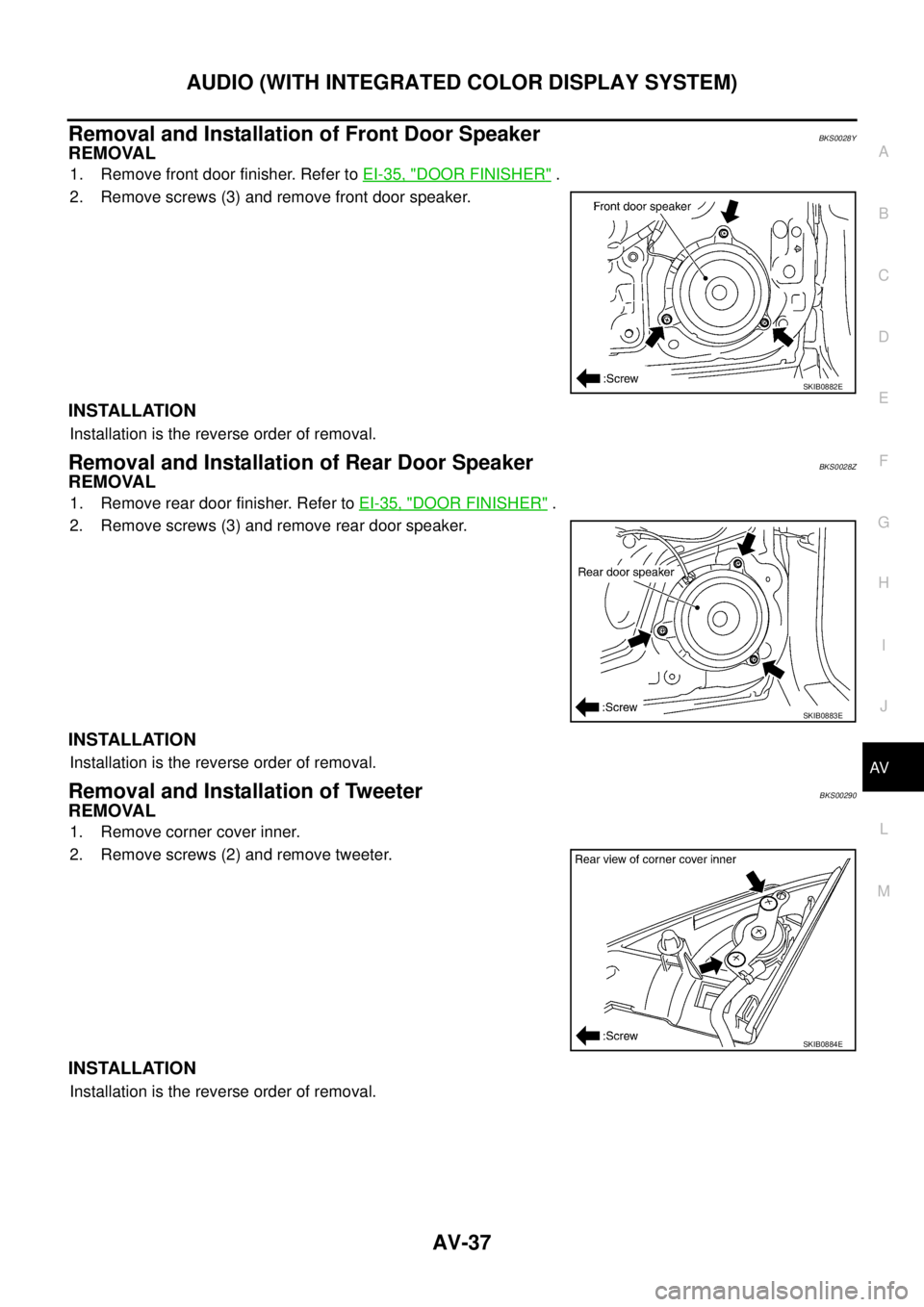

Removal and Installation of Front Door SpeakerBKS0028Y
REMOVAL
1. Remove front door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Remove screws (3) and remove front door speaker.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of Rear Door SpeakerBKS0028Z
REMOVAL
1. Remove rear door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Remove screws (3) and remove rear door speaker.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of TweeterBKS00290
REMOVAL
1. Remove corner cover inner.
2. Remove screws (2) and remove tweeter.
INSTALLATION
Installation is the reverse order of removal.
SKIB0882E
SKIB0883E
SKIB0884E

AV-38
AUDIO ANTENNA

AUDIO ANTENNAPFP:28200

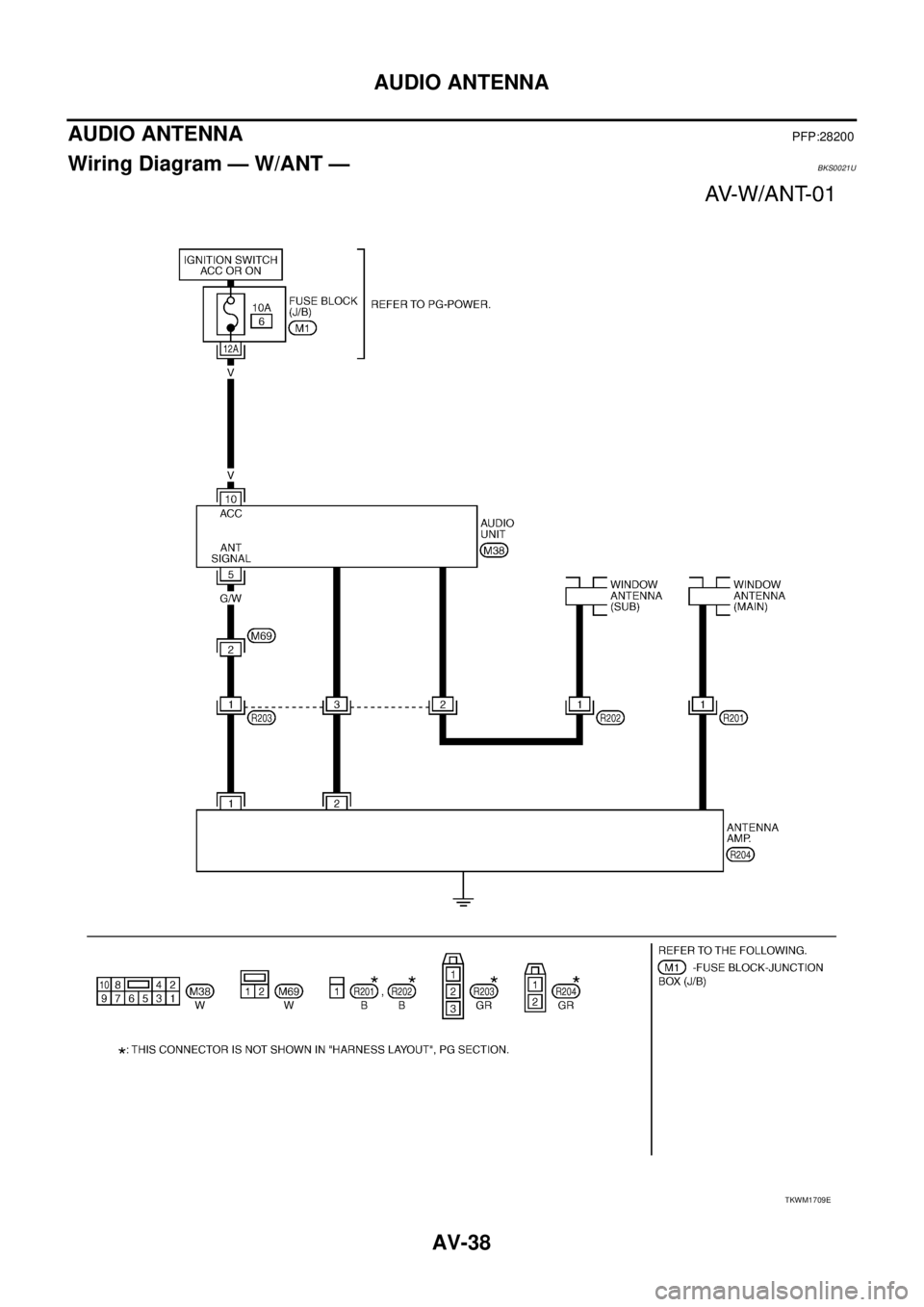

Wiring Diagram — W/ANT —BKS0021U
TKWM1709E

AUDIO ANTENNA
AV-39
C
D
E
F
G
H
I
J
L
MA
B
AV

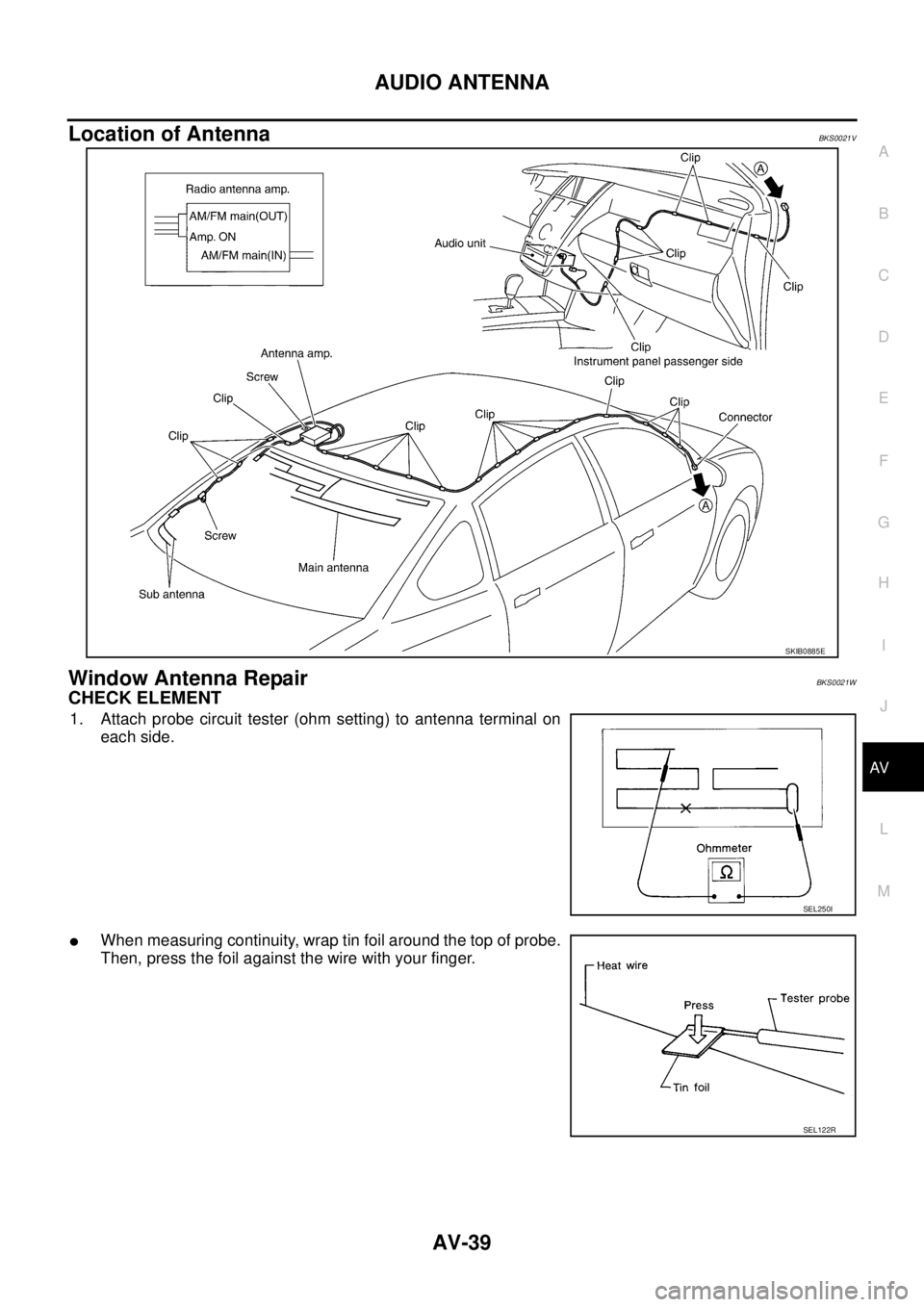

Location of AntennaBKS0021V
Window Antenna RepairBKS0021W
CHECK ELEMENT
1. Attach probe circuit tester (ohm setting) to antenna terminal on
each side.

When measuring continuity, wrap tin foil around the top of probe.
Then, press the foil against the wire with your finger.
SKIB0885E
SEL250I
SEL122R

AV-40
AUDIO ANTENNA

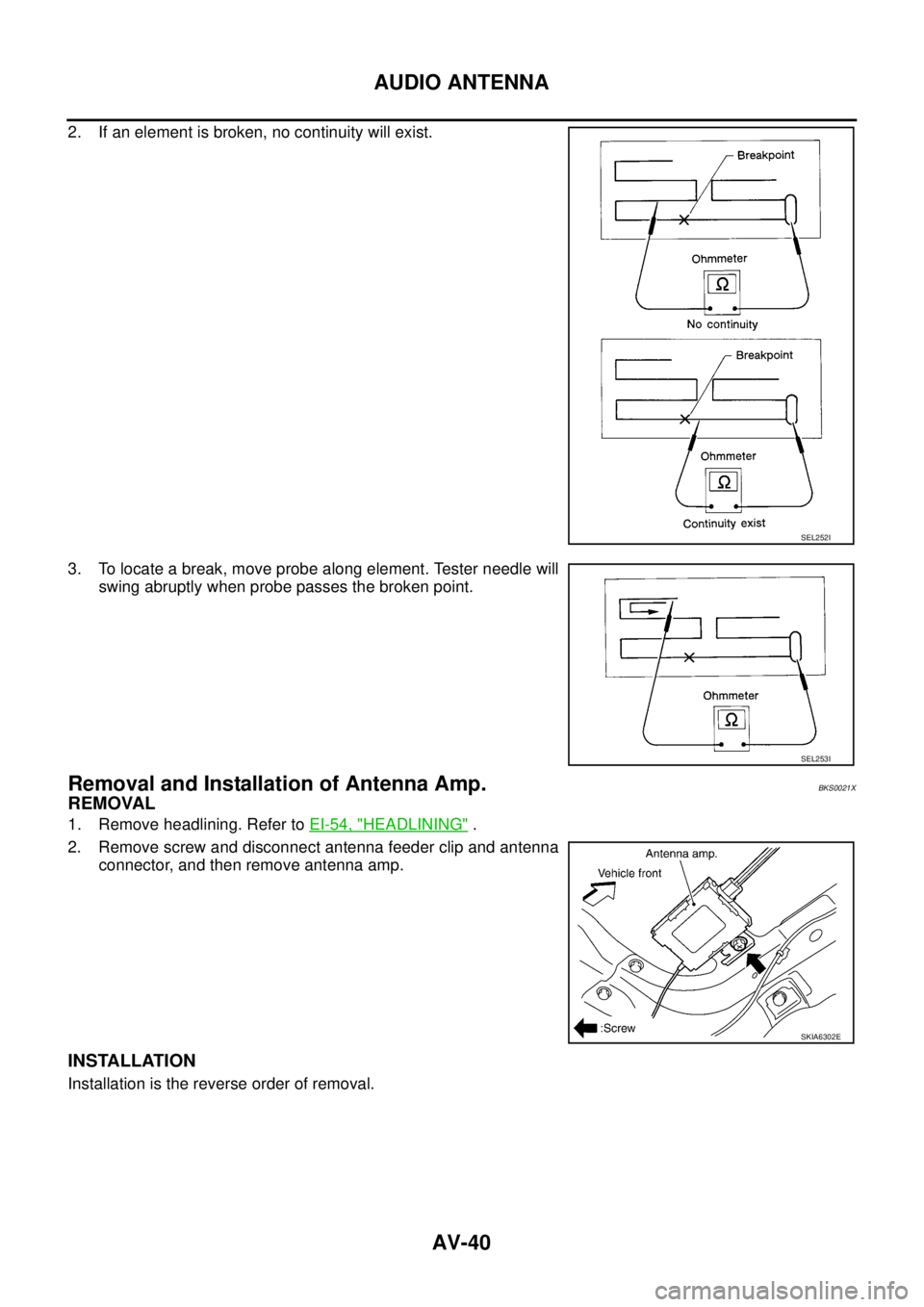

2. If an element is broken, no continuity will exist.
3. To locate a break, move probe along element. Tester needle will
swing abruptly when probe passes the broken point.
Removal and Installation of Antenna Amp.BKS0021X
REMOVAL
1. Remove headlining. Refer to EI-54, "HEADLINING" .
2. Remove screw and disconnect antenna feeder clip and antenna
connector, and then remove antenna amp.
INSTALLATION
Installation is the reverse order of removal.
SEL252I
SEL253I
SKIA6302E

INTEGRATED DISPLAY SYSTEM
AV-41
C
D
E
F
G
H
I
J
L
MA
B
AV

INTEGRATED DISPLAY SYSTEMPFP:28090
System DescriptionBKS0021Y
For system operation information, refer to Owner's Manual.
INTEGRATED DISPLAY SYSTEM

The display unit transmits/receives data signals to/from each control unit with CAN communication. It per-
forms an arithmetical operation on fuel information values by using data obtained from the control units,
and then displays the calculated values on the screen.

The display unit receives vehicle speed signals that are transmitted from the unified meter and A/C amp.,
performs an arithmetical operation on drive information values, and then displays the calculated values on
the screen.

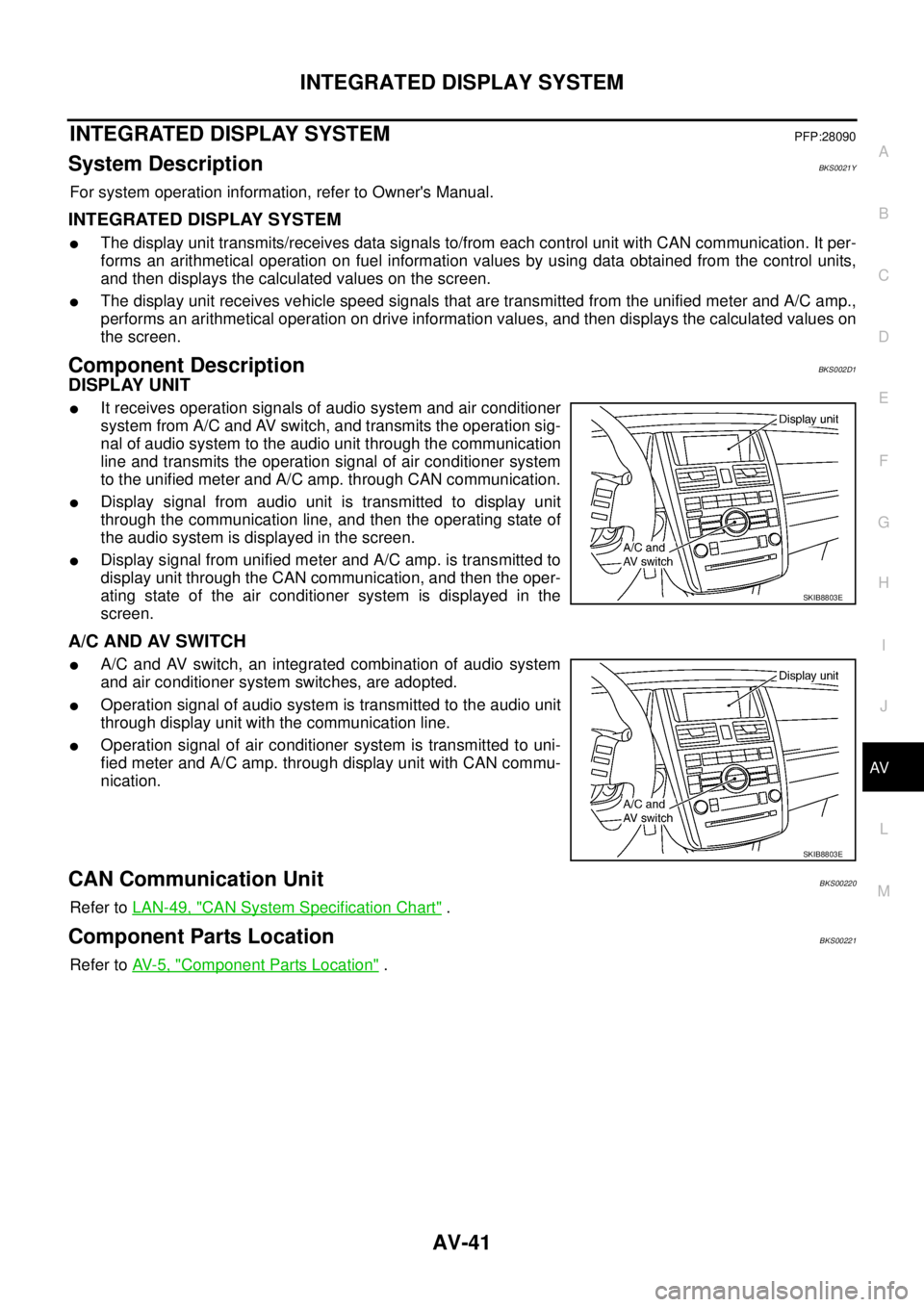

Component DescriptionBKS002D1
DISPLAY UNIT

It receives operation signals of audio system and air conditioner
system from A/C and AV switch, and transmits the operation sig-
nal of audio system to the audio unit through the communication
line and transmits the operation signal of air conditioner system
to the unified meter and A/C amp. through CAN communication.

Display signal from audio unit is transmitted to display unit
through the communication line, and then the operating state of
the audio system is displayed in the screen.

Display signal from unified meter and A/C amp. is transmitted to
display unit through the CAN communication, and then the oper-
ating state of the air conditioner system is displayed in the
screen.
A/C AND AV SWITCH

A/C and AV switch, an integrated combination of audio system
and air conditioner system switches, are adopted.

Operation signal of audio system is transmitted to the audio unit
through display unit with the communication line.

Operation signal of air conditioner system is transmitted to uni-
fied meter and A/C amp. through display unit with CAN commu-
nication.
CAN Communication UnitBKS00220
Refer to LAN-49, "CAN System Specification Chart" .
Component Parts LocationBKS00221
Refer to AV- 5 , "Component Parts Location" .
SKIB8803E
SKIB8803E

AV-42
INTEGRATED DISPLAY SYSTEM

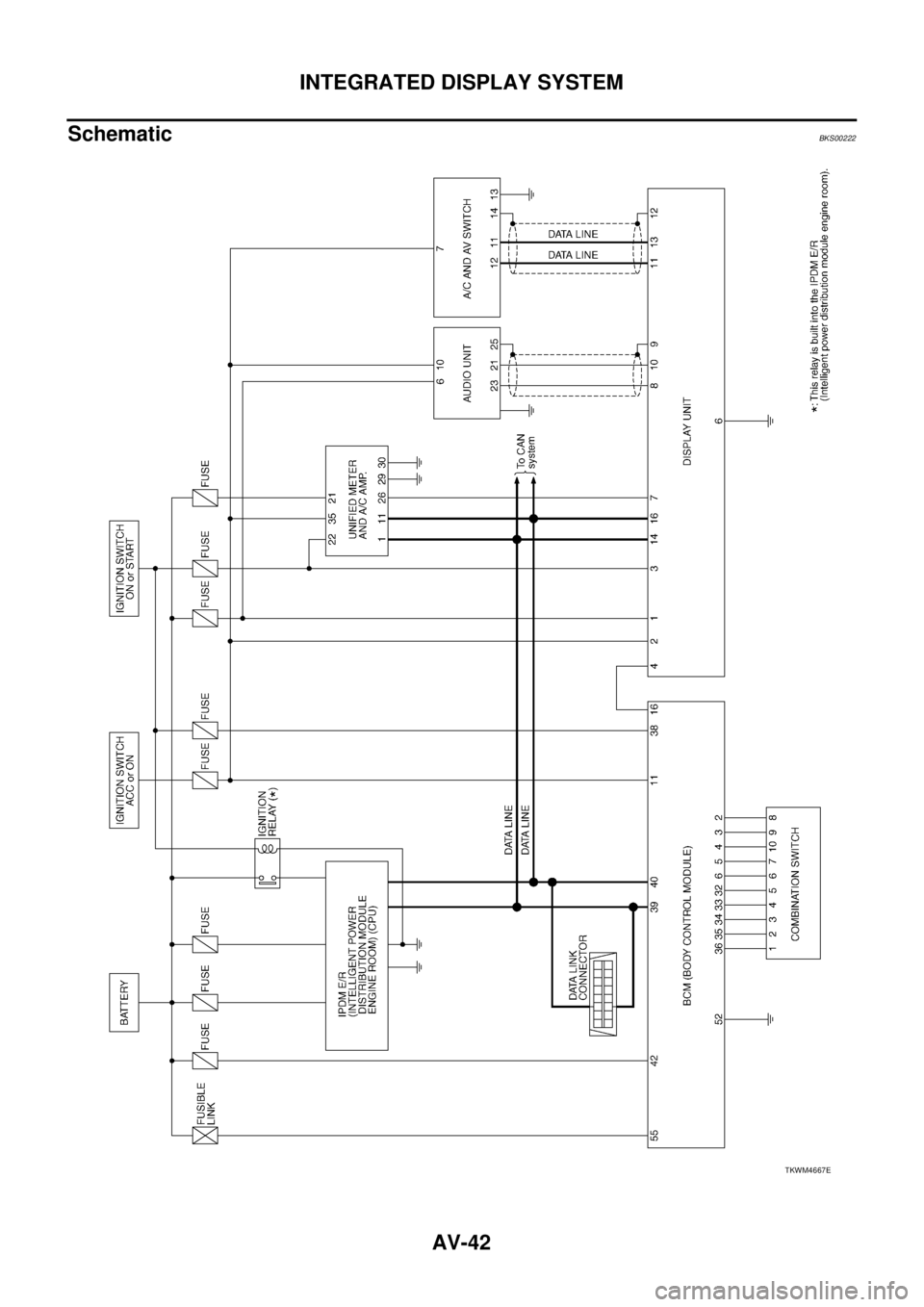

SchematicBKS00222
TKWM4667E
