NISSAN TEANA 2003 Service Manual

REFRIGERANT LINES
ATC-133
C
D
E
F
G
H
I
K
L
MA
B
AT C

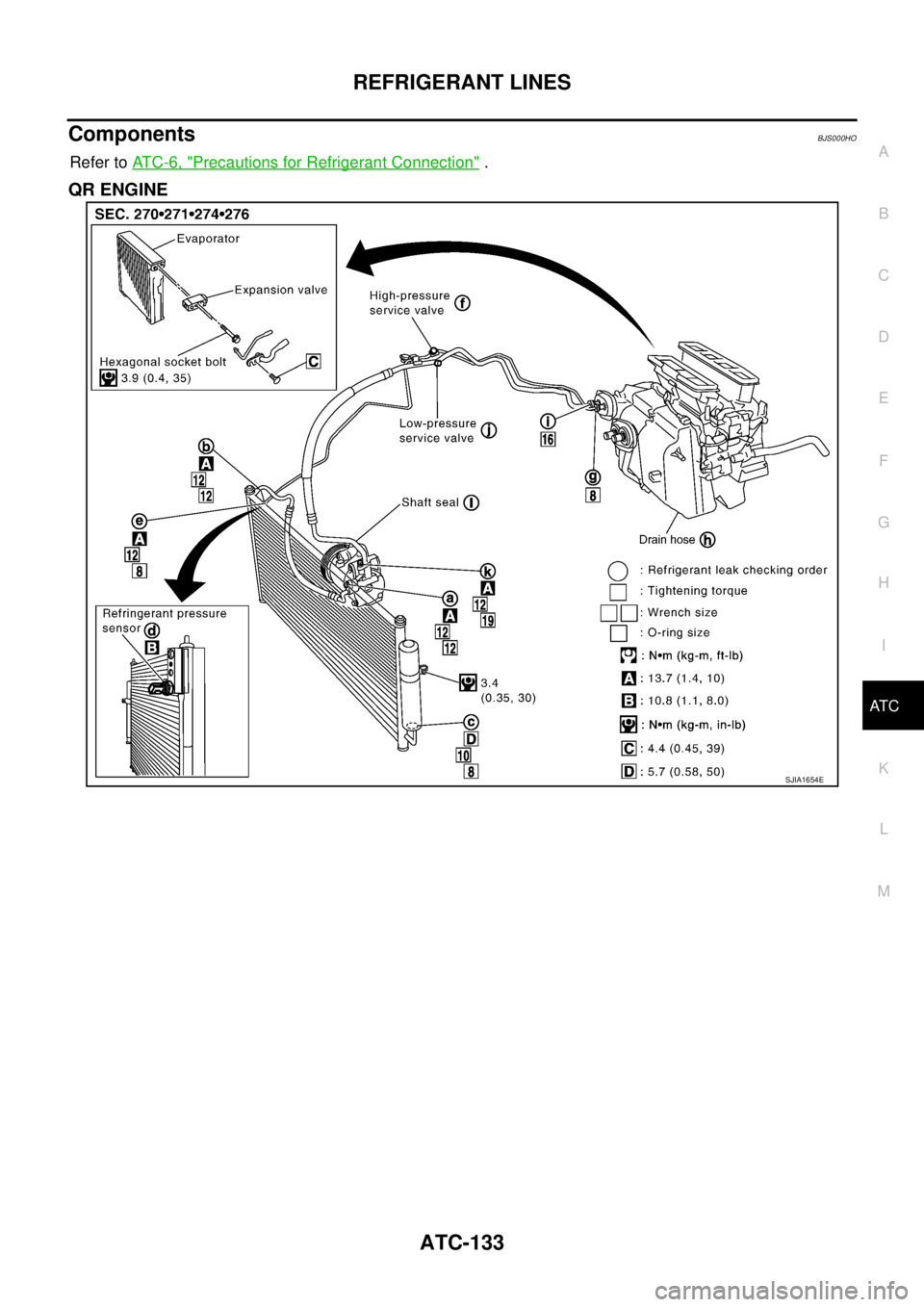

ComponentsBJS000HO
Refer to AT C - 6 , "Precautions for Refrigerant Connection" .
QR ENGINE
SJIA1654E

ATC-134
REFRIGERANT LINES

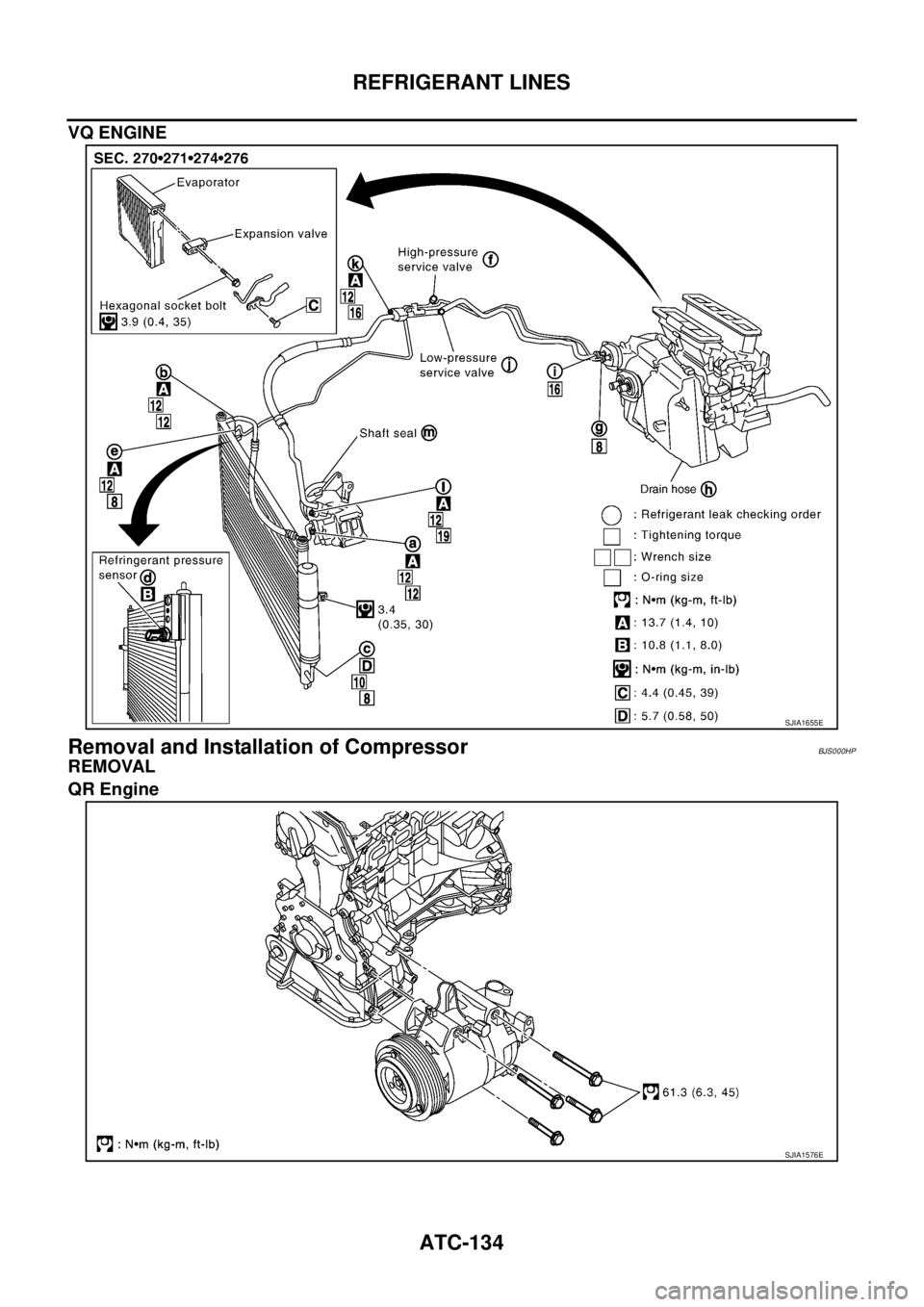

VQ ENGINE

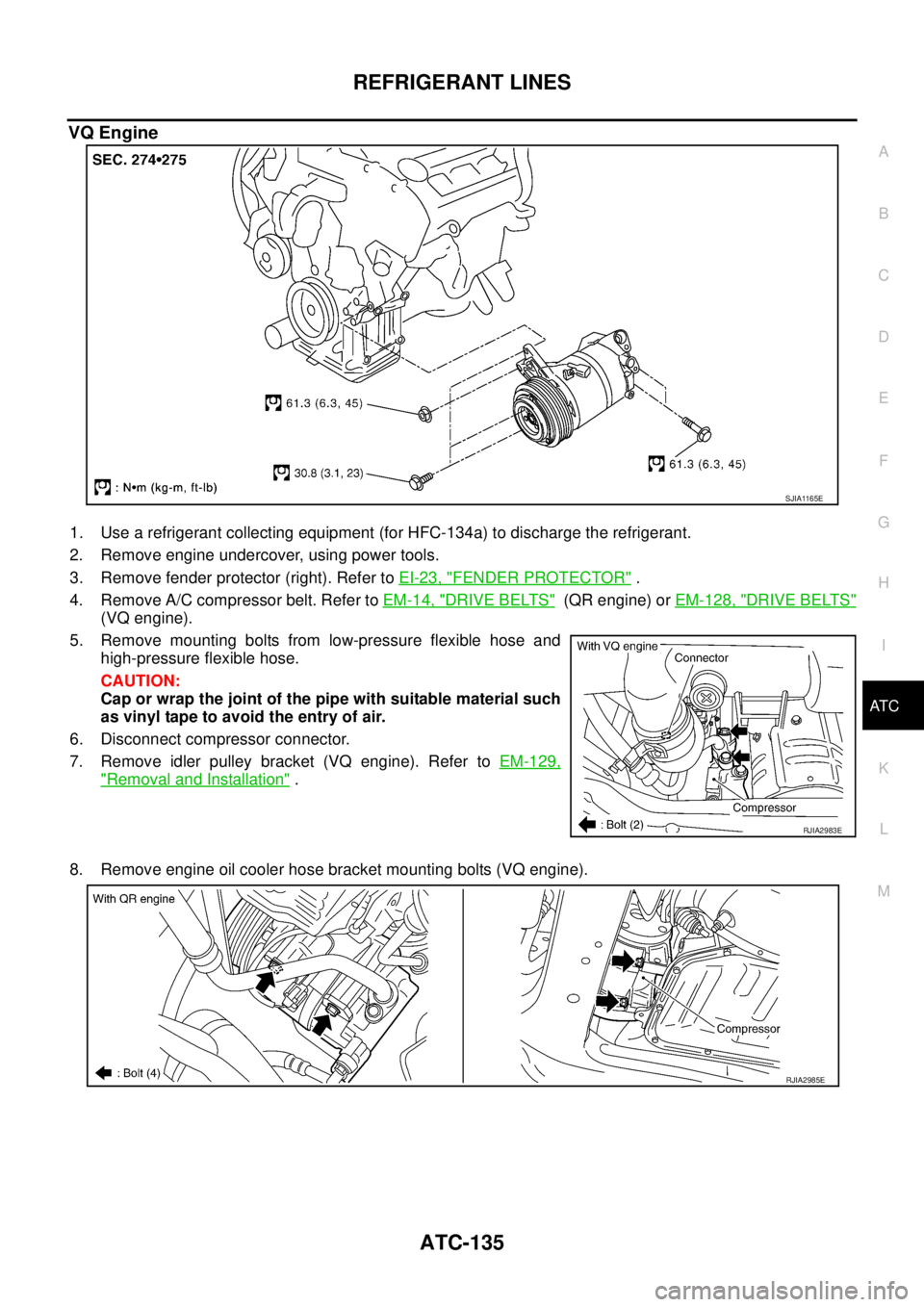

Removal and Installation of CompressorBJS000HP
REMOVAL
QR Engine
SJIA1655E
SJIA1576E

REFRIGERANT LINES
ATC-135
C
D
E
F
G
H
I
K
L
MA
B
AT C

VQ Engine
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Remove engine undercover, using power tools.
3. Remove fender protector (right). Refer to EI-23, "
FENDER PROTECTOR" .
4. Remove A/C compressor belt. Refer to EM-14, "
DRIVE BELTS" (QR engine) or EM-128, "DRIVE BELTS"
(VQ engine).
5. Remove mounting bolts from low-pressure flexible hose and
high-pressure flexible hose.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
6. Disconnect compressor connector.
7. Remove idler pulley bracket (VQ engine). Refer to EM-129,
"Removal and Installation" .
8. Remove engine oil cooler hose bracket mounting bolts (VQ engine).
SJIA1165E
RJIA2983E
RJIA2985E

ATC-136
REFRIGERANT LINES

9. Remove mounting bolts and nut from compressor, using power tools.
10. Remove compressor from right side of the vehicle.
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:

Replace O-rings of low-pressure flexible hose and high-pressure flexible hose with new ones, and
then apply compressor oil to it when installing it.

When recharging refrigerant, check for leaks.

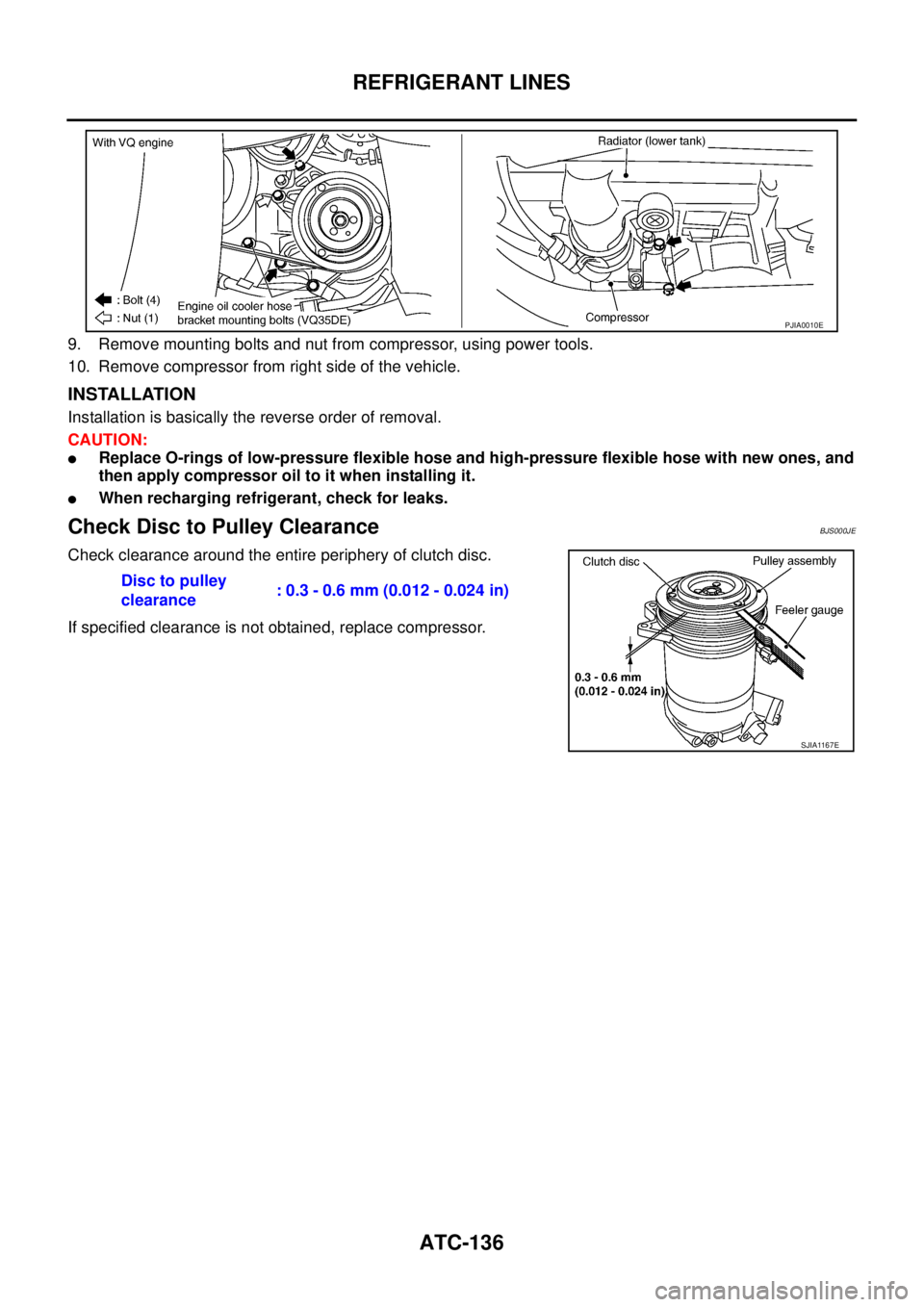

Check Disc to Pulley ClearanceBJS000JE
Check clearance around the entire periphery of clutch disc.
If specified clearance is not obtained, replace compressor.
PJIA0010E
Disc to pulley
clearance: 0.3 - 0.6 mm (0.012 - 0.024 in)
SJIA1167E

REFRIGERANT LINES
ATC-137
C
D
E
F
G
H
I
K
L
MA
B
AT C

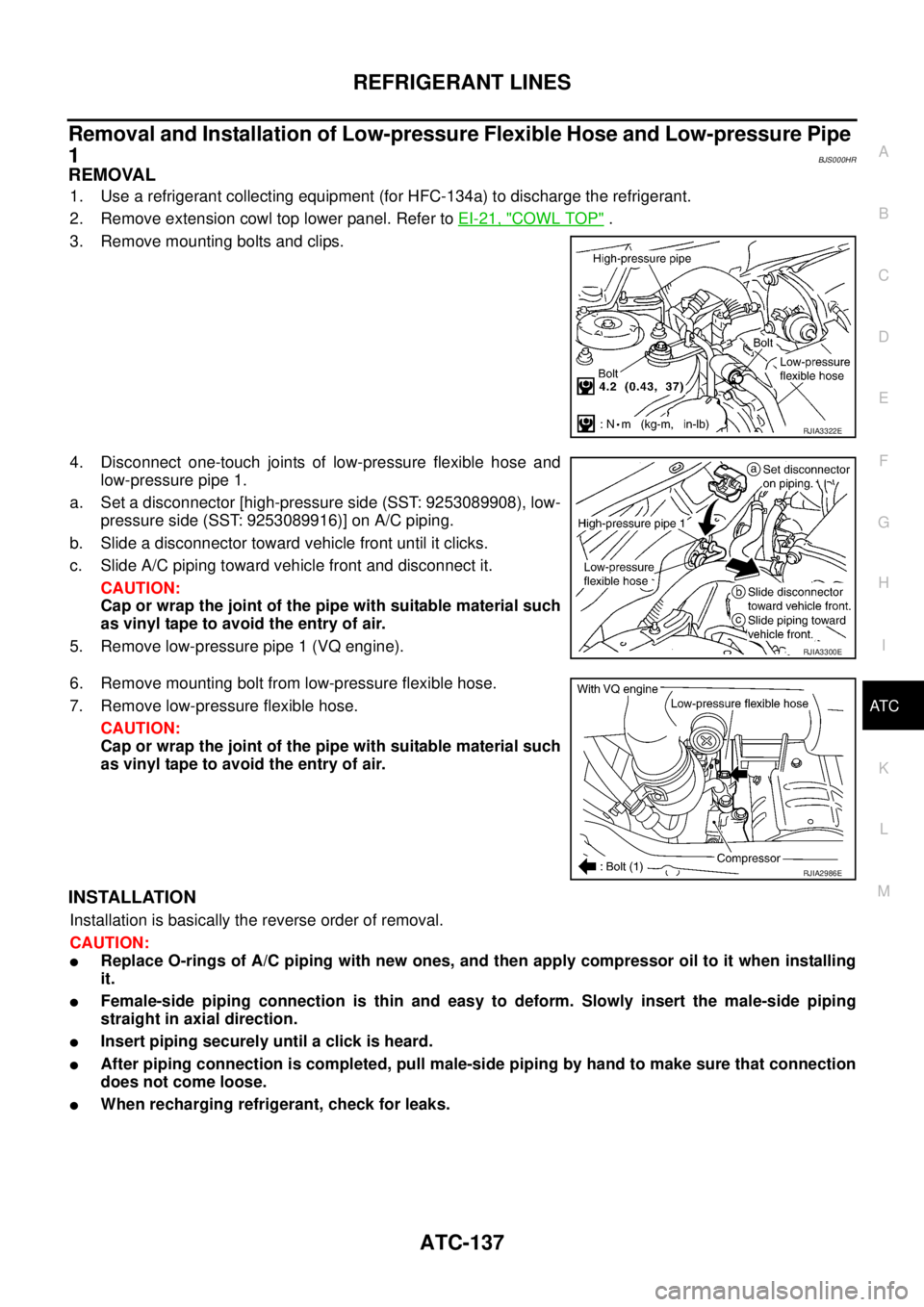

Removal and Installation of Low-pressure Flexible Hose and Low-pressure Pipe
1
BJS000HR
REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Remove extension cowl top lower panel. Refer to EI-21, "
COWL TOP" .
3. Remove mounting bolts and clips.
4. Disconnect one-touch joints of low-pressure flexible hose and
low-pressure pipe 1.
a. Set a disconnector [high-pressure side (SST: 9253089908), low-
pressure side (SST: 9253089916)] on A/C piping.
b. Slide a disconnector toward vehicle front until it clicks.
c. Slide A/C piping toward vehicle front and disconnect it.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
5. Remove low-pressure pipe 1 (VQ engine).
6. Remove mounting bolt from low-pressure flexible hose.
7. Remove low-pressure flexible hose.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:

Replace O-rings of A/C piping with new ones, and then apply compressor oil to it when installing
it.

Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping
straight in axial direction.

Insert piping securely until a click is heard.

After piping connection is completed, pull male-side piping by hand to make sure that connection
does not come loose.

When recharging refrigerant, check for leaks.
RJIA3322E
RJIA3300E
RJIA2986E

ATC-138
REFRIGERANT LINES

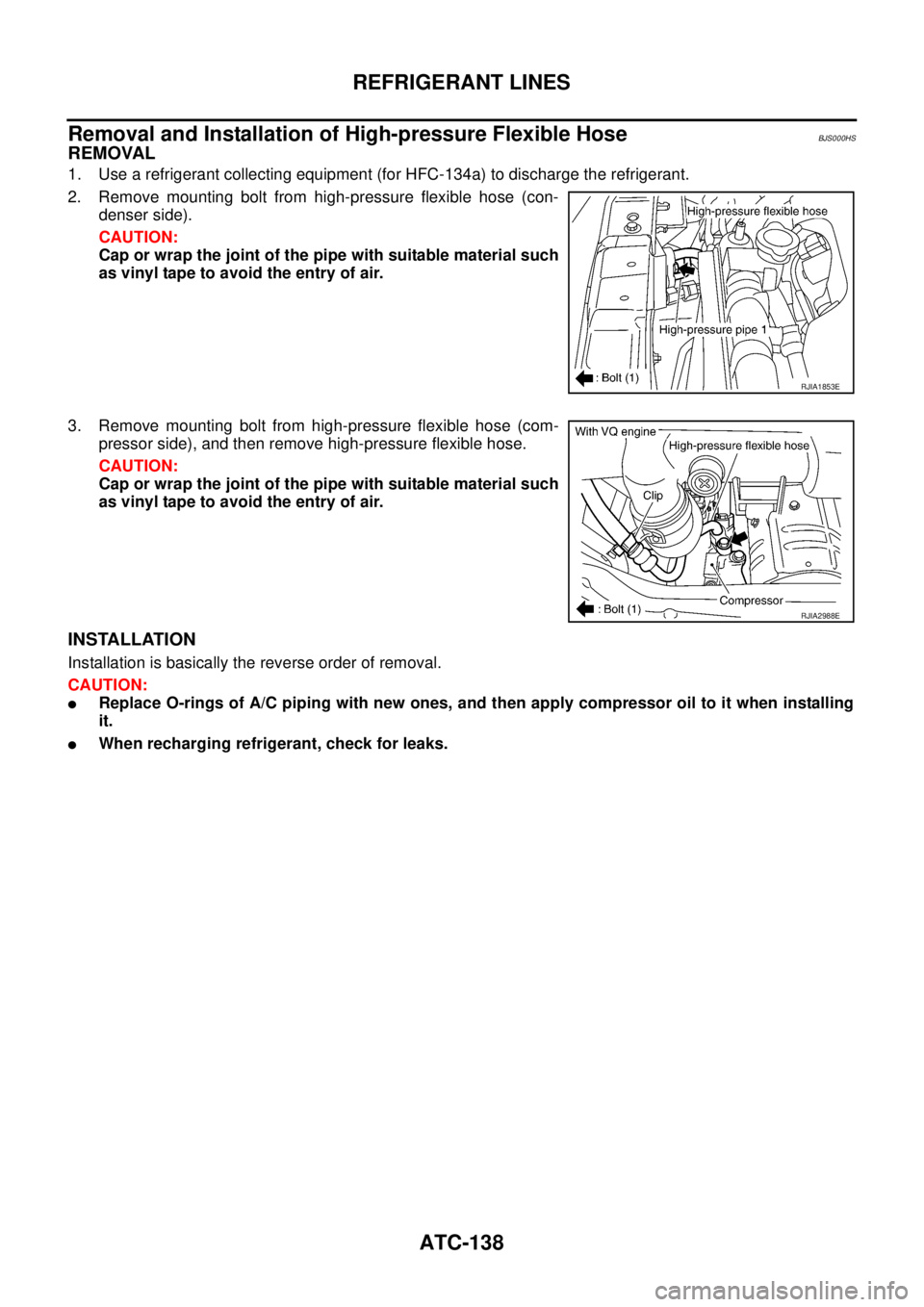

Removal and Installation of High-pressure Flexible HoseBJS000HS
REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Remove mounting bolt from high-pressure flexible hose (con-
denser side).
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
3. Remove mounting bolt from high-pressure flexible hose (com-
pressor side), and then remove high-pressure flexible hose.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:

Replace O-rings of A/C piping with new ones, and then apply compressor oil to it when installing
it.

When recharging refrigerant, check for leaks.
RJIA1853E
RJIA2988E

REFRIGERANT LINES
ATC-139
C
D
E
F
G
H
I
K
L
MA
B
AT C

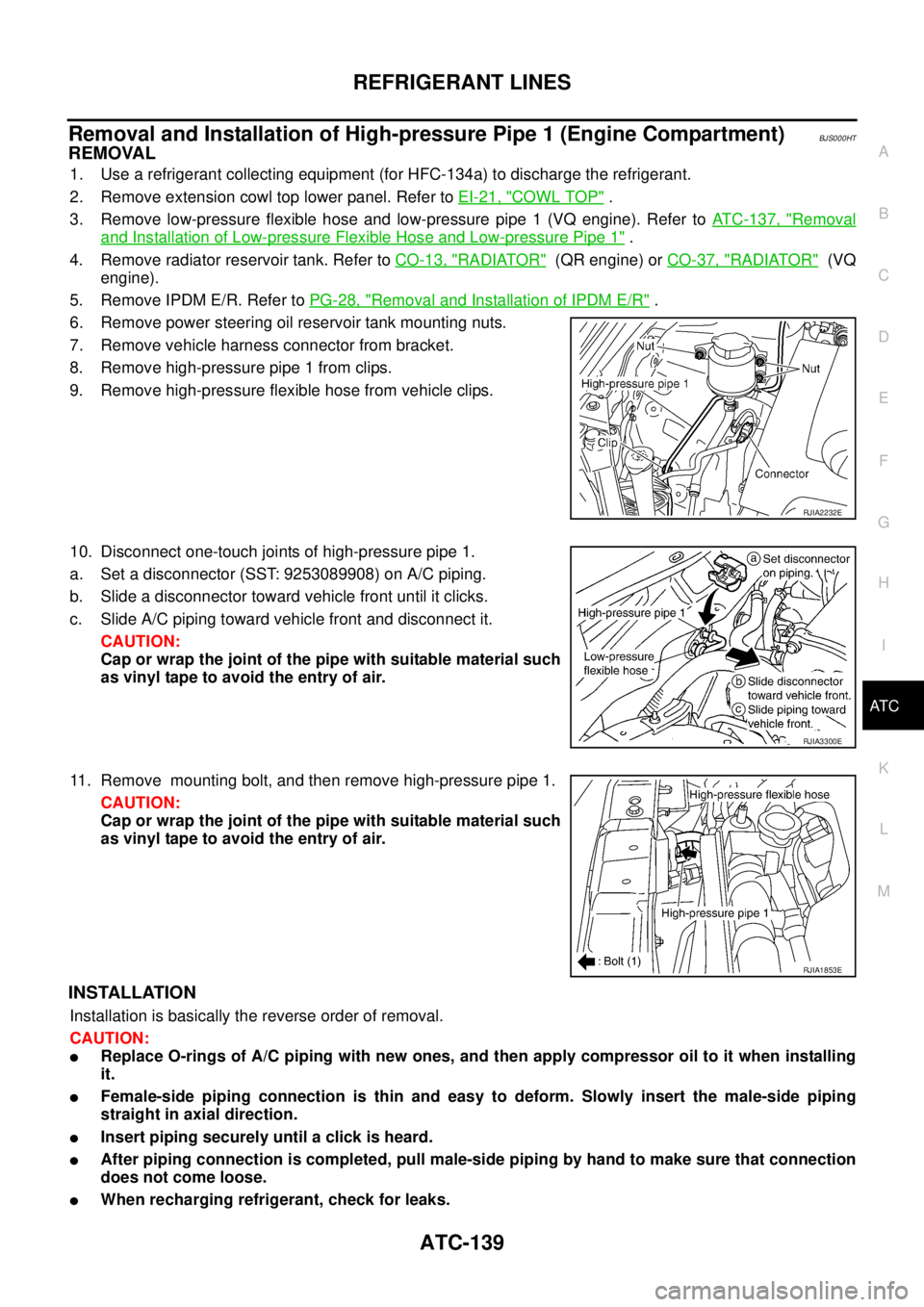

Removal and Installation of High-pressure Pipe 1 (Engine Compartment)BJS000HT
REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Remove extension cowl top lower panel. Refer to EI-21, "
COWL TOP" .
3. Remove low-pressure flexible hose and low-pressure pipe 1 (VQ engine). Refer to ATC-137, "
Removal
and Installation of Low-pressure Flexible Hose and Low-pressure Pipe 1" .
4. Remove radiator reservoir tank. Refer to CO-13, "
RADIATOR" (QR engine) or CO-37, "RADIATOR" (VQ
engine).
5. Remove IPDM E/R. Refer to PG-28, "
Removal and Installation of IPDM E/R" .
6. Remove power steering oil reservoir tank mounting nuts.
7. Remove vehicle harness connector from bracket.
8. Remove high-pressure pipe 1 from clips.
9. Remove high-pressure flexible hose from vehicle clips.
10. Disconnect one-touch joints of high-pressure pipe 1.
a. Set a disconnector (SST: 9253089908) on A/C piping.
b. Slide a disconnector toward vehicle front until it clicks.
c. Slide A/C piping toward vehicle front and disconnect it.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
11. Remove mounting bolt, and then remove high-pressure pipe 1.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:

Replace O-rings of A/C piping with new ones, and then apply compressor oil to it when installing
it.

Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping
straight in axial direction.

Insert piping securely until a click is heard.

After piping connection is completed, pull male-side piping by hand to make sure that connection
does not come loose.

When recharging refrigerant, check for leaks.
RJIA2232E
RJIA3300E
RJIA1853E

ATC-140
REFRIGERANT LINES

Removal and Installation of Low-pressure Pipe 2 and High-pressure Pipe 2BJS000HU
REMOVAL
1. Set the temperature (passenger side) at 18°C, and then disconnect the battery cable from the negative
terminal.
2. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
3. Remove extension cowl top lower panel. Refer to EI-21, "
COWL TOP" .
4. Remove mounting bolt from low-pressure pipe 1 bracket.
5. Remove high-pressure pipe 1 from vehicle clips.
6. Disconnect one-touch joints of low-pressure pipe 1, and high-
pressure pipe 1.
a. Set a disconnector [high-pressure side (SST: 9253089908), low-
pressure side (SST: 9253089916)] on A/C piping.
b. Slide a disconnector toward vehicle front until it clicks.
c. Slide A/C piping toward vehicle front and disconnect it.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
7. Remove blower unit. Refer to AT C - 11 3 , "
BLOWER UNIT" .
8. Remove mounting screws, and then remove air mix door motor
(passenger side).
9. Disconnect air mix door motor connector.
10. Remove intake sensor connector from foot duct (right).
11. Remove mounting screws, and then remove foot duct (right).
12. Remove mounting screws, and then remove heater core cover.
RJIA3322E
RJIA3300E
RJIA3308E
RJIA3323E

REFRIGERANT LINES
ATC-141
C
D
E
F
G
H
I
K
L
MA
B
AT C

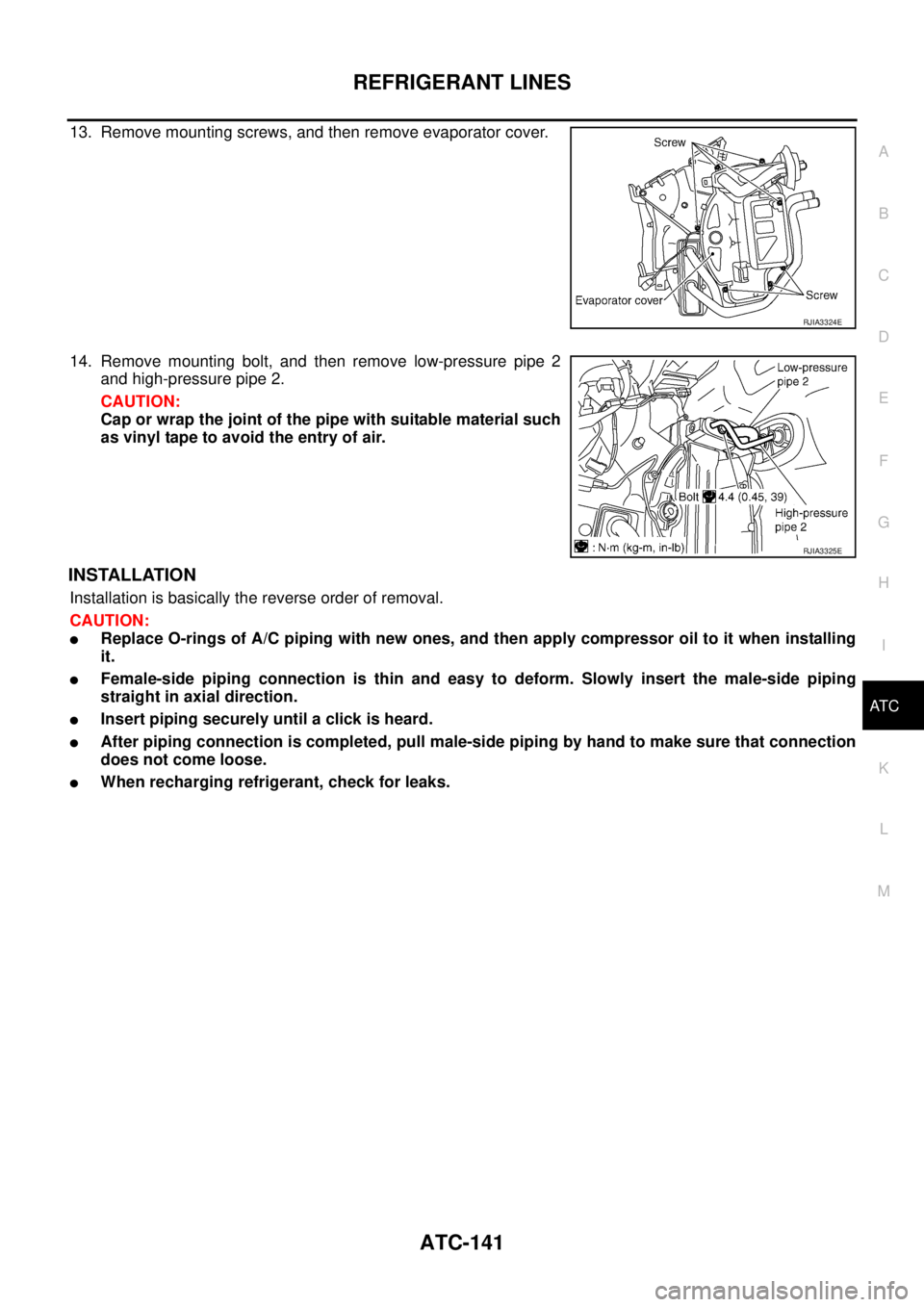

13. Remove mounting screws, and then remove evaporator cover.
14. Remove mounting bolt, and then remove low-pressure pipe 2
and high-pressure pipe 2.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:

Replace O-rings of A/C piping with new ones, and then apply compressor oil to it when installing
it.

Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping
straight in axial direction.

Insert piping securely until a click is heard.

After piping connection is completed, pull male-side piping by hand to make sure that connection
does not come loose.

When recharging refrigerant, check for leaks.
RJIA3324E
RJIA3325E

ATC-142
REFRIGERANT LINES

Removal and Installation of CondenserBJS000HV
REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.
2. Remove air duct (inlet). Refer to EM-17, "
AIR CLEANER AND AIR DUCT" (QR engine) or EM-131, "AIR
CLEANER AND AIR DUCT" (VQ engine).
3. Remove front grille. Refer to EI-20, "
FRONT GRILLE" .
4. Remove battery. Refer to SC-4, "
BATTERY" .
5. Remove mounting bolts, and then remove battery tray.
6. Remove mounting bolt from high-pressure flexible hose and
high-pressure pipe1.
7. Disconnect high-pressure flexible hose and high-pressure pipe
1 from condenser.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
8. Disconnect refrigerant pressure sensor connector.
9. Remove mounting bolts from condenser.
10. Remove condenser bracket.
11. Remove engine room harness clips from radiator core upper
support.
12. Remove engine room harness mounting resin nuts.
13. Remove radiator upper mount.
RJIA2301E
RJIA1853E
RJIA2233E
RJIA3326E
