NISSAN TEANA 2003 Service Manual

INTEGRATED DISPLAY SYSTEM
AV-43
C
D
E
F
G
H
I
J
L
MA
B
AV

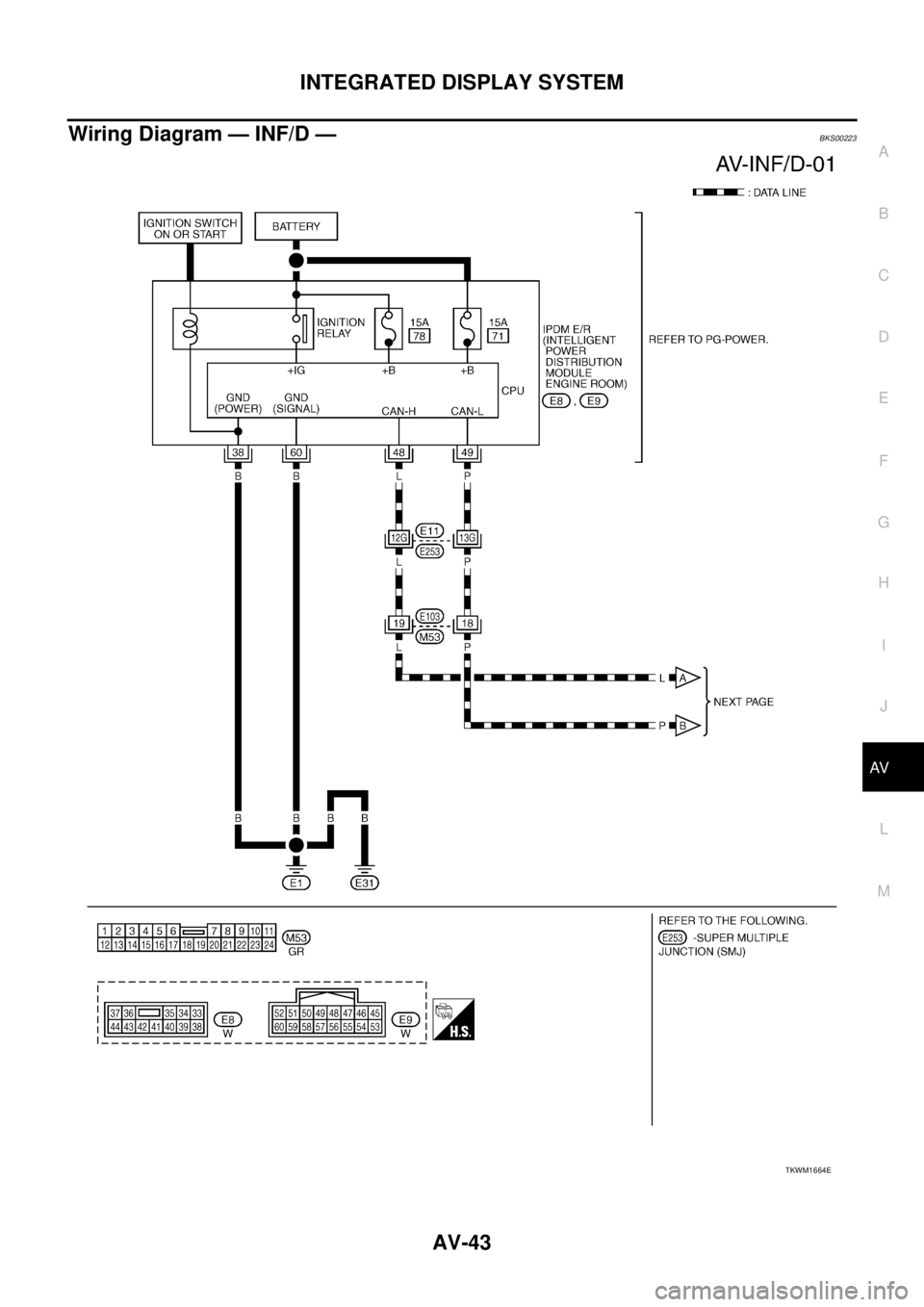

Wiring Diagram — INF/D —BKS00223
TKWM1664E

AV-44
INTEGRATED DISPLAY SYSTEM

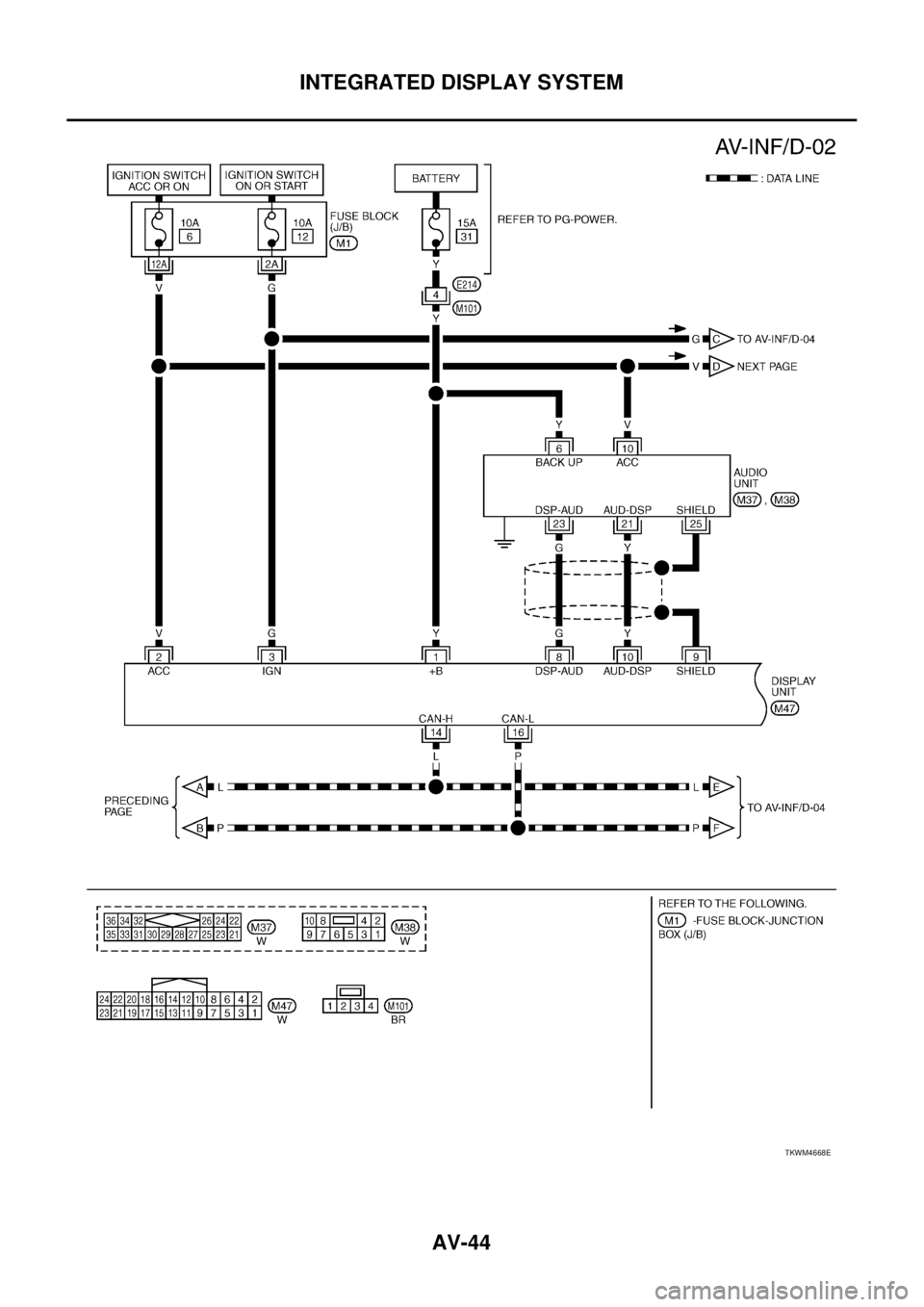

TKWM4668E

INTEGRATED DISPLAY SYSTEM
AV-45
C
D
E
F
G
H
I
J
L
MA
B
AV

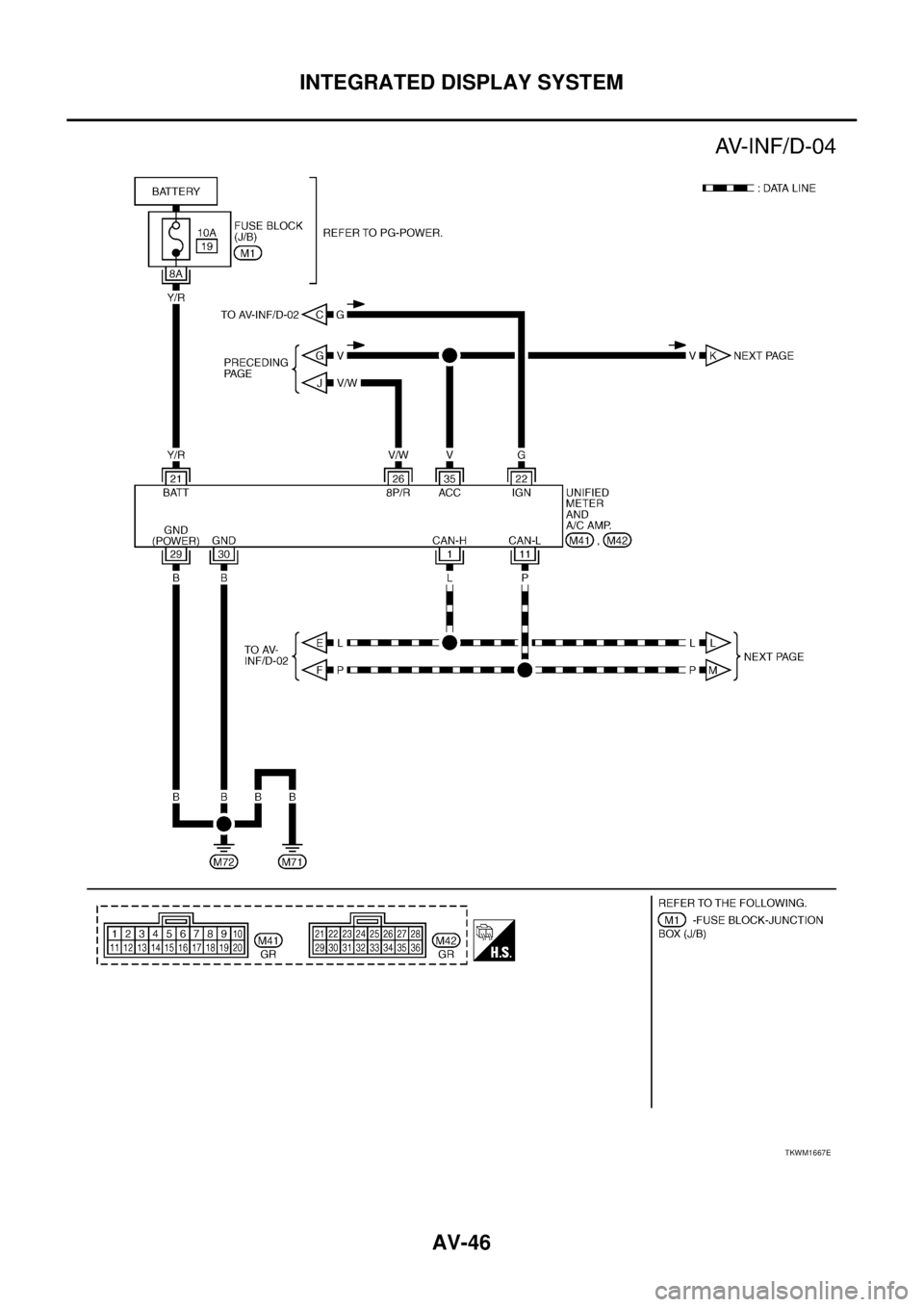

TKWM4669E

AV-46
INTEGRATED DISPLAY SYSTEM

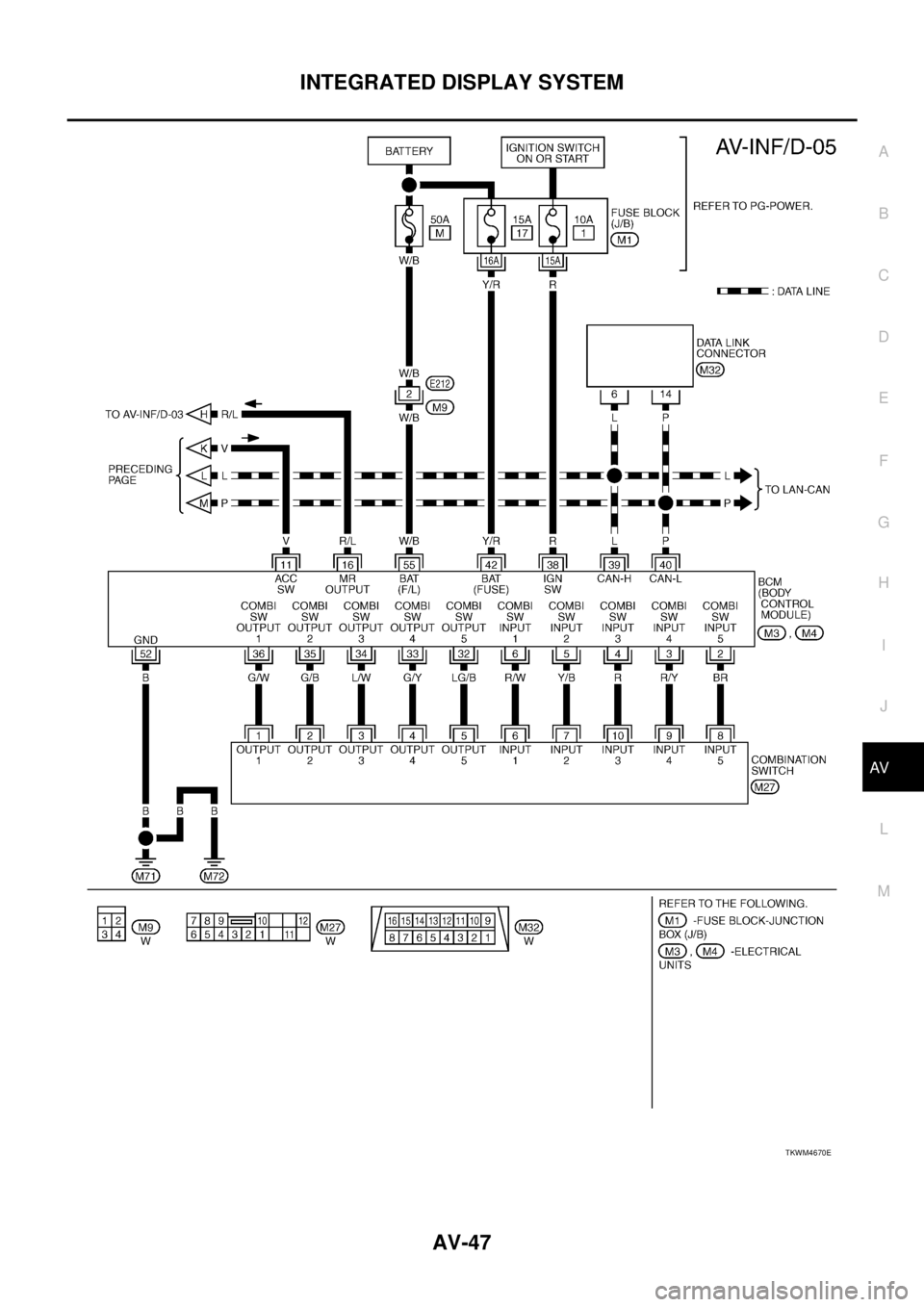

TKWM1667E

INTEGRATED DISPLAY SYSTEM
AV-47
C
D
E
F
G
H
I
J
L
MA
B
AV

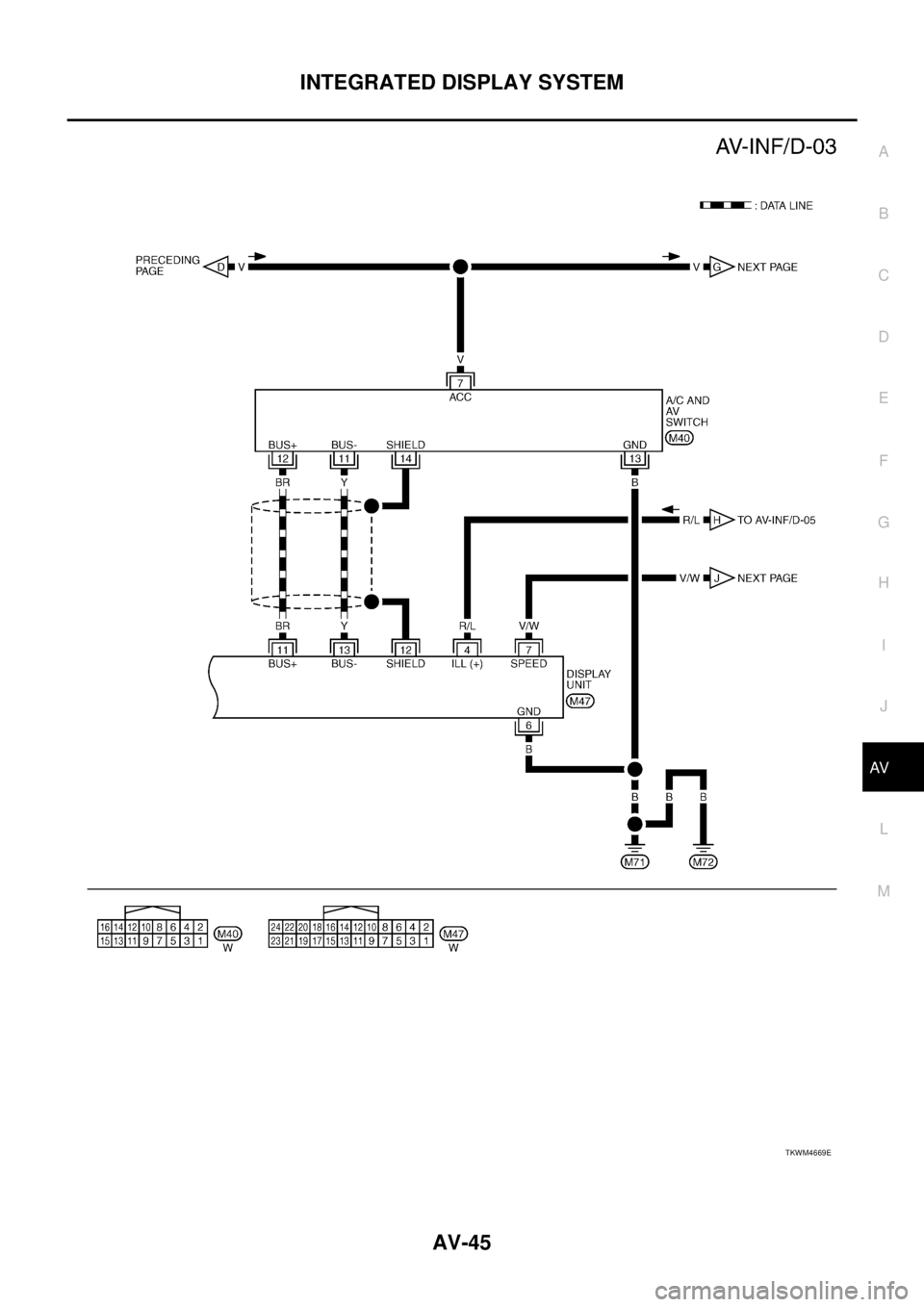

TKWM4670E

AV-48
INTEGRATED DISPLAY SYSTEM

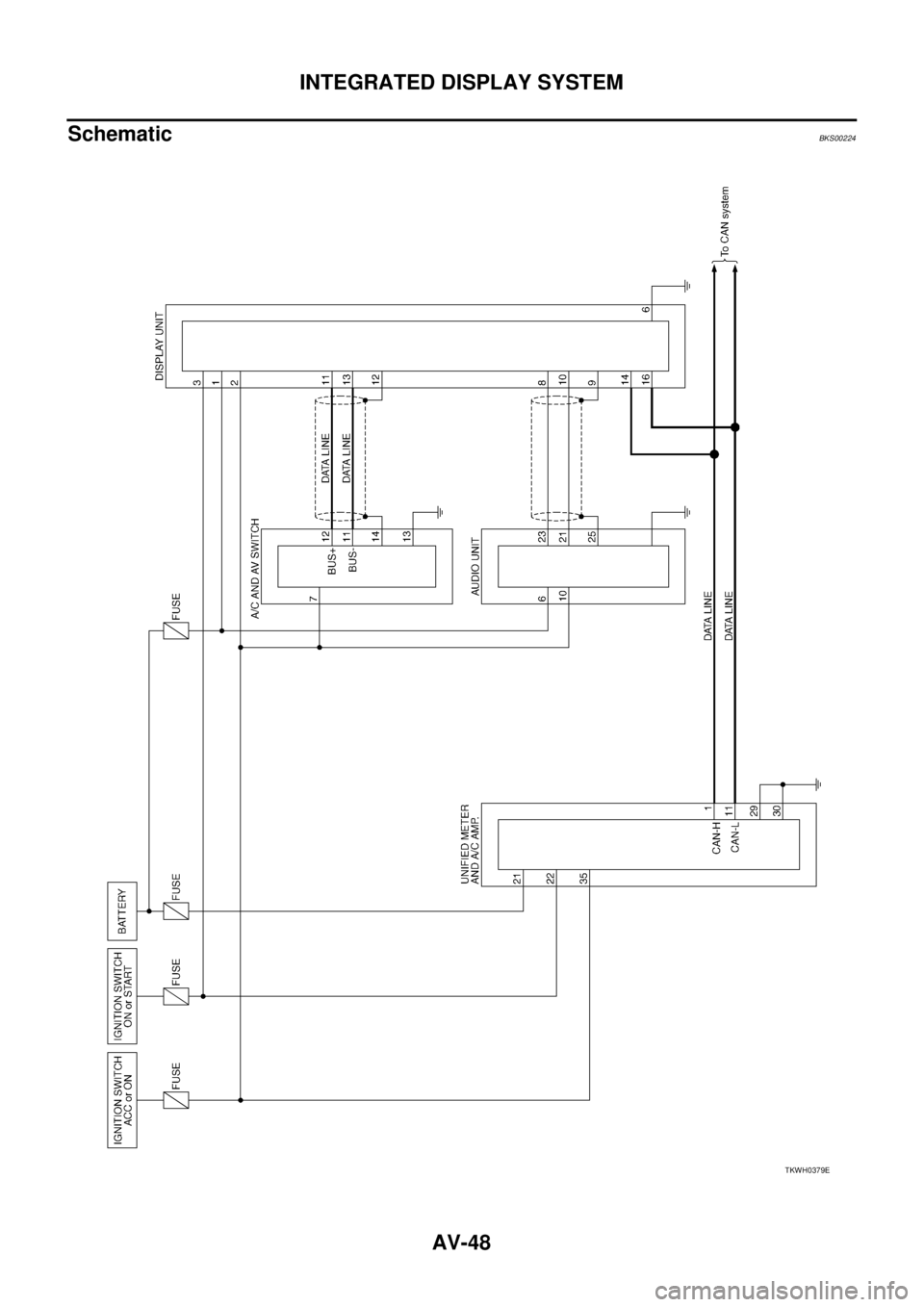

SchematicBKS00224
TKWH0379E

INTEGRATED DISPLAY SYSTEM
AV-49
C
D
E
F
G
H
I
J
L
MA
B
AV

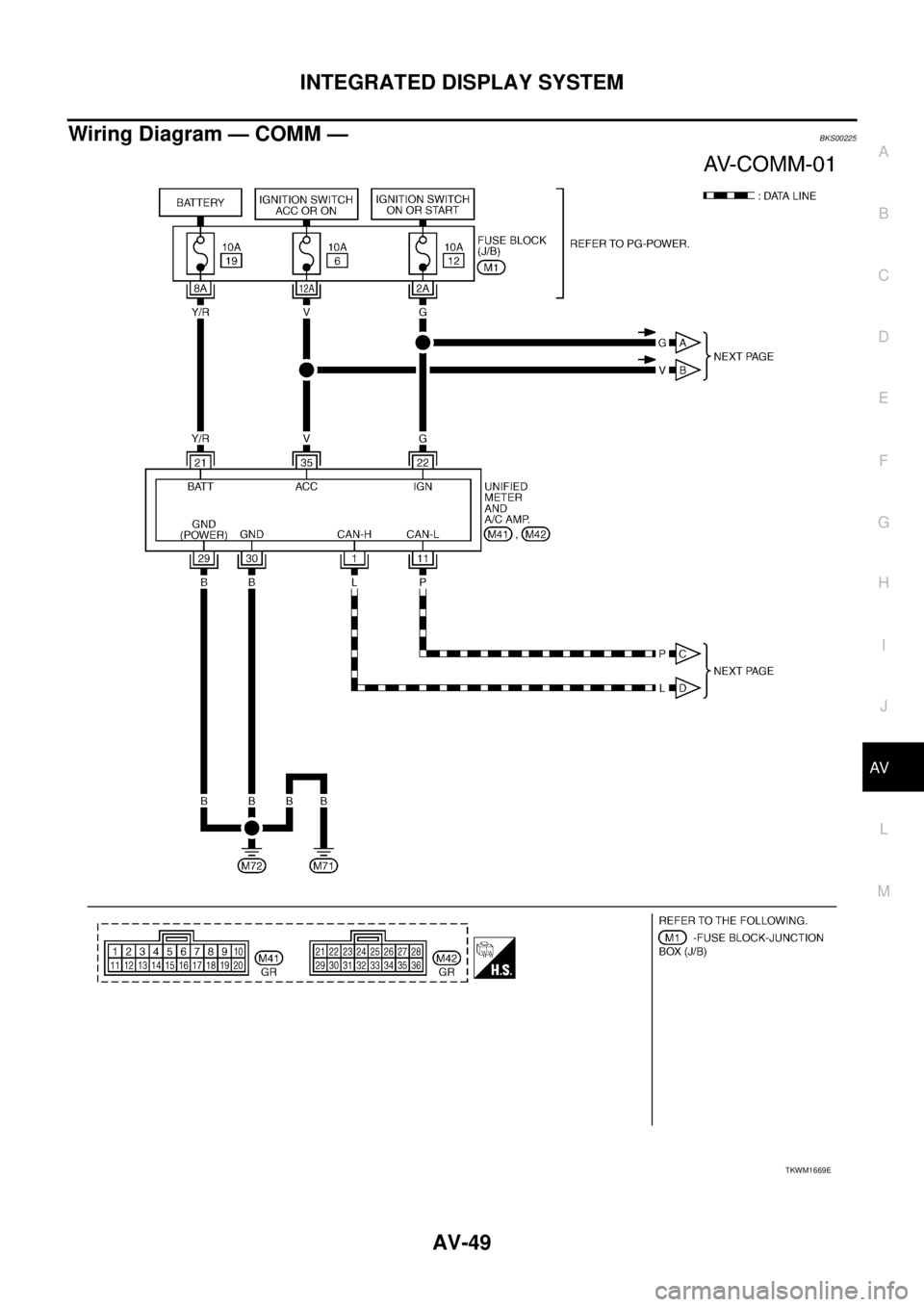

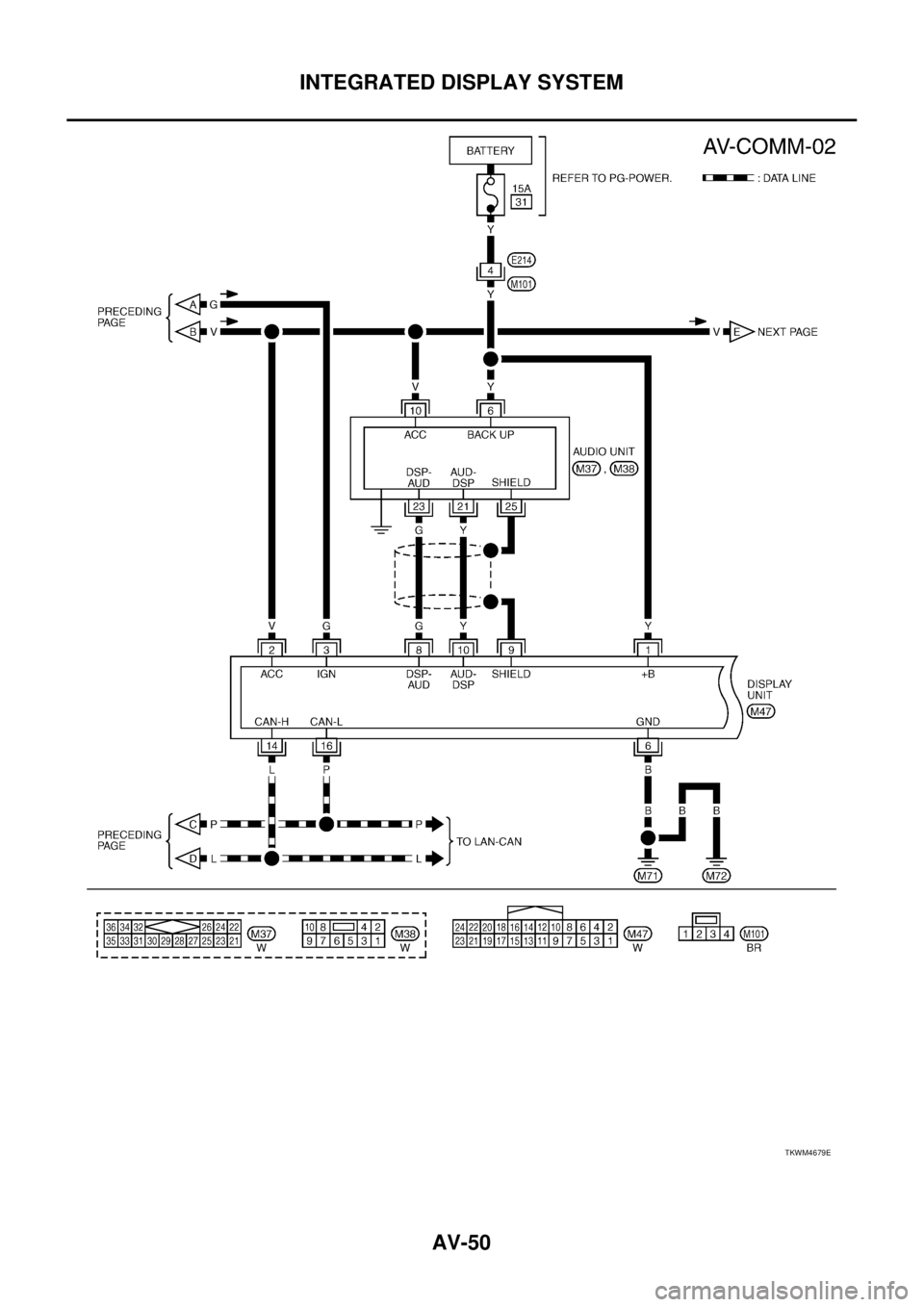

Wiring Diagram — COMM —BKS00225
TKWM1669E

AV-50
INTEGRATED DISPLAY SYSTEM

TKWM4679E

INTEGRATED DISPLAY SYSTEM
AV-51
C
D
E
F
G
H
I
J
L
MA
B
AV

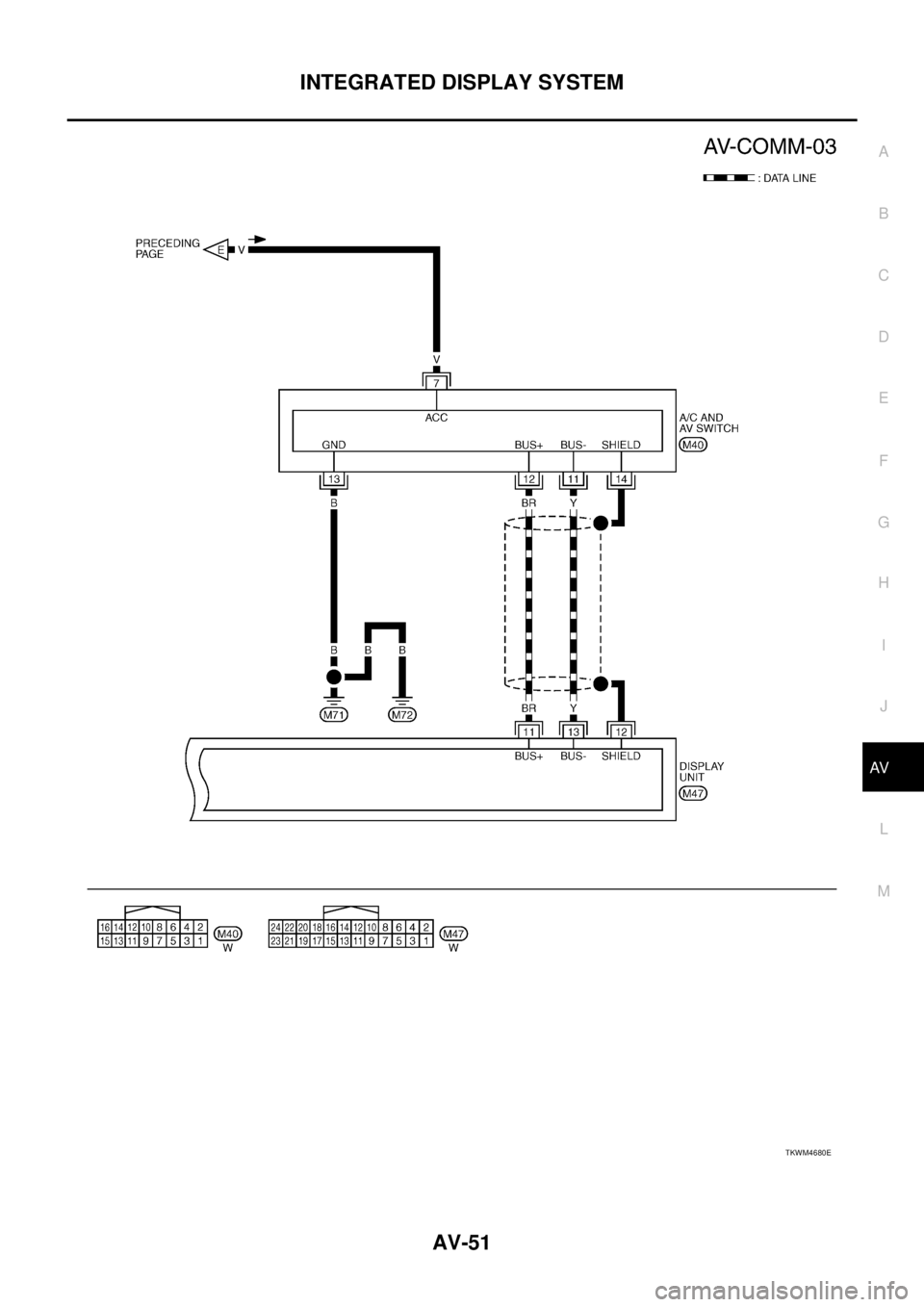

TKWM4680E

AV-52
INTEGRATED DISPLAY SYSTEM

Terminals and Reference Value for Display UnitBKS00226
Te r m i n a l
(Wire color)
ItemSignal
input/
outputCondition
Reference value
+–Ignition
switchOperation
1 (Y) Ground Battery power supply Input OFF — Battery voltage
2 (V) Ground ACC power supply Input ACC — Battery voltage
3 (G) Ground Ignition signal Input ON — Battery voltage
4 (R/L) Ground Illumination signal Input ONLighting switch ON Approx. 12 V
Lighting switch OFF Approx. 0 V
6 (B) Ground Ground — ON — Approx. 0 V
7 (V/W) GroundVehicle speed signal
(8-pulse)Input ONWhen vehicle speed is
approx. 40 km/h (25 MPH)NOTE:
Maximum voltage may be 5 V
due to specifications (connected
units).
8 (G) GroundCommunication signal
(DSP-AUD)Output ONOperate audio volume
switch
9 — Shield — — — —
10 (Y) GroundCommunication signal
(AUD-DSP)Input ONOperate audio volume
switch
11 (BR) GroundCommunication
signal (+)Input/
OutputON —
12 — Shield — — — —
13 (Y) GroundCommunication
signal (–)Input/
OutputON —
14 (L) — CAN-H — — — —
16 (P) — CAN-L — — — —
PKIA1935E
SKIB3607E
SKIB3606E
SKIB7378E
SKIB7379E
