REMOTE KEYLESS ENTRY SYSTEM
BL-53
C
D
E
F
G
H
J
K
L
MA
B
BL

Terminals and Reference Value for BCMBIS000WK
Te r -
minalWire
colorItemSignal
Input/
OutputConditionVoltage (V)
(Approx.)
11 VIgnition switch ACC power supply
(ACC or ON)Input Ignition switch (ACC or ON position) Battery voltage
12 R/LFront door switch
(Passenger side) signalInputFront door
(Passenger side)ON (Open) 0
OFF (Close) Battery voltage
13 R/B Rear door switch RH signal Input Rear door RHON (Open) 0
OFF (Close) Battery voltage
18 PRemote keyless entry receiver
groundInput — 0
19 ORemote keyless entry receiver
power supplyOutput —
20 L/YRemote keyless entry receiver
signalInputWaiting
When signal is received
37 BR Key switch signal Input KeyInserted Battery voltage
Removed 0
38 RIgnition switch ON power supply
(ON or START)InputIgnition switch
(ON or START position)Battery voltage
39 L CAN-HInput/
Output——
40 P CAN-LInput/
Output——
42 Y/R Power source (Fuse) Input — Battery voltage
52 B Ground — — 0
55 W/B Power source (Fusible link) Input — Battery voltage
57 V/WTrunk lid lock assembly
(trunk room lamp switch)Input TrunkON (Open) 0
OFF (Close) Battery voltage
62 SBFront door switch
(Driver side) signalInputFront door
(Driver side)ON (Open) 0
OFF (Close) Battery voltage
63 R/W Rear door switch LH signal Input Rear door LHON (Open) 0
OFF (Close) Battery voltage

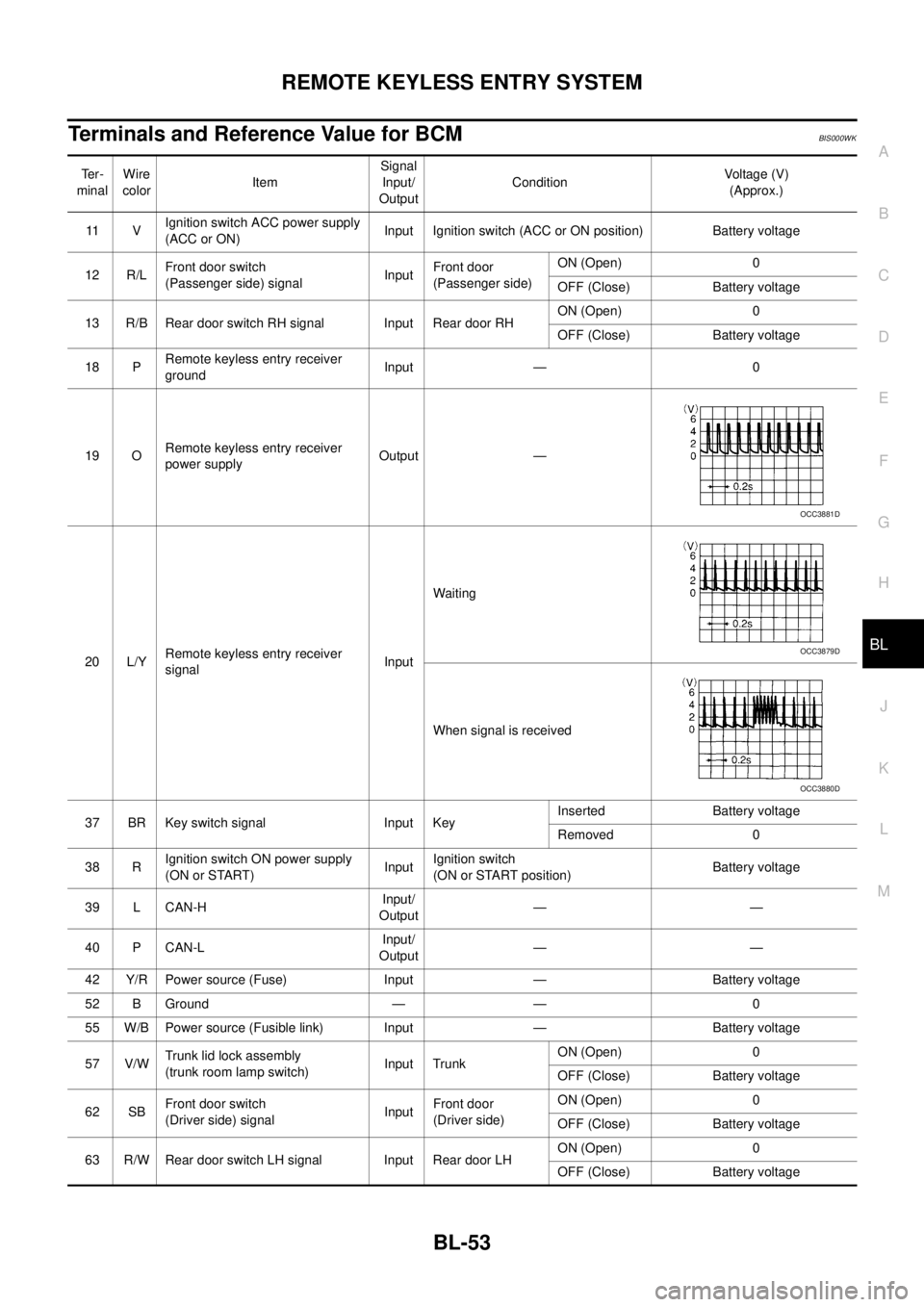

OCC3881D
OCC3879D
OCC3880D

BL-54
REMOTE KEYLESS ENTRY SYSTEM

Terminals and Reference Value for IPDM E/RBIS000WL
CONSULT-II Function (BCM)BIS000WM
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
*: Refer to BCS-14, "CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)" .
CONSULT-II START PROCEDURE
Refer to GI-34, "CONSULT-II Start Procedure" .
CONSULT-II APPLICATION ITEMS
Work Support
Te r m i n a lWire
colorItemSignal
Input/
OutputConditionVoltage (V)
(Approx.)
38 B Ground (Power) — — 0
48 L CAN-HInput/
Output——
49 P CAN-LInput/
Output——
60 B Ground (Signal) — — 0
BCM diagnosis posi-
tionInspection items and diagnosis mode Description
BCM C/U*WORK SUPPORT Change setting of each function.
Self-diagnosis results Carries out the self-diagnosis.
DATA MONITOR Displays the input data to BCM on real-time basis.
CAN DIAGNOSTIC SUPPORT MONITORThe results of transmit/receive diagnosis of CAN communica-
tion can be read.
ACTIVE TEST Gives a drive signal to a load to check the operation.
ECU PART NUMBER Displays BCM parts number.
MULTI REMOTE ENTDATA MONITORDisplays the input remote keyless entry system data to BCM
on real–time basis.
ACTIVE TEST Gives a drive to a load to check the operation.
WORK SUPPORT Changes the setting for each function.
Test Item Description
REMO CONT ID REGIST Key fob ID code can be registed.
REMO CONT ID ERASER Key fob ID code can be erased.
REMO CONT ID CONFIR It can be checked whether key fob ID code is registered or not in this mode.
HAZARD LAMP SETHazard reminder mode can be changed in this mode. The hazard reminder mode will be
changed when “CURRENT SETTING” on CONSULT-II screen is touched.
AUTO LOCK SETAuto locking function mode can be changed in this mode. The function mode will be
changed when “CURRENT SETTING” on CONSULT-II screen is touched.
TRUNK OPENKeyless trunk open operation mode can be changed in this mode. The operation mode will
be changed when “CURRENT SETTING” on CONSULT-II screen is touched.

REMOTE KEYLESS ENTRY SYSTEM
BL-55
C
D
E
F
G
H
J
K
L
MA
B
BL

HAZARD LAMP BACK SET
AUTO LOCK SET
TRUNK OPEN
Data Monitor
Active Test
MODE1 MODE2 MODE3 MODE4
Hazard lamp operation mode Nothing Unlock only Lock only Lock and Unlock
MODE 1 MODE 2 MODE 3
Auto locking function 30 seconds Nothing 1 minutes
MODE 1 MODE 2 MODE 3
Key fob operation 0.5 seconds Nothing 1.5 seconds
Monitored Item Description
IGN ON SW Indicates [ON/OFF] condition of ignition switch in ON position.
KEY ON SW Indicates [ON/OFF] condition of key switch.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
KEYLESS LOCK Indicates [ON/OFF] condition of lock signal from key fob.
KEYLWSS UNLOCK Indicates [ON/OFF] condition of unlock signal from key fob.
KYLS TRNK/HAT Indicates [ON/OFF] condition of trunk open signal from key fob.
KEYLESS PSD This is displayed even when it is not equipped.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch driver side.
DOOR SW-AS Indicates [ON/OFF] condition of front door switch passenger side.
DOOR SW-RR Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL Indicates [ON/OFF] condition of rear door switch LH.
BACK DOOR SW This is displayed even when it is not equipped.
TRNK/HAT MNTR Indicates [ON/OFF] condition of trunk room lamp switch.
CDL LOCK SW Indicates [ON/OFF] condition of lock signal from door lock and unlock switch.
CDL UNLOCK SW Indicates [ON/OFF] condition of unlock signal from door lock and unlock switch.
KEYLESS PANIC Indicates [ON/OFF] condition of panic alarm signal from key fob.
Test Item Description
INT LAMPThis test is able to check interior room lamp operation.
The interior room lamp turns on when “ON” on CONSULT-II screen is touched.
FLASHERThis test is able to check right hazard reminder operation.
The right hazard lamp turns on when “ON” on CONSULT-II screen is touched.
DOOR LOCKThis test is able to check door lock actuator operation.

The all door lock actuator are locked when “ALL LOCK” on CONSULT-II screen is touched.

The all door lock actuator are unlocked when “ALL UNLOCK” on CONSULT-II screen is touched.
TRUNK/BACK DOORThis test is able to check trunk open operations.
The trunk lid opener operates when “ON” on CONSULT-II screen is touched.
POWER SLIDE DOOR This is displayed even when it is not equipped.

BL-56
REMOTE KEYLESS ENTRY SYSTEM

Work FlowBIS000WN
1. Check the symptom and customer's requests.
2. Understand outline of system. Refer to BL-46, "
System Description" .
3. Confirm that power door lock system operates normally.
Refer to BL-21, "
POWER DOOR LOCK SYSTEM" .
4. Repair or replace any malfunctioning parts.
Refer to BL-56, "
Trouble Diagnosis Symptom Chart" .
5. Does remote keyless entry system operate normally? If Yes, GO TO 6. If No, GO TO 4.
6. INSPECTION END
Trouble Diagnosis Symptom ChartBIS000WO
NOTE:

Always check the “Work Flow” before troubleshooting. Refer to BL-56, "Work Flow" .

Always check key fob battery before replacing key fob.
Symptom Diagnoses/service procedureReference
page
All function of remote keyless entry system do not
operate.1. Check key fob battery and function.BL-57
2. Replace key fob. Refer to ID Code Entry Procedure.
NOTE:
If the result of key fob function check with CONSULT-II is OK, key
fob is not malfunctioning.BL-64
3. Replace BCM.BCS-16
The new ID of key fob cannot be entered.1. Check key fob battery and function.BL-57
2. Check key switch.BL-63
3. Check door switch.BL-59
4. Check ACC switch.BL-58
5. Replace key fob. Refer to ID Code Entry Procedure.
NOTE:
If the result of key fob function check with CONSULT-II is OK, key
fob is not malfunctioning.BL-64
6. Replace BCM.BCS-16
Door lock or unlock does not function with key fob.
(Power door lock system is “OK”.)1. Check key fob battery and function.BL-57
2. Replace key fob. Refer to ID Code Entry Procedure.
NOTE:
If the result of key fob function check with CONSULT-II is OK, key
fob is not malfunctioning.BL-64
3. Replace BCM.BCS-16
Hazard reminder does not activate properly when
pressing lock or unlock button of key fob.1. Check hazard reminder mode.*
*: Hazard reminder mode can be changed.
First check the hazard reminder setting.BL-54
2. Check hazard function.BL-64
3. Replace BCM.BCS-16
Auto door lock operation does not activate properly.
(All other remote keyless entry system function is
OK.)1. Check auto door lock operation mode.*
*: Auto door lock operation mode can be changed.
First check the auto door lock operation setting.BL-54
2. Replace BCM.BCS-16
Map lamp and ignition keyhole illumination opera-
tion does not activate properly.1. Check map lamp and ignition keyhole illumination operation.BL-64
2. Replace BCM.BCS-16

REMOTE KEYLESS ENTRY SYSTEM
BL-57
C
D
E
F
G
H
J
K
L
MA
B
BL

Check Key Fob Battery and FunctionBIS000WP
1. CHECK KEY FOB BATTERY
1. Remove key fob battery. Refer to BL-67, "
Key Fob Battery Replacement" .
2. Measure voltage between battery positive and negative termi-
nals, (+) and (−).
NOTE:
Key fob does not function if battery is not set correctly.
OK or NG
OK >> GO TO 2.
NG >> Replace battery.
2. CHECK KEY FOB FUNCTION
With CONSULT-II
Check key fob function in “DATA MONITOR” mode with CONSULT-II. When pushing each button of key fob,
the corresponding monitor item should be turned as follows.
OK or NG
OK >> Key fob is OK.
NG >> Replace key fob.Voltage : 2.5 – 3.0V
SEL237W
Condition Monitor item
Pushing LOCK KEYLESS LOCK : ON
Pushing UNLOCK KEYLESS UNLOCK : ON
Pushing PANIC KEYLESS PANIC : ON
PIIB0595E

BL-58
REMOTE KEYLESS ENTRY SYSTEM

Check ACC SwitchBIS000WQ
1. CHECK ACC SWITCH
With CONSULT-II
Check ACC switch (“ACC ON SW”) in “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
Check voltage between BCM connector and ground.
OK or NG
OK >> ACC switch is OK.
NG >> Check the following.

10A fuse [No. 6, located in fuse block (J/B)]

Harness for open or short between BCM and fuse.
Monitor item Condition
ACC ON SWIgnition switch position is ACC or ON : ON
Ignition switch position is OFF : OFF
PIIA3367E
ConnectorTerminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
M3 11 (V) GroundACC or ON Battery voltage
OFF 0
PIIA7002E

REMOTE KEYLESS ENTRY SYSTEM
BL-59
C
D
E
F
G
H
J
K
L
MA
B
BL

Check Door SwitchBIS000WR
CHECK DOOR SWITCH (EXCEPT TRUNK ROOM LAMP SWITCH)
1. CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II
Check door switches (“DOOR SW-DR”, “DOOR SW-AS”, “DOOR SW-RL” and “DOOR SW-RR”) in “DATA
MONITOR” mode with CONSULT-II.
Without CONSULT-II
Check voltage between BCM connector and ground.
OK or NG
OK >> Door switch circuit is OK.
NG >> GO TO 2.
Monitor item Condition
DOOR SW-DR
CLOSE → OPEN: OFF → ON DOOR SW-AS
DOOR SW-RL
DOOR SW-RR
PIIA6469E
Item ConnectorTerminals
(Wire color)Door
conditionVoltage (V)
(Approx.)
(+) (-)
Driver side
M562 (SB)
GroundCLOSE
↓
OPENBattery voltage
↓
0 Rear LH 63 (R/W)
Passenger side
M312 (R/L)
Rear RH 13 (R/B)
PIIA7003E

BL-60
REMOTE KEYLESS ENTRY SYSTEM

2. CHECK DOOR SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door switch and BCM connector.
3. Check continuity between door switch connector B10, B14,
B209, B213 terminals 2 and BCM connector M3, M5 terminals
12, 13, 62, 63.
4. Check continuity between door switch connector B10, B14,
B209, B213 terminal 2 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK DOOR SWITCH
Check continuity between door switch terminal 2 and ground part of door switch.
OK or NG
OK >> GO TO 4.
NG >> Replace door switch.Driver side door
2 (SB) – 62 (SB) : Continuity should exist.
Passenger side door
2 (R/L) – 12 (R/L) : Continuity should exist.
Rear door LH
2 (R/W) – 63 (R/W) : Continuity should exist.
Rear door RH
2 (R/B) – 13 (R/B) : Continuity should exist.
2 (SB, R/L, R/W, or R/B) –
Ground: Continuity should not exist.
PIIB1222E
Terminal Door switch condition Continuity
2 Ground part of door switchPushed No
Released Yes
PIIB1223E

REMOTE KEYLESS ENTRY SYSTEM
BL-61
C
D
E
F
G
H
J
K
L
MA
B
BL

4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Check voltage between BCM connector M3, M5 terminals 12,
13, 62, 63 and ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace BCM.
CHECK TRUNK ROOM LAMP SWITCH
1. CHECK TRUNK ROOM LAMP SWITCH INPUT SIGNAL
With CONSULT-II
Check trunk room lamp switch (“TRNK/HAT MNTR”) “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
Check voltage between BCM connector and ground.
OK or NG
OK >> Trunk room lamp switch circuit is OK.
NG >> GO TO 2.12 (R/L) – Ground : Battery voltage
13 (R/B) – Ground : Battery voltage
62 (SB) – Ground : Battery voltage
63 (R/W) – Ground : Battery voltage
PIIA7003E
Monitor item Condition Indication
TRNK/HAT MNTR TRUNK : OPEN ON
: CLOSE OFF
PIIB0818E
ConnectorTerminal (Wire color)
Back door
conditionVoltage (V)
(Approx.)
(+) (-)
M5 57 (V/W) GroundCLOSE
↓
OPENBattery voltage
↓
0
PIIB0541E

BL-62
REMOTE KEYLESS ENTRY SYSTEM

2. CHECK TRUNK ROOM LAMP SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM and trunk room lamp connector.
3. Check continuity between BCM connector M5 terminal 57 and
trunk room lamp connector T7 terminal 3.
4. Check continuity between BCM connector M5 terminals 57 and
ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK TRUNK ROOM LAMP GROUND CIRCUIT SWITCH
Check continuity between trunk room lamp connector T7 terminal 1
and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Check voltage between BCM connector M5 terminal 57 and
ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace BCM.57 (V/W) – 3 (V/W) : Continuity should exist.
57 (V/W) – Ground : Continuity should not exist.
PIIB8750E
1 (B) – Ground : Continuity should exist.
PIIB8751E
57 (V/W) – Ground : Battery voltage
PIIB0541E
