NISSAN TEANA 2003 Service Manual

REMOTE KEYLESS ENTRY SYSTEM
BL-63
C
D
E
F
G
H
J
K
L
MA
B
BL

Check Key SwitchBIS000WS
1. CHECK KEY SWITCH INPUT SIGNAL
With CONSULT-II
Check ignition key switch “KEY ON SW” in “DATA MONITOR” mode with CONSULT-II.

When key is inserted in ignition key cylinder

When key is removed from ignition key cylinder
Without CONSULT-II
Check voltage between BCM connector and ground.
OK or NG
OK >> Key switch circuit is OK.
NG >> GO TO 2.
2. CHECK KEY SWITCH
1. Turn ignition switch OFF.
2. Disconnect key switch and key lock solenoid connector.
3. Check continuity between key switch and key lock solenoid terminal 1 and 4.
OK or NG
OK >> Check the following.

15A fuse [No. 17, located in fuse block (J/B)]

Harness for open or short between key switch and
key lock solenoid and fuse

Harness for open or short between BCM and key
switch and key lock solenoid
NG >> Replace key switch.KEY ON SW : ON
KEY ON SW : OFF
PIIA6470E
ConnectorTerminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
M3 37 (B/R) Ground KeyInserted Battery voltage
Removed 0
PIIA6378E
Terminal condition Continuity
14KeyInserted Yes
Removed No
PIIB0522E

BL-64
REMOTE KEYLESS ENTRY SYSTEM

Check Hazard FunctionBIS000WT
1. CHECK HAZARD WARNING LAMP
Does hazard warning lamp flash with hazard switch?
OK or NG
OK >> Hazard warning lamp circuit is OK.
NG >> Check hazard circuit. Refer to LT- 1 5 2 , "
TURN SIGNAL AND HAZARD WARNING LAMPS" .
Check Map Lamp and Ignition Keyhole Illumination FunctionBIS000WV
1. CHECK MAP LAMP AND IGNITION KEYHOLE ILLUMINATION FUNCTION
When map lamp switch is in “DOOR” position, open the front door (LH or RH).
Map lamp and ignition keyhole illumination should illuminate?
YES >> Replace BCM.
NO >> Check map lamp or ignition keyhole illumination circuit. Refer to LT- 2 1 9 , "
INTERIOR ROOM
LAMP" .
ID Code Entry ProcedureBIS000WW
KEY FOB ID SET UP WITH CONSULT-II
NOTE:

If a key fob is lost, the ID code of the lost key fob must be erased to prevent unauthorized use. A
specific ID code can be erased with CONSULT-II. However, when the ID code of a lost key fob is not
known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all
remaining and/or new key fobs must be re-registered.

When registering an additional key fob, the existing ID codes in memory may or may not be
erased. If five ID codes are stored in memory, when an additional code is registered, only the old-
est code is erased. If less than five ID codes are stored in memory, when an additional ID code is
registered, the new ID code is added and no ID codes are erased.

Entry of maximum five ID codes is allowed. When more than six ID codes are entered, the oldest ID
code will be erased.

Even if same ID code that is already in the memory is input, the same ID code can be entered. The
code is counted as an additional code.
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Turn ignition switch “OFF”.
2. Connect “CONSULT-II” and “CONSULT-II CONVERTER” to the
data link connector.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL)”.
PBIB2120E
BCIA0029E

REMOTE KEYLESS ENTRY SYSTEM
BL-65
C
D
E
F
G
H
J
K
L
MA
B
BL

5. Touch "BCM" on "SELECT SYSTEM" screen.
6. Touch “MULTI REMOTE ENT”.
7. Touch “WORK SUPPORT”.
8. The items are shown on the figure can be set up.

“REMO CONT ID CONFIR”
Use this mode to confirm if a key fob ID code is registered or
not.

“REMO CONT ID REGIST”
Use this mode to register a key fob ID code.
NOTE:
Register the ID code when key fob or BCM is replaced, or
when additional key fob is required.

“REMO CONT ID ERASUR”
Use this mode to erase a key fob ID code.
BCIA0030E
PIIB0596E
BCIA0031E
LIIA0207E

BL-66
REMOTE KEYLESS ENTRY SYSTEM

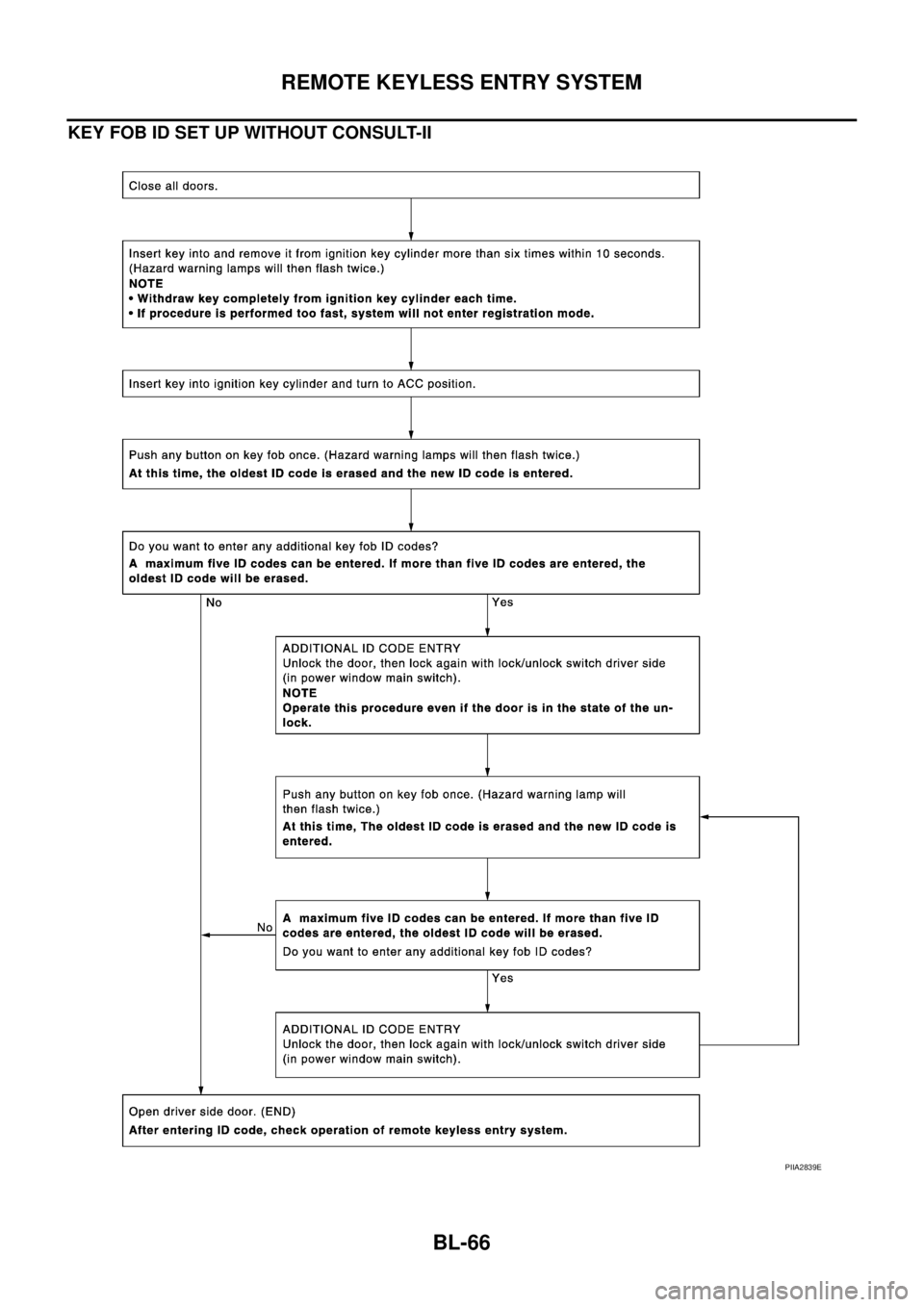

KEY FOB ID SET UP WITHOUT CONSULT-II
PIIA2839E

REMOTE KEYLESS ENTRY SYSTEM
BL-67
C
D
E
F
G
H
J
K
L
MA
B
BL

NOTE:

If a key fob is lost, the ID code of the lost key fob must be erased to prevent unauthorized use. A specific
ID code can be erased with CONSULT-II. However, when the ID code of a lost key fob is not known, all
controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or
new key fobs must be re-registered.
To erase all ID codes in memory, register one ID code (key fob) five times. After all ID codes are erased,
the ID codes of all remaining and/or new key fobs must be re-registered.

When registering an additional key fob, the existing ID codes in memory may or may not be erased. If five
ID codes are stored in memory, when an additional code is registered, only the oldest code is erased. If
less than five ID codes are stored in memory, when an additional ID code is registered, the new ID code is
added and no ID codes are erased.

If you need to activate more than two additional new key fobs, repeat the procedure “Additional ID code
entry” for each new key fob.

Entry of maximum five ID codes is allowed. When more than six ID codes are entered, the oldest ID code
will be erased.

Even if same ID code that is already in the memory is input, the same ID code can be entered. The code
is counted as an additional code.
Key Fob Battery ReplacementBIS000WX
PIIB8752E

BL-68
INTELLIGENT KEY SYSTEM

INTELLIGENT KEY SYSTEMPFP:285e2
Component Parts and Harness Connector LocationBIS000WY
1. BCM
M3, M4, M52. IPDM E/R
E8,E93. A: Steering lock unit M21
B: Ignition knob switch, key switch
and key lock solenoid M20
4. Front door lock assembly (driver
side) (door unlock sensor) D245. Trunk lid lock assembly (trunk room
lamp switch) T76. Front door switch (driver side) B10
7. Rear door switch LH B14 8. Intelligent Key unit M31
(View with glove box removed)
PIIB8791E

INTELLIGENT KEY SYSTEM
BL-69
C
D
E
F
G
H
J
K
L
MA
B
BL

9. Antenna
10. Outside key antenna and front
door request switch (driver side)
D2511. Trunk open request switch
T212. Intelligent Key warning buzzer
(driver side) D22
(View with inside of driver door)
13. Intelligent Key warning buzzer
(Trunk room) B222
(View with trunk room RH)14. Unified meter and A/C AMP.
M41, M42
(View with A/C & AV switch removed)
PIIB8792E

BL-70
INTELLIGENT KEY SYSTEM

System DescriptionBIS000WZ

The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock
function) and start the engine (engine start function) by carrying around the Intelligent Key, which operates
based on the results of electrical key-ID verification using two-way communications between the Intelli-
gent Key and the vehicle

Operation of the remote control buttons on the Intelligent Key also provides the same functions as the
remote keyless entry system. (Remote keyless entry functions)

As an ignition key warning function, when a door lock is locked or unlocked with request switch or remote
controller button operation, the hazard lamps flash and the Intelligent Key warning buzzer sounds.

Even if the Intelligent Key battery runs down, the door locks can be locked and unlocked and the engine
started with the mechanical key built into the Intelligent Key.

If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can
be registered.

It has been made possible to diagnose the system, change the function setting and register an Intelligent
Key with the CONSULT-II.
DOOR LOCK/UNLOCK, TRUNK OPEN FUNCTION
Operation Description

When the driver door, passenger door, or trunk open request switch is pressed, Intelligent Key unit sends
a request signal from the outside key antenna corresponding to the pressed request switch, key-ID verifi-
cation is performed using two-way communication with Intelligent Key, and if ID is successfully verified, a
door lock/unlock request signal is sent to BCM using CAN communication to lock/unlock the door lock.

When door is locking, door is unlocked, when door is unlocking, door is locked.

When door lock is locked/unlocked by door request switch operation, hazard lamps flash and Intelligent
Key warning buzzer sounds.

With the locking operation of door request switch, door lock actuators of all door are locked.

When trunk open request switch is pushed, trunk lid is opened.
Operation Condition
Auto Door Lock Function
After the door request switch in the driver or passenger door is operated and the vehicle door locks are
unlocked, all the doors are automatically locked unless the mechanical key is inserted into the ignition knob,
the ignition knob is pressed, any door request switch is pressed, any one of the doors is opened, or an Intelli-
gent Key remote control button is operated within 2 minutes.
Hazard Reminder Function
The hazard lamps are flashed when the door lock is locked or unlocked by door request switch operation.
When ignition switch ON or any door is opened, key reminder function is not operate.
Request switch operation Operating conditions
Request switch (Driver side) When all the conditions below are met

All doors are closed (for lock operation)

Remove mechanical key from ignition key cylinder (key switch: OFF)

Ignition knob is not press (ignition knob switch: OFF)

The Intelligent Key is in the outside key antenna detection area for the door for which
the door request switch was operated. Request switch (passenger side)
Request switch (trunk lid)When all the conditions below are met

The Intelligent Key is in the antenna detection area for the outside key antenna (rear
bumper).

When the Intelligent Key is detection for the Inside Key antenna, but another Intelli-
gent Key is detected for the outside key antenna.
Vehicle operation Hazard lamp
Door unlock operation Twice
Door lock operationOnce

INTELLIGENT KEY SYSTEM
BL-71
C
D
E
F
G
H
J
K
L
MA
B
BL

Intelligent Key Lock-in Prevention Function
When Intelligent Key is in vehicle, a door is open, and doors are locked using door lock and unlock switch,
driver door lock knob, Intelligent Key unit sends door unlock request signal to BCM via CAN communication to
unlock all doors to prevent Intelligent Key from becoming locked in vehicle.
When Intelligent Key is in trunk room, all doors are lock and trunk lid is closed, Intelligent Key unit sends trunk
open signal to BCM. Then BCM open trunk lid and warning buzzer sounds for 10 seconds.
CAUTION:
The above function operates when the Intelligent Key is inside the vehicle. However, there may be
times when Intelligent Key cannot be detected and this function will not operate when Intelligent Key
is on the instrument panel, rear parcel shelf, or in the glove box. Also, this system some times does
not operate if the Intelligent Key is in the door pocket for the open door.
List of Operation Related Parts
Parts marked with × are the parts related to operation.
REMOTE KEYLESS ENTRY FUNCTIONS
Door Lock/Unlock Function

Operating a remote controller button on the Intelligent Key sends the Intelligent Key-ID to the Intelligent
Key unit. Intelligent Key unit conducts a verification of the received key-ID, and if the verification is
accepted, a door lock or door unlock request signal is sent to BCM via CAN communication to lock/unlock
the door lock.

When door lock/unlock is performed using Intelligent Key remote controller button operation, operation
confirmation is conducted by making hazard lamps flash and Intelligent Key warning buzzer sound.
Trunk Open Function

Operating a remote controller button on the Intelligent Key sends the Intelligent Key-ID to the Intelligent
Key unit.

Intelligent Key unit conducts a verification of the received key-ID, and if the verification is accepted, a
trunk open request signal is sent to BCM via CAN communication trunk lid is opened.
Operation Condition
Door lock/trunk open function
Intelligent Key
Key switch
Ignition knob switch
Door unlock sensor
Trunk room lamp switch
Door request switch
Trunk opener request switch
Door lock actuator
Trunk lid opener actuator
Inside key antenna
Outside key antenna (Driver, Passenger)
Outside key antenna (rear bumper)
Intelligent Key unit
CAN communication system
BCM
Combination meter
Hazard warning lamp
Door lock function by the request switch××××××××××××
Door lock function by the mechanical key××
Trunk open function by the trunk opener switch× × × ×× ××××
Hazard reminder function×××××
Remote controller button operation Operating condition
Lock

All doors are closed. (for lock operation)

Remove mechanical key from ignition key cylinder (key switch: OFF)

Ignition knob is not press (ignition knob switch: OFF)

BL-72
INTELLIGENT KEY SYSTEM

Hazard Reminder Function
The hazard lamps are flashed when the door lock is locked or unlocked by remote controller button.
When ignition switch ON or any door is opened, key reminder function is not operate.
List of Operation Related Parts
Parts marked with × are the parts related to operation.
ENGINE START FUNCTION
Operation Description

When ignition knob is pressed, Intelligent Key unit sends request signal from inside key antenna, key-ID
verification is performed with Intelligent Key using two-way communication, and if verification is success-
ful, an ignition rotation prohibition latch release signal is sent to steering lock unit. Steering lock unit
releases ignition knob rotation prohibition latch. (Ignition knob can now be turned.)

When it becomes possible to rotate the ignition knob, “KEY” warning lamp in combination meter lights up
green to notify driver that ignition knob can be turned.
NOTE:
When it becomes impossible to rotate the ignition knob, “KEY” warning lamp in combination meter lights
up red.

When key-ID verification is successful, Intelligent Key unit uses CAN communication to send engine start
permission signal to BCM.

When BCM receives engine start permission signal, it uses CAN communication to sent starter request
signal to IPDM E/R so that the engine will start when ignition knob is rotated to START position.
Operation Range
Engine can be started when Intelligent Key is in the vehicle. However, sometimes engine might not start when
Intelligent Key is on instrument panel, rear parcel shelf, trunk room or in glove box.
Unlock
Remove mechanical key from ignition key cylinder (key switch: OFF)

Ignition knob is not press (ignition knob switch: OFF)
Trunk open

Remove mechanical key from ignition key cylinder (key switch: OFF)

Ignition knob is not press (ignition knob switch: OFF)

When trunk button pressed more than 0.5 seconds Remote controller button operation Operating condition
Vehicle operation Hazard lamp
Door unlocking operation Twice
Door locking operation Once
Remote keyless entry functions
Intelligent Key
Key switch
Ignition knob switch
Door unlock sensor
Door switch
Trunk room lamp switch
Door lock actuator
Trunk lid opener actuator
Intelligent Key unit
CAN communication system
BCM
Combination meter
Hazard warning lamp
Door lock function by the remote control button××××× × ×××
Trunk open function by the remote control button××× × ××××
Hazard reminder function (Door lock)×××××
