NISSAN TEANA 2003 Service Manual

TROUBLE DIAGNOSIS
BRC-51
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

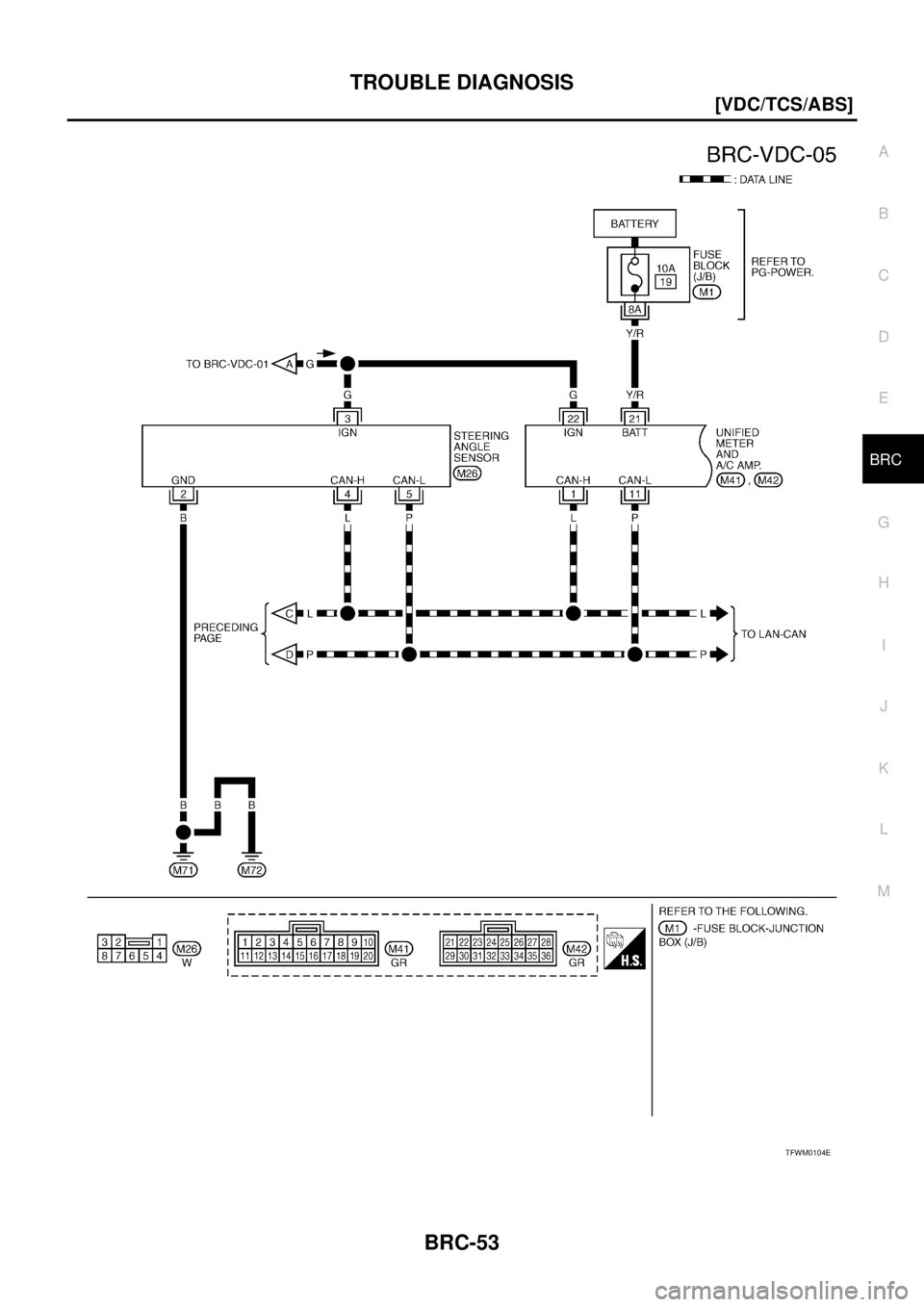

TFWM0253E

BRC-52
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS

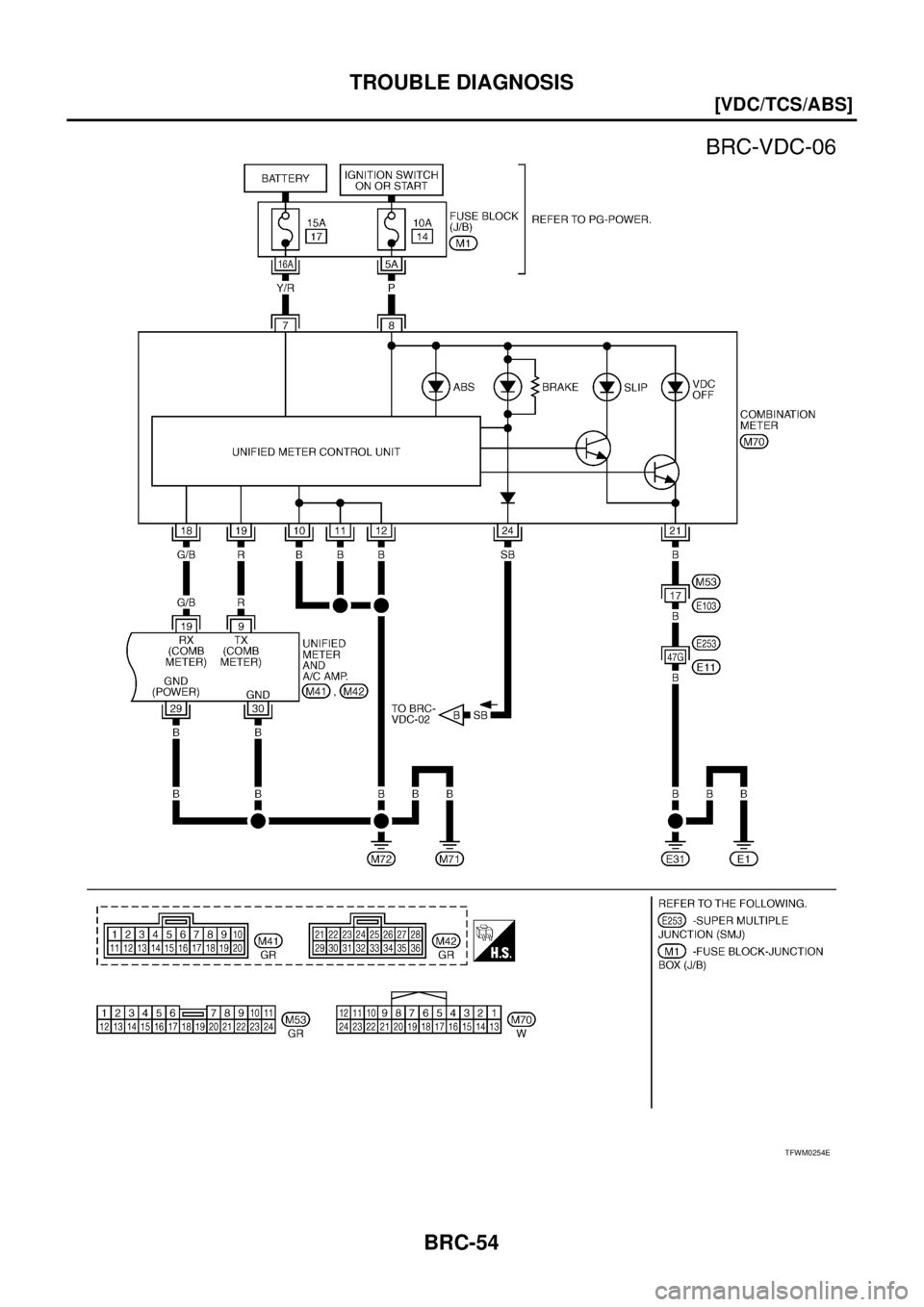

TFWM0103E

TROUBLE DIAGNOSIS
BRC-53
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

TFWM0104E

BRC-54
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS

TFWM0254E

TROUBLE DIAGNOSIS
BRC-55
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

Control Unit Input/Output Signal SpecificationsBFS000E1
REFERENCE VALUE FROM CONSULT-II
CAUTION:
The monitor displays the control unit calculation data. The normal values will be displayed even in the
event that the output circuit (harness) is open or shorted.
Monitor item Display itemDATA MONITOR
ConditionReference values for
normal operation
WHEEL SENSORVehicle speed calculated using sig-
nals from all four wheel sensorsVehicle stopped 0 [km/h (MPH)]
Vehicle running (Note 1)Almost in accordance
with speedometer dis-
play (within ± 10 %)
DECEL G SENSOR Decel G detected by decel G sensorWhen stopped -0.11 to +0.11 G
During acceleration Negative value
During deceleration Positive value
IN ABS S/V
OUT ABS S/VOperation condition of all solenoid
valvesWhen the actuator solenoid operates ON
When the actuator relay operates and
the actuator solenoid does not operateOFF
EBD WARN LAMP
(Note 2)Brake warning lamp ON/OFF condi-
tionWhen brake warning lamp is ON ON
When brake warning lamp is OFF OFF
STOP LAMP SW Brake pedal operation conditionBrake pedal depressed ON
Brake pedal not depressed OFF
MOTOR RELAYMotor and motor relay operation con-
ditionWhen motor relay and motor are
operatingON
When motor relay and motor are not
operatingOFF
ACTUATOR RLY Actuator relay operation conditionActuator relay activated ON
Actuator relay not activated OFF
ABS WARN LAMPABS warning lamp ON/OFF condition
(Note 3)When ABS warning lamp is ON ON
When ABS warning lamp is OFF OFF
OFF LAMPVDC OFF indicator lamp ON/OFF
condition (Note 4)When VDC OFF indicator lamp is ON ON
When VDC OFF indicator lamp is OFF OFF
OFF SW VDC OFF switch ON/OFF conditionWhen VDC OFF switch ON
(When the VDC OFF indicator lamp is
ON)ON
When VDC OFF switch OFF
(When the VDC OFF indicator lamp is
OFF)OFF
SLIP LAMPSLIP indicator lamp ON/OFF condi-
tion (Note 5)When SLIP indicator lamp is ON ON
When SLIP indicator lamp is OFF OFF
BATTERY VOLTBattery voltage supplied to ABS actu-
ator and electric unit (control unit)Ignition switch ON 10 - 16 V
GEARDetermined gearshift position from
the A/T switch signalAlways1: 1st gear
2: 2nd gear
3: 3rd gear
4: 4th gear
ENGINE SPEED Engine runningWith engine stopped 0 rpm
Engine runningAlmost in accordance
with tachometer display
YAW RATE SEN Yaw rate detected by yaw rate sensor When stopped−7.0 to +7.0 d/s

BRC-56
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS

Note 1: Confirm tire pressure is the standard value.
Note 2: Warning lamp can be used as both EBD warning lamp and brake warning.N POSI SIGShift position determined by the A/T
switch signalWhen in N position ON
Other than N position OFF
P POSI SIGShift position determined by the A/T
switch signalWhen in P position ON
Other than P position OFF
FR LH IN SOL
FR LH OUT SOL
FR RH IN SOL
FR RH OUT SOL
RR LH IN SOL
RR LH OUT SOL
RR RH IN SOL
RR RH OUT SOLOperation condition of all solenoid
valvesActuator (solenoid) is active (“ACTIVE
TEST” with CONSULT-II) and actuator
relay is active (ignition switch ON)ON
When actuator (solenoid) is not active
or actuator relay is not active (in fail-
safe mode)OFF
STOP LAMP SW2 Brake pedal operation conditionBrake pedal depressed ON
Brake pedal not depressed OFF
ACCEL POS SIGAccelerator open/close condition
(linked to the accelerator pedal)Do not step on the accelerator pedal
(When ignition switch is on)0 %
Step on the accelerator pedal
(When ignition switch is on)0 - 100 %
SIDE G SENSOR Side G detected by side G sensorWhen stopped
−1.1 to +1.1 m/s
2
Right turn Negative value
Left turn Positive value
STR ANGLE SIGSteering angle detected by steering
angle sensorStraight-ahead position -3.5° to 3.5°
Steering wheel turned right 0° to 756°
Steering wheel turned left 0° to -756°
EBD SIGNAL EBD operation conditionEBD activated ON
EBD not activated OFF
ABS SIGNAL ABS operation conditionABS activated ON
ABS not activated OFF
TCS SIGNAL TCS operation conditionTCS activated ON
TCS not activated OFF
VDC SIGNAL VDC operation conditionVDC activated ON
VDC not activated OFF
EBD FAIL SIG EBD fail-safe signal conditionIn EBD fail-safe ON
EBD is normal OFF
ABS FAIL SIG ABS fail-safe signal conditionIn ABS fail-safe ON
ABS is normal OFF
TCS FAIL SIG TCS fail-safe signal conditionIn TCS fail-safe ON
TCS is normal OFF
VDC FAIL SIG VDC fail-safe signal conditionIn VDC fail-safe ON
VDC is normal OFF
CRANKING SIG Cranking conditionAt cranking ON
Other than at cranking OFF
FLUID LEV SWBrake fluid level switch ON/OFF con-
ditionWhen brake fluid level switch is ON ON
When brake fluid level switch is OFF OFF Monitor item Display itemDATA MONITOR
ConditionReference values for
normal operation

TROUBLE DIAGNOSIS
BRC-57
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

Note 3: ON/OFF timing of ABS warning lamp
ON: For a while after ignition switch is turned ON, or when a malfunction is detected.
OFF: In a while after ignition switch is turned ON (when the system is in normal operation).
Note 4: ON/OFF timing of VDC OFF indicator lamp
ON: For a while after ignition switch is turned ON, or when a malfunction is detected, or VDC OFF switch is ON.
OFF: In a while after ignition switch is turned ON (when the system is in normal operation) and VDC OFF switch is OFF.
Note 5: ON/OFF timing of SLIP indicator lamp
ON: For a while after ignition switch is turned ON, or when a malfunction is detected.
OFF: In a while after ignition switch is turned ON (when the system is in normal operation).
Blink: When the VDC/TCS function is operating during driving.
CONSULT-II FunctionsBFS000E2
CONSULT-II MAIN FUNCTION
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II SETTING PROCEDURE
Refer to GI-34, "CONSULT-II Start Procedure" .
Diagnostic test mode Function Reference
WORK SUPPORTThis mode enables a technician to adjust some devices faster and more accu-
rately by following the indications on CONSULT-II.BRC-40, "
Adjustment of
Steering Angle Sensor
Neutral Position"
SELF-DIAG RESULTS Self-diagnostic results can be read and erased quickly.BRC-58, "Self-Diagno-
sis"
DATA MONITOR Input/Output data in the ABS actuator and electric unit (control unit) can be read.BRC-61, "Data Monitor"
CAN DIAG SUPPORT
MNTRThe results of transmit / receive diagnostic of CAN communication can be read.LAN-44, "CAN Diagnos-
tic Support Monitor"
ACTIVE TESTDiagnostic Test Mode in CONSULT-II drives some actuators apart from the ABS
actuator and electric unit (control unit) and also shifts some parameters in a
specified range.BRC-63, "Active Test"
FUNCTION TESTPerformed by CONSULT-II instead of a technician to determine whether each
system is “OK” or “NG”.—
ECU PART NUMBER ABS actuator and electric unit (control unit) part number can be read. —

BRC-58
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS

Self-DiagnosisBFS000E3
DESCRIPTION

If an error is detected in the system, ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp
on the combination meter turn on. In this case, perform self-diagnosis as follows:

While CONSULT-II is used, ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp may be
turned on in a case of no malfunctioning.
OPERATION PROCEDURE
1. Turn ignition switch OFF.
2. Perform CONSULT-II Starting Procedure. Refer to GI-34, "
CONSULT-II Start Procedure" .
3. Turn ignition switch ON.
4. Start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute.
5. After stopping vehicle, with the engine running, touch “ABS”, “SELF-DIAG RESULTS” in order on the
CONSULT-II screen.
CAUTION:
If “START (NISSAN BASED VHCL)” is touched immediately after starting engine or turning on the
ignition switch, “ABS” might not be displayed in the System Selection screen. In this case, repeat
the operation from step 1. If it cannot be shown after several attempts, ABS actuator and electric
unit (control unit) may have malfunctioned.
6. The self-diagnostic results are displayed. (Touch “PRINT” to print out self-diagnostic results, if necessary.)

Check ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp if “NO FAILURE” is dis-
played.
7. Perform the appropriate inspection from the display item list, and repair or replace the malfunctioning
component.
8. Start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute.
CAUTION:
When the wheel sensor malfunctions, after inspecting the wheel sensor system, the ABS warning
lamp, VDC OFF indicator lamp and SLIP indicator lamp will not turn off even when the system is
normal unless the vehicle is driving at 30 km/h (19MPH) or more for approximately 1 minute.
ERASE MEMORY
1. Turn ignition switch OFF.
2. Start engine and touch “ABS”, “SELF-DIAG RESULTS”, “ERASE MEMORY” in order on the CONSULT-II
screen to erase the DTC memory.
CAUTION:
If the error memory is not erased, re-perform the operation from step 4.
3. Perform self-diagnosis again, and make sure that diagnostic memory is erased.
4. Drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute as the final inspection, and make
sure that the ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp turn off.
CAUTION:
VDC OFF switch should not stay in the “ON” position.

TROUBLE DIAGNOSIS
BRC-59
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

DISPLAY ITEM LIST
Diagnostic item Diagnostic item is detected when... Reference
RR RH SENSOR−1
[C1101]When the circuit in the rear right wheel sensor is open.
BRC-68, "
Wheel Sensor
System"
(Note 1) RR LH SENSOR−1
[C1102]When the circuit in the rear left wheel sensor is open.
FR RH SENSOR−1
[C1103]When the circuit in the front right wheel sensor is open.
FR LH SENSOR−1
[C1104]When the circuit in the front left wheel sensor is open.
RR RH SENSOR−2
[C1105]When the circuit in the rear right wheel sensor is shorted. Or when
the sensor power voltage is outside the standard. When the dis-
tance between the wheel sensor and sensor rotor is too large and
the sensor pulse cannot be recognized by the control unit.
RR LH SENSOR−2
[C1106]When the circuit in the rear left wheel sensor is shorted. Or when
the sensor power voltage is outside the standard. When the dis-
tance between the wheel sensor and sensor rotor is too large and
the sensor pulse cannot be recognized by the control unit.
FR RH SENSOR−2
[C1107]When the circuit in the front right wheel sensor is shorted. Or when
the sensor power voltage is outside the standard. When the dis-
tance between the wheel sensor and sensor rotor is too large and
the sensor pulse cannot be recognized by the control unit.
FR LH SENSOR−2
[C1108]When the circuit in the front left wheel sensor is shorted. Or when
the sensor power voltage is outside the standard. When the dis-
tance between the wheel sensor and sensor rotor is too large and
the sensor pulse cannot be recognized by the control unit.
BATTERY VOLTAGE
[ABNORMAL]
[C1109]Battery voltage of control unit is too low.BRC-78, "
ABS Actuator
and Electric Unit (Control
Unit) Power Supply and
Ground System"
CONTROLLER FAILURE
[C1110]When there is an internal malfunction in the control unit.BRC-70, "ABS Actuator
and Electric Unit (Control
Unit) 1"
PUMP MOTOR
[ C 1111 ]This is displayed when the control unit detects a malfunction in the
motor or motor relay.BRC-74, "Pump Motor,
Motor Relay System"
G-SENSOR
[C1113]Longitudinal G-sensor is malfunctioning, or signal line of longitudi-
nal G-sensor is open or shorted.BRC-72, "Yaw Rate/Side/
Decel G Sensor System"
STOP LAMP SW
[C1116]Stop lamp switch circuit is open.BRC-77, "Stop Lamp
Switch System"

BRC-60
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS

Note 1: After completing repairs of the shorted sensor circuit, when ignition switch is turned ON, ABS warning lamp turns on. Make sure
that ABS warning lamp turns off while driving the vehicle at 30 km/h (19 MPH) or more for approximately 1 minute according to self-diag- FR LH IN ABS SOL

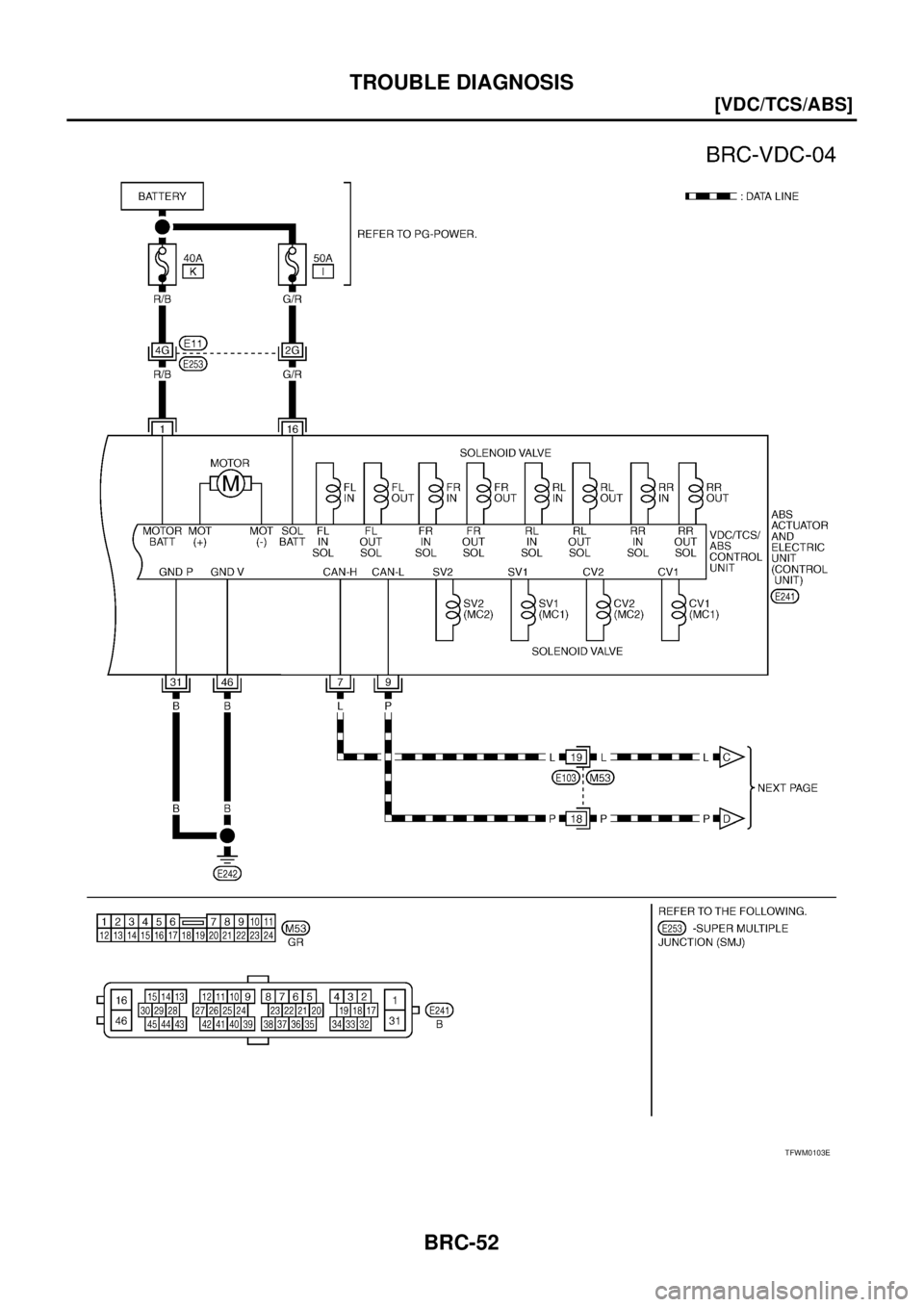

[C1120]This is displayed when the control unit detects a malfunction in the
front left wheel inlet solenoid circuit.
BRC-76, "
Solenoid and
VDC Change-Over Valve,
Actuator Relay System"
FR LH OUT ABS SOL
[C1121]This is displayed when the control unit detects a malfunction in the
front left wheel outlet solenoid circuit.
FR RH IN ABS SOL
[C1122]This is displayed when the control unit detects a malfunction in the
front right wheel inlet solenoid circuit.
FR RH OUT ABS SOL
[C1123]This is displayed when the control unit detects a malfunction in the
front right wheel outlet solenoid circuit.
RR LH IN ABS SOL
[C1124]This is displayed when the control unit detects a malfunction in the
rear left wheel inlet solenoid circuit.
RR LH OUT ABS SOL
[C1125]This is displayed when the control unit detects a malfunction in the
rear left wheel outlet solenoid circuit.
RR RH IN ABS SOL
[C1126]This is displayed when the control unit detects a malfunction in the
rear right wheel inlet solenoid circuit.
RR RH OUT ABS SOL
[C1127]This is displayed when the control unit detects a malfunction in the
rear right wheel outlet solenoid circuit.
CV 1
[C1164]When cut valve 1 circuit is open or shorted.
CV 2
[C1165]When cut valve 2 circuit is open or shorted.
SV 1
[C1166]When suction valve 1 circuit is open or shorted.
SV 2
[C1167]When suction valve 2 circuit is open or shorted.
ACTUATOR RLY
[C1140]This is displayed when the control unit detects a malfunction in
actuator relay circuit.
ENGINE SIGNAL 1- 6
[C1130, C1131, C1132, C1133,
C1134, C1136]When there is a malfunction in an engine system main
component.BRC-70, "
Engine Sys-
tem"
ST ANGLE SIG CIRCUIT
[C1143]When the steering angle sensor neutral position has deviated. Or
when a steering angle sensor malfunction is detected.BRC-71, "Steering Angle
Sensor System"
ST ANG SEN SIGNAL
[C1144]Neutral position correction of steering angle sensor is not finished.BRC-40, "Adjustment of
Steering Angle Sensor
Neutral Position"

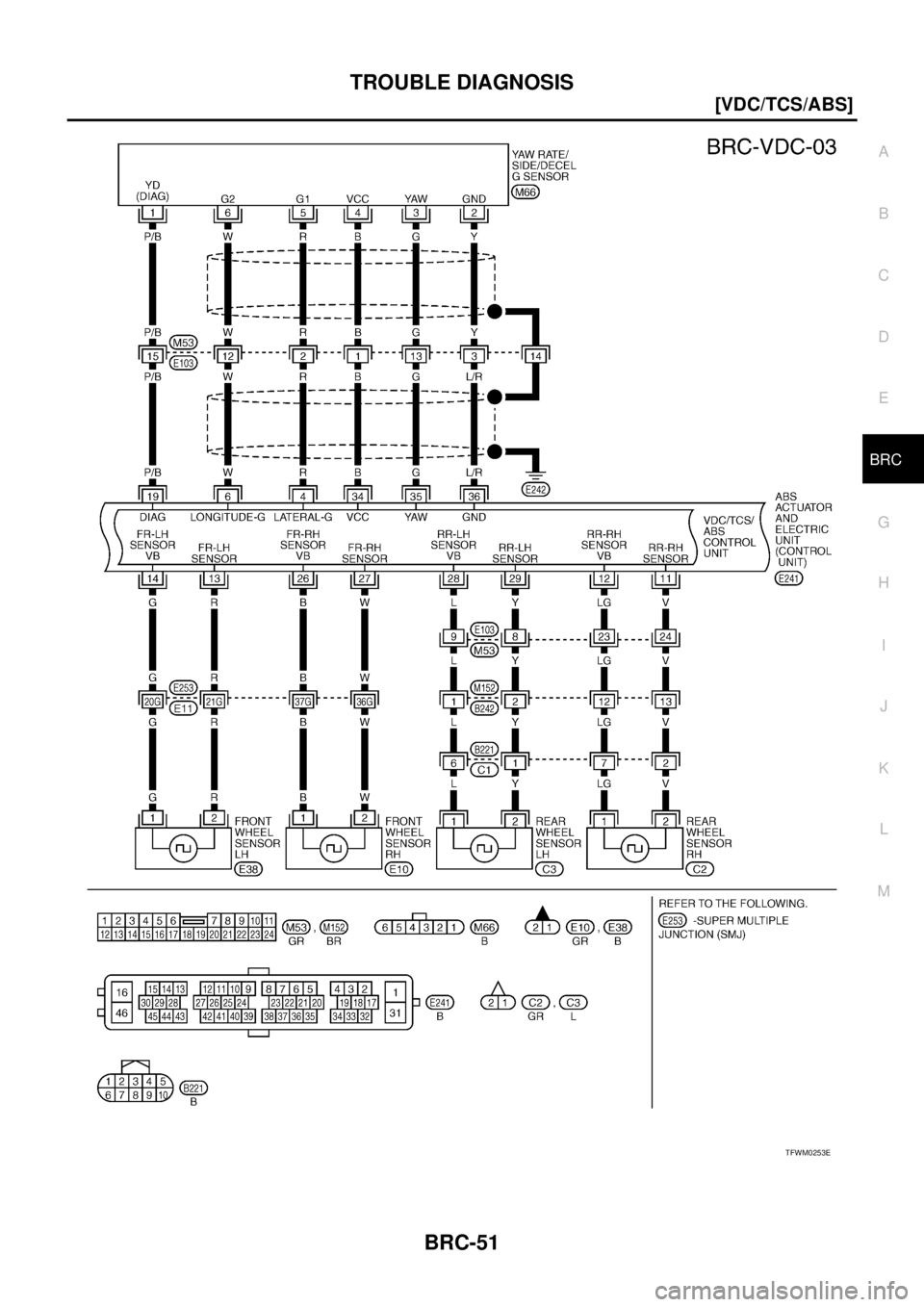

YAW RATE SENSOR
[C1145]When yaw rate sensor malfunction is detected. Or when a yaw rate
sensor circuit open or short circuit is detected.
BRC-72, "
Yaw Rate/Side/
Decel G Sensor System"SIDE G-SEN CIRCUIT
[C1146]When a side G sensor malfunction is detected. Or the circuit of side
G sensor is open or shorted.
PNP POSI SIG
[C1154]TCS or ABS actuator and electric unit (control unit) internal mal-
function.BRC-75, "
Park/Neutral
Position (PNP) Switch
Circuit"
BR FLUID LEVEL LOW
[C1155]Brake fluid level drops. Or, when there is a short to ground in the
circuit between the ABS actuator and electric unit (control unit) and
the brake fluid level switch.BRC-80, "Brake Fluid
Level Switch System"
ST ANG SEN COM CIR
[C1156]CAN communication system or steering angle sensor has gener-
ated a malfunction.BRC-81, "CAN Communi-
cation System"
STOP LAMP SW2
[C1176]ASCD brake switch or circuit malfunction.EC-602, "DTC P1572
ASCD BRAKE SWITCH"
CAN COMM CIRCUIT
[U1000]When there is a malfunction in the CAN communication system.BRC-81, "CAN Communi-
cation System"
(Note 2) Diagnostic item Diagnostic item is detected when... Reference
