NISSAN TEANA 2003 Service Manual

TROUBLE DIAGNOSIS
BRC-11
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

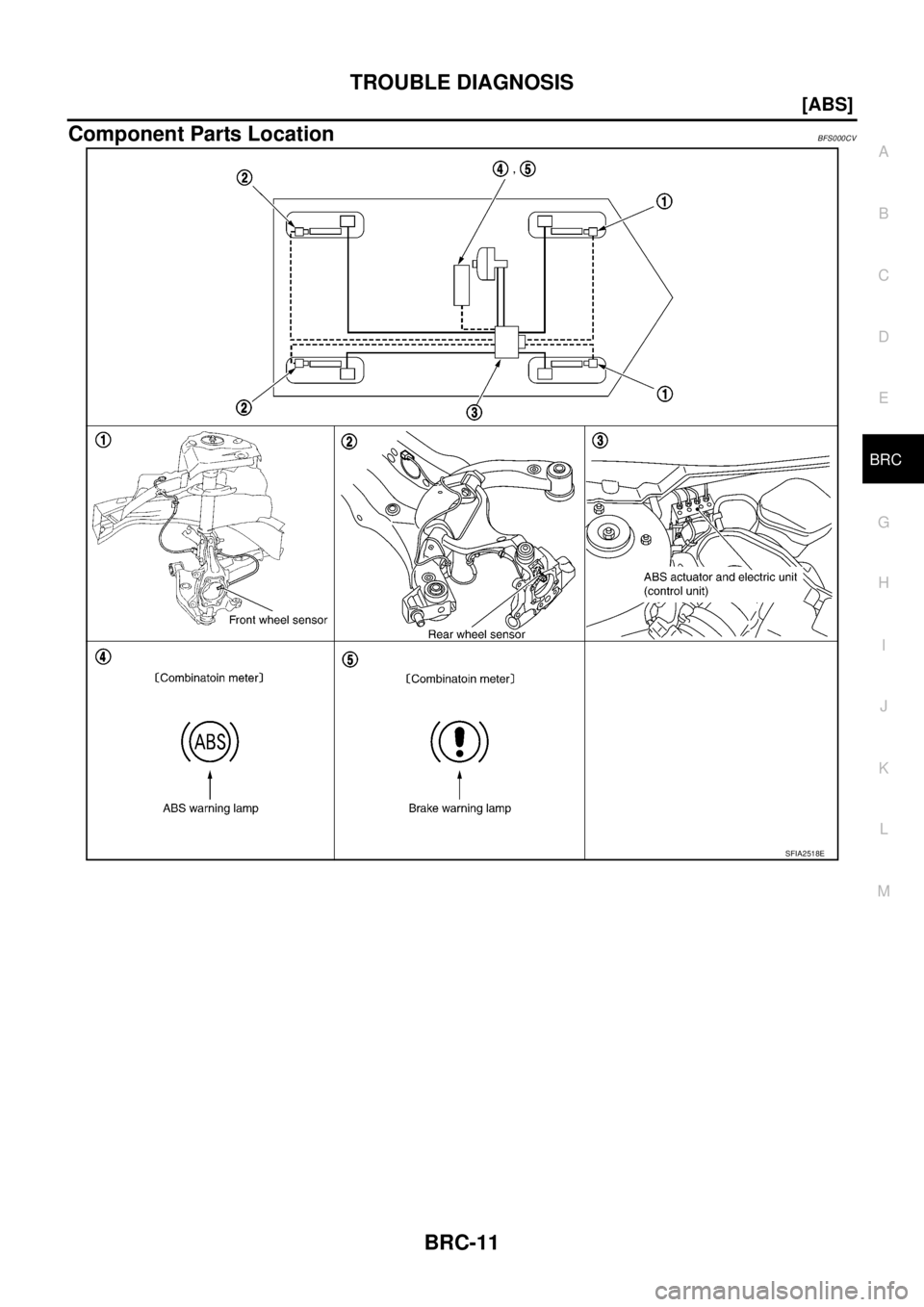

Component Parts LocationBFS000CV
SFIA2518E

BRC-12
[ABS]
TROUBLE DIAGNOSIS

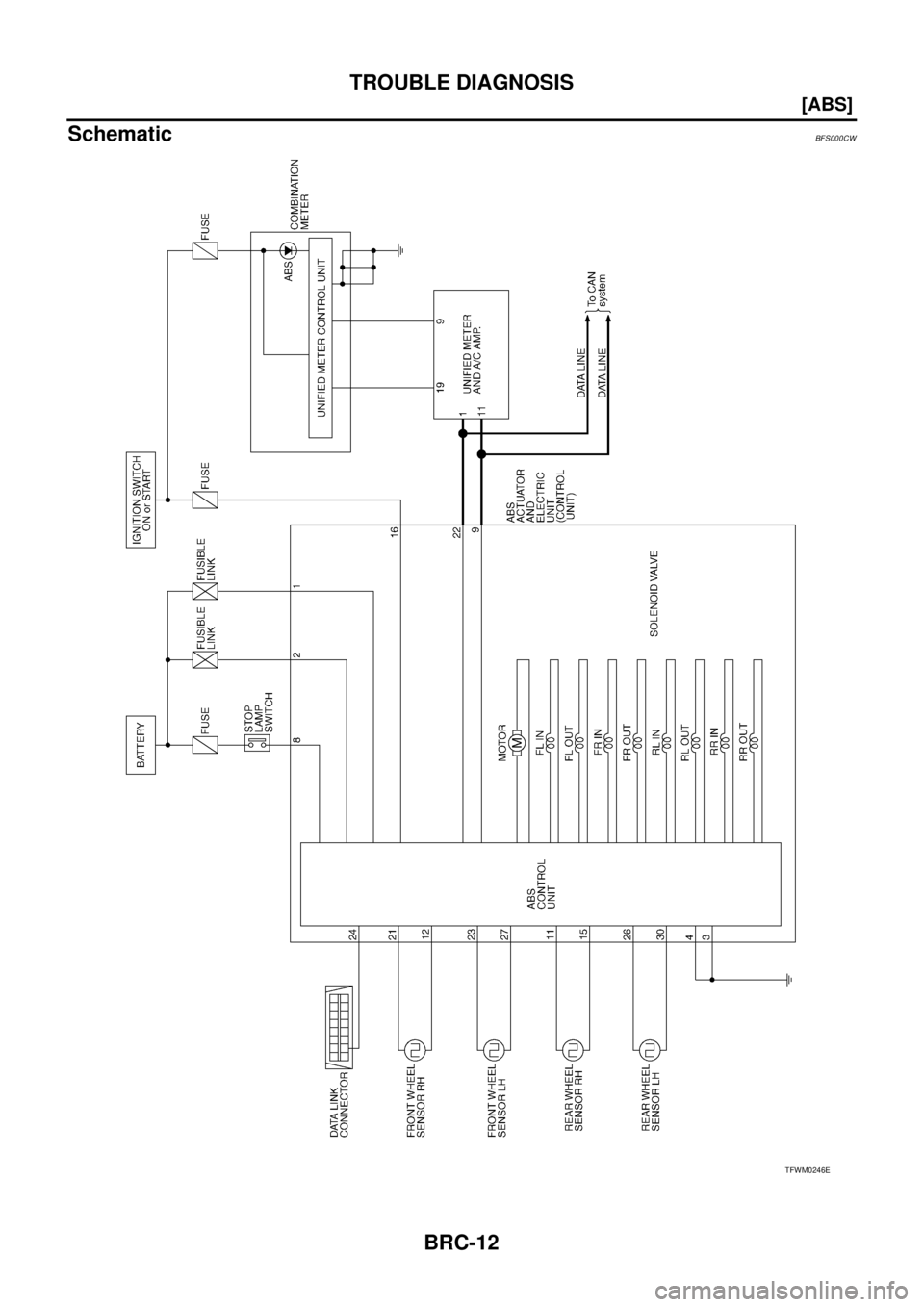

SchematicBFS000CW
TFWM0246E

TROUBLE DIAGNOSIS
BRC-13
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

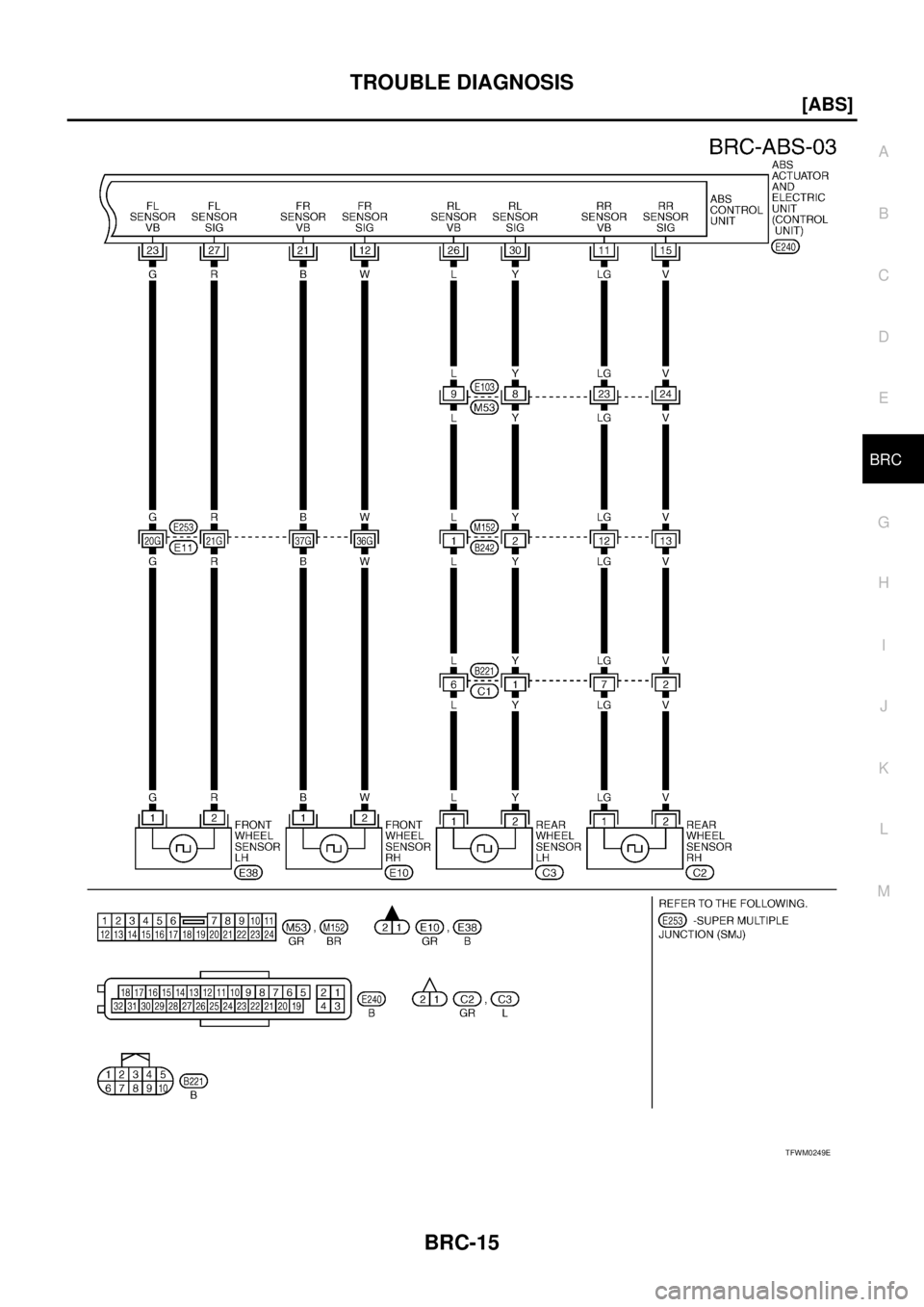

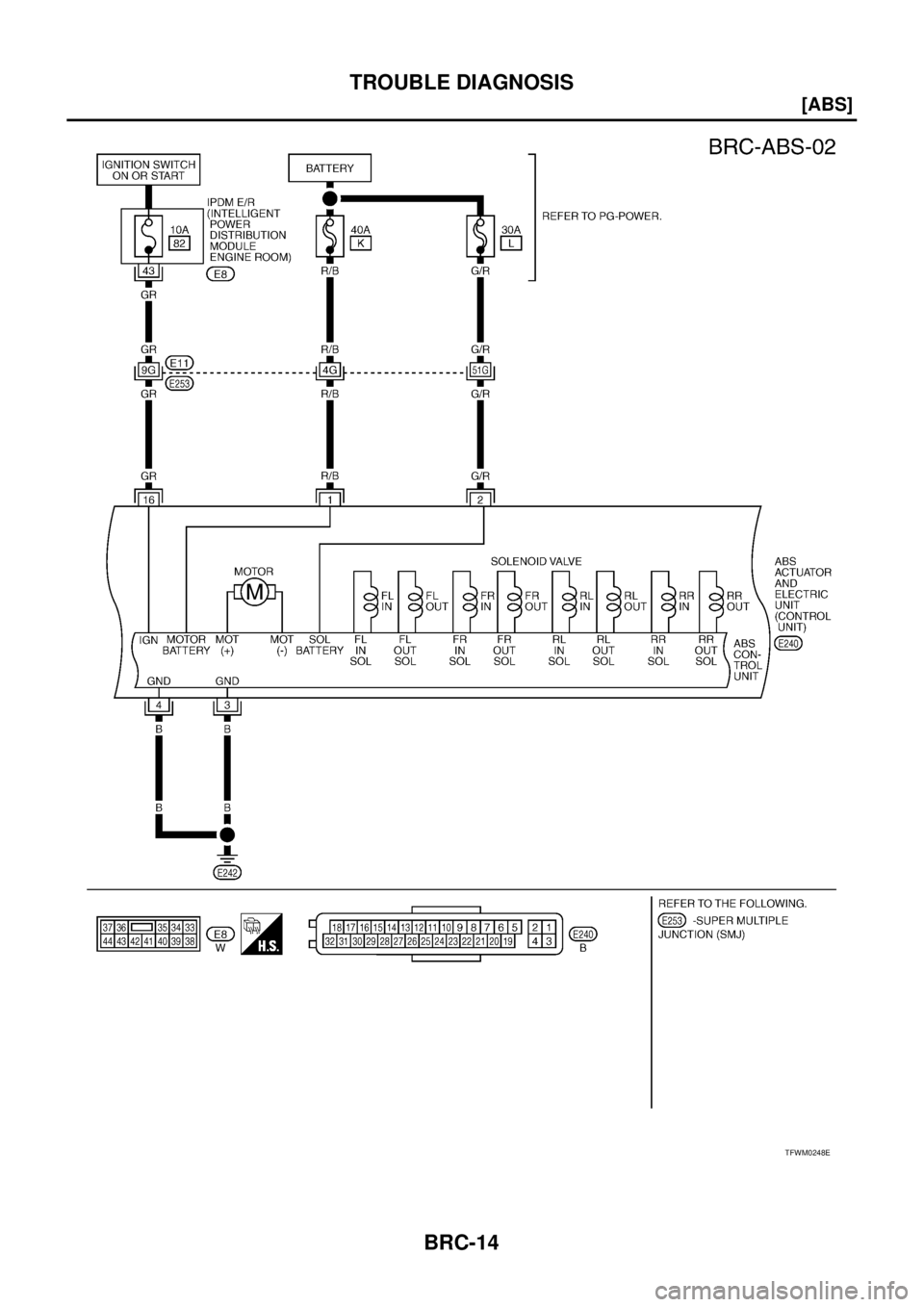

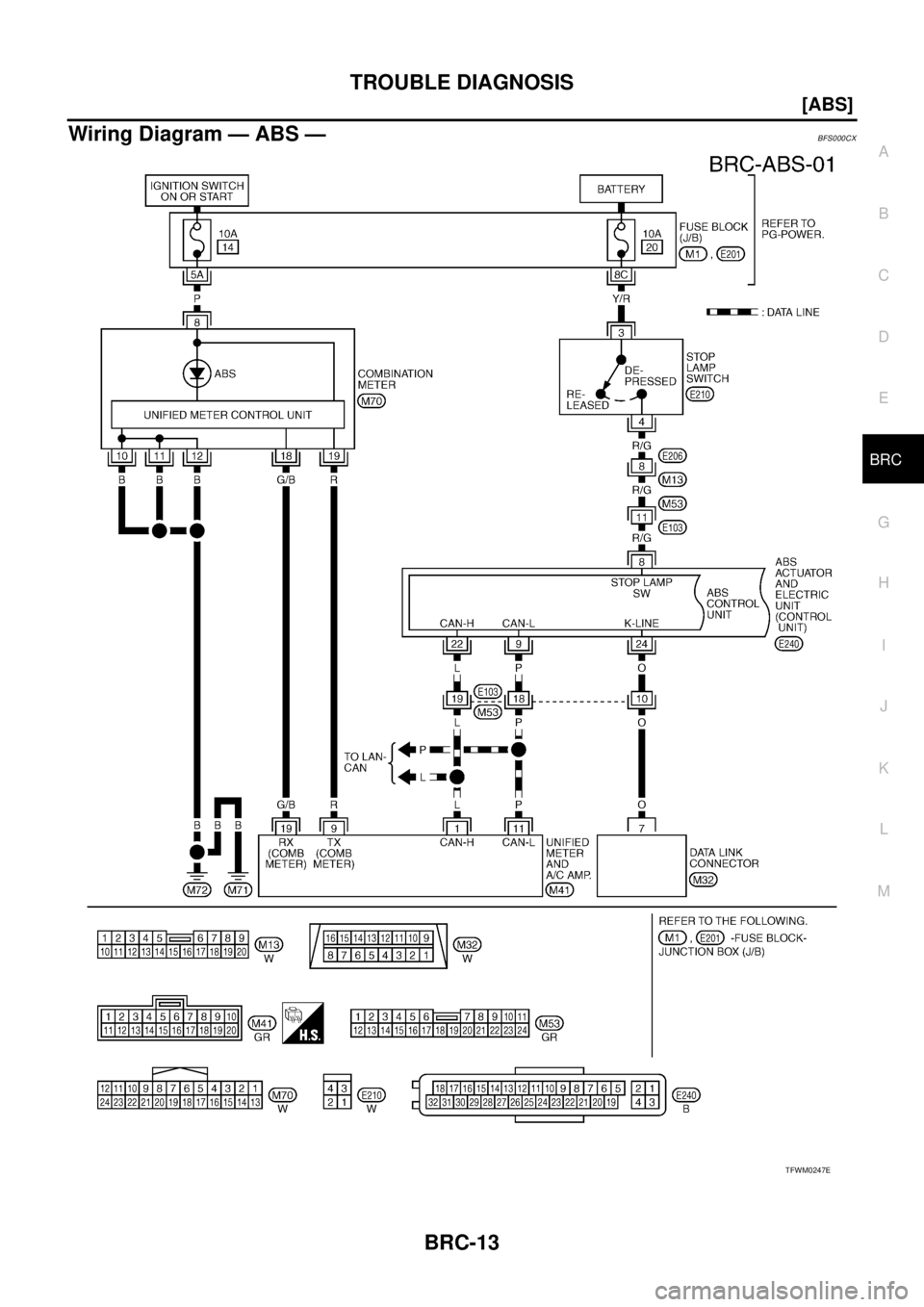

Wiring Diagram — ABS —BFS000CX
TFWM0247E

BRC-14
[ABS]
TROUBLE DIAGNOSIS

TFWM0248E

TROUBLE DIAGNOSIS
BRC-15
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

TFWM0249E

BRC-16
[ABS]
TROUBLE DIAGNOSIS

Control Unit Input/Output Signal SpecificationsBFS000CY
REFERENCE VALUE FROM CONSULT-II
CAUTION:
The monitor displays the control unit calculation data. The normal values will be displayed even that in
the event the output circuit (harness) is open or shorted.
Note 1: Confirm tire pressure is the standard value.
Note 2: Brake warning lamp can be used for EBD warning lamp.
Note 3: ON/OFF timing of ABS warning lamp
ON: For a while after ignition switch is turned ON, or when a malfunction is detected.
OFF: In a while after the warning lamp is ON (when the system is in normal operation). Monitor item Display itemDATA MONITOR
ConditionReference values for
normal operation
WHEEL SENSORVehicle speed calculated using sig-
nals from all four wheel sensorsVehicle stopped 0 [km/h (MPH)]
Vehicle running (Note 1)Almost in accordance
with speedometer dis-
play (within ± 10 %)
IN ABS S/V
OUT ABS S/VOperation condition of all solenoid
valvesWhen actuator (solenoid) operates or
during fail-safeON
When actuator relay operates and the
actuator (solenoid) does not operateOFF
EBD WARN LAMP
(Note 2)Brake warning lamp ON/OFF condi-
tionWhen brake warning lamp is ON ON
When brake warning lamp is OFF OFF
STOP LAMP SW Brake pedal operation conditionBrake pedal depressed ON
Brake pedal not depressed OFF
MOTOR RELAYMotor and motor relay operation con-
ditionWhen motor relay and motor are
operatingON
When motor relay and motor are not
operatingOFF
ACTUATOR RLY Actuator relay operation conditionActuator relay activated ON
Actuator relay not activated OFF
ABS WARN LAMPABS warning lamp ON/OFF condition
(Note 3)When ABS warning lamp is ON ON
When ABS warning lamp is OFF OFF
BATTERY VOLTBattery voltage supplied to ABS actu-
ator and electric unit (control unit)Ignition switch ON 10−16 V
EBD SIGNAL EBD operation signalEBD activated ON
EBD not activated OFF
ABS SIGNAL ABS operation signalABS activated ON
ABS not activated OFF
ABS FAIL SIG
Fail-safe signal conditionIn ABS fail-safe
OFF
EBD FAIL SIG In EBD fail-safe

TROUBLE DIAGNOSIS
BRC-17
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

CONSULT-II Functions (ABS)BFS000CZ
CONSULT-II MAIN FUNCTION
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II SETTING PROCEDURE
Refer to GI-34, "CONSULT-II Start Procedure" .
Self-Diagnosis BFS000D0
DESCRIPTION
If an error is detected in the system, ABS warning lamp on combination meter turn on. In this case, perform
self- diagnosis as follows.
OPERATION PROCEDURE
1. Turn ignition switch OFF.
2. Perform “CONSULT-II Starting Procedure”. Refer to GI-34, "
CONSULT-II Start Procedure" .
3. Turn ignition switch ON.
4. Start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute.
5. After stopping vehicle, with the engine running, touch “ABS”, “SELF-DIAG RESULTS” in order on the
CONSULT-II screen.
CAUTION:
If “START (NISSAN BASED VHCL)” is touched immediately after starting engine or turning on the
ignition switch, “ABS” might not be displayed in the System Selection screen. In this case, repeat
the operation from step 1. If it cannot be shown after several attempts, ABS actuator and electric
unit (control unit) may have malfunctioned.
6. The self-diagnostic results are displayed. (Touch “PRINT” to print out self-diagnostic results, if necessary.)

Check ABS warning lamp if “NO FAILURE” is displayed.
7. Perform the appropriate inspection from the display item list, and repair or replace the malfunctioning
component.
8. Start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute.
CAUTION:
When the wheel sensor malfunctions, after inspecting the wheel sensor system, the ABS warning
lamp will not turn off even when the system is normal unless the vehicle is driving at approxi-
mately 30 km/h (19 MPH) or more for approximately 1 minute.
ERASE MEMORY
1. Turn ignition switch OFF.
2. Start engine and touch “ABS”, “SELF-DIAG RESULTS”, “ERASE MEMORY” in order on the CONSULT-II
screen to erase the error memory.
CAUTION:
If the error memory is not erased, re-perform the operation from step 4.
3. Perform self-diagnosis again, and make sure that diagnostic memory is erased.
4. Drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute as the final inspection, and make
sure that the ABS warning lamp is off.
Diagnostic test mode Function Reference
SELF-DIAG RESULTS Self-diagnostic results can be read and erased quickly.BRC-17, "
Self-Diagno-
sis"
DATA MONITOR Input/Output data in the ABS actuator and electric unit (control unit) can be read.BRC-19, "Data Monitor"
CAN DIAG SUPPORT
MNTRThe results of transmit/receive diagnostic of CAN communication can be read.LAN-44, "CAN Diagnos-
tic Support Monitor"
ACTIVE TESTDiagnostic Test Mode in which CONSULT-II drives some actuators apart from
the ABS actuator and electric unit (control unit) and also shifts some parameters
in a specified range.BRC-20, "Active Test"
FUNCTION TESTPerformed by CONSULT-II instead of a technician to determine whether each
system is “OK” or “NG”.—
ECU PART NUMBER ABS actuator and electric unit (control unit) part number can be read. —

BRC-18
[ABS]
TROUBLE DIAGNOSIS

DISPLAY ITEM LIST
Diagnostic item Diagnostic item is detected when... Reference
RR RH SENSOR−1
[C1101]When the circuit in the rear right wheel sensor is open.
BRC-24, "
Wheel Sensor
System"
(Note 1) RR LH SENSOR−1
[C1102]When the circuit in the rear left wheel sensor is open.
FR RH SENSOR−1
[C1103]When the circuit in the front right wheel sensor is open.
FR LH SENSOR−1
[C1104]When the circuit in the front left wheel sensor is open.
RR RH SENSOR−2
[C1105]When the circuit in the rear right wheel sensor is shorted. Or when
the sensor power voltage is outside the standard. When the dis-
tance between the wheel sensor and sensor rotor is too large and
the sensor pulse cannot be recognized by the control unit.
RR LH SENSOR−2
[C1106]When the circuit in the rear left wheel sensor is shorted. Or when
the sensor power voltage is outside the standard. When the dis-
tance between the wheel sensor and sensor rotor is too large and
the sensor pulse cannot be recognized by the control unit.
FR RH SENSOR−2
[C1107]When the circuit in the front right wheel sensor is shorted. Or when
the sensor power voltage is outside the standard. When the dis-
tance between the wheel sensor and sensor rotor is too large and
the sensor pulse cannot be recognized by the control unit.
FR LH SENSOR−2
[C1108]When the circuit in the front left wheel sensor is shorted. Or when
the sensor power voltage is outside the standard. When the dis-
tance between the wheel sensor and sensor rotor is too large and
the sensor pulse cannot be recognized by the control unit.
BATTERY VOLTAGE
[ABNORMAL]
[C1109]Battery voltage of the control unit is too low.BRC-26, "
ABS Actuator
and Electric Unit (Control
Unit) Power Supply and
Ground Circuit"
CONTROLLER FAILURE
[ C 111 0 ]When there is an internal malfunction in the control unit.BRC-26, "ABS Actuator
and Electric Unit (Control
Unit) 1"
FR LH IN ABS SOL
[C1120]This is displayed when the control unit detects a malfunction in the
front left wheel inlet solenoid circuit.
BRC-28, "
ABS Actuator
Relay or ABS Motor
Relay Power System"
FR LH OUT ABS SOL
[C1121]This is displayed when the control unit detects a malfunction in the
front left wheel outlet solenoid circuit.
FR RH IN ABS SOL
[C1122]This is displayed when the control unit detects a malfunction in the
front right wheel inlet solenoid circuit.
FR RH OUT ABS SOL
[C1123]This is displayed when the control unit detects a malfunction in the
front right wheel outlet solenoid circuit.
RR LH IN ABS SOL
[C1124]This is displayed when the control unit detects a malfunction in the
rear left wheel inlet solenoid circuit.
RR LH OUT ABS SOL
[C1125]This is displayed when the control unit detects a malfunction in the
rear left wheel outlet solenoid circuit.
RR RH IN ABS SOL
[C1126]This is displayed when the control unit detects a malfunction in the
rear right wheel inlet solenoid circuit.
RR RH OUT ABS SOL
[C1127]This is displayed when the control unit detects a malfunction in the
rear right wheel outlet solenoid circuit.
PUMP MOTOR
[ C 1111 ]This is displayed when the control unit detects a malfunction in the
motor or motor relay.
ACTUATOR RLY
[C1140]This is displayed when the control unit detects a malfunction in
actuator relay circuit.
CAN COMM CIRCUIT
[U1000]When there is a malfunction in the CAN communication system.BRC-29, "
CAN Communi-
cation System"
(Note 2)

TROUBLE DIAGNOSIS
BRC-19
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

Note 1: After completing repairs of the shorted sensor circuit, when ignition switch is turned ON, ABS warning lamp turns on. Make sure
that ABS warning lamp turns off while driving the vehicle at 30 km/h (19 MPH) or more for approximately 1 minute according to self-diag-
nosis procedure. In addition, if wheel sensor 2 is displayed for the wheels, check the wheel sensor circuit and also check the control unit
power voltage.
Note 2: When malfunctions are detected in several systems, including the CAN communication system [U1000], perform trouble diagno-
sis on the CAN communication system.
Data MonitorBFS000D1
OPERATION PROCEDURE
1. Turn ignition switch OFF.
2. Perform “CONSULT-II Starting Procedure”. Refer to GI-34, "
CONSULT-II Start Procedure" .
3. Turn ignition switch ON.
4. At the monitor item selection screen, touch one of the items “ECU INPUT SIGNALS”, “MAIN SIGNALS” or
“SELECTION FROM MENU”.
5. Touch “START” to proceed to the data monitor screen.
DISPLAY ITEM LIST
Item (Unit)Monitor item selection
Remarks
ECU INPUT
SIGNALSMAIN SIGNALSSELECTION
FROM MENU
FR LH SENSOR
[km/h (MPH)]×××Condition of wheel speed calculated by front
left wheel sensor signal is displayed.
FR RH SENSOR
[km/h (MPH)]×××Condition of wheel speed calculated by front
right wheel sensor signal is displayed.
RR LH SENSOR
[km/h (MPH)]×××Condition of wheel speed calculated by rear
left wheel sensor signal is displayed.
RR RH SENSOR
[km/h (MPH)]×××Condition of wheel speed calculated by rear
right wheel sensor signal is displayed.
FR RH IN SOL
(ON/OFF)—××Condition of front right wheel ABS inlet sole-
noid valve (ON/OFF) is displayed.
FR RH OUT SOL
(ON/OFF)—××Condition of front right wheel ABS outlet sole-
noid valve (ON/OFF) is displayed.
FR LH IN SOL
(ON/OFF)—××Condition of front left wheel ABS inlet solenoid
valve (ON/OFF) is displayed.
FR LH OUT SOL
(ON/OFF)—××Condition of front left wheel ABS outlet sole-
noid valve (ON/OFF) is displayed.
RR RH IN SOL
(ON/OFF)—××Condition of rear right wheel ABS inlet sole-
noid valve (ON/OFF) is displayed.
RR RH OUT SOL
(ON/OFF)—××Condition of rear right wheel ABS outlet sole-
noid valve (ON/OFF) is displayed.
RR LH IN SOL
(ON/OFF)—××Condition of rear left wheel ABS inlet solenoid
valve (ON/OFF) is displayed.
RR LH OUT SOL
(ON/OFF)—××Condition of rear left wheel ABS outlet sole-
noid valve (ON/OFF) is displayed.
EBD WARN LAMP
(ON/OFF) (Note)——×Condition of brake warning lamp (ON/OFF) is
displayed.
STOP LAMP SW
(ON/OFF)×××Condition of stop lamp switch (ON/OFF) is dis-
played.
MOTOR RELAY
(ON/OFF)—××Condition of ABS motor relay (ON/OFF) is dis-
played.
ACTUATOR RLY
(ON/OFF)—××Condition of ABS actuator relay (ON/OFF) is
displayed.
ABS WARN LAMP
(ON/OFF)—××Condition of ABS warning lamp (ON/OFF) is
displayed.

BRC-20
[ABS]
TROUBLE DIAGNOSIS

×: Applicable
−: Not applicable
Note: Brake warning lamp can be used for EBD warning lamp.
Active TestBFS000D2
CAUTION:

Do not perform ACTIVE TEST while driving vehicle.

Make sure to completely bleed air from brake system.

Active test cannot be performed when ABS warning lamp is turned on.

ABS and brake warning lamps turn on during active test.
OPERATION PROCEDURE
1. Perform “CONSULT-II Starting procedure”. Refer to GI-34, "CONSULT-II Start Procedure" .
2. Touch “ACTIVE TEST” in order on the CONSULT-II screen.
3. The “ SELECT TEST ITEM” screen is displayed.
4. Touch necessary test item.
5. Touch “START” with “MAIN SIGNALS” line inverted.
6. ACTIVE TEST screen will be displayed, so perform the following test.

Solenoid valve

ABS motor
NOTE:

When active test is performed while depressing brake pedal, the pedal height will change, but this is
normal.

Approximately 10 seconds after operation has begun, “TEST STOP” will be displayed.

To perform a retest after “TEST STOP” is displayed, touch “BACK” and perform test from step 3.
BATTERY VOLT
(V)×××Condition of voltage supplied to ABS actuator
and electric unit (control unit) is displayed.
EBD SIGNAL
(ON/OFF)——×Condition of EBD operation (ON/OFF) is dis-
played.
ABS SIGNAL
(ON/OFF)——×Condition of ABS operation (ON/OFF) is dis-
played.
EBD FAIL SIG
(ON/OFF)——×Condition of EBD fail-safe signal (ON/OFF) is
displayed.
ABS FAIL SIG
(ON/OFF)——×Condition of ABS fail-safe signal (ON/OFF) is
displayed. Item (Unit)Monitor item selection
Remarks
ECU INPUT
SIGNALSMAIN SIGNALSSELECTION
FROM MENU
SFIA2085E
