SYSTEM DESCRIPTION
COMPONENT PARTS
Component Parts LocationINFOID:0000000009462053
ENGINE ROOM COMPARTMENT

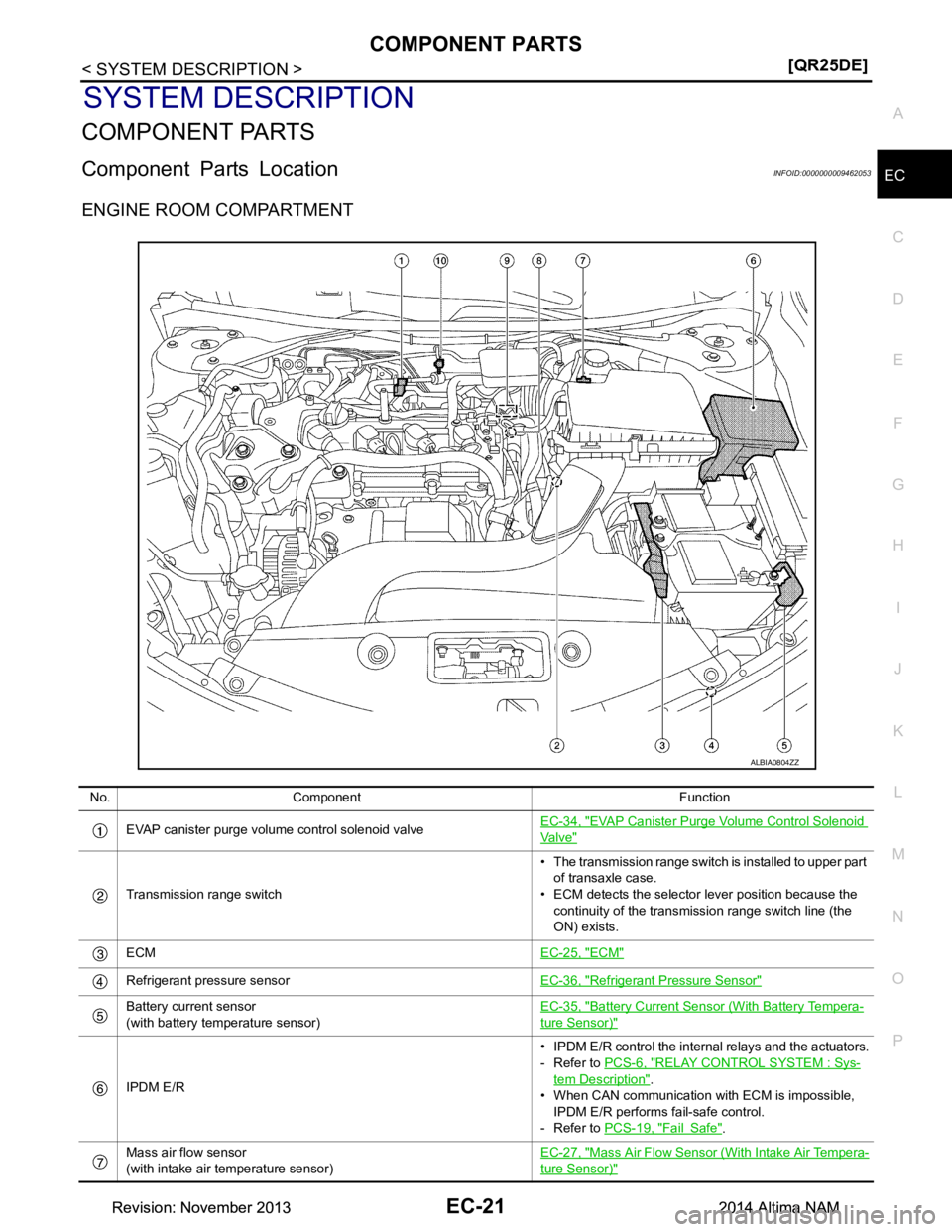

ALBIA0804ZZ
No. Component Function
EVAP canister purge volume control solenoid valve EC-34, "EVAP Canister Purge Volume Control Solenoid
Va l v e "
Transmission range switch• The transmission range switch is installed to upper part
of transaxle case.
• ECM detects the selector lever position because the continuity of the transmission range switch line (the
ON) exists.
ECM EC-25, "ECM"
Refrigerant pressure sensorEC-36, "Refrigerant Pressure Sensor"
Battery current sensor
(with battery temperature sensor) EC-35, "Battery Current Se
nsor (With Battery Tempera-
ture Sensor)"
IPDM E/R • IPDM E/R control the internal relays and the actuators.
-Refer to PCS-6, "RELAY CONTROL SYSTEM : Sys-tem Description".
• When CAN communication with ECM is impossible,
IPDM E/R performs fail-safe control.
-Refer to PCS-19, "Fail Safe"
.
Mass air flow sensor
(with intake air temperature sensor) EC-27, "Mass Air Flow Sensor (With Intake Air Tempera-
ture Sensor)"
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-22
< SYSTEM DESCRIPTION >[QR25DE]
COMPONENT PARTS
ENGINE COMPARTMENT
Intake manifold runner control valve actuator
EC-31, "Intake Manifold Runner Control Valve"
Electric throttle control actuator
(with built in throttle position sensor and throttle control motor) EC-25, "Electric Thrott
le Control Actuator"
EVAP service port When perform the EVAP leak check, positive pressure is
delivered to the EVAP system through the EVAP service
port.
Refer to EC-537, "Inspection"
.
No. Component Function

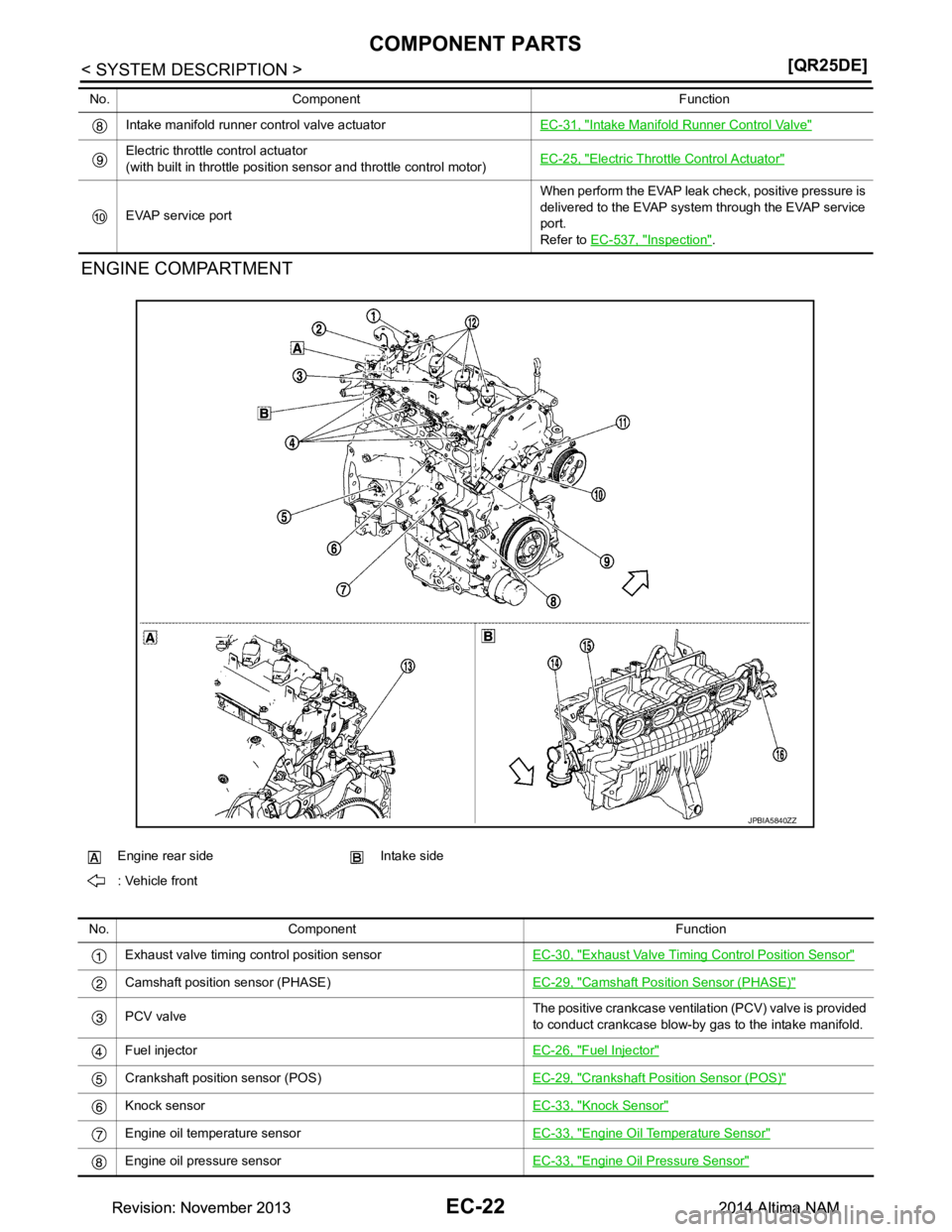

JPBIA5840ZZ
Engine rear side Intake side
: Vehicle front
No. Component Function
Exhaust valve timing control position sensor EC-30, "Exhaust Valve Timing Control Position Sensor"
Camshaft position sensor (PHASE)EC-29, "Camshaft Position Sensor (PHASE)"
PCV valveThe positive crankcase ventilation (PCV) valve is provided
to conduct crankcase blow-by gas to the intake manifold.
Fuel injector EC-26, "Fuel Injector"
Crankshaft position sensor (POS)EC-29, "Crankshaft Position Sensor (POS)"
Knock sensorEC-33, "Knock Sensor"
Engine oil temperature sensorEC-33, "Engine Oil Temperature Sensor"
Engine oil pressure sensorEC-33, "Engine Oil Pressure Sensor"
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSEC-23
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
EXHAUST COMPARTMENT
BODY COMPARTMENT
Intake valve timing intermediate lock control solenoid valve
EC-30, "Intake Valve Timing Intermediate Lock Control So-lenoid Valve"
Intake valve timing control solenoid valve
EC-30, "Intake Valve Timing Control Solenoid Valve"
Exhaust valve timing control solenoid valveEC-31, "Exhaust Valve Timing Control Solenoid Valve"
Ignition coil (with power transistor)EC-26, "Ignition Coil With Power Transistor"
Engine coolant temperature sensorEC-28, "Engine Coolant Temperature Sensor"
Intake manifold tuning valveEC-31, "Intake Manifold Tuning Valve"
Intake manifold runner control valve position sensor
EC-31, "Intake Manifold Runner Control Valve"
Intake manifold runner control valve actuator
No. Component Function
To engine assembly

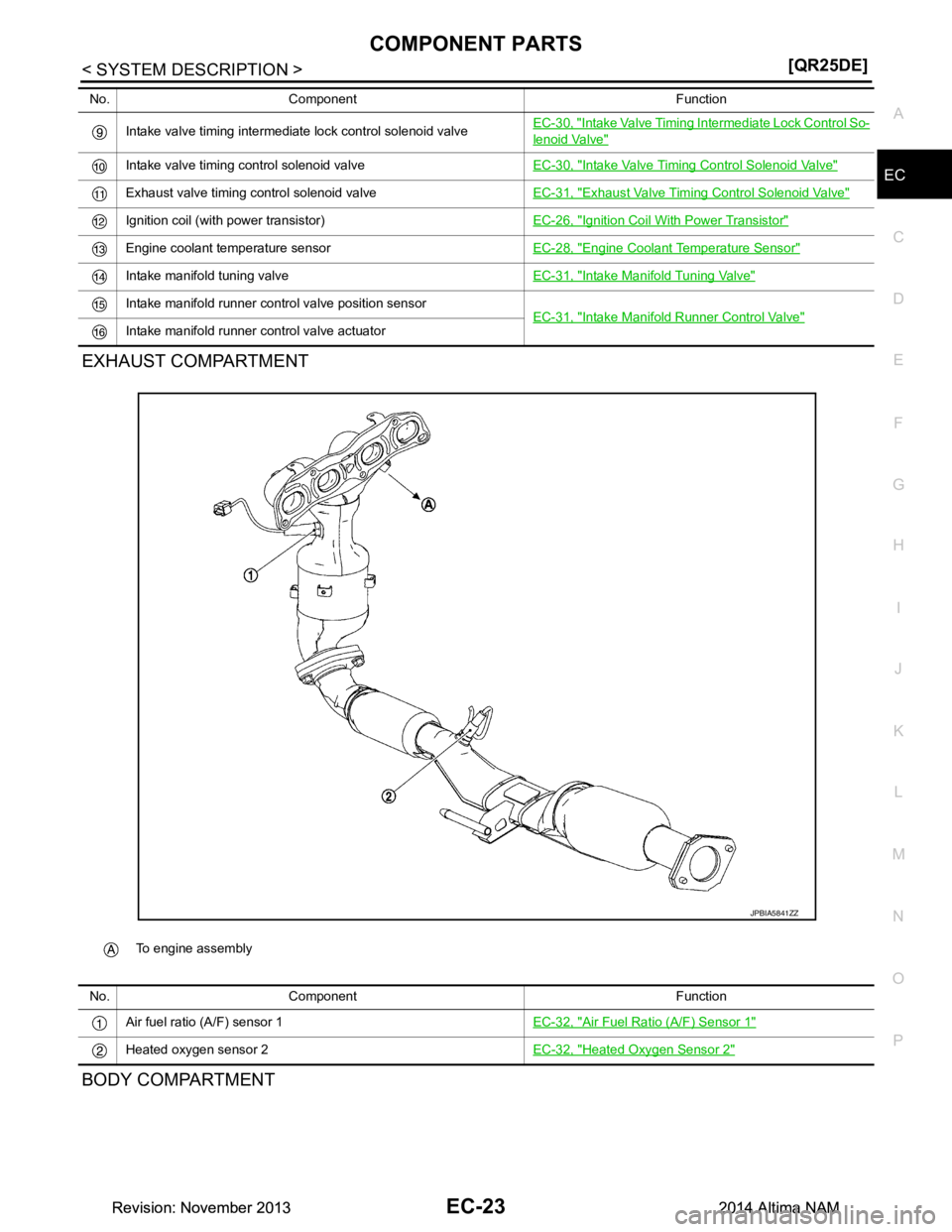

JPBIA5841ZZ
No. Component Function
Air fuel ratio (A/F) sensor 1 EC-32, "Air Fuel Ratio (A/F) Sensor 1"
Heated oxygen sensor 2EC-32, "Heated Oxygen Sensor 2"
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-24
< SYSTEM DESCRIPTION >[QR25DE]
COMPONENT PARTS

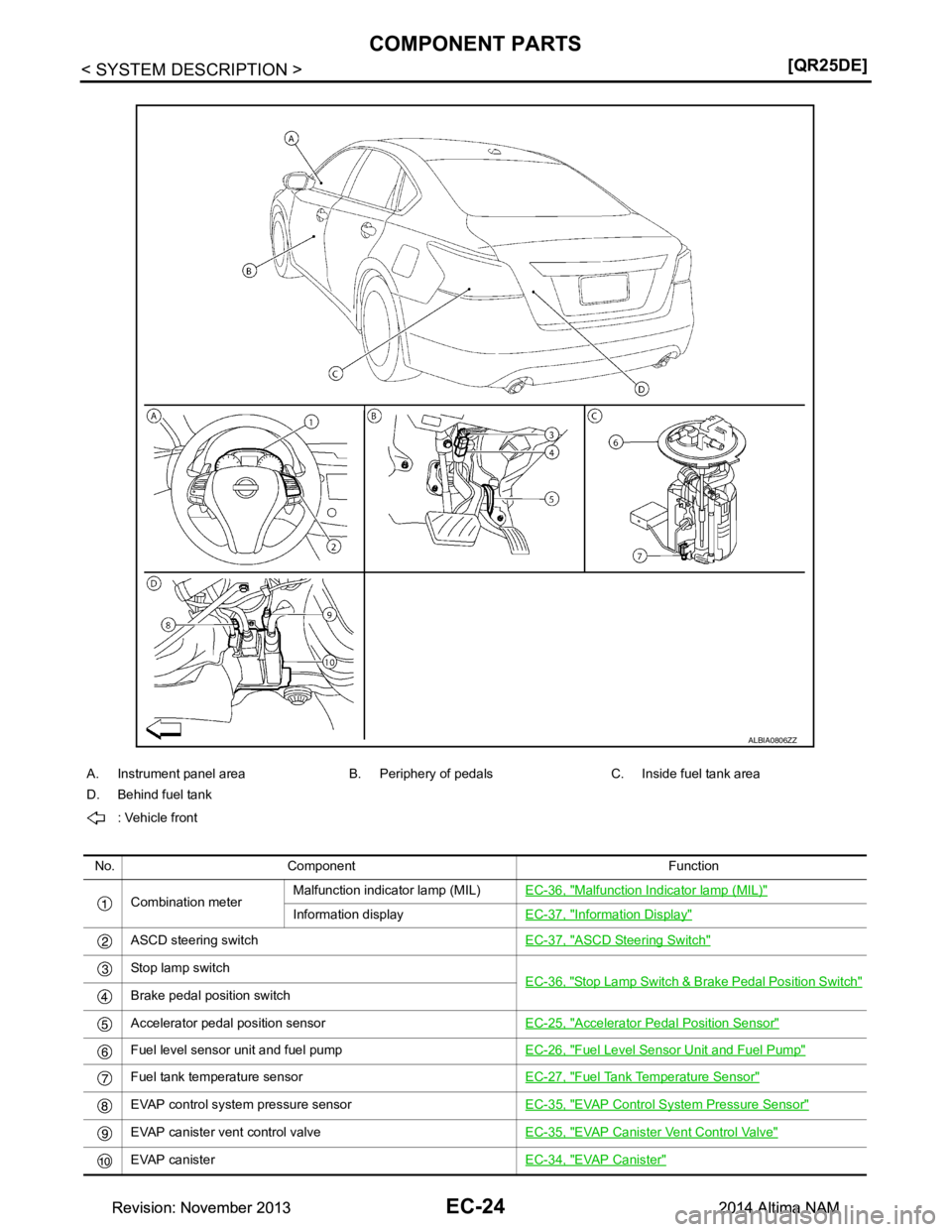

A. Instrument panel area B. Periphery of pedals C. Inside fuel tank area
D. Behind fuel tank
: Vehicle front
No. Component Function Combination meter Malfunction indicator lamp (MIL)
EC-36, "Malfunction Indicator lamp (MIL)"
Information displayEC-37, "Information Display"
ASCD steering switch EC-37, "ASCD Steering Switch"
Stop lamp switch
EC-36, "Stop Lamp Switch & Brake Pedal Position Switch"
Brake pedal position switch
Accelerator pedal position sensor EC-25, "Accelerator Pedal Position Sensor"
Fuel level sensor unit and fuel pumpEC-26, "Fuel Level Sensor Unit and Fuel Pump"
Fuel tank temperature sensorEC-27, "Fuel Tank Temperature Sensor"
EVAP control system pressure sensorEC-35, "EVAP Control System Pressure Sensor"
EVAP canister vent control valve EC-35, "EVAP Canister Vent Control Valve"
EVAP canisterEC-34, "EVAP Canister"
ALBIA0806ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSEC-25
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
ECMINFOID:0000000009462054
The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.
Accelerator Pedal Position SensorINFOID:0000000009462055
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerato r pedal is determined by the ECM
receiving the signal from the acce lerator pedal position sensor. The
ECM uses this signal for the engine operation such as fuel cut.
Electric Throttle Control ActuatorINFOID:0000000009462056
Electric throttle control actuator cons ists of throttle body, throttle valve, throttle control motor and throttle posi-
tion sensor.
JPBIA5843ZZ
JPBIA5844ZZ

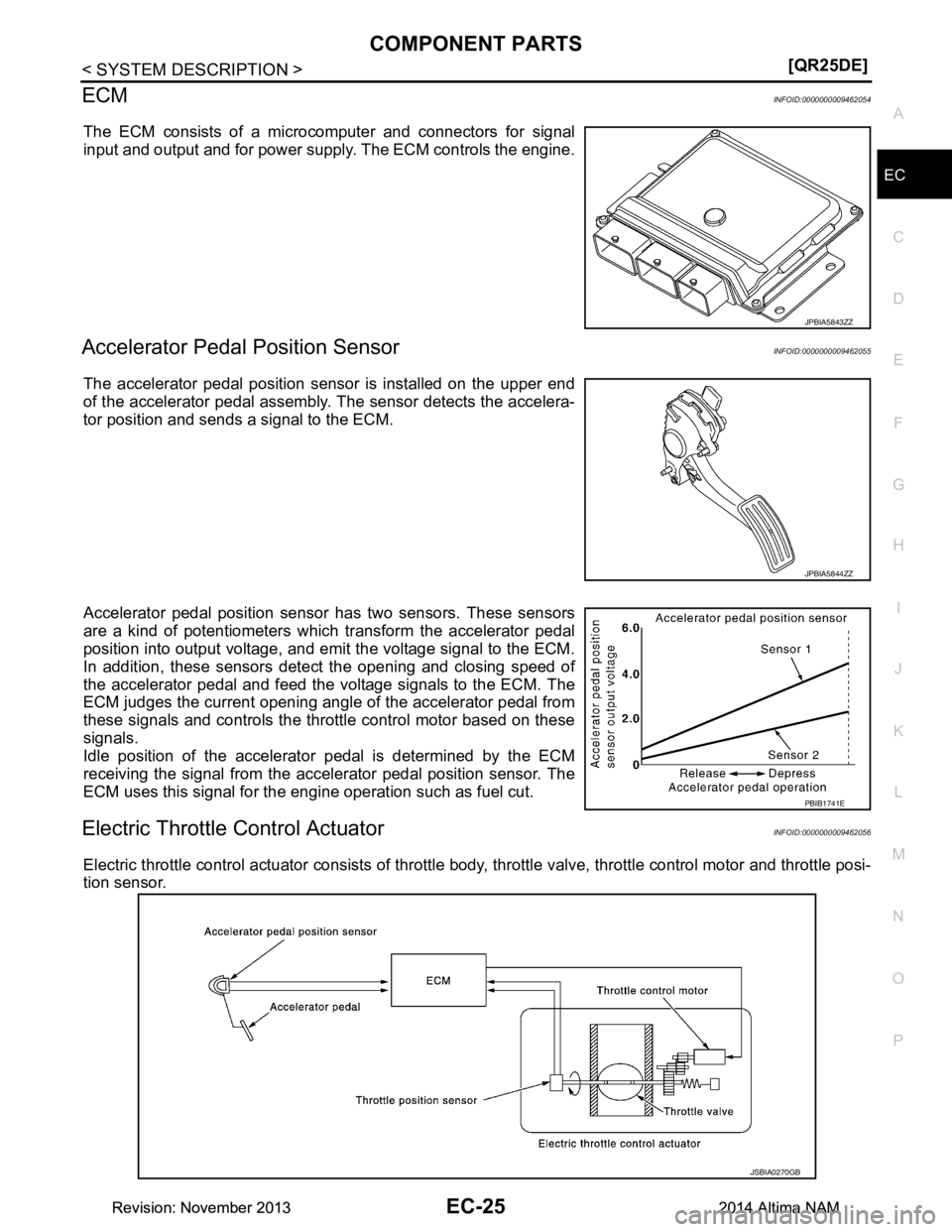

PBIB1741E
JSBIA0270GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-26
< SYSTEM DESCRIPTION >[QR25DE]
COMPONENT PARTS
THROTTLE CONTROL MOTOR RELAY
Power supply for the throttle control motor is provided to
the ECM via throttle control motor relay. The throttle
control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends
an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the ignition
switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not
provided to the ECM.
THROTTLE CONTROL MOTOR
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control mo tor to make the throttle valve opening angle properly in
response to driving condition.
THROTTLE POSITION SENSOR
The throttle position sensor responds to the throttle valve movement.

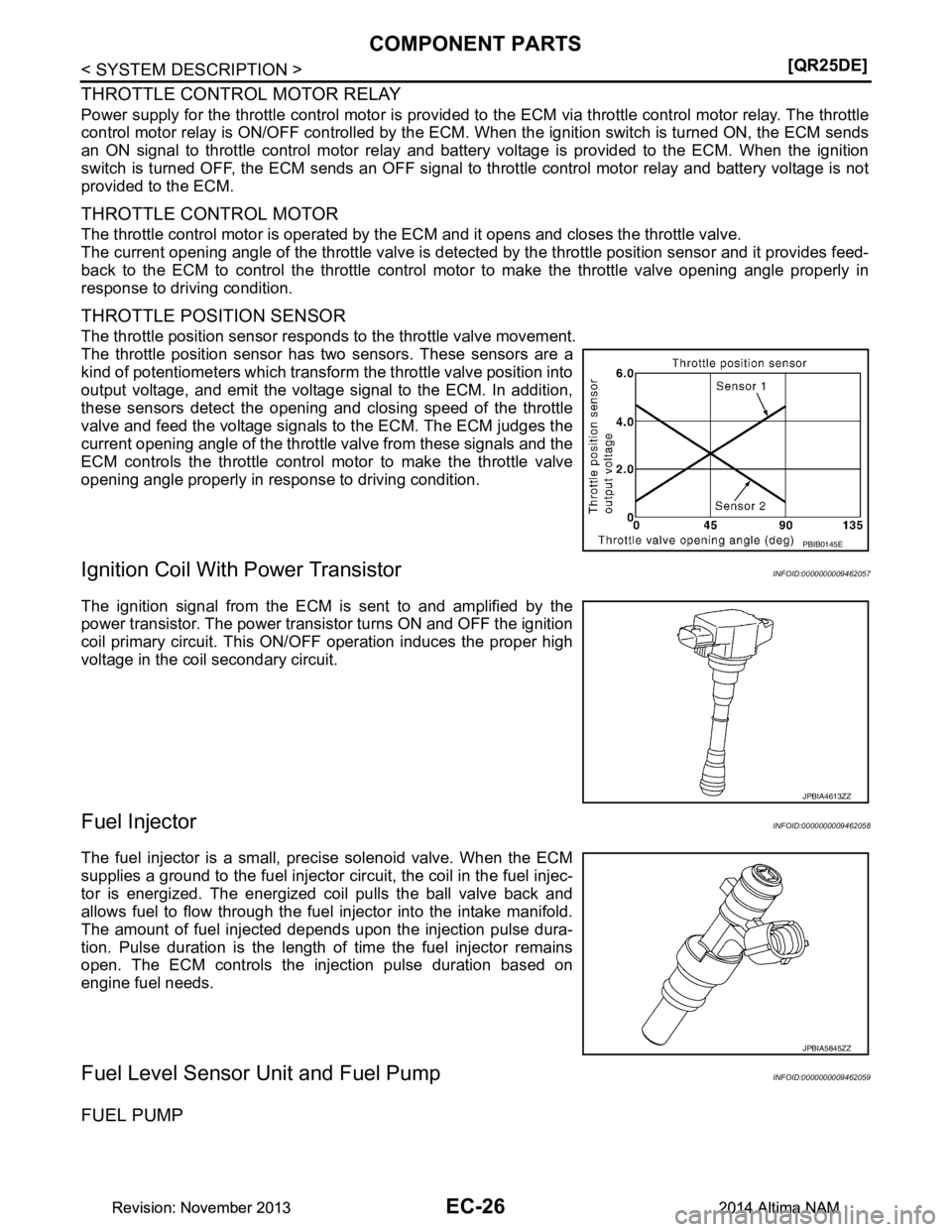

The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.
Ignition Coil With Power TransistorINFOID:0000000009462057
The ignition signal from the ECM is sent to and amplified by the
power transistor. The power transistor turns ON and OFF the ignition
coil primary circuit. This ON/OFF operation induces the proper high
voltage in the coil secondary circuit.
Fuel InjectorINFOID:0000000009462058
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the fuel injector circuit, the coil in the fuel injec-
tor is energized. The energized coil pulls the ball valve back and
allows fuel to flow through the fuel injector into the intake manifold.
The amount of fuel injected depends upon the injection pulse dura-
tion. Pulse duration is the length of time the fuel injector remains
open. The ECM controls the injection pulse duration based on
engine fuel needs.
Fuel Level Sensor Unit and Fuel PumpINFOID:0000000009462059

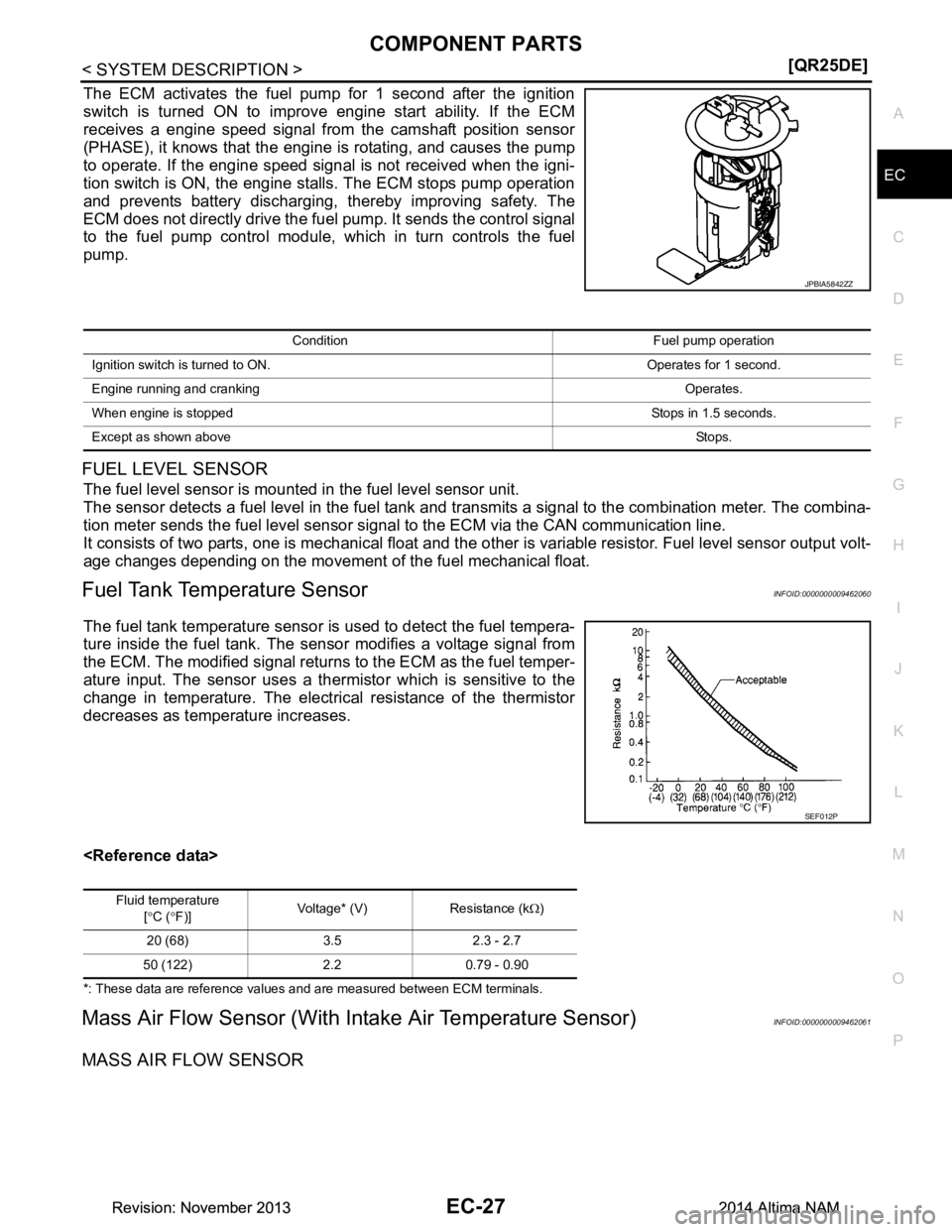

FUEL PUMP
PBIB0145E
JPBIA4613ZZ
JPBIA5845ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSEC-27
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
The ECM activates the fuel pump for 1 second after the ignition
switch is turned ON to improve engine start ability. If the ECM
receives a engine speed signal from the camshaft position sensor
(PHASE), it knows that the engine is rotating, and causes the pump
to operate. If the engine speed signal is not received when the igni-
tion switch is ON, the engine stalls. The ECM stops pump operation
and prevents battery discharging, thereby improving safety. The
ECM does not directly drive the fuel pump. It sends the control signal
to the fuel pump control module, which in turn controls the fuel
pump.
FUEL LEVEL SENSOR
The fuel level sensor is mounted in the fuel level sensor unit.
The sensor detects a fuel level in the fuel tank and tr ansmits a signal to the combination meter. The combina-
tion meter sends the fuel level sensor signal to the ECM via the CAN communication line.
It consists of two parts, one is mechanical float and the ot her is variable resistor. Fuel level sensor output volt-
age changes depending on the movement of the fuel mechanical float.
Fuel Tank Temperature SensorINFOID:0000000009462060
The fuel tank temperature sensor is used to detect the fuel tempera-
ture inside the fuel tank. The sensor modifies a voltage signal from
the ECM. The modified signal returns to the ECM as the fuel temper-
ature input. The sensor uses a ther mistor which is sensitive to the
change in temperature. The electrical resistance of the thermistor
decreases as temperature increases.

*: These data are reference values and are measured between ECM terminals.
Mass Air Flow Sensor (With Intake Air Temperature Sensor)INFOID:0000000009462061

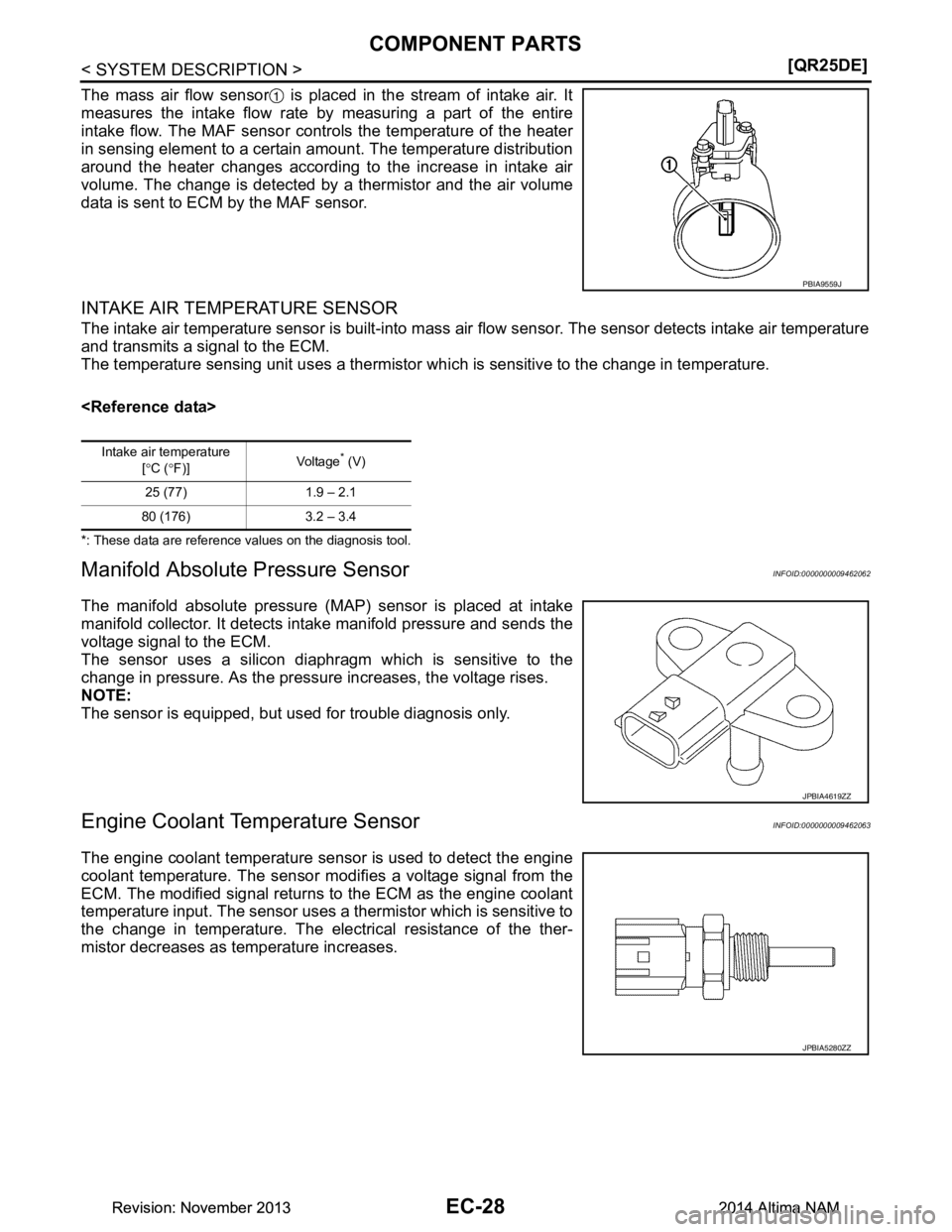

MASS AIR FLOW SENSOR
JPBIA5842ZZ
Condition Fuel pump operation
Ignition switch is turned to ON. Operates for 1 second.
Engine running and cranking Operates.
When engine is stopped Stops in 1.5 seconds.
Except as shown above Sto ps .
SEF012P
Fluid temperature
[° C ( °F)] Voltage* (V) Resistance (k
Ω)
20 (68) 3.5 2.3 - 2.7
50 (122) 2.2 0.79 - 0.90
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-28
< SYSTEM DESCRIPTION >[QR25DE]
COMPONENT PARTS
The mass air flow sensor is placed in the stream of intake air. It
measures the intake flow rate by measuring a part of the entire
intake flow. The MAF sensor controls the temperature of the heater
in sensing element to a certain amount. The temperature distribution
around the heater changes according to the increase in intake air
volume. The change is detected by a thermistor and the air volume
data is sent to ECM by the MAF sensor.
INTAKE AIR TEMPERATURE SENSOR
The intake air temperature sensor is built-into mass air flow sensor. The sensor detects intake air temperature
and transmits a signal to the ECM.
The temperature sensing unit uses a thermistor wh ich is sensitive to the change in temperature.

*: These data are reference values on the diagnosis tool.
Manifold Absolute Pressure SensorINFOID:0000000009462062
The manifold absolute pressure (MAP) sensor is placed at intake
manifold collector. It detects intake manifold pressure and sends the
voltage signal to the ECM.
The sensor uses a silicon diaphragm which is sensitive to the
change in pressure. As the pressure increases, the voltage rises.
NOTE:
The sensor is equipped, but used for trouble diagnosis only.
Engine Coolant Te mperature SensorINFOID:0000000009462063
The engine coolant temperature sensor is used to detect the engine
coolant temperature. The sensor modifies a voltage signal from the
ECM. The modified signal returns to the ECM as the engine coolant
temperature input. The sensor uses a thermistor which is sensitive to
the change in temperature. The elec trical resistance of the ther-
mistor decreases as temperature increases.
PBIA9559J
Intake air temperature
[° C ( °F)] Vo l ta g e* (V)
25 (77) 1.9 – 2.1
80 (176) 3.2 – 3.4
JPBIA4619ZZ
JPBIA5280ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSEC-29
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

*: These data are reference values and are measured between ECM terminals.
Crankshaft Position Sensor (POS)INFOID:0000000009462064
The crankshaft position sensor (POS
) is located on the oil pan facing
the gear teeth (cogs) of the signal pl ate. It detects the fluctuation of
the engine revolution.
The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change.
The changing gap causes the magnet ic field near the sensor to
change.
Due to the changing magnetic fiel d, the voltage from the sensor
changes.
The ECM receives the voltage signal and detects the fluctuation of
the engine revolution.
ECM receives the signals as shown in the figure.
Camshaft Position Sensor (PHASE)INFOID:0000000009462065
The camshaft position sensor (PHASE) senses the retraction of
intake camshaft to identify a particular cylinder. The camshaft posi-
tion sensor (PHASE) senses the piston position.
When the crankshaft position sensor (POS) system becomes inoper-
ative, the camshaft position sensor (PHASE) provides various con-
trols of engine parts instead, utilizing timing of cylinder identification
signals.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnet ic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor changes.
Engine coolant temperature
[° C ( °F)] Vo l ta g e* (V)
Resistance (k
Ω)
–10 (14) 4.4 7.0 - 11.4 20 (68) 3.5 2.37 - 2.63
50 (122) 2.2 0.68 - 1.00
90 (194) 1.0 0.236 - 0.260
SEF012P
JPBIA5848ZZ
JMBIA0714GB
JPBIA5846ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-30
< SYSTEM DESCRIPTION >[QR25DE]
COMPONENT PARTS
ECM receives the signals as shown in the figure.
Intake Valve Timing Control Solenoid ValveINFOID:0000000009462066
Intake valve timing control solenoid valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The intake valve timing control solenoid valve changes the oil
amount and direction of flow through intake valve timing control unit
or stops oil flow.
The longer pulse width advances valve angle.
The shorter pulse width retards valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix the intake valve angle at the control
position.
Intake Valve Timing Intermediate Lock Control Solenoid ValveINFOID:0000000009462067
Intake valve timing intermediate lock control solenoid valve is acti-
vated by ON/OFF signals from the ECM.
The intake valve timing intermediate lock control solenoid valve
opens/closes the path of oil pressure acting on the lock key in the
camshaft sprocket (INT).
• When the solenoid valve becomes ON, oil pressure to the lock key
is trained to perform intermediate lock.
• When the solenoid valve becomes OFF, oil pressure is acted on the lock key to release the intermediate lock.
Exhaust Valve Timing Control Position SensorINFOID:0000000009462068
Exhaust valve timing control position sensor detects the protrusion of
the signal plate installed to the exhaust camshaft front end.
This sensor signal is used for sensing a position of the exhaust cam-
shaft.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor
changes.
JMBIA0714GB
PBIB1842E
PBIB1842E
JPBIA5847ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
