NISSAN TEANA 2014 Service Manual

COMPONENT PARTSEC-31
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

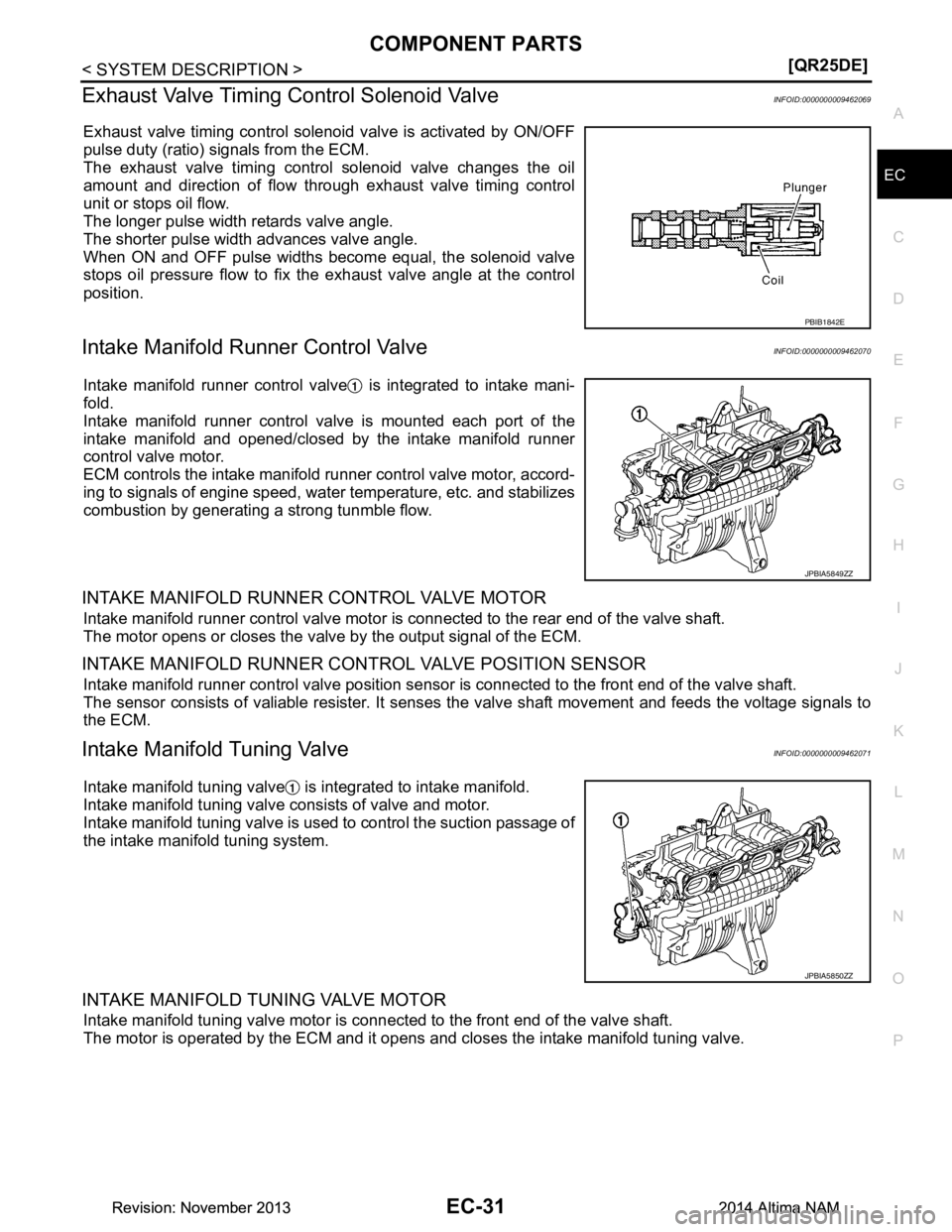

Exhaust Valve Timing Control Solenoid ValveINFOID:0000000009462069
Exhaust valve timing control solenoi
d valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The exhaust valve timing control solenoid valve changes the oil
amount and direction of flow through exhaust valve timing control
unit or stops oil flow.
The longer pulse width retards valve angle.
The shorter pulse width advances valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix t he exhaust valve angle at the control
position.
Intake Manifold Runner Control ValveINFOID:0000000009462070
Intake manifold runner control valve is integrated to intake mani-
fold.
Intake manifold runner control valve is mounted each port of the
intake manifold and opened/closed by the intake manifold runner
control valve motor.
ECM controls the intake manifold runner control valve motor, accord-
ing to signals of engine speed, water temperature, etc. and stabilizes
combustion by generating a strong tunmble flow.
INTAKE MANIFOLD RUNNER CONTROL VALVE MOTOR
Intake manifold runner control valve motor is connected to the rear end of the valve shaft.
The motor opens or closes the valve by the output signal of the ECM.
INTAKE MANIFOLD RUNNER CONTROL VALVE POSITION SENSOR
Intake manifold runner control valve position sensor is connected to the front end of the valve shaft.
The sensor consists of valiable resister. It senses the valve shaft movement and feeds the voltage signals to
the ECM.
Intake Manifold Tuning ValveINFOID:0000000009462071
Intake manifold tuning valve is integrated to intake manifold.
Intake manifold tuning valve consists of valve and motor.
Intake manifold tuning valve is used to control the suction passage of
the intake manifold tuning system.
INTAKE MANIFOLD TUNING VALVE MOTOR
Intake manifold tuning valve motor is connected to the front end of the valve shaft.
The motor is operated by the ECM and it opens a nd closes the intake manifold tuning valve.
PBIB1842E
JPBIA5849ZZ
JPBIA5850ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-32
< SYSTEM DESCRIPTION >[QR25DE]
COMPONENT PARTS

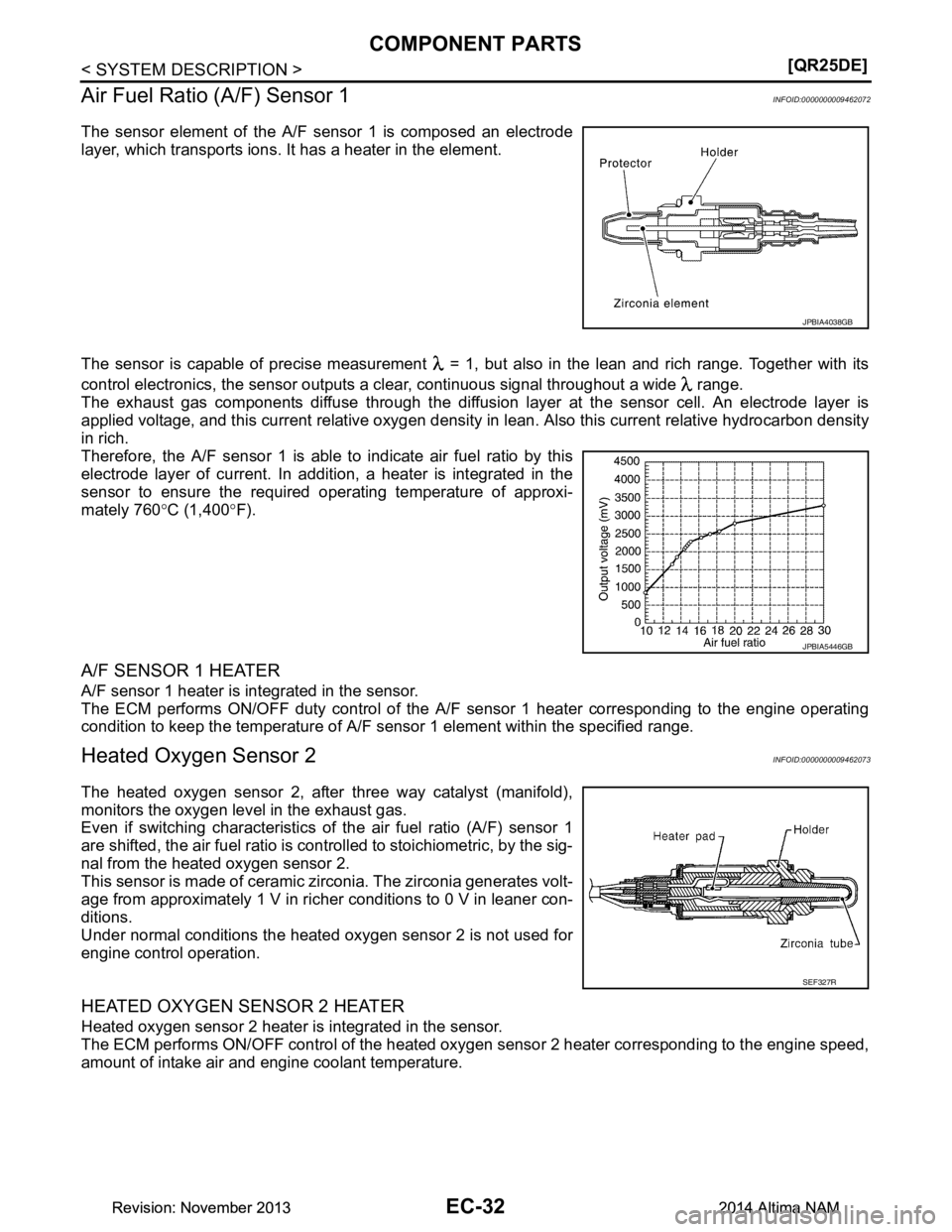

Air Fuel Ratio (A/F) Sensor 1
INFOID:0000000009462072
The sensor element of the A/F sensor 1 is composed an electrode
layer, which transports ions. It has a heater in the element.
The sensor is capable of precise measurement = 1, but also in the lean and rich range. Together with its
control electronics, the sensor outputs a cl ear, continuous signal throughout a wide range.
The exhaust gas components diffuse through the diffusi on layer at the sensor cell. An electrode layer is
applied voltage, and this current relati ve oxygen density in lean. Also this current relative hydrocarbon density
in rich.
Therefore, the A/F sensor 1 is able to indicate air fuel ratio by this
electrode layer of current. In additi on, a heater is integrated in the
sensor to ensure the required operating temperature of approxi-
mately 760 °C (1,400 °F).
A/F SENSOR 1 HEATER
A/F sensor 1 heater is integrated in the sensor.
The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating
condition to keep the temperature of A/F s ensor 1 element within the specified range.
Heated Oxygen Sensor 2INFOID:0000000009462073
The heated oxygen sensor 2, after three way catalyst (manifold),
monitors the oxygen level in the exhaust gas.
Even if switching characteristics of the air fuel ratio (A/F) sensor 1
are shifted, the air fuel ratio is controlled to stoichiometric, by the sig-
nal from the heated oxygen sensor 2.
This sensor is made of ceramic zirconia. The zirconia generates volt-
age from approximately 1 V in richer conditions to 0 V in leaner con-
ditions.
Under normal conditions the heated ox ygen sensor 2 is not used for
engine control operation.
HEATED OXYGEN SENSOR 2 HEATER
Heated oxygen sensor 2 heater is integrated in the sensor.
The ECM performs ON/OFF control of the heated oxy gen sensor 2 heater corresponding to the engine speed,
amount of intake air and engine coolant temperature.
JPBIA4038GB
JPBIA5446GB
SEF327R
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSEC-33
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

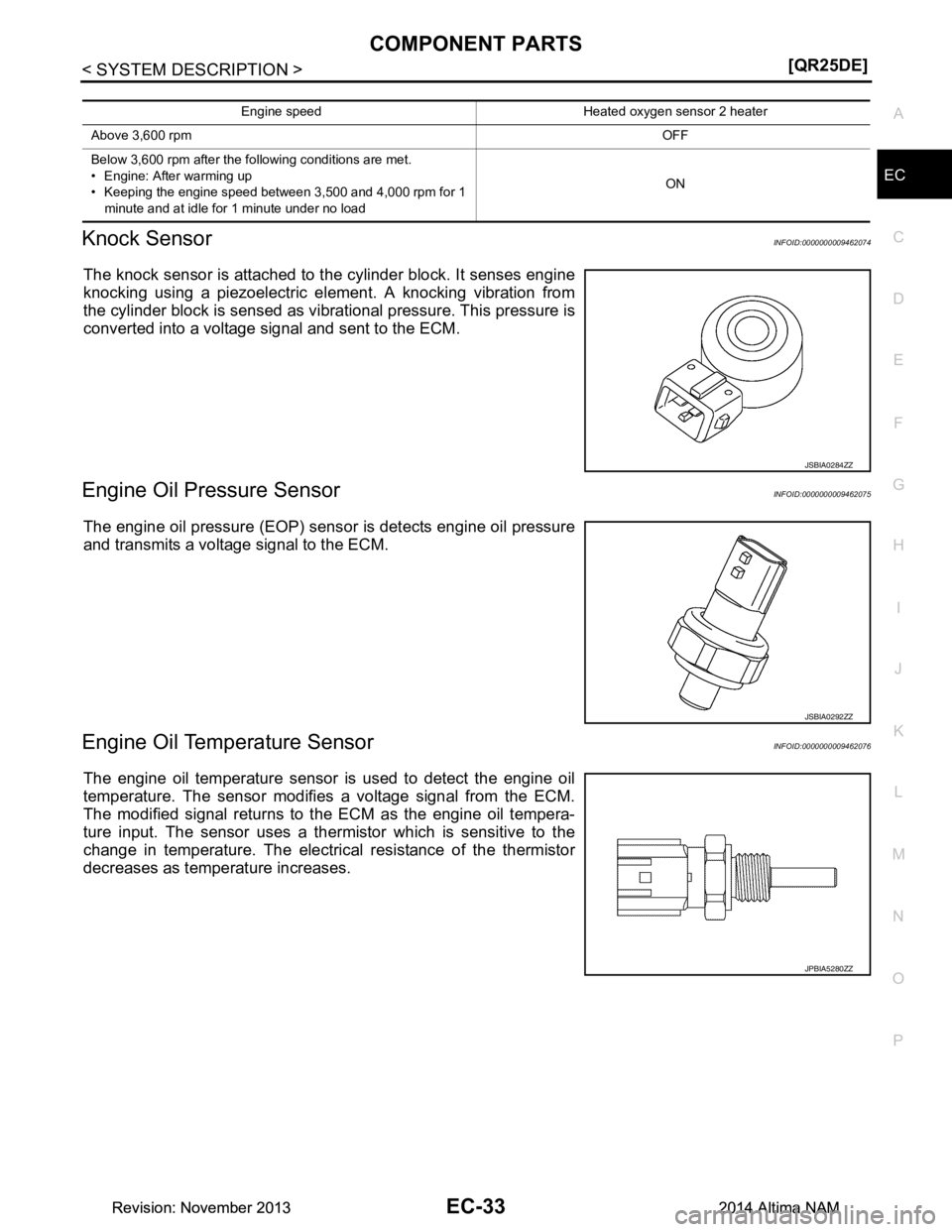

Knock SensorINFOID:0000000009462074
The knock sensor is attached to t
he cylinder block. It senses engine
knocking using a piezoelectric el ement. A knocking vibration from
the cylinder block is sensed as vibrational pressure. This pressure is
converted into a voltage signal and sent to the ECM.
Engine Oil Pressure SensorINFOID:0000000009462075
The engine oil pressure (EOP) sens or is detects engine oil pressure
and transmits a voltage signal to the ECM.
Engine Oil Temperature SensorINFOID:0000000009462076
The engine oil temperature sensor is used to detect the engine oil
temperature. The sensor modifies a voltage signal from the ECM.
The modified signal returns to the ECM as the engine oil tempera-
ture input. The sensor uses a ther mistor which is sensitive to the
change in temperature. The electrical resistance of the thermistor
decreases as temperature increases.
Engine speed Heated oxygen sensor 2 heater
Above 3,600 rpm OFF
Below 3,600 rpm after the following conditions are met.
• Engine: After warming up
• Keeping the engine speed between 3,500 and 4,000 rpm for 1
minute and at idle for 1 minute under no load ON
JSBIA0284ZZ
JSBIA0292ZZ
JPBIA5280ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

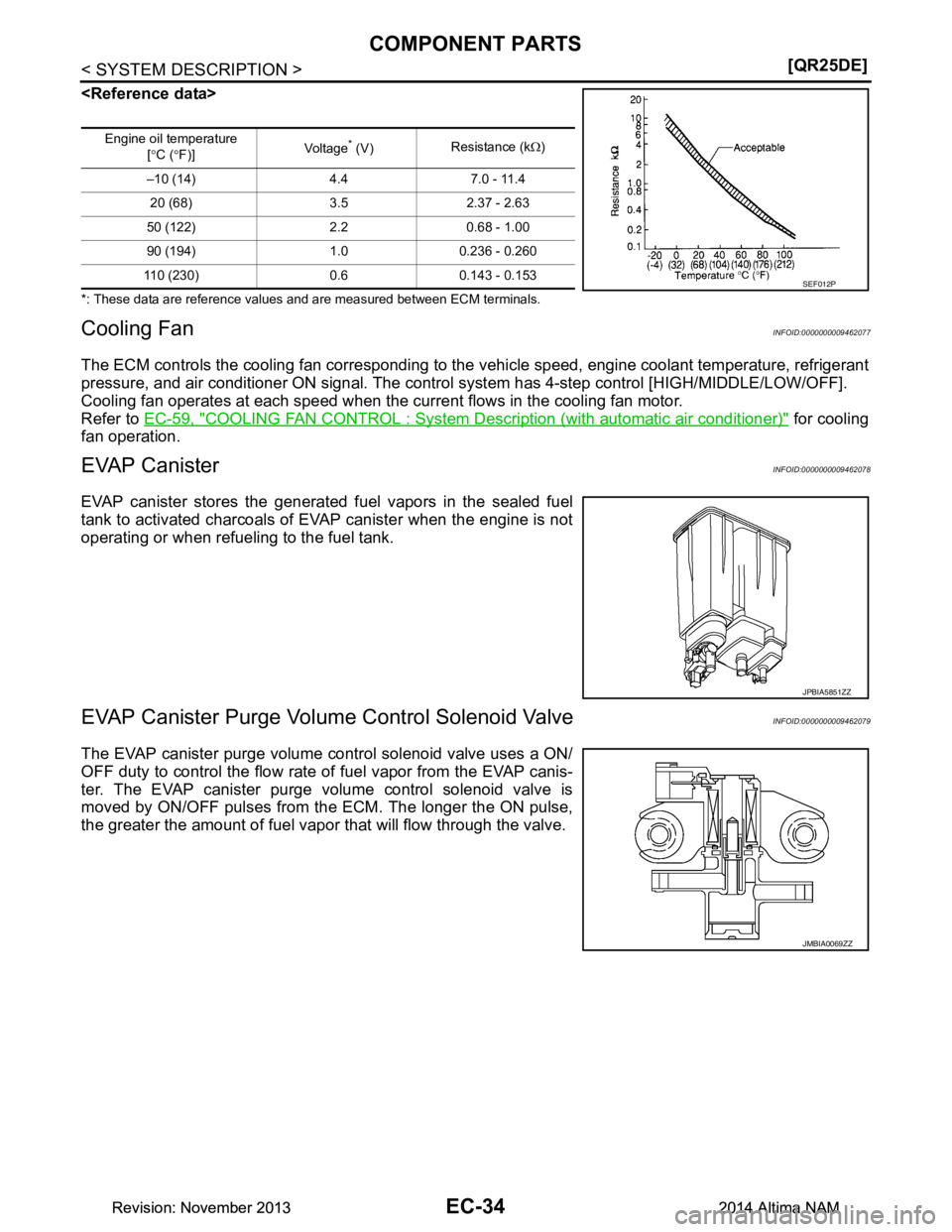

EC-34
< SYSTEM DESCRIPTION >[QR25DE]
COMPONENT PARTS

*: These data are reference values and are measured between ECM terminals.
Cooling FanINFOID:0000000009462077
The ECM controls the cooling fan corresponding to the
vehicle speed, engine coolant temperature, refrigerant
pressure, and air conditioner ON signal. The control system has 4-step control [HIGH/MIDDLE/LOW/OFF].
Cooling fan operates at each speed when the current flows in the cooling fan motor.
Refer to EC-59, "COOLING FAN CONTROL : System De scription (with automatic air conditioner)"
for cooling
fan operation.

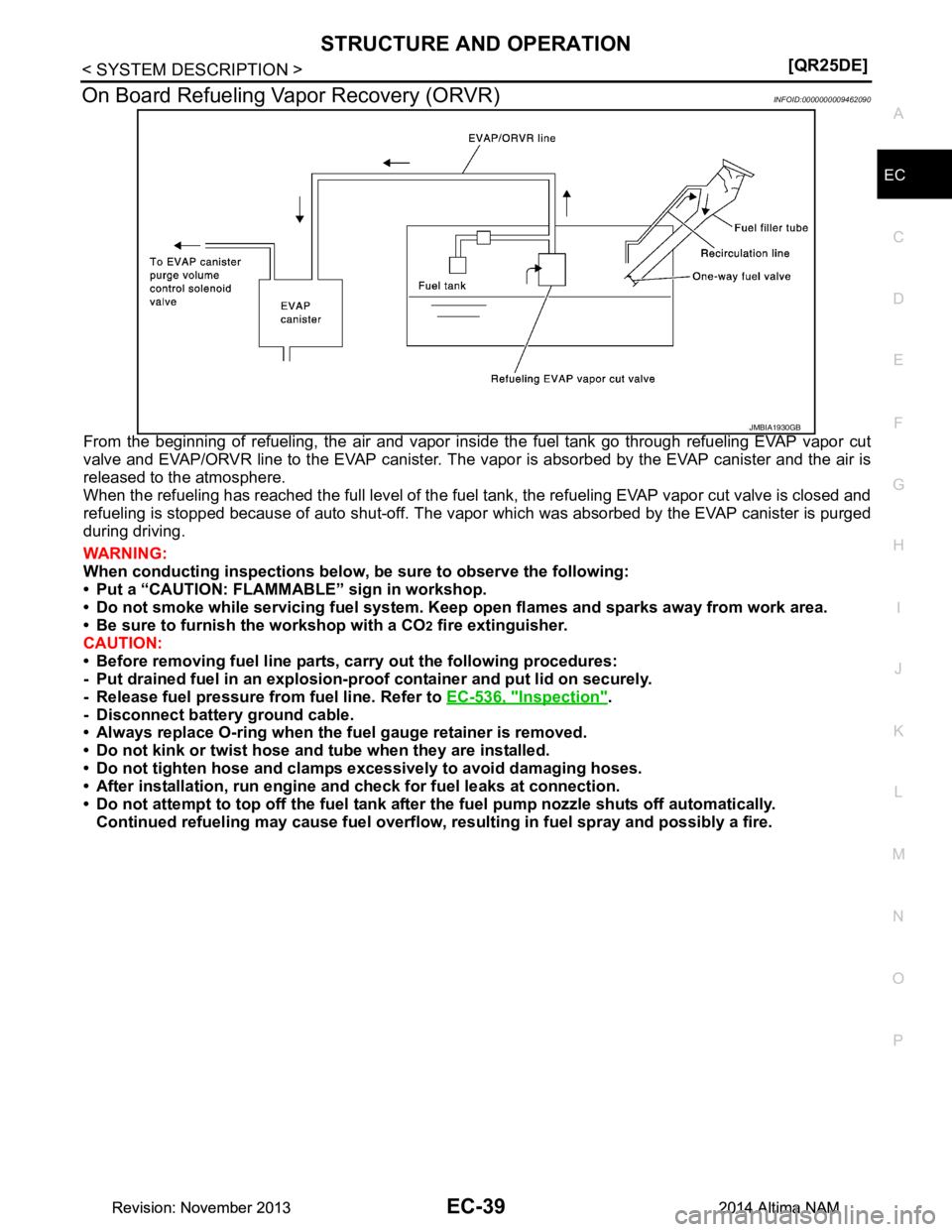

EVAP CanisterINFOID:0000000009462078
EVAP canister stores the generat ed fuel vapors in the sealed fuel
tank to activated charcoals of EVAP canister when the engine is not
operating or when refueling to the fuel tank.
EVAP Canister Purge Volume Control Solenoid ValveINFOID:0000000009462079
The EVAP canister purge volume control solenoid valve uses a ON/
OFF duty to control the flow rate of fuel vapor from the EVAP canis-
ter. The EVAP canister purge volume control solenoid valve is
moved by ON/OFF pulses from the ECM. The longer the ON pulse,
the greater the amount of fuel vapor that will flow through the valve.
Engine oil temperature
[° C ( °F)] Vol tag e* (V)
Resistance (k
Ω)
–10 (14) 4.4 7.0 - 11.4 20 (68) 3.5 2.37 - 2.63
50 (122) 2.2 0.68 - 1.00
90 (194) 1.0 0.236 - 0.260
110 (230) 0.6 0.143 - 0.153
SEF012P
JPBIA5851ZZ
JMBIA0069ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSEC-35
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

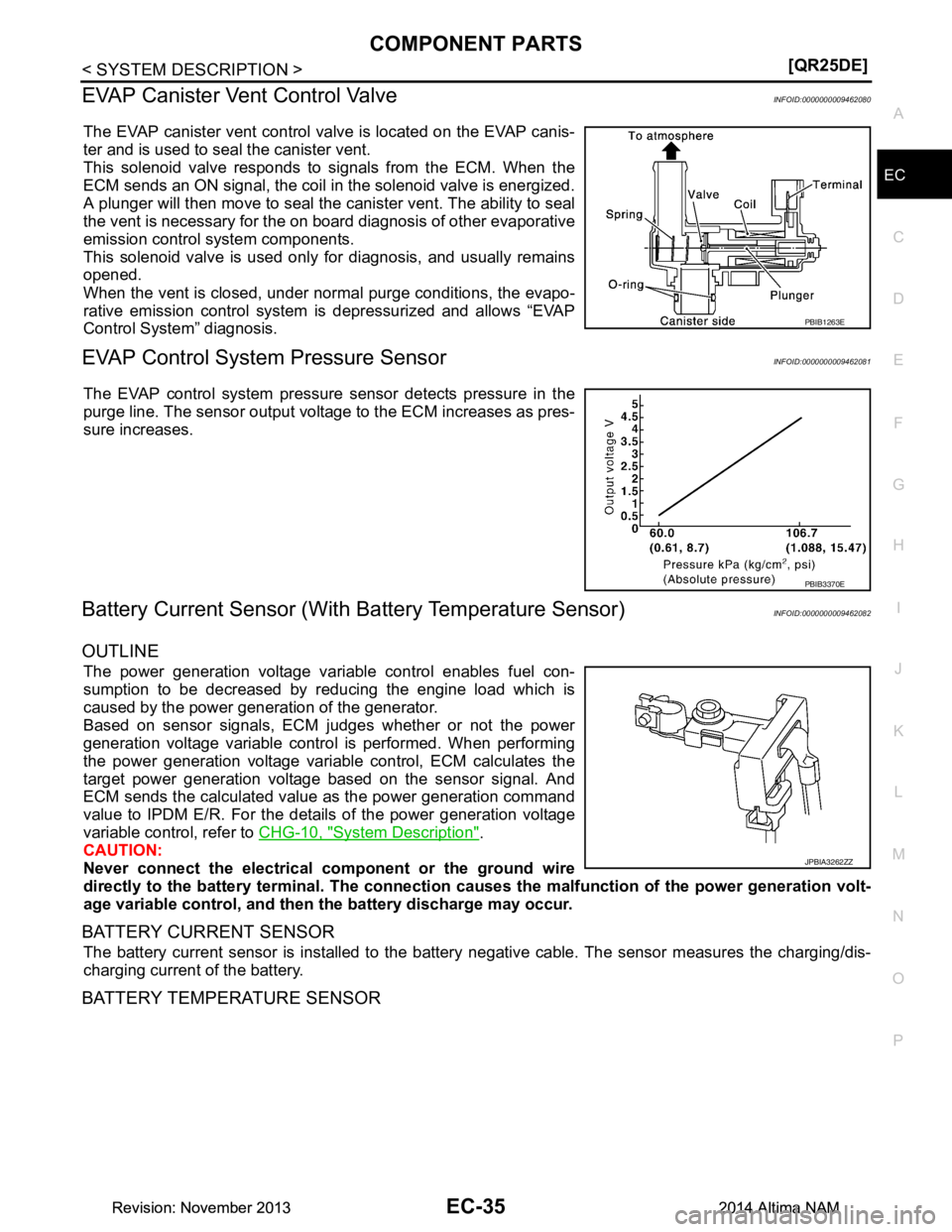

EVAP Canister Vent Control ValveINFOID:0000000009462080
The EVAP canister vent control valve is located on the EVAP canis-
ter and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows “EVAP
Control System” diagnosis.
EVAP Control System Pressure SensorINFOID:0000000009462081
The EVAP control system pressure sensor detects pressure in the
purge line. The sensor output voltage to the ECM increases as pres-
sure increases.
Battery Current Sensor (With Battery Temperature Sensor)INFOID:0000000009462082
OUTLINE
The power generation voltage variable control enables fuel con-
sumption to be decreased by reducing the engine load which is
caused by the power generation of the generator.
Based on sensor signals, ECM judges whether or not the power
generation voltage variable contro l is performed. When performing
the power generation voltage variable control, ECM calculates the
target power generation voltage based on the sensor signal. And
ECM sends the calculated value as the power generation command
value to IPDM E/R. For the details of the power generation voltage
variable control, refer to CHG-10, "System Description"
.
CAUTION:
Never connect the electrical co mponent or the ground wire
directly to the battery terminal. The connection cau ses the malfunction of the power generation volt-
age variable control, and then the battery discharge may occur.
BATTERY CURRENT SENSOR
The battery current sensor is installed to the battery negative cable. The sensor measures the charging/dis-
charging current of the battery.
BATTERY TEMPERATURE SENSOR
PBIB1263E
PBIB3370E
JPBIA3262ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-36
< SYSTEM DESCRIPTION >[QR25DE]
COMPONENT PARTS

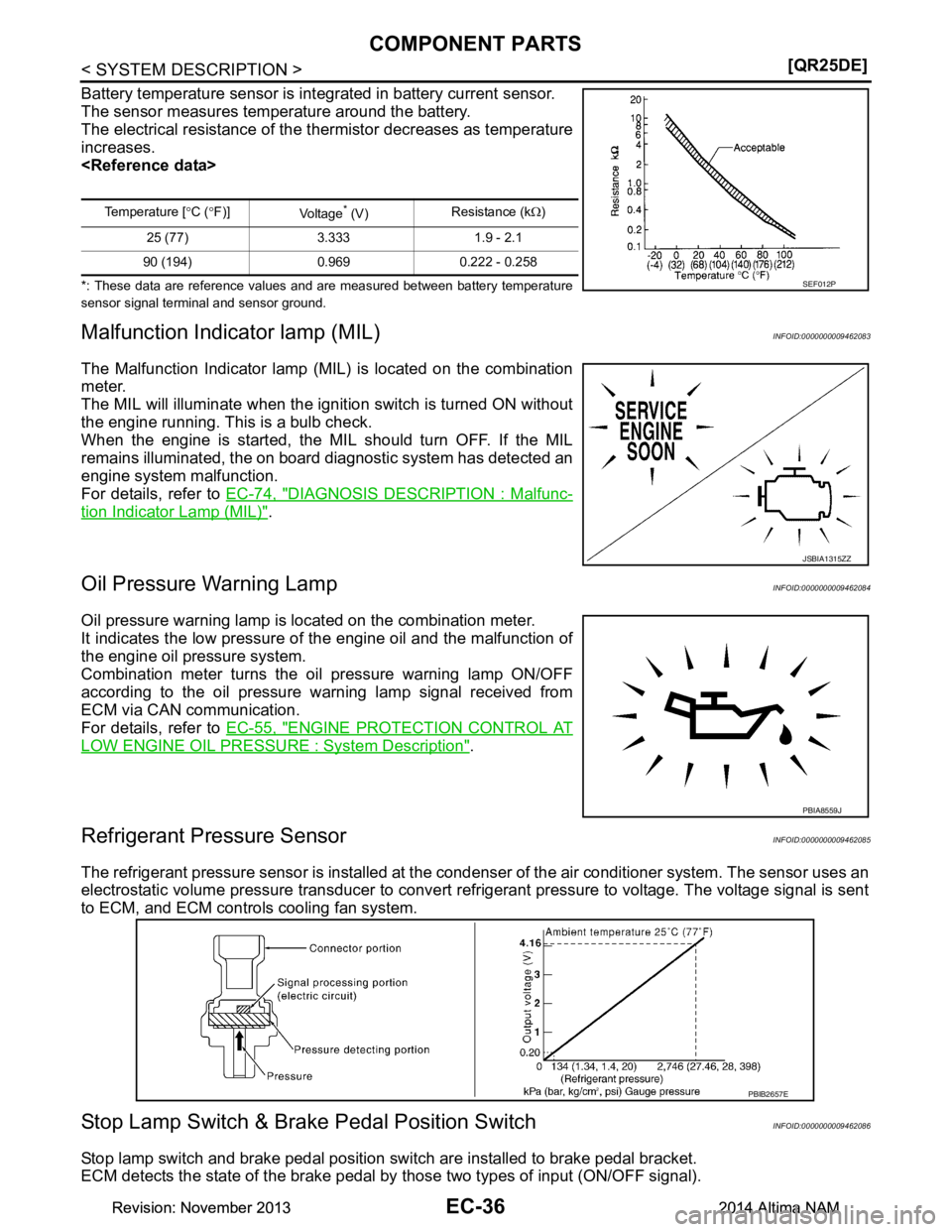

Battery temperature sensor is int
egrated in battery current sensor.
The sensor measures temperature around the battery.
The electrical resistance of the t hermistor decreases as temperature
increases.

*: These data are reference values and are measured between battery temperature
sensor signal terminal and sensor ground.
Malfunction Indicator lamp (MIL)INFOID:0000000009462083
The Malfunction Indicator lamp (MIL) is located on the combination
meter.
The MIL will illuminate when the ignition switch is turned ON without
the engine running. This is a bulb check.
When the engine is started, the MI L should turn OFF. If the MIL
remains illuminated, the on board diagnostic system has detected an
engine system malfunction.
For details, refer to EC-74, "DIAGNOSIS DESCRIPTION : Malfunc-
tion Indicator Lamp (MIL)".
Oil Pressure Warning LampINFOID:0000000009462084
Oil pressure warning lamp is located on the combination meter.
It indicates the low pressure of the engine oil and the malfunction of
the engine oil pressure system.
Combination meter turns the oil pressure warning lamp ON/OFF
according to the oil pressure warning lamp signal received from
ECM via CAN communication.
For details, refer to EC-55, "ENGINE PROTECTION CONTROL AT
LOW ENGINE OIL PRESSURE : System Description".
Refrigerant Pressure SensorINFOID:0000000009462085
The refrigerant pressure sensor is installed at the c ondenser of the air conditioner system. The sensor uses an
electrostatic volume pressure transducer to convert refrigerant pressure to voltage. The voltage signal is sent
to ECM, and ECM controls cooling fan system.
Stop Lamp Switch & Brake Pedal Position SwitchINFOID:0000000009462086
Stop lamp switch and brake pedal position switch are installed to brake pedal bracket.
ECM detects the state of the brake pedal by those two types of input (ON/OFF signal).
Temperature [°C ( °F)]
Vo l ta g e* (V) Resistance (k
Ω)
25 (77) 3.333 1.9 - 2.1
90 (194) 0.969 0.222 - 0.258
SEF012P
JSBIA1315ZZ
PBIA8559J
PBIB2657E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSEC-37
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
ASCD Steering SwitchINFOID:0000000009462087
ASCD steering switch has variant values of electrical
resistance for each button. ECM reads voltage variation
of switch, and determines which button is operated.
Information DisplayINFOID:0000000009462088
The operation mode of the ASCD is indicated on the information display in the combination meter.
ECM transmits the status signal to the combination meter via CAN communication according to ASCD opera-
tion.
Brake pedal Brake pedal position switch Stop lamp switch
Released ON OFF
Depressed OFF ON
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-38
< SYSTEM DESCRIPTION >[QR25DE]
STRUCTURE AND OPERATION
STRUCTURE AND OPERATION

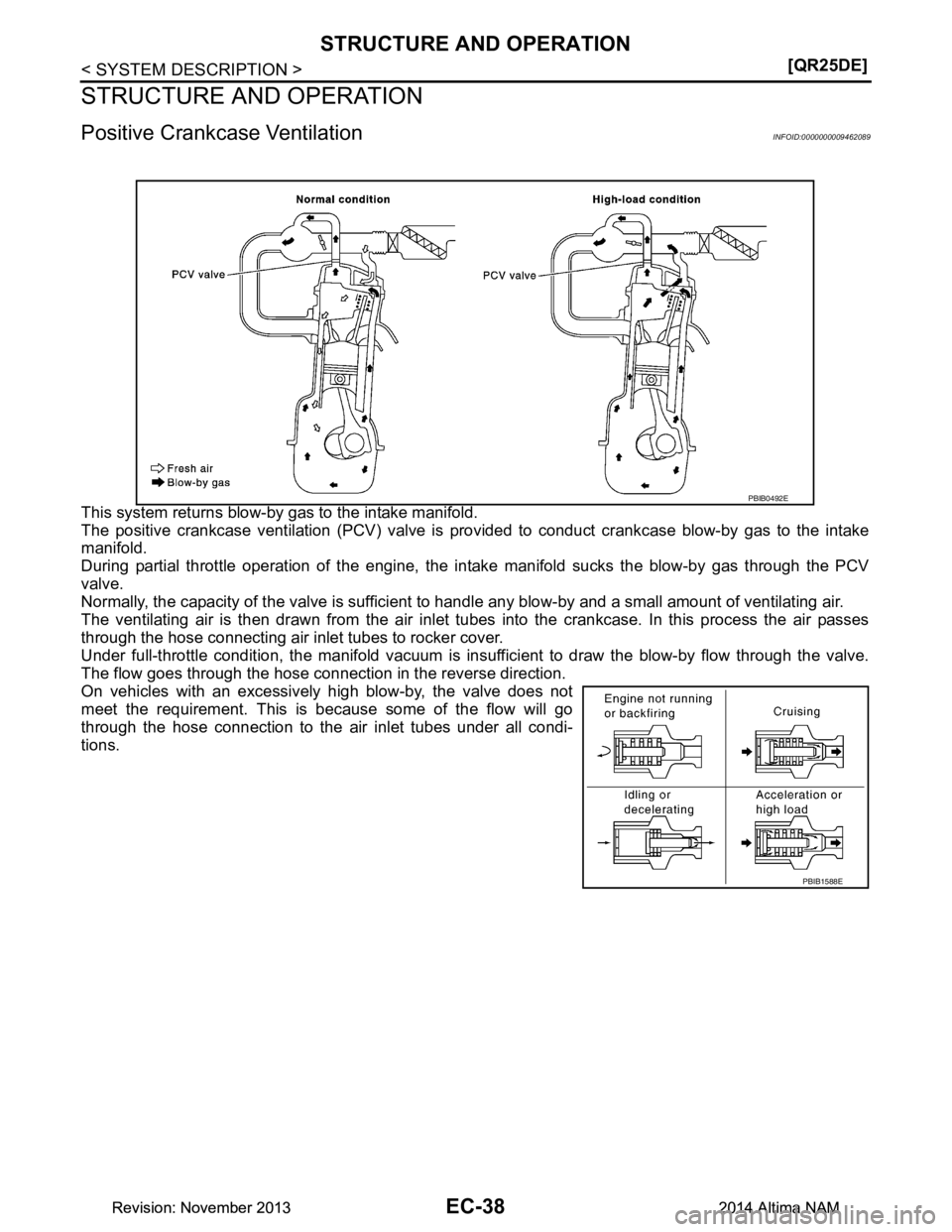

Positive Crankcase VentilationINFOID:0000000009462089
This system returns blow-by gas to the intake manifold.
The positive crankcase ventilation (PCV) valve is prov ided to conduct crankcase blow-by gas to the intake
manifold.
During partial throttle operation of the engine, the in take manifold sucks the blow-by gas through the PCV
valve.
Normally, the capacity of the valve is sufficient to handle any blow-by and a small amount of ventilating air.
The ventilating air is then drawn from the air inlet tubes into the crankcase. In this process the air passes
through the hose connecting air inlet tubes to rocker cover.
Under full-throttle condition, the manifold vacuum is in sufficient to draw the blow-by flow through the valve.
The flow goes through the hose connection in the reverse direction.
On vehicles with an excessively high blow-by, the valve does not
meet the requirement. This is because some of the flow will go
through the hose connection to the air inlet tubes under all condi-
tions.
PBIB0492E
PBIB1588E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

STRUCTURE AND OPERATIONEC-39
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
On Board Refueling Vapor Recovery (ORVR)INFOID:0000000009462090
From the beginning of refueling, the air and vapor insi
de the fuel tank go through refueling EVAP vapor cut
valve and EVAP/ORVR line to the EVAP canister. The v apor is absorbed by the EVAP canister and the air is
released to the atmosphere.
When the refueling has reached the full level of the fuel tank, the refueling EVAP vapor cut valve is closed and
refueling is stopped because of auto shut-off. The vapor which was absorbed by the EVAP canister is purged
during driving.
WARNING:
When conducting inspectio ns below, be sure to observe the following:
• Put a “CAUTION: FLAMMABL E” sign in workshop.
• Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.
• Be sure to furnish the workshop with a CO
2 fire extinguisher.
CAUTION:
• Before removing fuel line parts, carry out the following procedures:
- Put drained fuel in an explosion-proof containe r and put lid on securely.
- Release fuel pressure from fuel line. Refer to EC-536, "Inspection"
.
- Disconnect battery ground cable.
• Always replace O-ring when the fu el gauge retainer is removed.
• Do not kink or twist hose and tube when they are installed.
• Do not tighten hose and clamps excessively to avoid damaging hoses.
• After installation, run engine a nd check for fuel leaks at connection.
• Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off automatically.
Continued refueling may cause fuel overflow, r esulting in fuel spray and possibly a fire.
JMBIA1930GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-40
< SYSTEM DESCRIPTION >[QR25DE]
SYSTEM
SYSTEM
ENGINE CONTROL SYSTEM
ENGINE CONTROL SYSTEM : System DescriptionINFOID:0000000009462091

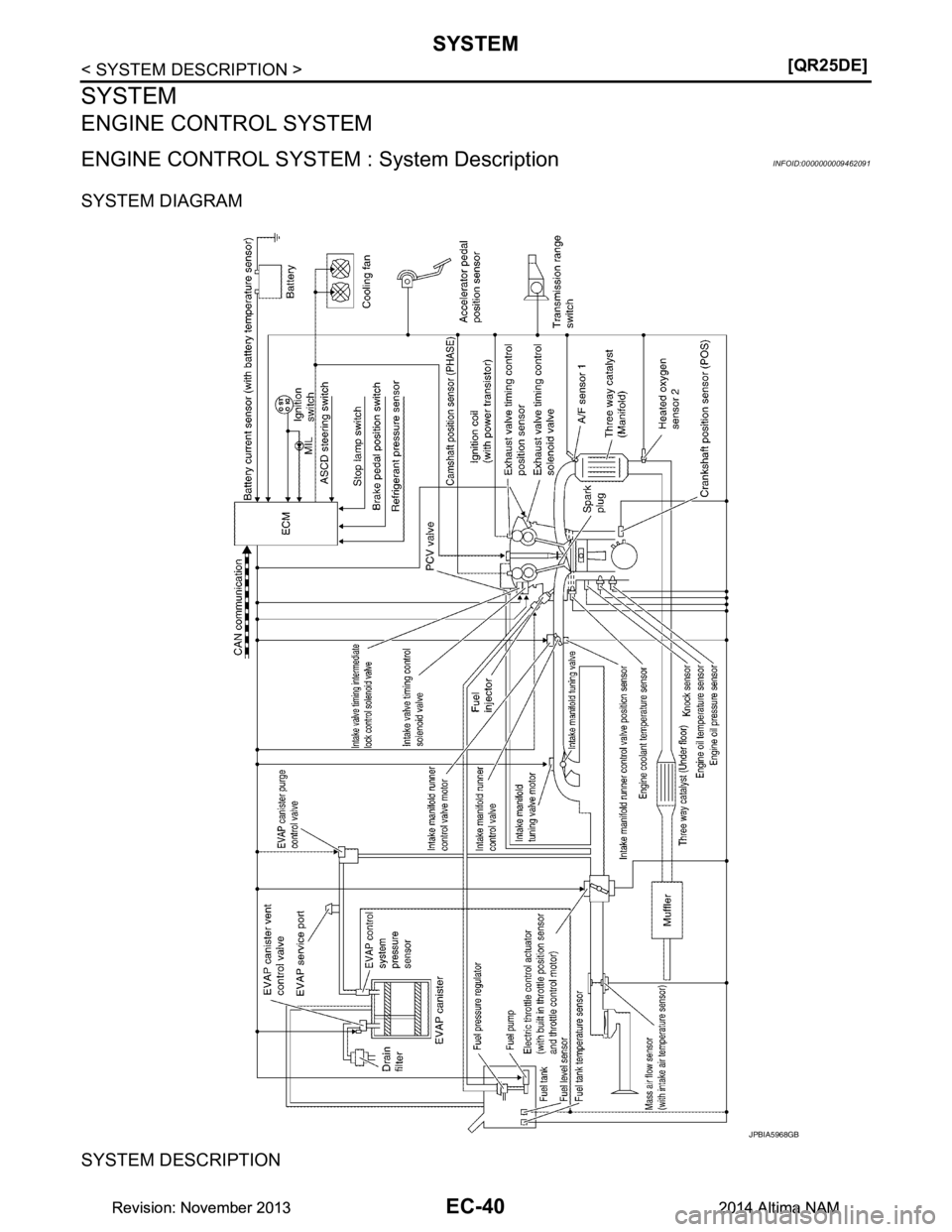

SYSTEM DIAGRAM
SYSTEM DESCRIPTION
JPBIA5968GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
