NISSAN TEANA 2014 Service Manual

HOW TO SET SRT CODEEC-691
< BASIC INSPECTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
Always drive the vehicle in safe ma
nner according to traffic conditions and obey all traffic laws.
*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal
and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h
(56 MPH) again.
*2: Checking the vehicle speed with GST is advised.
• The time required for each diagnosis varies with road su rface conditions, weather, altitude, individual driving
habits, etc.
• “Zone A” is the fastest time where required for the diagnosis under normal conditions*. If the diagnosis is not
completed within “Zone A”, the diagnosis can still be performed within “Zone B”.
JSBIA1932GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-692
< BASIC INSPECTION >[VQ35DE]
HOW TO SET SRT CODE
*: Normal conditions- Sea level
- Flat road
- Ambient air temperature: 20 – 30 °C (68 – 86 °F)
NOTE:
Diagnosis is performed as quickly as possible under normal conditions. However, under other conditions,
diagnosis may also be performed. [For example: ambient air temperature other than 20 – 30°C (68 – 86 °F)]
Work ProcedureINFOID:0000000009462566
1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-630, "DTC Index".
NO >> GO TO 2.
2.CHECK SRT STATUS
With CONSULT
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.
Without CONSULT
Perform “SRT status” mode with EC-598, "On Board Diagnosis Function"
.
With GST
Select Service $01 with GST.
Is SRT code(s) set?
YES >> GO TO 12.
NO-1 >> With CONSULT: GO TO 3.
NO-2 >> Without CONSULT: GO TO 4.
3.DTC CONFIRMATION PROCEDURE
1. Select “SRT WORK SUPPORT” in “DTC & SRT CONFIRMATION” mode with CONSULT.
2. For SRT(s) that is not set, perform the corre sponding “DTC CONFIRMATION PROCEDURE” according to
the “Performance Priority” in the “SRT ITEM” table. Refer to EC-689, "Description"
.
3. Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-630, "DTC Index".
NO >> GO TO 11.
4.PERFORM ROAD TEST
• Check the “Performance Priority” in the “SRT ITEM” table. Refer to EC-689, "Description"
.
• Perform the most efficient SRT set driving pattern to set the SRT properly. Refer to EC-690, "SRT Set Driv-
ing Pattern".
In order to set all SRTs, the SRT set driving pattern must be performed at least once.
>> GO TO 5.
5.PATTERN 1
1. Check the vehicle condition;
- Engine coolant temperature is −10 to 35 °C (14 to 95 °F).
- Fuel tank temperature is more than 0 °C (32 °F).
2. Start the engine.
3. Keep engine idling until the engine coolant temperature is greater than 70 °C (158 °F)
NOTE:
ECM terminal voltage is follows;
• Engine coolant temperature
- −10 to 35 °C (14 to 95 °F): 3.0 – 4.3 V
-70 °(158 °F): Less than 4.1 V
• Fuel tank temperature: Less than 1.4 V
Refer to EC-613, "Reference Value"
.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HOW TO SET SRT CODEEC-693
< BASIC INSPECTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
>> GO TO 6.
6.PATTERN 2
1. Drive the vehicle. And depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then
release the accelerator pedal and keep it released for more than 10 seconds.
2. Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH) again
NOTE:
• Checking the vehicle speed with GST is advised.
• When steady-state driving is performed again even afte r it is interrupted, each diagnosis can be conducted.
In this case, the time required for diagnosis may be extended.
>> GO TO 7.
7.PATTERN 3
• Operate vehicle following the driving pattern shown in the figure.
• Release the accelerator pedal during deceleration of vehicle speed
from 90 km/h (56 MPH) to 0 km/h (0 MPH).
>> GO TO 8.
8.PATTERN 4
• Operate vehicle, following the driving pattern shown in the figure.
- Drive the vehicle in a proper gear at 60 km/h (38 MPH) and main-
tain the speed.
- Release the accelerator pedal fully at least 5 seconds.
- Repeat the above two steps at least 5 times.
>> GO TO 9.
9.PATTERN 5
• The accelerator pedal must be held very steady during steady-state driving.
• If the accelerator pedal is moved, the test must be conducted again.
>> GO TO 10.
10.PATTERN 6
• Cool down the engine so that the engine c oolant temperature lowers between 15 – 35°C (59 – 95 °F).
CAUTION:
Never turn the ignition switch ON while cooling down the engine.
• Engine coolant temperature at engine start is between 15 – 35 °C (59 – 95 °F) and has lowered 45 °C (113 °F)
or more since the latest engine stop.
>> GO TO 11.
11 .CHECK SRT STATUS
With CONSULT
PBIB2244E
JSBIA0160GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-694
< BASIC INSPECTION >[VQ35DE]
HOW TO SET SRT CODE
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.
Without CONSULT
Perform “SRT status” mode with EC-598, "On Board Diagnosis Function"
.
With GST
Select Service $01 with GST.
Is SRT(s) set?
YES >> GO TO 12.
NO >> Call TECH LINE or take appropriate action.
12.CHECK PERMANENT DTC
NOTE:
Permanent DTC cannot be checked with a tool other than CONSULT or GST.
With CONSULT
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.
With GST
Select Service $0A with GST.
Is permanent DTC(s) detected?
YES >> Proceed to EC-695, "Description".
NO >> END
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HOW TO ERASE PERMANENT DTCEC-695
< BASIC INSPECTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
HOW TO ERASE PERMANENT DTC
DescriptionINFOID:0000000009462567
OUTLINE
When a DTC is stored in ECM
When a DTC is stored in ECM and MIL is ON, a permanent
DTC is erased with MIL shutoff if the same mal-
function is not detected after performing the drivi ng pattern for MIL shutoff three times in a raw.
When a DTC is not stored in ECM
The erasing method depends on a permanent DTC stor ed in ECM. Refer to the following table.
NOTE:
If the applicable permanent DTC includes multiple groups, perform the procedure of Group B first. If the per-
manent DTC is not erased, per form the procedure of Group A.
×: Applicable —: Not applicable
*: For group, refer to EC-630, "DTC Index".
PERMANENT DTC ITEM
For permanent DTC items, MIL turns ON. Refer to EC-630, "DTC Index".
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will illuminate. *2: MIL will turn off after vehicle is driven
3 times (driving pattern B) without
any malfunctions.
JSBIA0063GB
Group*Perform “DTC CONFIRMATION PROCEDURE” for applicable DTCs. Driving pattern
Reference
BD
A × —— EC-696, "Work Pro-
cedure (Group A)"
B—
××EC-698, "Work Pro-cedure (Group B)"
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-696
< BASIC INSPECTION >[VQ35DE]
HOW TO ERASE PERMANENT DTC

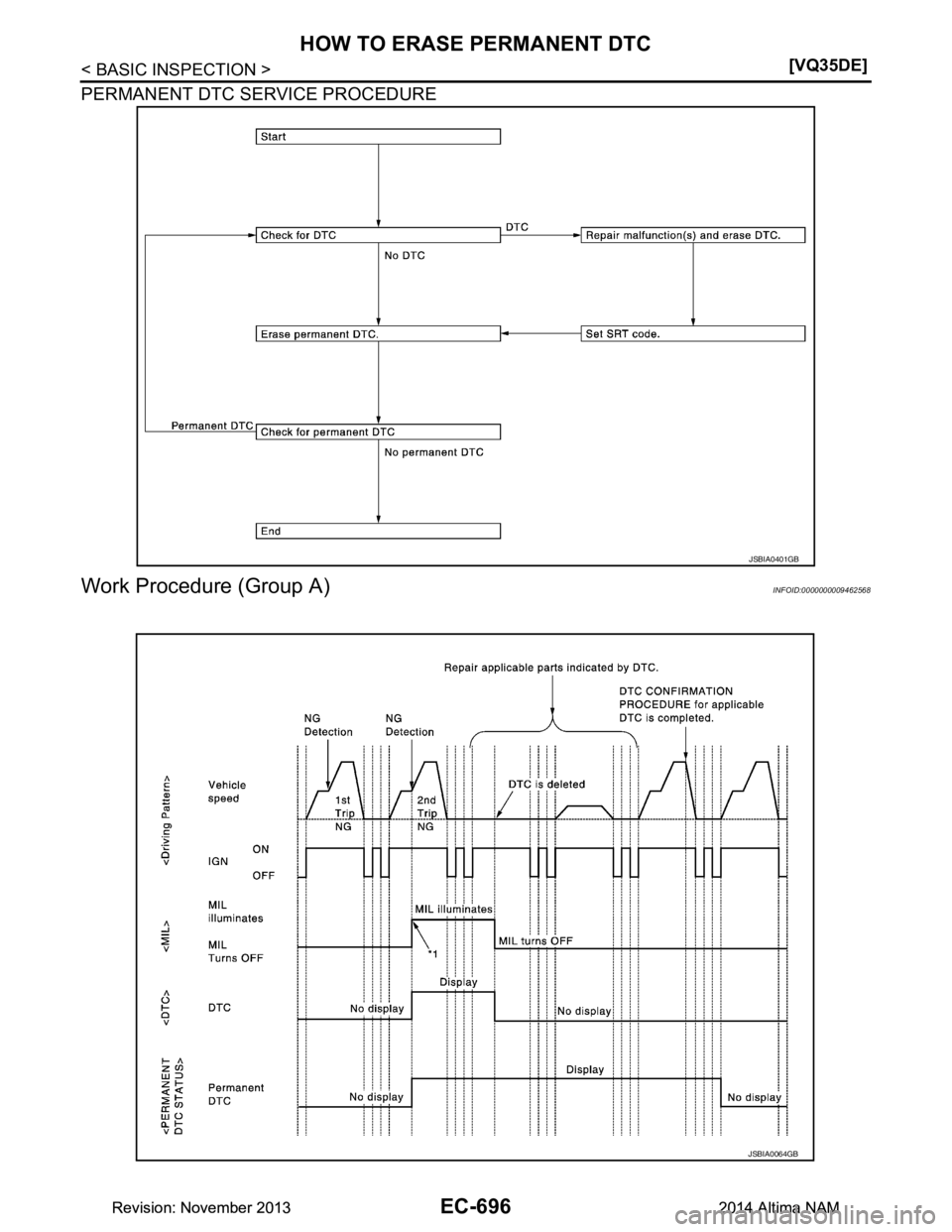

PERMANENT DTC SERVICE PROCEDURE
Work Procedure (Group A)INFOID:0000000009462568
JSBIA0401GB
JSBIA0064GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HOW TO ERASE PERMANENT DTCEC-697
< BASIC INSPECTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-598, "On Board Diagnosis Function" or EC-
601, "CONSULT Function".
NO >> GO TO 2.
2.CHECK PERMANENT DTC
With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “PERMANENT DTC STATUS” mode with CONSULT.
With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 3.
NO >> END
3.PERFORM DTC CONFIRMATION PROCEDURE
Perform “DTC CONFIRMATION PROC EDURE” for DTCs which are the same as permanent DTCs stored in
ECM. Refer to EC-630, "DTC Index"
.
>> GO TO 4.
4.CHECK PERMANENT DTC
With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “PERMANENT DTC STATUS” mode with CONSULT.
With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 1.
NO >> END
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will illuminate.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-698
< BASIC INSPECTION >[VQ35DE]
HOW TO ERASE PERMANENT DTC

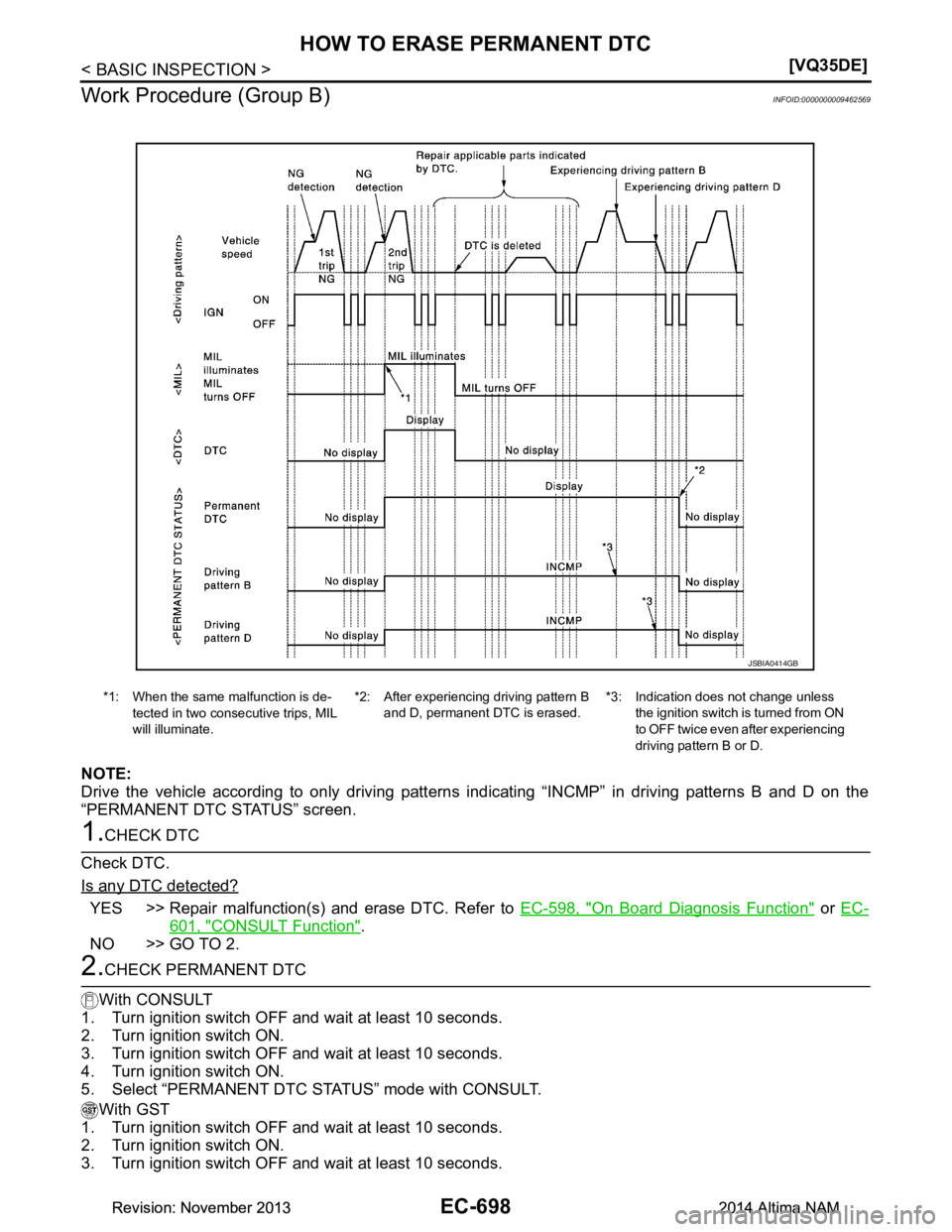

Work Procedure (Group B)
INFOID:0000000009462569
NOTE:
Drive the vehicle according to only driving patterns indicating “INCMP” in driving patterns B and D on the
“PERMANENT DTC STATUS” screen.
1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-598, "On Board Diagnosis Function" or EC-
601, "CONSULT Function".
NO >> GO TO 2.
2.CHECK PERMANENT DTC
With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “PERMANENT DTC STATUS” mode with CONSULT.
With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will illuminate. *2: After experiencing driving pattern B
and D, permanent DTC is erased. *3: Indication does not change unless
the ignition switch is turned from ON
to OFF twice even after experiencing
driving pattern B or D.
JSBIA0414GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HOW TO ERASE PERMANENT DTCEC-699
< BASIC INSPECTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
4. Turn ignition switch ON.
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 3.
NO >> END
3.DRIVE DRIVING PATTERN B
CAUTION:
• Always drive at a safe speed.
• Never erase self-diagnosis results.
• If self-diagnosis results are erased during the trip of driving pattern B or D, the counter of driving
pattern B and D is reset.
With CONSULT
1. Start engine and warm it up to normal operating temperature.
2. Use “PERMANENT DTC WORK SUPPORT” mode with CONS ULT to drive the vehicle according to driv-
ing pattern B. Refer to EC-601, "CONSULT Function"
, EC-595, "DIAGNOSIS DESCRIPTION : Driving
Pattern".
With GST
1. Start engine and warm it up to normal operating temperature.
2. Drive the vehicle according to driving pattern B. Refer to EC-595, "DIAGNOSIS DESCRIPTION : Driving
Pattern".
>> GO TO 4.
4.CHECK PERMANENT DTC
With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “PERMANENT DTC STATUS” mode with CONSULT.
With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 5.
NO >> END
5.DRIVE DRIVING PATTERN D
CAUTION:
• Always drive at a safe speed.
• Never erase self-diagnosis results.
• If self-diagnosis results are erased during the trip of driving pattern B or D, the counter of driving
pattern B and D is reset.
1. Drive the vehicle according to driving pattern D. Refer to EC-595, "DIAGNOSIS DESCRIPTION : Driving
Pattern".
>> GO TO 6.
6.CHECK PERMANENT DTC
With CONSULT
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-700
< BASIC INSPECTION >[VQ35DE]
HOW TO ERASE PERMANENT DTC
5. Select “PERMANENT DTC
STATUS” mode with CONSULT.
With GST
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select Service $0A with GST.
Is any permanent DTC detected?
YES >> GO TO 1.
NO >> END
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
