ACCELERATOR PEDAL RELEASED POSITION LEARNINGEC-681
< BASIC INSPECTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
ACCELERATOR PEDAL RELEAS
ED POSITION LEARNING
DescriptionINFOID:0000000009462553
Accelerator Pedal Released Position Learning is a function of ECM to learn the fully released position of the
accelerator pedal by monitoring the accelerator pedal pos ition sensor output signal. It must be performed each
time the harness connector of the accelerator pedal position sensor or ECM is disconnected.
Work ProcedureINFOID:0000000009462554
1.START
1. Check that accelerator pedal is fully released.
2. Turn ignition switch ON and wait at least 2 seconds.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and wait at least 2 seconds.
5. Turn ignition switch OFF and wait at least 10 seconds.
>> END
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-682
< BASIC INSPECTION >[VQ35DE]
THROTTLE VALVE CLOSED POSITION LEARNING
THROTTLE VALVE CLOSED POSITION LEARNING
DescriptionINFOID:0000000009462555
Throttle Valve Closed Position Learning is a function of ECM to learn the fully closed position of the throttle
valve by monitoring the throttle position sensor output signal. It must be performed each time the harness con-
nector of electric throttle control actuator or ECM is disconnected or electric throttle control actuator is
cleaned.
Work ProcedureINFOID:0000000009462556
1.START
WITH CONSULT
1. Turn ignition switch ON.
2. Select “CLSD THL POS LEARN” in “WORK SUPPORT” mode.
3. Follow the instructions on the CONSULT display.
4. Turn ignition switch OFF and wait at least 10 seconds.
Check that throttle valve moves during the above 10 seconds by confirming the operating sound.
WITHOUT CONSULT
1. Start the engine.
NOTE:
Coolant temperature is less than 25 °C (77 °F) before engine starts.
2. Warm up the engine. NOTE:
Warm up the engine until “COOLAN TEMP/S” on “DAT A MONITOR” of CONSULT reaches more than
65 °C (149 °F).
3. Turn ignition switch OFF and wait at least 10 seconds.
NOTE:
Check that throttle valve moves during the above 10 seconds by confirming the operating sound.
>> END
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

IDLE AIR VOLUME LEARNINGEC-683
< BASIC INSPECTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
IDLE AIR VOLUME LEARNING
DescriptionINFOID:0000000009462557
Idle Air Volume Learning is a function of ECM to learn
the idle air volume that keeps engine idle speed within
the specific range. It must be performed under the following conditions:
• Each time the electric throttle c ontrol actuator or ECM is replaced.
• Idle speed or ignition timing is out of the specification.
Work ProcedureINFOID:0000000009462558
1.PRECONDITIONING
Check that all of the following conditions are satisfied.
Learning will be cancelled if any of the following conditions are missed for even a moment.
• Battery voltage: More than 12.9 V (At idle)
• Engine coolant temperature: 70 - 100 °C (158 - 212 °F)
• Selector lever position: P or N
• Electric load switch: OFF
(Air conditioner, head lamp, rear window defogger)
On vehicles equipped with daytime light systems, if the parking brake is applied before the engine is
started the head lamp will not illuminate.
• Steering wheel: Neutral (Straight-ahead position)
• Vehicle speed: Stopped
• Transmission: Warmed-up
- With CONSULT: Drive vehicle until “ATF TEMP SEN” in “DATA MONITOR” mode of “CVT” system indicates
less than 0.9 V.
- Without CONSULT: Drive vehicle for 10 minutes.
Will CONSULT be used?
YES >> GO TO 2.
NO >> GO TO 3.
2.PERFORM IDLE AIR VOLUME LEARNING
With CONSULT
1. Perform Accelerator Pedal Released Position Learning. Refer to EC-681, "Work Procedure"
.
2. Perform Throttle Valve Closed Position Learning. Refer to EC-682, "Work Procedure"
.
3. Start engine and warm it up to normal operating temperature.
4. Select “IDLE AIR VOL LEA RN” in “WORK SUPPORT” mode.
5. Touch “START” and wait 20 seconds.
Is
“CMPLT” displayed on CONSULT screen?
YES >> GO TO 4.
NO >> GO TO 5.
3.PERFORM IDLE AIR VOLUME LEARNING
Without CONSULT
NOTE:
• It is better to count the time accurately with a clock.
• It is impossible to switch the di agnostic mode when an accelerator pedal position sensor circuit has
a malfunction.
1. Perform Accelerator Pedal Released Position Learning. Refer to EC-681, "Work Procedure"
.
2. Perform Throttle Valve Closed Position Learning. Refer to EC-682, "Work Procedure"
.
3. Start engine and warm it up to normal operating temperature.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Confirm that accelerator pedal is fully releas ed, turn ignition switch ON and wait 3 seconds.
6. Repeat the following procedure quickly 5 times within 5 seconds.
- Fully depress the accelerator pedal.
- Fully release the accelerator pedal.
7. Wait 7 seconds, fully depress the accelerator pedal for approx. 20 seconds until the MIL stops blinking
and turns ON.
8. Fully release the accelerator pedal within 3 seconds after the MIL turns ON.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-684
< BASIC INSPECTION >[VQ35DE]
IDLE AIR VOLUME LEARNING
9. Start engine and let it idle.
10. Wait 20 seconds.
>> GO TO 4.
4.CHECK IDLE SPEED AND IGNITION TIMING
Rev up the engine 2 or 3 times and check that idle s peed and ignition timing are within the specifications.
For procedure, refer to EC-992, "Work Procedure"
and EC-993, "Work Procedure".
For specifications, refer to EC-998, "Idle Speed"
and EC-998, "Ignition Timing".
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 5.
5.DETECT MALFUNCTIONING PART-I
Check the following
• Check that throttle valve is fully closed.
• Check PCV valve operation.
• Check that downstream of throttle valve is free from air leakage.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace malfunctioning part.
6.DETECT MALFUNCTIONING PART-II
Engine component parts and their installation condition are questionable. Check and eliminate the cause of
the incident.
It is useful to perform “TROUBLE DIAGNOSIS - SPECIFICATION VALUE”. Refer to EC-701, "Description"
.
If any of the following conditions occur after the engi ne has started, eliminate the cause of the incident and
perform Idle Air Volume Learning again:
• Engine stalls.
• Incorrect idle.
>> INSPECTION END
SEC897C
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

MIXTURE RATIO SELF-LEARNING VALUE CLEAREC-685
< BASIC INSPECTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
MIXTURE RATIO SELF-LEARNING VALUE CLEAR
DescriptionINFOID:0000000009462559
This describes show to erase the mixture ratio self-lear
ning value. For the actual procedure, follow the instruc-
tions in “Diagnosis Procedure”.
Work ProcedureINFOID:0000000009462560
1.START
With CONSULT
1. Start engine and warm it up to normal operating temperature.
2. Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT.
3. Clear mixture ratio self-learning value by touching “CLEAR”.
With GST
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF.
3. Disconnect mass air flow sensor harness connector.
4. Restart engine and let it idle for at least 5 seconds.
5. Stop engine and reconnect mass air flow sensor harness connector.
6. Select Service $03 with GST. C heck that DTC P0102 is detected.
7. Select Service $04 with GST to erase the DTC P0102.
>> END
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-686
< BASIC INSPECTION >[VQ35DE]
VIN REGISTRATION
VIN REGISTRATION
DescriptionINFOID:0000000009462561
VIN Registration is an operation to register VIN in
ECM. It must be performed each time ECM is replaced.
NOTE:
Accurate VIN which is registered in ECM ma y be required for Inspection & Maintenance (I/M).
Work ProcedureINFOID:0000000009462562
1.CHECK VIN
Check the VIN of the vehicle and note it. Refer to GI-24, "Identification Plate"
.
>> GO TO 2.
2.PERFORM VIN REGISTRATION
With CONSULT
1. Turn ignition switch ON with engine stopped.
2. Select “VIN REGISTRATION ” in “WORK SUPPORT” mode.
3. Follow the instructions on the CONSULT display.
>> END
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

FUEL PRESSUREEC-687
< BASIC INSPECTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
FUEL PRESSURE
Work ProcedureINFOID:0000000009462563
FUEL PRESSURE RELEASE
1.FUEL PRESSURE RELEASE
With CONSULT
1. Turn ignition switch ON.
2. Perform “FUEL PRESSURE RELEASE” in “WORK SUPPORT” mode with CONSULT.
3. Start engine.
4. After engine stalls, crank it two or three times to release all fuel pressure.
5. Turn ignition switch OFF.
Without CONSULT
1. Remove fuel pump fuse located in IPDM E/R.
2. Start engine.
3. After engine stalls, crank it two or three times to release all fuel pressure.
4. Turn ignition switch OFF.
5. Reinstall fuel pump fuse after servicing fuel system.
>> INSPECTION END
FUEL PRESSURE CHECK
CAUTION:
• The fuel hose connection method used when taki ng fuel pressure check must not be used for other
purposes.
• Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger.
• Be careful not to scratch or get the fuel hose conn ection area dirty when servicing, so that the quick
connector o-ring ma intains seal ability.
• Use Fuel Pressure Gauge Kit [SST: — (J-44321)] an d Fuel Pressure Adapter [SST: — (J-44321-6)] to
check fuel pressure.
NOTE:
Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel pres-
sure cannot be completely released because th is models do not have fuel return system.
1.FUEL PRESSURE CHECK
1. Release fuel pressure to zero.
2. Remove fuel hose using Quick Connector Release [SST: — (J-45488)]. CAUTION:
• Do not twist or kink fuel hose because it is plastic hose.
• Do not remove fuel hose from quick connector.
• Keep fuel hose connections clean.
3. Install Fuel Pressure Adapter [SST: — (J-44321-6)] (B) and Fuel Pressure Gauge kit [SST: — (J44321)] (A) as shown in figure.
CAUTION:
• Do not distort or bend fuel rail tube when installing fuel
pressure gauge adapter.
• When reconnecting fuel hose, check the original fuel hose
(1) for damage and abnormality.
4. Turn ignition switch ON (reactivate fuel pump) and check for fuel leakage.
5. Start engine and check for fuel leakage.
6. Read the indication of fuel pressure gauge kit [SST: — (J- 44321)].
CAUTION:
• During fuel pressure check, check for fuel leakage from fuel connection every 3 minutes.
Is the inspection result normal?
At idling : Approximately 350 kPa (3.57 kg/cm2, 51 psi)
ALBIA0808ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-688
< BASIC INSPECTION >[VQ35DE]
FUEL PRESSURE
YES >> INSPECTION END
NO >> GO TO 2.
2.CHECK FUEL HOSES
Check the following.
• Fuel hoses and fuel tubes for clogging
• Fuel filter for clogging
• Fuel pump
• Fuel pressure regulator for clogging
Is the inspection result normal?
YES >> Replace fuel pressure regulator.
NO >> Repair or replace error-detected parts.
CAUTION:
Before disconnecting Fuel Pressure Gauge kit [SST : — (J-44321)] and Fuel Pressure Adapter [SST: —
(J-44321-6)], release fuel pressure to zero.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HOW TO SET SRT CODEEC-689
< BASIC INSPECTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

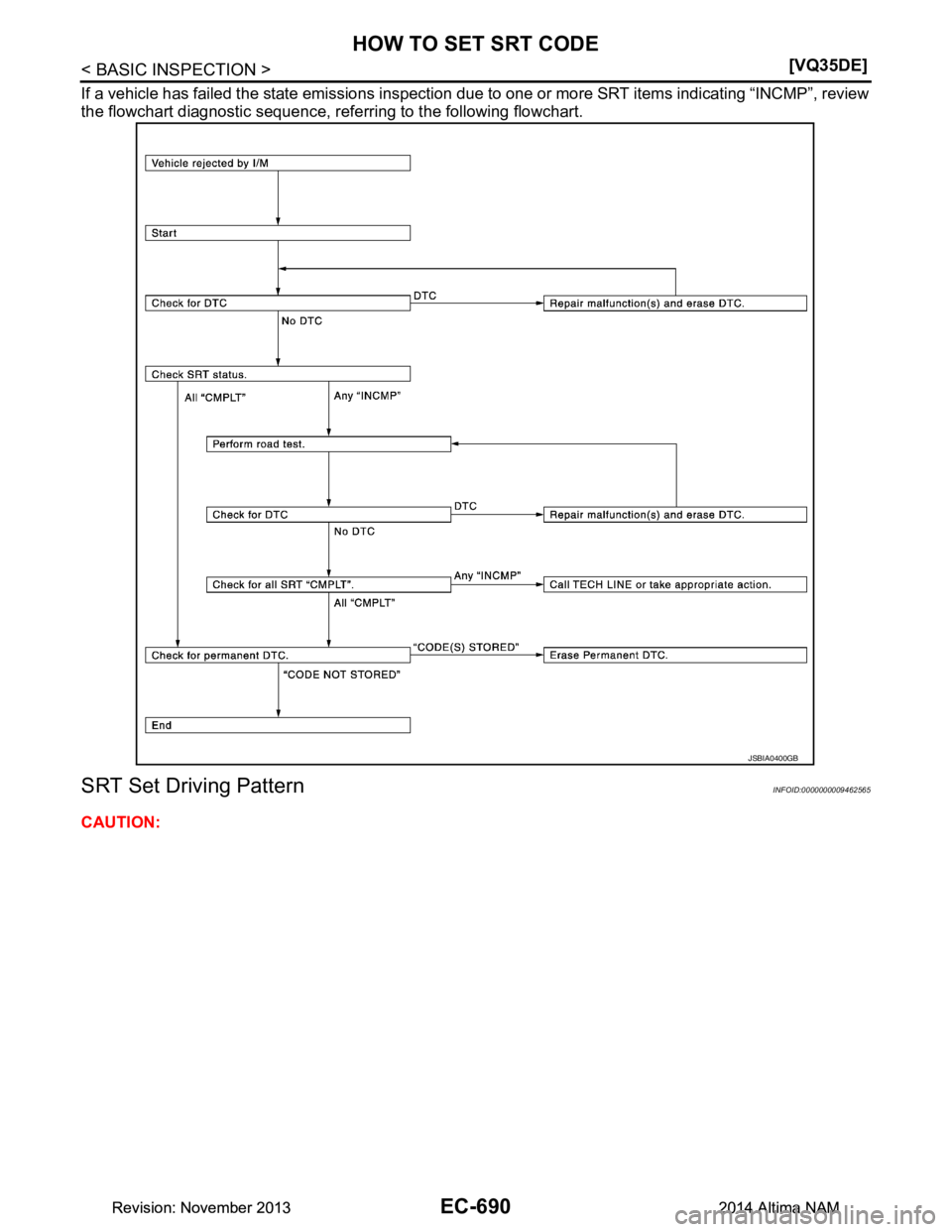

HOW TO SET SRT CODE
DescriptionINFOID:0000000009462564
OUTLINE
In order to set all SRTs, the self-diagnoses as in
the “SRT ITEM” table must have been performed at least
once. Each diagnosis may require actual driving for a long period of time under various conditions.
SRT ITEM
The table below shows required self-diagnostic items to set the SRT to “CMPLT”.
*1: Though displayed on the CONSULT screen, “HO2S HTR” is not SRT item.
*2: If completion of several SRTs is required, perfo rm driving patterns (DTC confirmation procedure), one by
one based on the priority for models with CONSULT.
SRT SERVICE PROCEDURE
SRT item*1
(CONSULT indication) Performance
Priority*2Required self-diagnostic items to set the SRT to “CMPLT” Corresponding
DTC No.
CATALYST 2 Three way catalyst function P0420, P0430
EVAP SYSTEM 2 EVAP control system purge flow monitoring P0441
EVAP control system P0456
HO2S 2 Air fuel ratio (A/F) sensor 1 P014C, P014D, P014E, P014F,
P015A,
P015B,P015C,
P015D
Heated oxygen sensor 2 P0137, P0157
Heated oxygen sensor 2 P0138, P0158
Heated oxygen sensor 2 P0139, P0159
EGR/VVT SYSTEM 3 Intake value timing control function P0011, P0021
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-690
< BASIC INSPECTION >[VQ35DE]
HOW TO SET SRT CODE
If a vehicle has failed the state emissions inspection
due to one or more SRT items indicating “INCMP”, review
the flowchart diagnostic sequence, refe rring to the following flowchart.
SRT Set Driving PatternINFOID:0000000009462565
CAUTION:
JSBIA0400GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
