Revision: November 20132014 Altima NAM

ACC-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951695
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISS AN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Revision: November 20132014 Altima NAM

ACCELERATOR CONTROL SYSTEMACC-3
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K L
M A
ACC
NP
O
REMOVAL AND INSTALLATION
ACCELERATOR CONTROL SYSTEM
Exploded ViewINFOID:0000000009464594
Removal and InstallationINFOID:0000000009464595
REMOVAL
1. Disconnect the harness connector from accelerator pedal assembly.
2. Remove the two accelerator pedal bolts.
3. Remove the accelerator pedal assembly.
CAUTION:
• Do not disassemble the accelerator pedal assembly.
• Do not drop or impact the accelerator pedal assembly.
• Do not expose the accelerator pedal assembly to water.
INSTALLATION
Installation is in the reverse order of removal.

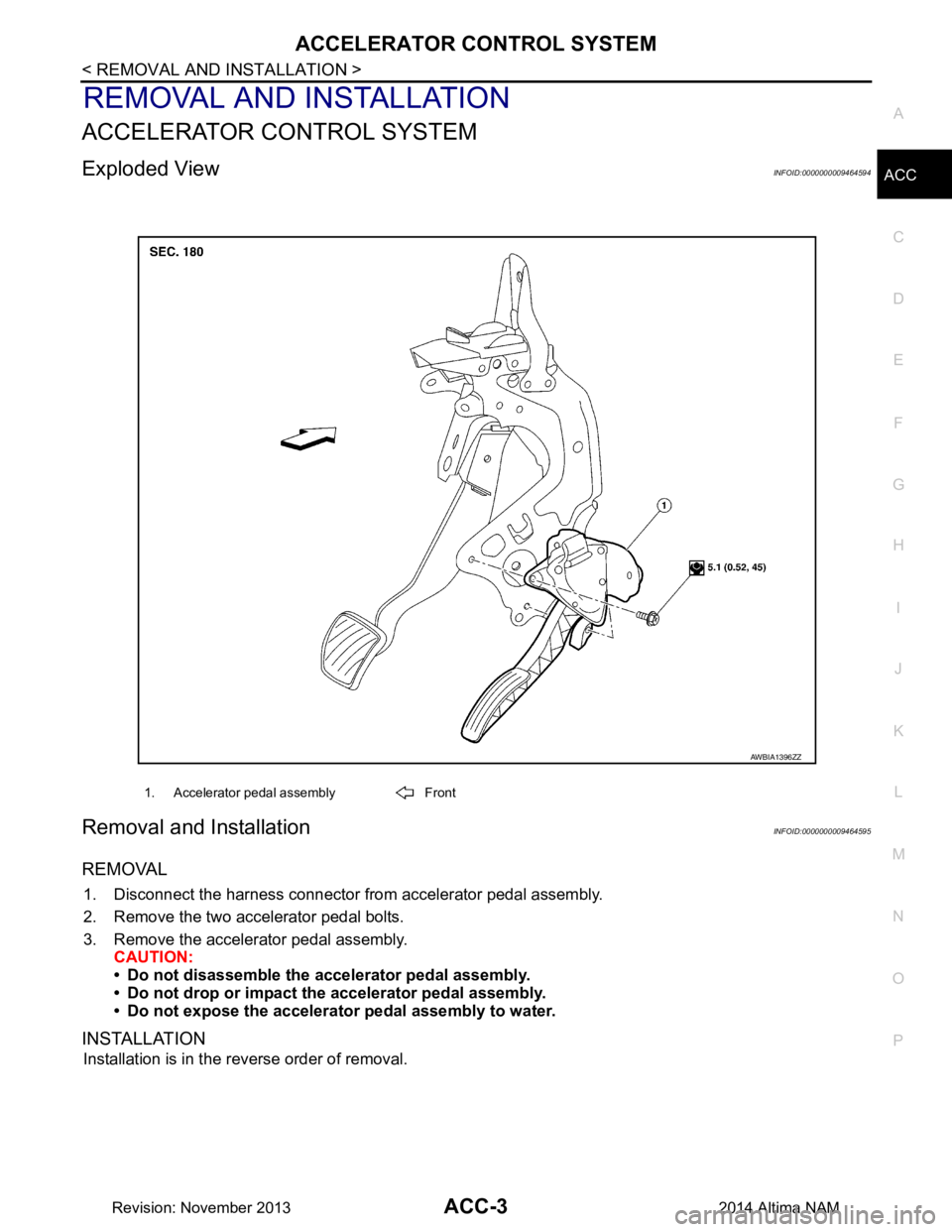

1. Accelerator pedal assembly Front
AWBIA1396ZZ
Revision: November 20132014 Altima NAM

ACC-4
< REMOVAL AND INSTALLATION >
ACCELERATOR CONTROL SYSTEM
• Check the accelerator pedal moves smooth within the specified
range.
CAUTION:
• Whenever the harness connector of the accelerator pedal position sensor is disconnected, perform
the “Accelerator pedal released position learning”. Refer to EC-177, "Work Procedure"
(QR25DE) or
EC-681, "Work Procedure"
(VQ35DE).
• The accelerator pedal should return sm oothly to the fully raised position.
Accelerator pedal stroke
(A)
: Refer to
ACC-5, "Accelera-
tor Control".
ALBIA0168GB
Revision: November 20132014 Altima NAM

SERVICE DATA AND SPECIFICATIONS (SDS)ACC-5
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
DE
F
G H
I
J
K L
M A
ACC
NP
O
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Accelerator ControlINFOID:0000000009464596
Unit: mm (in)

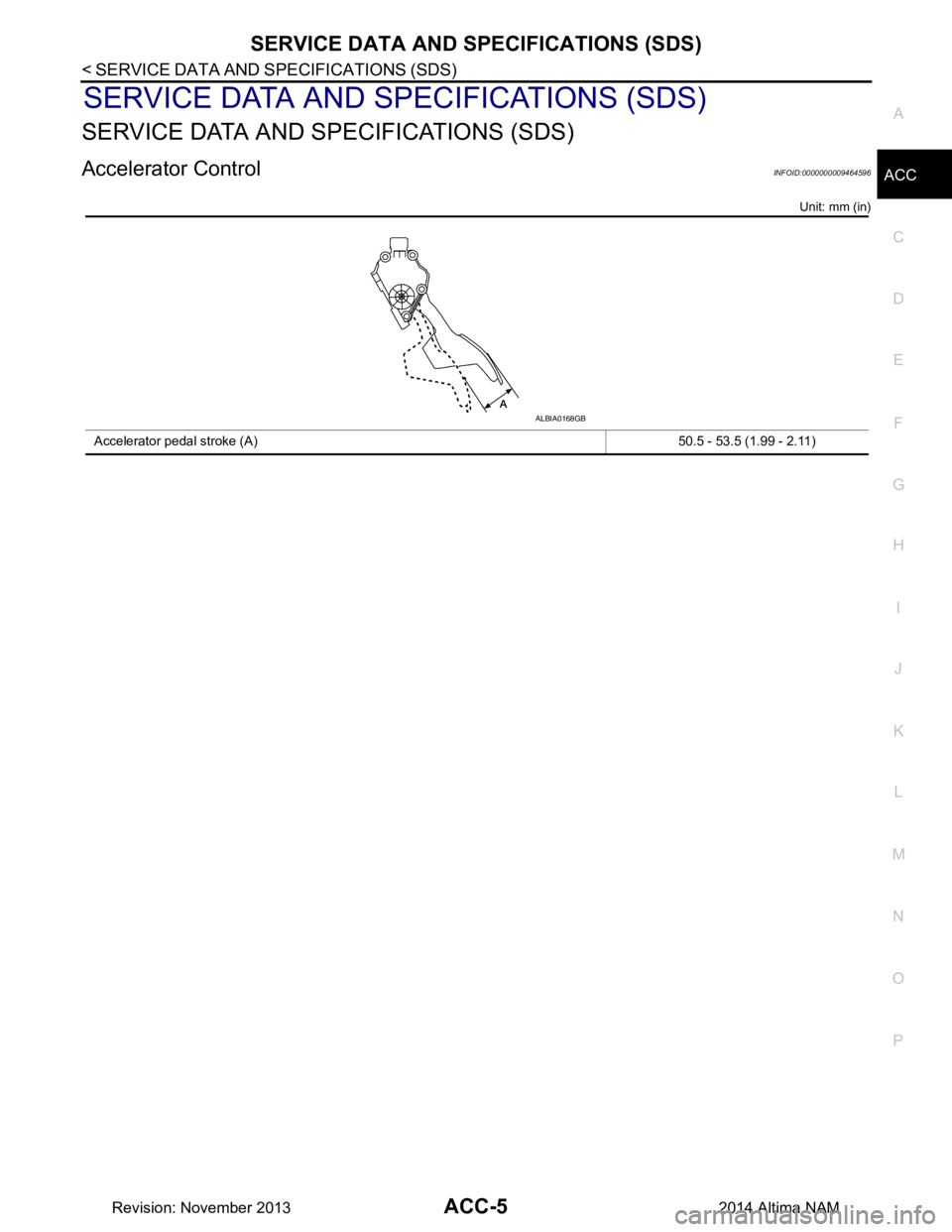

Accelerator pedal stroke (A)
50.5 - 53.5 (1.99 - 2.11)
ALBIA0168GB
Revision: November 20132014 Altima NAM

BCS
BCS-1
ELECTRICAL & POWER CONTROL
C
D E
F
G H
I
J
K L
B
SECTION BCS
A
O P
N
CONTENTS
BODY CONTROL SYSTEM
BCM
PRECAUTION ................ ...............................
3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
SYSTEM DESCRIPTION ..............................4
COMPONENT PARTS ................................... .....4
BODY CONTROL SYSTEM ........................................4
BODY CONTROL SYSTEM : Component Parts
Location ............................................................... ......
4
COMBINATION SWITCH READING SYSTEM ..... ......4
COMBINATION SWITCH READING SYSTEM :
Component Parts Location .................................. ......
5
POWER CONSUMPTION CONTROL SYSTEM ... ......5
POWER CONSUMPTION CONTROL SYSTEM :
Component Parts Location .................................. ......
6
SYSTEM ..............................................................7
BODY CONTROL SYSTEM ........................................7
BODY CONTROL SYSTEM : System Description ......7
COMBINATION SWITCH READING SYSTEM ..... ......8
COMBINATION SWITCH READING SYSTEM :
System Diagram .................................................. ......
8
COMBINATION SWITCH READING SYSTEM :
System Description ............................................. ......
8
SIGNAL BUFFER SYSTEM ........................ ..............11
SIGNAL BUFFER SYSTEM : System Diagram .. ....11
SIGNAL BUFFER SYSTEM : System Description ....12
POWER CONSUMPTION CONTROL SYSTEM ... ....12
POWER CONSUMPTION CONTROL SYSTEM :
System Diagram .................................................. ....
12
POWER CONSUMPTION CONTROL SYSTEM :
System Description .............................................. ....
12
DIAGNOSIS SYSTEM (BCM) ...........................14
COMMON ITEM ..................................................... ....14
COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) ................................................. ....
14
DOOR LOCK .......................................................... ....15
DOOR LOCK : CONSULT Function (BCM -
DOOR LOCK) ...................................................... ....
15
REAR DEFOGGER ................................................ ....16
REAR DEFOGGER : CONSULT Function (BCM -
REAR DEFOGGER) ............................................ ....
16
BUZZER ................................................................. ....16
BUZZER : CONSULT Function (BCM - BUZZER) ....16
INT LAMP ............................................................... ....17
INT LAMP : CONSULT Function (BCM - INT
LAMP) .................................................................. ....
17
MULTI REMOTE ENT ............................................ ....18
MULTI REMOTE ENT : CONSULT Function
(BCM - MULTI REMOTE ENT) ............................ ....
18
HEADLAMP ........................................................... ....19
HEADLAMP : CONSULT Function (BCM - HEAD-
LAMP) .................................................................. ....
19
WIPER .................................................................... ....20
WIPER : CONSULT Function (BCM - WIPER) .......20
FLASHER ............................................................... ....21
FLASHER : CONSULT Function (BCM - FLASH-
ER) ...................................................................... ....
21
AIR CONDITIONER ............................................... ....21
AIR CONDITIONER : CONSULT Function (BCM -
AIR CONDITIONER) ........................................... ....
21
INTELLIGENT KEY ................................................ ....22
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BCS-2
INTELLIGENT KEY : CONSULT Function (BCM -
INTELLIGENT KEY) ........ .......................................
22
COMB SW .............................................................. ...25
COMB SW : CONSULT Function (BCM - COMB
SW) ...................................................................... ...
25
BCM ........................................................................ ...25
BCM : CONSULT Function (BCM - BCM) ..............25
IMMU ...................................................................... ...26
IMMU : CONSULT Function (BCM - IMMU) ...........26
BATTERY SAVER ................................................. ...26
BATTERY SAVER : CONSULT Function (BCM -
BATTERY SAVER) .......... .......................................
26
TRUNK ................................................................... ...27
TRUNK : CONSULT Function (BCM - TRUNK) .....27
THEFT ALM ........................................................... ...27
THEFT ALM : CONSULT Function (BCM - THEFT
ALM) .................................................................... ...
27
RETAINED PWR .................................................... ...28
RETAINED PWR : CONSULT Function (BCM -
RETAINED PWR) ................................................ ...
28
SIGNAL BUFFER ................................................... ...28
SIGNAL BUFFER : CONSULT Function (BCM -
SIGNAL BUFFER) ............................................... ...
29
AIR PRESSURE MONITOR ................................... ...29
AIR PRESSURE MONITOR : CONSULT Function
(BCM-AIR PRESSURE MONITOR) .................... ...
29
ECU DIAGNOSIS INFORMATION ..............31
BCM (BODY CONTROL MODULE) ............... ...31
Reference Value .................................................. ...31
Fail Safe .................................................................50
DTC Inspection Priority Chart ..............................50
DTC Index ........................................................... ...52
WIRING DIAGRAM .....................................55
BCM ................................................................ ...55
Wiring Diagram .................................................... ...55
BASIC INSPECTION ...................................64
INSPECTION AND ADJUSTMENT ................ ...64
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT ..................................................... ...
64
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description ............................. ...
64
ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Work Pr ocedure ........................
64
CONFIGURATION (BCM) ...................................... ...64
CONFIGURATION (BCM) : Description .................65
CONFIGURATION (BCM) : Work Procedure .........65
CONFIGURATION (BCM) : Configuration list .........66
TRANSIT MODE CANCEL OPERATION ...... ...67
Description ........................................................... ...67
Work Procedure ......................................................67
DTC/CIRCUIT DIAGNOSIS ........................68
U1000 CAN COMM CIRCUIT ......................... ...68
Description ........................................................... ...68
DTC Logic ...............................................................68
Diagnosis Procedure ...............................................68
U1010 CONTROL UNIT (CAN) .........................69
DTC Logic ............................................................ ...69
Diagnosis Procedure ...............................................69
U0415 VEHICLE SPEED SIG ............................70
Description ........................................................... ...70
DTC Logic ...............................................................70
Diagnosis Procedure ...............................................70
B2562 LOW VOLTAGE .....................................71
DTC Logic ............................................................ ...71
Diagnosis Procedure ...............................................71
B259A ROOM LAMP FUSE ..............................72
DTC Logic ............................................................ ...72
Diagnosis Procedure ...............................................72
POWER SUPPLY AND GROUND CIRCUIT .....74
Diagnosis Procedure ............................................ ...74
COMBINATION SWITCH INPUT CIRCUIT .......75
Diagnosis Procedure ............................................ ...75
COMBINATION SWITCH OUTPUT CIRCUIT ...77
Diagnosis Procedure ...............................................77
SYMPTOM DIAGNOSIS ............................79
COMBINATION SWITCH SYSTEM SYMP-
TOMS .............................................................. ...
79
Symptom Table .................................................... ...79
REMOVAL AND INSTALLATION ..............80
BCM (BODY CONTROL MODULE) ............... ...80
Removal and Installation .........................................80
COMBINATION SWITCH ............................... ...81
Exploded View ..................................................... ...81
Removal and Installation .........................................81
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BCS
PRECAUTIONSBCS-3
< PRECAUTION > [BCM]
C
D E
F
G H
I
J
K L
B
A
O P
N
PRECAUTION
PRECAUTIONS
Precaution for Supplemental
Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951595
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service t he system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three mi nutes before performing any service.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BCS-4
< SYSTEM DESCRIPTION >[BCM]
COMPONENT PARTS
SYSTEM DESCRIPTION
COMPONENT PARTS
BODY CONTROL SYSTEM
BODY CONTROL SYSTEM :
Component Parts LocationINFOID:0000000009461986
COMBINATION SWITCH READING SYSTEM

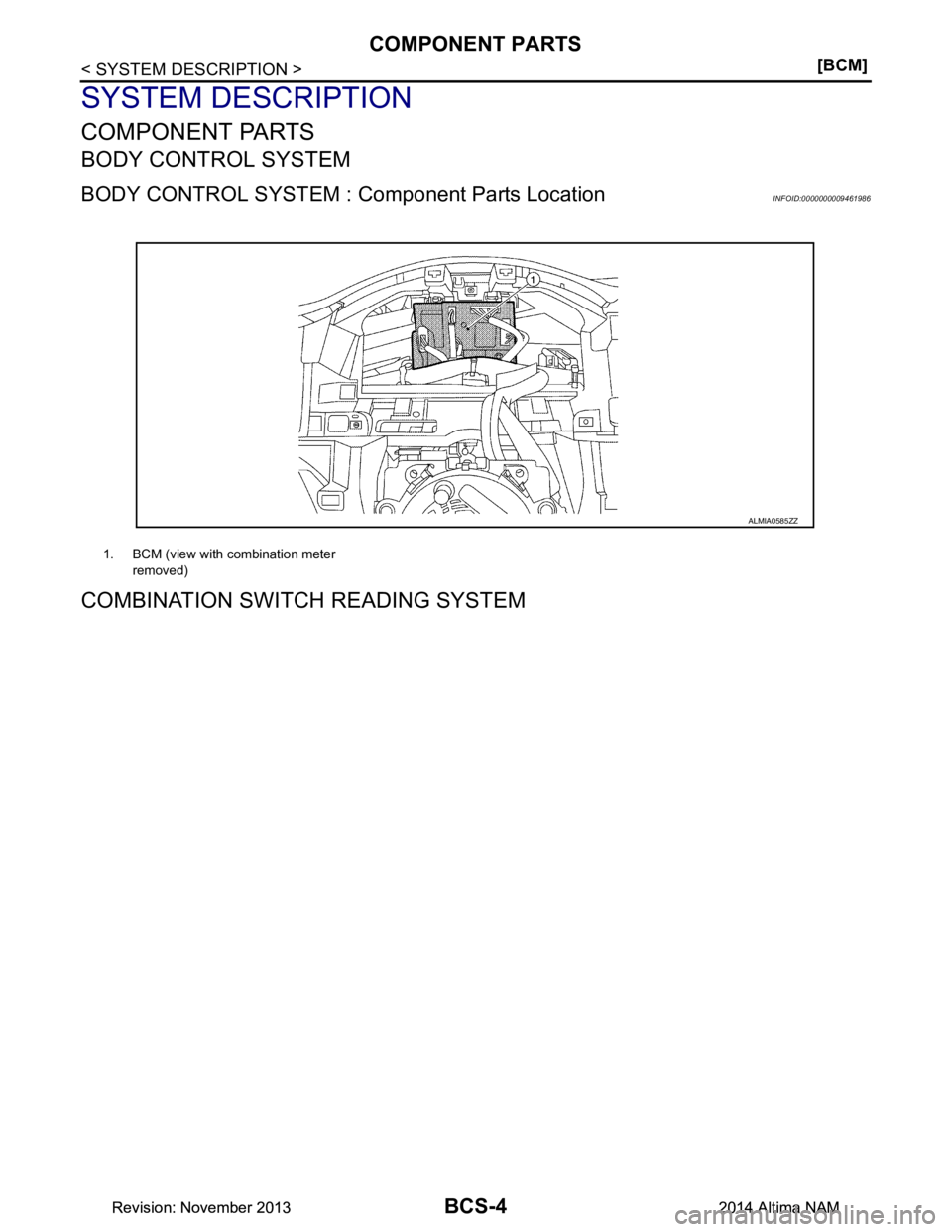

1. BCM (view with combination meter
removed)
ALMIA0585ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BCS
COMPONENT PARTSBCS-5
< SYSTEM DESCRIPTION > [BCM]
C
D E
F
G H
I
J
K L
B
A
O P
N
COMBINATION SWITCH READING SYST
EM : Component Parts Location
INFOID:0000000009461987
POWER CONSUMPTION CONTROL SYSTEM
1. BCM (view with combination meter
removed) 2. Combination switch (lighting and
turn signal) (with auto light system
and front fog lamps) 3. Combination switch (lighting and
turn signal) (with auto light system,
without front fog lamps)
4. Combination switch (lighting and turn signal) (without auto light sys-
tem and front fog lamps) 5. Combination switch (wiper and
washer)
ALMIA0586ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
