CRANKSHAFT RUNOUT
• Place a V-block on a precise flat table to support the journals on
both ends of the crankshaft.
• Place a dial gauge (A) straight up on the No. 3 journal.
• While rotating the crankshaft, read the movement of the pointer on the dial gauge (A), the total indicator runout reading.
OIL CLEARANCE OF CONNECTING ROD BEARING
Method of Measurement
• Install the connecting rod bearings (2) to the connecting rod (3)
and the cap (1), and tighten the c onnecting rod bolts to the speci-
fied torque. Using a inside micrometer measure the inner diameter
of connecting rod bearing (B).
(Oil clearance) = (Inner diameter of connecting rod bearing) –
(Outer diameter of crankshaft pin)
• If clearance cannot be adjusted within the standard, grind crankshaft pin and use undersized bearing. Refer
to EM-105, "How to Select Piston and Bearing"
.
Method of Using Plastigage
• Remove oil and dust on the crankshaft pin and the surfaces of
each bearing completely.
• Cut the Plastigage slightly shorter than the bearing width, and place it in crankshaft axial direction, avoiding oil holes.
• Install the connecting rod bearings to the connecting rod cap, and tighten the connecting rod bolts to the specified torque.
CAUTION:
Do not rotate the crankshaft.
• Remove the connecting rod cap and bearings, and using the scale on the Plastigage bag, measure the Plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the method by calculation.
OIL CLEARANCE OF MAIN BEARING
Method of Measurement
• Install the main bearings to the cylinder block and bearing cap. Measure the main bearing inner diameter with the bearing cap bolt tightened to the specified torque.
(Oil clearance) = (Inner diameter of main beari ng) – (Outer diameter of crankshaft journal)
• If the measured value exceeds the limit, select main bearings referring to the main bearing inner diameter
and crankshaft journal outer diameter, so that t he oil clearance satisfies the standard. Refer to EM-105,
"How to Select Piston and Bearing".
Limit : Less than 0.05 mm (0.002 in)
AWBIA1367ZZ
(A) Example
Standard : 0.035 - 0.045 mm (0.0014 - 0.0018 in)
Limit : 0.10 mm (0.0039 in)
AWBIA1369ZZ
EM142
Standard:
No. 1, 3, and 5 journals : 0.012 - 0.022 mm (0.0005 - 0.0009 in)
No. 2 and 4 journals : 0.018 - 0.028 mm (0.0007 - 0.0011 in)
Limit : 0.1 mm (0.004 in)
Revision: November 20132014 Altima NAM

EM-104
< UNIT DISASSEMBLY AND ASSEMBLY >[QR25DE]
CYLINDER BLOCK
Method of Using Plastigage
• Remove oil and dust on the crankshaft journal and the surfaces of
each bearing completely.
• Cut the Plastigage slightly shorter than the bearing width, and
place it in crankshaft axial direction, avoiding oil holes.
• Tighten the main bearing bolts to the specified torque. CAUTION:
Do not rotate the crankshaft.
• Remove the bearing cap and bearings, and using the scale on the Plastigage bag, measure the Plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in the "Method by Calculation".
CRUSH HEIGHT OF MAIN BEARING
• When the bearing cap is removed after being tightened to the specified torque with main bearings installed, the tip end of bearing
must protrude.
• If the standard is not met, replace main bearings.
OUTER DIAMETER OF LOWER CYLINDER BLOCK BOLT
• Perform only with M10 (0.39 in) bolts.
• Measure outer diameters (d1, d2) at two positions as shown.
• Measure d2 at a point within area (A) as shown.
• When the value of d1- d2 exceeds the limit (a large difference in dimensions), replace the bolt with a new one.
OUTER DIAMETER OF CONNECTING ROD BOLT
• Measure outer diameter (d) at position as shown.
• When (d) exceeds the limit (when it becomes thinner), replace the
bolt with a new one.
EM142
Standard : There must be crush height.
SEM502G
Limit : 0.13 mm (0.0051 in)
PBIC0272E
Limit : 7.75 mm (0.3051 in) or less
PBIC0273E
Revision: November 20132014 Altima NAM

HOW TO SELECT PISTON AND BEARINGEM-105
< UNIT DISASSEMBLY AND ASSEMBLY > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
HOW TO SELECT PISTON AND BEARING
How to Select Piston and BearingINFOID:0000000009460512
DESCRIPTION
*For the service parts, the grade for fitting c
annot be selected between a piston pin and a connecting rod.
(Only 0 grade is available.) The information at the sh ipment from the plant is described as a reference.
• The identification grade stamped on each part is the grade for the dimension measured in new condition.
This grade cannot apply to reused parts.
• For reused or repaired parts, measure the dimens ion accurately. Determine the grade by comparing the
measurement with the values of each selection table.
• For details of the measurement method of each part , the reuse standards, and the selection method of the
selective fitting parts, follow the applicable procedures.
HOW TO SELECT A PISTON
When New Cylinder Block is Used:
• Check the cylinder bore grade on rear left side of cylinder block, and select a piston of the same grade.
• If there is a corrected stamp mark on the cylinder block, use it as a correct reference.
Selection points Selection parts Selection items Selection methods
Between cylinder block to
crankshaft Main bearing
Main bearing grade (bearing
thickness) Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)
Between crankshaft to connect-
ing rod Connecting rod bearing
Connecting rod bearing grade
(bearing thickness) Combining service grades for
connecting rod big end inner di-
ameter and crankshaft pin outer
diameter determine connecting
rod bearing selection
Between cylinder block to pis-
ton Piston and piston pin assembly
(The piston is available together
with piston pin as an assembly) Piston grade (piston outer diam-
eter) Piston grade = cylinder bore
grade (inner diameter of bore)
*Between piston to connecting
rod ———
(A) : Front mark
(B) : Piston pin bore grade
(C) : Piston grade I.D. stamp
(D) : Piston crown I.D. code stamp
(E) : ID marks
AWBIA1373ZZ
SBIA0283E
Revision: November 20132014 Altima NAM

EM-106
< UNIT DISASSEMBLY AND ASSEMBLY >[QR25DE]
HOW TO SELECT PISTON AND BEARING
When a Cylinder Block is Reused:
1. Measure the cylinder block bore inner diameter.
2. Determine the bore grade by comparing the measur ement with the values under the cylinder bore inner
diameter of the "Piston Selection Tabl e". Select the piston of the same grade.
Piston Selection Table
• For the piston selection table, refer to EM-111, "Standard and Limit".
NOTE:
• The piston is available together with piston pin as an assembly.
• The piston pin (piston pin bore) grade is provided only for the parts installed at the plant. For service parts, no grades can be selected. Only 0 grade is available.
HOW TO SELECT A CONNECTING ROD BEARING
When New Connecting Rod and Crankshaft are Used:
1. Apply big end inside diameter grade stamped on connecting rod side face to the row in the "Connecting Rod Bearing Selection
Table".
2. Apply pin diameter grade (B) stamped on crankshaft front side to the column in the "Connecting Rod Bearing Selection Table".
• Journal diameter grade (A)
3. Read the symbol at the cross point of selected row and column in the "Connecting Rod Bearing Selection Table".
4. Apply the symbol obtained to connecting rod bearing grade table to select.
When Crankshaft and Connecting Rod are Reused:
1. Measure dimensions of the big end inner diameter of connecting rod and outer diameter of crankshaft pin
individually.
2. Apply the dimension measured to the "Connec ting Rod Bearing Selection Table" below.
(A) : Oil splash
(B) : Small end diameter grade
(C) : Reference code
(D) : Bearing stopper groove
(E) : Reference code
(F) : Cylinder No.
(G) : Big end diameter grade
AWBIA1279GB
AWBIA0017ZZ
Revision: November 20132014 Altima NAM

HOW TO SELECT PISTON AND BEARINGEM-107
< UNIT DISASSEMBLY AND ASSEMBLY > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O

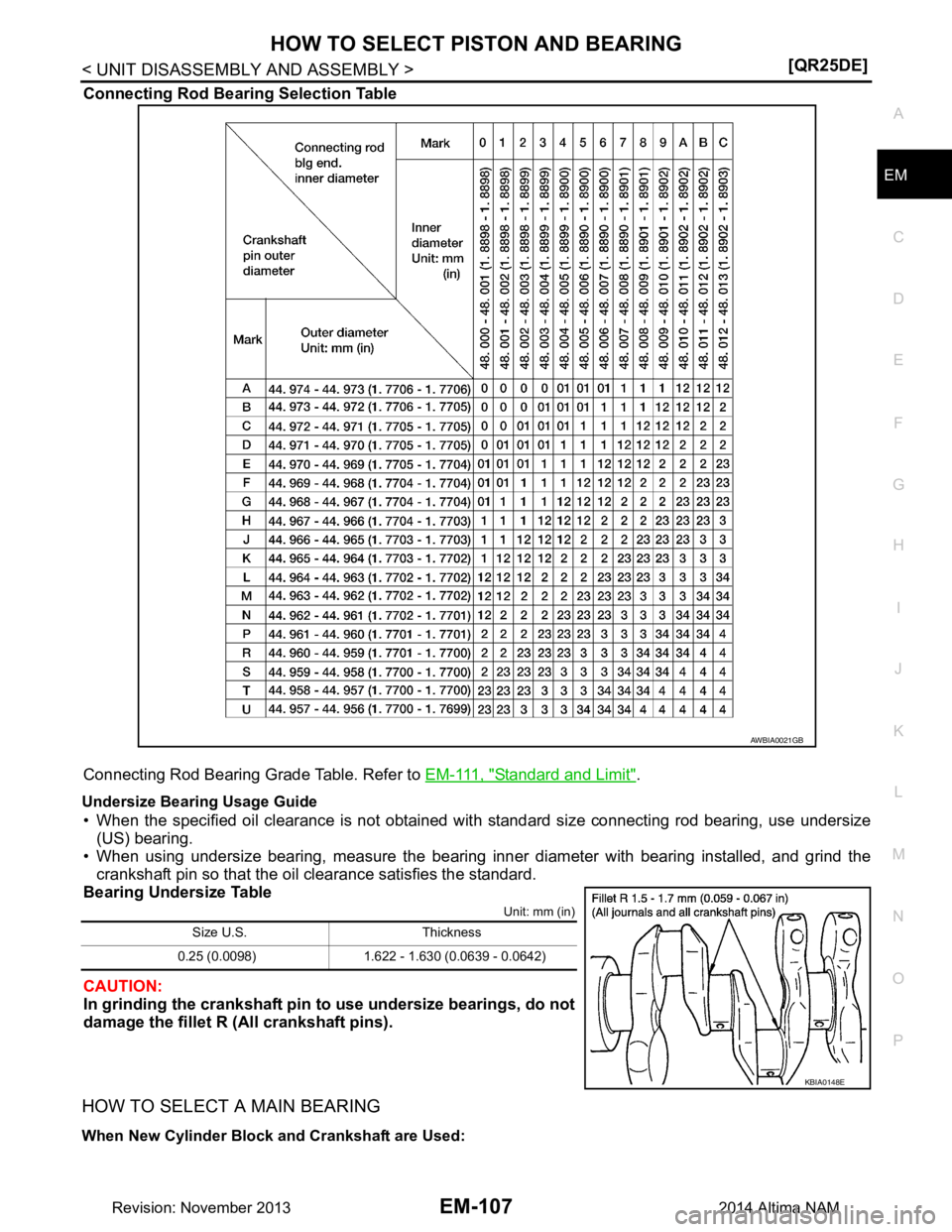

Connecting Rod Bearing Selection Table
Connecting Rod Bearing Grade Table. Refer to
EM-111, "Standard and Limit"
.
Undersize Bearing Usage Guide
• When the specified oil clearance is not obtained with standard size connecting rod bearing, use undersize
(US) bearing.
• When using undersize bearing, measure the bearing inner diameter with bearing installed, and grind the
crankshaft pin so that the oil clearance satisfies the standard.
Bearing Undersize Table
Unit: mm (in)
CAUTION:
In grinding the crankshaft pin to use undersize bearings, do not
damage the fillet R (All crankshaft pins).
HOW TO SELECT A MAIN BEARING
When New Cylinder Block and Crankshaft are Used:
AWBIA0021GB
Size U.S. Thickness
0.25 (0.0098) 1.622 - 1.630 (0.0639 - 0.0642)
KBIA0148E
Revision: November 20132014 Altima NAM

EM-108
< UNIT DISASSEMBLY AND ASSEMBLY >[QR25DE]
HOW TO SELECT PISTON AND BEARING
1. "Main Bearing Selection Table" rows correspond to bearing
housing grade on rear left side of cylinder block.
• If there is a corrected stamp ma rk on the cylinder block, use it
as a correct reference.
2. Apply journal diameter grade (A) stamped on crankshaft front side to column in "Main Bearing Selection Table".
3. Find value at crossing of row and column in "Main Bearing Selection Table". CAUTION:
• There are two main bearing selecti on tables. One is for odd-numbered journals (1, 3, and 5) and
the other is for even-numbered journals (2 and 4) . Make certain to use the appropriate table. This
is due to differences in the specified clearances.
4. Apply the symbol obtained to "Main Bearing Grade Table" to select. NOTE:
• Service parts are available as a set of both upper and lower.
When Cylinder Block and Crankshaft are Reused:
1. Measure inner diameter of cylinder block main bear ing housing and outer diameter of crankshaft journal.
2. Apply measurement in above step 1 to the "Main Bearing Selection Table".
3. Follow steps 3 and 4 in "When New Cylinder Block and Crankshaft are Used".
SBIA0283E
(B) : Pin diameter grade
AWBIA0017ZZ
Revision: November 20132014 Altima NAM

HOW TO SELECT PISTON AND BEARINGEM-109
< UNIT DISASSEMBLY AND ASSEMBLY > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O

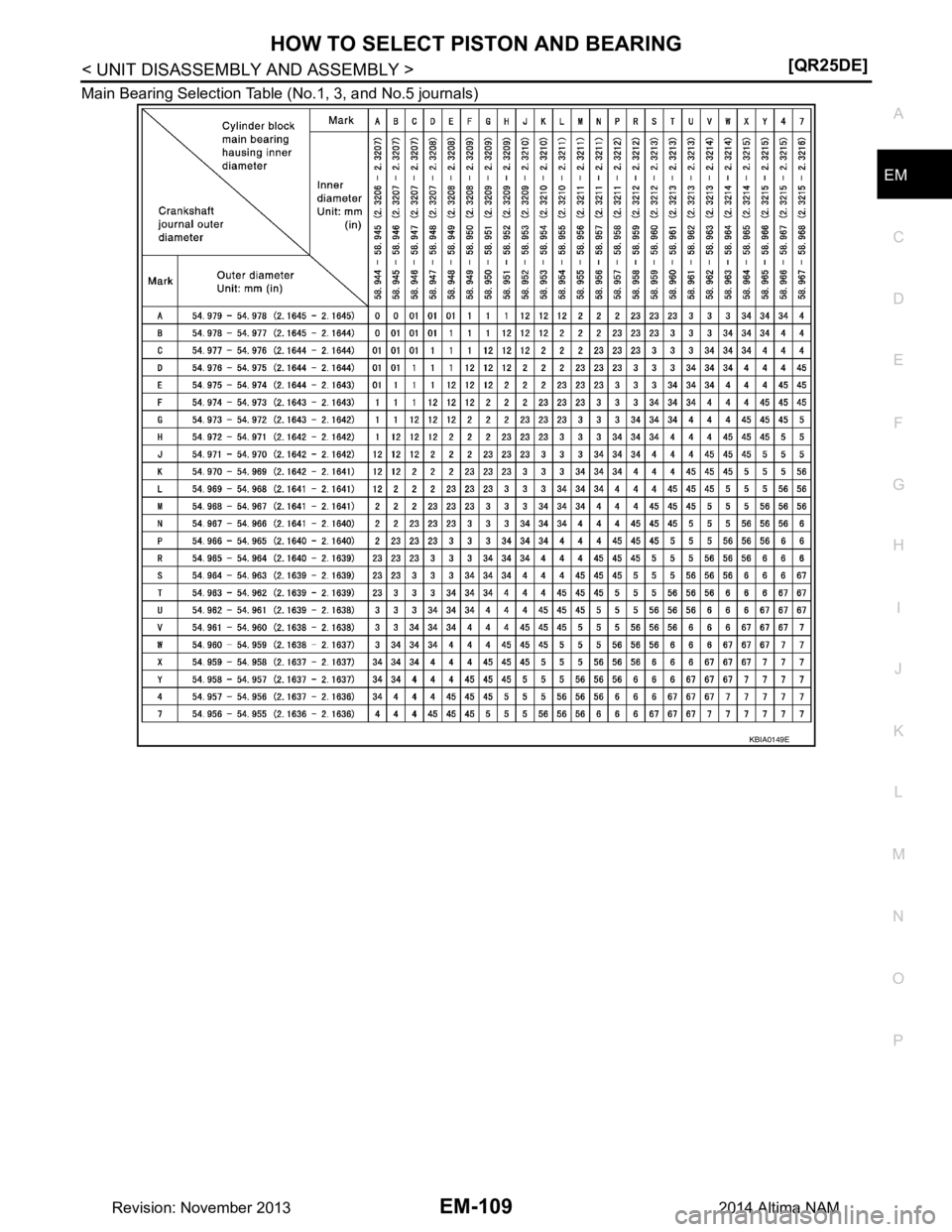

Main Bearing Selection Table (No.1, 3, and No.5 journals)
KBIA0149E
Revision: November 20132014 Altima NAM

EM-110
< UNIT DISASSEMBLY AND ASSEMBLY >[QR25DE]
HOW TO SELECT PISTON AND BEARING
Main Bearing Selection Table (No.2,and 4 journals)
Main Bearing Grade Table (All Journals) Refer to
EM-111, "Standard and Limit".
Use Undersize Bearing Usage Guide
• Use undersize (U.S.) bearing when oil clearance with standar d size main bearing is not within specification.
• When using undersize (U.S.) bearing, measure the bear ing inner diameter with the bearing installed and
grind journal until oil clearance falls within specification.
Bearing Undersize Table
Unit: mm (in)
CAUTION:
Do not damage fillet R when grinding crankshaft journal in
order to use an undersize bearing (all journals).
KBIA0150E
Size U.S. Thickness
0.25 (0.0098) 2.106 - 2.114 (0.0829 - 0.0832)
KBIA0148E
Revision: November 20132014 Altima NAM

SERVICE DATA AND SPECIFICATIONS (SDS)EM-111
< SERVICE DATA AND SPECIFICATIONS (SDS) [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Standard and LimitINFOID:0000000009460513
GENERAL SPECIFICATIONS
VA LV E T I M I N G
Unit: degree
*1: When running at idle with engine coolant temperature more than 60
°C (140 °F).
Cylinder arrangement
In-line 4
Displacement cm
3 (in3) 2,488 (151.82)
Bore and stroke mm (in) 89.0 x 100 (3.50 x 3.94)
Valve arrangement DOHC
Firing order 1-3-4-2
Number of piston rings Compression 2
Oil 1
Compression ratio 10.0:1
Compression pressure
kPa (kg/cm
2, psi) / 250 rpm Standard 1410 (14.4, 204.5)
Minimum 1220 (12.4, 176.9)
Differential limit between cylinders 100 (1.0, 14)
Va l v e t i m i n g : Intake valve
: Exhaust valve
ab c de f
VTC Minimum phasing
(Mechanical)
*1224 244 5 69 3 41
VTC Maximum phasing
(Mechanical)
*2224 244 35 29 48 4
Intermediate lock phasing
(Mechanical)
*3224 244 5 59 3 41
ALBIA0875GBALBIA0876GB
ALBIA0877GB
Revision: November 20132014 Altima NAM

EM-112
< SERVICE DATA AND SPECIFICATIONS (SDS) [QR25DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
*2: When the intake or exhaust valve opening angle is at the maximum.
*3: When starting the engine with engine coolant temperature 60
°C (140 °F) or less.
DRIVE BELTS
EXHAUST MANIFOLD
Unit: mm (in)
SPARK PLUG
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
CYLINDER HEAD
Unit: mm (in)
VA LV E
Valve Dimensions
Unit: mm (in)
Tension of drive belts Auto adjustment by drive belt auto-tensioner
Surface distortion Description Limit
Exhaust manifold 0.3 (0.012)
Make DENSO
Type* Standard FXE20HE11C
Gap (nominal) 1.1 (0.043)
Description Limit
Head surface distortion 0.1 (0.004)
Description Standard
Spark plug tube installation height 41.7 (1.642)
PBIC0283E
Valve head diameter (D) Intake 35.5 - 35.8 (1.398 - 1.409)
Exhaust 30.3 - 30.6 (1.193 - 1.205)
SEM188
Revision: November 20132014 Altima NAM
