NISSAN TEANA 2014 Service Manual

PRECAUTIONSEM-123
< PRECAUTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
PRECAUTION
PRECAUTIONS
Precaution for Supplemental
Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951676
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service t he system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three mi nutes before performing any service.
Precaution for Draining CoolantINFOID:0000000009460515
• Drain coolant when engine is cooled.
Precaution for Disconnecting Fuel PipingINFOID:0000000009460516
• Before starting work, make sure no fire or spark producing items are in the work area.
• Release fuel pressure before disassembly.
• After disconnecting pipes, plug openings to stop fuel leakage.
Precaution for Removal and DisassemblyINFOID:0000000009460517
• When instructed to use special service tools, use the spec ified tools. Always be careful to work safely, avoid
forceful or uninstructed operations.
• Exercise maximum care to avoid damage to mating or sliding surfaces.
• Cover openings of engine system with tape or the equiva lent, if necessary, to seal out foreign materials.
• Mark and arrange disassembly parts in an organized way for easy troubleshooting and assembly.
• When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specif ied, do exactly as specified. Power tools may be used
where noted in the step.
Precaution for Inspection, Repair and ReplacementINFOID:0000000009460518
• Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precaution for Assembly and InstallationINFOID:0000000009460519
• Use torque wrench to tighten bolts or nuts to specification.
Revision: November 20132014 Altima NAM

EM-124
< PRECAUTION >[VQ35DE]
PRECAUTIONS
• When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the
ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is specified,
do exactly as specified.
• Replace with new gasket, packing, oil seal or O-ring.
• Thoroughly wash, clean, and air-blow each part. Carefully check oil or coolant passages for any restriction and blockage.
• Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust. Before assembly, oil sliding surfaces well.
• Release air within route after draining coolant.
• Before starting engine, apply fuel pressure to fuel li nes with turning ignition switch ON (with engine stopped).
Then make sure that there are no leaks at fuel line connections.
• After repairing, start engine and increase engine speed to check coolant, fuel, oil, and exhaust systems for leakage.
Parts Requiring Angular TighteningINFOID:0000000009460520
• Use an angle wrench for the final tightening of the following engine parts:
- Cylinder head bolts
- Main bearing cap bolts
- Connecting rod cap nuts
- Crankshaft pulley bolt (No angle wrench is required as the bolt flange is provided with notches for angular
tightening)
• Do not use a torque value for final tightening.
• The torque value for these parts are for a preliminary step.
• Ensure thread and seat surfaces are clean and coated with engine oil.
Precaution for Liquid GasketINFOID:0000000009460521
REMOVAL OF LIQUID GASKET
• After removing the bolts and nuts, separate the mating surface and remove the liquid gasket using Tool (A).
CAUTION:
Be careful not to damage the mating surfaces.
• In areas where the cutter is difficult to use, use a plastic hammer to lightly tap (1) the cutter where the liquid gasket is applied. Use a
plastic hammer to slide (2) the cutter by tapping on the side.
CAUTION:
Do not damage the mating surfaces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using a scraper, remove the old liquid gasket adhering to the gasket application surface and the mating surface.
• Remove the liquid gasket completely from the groove of the
gasket application surface, mounting bolts, and bolt holes.
2. Thoroughly clean the gasket application surface and the mating surface and remove adhering moisture, grease and foreign
materials.
3. Attach the liquid gasket tube to the tube presser. Use Genuine Silicone RTV Seal ant or equivalent. Refer to
GI-21, "Recommended Chemi cal Products and Sealants"
.
Tool Number: KV10111100 (J-37228)
AWBIA1249GB
PBIC0003E
Revision: November 20132014 Altima NAM

PRECAUTIONSEM-125
< PRECAUTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
4. Apply the liquid gasket using suitable tool without breaks to the
specified location.
• If there is a groove for the liquid gasket application, apply the
liquid gasket to the groove.
• As for the bolt holes, normally apply the liquid gasket inside the holes. If specified, it should be applied outside the holes.
Make sure to read the text of this manual.
• Within five minutes of the liquid gasket application, install the
mating component.
• If the liquid gasket protrudes, wipe it off immediately.
• Do not retighten after the installation.
• After 30 minutes or more have passed from the installation, fill the engine with the specified oil and coolant. Refer to MA-11,
"FOR USA AND CANADA : Fluids and Lubricants".
CAUTION:
If there are more specific instruct ions in the procedures contained in this manual concerning liquid
gasket application, observe them.
EMA0622D
SEM159F
Revision: November 20132014 Altima NAM

EM-126
< PREPARATION >[VQ35DE]
PREPARATION
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000009460522
The actual shape of the tools may differ from those illustrated here.
Tool number
(TechMate No.)
Tool name Description
KV101J0010
(J-47242)
Engine support table Engine and transmission assembly removal
KV10116200
(J-26336-A)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2. KV10109220
(—)
Adapter Disassembling valve mechanism
Part (1) is a component of KV10116200 (J-
26336-A), but part (2) is not.
KV10107902
(J-38959)
Valve oil seal puller Removing valve oil seal
KV10115600
(J-38958)
Valve oil seal drift Installing valve oil seal
Use side A.
a: 20 (0.79) dia. d: 8 (0.31) dia.
b: 13 (0.51) dia. e: 10.7 (0.421) dia.
c: 10.3 (0.406) dia. f: 5 (0.20) dia.
Unit: mm (in)
—
(J-39386)
Valve oil seal drift Installing valve oil seal
ST16610001
(J-23907)
Pilot bushing puller Removing crankshaft pilot bushing
WBIA0658E
PBIC1650E
S-NT011
S-NT603
NT024
NT045
Revision: November 20132014 Altima NAM

PREPARATIONEM-127
< PREPARATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
Commercial Service ToolINFOID:0000000009460523
K V 1 0 1111 0 0
(J-37228)
Seal cutter Removing steel oil pan and rear timing chain
case
KV10112100
(BT-8653-A)
Angle wrench Tightening bolts for bearing cap, cylinder
head, etc.
KV991J0050
(J-44626)
Air fuel sensor Socket Loosening or tightening air fuel ratio A/F sen-
sor
a: 22 mm (0.87 in)
KV10114400
(J-38365)
Heated oxygen sensor wrench Loosening or tightening rear heated oxygen
sensor
a: 22 mm (0.87 in)
—
(J-50288)
Ring gear stopper Removing and installing crankshaft pulley
—
(J-47128)
Seal installer Installing rear main seal
Tool number
(TechMate No.)
Tool name Description
NT046
NT014
LBIA0444E
NT636
ALBIA0675ZZ
LBIA0452E
Revision: November 20132014 Altima NAM

EM -128
< PREPARATION >[VQ35DE]
PREPARATION
Tool name
Description
Power tool Loosening nuts, screws and bolts
Pulley holder Removing and installing crankshaft pulley
(Holding crankshaft pulley)
a: 68 mm (2.68 in) dia.
b: 8 mm (0.31 in) dia.
Spark plug wrench Removing and installing spark plug
Valve seat cutter set Finishing valve seat dimensions
Piston ring expander Removing and installing piston ring
Valve guide drift Removing and installing valve guide Intake & Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
Valve guide reamer Reaming valve guide 1 or hole for oversize valve guide 2
Intake & Exhaust:
d
1: 6.0 mm (0.236 in) dia.
d
2: 10.2 mm (0.402 in) dia.
PIIB1407E
NT628
PBIC2982E
NT048
NT030
NT015
NT016
Revision: November 20132014 Altima NAM

PREPARATIONEM-129
< PREPARATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O

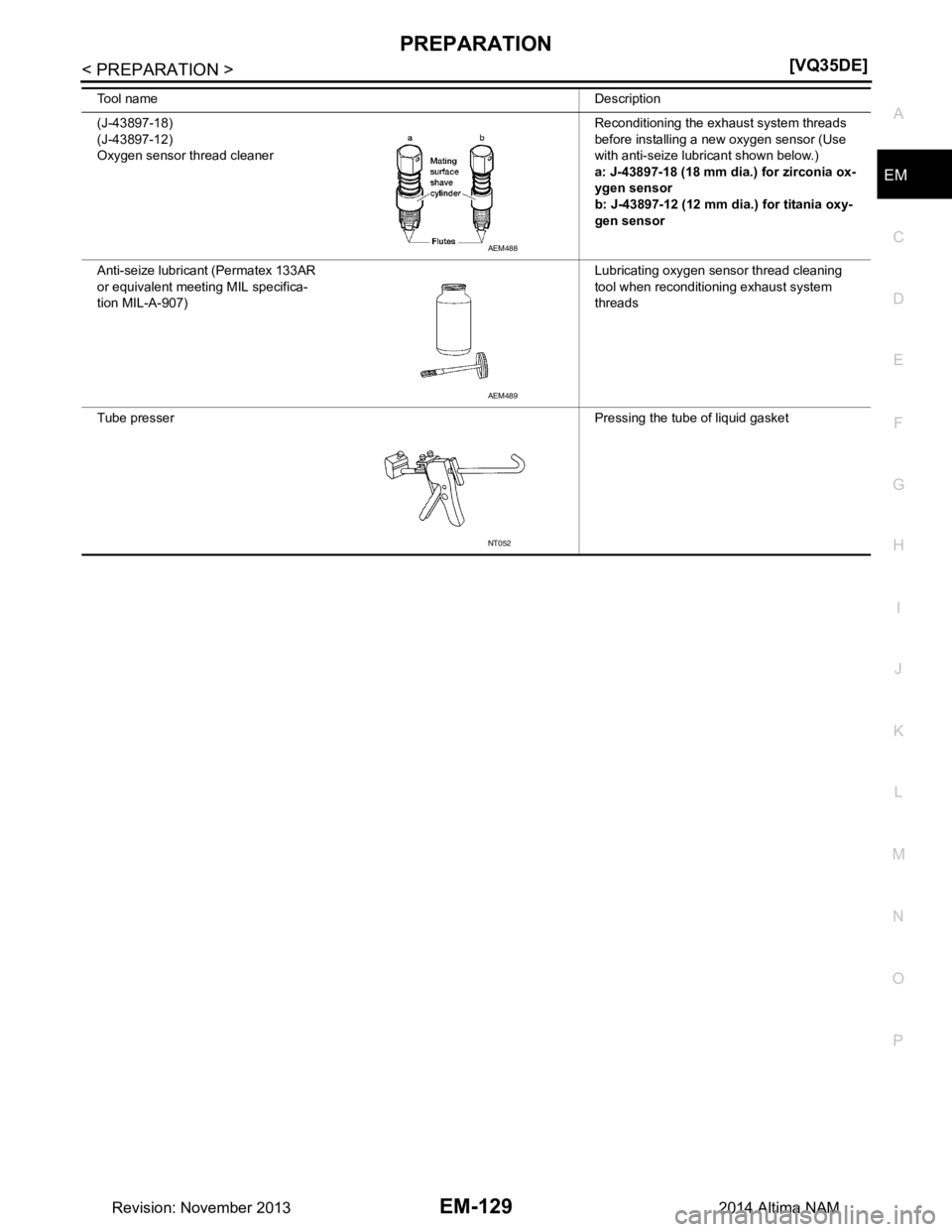

(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner Reconditioning the exhaust system threads
before installing a new oxygen sensor (Use
with anti-seize lubricant shown below.)
a: J-43897-18 (18 mm dia.) for zirconia ox-
ygen sensor
b: J-43897-12 (12 mm dia.) for titania oxy-
gen sensor
Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907) Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads
Tube presser Pressing the tube of liquid gasket
Tool name Description
AEM488
AEM489
NT052
Revision: November 20132014 Altima NAM

EM-130
< SYSTEM DESCRIPTION >[VQ35DE]
NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING
SYSTEM DESCRIPTION
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

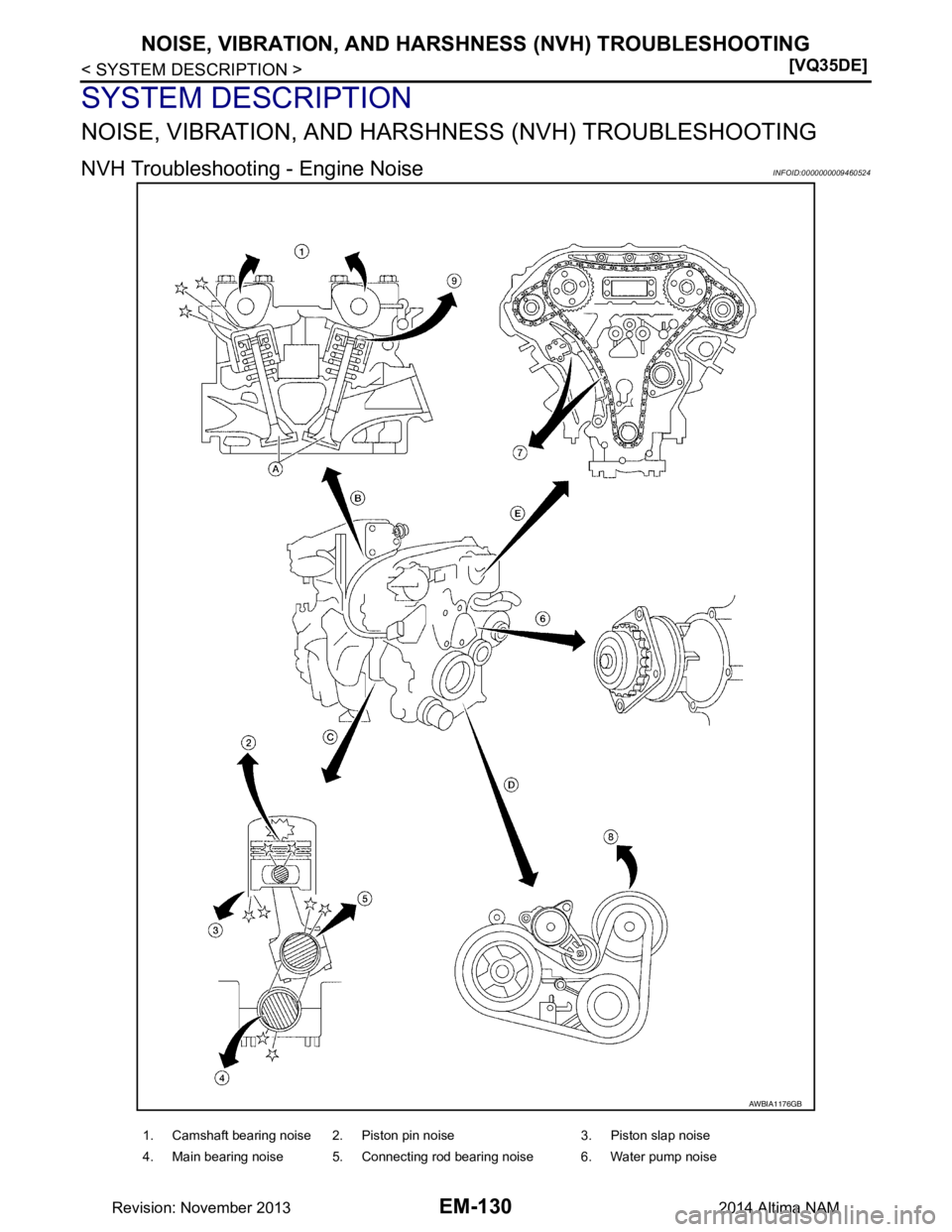

NVH Troubleshooting - Engine NoiseINFOID:0000000009460524
AWBIA1176GB
1. Camshaft bearing noise 2. Piston pin noise 3. Piston slap noise
4. Main bearing noise 5. Connecting rod bearing noise 6. Water pump noise
Revision: November 20132014 Altima NAM

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTINGEM-131
< SYSTEM DESCRIPTION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
OUse the Chart Below to Help You
Find the Cause of the SymptomINFOID:0000000009460525
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source. Repair or replace the identified part as necessary.
A: Closely related B: Related C: Sometimes related —: Not related7.
Timing chain and chain
tensioner noise 8. Drive belt noise (Sticking/Slipping) 9. Tappet noise
A. Valve B. Valve mechanism C. Rotation mechanism
D. Drive belt E. Timing chain
Location of noise Type of
noise Operating condition of engine
Source of noise Check item Refer-
ence page
Before
warm- up After
warm- up When
start- ing When
idling When
racing While
driving
Top of en-
gine
Rocker
cover
Cylinder
head Ticking or
clicking CA—AB— Tappet
noise Valve clearance
EM-138
Rattle C A — A B C Camshaft
bearing
noise Camshaft journal clear-
ance
Camshaft runout EM-194
Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil pan Slap or
knock —A—BB— Piston pin
noise Piston and piston pin
clearance
Connecting rod bushing
clearance EM-142
Slap or
rap A——BBA Piston
slap noise Piston-to-bore clear-
ance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsion EM-224
Knock A B C B B B
Connect-
ing rod
bearing
noise Connecting rod bushing
clearance (Small end)
Connecting rod bearing
clearance (Big end) EM-224
Knock A B — A B C
Main bear-
ing noise Main bearing oil clear-
ance
Crankshaft runout EM-224
Front of
engine
Timing
chain cov-
er Tapping or
ticking AA—BBB Timing
chain and
chain ten-
sioner
noise Timing chain cracks
and wear
Timing chain tensioner
operation EM-182
Front of
engine Squeak-
ing or fizz-
ing AB—B—C Drive belts
(Sticking
or slip-
ping) Drive belts deflection
EM-134
CreakingA B ABAB Drive belts
(Slipping) Idler pulley bearing op-
eration
Squall
Creak AB—BAB Water
pump
noise Water pump operation
CO-44
Revision: November 20132014 Altima NAM

EM-132

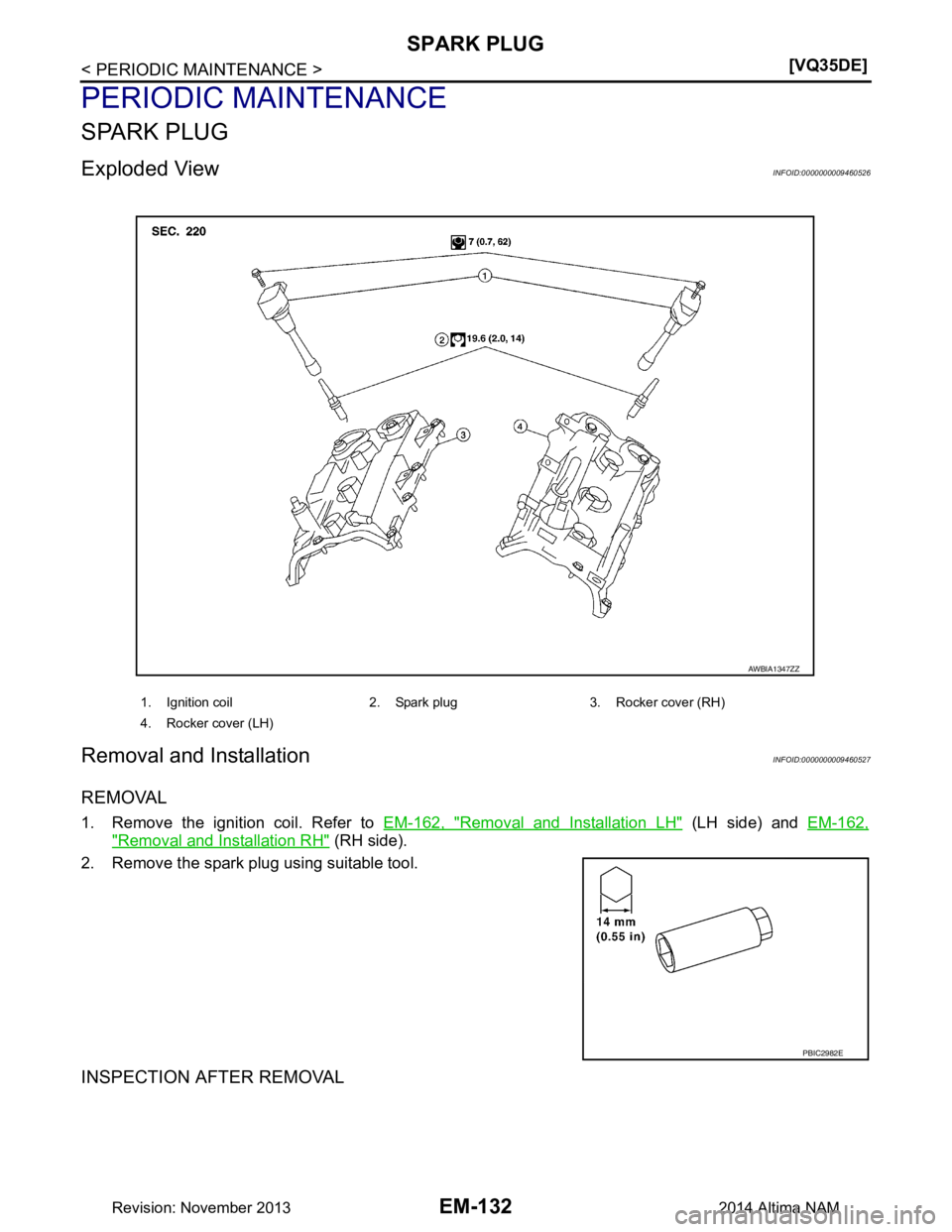

< PERIODIC MAINTENANCE >[VQ35DE]
SPARK PLUG
PERIODIC MAINTENANCE
SPARK PLUG
Exploded ViewINFOID:0000000009460526
Removal and InstallationINFOID:0000000009460527
REMOVAL
1. Remove the ignition coil. Refer to
EM-162, "Removal and Installation LH" (LH side) and EM-162,
"Removal and Installation RH" (RH side).
2. Remove the spark plug using suitable tool.
INSPECTION AFTER REMOVAL
1. Ignition coil 2. Spark plug 3. Rocker cover (RH)
4. Rocker cover (LH)
AWBIA1347ZZ
PBIC2982E
Revision: November 20132014 Altima NAM
