UNIT REMOVAL AND INSTALLATION
ENGINE ASSEMBLY

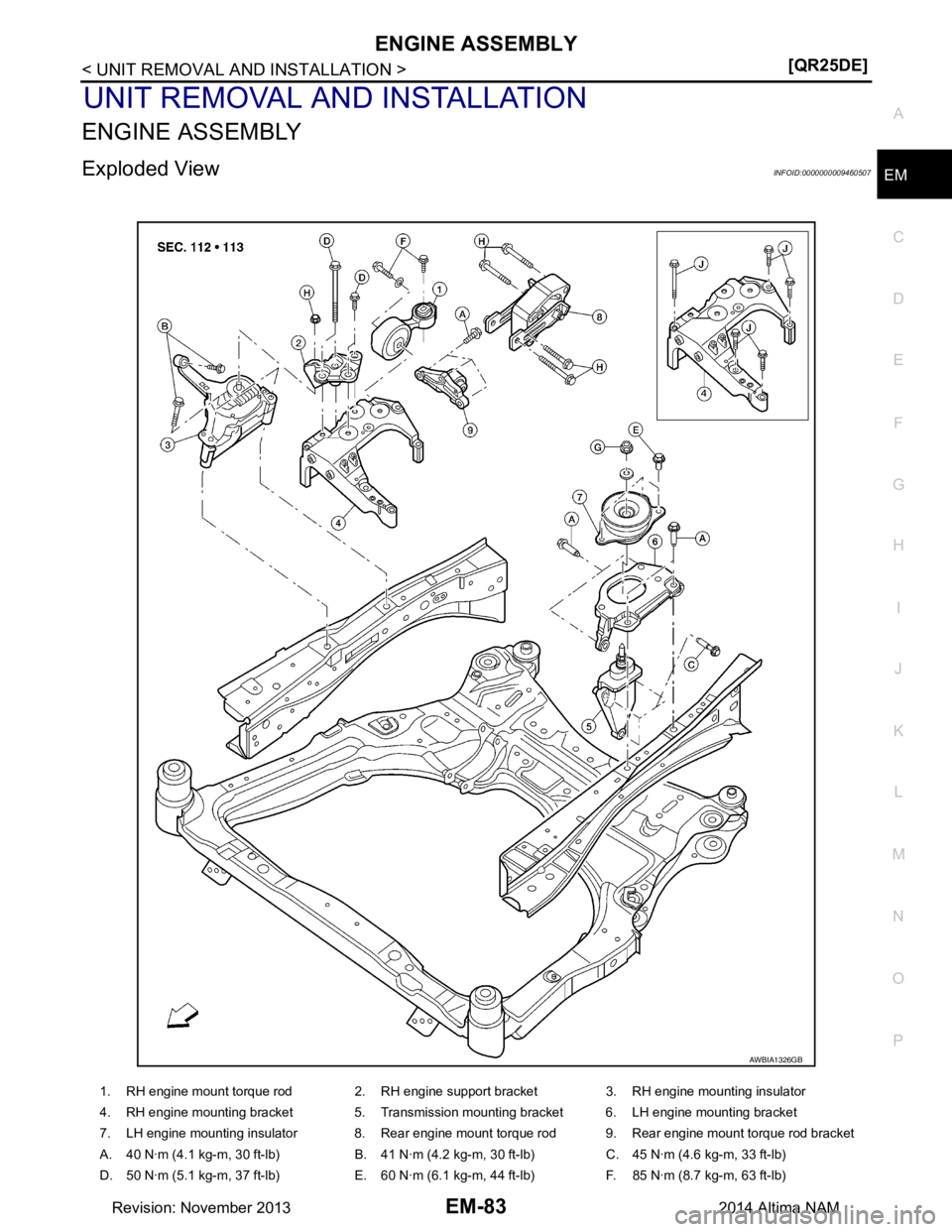

Exploded ViewINFOID:0000000009460507
AWBIA1326GB
1. RH engine mount torque rod 2. RH engine support bracket 3. RH engine mounting insulator
4. RH engine mounting bracket 5. Transmission mounting bracket 6. LH engine mounting bracket
7. LH engine mounting insulator 8. Rear engine mount torque rod 9. Rear engine mount torque rod bracket
A. 40 N·m (4.1 kg-m, 30 ft-lb) B. 41 N·m (4.2 kg-m, 30 ft-lb) C. 45 N·m (4.6 kg-m, 33 ft-lb)
D. 50 N·m (5.1 kg-m, 37 ft-lb) E. 60 N·m (6.1 kg-m, 44 ft-lb) F. 85 N·m (8.7 kg-m, 63 ft-lb)
Revision: November 20132014 Altima NAM

EM-84
< UNIT REMOVAL AND INSTALLATION >[QR25DE]
ENGINE ASSEMBLY
Removal and Installation
INFOID:0000000009460508
WARNING:
• Place chocks at the front and back of the rear wheels.
• For engines not equipped with slin gers, attach proper slingers and bolts as described in the Parts
Catalog.
CAUTION:
• Do not start working until the exh aust system and coolant are cool.
• If items or work required are not covered by the en gine main body section, follow the applicable pro-
cedures.
• Use the correct supporting points for lifting and jacking. Refer to GI-33, "Garage Jack and Safety
Stand".
• In removing the drive shaft, be careful not to damage the grease seals on the transaxle.
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
REMOVAL
1. Remove engine cover using power tool. Refer to EM-28, "Removal and Installation".
2. Release fuel pressure. Refer to EC-182, "Work Procedure"
.
3. Disconnect the negative and positive battery terminal. Refer to PG-73, "Removal and Installation (Bat-
tery)".
4. Disconnect the fuel rail at the fuel hose quick connector (engine side). Refer to EM-41, "Removal and
Installation".
5. Drain the engine coolant. Refer to CO-12, "Changing Engine Coolant"
.
6. Remove the engine under cover. Refer to EXT-28, "Removal and Installation"
.
7. Remove hood assembly. Refer to DLK-170, "HOOD ASSEMBLY : Removal and Installation"
.
8. Remove core support cover.
9. Remove the front air duct and air cleaner case assembly. Refer to EM-29, "Removal and Installation"
.
10. Remove battery and battery tray. Refer to PG-74, "Removal and Installation (Battery Tray)"
.
11. Remove cowl top. Refer to EXT-24, "Removal and Installation"
.
12. Remove strut brace. Refer to FSU-19, "Exploded View"
.
13. Disconnect EVAP hose and vacuum hose from intake manifold.
14. Remove upper and lower radiator hoses (engine side).
15. Remove CVT cooler lines.
16. Disconnect engine room harness connecto r at the CVT and ECM connectors.
CAUTION:
Protect the harness connector with plastic bags or suitable covering to help prevent damage and
intrusion of foreign mate rials into the connectors.
17. Remove the brake booster vacuum hose.
18. Disconnect the heater hoses.
19. Remove the front wheels and tires using a power tool. Refer to WT-55, "Adjustment"
.
20. Remove the fender protector side covers (RH) and (LH). Refer to EXT-26, "FENDER PROTECTOR :
Removal and Installation".
21. Remove tie rod ends from the steering knuckles. Refer to ST-36, "Removal and Installation"
.
22. Remove the power steering gear bolts and support the power steering gear. Refer to ST-36, "Exploded
View".
23. Remove rear cover plate.
24. Remove the torque converter nuts.
25. Remove the rear engine mount torque rod.
26. Remove front exhaust tube and gaskets. Refer to EX-5, "Exploded View"
.
G. 90 N·m (9.2 kg-m, 66 ft-lb) H. 103 N·m (11 kg-m, 76 ft-lb) J. Follow installation procedure
Front
Revision: November 20132014 Altima NAM

ENGINE ASSEMBLYEM-85
< UNIT REMOVAL AND INSTALLATION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
27. Remove the LH and RH drive shafts. Refer to
FAX-10, "Removal and Installation (LH)", FAX-12, "Removal
and Installation (RH)".
28. Remove the drive belt. Refer to EM-19, "Removal and Installation"
.
29. Remove the front suspension member. Refer to FSU-20, "Removal and Installation"
.
30. Remove the A/C compressor with piping connected and support using suitable wire.
31. Disconnect the transaxle shift controls. Refer to TM-407, "Removal and Installation"
.
32. Install engine slingers into the rear of the cylinder head (A) and front engine mounting bracket holes (B).
• Use engine mounting bolt holes for front slinger.
• Use the holes in the rear of the cylinder head for the rear
slinger.
33. Support engine and transaxle assembly with engine lifti ng equipment from the top with the vehicle raised
on a hoist.
34. Remove the RH engine mount torque rod, RH engine support bracket and RH engine mounting insulator and bracket.
35. Remove LH transaxle mounting insulator through-bolts.
36. Lower the engine and transaxle assembly from the engine compartment using suitable tool.
CAUTION:
• Before and during this procedure, alw ays check if any harnesses are left connected.
• Avoid any damage to, or any oil/grease smearing or spills onto the engine mounting insulators.
37. Remove the starter motor. Refer to STR-22, "QR25DE : Removal and Installation"
.
38. Remove engine and transaxle harness.
39. Separate engine and transaxle. Refer to TM-206, "Exploded View"
.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
Tighten the transmission bolts to specification. Refer to TM-407, "Removal and Installation"
.
• Do not allow oil to get on mounting insulators. Be careful not to damage mounting insulators.
• If parts have a direction mark (arrow) this indicates front of the vehicle, and the parts must be installed
according to the identification mark.
• Install the RH engine mounting bracket bolts in the following steps:
- First install bolts (A) and (B) loosely.
- Install and tighten the five RH engine mounting bracket bolts to specification in the order as shown.
- : Front
INSPECTION AFTER INSTALLATION
• Before starting engine, check oil/fluid levels incl uding engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-11, "FOR USA AND CANADA : Fluids and Lubricants"
.
• Use procedure below to check for fuel leakage.
• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak- age at connection points.
• Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration. Slinger bolts (A) : 28 N·m (2.8 kg-m, 21 ft-lb)
Slinger bolts (B) : 48 N·m (4.9 kg-m, 35 ft-lb))
AWBIA1363ZZ
RH engine mounting bracket bolt : 48.2 N·m (4.9 kg-m, 36 ft-lb)
ALBIA0541ZZ
Revision: November 20132014 Altima NAM

EM-86
< UNIT REMOVAL AND INSTALLATION >[QR25DE]
ENGINE ASSEMBLY
NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide
may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop
after hydraulic pressure rises.
• Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gas, or any oils/fluids including engine oil and engine coolant.
• Bleed air from passages in lines and hoses, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to spec- ified level, if necessary.
• Summary of the inspection items:
*Power steering fluid, brake fluid, etc. Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Transmission/
transaxle fluid CVT Models
Leakage Level/Leakage Leakage
Other oils and fluids* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gas — Leakage —
Revision: November 20132014 Altima NAM

CYLINDER BLOCKEM-87
< UNIT DISASSEMBLY AND ASSEMBLY > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
UNIT DISASSEMBLY AND ASSEMBLY
CYLINDER BLOCK

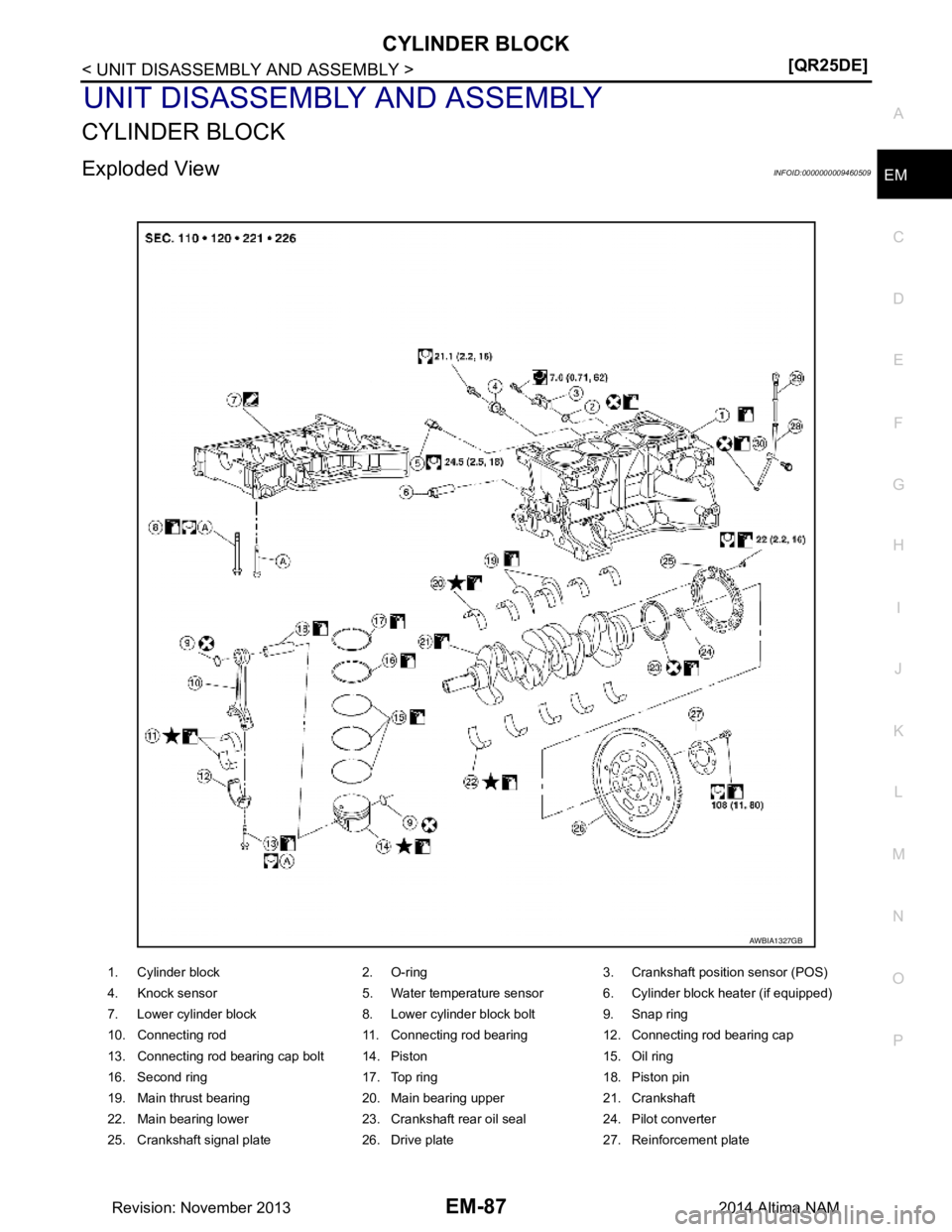

Exploded ViewINFOID:0000000009460509

AWBIA1327GB
1. Cylinder block 2. O-ring 3. Crankshaft position sensor (POS)
4. Knock sensor 5. Water temperature sensor 6. Cylinder block heater (if equipped)
7. Lower cylinder block 8. Lower cylinder block bolt 9. Snap ring
10. Connecting rod 11. Connecting rod bearing 12. Connecting rod bearing cap
13. Connecting rod bearing cap bolt 14. Piston 15. Oil ring
16. Second ring 17. Top ring 18. Piston pin
19. Main thrust bearing 20. Main bearing upper 21. Crankshaft
22. Main bearing lower 23. Crankshaft rear oil seal 24. Pilot converter
25. Crankshaft signal plate 26. Drive plate 27. Reinforcement plate
Revision: November 20132014 Altima NAM

EM-88
< UNIT DISASSEMBLY AND ASSEMBLY >[QR25DE]
CYLINDER BLOCK
Disassembly and Assembly
INFOID:0000000009460510
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
NOTE:
The following procedures explain how to disassem ble the engine with the engine stand fastened to the bell
housing. Some steps may be different if using a different type of engine stand.
DISASSEMBLY
1. Remove the engine and transaxle as an assembly from the vehicle, and separate the transaxle from the
engine. Refer to EM-84, "Removal and Installation"
.
2. Remove the drive plate. Hold the crankshaft using Tool (A) and use a suitable tool to remove the bolts.
3. Remove pilot converter using Tool.
4. Remove the rear oil seal. Refer to EM-72, "Removal and Installation of Rear Oil Seal"
.
5. Mount the engine on a suitable engine stand (A). CAUTION:
• Use an engine stand that has a load capacity large
enough for supporting the engine weight [approximately
135 kg (298 lb) or more].
• Before removing the hanging chains, check the engine
stand is stable and there is no risk of overturning.
NOTE:
The figure shows an example of widely used engine stand (A)
that can support mating surface of transaxle with drive plate
removed.
• Remove the following parts if the engine stand load capacity is not adequate, to reduce the potential risk of overturning stand:
- Intake manifold. Refer to EM-30, "Removal and Installation"
.
- Exhaust manifold. Refer to EM-33, "Removal and Installation"
.
- Rocker cover. Refer to EM-45, "Removal and Installation"
.
6. Drain any remaining engine oil and coolant from the engine.
7. Remove the exhaust manifold and three way catalyst assembly. Refer to EM-33, "Removal and Installa-
tion".
8. Remove the intake manifold and fuel tube assembly. Refer to EM-30, "Removal and Installation"
.
28. Oil level gauge guide 29. Oil level gauge 30. O-ring
A. Follow assembly procedure
Tool Number : KV11105210 (J-44716)
PBIC3226J
Tool Number : ST16610001 (J-23907)
WBIA0483E
PBIC3227J
Revision: November 20132014 Altima NAM

CYLINDER BLOCKEM-89
< UNIT DISASSEMBLY AND ASSEMBLY > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
9. Remove the ignition coils. Refer to
EM-40, "Removal and Installation".
10. Remove the rocker cover. Refer to EM-45, "Removal and Installation"
.
11. Remove the front cover, timing chain, and balancer unit. Refer to EM-62, "Removal and Installation"
.
12. Remove the cylinder head. Refer to EM-74, "Removal and Installation"
.
13. Remove oil cooler. Refer to LU-16, "Exploded View"
.
14. Remove the knock sensor. CAUTION:
Carefully handle the sensor and do not drop the sensor.
15. Remove crankshaft position sensor (POS) (2) and O-ring (1).
CAUTION:
• Avoid impacts such as a dropping.
• Do not disassemble.
• Keep it away from metal particles.
• Do not place sensor close to magnetic materials.
• Do not reuse O-ring.
16. Remove the piston and connecting rod assemblies.
a. Position the crankshaft and corresponding connecting rod, to be removed, to the bottom dead center stroke.
b. Remove the connecting rod cap. Number the cap so it can be assembled in the same position.
c. Using a hammer handle or similar tool, push the piston and con- necting rod assembly out of the top of the cylinder block. Num-
ber the piston and rod so it can be assembled in the same
position.
• Before removing the piston and connecting rod assembly,
check the connecting rod side clearance. Refer to EM-96,
"Inspection After Disassembly".
17. Remove the connecting rod bearings. If reusing, num ber them so they can be assembled in the same
position and direction.
CAUTION:
• When removing them, note the installation position. Keep them in the correct order.
18. Remove the piston rings from the piston. • Use a piston ring expander.
• Before removing the piston rings, check the piston ring side
clearance. Refer to EM-96, "Inspection After Disassembly"
.
CAUTION:
• When removing the piston rings, be careful not to damage
the piston.
• Be careful not to damage piston rings by expanding them excessively, if reusing them.
: Engine front
AWBIA1332GB
PBIC0259E
PBIC0087E
Revision: November 20132014 Altima NAM

EM-90
< UNIT DISASSEMBLY AND ASSEMBLY >[QR25DE]
CYLINDER BLOCK
19. Remove the piston from the connecting rod as follows.
a. Using a snap ring pliers, remove the two snap rings.
b. Heat the piston to 60 ° - 70 °C (140 ° - 158 °F) with a heat gun, or
equivalent.
c. Push out piston pin with a punch of an outer diameter of approx- imately 19 mm (0.75 in).
20. Remove the lower cylinder block bolts. • Before loosening the lower cylinder block bolts, measure thecrankshaft side clearance. Refer to EM-96, "Inspection After
Disassembly".
• Loosen the lower cylinder block bolts in the reverse order shown.
21. Remove the lower cylinder block. • Cut the Silicone RTV Sealant and remove the lower cy linder block from the cylinder block, using Tool.
CAUTION:
Be careful not to damage the mating surface.
PBIC0260E
PBIC0261E
PBIC0262E
KBIA0063E
Tool number : KV10111100 (J-37228)
Revision: November 20132014 Altima NAM

CYLINDER BLOCKEM-91
< UNIT DISASSEMBLY AND ASSEMBLY > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
22. Remove the crankshaft (A).
CAUTION:
• Do not damage or deform the signal plate (B) while
mounted on the crankshaft.
• When setting the crankshaft on a flat surface, use a block of wood to avoid interferen ce between the signal plate
and the surface.
• Do not remove signal plate unless it is necessary.
23. Pull the rear oil seal off of the rear end of the crankshaft. CAUTION:
Do not damage the crankshaft or cylinder block when removing the rear oil seal.
NOTE:
When replacing the rear oil seal without removing the cy linder block, use a suitable tool to pull it out from
between crankshaft and block.
24. Remove the main bearings and thrust bearings from the cylinder block and lower cylinder block. CAUTION:
Identify and number the bearings, if reusing th em, so that they are assembled in the same position
and direction.
25. Remove oil jets (A) if necessary.
ASSEMBLY
1. Using compressed air, clean out the coolant and oil passages in the cylinder block, the cylinder bore and
the crankcase to remove any foreign material.
WARNING:
Use approved safety glasses to protect your eyes.
2. Install the drain plugs on the cylinder block. • Apply Silicone RTV Sealant. Use Genuine Silicone RTV Seal ant, or equivalent. Refer to
GI-21, "Recommended Chemi cal Products and Sealants"
.
• : Engine front CAUTION:
Do not reuse copper sealing washers.
AWBIA1377ZZ
: Engine front
JPBIA0686ZZ
Drain plug torque
Drain plug (A) : 54 Nm (5.5 kg-m, 40 ft-lb)
Drain plug (B) : 9.8 Nm (1.0 kg-m, 87 in-lb)
AWBIA1328GB
Revision: November 20132014 Altima NAM

EM-92
< UNIT DISASSEMBLY AND ASSEMBLY >[QR25DE]
CYLINDER BLOCK
3. Install oil jets (A).
4. Install the main bearings and the thrust bearings.
a. Remove dust, dirt, and oil from the bearing mating surfaces of the cylinder block and lower cylinder block.
b. Install the thrust bearings (1) to both sides of the No. 3 main bearing journal (F) on the cylinder block.
• Install the thrust bearings with the oil groove (G) facing the
crankshaft arm (outside).
c. Install the main bearings paying attention to their position and direction.
• The main bearing with an oil hole and groove goes on the cyl- inder block side (A). The one without them goes on the lower
cylinder block side (B).
• Only the main bearing (on the cylinder block side) for No. 3 journal (6) has different specifications.
• Before installing the bearings, apply engine oil to the bearing
friction surface (inside). Do not apply oil to the back surface,
but thoroughly clean it.
• When installing, align the bearing stopper (1), (5) to the notch.
• Make sure that the oil holes on the cylinder block and those on the corresponding bearing (2), (4) are aligned.
5. Install the signal plate to the crankshaft.
a. Position the crankshaft and signal plate using a positioning dowel pin, and tighten the bolts to specification.
b. Remove the dowel pin. CAUTION:
Be sure to remove dowel pin before installing the crank-
shaft.
NOTE:
Dowel pins for the crankshaft and signal plate are supplied as a
set for each.
6. Install the crankshaft onto the cylinder block. • While turning the crankshaft by hand, check that it turnssmoothly.
: Engine front
JPBIA0686ZZ
(A) : No. 1
(B) : No. 2
(C) : No. 3
(D) : No. 4
(E) : No. 5
: Engine front
AWBIA1329GB
(3) : Bearing other than No. 3
(7) : Thrust bearings
AWBIA0186ZZ
ALBIA0208ZZ
