NISSAN TEANA 2014 Service Manual

REAR TIMING CHAIN CASEEM-193
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O

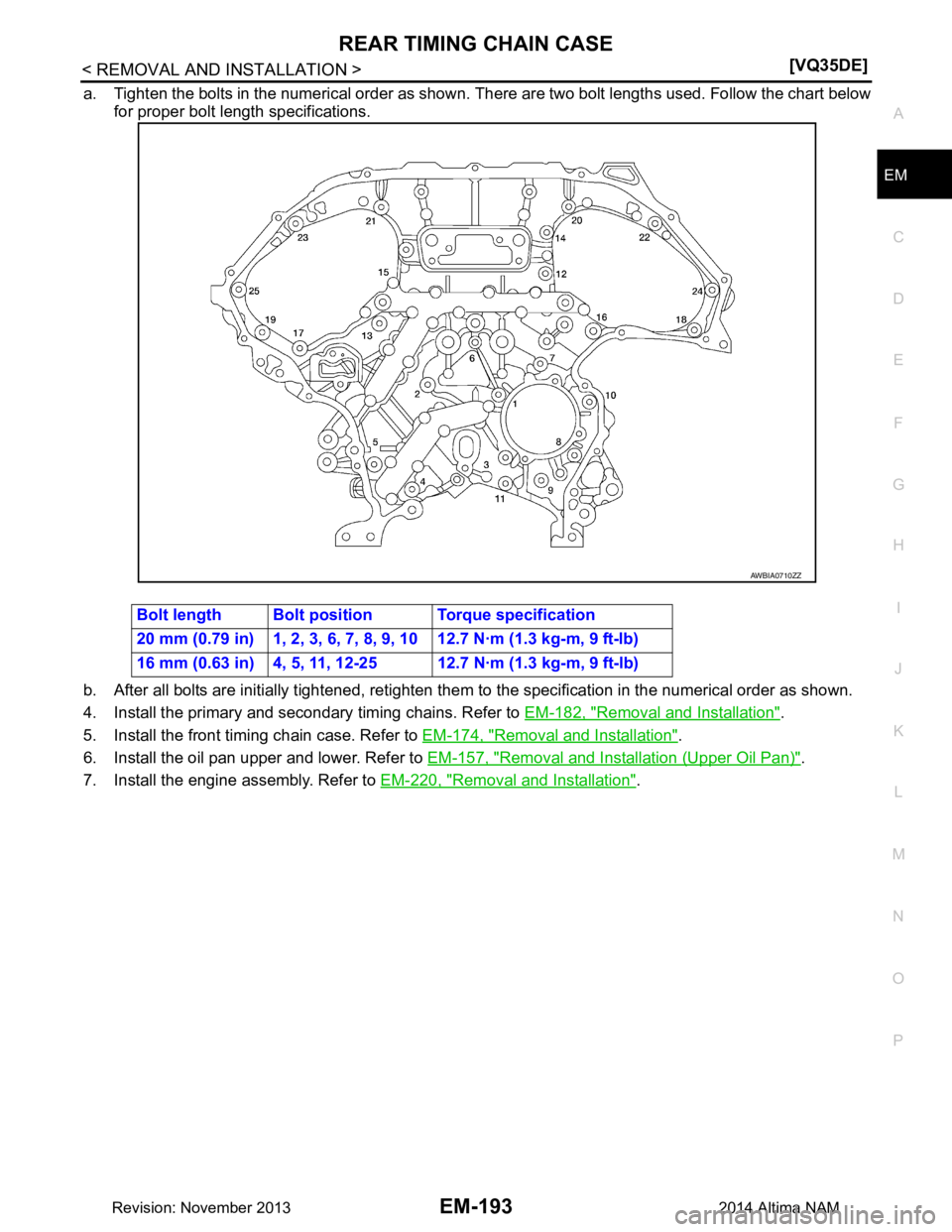

a. Tighten the bolts in the numerical order as shown.
There are two bolt lengths used. Follow the chart below
for proper bolt length specifications.
b. After all bolts are initially tightened, retighten them to the specification in the numerical order as shown.
4. Install the primary and secondary timing chains. Refer to EM-182, "Removal and Installation"
.
5. Install the front timing chain case. Refer to EM-174, "Removal and Installation"
.
6. Install the oil pan upper and lower. Refer to EM-157, "Removal and Installation (Upper Oil Pan)"
.
7. Install the engine assembly. Refer to EM-220, "Removal and Installation"
.
Bolt length Bolt position Torque specification
20 mm (0.79 in) 1, 2, 3, 6, 7, 8, 9, 10 12.7 N·m (1.3 kg-m, 9 ft-lb)
16 mm (0.63 in) 4, 5, 11, 12-25 12.7 N·m (1.3 kg-m, 9 ft-lb)
AWBIA0710ZZ
Revision: November 20132014 Altima NAM

EM-194
< REMOVAL AND INSTALLATION >[VQ35DE]
CAMSHAFT
CAMSHAFT

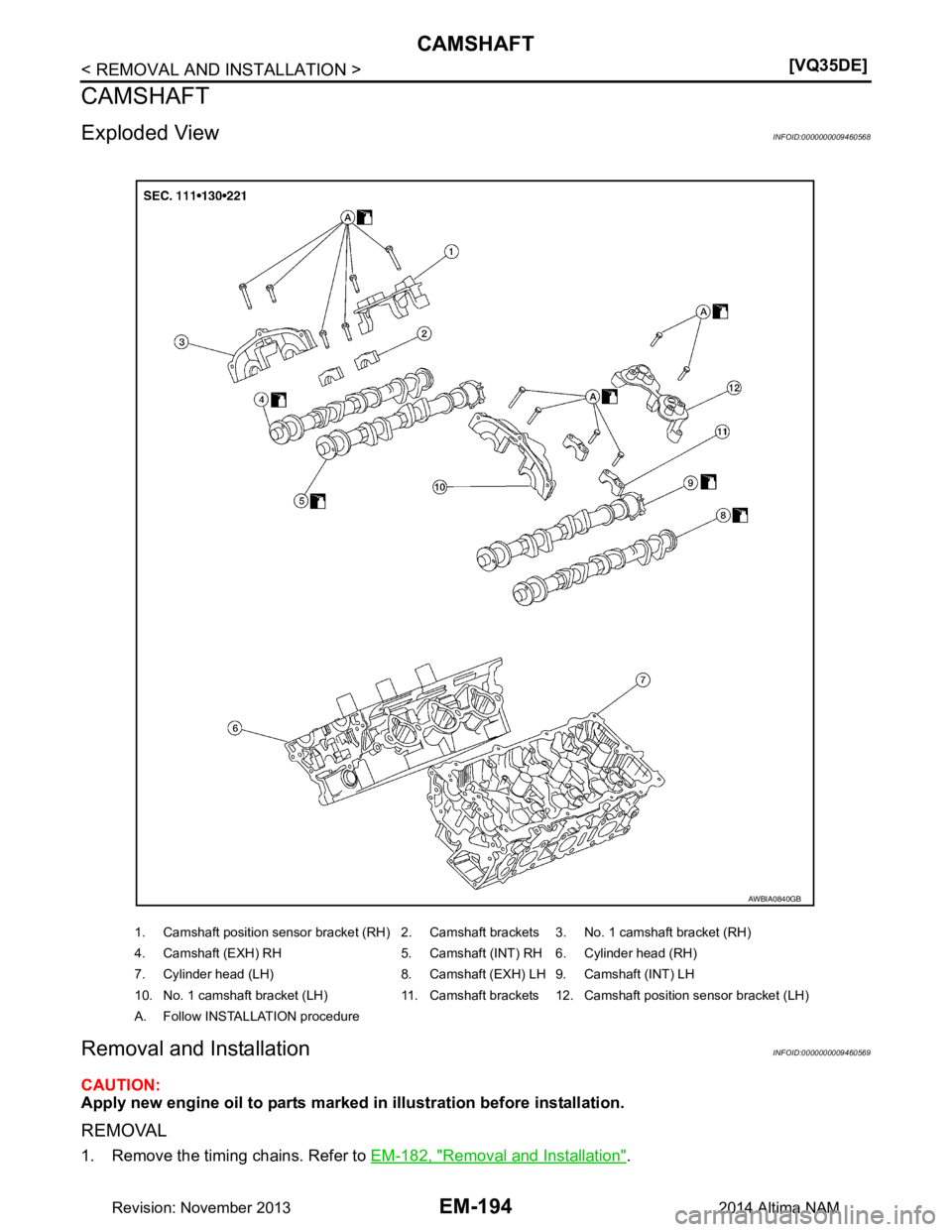

Exploded ViewINFOID:0000000009460568
Removal and InstallationINFOID:0000000009460569
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
REMOVAL
1. Remove the timing chains. Refer to EM-182, "Removal and Installation".
1. Camshaft position sensor bracket (RH) 2. Camshaft brackets 3. No. 1 camshaft bracket (RH)
4. Camshaft (EXH) RH 5. Camshaft (INT) RH 6. Cylinder head (RH)
7. Cylinder head (LH) 8. Camshaft (EXH) LH 9. Camshaft (INT) LH
10. No. 1 camshaft bracket (LH) 11. Camshaft brackets 12. Camshaft position sensor bracket (LH)
A. Follow INSTALLATION procedure
AWBIA0840GB
Revision: November 20132014 Altima NAM

CAMSHAFTEM-195
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O

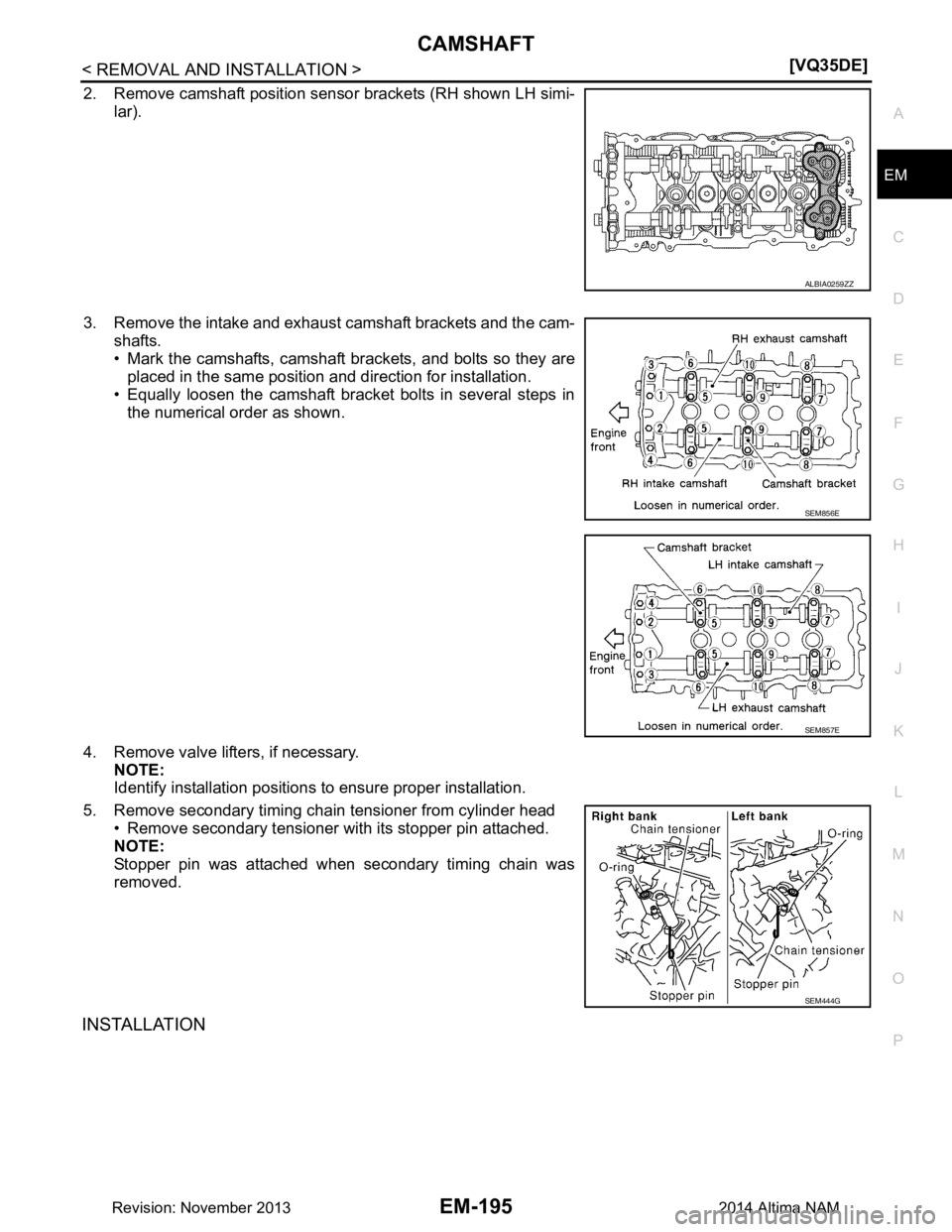

2. Remove camshaft position sensor brackets (RH shown LH simi-
lar).
3. Remove the intake and exhaust camshaft brackets and the cam- shafts.
• Mark the camshafts, camshaft brackets, and bolts so they are
placed in the same position and direction for installation.
• Equally loosen the camshaft bracket bolts in several steps in the numerical order as shown.
4. Remove valve lifters, if necessary. NOTE:
Identify installation positions to ensure proper installation.
5. Remove secondary timing chain tensioner from cylinder head • Remove secondary tensioner with its stopper pin attached.
NOTE:
Stopper pin was attached when secondary timing chain was
removed.
INSTALLATION
ALBIA0259ZZ
SEM856E
SEM857E
SEM444G
Revision: November 20132014 Altima NAM

EM-196
< REMOVAL AND INSTALLATION >[VQ35DE]
CAMSHAFT

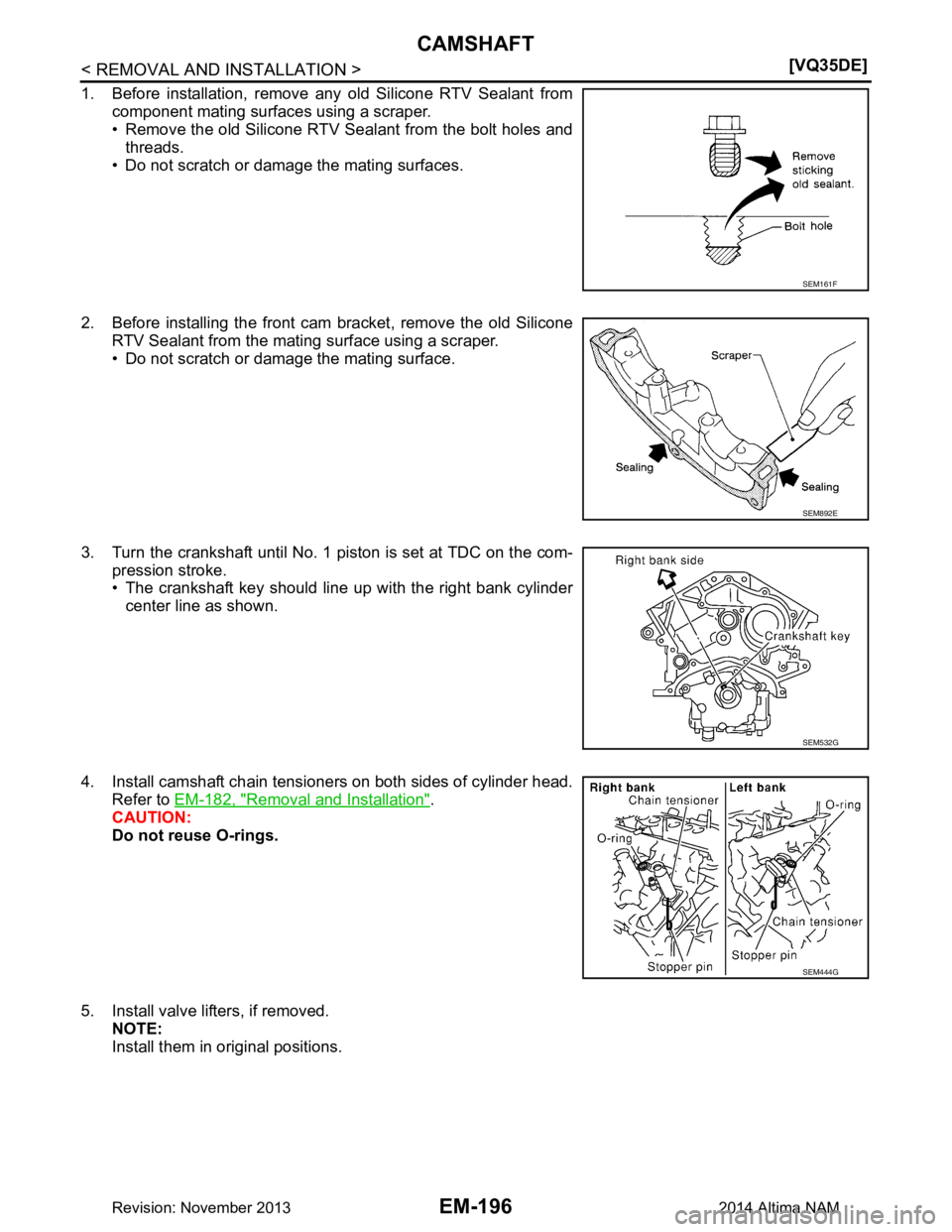

1. Before installation, remove any old Silicone RTV Sealant from
component mating surfaces using a scraper.
• Remove the old Silicone RTV Sealant from the bolt holes and
threads.
• Do not scratch or damage the mating surfaces.
2. Before installing the front cam bracket, remove the old Silicone RTV Sealant from the mating surface using a scraper.
• Do not scratch or damage the mating surface.
3. Turn the crankshaft until No. 1 piston is set at TDC on the com- pression stroke.
• The crankshaft key should line up with the right bank cylinder
center line as shown.
4. Install camshaft chain tensioners on both sides of cylinder head. Refer to EM-182, "Removal and Installation"
.
CAUTION:
Do not reuse O-rings.
5. Install valve lifters, if removed. NOTE:
Install them in original positions.
SEM161F
SEM892E
SEM532G
SEM444G
Revision: November 20132014 Altima NAM

CAMSHAFTEM-197
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O

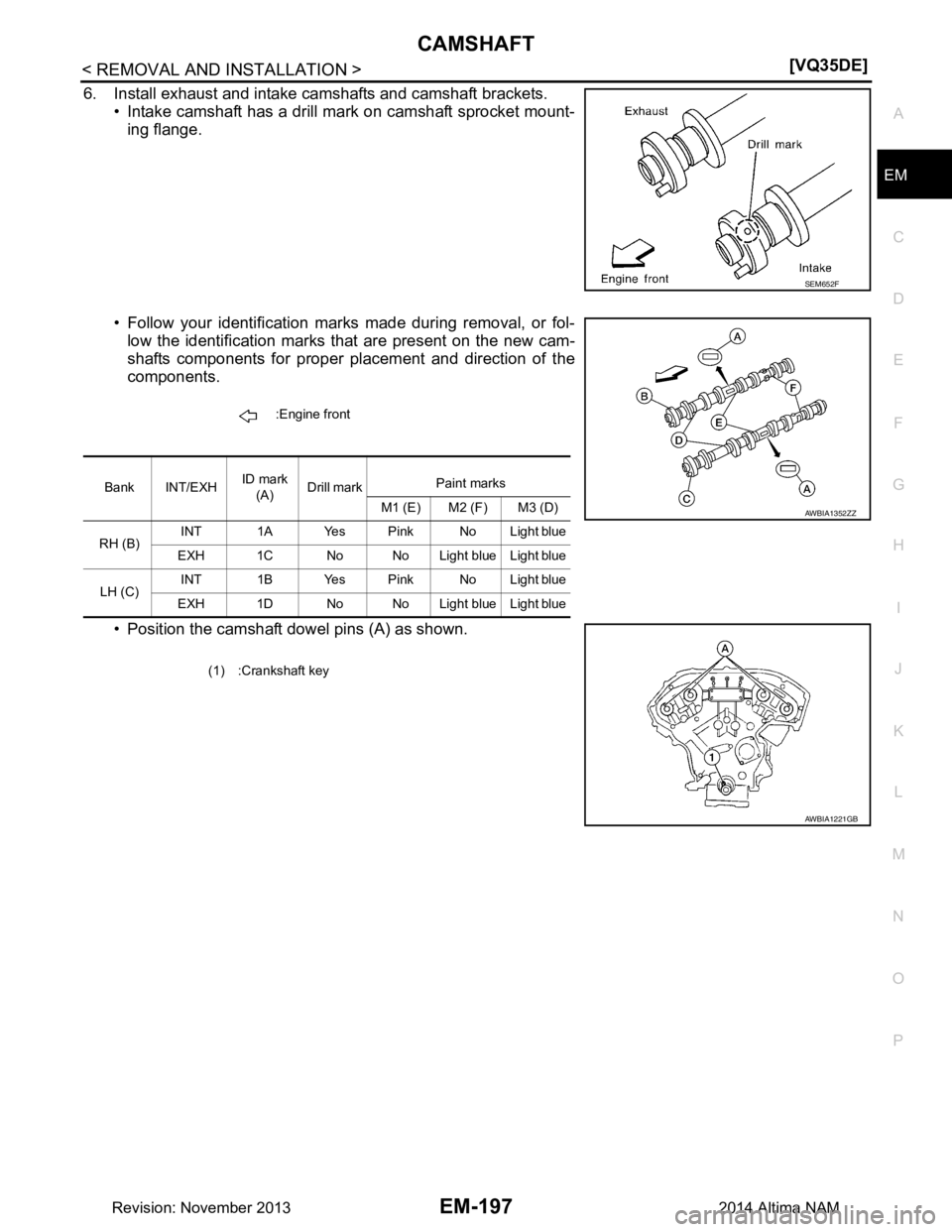

6. Install exhaust and intake camshafts and camshaft brackets.
• Intake camshaft has a drill mark on camshaft sprocket mount-ing flange.
• Follow your identification marks made during removal, or fol- low the identification marks t hat are present on the new cam-
shafts components for proper placement and direction of the
components.
• Position the camshaft dowel pins (A) as shown.
SEM652F
:Engine front
Bank INT/EXH ID mark
(A) Drill mark
Paint marks
M1 (E) M2 (F) M3 (D)
RH (B) INT 1A Yes Pink No Light blue
EXH 1C No No Light blue Light blue
LH (C) INT 1B Yes Pink No Light blue
EXH 1D No No Light blue Light blue
(1) :Crankshaft key
AWBIA1352ZZ
AWBIA1221GB
Revision: November 20132014 Altima NAM

EM-198
< REMOVAL AND INSTALLATION >[VQ35DE]
CAMSHAFT
7. Before installing camshaft brackets, apply sealant to mating sur-
face of No. 1 camshaft bracket.
• Use Genuine Silicone RTV Seal ant, or equivalent. Refer to
EM-124, "Precaution for Liquid Gasket"
.
• Before installation, wipe off any protruding sealant.
•Refer to EM-124, "Precaution for Liquid Gasket"
.
• Install camshaft brackets in their original positions and direc- tion. Align the stamp marks as shown.
• If checking and adjusting any part of valve assembly or
camshaft, check valve clearance according to the refer-
ence data. Refer to EM-138, "Valve Clearance"
.
SEM446G
PBIC0915E
Valve clearance (cold) Intake : 0.26 - 0.34 mm
(0.010 - 0.013 in)
Valve clearance (cold) Exhaust : 0.29 - 0.37 mm (0.011 - 0.015 in)
SEM564G
Revision: November 20132014 Altima NAM

CAMSHAFTEM-199
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
• Tighten the camshaft brackets in the three steps, in numerical order as shown.
8. Measure difference in levels between front end faces of No. 1 camshaft bracket and cylinder head.
• If measurement is outside the specified range, re-install cam-
shaft and camshaft bracket.
9. Install camshaft position sensor bracket (PHASE) (RH and LH bank.)
10. Install the timing chains. Refer to EM-182, "Removal and Installation"
.
INSPECTION AFTER REMOVAL
Camshaft Visual Check
Check camshaft for scratches, seizure and wear. Replace if necessary.
Camshaft Runout
1. Put V-block on precise flat bed and support No. 2 and No. 4 jour-
nal of camshaft as shown.
2. Set dial gauges vertically to No. 3 journal as shown.
3. Turn camshaft in one direction slowly by hand, measure the camshaft runout on the dial gauges.
• Runout is the largest indicator reading after one full revolution.
4. If actual runout exceeds th e limit, replace the camshaft.
1 1.96 N·m (0.2 kg-m, 17 in-lb)
Tighten No. 7 - 10, then
tighten 1 - 6 in numerical order as shown.
2 5.88 N·m (0.6 kg-m, 52 in-lb) Tighten all in numerical or-
der as shown.
3 10.41 N·m (1.10 kg-m, 8 ft-lb) Tighten No. 1 - 10 in nu-
merical order as shown.
SEM885EA
SEM886EA
Standard : – 0.14 (– 0.0055 in)
EMQ0044D
Camshaft Runout
Standard : Less than 0.02 mm (0.0008 in)
Limit : 0.05 mm (0.0020 in)
PBIC0929E
Revision: November 20132014 Altima NAM

EM-200
< REMOVAL AND INSTALLATION >[VQ35DE]
CAMSHAFT
Camshaft Cam Lobe Height
1. Measure camshaft cam lobe height as shown. Refer to
EM-247,
"Camshaft".
2. If wear has reduced the lobe height below specifications, replace the camshaft.
Camshaft Journal Clearance
Outer Diameter of Camshaft Journal
• Measure outer diameter of camshaft journal as shown.
Inner Diameter of Camshaft Bracket
1. Tighten camshaft bracket bolt with specified torque.
2. Using inside micrometer, measur e inner diameter (A) of cam-
shaft bearing.
Calculation of Camshaft Journal Clearance
(Journal clearance) = (inner diameter of camshaft br acket) – (outer diameter of camshaft journal)
• When out of the specified range, replac e either or both camshaft and cylinder head.
NOTICE:
Inner diameter of camshaft bracket is manufactur ed together with cylinder head. Replace the whole cylinder
head assembly.
Camshaft End Play
1. Install the camshaft in the cylinder head.
SEM549A
Standard outer diameter
No.1 : 25.935 - 25.955 mm
(1.0211 - 1.0218 in)
Standard outer diameter
No.2, 3, 4 : 23.445 - 23.465 mm
(0.9230 - 0.9238 in)
SEM012A
Standard inner diameter
No.1 : 26.000 - 26.021 mm
(1.0236 - 1.0244 in)
Standard inner diameter
No.2, 3, 4 : 23.500 - 23.521 mm
(0.9252 - 0.9260 in)
SEM862E
Standard
No.1 : 0.045 - 0.086 mm (0.0018 - 0.0034 in)
Standard
No.2, 3, 4 : 0.035 - 0.076 mm (0.0014 - 0.0030 in)
Limit : 0.15 mm (0.0059 in)
Revision: November 20132014 Altima NAM

CAMSHAFTEM-201
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
2. Install dial gauge in thrust direction on front end of camshaft.
Measure end play when camshaft is moved forward/backward
(in direction to axis) as shown.
• If out of the specified range, replace with new camshaft and mea-
sure again.
• If out of the specified range again, replace with new cylinder head.
Camshaft Sprocket Runout
1. Put V-block on precise flat bed and support No. 2 and No. 4 jour- nal of camshaft as shown.
2. Install camshaft sprocket on camshaft.
3. Measure camshaft sprocket runout.
4. If sprocket runout exceeds the limit, replace camshaft sprocket.
Valve Lifter
• Check if the surface of the valve lifter has any excessive wear or
cracks, replace as necessary.
Valve Lifter Clearance
Outer Diameter of Valve Lifter
• Measure the outer diameter of the valve lifter. Refer to EM-247,
"Camshaft".
• If out of the specified range, replace the valve lifter.
Valve Lifter Bore Diameter Standard : 0.115 - 0.188 mm (0.0045 - 0.0074 in)
Limit : 0.24 mm (0.0094 in)
SEM864E
Runout : Less than 0.15 mm (0.0059 in)
PBIC0930E
KBIA0182E
JEM798G
Revision: November 20132014 Altima NAM

EM-202
< REMOVAL AND INSTALLATION >[VQ35DE]
CAMSHAFT
• Using inside micrometer, measure diameter of valve lifter bore of
cylinder head. Refer to EM-247, "Camshaft"
EM-247, "Camshaft".
• If out of the specified range, replace the cylinder head assembly.
Calculation of Valve Lifter Clearance
• (Valve lifter clearance) = (hole diameter for valve li fter) – (outer diameter of valve lifter) Refer to EM-247,
"Camshaft".
• If out of specified range, replace either or both valve lifter and cylinder head assembly.
Inspection after InstallationINFOID:0000000009460570
INSPECTION OF CAMSHAFT SPROCKET (INT) OIL GROOVE
WARNING:
• Check when engine is cold so as to pr event burns from any splashing engine oil.
CAUTION:
• Perform this inspection only when DTC P0011 is detected in self-diagnostic results of CONSULT and
it is directed according to inspection procedure of EC section. Refer to EC-716, "Diagnosis Proce-
dure".
1. Check engine oil level. Refer to MA-26, "ENGINE OIL : Inspection"
.
2. Perform the following procedure so as to prevent the engine from being unintentionally started while
checking.
a. Release fuel pressure. Refer to FL-5, "Inspection"
.
b. Disconnect ignition coil and injector harness connectors if practical.
3. Remove intake valve timing control solenoid valve.
4. Crank engine, and then make sure that engine oil comes out from intake valve timing control solenoid valve cover oil hole.
End cranking after checking.
WARNING:
Be careful not to touch rotating parts (drive belts, idler pul-
ley, and crankshaft pulley, etc.).
CAUTION:
• Engine oil may squirt from intake valve timing control solenoid valve installation hole during cranking. Use a
shop cloth to prevent engi ne oil from splashing on
worker, engine components and vehicle.
• Do not allow engine oil to get on rubber components such
as drive belts or engine mount insulators. I mmediately wipe off any splashed engine oil.
5. Clean oil groove between oil strainer and intake valve timing control solenoid valve if engine oil does not come out from intake valve timing control solenoid valve cover oil hole.
6. Remove components between intake valve timing c ontrol solenoid valve and camshaft sprocket (INT),
and then check each oil groove for clogging.
• Clean oil groove if necessary.
7. After inspection, installation of the remaining components is in the reverse order of removal.
SEM867E
KBIA2686E
Revision: November 20132014 Altima NAM
