BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000009461630

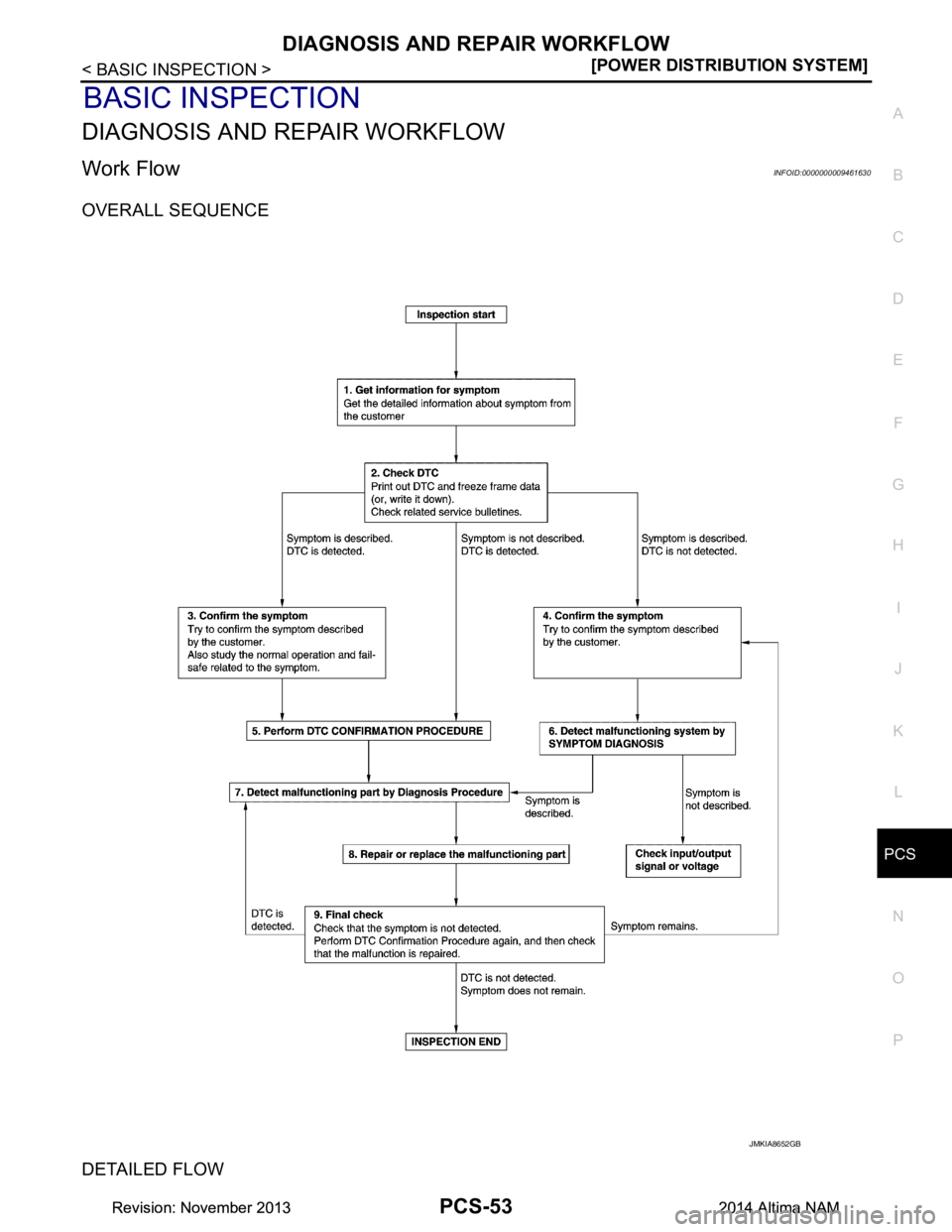

OVERALL SEQUENCE
DETAILED FLOW
JMKIA8652GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PCS-54
< BASIC INSPECTION >[POWER DISTRIBUTION SYSTEM]
DIAGNOSIS AND REPAIR WORKFLOW
1.GET INFORMATION FOR SYMPTOM
1. Get detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurs).
2. Check operation condition of the com ponent or system that is malfunctioning.
>> GO TO 2.
2.CHECK DTC
1. Check DTC.
2. Perform the following procedure if DTC is detected.
- Record DTC and freeze frame data (P rint them out using CONSULT).
- Erase DTC.
- Study the relationship between the cause detected by DTC and the symptom described by the customer.
3. Check related service bulletins for information.
Are any symptoms described and any DTC detected?
Symptom is described, DTC is detected>>GO TO 3.
Symptom is described, DTC is not detected>>GO TO 4.
Symptom is not described, DTC is detected>>GO TO 5.
3.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer.
Also study the normal operation and fail-safe related to the symptom.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 5.
4.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer.
Verify relation between the symptom and the condition when the symptom is detected.
NOTE:
Freeze frame data is useful if the DTC is not detected.
>> GO TO 6.
5.PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC CONFIRMATION PROCEDURE for the det ected DTC, and then check that DTC is detected
again. At this time, always connect CONSULT to the v ehicle, and check self diagnostic results in real time.
If two or more DTCs are detected, refer to BCS-50, "DTC Inspection Priority Chart"
, and determine trouble
diagnosis order.
Is DTC detected?
YES >> GO TO 7.
NO >> Refer to GI-43, "Intermittent Incident"
.
6.DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS
Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step
4, and determine the trouble diagnosis order based on possible causes and symptom.
Is the symptom described?
YES >> GO TO 7.
NO >> Monitor input data from related sensors or check voltage of related module terminals using CON- SULT.
7.DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE
Inspect according to Diagnos is Procedure of the system.
Is malfunctioning part detected?
YES >> GO TO 8.
NO >> Refer to GI-43, "Intermittent Incident"
.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PCS
DIAGNOSIS AND REPAIR WORKFLOWPCS-55
< BASIC INSPECTION > [POWER DISTRIBUTION SYSTEM]
C
D E
F
G H
I
J
K L
B
A
O P
N
8.REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace-
ment.
3. Check DTC. If DTC is detected, erase it.
>> GO TO 9.
9.FINAL CHECK
When DTC is detected in step 2, perform DTC CONFIRMATION PROCEDURE again, and then check that the
malfunction is repaired securely.
When symptom is described by the customer, refer to c onfirmed symptom in step 3 or 4, and check that the
symptom is not detected.
Is DTC detected and does symptom remain?
YES-1 >> DTC is detected: GO TO 7.
YES-2 >> Symptom remains: GO TO 4.
NO >> Inspection End.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PCS-56
< DTC/CIRCUIT DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
U1000 CAN COMM CIRCUIT
DTC/CIRCUIT DIAGNOSIS
U1000 CAN COMM CIRCUIT
DescriptionINFOID:0000000009461631
Refer to
LAN-9, "CAN COMMUNICATION SYSTEM : System Description".
DTC LogicINFOID:0000000009461632
DTC DETECTION LOGIC
NOTE:
U1000 can be set if a module harness was disconnected and reconnected, perhaps during a repair. Confirm
that there are actual CAN diagnostic symptoms and a pr esent DTC by performing the Self Diagnostic Result
procedure.
Diagnosis ProcedureINFOID:0000000009461633
1. PERFORM SELF DIAGNOSTIC RESULT
1. Turn ignition switch ON and wait for 2 second or more.
2. Check “SELF- DIAG RESULTS”.
Is
“CAN COMM CIRCUIT” displayed?
YES >> Perform CAN Diagnosis as described in DIAG NOSIS section of CONSULT Operation Manual.
NO >> Refer to GI-43, "Intermittent Incident"
.
CONSULT Display DTC Detectio n Condition Possible cause
CAN COMM CIRCUIT
[U1000] When any listed module cannot communicate with CAN
communication signal continuously for 2 seconds or
more with ignition switch ON In CAN communication system, any item (or items)
of the following listed below is malfunctioning.
•Transmission
• Receiving (ECM)
• Receiving (VDC/TCS/ABS)
• Receiving (METER/M&A)
• Receiving (TCM)
• Receiving (IPDM E/R)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PCS
U1010 CONTROL UNIT (CAN)PCS-57
< DTC/CIRCUIT DIAGNOSIS > [POWER DISTRIBUTION SYSTEM]
C
D E
F
G H
I
J
K L
B
A
O P
N
U1010 CONTROL UNIT (CAN)
DTC LogicINFOID:0000000009461634
DTC DETECTION LOGIC
Diagnosis ProcedureINFOID:0000000009461635
1. REPLACE BCM
When DTC U1010 is detected, replace BCM.
>> Replace BCM. Refer to BCS-80, "Removal and Installation"
.
CONSULT Display DTC Detectio n Condition Possible Cause
CAN COMM CIRCUIT
[U1010] BCM detected internal CAN communication circuit mal-
function. BCM
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PCS-58
< DTC/CIRCUIT DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
B260A IGNITION RELAY
B260A IGNITION RELAY
DTC LogicINFOID:0000000009461636
DTC DETECTION LOGIC
NOTE:
• If DTC B260A is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
PCS-56, "DTC Logic"
.
• If DTC B260A is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
PCS-57, "DTC Logic"
.
• If DTC B260A is displayed with DTC B261A, first perform the trouble diagnosis for DTC B261A. Refer to
PCS-68, "DTC Logic"
.
DTC CONFIRMATION PROCEDURE
1. PERFORM SELF DIAGNOSTIC RESULT
1. Turn ignition switch ON under the following conditions, and wait for at least 2 seconds.
- CVT selector lever is in the P (park) or N (neutral) position.
- Release the brake pedal.
2. Perform self diagnostic result.
Is DTC B260A detected?
YES >> Refer to PCS-58, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000009461637
Regarding Wiring Diagram information, refer to PCS-44, "Wiring Diagram".
1. CHECK SELF DIAGNOSTIC RESULT FOR IPDM E/R
Perform self diagnostic result for IPDM E/R.
Are any DTCs detected?
YES >> Refer to PCS-20, "DTC Index".
NO >> GO TO 2
2. CHECK IGNITION RELAY-1 POWER SUPPLY (IPDM E/R)
Check voltage between IPDM E/R connector E63 terminal 43 and ground.
Is the inspection result normal?
YES >> Replace IPDM E/R. Refer to PCS-32, "Removal and Installation".
NO >> GO TO 3.
3. CHECK IGNITION RELAY-1 POWER SUPPLY (BCM)
Check voltage between BCM connector M18 terminal 70 and ground.
CONSULT Display DTC Detectio n Condition Possible Cause
IGNITION RELAY
[B260A] BCM detects a difference of signal for 2 seconds or
more between the following information:
• Ignition relay-1 operation request.
• Ignition relay-1 feedback from IPDM E/R (CAN). • Harness or connectors
• IPDM E/R
•BCM
IPDM E/R Ground Condition Vo l ta g e
(Approx.)
Connector Terminal
E63 43 — Ignition: OFF 0V
Ignition: ON Battery voltage
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PCS
B260A IGNITION RELAYPCS-59
< DTC/CIRCUIT DIAGNOSIS > [POWER DISTRIBUTION SYSTEM]
C
D E
F
G H
I
J
K L
B
A
O P
N
Is the inspection result normal?
YES >> Refer to
GI-43, "Intermittent Incident".
NO >> Replace BCM. Refer to BCS-80, "Removal and Installation"
.
BCM
Ground Condition Vo l ta g e
(Approx.)
Connector Terminal
M18 70 — Ignition: OFF 0V
Ignition: ON Battery voltage
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PCS-60
< DTC/CIRCUIT DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
B2614 ACC RELAY CIRCUIT
B2614 ACC RELAY CIRCUIT
DTC LogicINFOID:0000000009461638
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1. PERFORM SELF DIAGNOSTIC RESULT
1. Turn the power supply position to ACC under the following conditions, and wait for at least 1 second.
- CVT selector lever is in the P (park) or N (neutral) position.
- Release the brake pedal.
2. Perform self diagnostic result.
Is DTC B2614 detected?
YES >> Refer to PCS-60, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000009461639
Regarding Wiring Diagram information, refer to PCS-44, "Wiring Diagram".
1. CHECK ACCESSORY RELAY-1 AND ACCESSORY RELAY-2 POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect accessory relay-1 and accessory relay-2.
3. Disconnect BCM connector M20.
4. Check continuity between accessory relay-1 c onnector J-3 terminal 2 and BCM connector M20 terminal
113.
5. Check continuity between accessory relay-2 connector M25 terminal 1 and BCM connector M20 terminal 113.
6. Check continuity between BCM connector M20 terminal 113 and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace harness or connectors.
CONSULT Display DTC detectin g condition Possible cause
ACC RELAY CIRCUIT
[B2614] An immediate operation of accessory relay-1 and ac-
cessory relay-2 is requested by BCM, but there is no
response for more than 1 second. • Harness or connectors
• Accessory relay-1
• Accessory relay-2
• Fuse block J/B
•BCM
Accessory relay-1 BCM Continuity
Connector Terminal Connector Terminal
J-3 2 M20 113 Yes
Accessory relay-2 BCM Continuity
Connector Terminal Connector Terminal
M251M20113Yes
BCM Ground Continuity
Connector Terminal
M20 113 — No
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PCS
B2614 ACC RELAY CIRCUITPCS-61
< DTC/CIRCUIT DIAGNOSIS > [POWER DISTRIBUTION SYSTEM]
C
D E
F
G H
I
J
K L
B
A
O P
N
2. CHECK ACCESSORY RELAY-1 AND
ACCESSORY RELAY-2 GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between accessory relay-1 connector J-3 terminal 1 and ground.
3. Check continuity between accessory relay-2 connector M25 terminal 2 and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace harness or connectors.
3. CHECK ACCESSORY RELAYS
Perform the relay component inspection. Refer to PCS-61, "Component Inspection (Relay)"
.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Replace relay.
4. CHECK ACCESSORY RELAY-1 AND ACCE SSORY RELAY-2 POWER SUPPLY (BCM)
Check voltage between BCM connector M20 terminal 113 and ground.
Is the inspection result normal?
YES >> Refer to GI-43, "Intermittent Incident".
NO >> Replace BCM. Refer to BCS-80, "Removal and Installation"
.
Component Inspection (Relay)INFOID:0000000009461640
1. CHECK RELAY
1. Remove relay.
2. Check the continuity between relay terminals under the following conditions.
Is the inspection result normal?
YES >> Inspection End.
NO >> Replace relay.
Accessory relay-1 Ground Continuity
Connector Terminal
J-3 1 — Yes
Accessory relay-2 Ground Continuity
Connector Terminal
M25 2 — Yes
BCM Ground Condition Vo l ta g e
(Approx.)
Connector Terminal
M20 113 — Ignition: OFF 0V
Ignition: ACC Battery voltage
Relay terminals Condition Continuity
3 and 5 Battery voltage applied to terminal 1 and
ground to terminal 2. Ye s
Voltage and ground removed. No
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
