INTELLIGENT KEY SYSTEMDLK-73
< WIRING DIAGRAM >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P

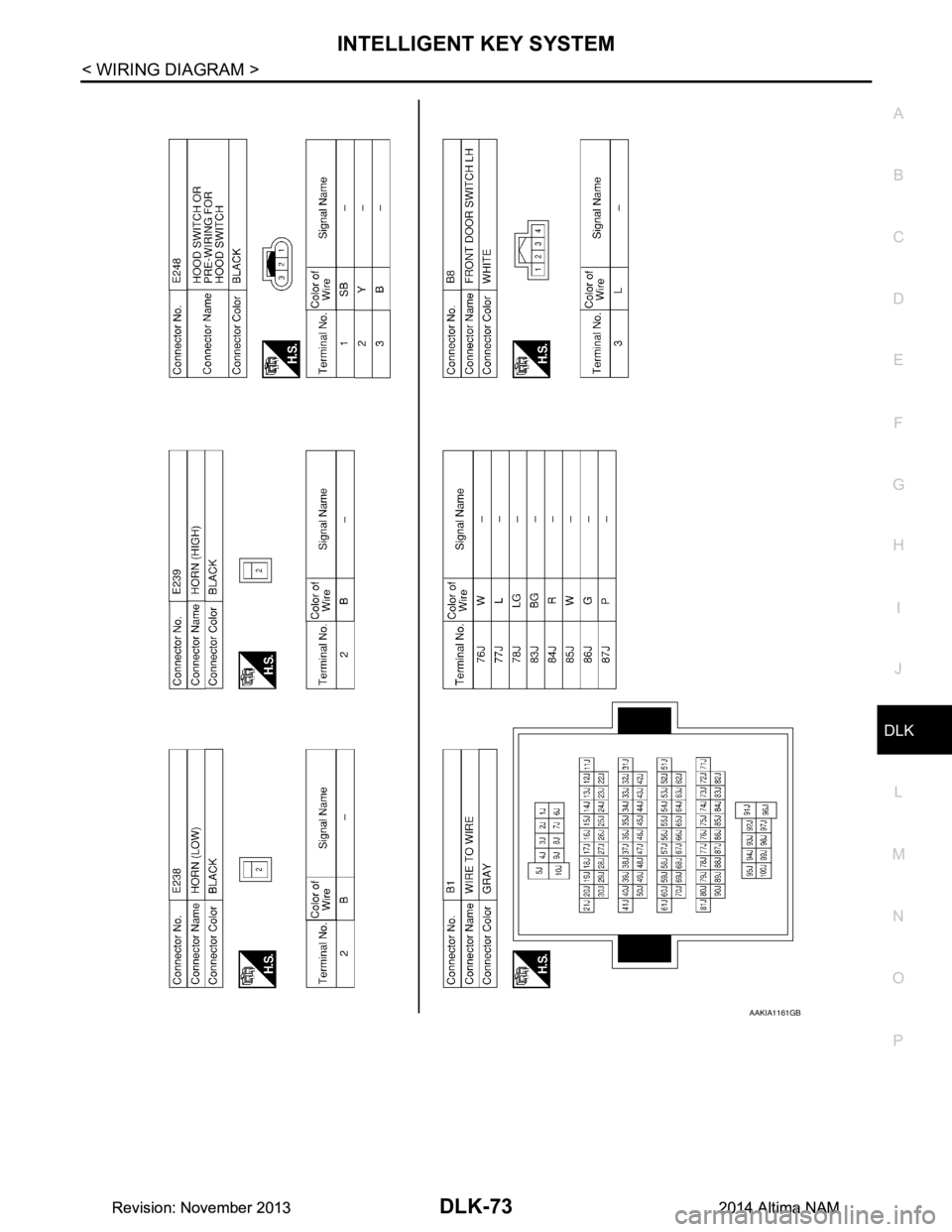

AAKIA1161GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DLK-74
< WIRING DIAGRAM >
INTELLIGENT KEY SYSTEM
ABKIA4807GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

INTELLIGENT KEY SYSTEMDLK-75
< WIRING DIAGRAM >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P

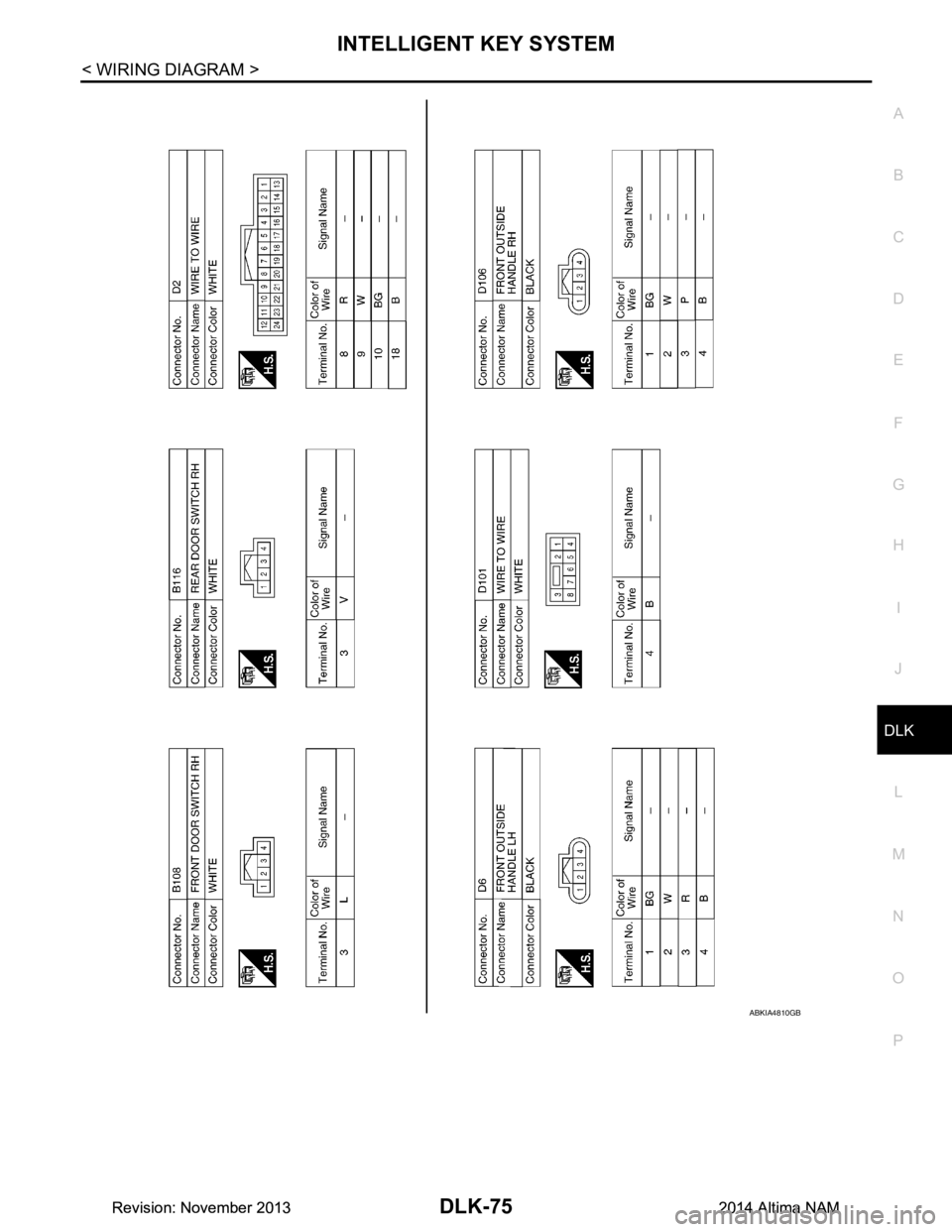

ABKIA4810GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DLK-76
< WIRING DIAGRAM >
INTELLIGENT KEY SYSTEM

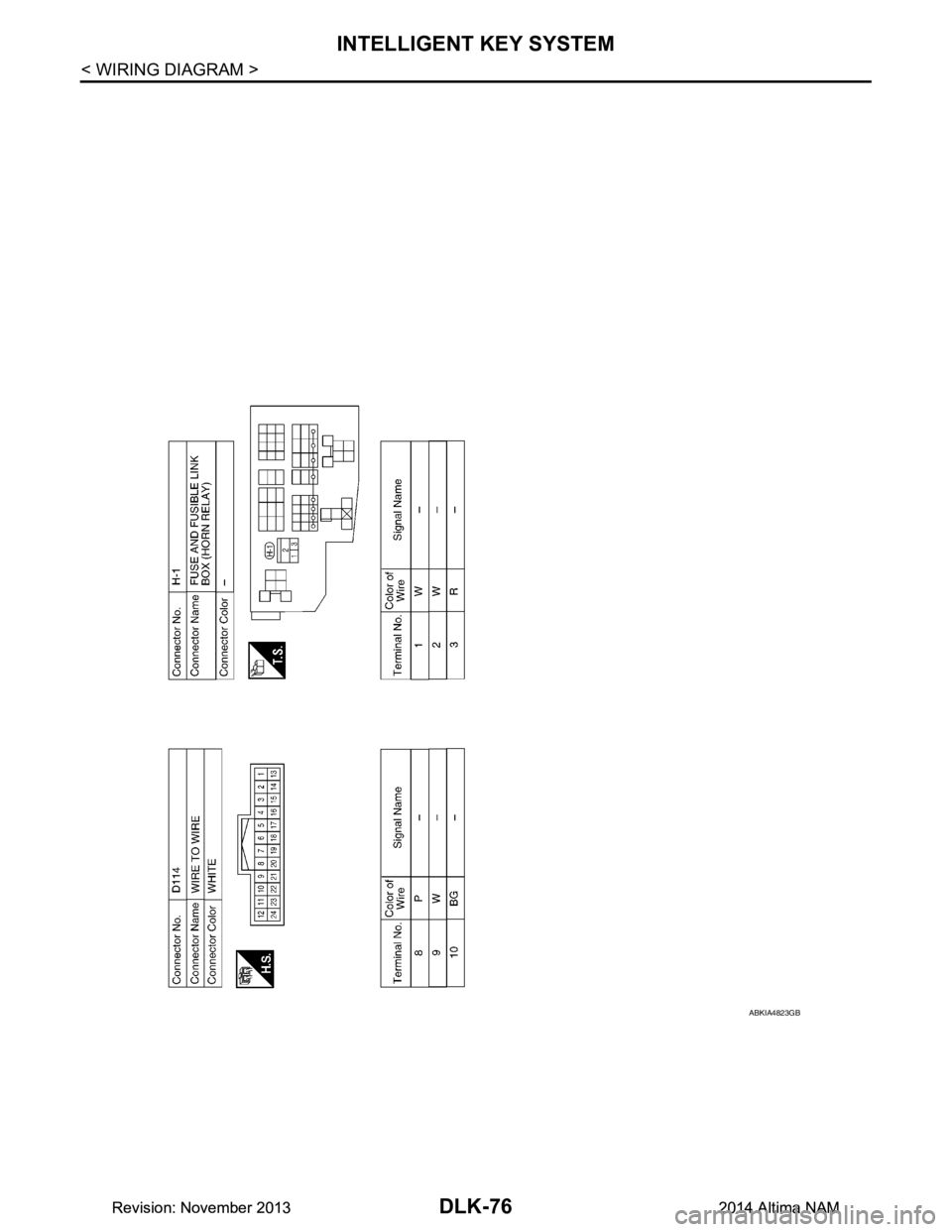

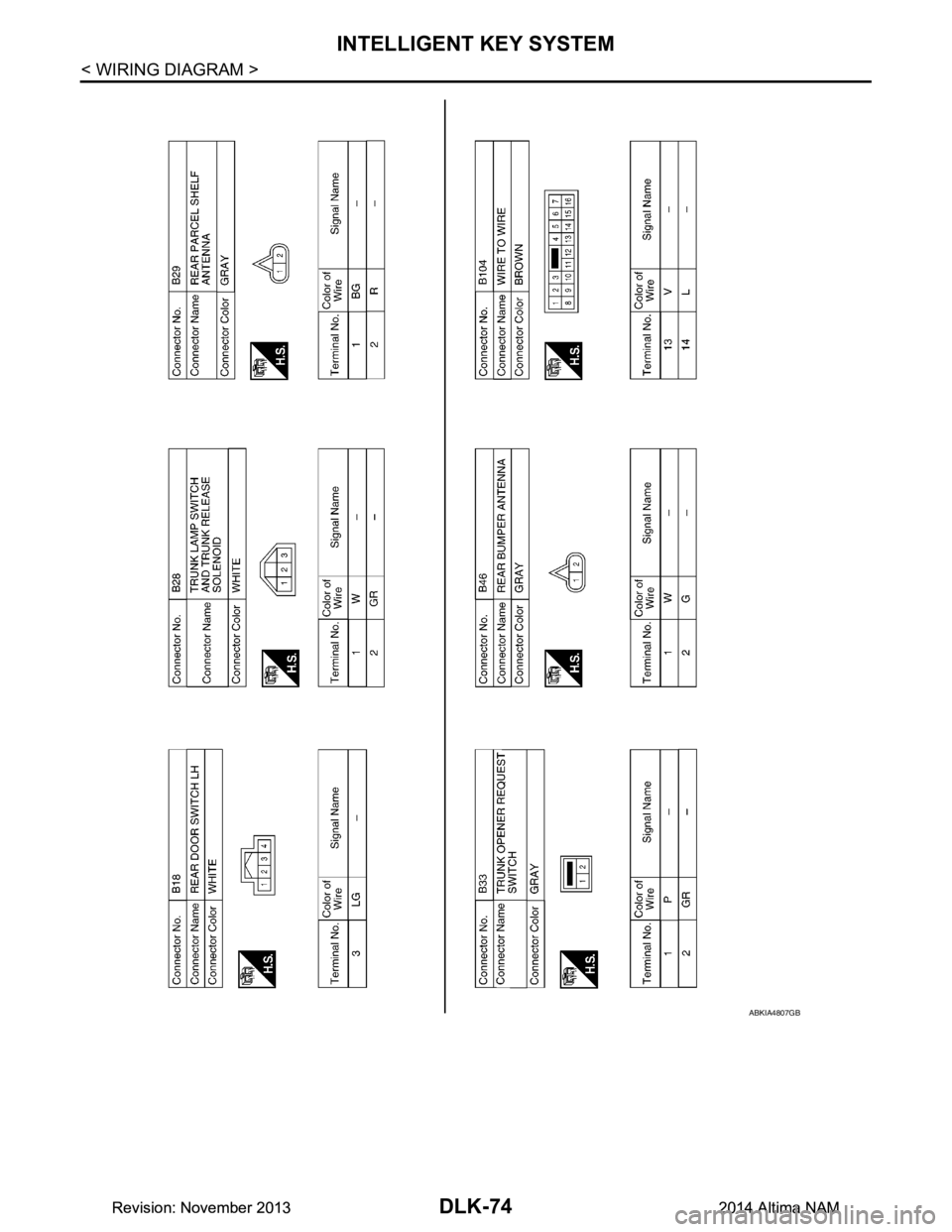

ABKIA4823GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TRUNK LID OPENERDLK-77
< WIRING DIAGRAM >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P
TRUNK LID OPENER

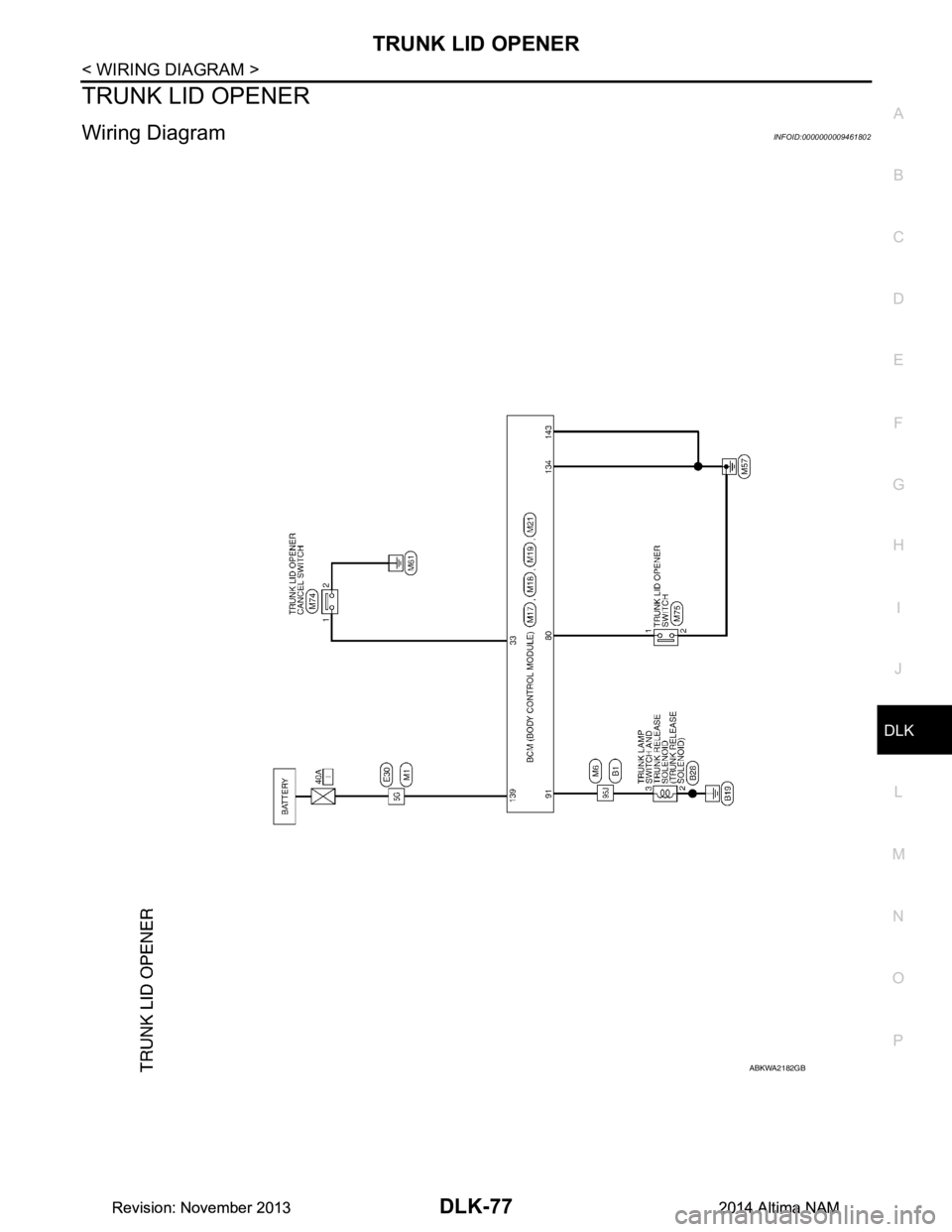

Wiring DiagramINFOID:0000000009461802
ABKWA2182GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DLK-78
< WIRING DIAGRAM >
TRUNK LID OPENER
ABKIA3591GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TRUNK LID OPENERDLK-79
< WIRING DIAGRAM >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P

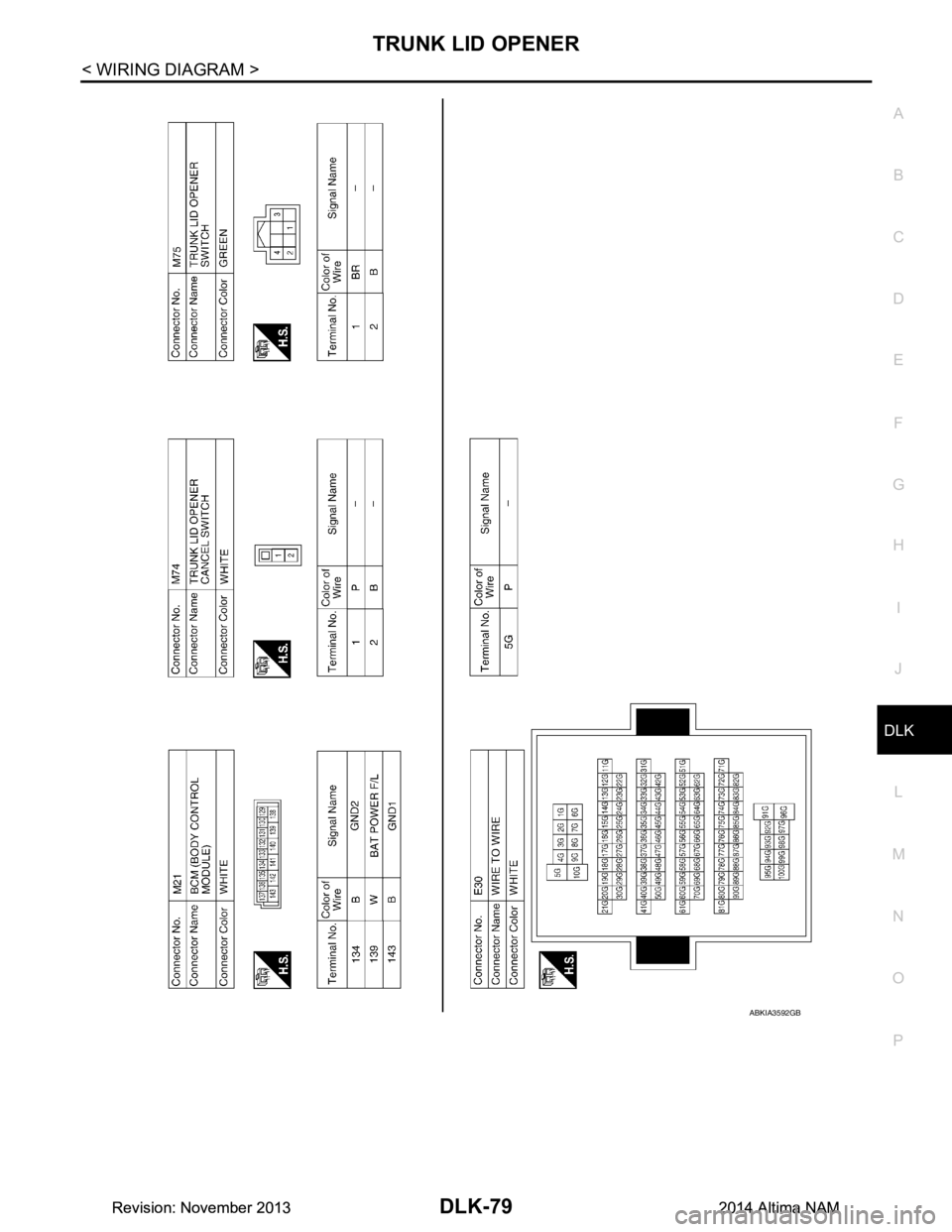

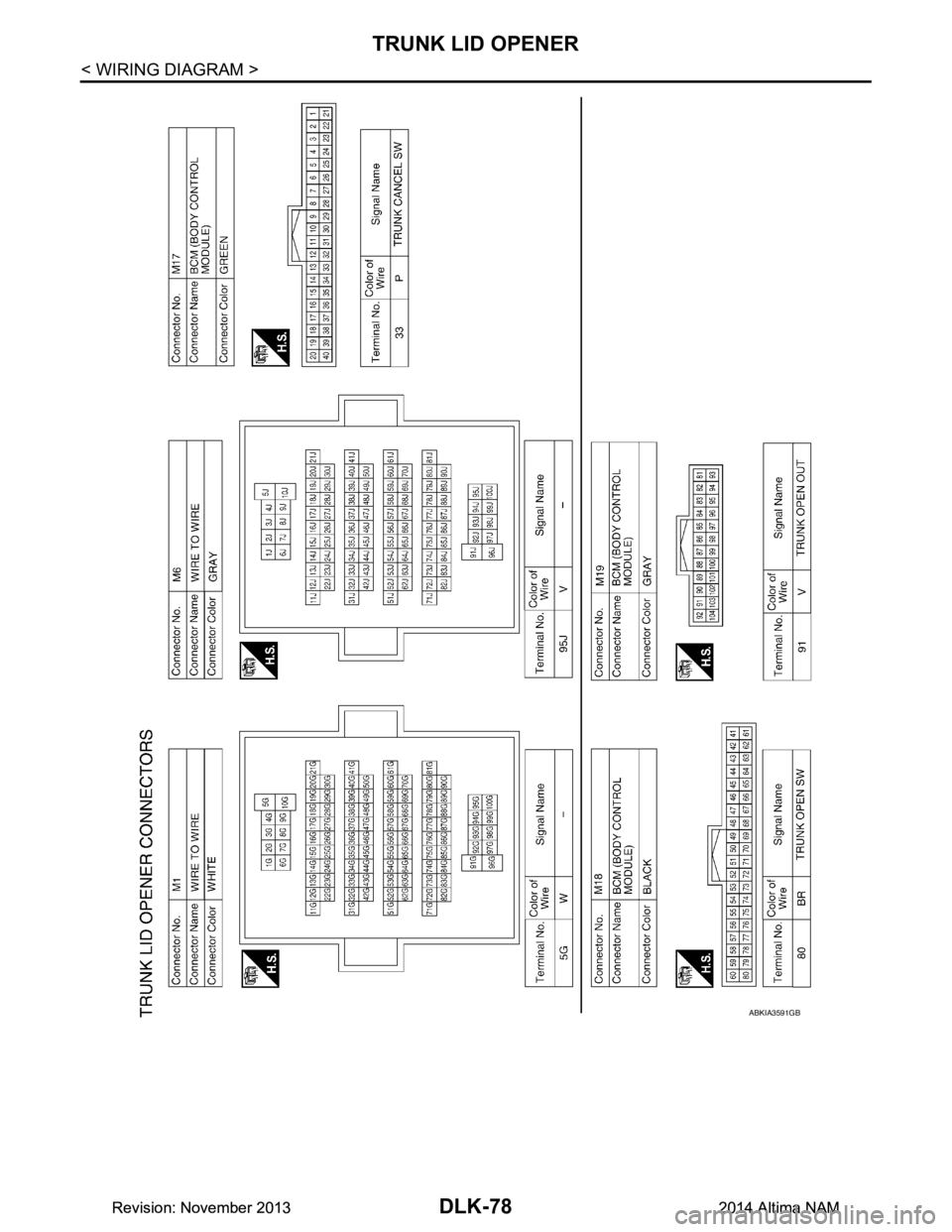

ABKIA3592GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DLK-80
< WIRING DIAGRAM >
TRUNK LID OPENER

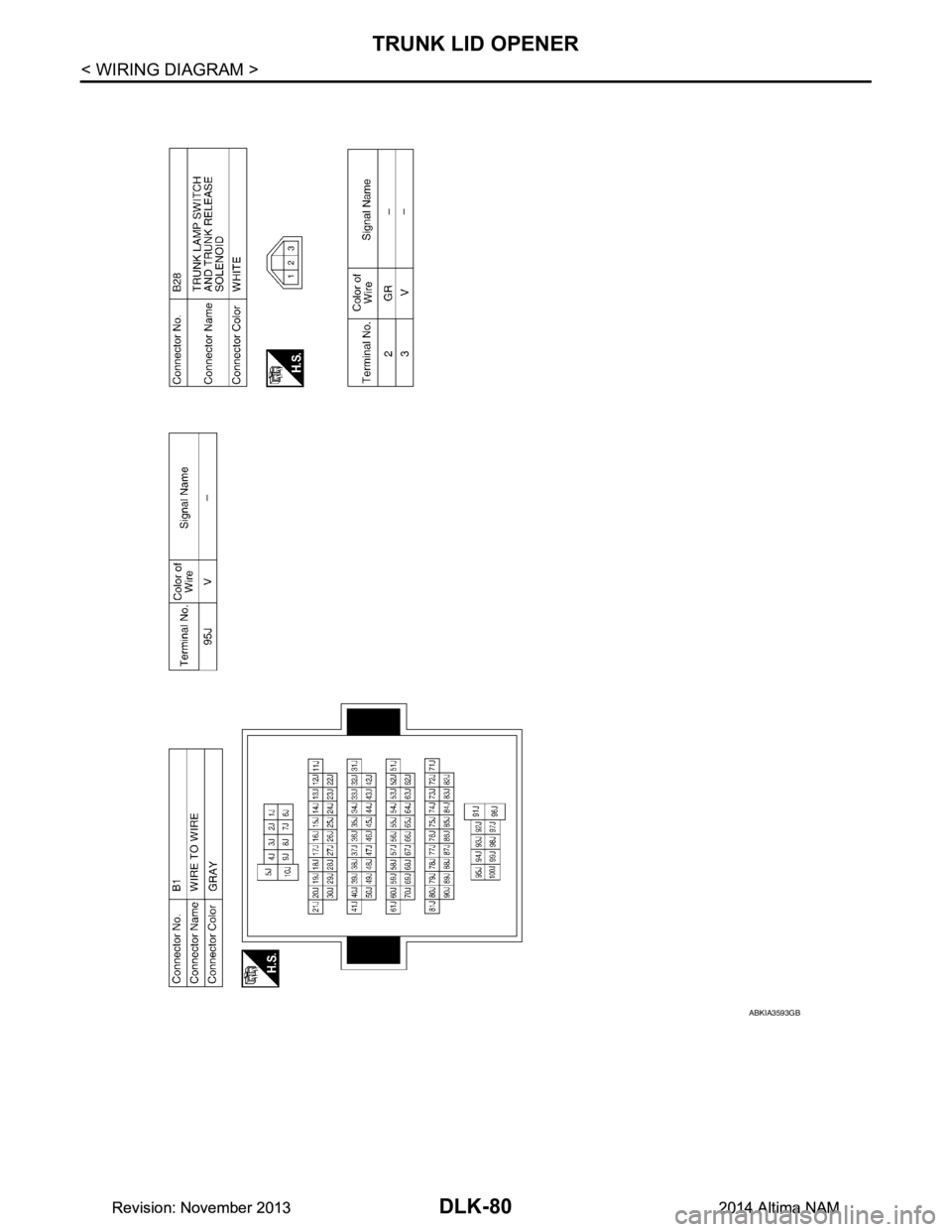

ABKIA3593GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS AND REPAIR WORKFLOWDLK-81
< BASIC INSPECTION >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000009461803
OVERALL SEQUENCE
DETAILED FLOW

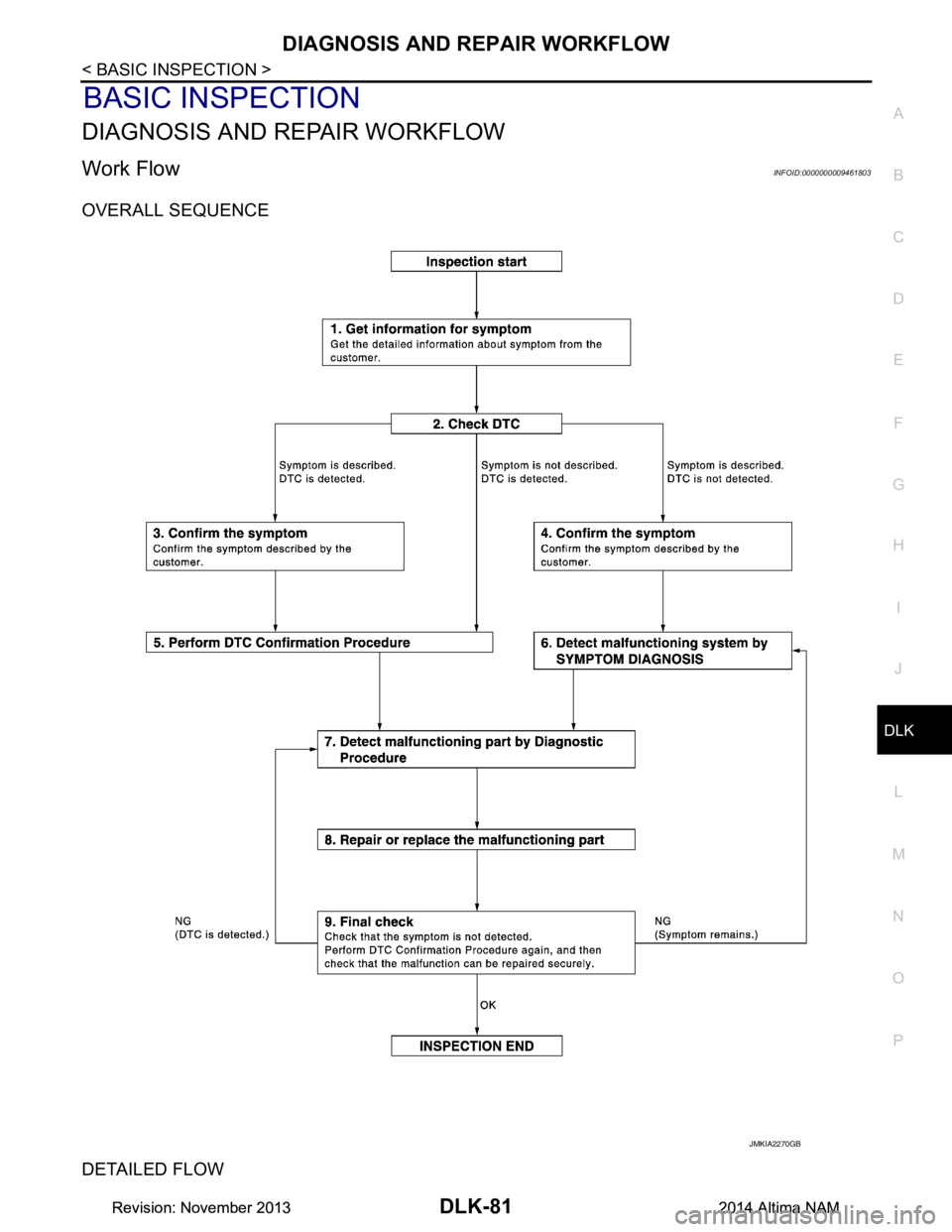

JMKIA2270GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DLK-82
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORKFLOW
1.GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred).
>> GO TO 2
2.CHECK DTC
1. Check DTC.
2. Perform the following procedure if DTC is displayed.
- Record DTC and freeze frame data (P rint them out with CONSULT.)
- Erase DTC.
- Study the relationship between the cause detected by DTC and the symptom described by the customer.
3. Check related service bulletins for information.
Is any symptom described and any DTC detected?
Symptom is described, DTC is displayed>>GO TO 3
Symptom is described, DTC is not displayed>>GO TO 4
Symptom is not described, DTC is displayed>>GO TO 5
3.CONFIRM THE SYMPTOM
Confirm the symptom described by the customer.
Connect CONSULT to the vehicle in “DATA MONITO R” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 5
4.CONFIRM THE SYMPTOM
Confirm the symptom described by the customer.
Connect CONSULT to the vehicle in “DATA MONITOR ” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 6
5.PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC Confirmation Procedure for the display ed DTC, and then check that DTC is detected again.
At this time, always connect CONSULT to the vehicle, and check diagnostic results in real time.
If two or more DTCs are detected, refer to BCS-50, "DTC Inspection Priority Chart"
and determine trouble
diagnosis order.
NOTE:
• Freeze frame data is useful if the DTC is not detected.
• Perform Component Function Check if DTC Confirmati on Procedure is not included in Service Manual. This
simplified check procedure is an effective alternat ive though DTC cannot be detected during this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC Confirma-
tion Procedure.
Is DTC detected?
Ye s > > G O T O 7
No >> Refer to GI-43, "Intermittent Incident"
.
6.DETECT MALFUNCTIONING SYST EM BY SYMPTOM TABLE
Detect malfunctioning system according to SYMPTO M TABLE based on the confirmed symptom in step 4,
and determine the trouble diagnosis order based on possible causes and symptom.
>> GO TO 7
7.DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE
Inspect according to Diagnostic Procedure of the system.
NOTE:
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
