NISSAN TERRANO 2004 Service Repair Manual

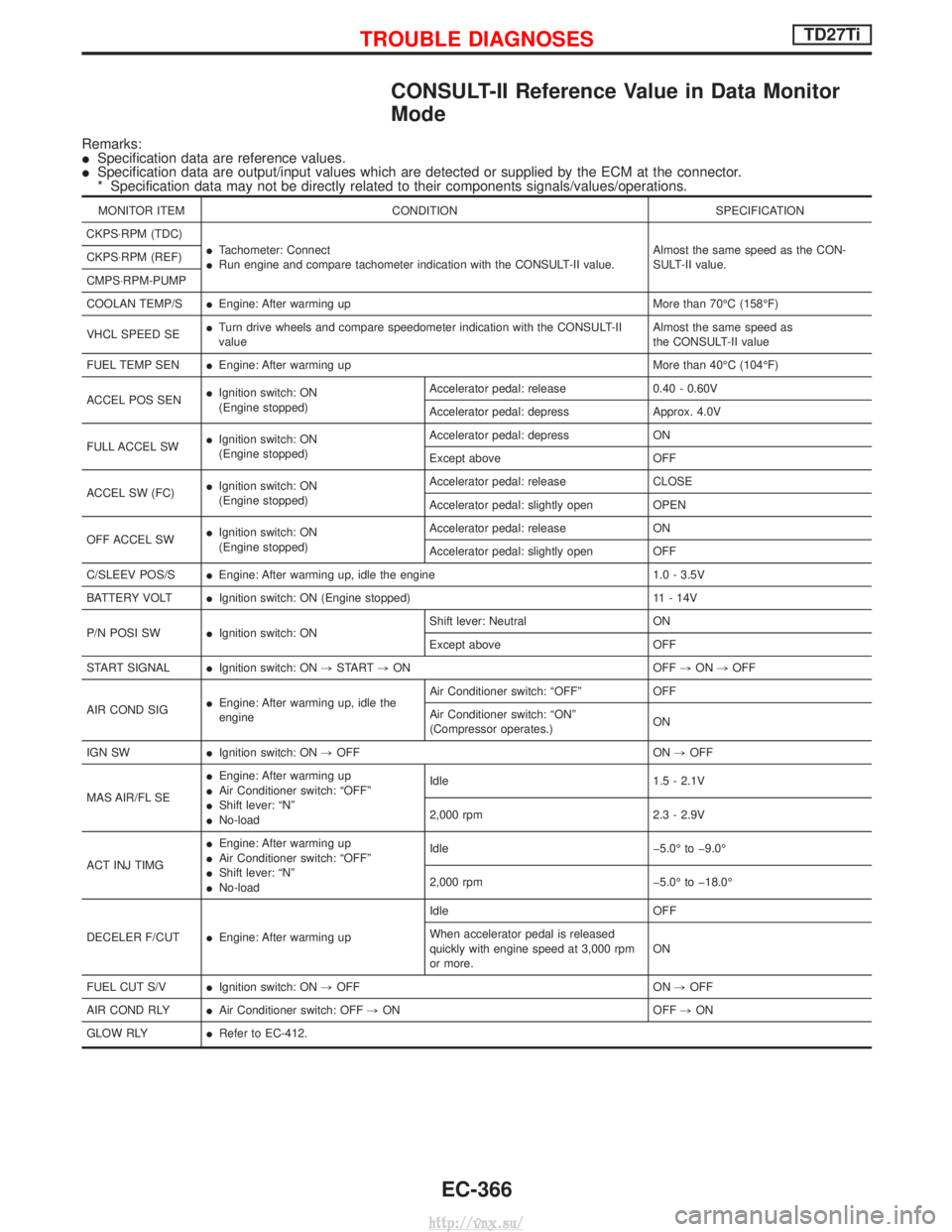

CONSULT-II Reference Value in Data Monitor
Mode
Remarks:
ISpecification data are reference values.
I Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
MONITOR ITEM CONDITION SPECIFICATION
CKPS×RPM (TDC) ITachometer: Connect
I Run engine and compare tachometer indication with the CONSULT-II value. Almost the same speed as the CON-
SULT-II value.
CKPS×RPM (REF)
CMPS×RPM-PUMP
COOLAN TEMP/S
IEngine: After warming up More than 70ÉC (158ÉF)
VHCL SPEED SE I
Turn drive wheels and compare speedometer indication with the CONSULT-II
value Almost the same speed as
the CONSULT-II value
FUEL TEMP SEN IEngine: After warming up More than 40ÉC (104ÉF)
ACCEL POS SEN I
Ignition switch: ON
(Engine stopped) Accelerator pedal: release 0.40 - 0.60V
Accelerator pedal: depress Approx. 4.0V
FULL ACCEL SW I
Ignition switch: ON
(Engine stopped) Accelerator pedal: depress ON
Except above OFF
ACCEL SW (FC) I
Ignition switch: ON
(Engine stopped) Accelerator pedal: release CLOSE
Accelerator pedal: slightly open OPEN
OFF ACCEL SW I
Ignition switch: ON
(Engine stopped) Accelerator pedal: release ON
Accelerator pedal: slightly open OFF
C/SLEEV POS/S IEngine: After warming up, idle the engine 1.0 - 3.5V
BATTERY VOLT IIgnition switch: ON (Engine stopped) 11 - 14V
P/N POSI SW IIgnition switch: ON Shift lever: Neutral ON
Except above OFF
START SIGNAL IIgnition switch: ON ,START ,ON OFF ,ON ,OFF
AIR COND SIG I
Engine: After warming up, idle the
engine Air Conditioner switch: ªOFFº OFF
Air Conditioner switch: ªONº
(Compressor operates.)
ON
IGN SW IIgnition switch: ON ,OFF ON ,OFF
MAS AIR/FL SE I
Engine: After warming up
I Air Conditioner switch: ªOFFº
I Shift lever: ªNº
I No-load Idle 1.5 - 2.1V
2,000 rpm 2.3 - 2.9V
ACT INJ TIMG I
Engine: After warming up
I Air Conditioner switch: ªOFFº
I Shift lever: ªNº
I No-load Idle þ5.0É to þ9.0É
2,000 rpm þ5.0É to þ18.0É
DECELER F/CUT IEngine: After warming up Idle OFF
When accelerator pedal is released
quickly with engine speed at 3,000 rpm
or more.
ON
FUEL CUT S/V IIgnition switch: ON ,OFF ON ,OFF
AIR COND RLY IAir Conditioner switch: OFF ,ON OFF ,ON
GLOW RLY IRefer to EC-412.
TROUBLE DIAGNOSESTD27Ti
EC-366
http://vnx.su/

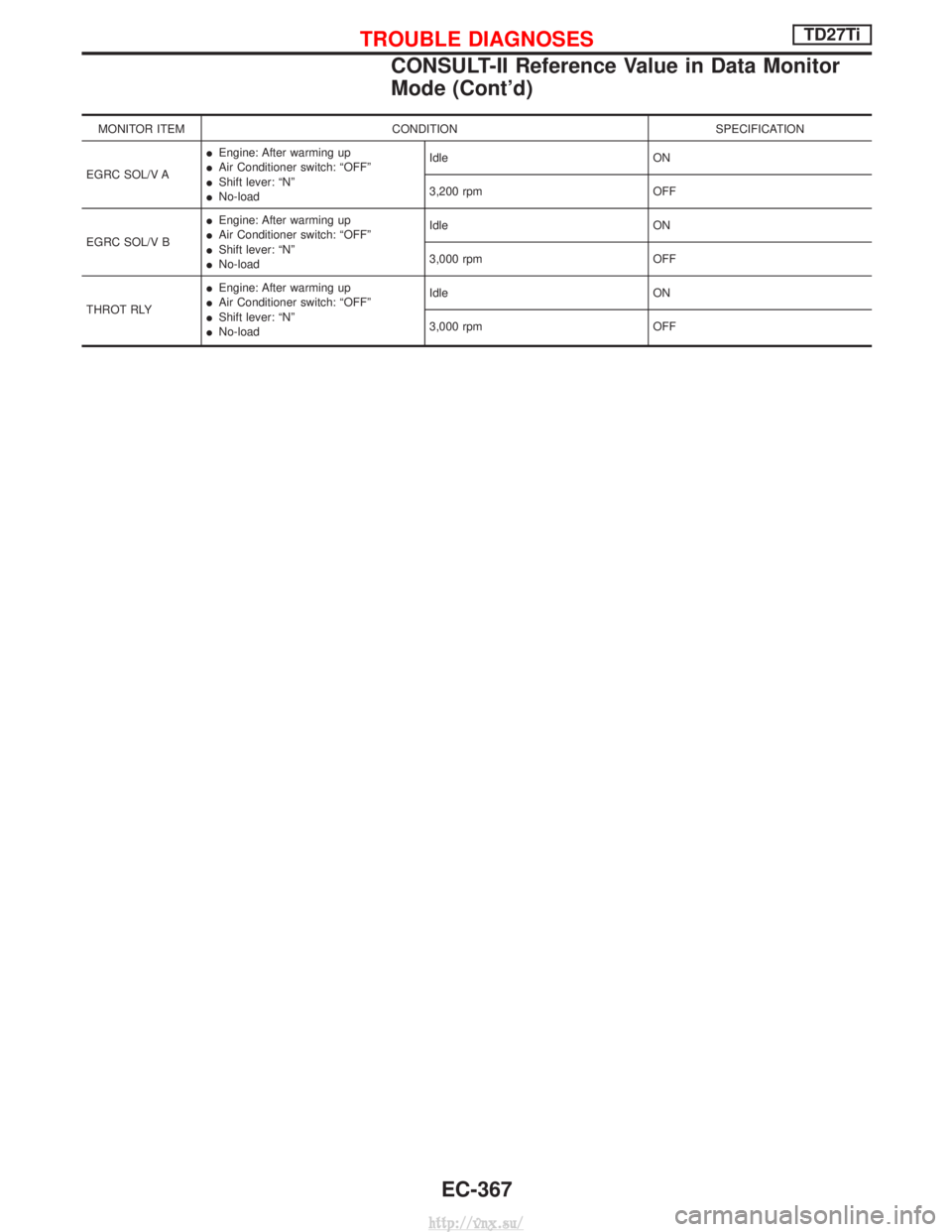

MONITOR ITEMCONDITION SPECIFICATION
EGRC SOL/V A I
Engine: After warming up
I Air Conditioner switch: ªOFFº
I Shift lever: ªNº
I No-load Idle
ON
3,200 rpm OFF
EGRC SOL/V B I
Engine: After warming up
I Air Conditioner switch: ªOFFº
I Shift lever: ªNº
I No-load Idle
ON
3,000 rpm OFF
THROT RLY I
Engine: After warming up
I Air Conditioner switch: ªOFFº
I Shift lever: ªNº
I No-load Idle
ON
3,000 rpm OFF
TROUBLE DIAGNOSESTD27Ti
CONSULT-II Reference Value in Data Monitor
Mode (Cont'd)
EC-367
http://vnx.su/

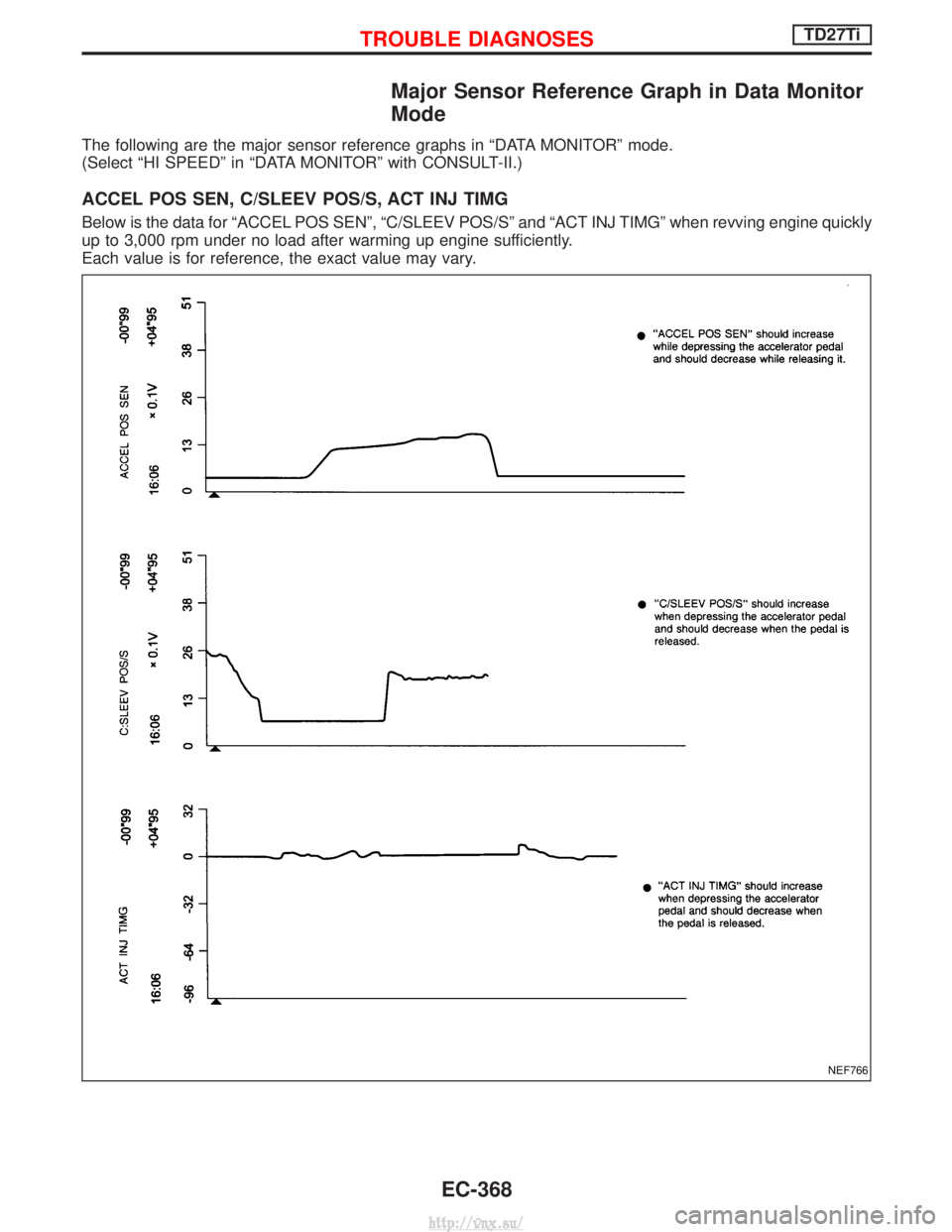

Major Sensor Reference Graph in Data Monitor
Mode
The following are the major sensor reference graphs in ªDATA MONITORº mode.
(Select ªHI SPEEDº in ªDATA MONITORº with CONSULT-II.)
ACCEL POS SEN, C/SLEEV POS/S, ACT INJ TIMG
Below is the data for ªACCEL POS SENº, ªC/SLEEV POS/Sº and ªACT INJ TIMGº when revving engine quickly
up to 3,000 rpm under no load after warming up engine sufficiently.
Each value is for reference, the exact value may vary.
NEF766
TROUBLE DIAGNOSESTD27Ti
EC-368
http://vnx.su/

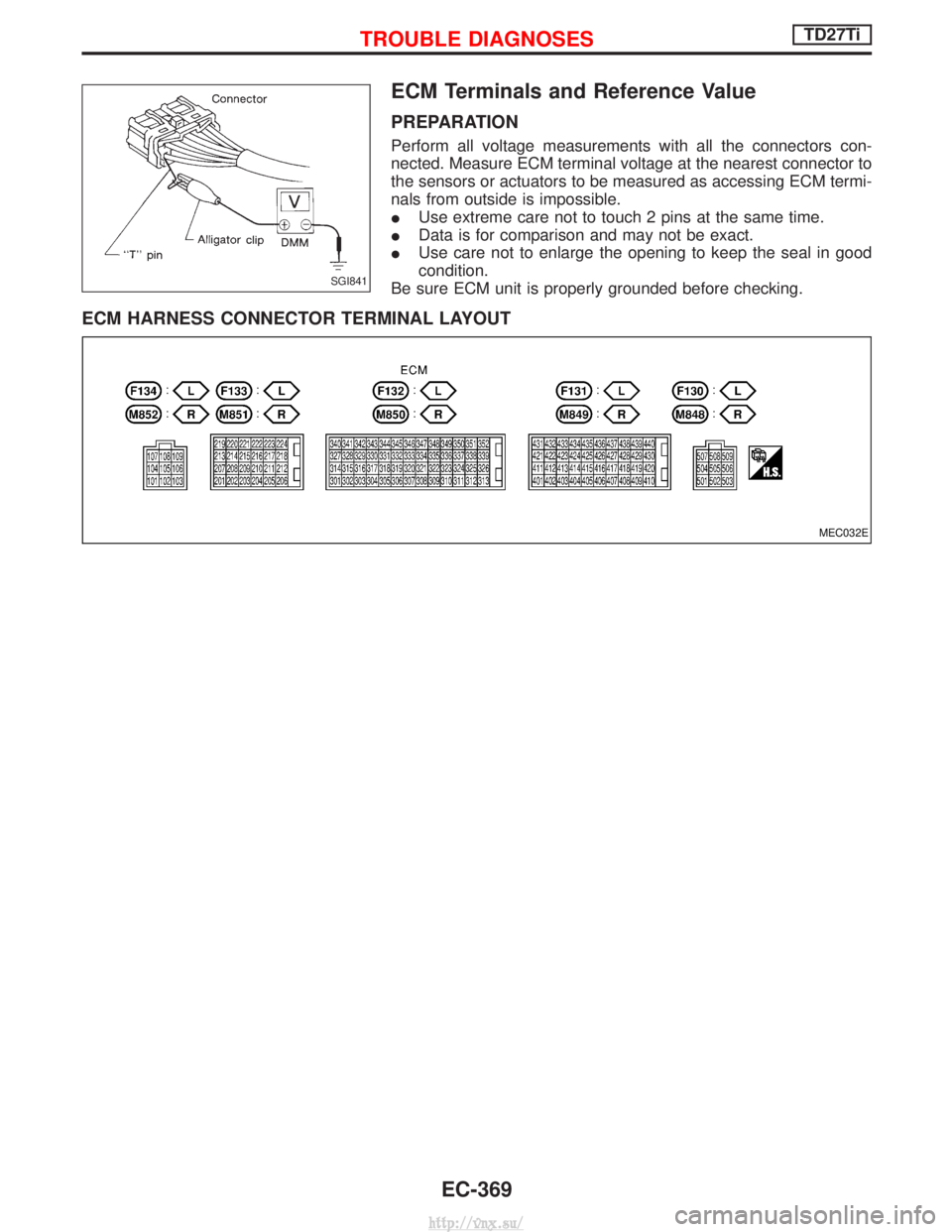

ECM Terminals and Reference Value
PREPARATION
Perform all voltage measurements with all the connectors con-
nected. Measure ECM terminal voltage at the nearest connector to
the sensors or actuators to be measured as accessing ECM termi-
nals from outside is impossible.
IUse extreme care not to touch 2 pins at the same time.
I Data is for comparison and may not be exact.
I Use care not to enlarge the opening to keep the seal in good
condition.
Be sure ECM unit is properly grounded before checking.
ECM HARNESS CONNECTOR TERMINAL LAYOUT
SGI841
MEC032E
TROUBLE DIAGNOSESTD27Ti
EC-369
http://vnx.su/

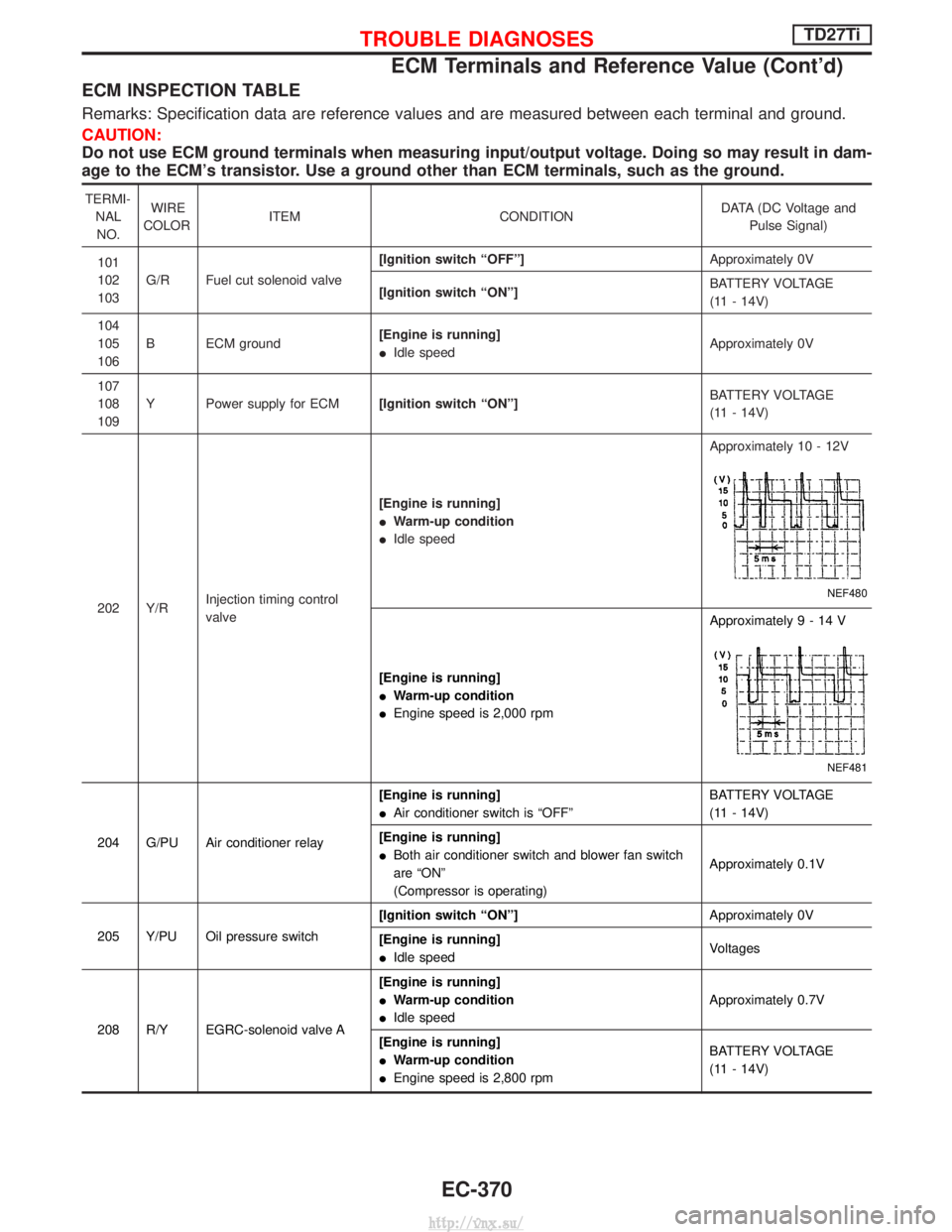

ECM INSPECTION TABLE
Remarks: Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

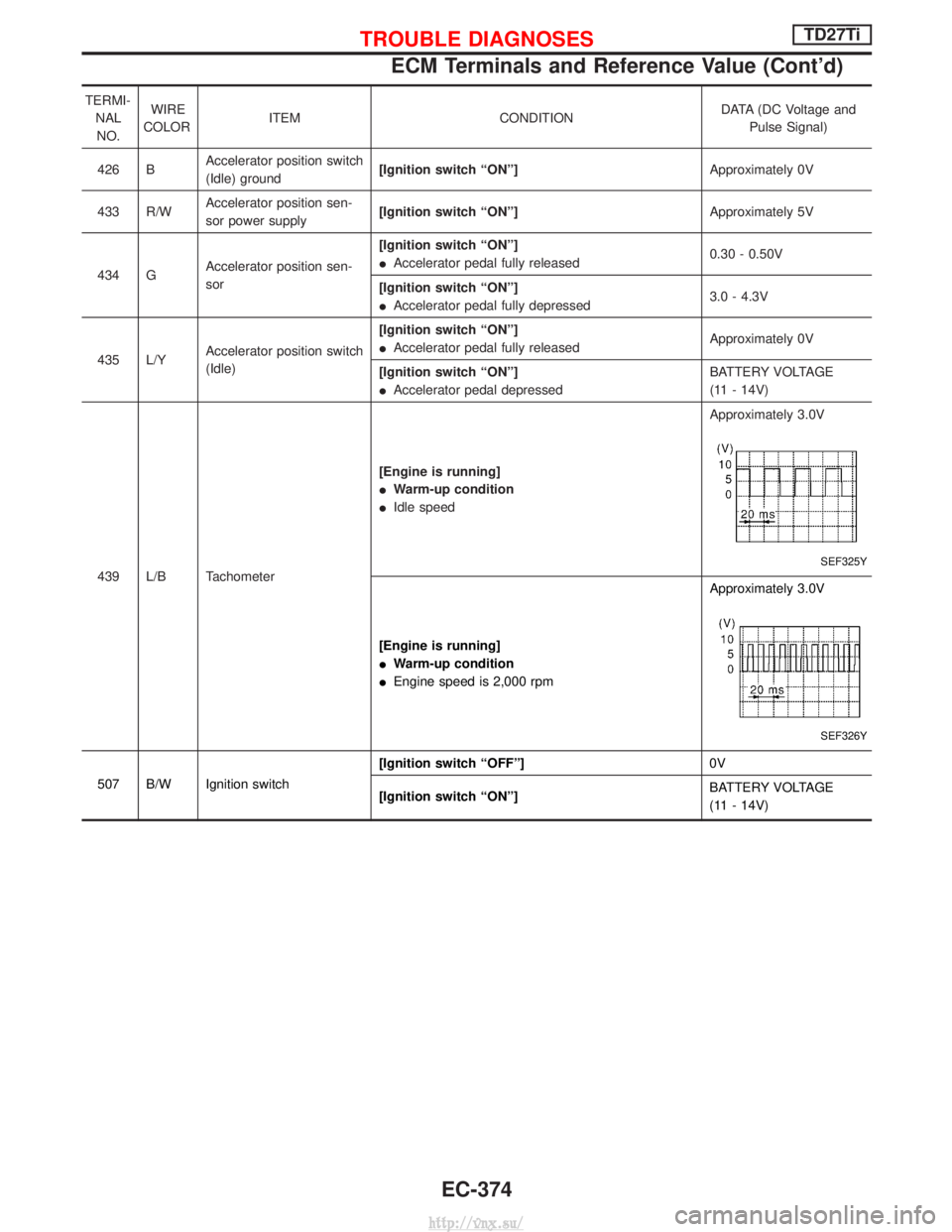

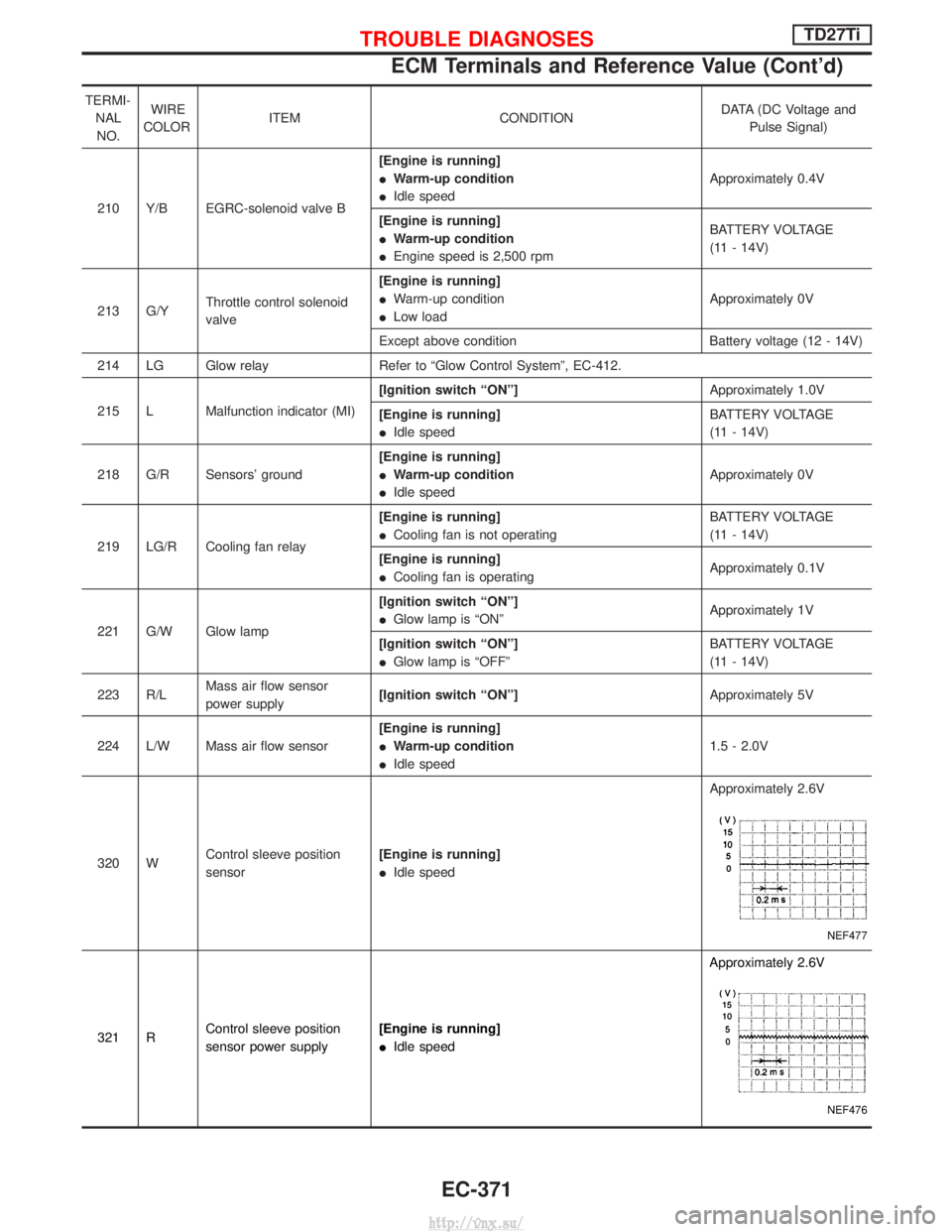

TERMI-NALNO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage and
Pulse Signal)
101
102
103 G/R Fuel cut solenoid valve [Ignition switch ªOFFº]
Approximately 0V
[Ignition switch ªONº] BATTERY VOLTAGE
(11 - 14V)
104
105
106 B ECM ground
[Engine is running]
I
Idle speed Approximately 0V
107
108
109 Y Power supply for ECM
[Ignition switch ªONº] BATTERY VOLTAGE
(11 - 14V)
202 Y/R Injection timing control
valve [Engine is running]
I
Warm-up condition
I Idle speed Approximately 10 - 12V
NEF480
[Engine is running]
I
Warm-up condition
I Engine speed is 2,000 rpm Approximately9-14V
NEF481
204 G/PU Air conditioner relay
[Engine is running]
I
Air conditioner switch is ªOFFº BATTERY VOLTAGE
(11 - 14V)
[Engine is running]
I Both air conditioner switch and blower fan switch
are ªONº
(Compressor is operating) Approximately 0.1V
205 Y/PU Oil pressure switch [Ignition switch ªONº]
Approximately 0V
[Engine is running]
I Idle speed Voltages
208 R/Y EGRC-solenoid valve A [Engine is running]
I
Warm-up condition
I Idle speed Approximately 0.7V
[Engine is running]
I Warm-up condition
I Engine speed is 2,800 rpm BATTERY VOLTAGE
(11 - 14V)
TROUBLE DIAGNOSESTD27Ti
ECM Terminals and Reference Value (Cont'd)
EC-370
http://vnx.su/

TERMI-NALNO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage and
Pulse Signal)
210 Y/B EGRC-solenoid valve B [Engine is running]
I
Warm-up condition
I Idle speed Approximately 0.4V
[Engine is running]
I Warm-up condition
I Engine speed is 2,500 rpm BATTERY VOLTAGE
(11 - 14V)
213 G/Y Throttle control solenoid
valve [Engine is running]
I
Warm-up condition
I Low load Approximately 0V
Except above condition Battery voltage (12 - 14V)
214 LG Glow relay Refer to ªGlow Control Systemº, EC-412.
215 L Malfunction indicator (MI) [Ignition switch ªONº]
Approximately 1.0V
[Engine is running]
I Idle speed BATTERY VOLTAGE
(11 - 14V)
218 G/R Sensors' ground [Engine is running]
I
Warm-up condition
I Idle speed Approximately 0V
219 LG/R Cooling fan relay [Engine is running]
I
Cooling fan is not operating BATTERY VOLTAGE
(11 - 14V)
[Engine is running]
I Cooling fan is operating Approximately 0.1V
221 G/W Glow lamp [Ignition switch ªONº]
I
Glow lamp is ªONº Approximately 1V
[Ignition switch ªONº]
I Glow lamp is ªOFFº BATTERY VOLTAGE
(11 - 14V)
223 R/L Mass air flow sensor
power supply [Ignition switch ªONº]
Approximately 5V
224 L/W Mass air flow sensor [Engine is running]
I
Warm-up condition
I Idle speed 1.5 - 2.0V
320 W Control sleeve position
sensor [Engine is running]
I
Idle speed Approximately 2.6V
NEF477
321 R
Control sleeve position
sensor power supply [Engine is running]
I
Idle speed Approximately 2.6V
NEF476
TROUBLE DIAGNOSESTD27Ti
ECM Terminals and Reference Value (Cont'd)
EC-371
http://vnx.su/

TERMI-NALNO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage and
Pulse Signal)
322 B Control sleeve position
sensor ground [Engine is running]
I
Idle speed Approximately 2.6V
NEF476
325 L ECM relay (Self-shutoff)
[Ignition switch ªONº]
[Ignition switch ªOFFº]
I
For a few seconds after turning ignition switch
ªOFFº Approximately 1.4V
[Ignition switch ªOFFº]
I A few seconds passed after turning ignition switch
ªOFFº BATTERY VOLTAGE
(11 - 14V)
331 L/R Crankshaft position sensor
(TDC) ground [Engine is running]
I
Warm-up condition
I Idle speed Approximately 0V
333 R Needle lift sensor ground [Ignition switch ªONº] Approximately 0V
334 G/R Engine coolant tempera-
ture sensor ground [Ignition switch ªONº]
Approximately 0V
335 G/R Fuel temperature sensor
ground [Engine is running]
Approximately 0V
344 L/G Crankshaft position sensor
(TDC) [Engine is running]
I
Warm-up condition
I Idle speed Approximately 0V
SEF333Y
[Engine is running]
I
Warm-up condition
I Engine speed is 2,000 rpm Approximately 0V
SEF334Y
345 G Needle lift sensor
[Engine is running]
I
Warm-up condition
I Idle speed Approximately 3.5V
[Engine is running]
I Warm-up condition
I Engine speed is 2,000 rpm Approximately 3.5V
TROUBLE DIAGNOSESTD27Ti
ECM Terminals and Reference Value (Cont'd)
EC-372
http://vnx.su/

TERMI-NALNO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage and
Pulse Signal)
347 LG/W Engine coolant tempera-
ture sensor [Engine is running] Approximately 0 - 4.8V
Output voltage varies with
engine coolant tempera-
ture
348 Y/B Fuel temperature sensor [Engine is running] 0.6-5V
Output voltage varies with
fuel temperature.
349 G/R Injection timing control
valve ground [Ignition switch ªONº]
Approximately 0V
403 G/R Air conditioner switch [Engine is running]
I
Air conditioner switch is ªOFFº BATTERY VOLTAGE
(11 - 14V)
[Engine is running]
I Both air conditioner switch and blower fan switch
are ªONº
(Compressor is operating) Approximately 0.1V
405 G/Y Stop lamp switch [Ignition switch ªONº]
I
Brake pedal fully released Approximately 0V
[Ignition switch ªONº]
I Brake pedal depressed BATTERY VOLTAGE
(11 - 14V)
416 Y/R Brake pedal position
switch [Ignition switch ªONº]
I
Brake pedal fully released BATTERY VOLTAGE
(11 - 14V)
[Ignition switch ªONº]
I Brake pedal depressed Approximately 0V
415 OR Data link connector for
CONSULT-II [Engine is running]
I
Idle speed (CONSULT-II is connected and turned
on) Approximately 0V
420 R BATTERY VOLTAGE
(11 - 14V)
417 Y/B Vehicle speed sensor [Engine is running]
I
Lift up the vehicle
I In 1st gear position
I Vehicle speed is 10 km/h (6 MPH) 0 - Approximately 8V
SEF891Y
[Engine is running]
I
Lift up the vehicle
I In 2nd gear position
I Vehicle speed is 30 km/h (19 MPH) Approximately 6V
SEF892Y
422 PU Start signal
[Ignition switch ªONº]
Approximately 0V
[Ignition switch ªSTARTº] BATTERY VOLTAGE
(11 - 14V)
425 R/B Accelerator position sen-
sor ground [Engine is running]
I
Warm-up condition
I Idle speed Approximately 0V
TROUBLE DIAGNOSESTD27Ti
ECM Terminals and Reference Value (Cont'd)
EC-373
http://vnx.su/

TERMI-NALNO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage and
Pulse Signal)
426 B Accelerator position switch
(Idle) ground [Ignition switch ªONº]
Approximately 0V
433 R/W Accelerator position sen-
sor power supply [Ignition switch ªONº]
Approximately 5V
434 G Accelerator position sen-
sor [Ignition switch ªONº]
I
Accelerator pedal fully released 0.30 - 0.50V
[Ignition switch ªONº]
I Accelerator pedal fully depressed 3.0 - 4.3V
435 L/Y Accelerator position switch
(Idle) [Ignition switch ªONº]
I
Accelerator pedal fully released Approximately 0V
[Ignition switch ªONº]
I Accelerator pedal depressed BATTERY VOLTAGE
(11 - 14V)
439 L/B Tachometer [Engine is running]
I
Warm-up condition
I Idle speed Approximately 3.0V
SEF325Y
[Engine is running]
I
Warm-up condition
I Engine speed is 2,000 rpm Approximately 3.0V
SEF326Y
507 B/W Ignition switch
[Ignition switch ªOFFº]
0V
[Ignition switch ªONº] BATTERY VOLTAGE
(11 - 14V)
TROUBLE DIAGNOSESTD27Ti
ECM Terminals and Reference Value (Cont'd)
EC-374
http://vnx.su/

Wiring Diagram
YEC672A
TROUBLE DIAGNOSIS FOR POWER SUPPLYTD27Ti
EC-375
http://vnx.su/
