TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: June 20062007 Versa
6. CHECK SYMPTOM
Check again. Refer to AT-61, "
Cruise Test — Part 1" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 7.
7. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 7 8 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
A/T Does Not Shift: D4 → D3 , When OD OFFUCS005VB
SYMPTOM:
A/T does not shift from D4 to D3 when OD OFF (OD OFF indicator lamp is on) on “Cruise Test — Part
3”.
DIAGNOSTIC PROCEDURE
1. CHECK CAN COMMUNICATION LINE
Perform self-diagnosis. Refer to AT- 8 2 , "
SELF-DIAGNOSTIC RESULT MODE" or AT-90, "Diagnostic Proce-
dure Without CONSULT-II" .
Is a malfunction in CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT-94, "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-219
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa

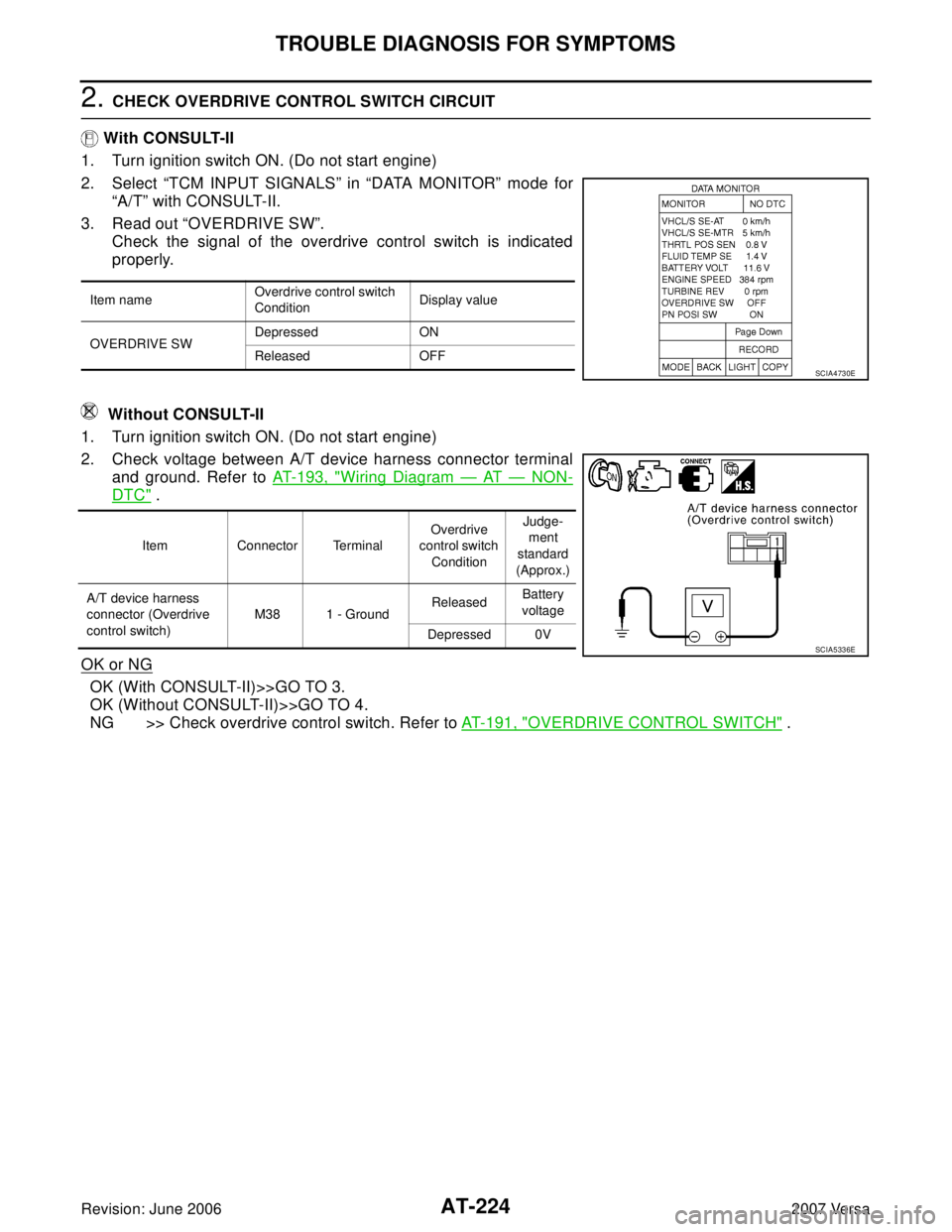

2. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “OVERDRIVE SW”.
Check the signal of the overdrive control switch is indicated
properly.
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine)
2. Check voltage between A/T device harness connector terminal
and ground. Refer toAT-193, "
Wiring Diagram — AT — NON-
DTC" .
OK or NG
OK >> Go to AT- 2 1 0 , "A/T Does Not Shift: D2 → D3" .
NG >> Check overdrive control switch. Refer to AT - 1 9 1 , "
OVERDRIVE CONTROL SWITCH" .
A/T Does Not Shift: D3 → 22 , When Selector Lever “D” → “2” PositionUCS005VC
SYMPTOM:
A/T does not shift from D3 to 22 when changing selector lever from “D” to “2” position on “Cruise
Test — Part 3”.
DIAGNOSTIC PROCEDURE

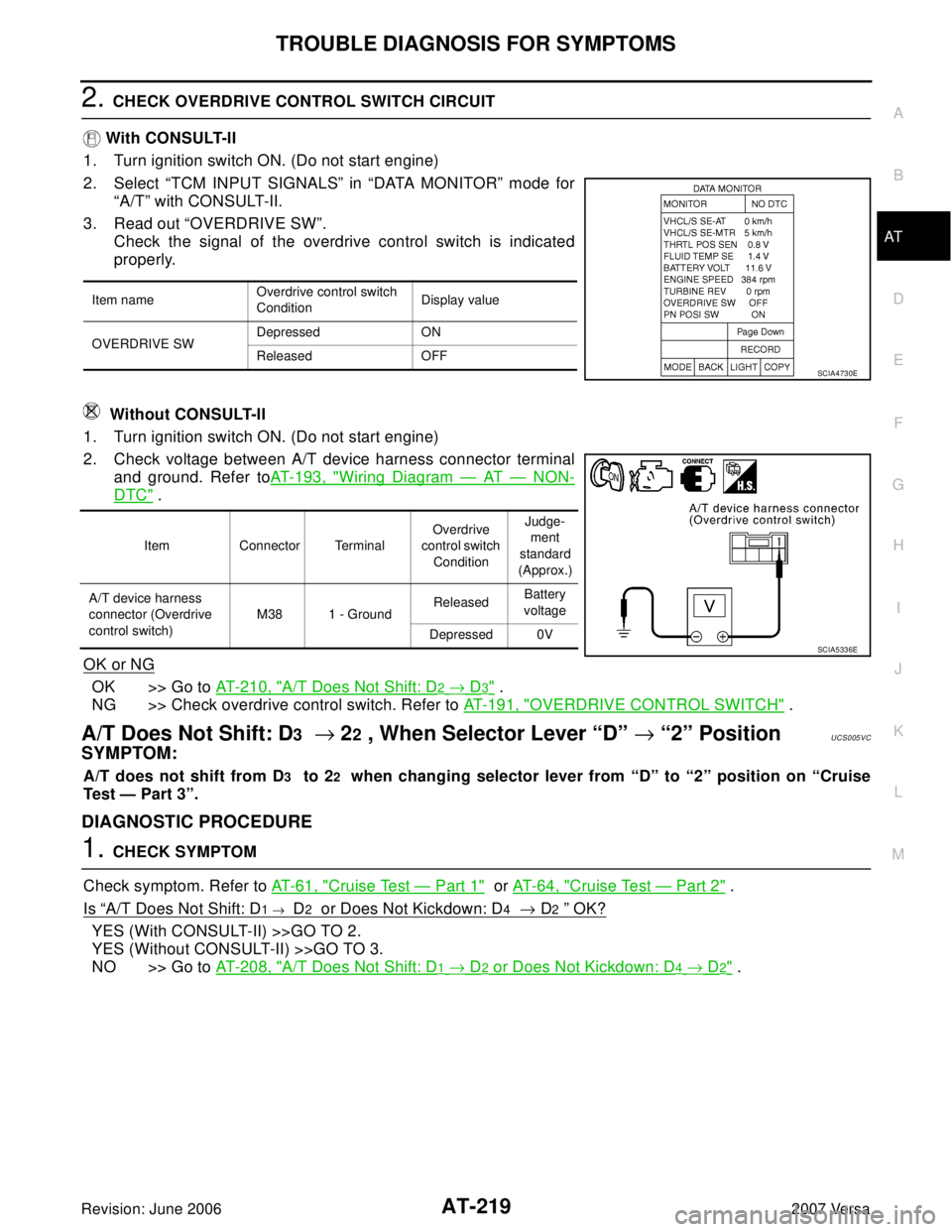

1. CHECK SYMPTOM
Check symptom. Refer to AT - 6 1 , "
Cruise Test — Part 1" or AT- 6 4 , "Cruise Test — Part 2" .
Is
“A/T Does Not Shift: D1 → D2 or Does Not Kickdown: D4 → D2 ” OK?
YES (With CONSULT-II) >>GO TO 2.
YES (Without CONSULT-II) >>GO TO 3.
NO >> Go to AT- 2 0 8 , "
A/T Does Not Shift: D1 → D2 or Does Not Kickdown: D4 → D2" .
Item nameOverdrive control switch
ConditionDisplay value
OVERDRIVE SWDepressed ON
Released OFF
SCIA4730E
Item Connector TerminalOverdrive
control switch
ConditionJudge-
ment
standard
(Approx.)
A/T device harness
connector (Overdrive
control switch)M38 1 - GroundReleasedBattery
voltage
Depressed 0V
SCIA5336E

AT-220
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: June 20062007 Versa

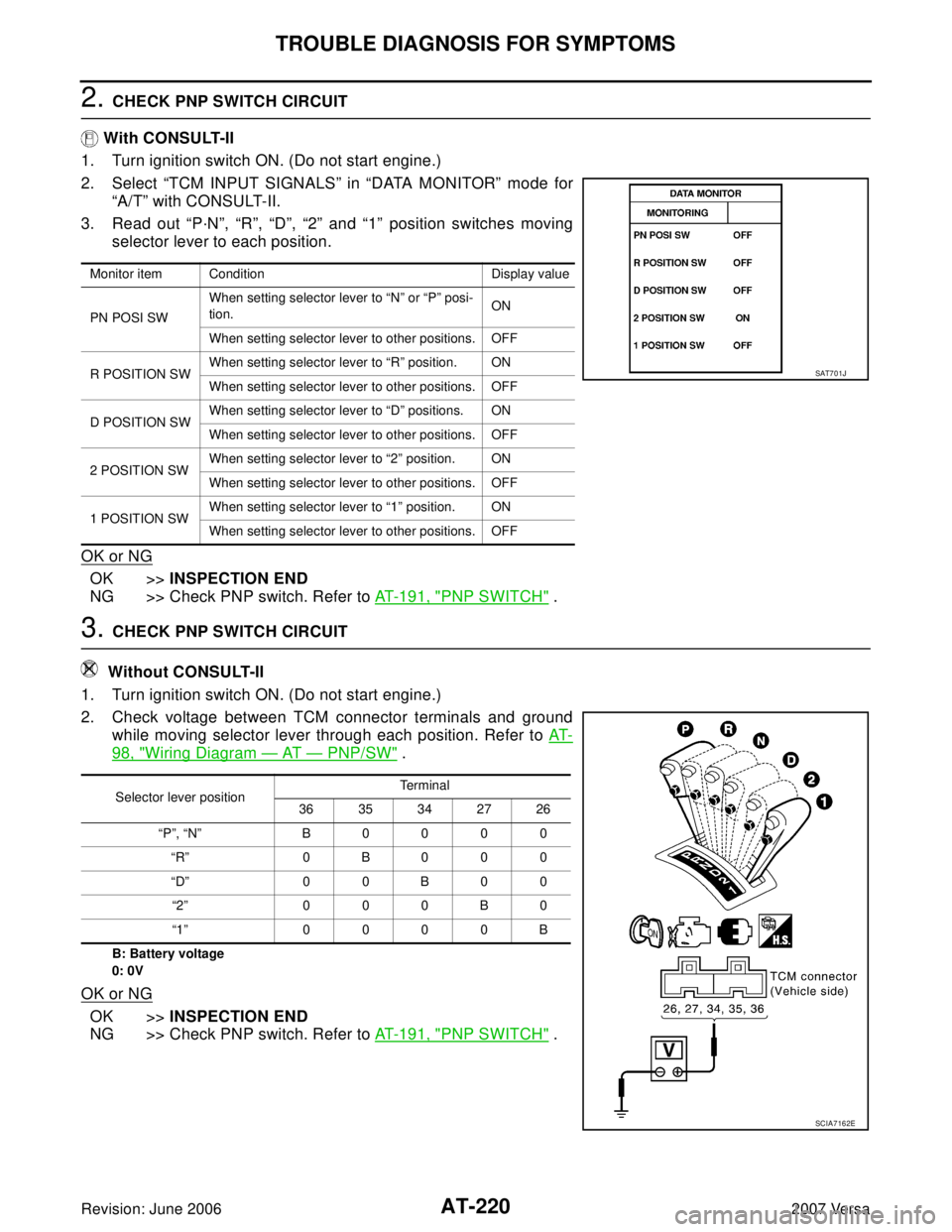

2. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “P·N”, “R”, “D”, “2” and “1” position switches moving
selector lever to each position.
OK or NG
OK >>INSPECTION END
NG >> Check PNP switch. Refer to AT - 1 9 1 , "
PNP SWITCH" .
3. CHECK PNP SWITCH CIRCUIT
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)

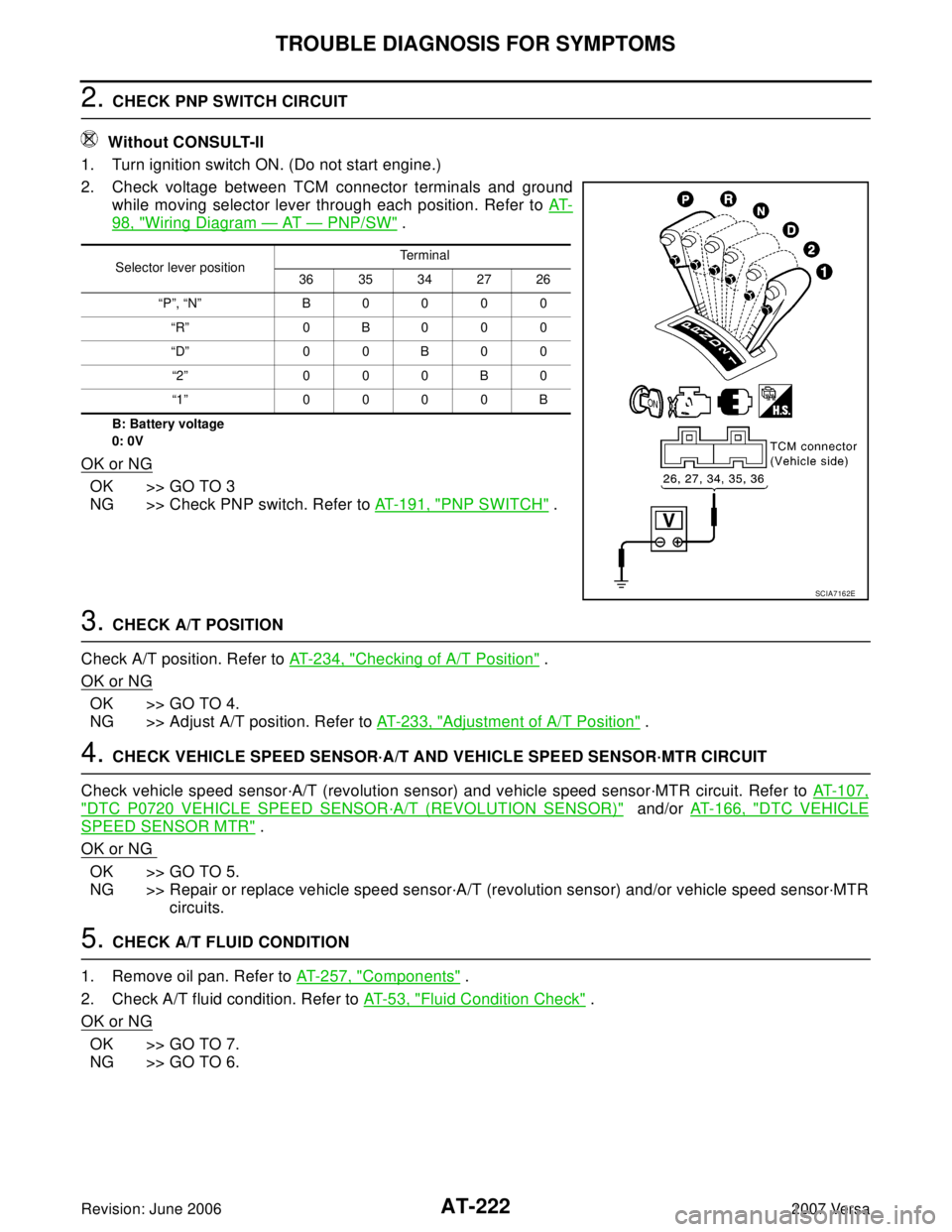

2. Check voltage between TCM connector terminals and ground
while moving selector lever through each position. Refer to AT-
98, "Wiring Diagram — AT — PNP/SW" .
B: Battery voltage
0: 0V
OK or NG
OK >>INSPECTION END
NG >> Check PNP switch. Refer to AT - 1 9 1 , "
PNP SWITCH" .
Monitor item Condition Display value
PN POSI SWWhen setting selector lever to “N” or “P” posi-
tion.ON
When setting selector lever to other positions. OFF
R POSITION SWWhen setting selector lever to “R” position. ON
When setting selector lever to other positions. OFF
D POSITION SWWhen setting selector lever to “D” positions. ON
When setting selector lever to other positions. OFF
2 POSITION SWWhen setting selector lever to “2” position. ON
When setting selector lever to other positions. OFF
1 POSITION SWWhen setting selector lever to “1” position. ON
When setting selector lever to other positions. OFF
SAT7 0 1J
Selector lever positionTerminal
36 35 34 27 26
“P”, “N” B 0 0 0 0
“R” 0B000
“D” 0 0 B 0 0
“2” 0 0 0 B 0
“1” 0 0 0 0 B
SCIA7162E

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-221
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
A/T Does Not Shift: 22 → 11 , When Selector Lever “2” → “1” PositionUCS005VD
SYMPTOM:
A/T does not shift from 22 to 11 when changing selector lever from “2” to “1” position on “Cruise Test
— Part 3”.
DIAGNOSTIC PROCEDURE

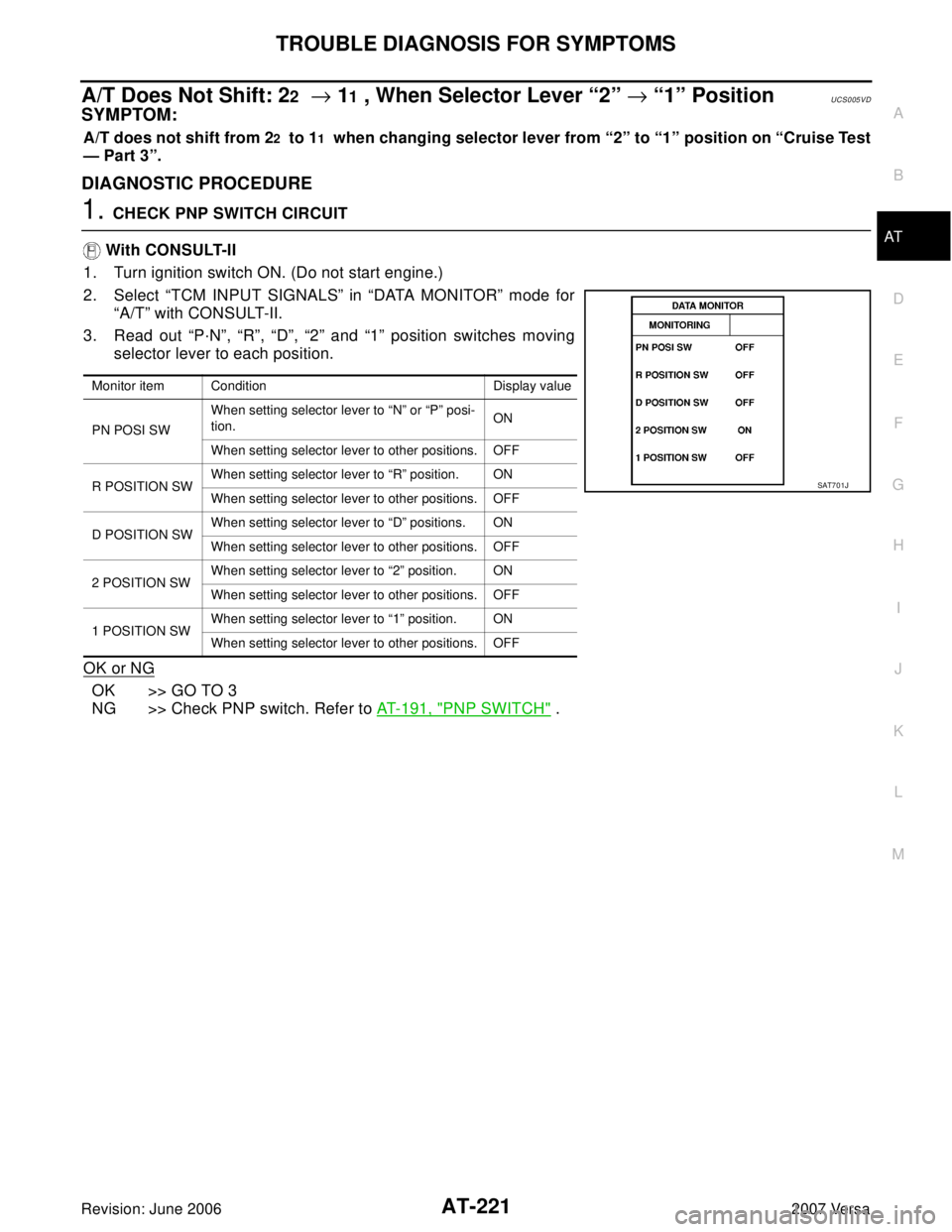

1. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “P·N”, “R”, “D”, “2” and “1” position switches moving
selector lever to each position.
OK or NG
OK >> GO TO 3
NG >> Check PNP switch. Refer to AT-191, "
PNP SWITCH" .
Monitor item Condition Display value
PN POSI SWWhen setting selector lever to “N” or “P” posi-
tion.ON
When setting selector lever to other positions. OFF
R POSITION SWWhen setting selector lever to “R” position. ON
When setting selector lever to other positions. OFF
D POSITION SWWhen setting selector lever to “D” positions. ON
When setting selector lever to other positions. OFF
2 POSITION SWWhen setting selector lever to “2” position. ON
When setting selector lever to other positions. OFF
1 POSITION SWWhen setting selector lever to “1” position. ON
When setting selector lever to other positions. OFF
SAT7 0 1J

AT-222
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: June 20062007 Versa
2. CHECK PNP SWITCH CIRCUIT
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals and ground
while moving selector lever through each position. Refer to AT-
98, "Wiring Diagram — AT — PNP/SW" .
B: Battery voltage
0: 0V
OK or NG
OK >> GO TO 3
NG >> Check PNP switch. Refer to AT - 1 9 1 , "
PNP SWITCH" .
3. CHECK A/T POSITION
Check A/T position. Refer to AT-234, "
Checking of A/T Position" .
OK or NG
OK >> GO TO 4.
NG >> Adjust A/T position. Refer to AT- 2 3 3 , "
Adjustment of A/T Position" .
4. CHECK VEHICLE SPEED SENSOR·A/T AND VEHICLE SPEED SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT-107,
"DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and/or AT-166, "DTC VEHICLE
SPEED SENSOR MTR" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and/or vehicle speed sensor·MTR
circuits.
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT-257, "
Components" .
2. Check A/T fluid condition. Refer to AT- 5 3 , "
Fluid Condition Check" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
Selector lever positionTerminal
36 35 34 27 26
“P”, “N” B 0 0 0 0
“R” 0B000
“D” 0 0 B 0 0
“2” 0 0 0 B 0
“1” 0 0 0 0 B
SCIA7162E

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-223
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT-242, "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Shift solenoid valve A
–Overrun clutch control valve
–Overrun clutch solenoid valve
3. Disassemble A/T. Refer to AT- 2 6 8 , "
Disassembly" .
4. Check the following items:
–Servo piston assembly
–Brake band
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK SYMPTOM
Check again. Refer to AT- 6 5 , "
Cruise Test — Part 3" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 8.
8. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 7 8 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.

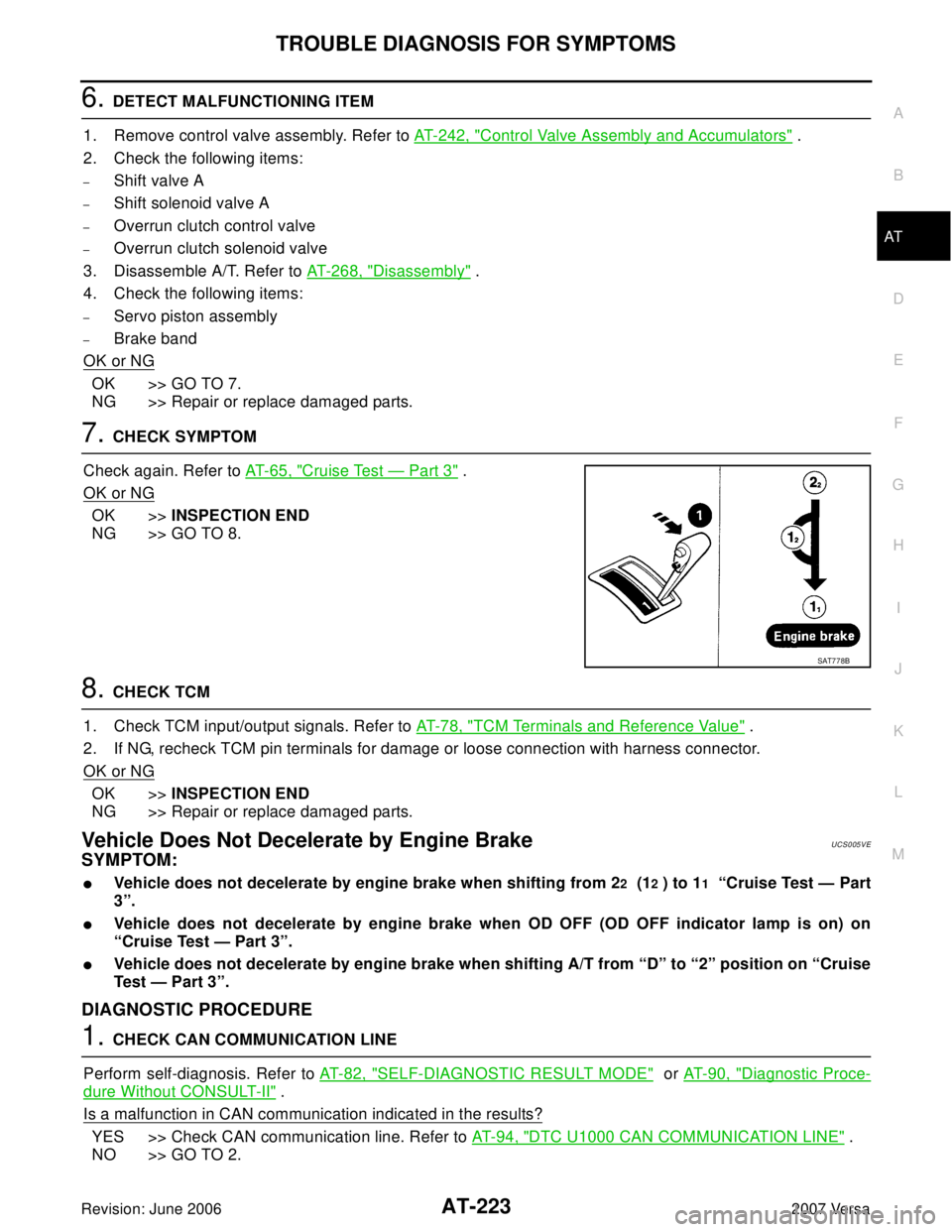

Vehicle Does Not Decelerate by Engine BrakeUCS005VE
SYMPTOM:

Vehicle does not decelerate by engine brake when shifting from 22 (12 ) to 11 “Cruise Test — Part
3”.

Vehicle does not decelerate by engine brake when OD OFF (OD OFF indicator lamp is on) on
“Cruise Test — Part 3”.

Vehicle does not decelerate by engine brake when shifting A/T from “D” to “2” position on “Cruise
Test — Part 3”.
DIAGNOSTIC PROCEDURE
1. CHECK CAN COMMUNICATION LINE
Perform self-diagnosis. Refer to AT-82, "
SELF-DIAGNOSTIC RESULT MODE" or AT-90, "Diagnostic Proce-
dure Without CONSULT-II" .
Is a malfunction in CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 9 4 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
SAT7 7 8B

AT-224
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: June 20062007 Versa
2. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “OVERDRIVE SW”.
Check the signal of the overdrive control switch is indicated
properly.
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine)
2. Check voltage between A/T device harness connector terminal
and ground. Refer to AT-193, "
Wiring Diagram — AT — NON-
DTC" .
OK or NG
OK (With CONSULT-II)>>GO TO 3.
OK (Without CONSULT-II)>>GO TO 4.
NG >> Check overdrive control switch. Refer to AT-191, "
OVERDRIVE CONTROL SWITCH" .
Item nameOverdrive control switch
ConditionDisplay value
OVERDRIVE SWDepressed ON
Released OFF
SCIA4730E
Item Connector TerminalOverdrive
control switch
ConditionJudge-
ment
standard
(Approx.)
A/T device harness
connector (Overdrive
control switch)M38 1 - GroundReleasedBattery
voltage
Depressed 0V
SCIA5336E

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-225
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
3. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “P·N”, “R”, “D”, “2” and “1” position switches moving
selector lever to each position.
OK or NG
OK >> GO TO 5
NG >> Check PNP switch. Refer to AT-191, "
PNP SWITCH" .
4. CHECK PNP SWITCH CIRCUIT
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals and ground
while moving selector lever through each position. Refer to AT-
98, "Wiring Diagram — AT — PNP/SW" .
B: Battery voltage
0: 0V
OK or NG
OK >> GO TO 5
NG >> Check PNP switch. Refer to AT-191, "
PNP SWITCH" .
Monitor item Condition Display value
PN POSI SWWhen setting selector lever to “N” or “P” posi-
tion.ON
When setting selector lever to other positions. OFF
R POSITION SWWhen setting selector lever to “R” position. ON
When setting selector lever to other positions. OFF
D POSITION SWWhen setting selector lever to “D” positions. ON
When setting selector lever to other positions. OFF
2 POSITION SWWhen setting selector lever to “2” position. ON
When setting selector lever to other positions. OFF
1 POSITION SWWhen setting selector lever to “1” position. ON
When setting selector lever to other positions. OFF
SAT7 0 1J
Selector lever positionTe r m i n a l
36 35 34 27 26
“P”, “N” B 0 0 0 0
“R” 0 B 0 0 0
“D” 0 0 B 0 0
“2” 000B0
“1” 0000B
SCIA7162E

AT-226
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: June 20062007 Versa
5. CHECK A/T POSITION
Check A/T position. Refer to AT-234, "
Checking of A/T Position" .
OK or NG
OK >> GO TO 6.
NG >> Adjust A/T position. Refer to AT- 2 3 3 , "
Adjustment of A/T Position" .
6. CHECK VEHICLE SPEED SENSOR·A/T AND VEHICLE SPEED SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT-107,
"DTC P0720 VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and/or AT-166, "DTC VEHICLE
SPEED SENSOR MTR" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and/or vehicle speed sensor·MTR
circuits.
7. CHECK ACCELERATOR PEDAL POSITION SENSOR
Check accelerator pedal position sensor. Refer to EC-532, "
DTC P2138 APP SENSOR" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace accelerator pedal position sensor.
8. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT-257, "
Components" .
2. Check A/T fluid condition. Refer to AT- 5 3 , "
Fluid Condition Check" .
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT-242, "
Control Valve Assembly and Accumulators" .
2. Check the following.
–Shift valve A
–Overrun clutch solenoid valve
3. Disassemble A/T. Refer to AT-268, "
Disassembly" .
4. Check the following.
–Overrun clutch assembly. Refer to AT-320, "Forward and Overrun Clutches" .
–Low & reverse brake assembly. Refer to AT-327, "Low & Reverse Brake" .
OK or NG
OK >> GO TO 10.
NG >> Repair or replace damaged parts.
10. CHECK SYMPTOM
Check again. Refer to AT-65, "
Cruise Test — Part 3" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 11.

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-227
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
11 . CHECK TCM
1. Check TCM input/output signals. Refer to AT- 7 8 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
TCM Self-diagnosis Does Not ActivateUCS005VF
SYMPTOM:
OD OFF indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit is
good.
DESCRIPTION

PNP switch
PNP switch assembly includes a transaxle position switch. The
transaxle position switch detects the selector lever position and
sends a signal to the TCM.

Overdrive control switch
Overdrive control switch detects the switch position (ON or OFF)
and sends the signal via CAN communication to the TCM.

Closed throttle position signal and wide open throttle position
signal
ECM judges throttle opening based on a signal from accelerator
pedal position sensor, and sends the signal via CAN communi-
cation to the TCM.
DIAGNOSTIC PROCEDURE
NOTE:
The diagnostic procedure includes inspection for the PNP stitch, overdrive control switch, closed throttle posi-
tion signal and wide open throttle position signal circuit. Refer to AT-186, "
PNP, OD SWITCH AND CLOSED
THROTTLE, WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT" .

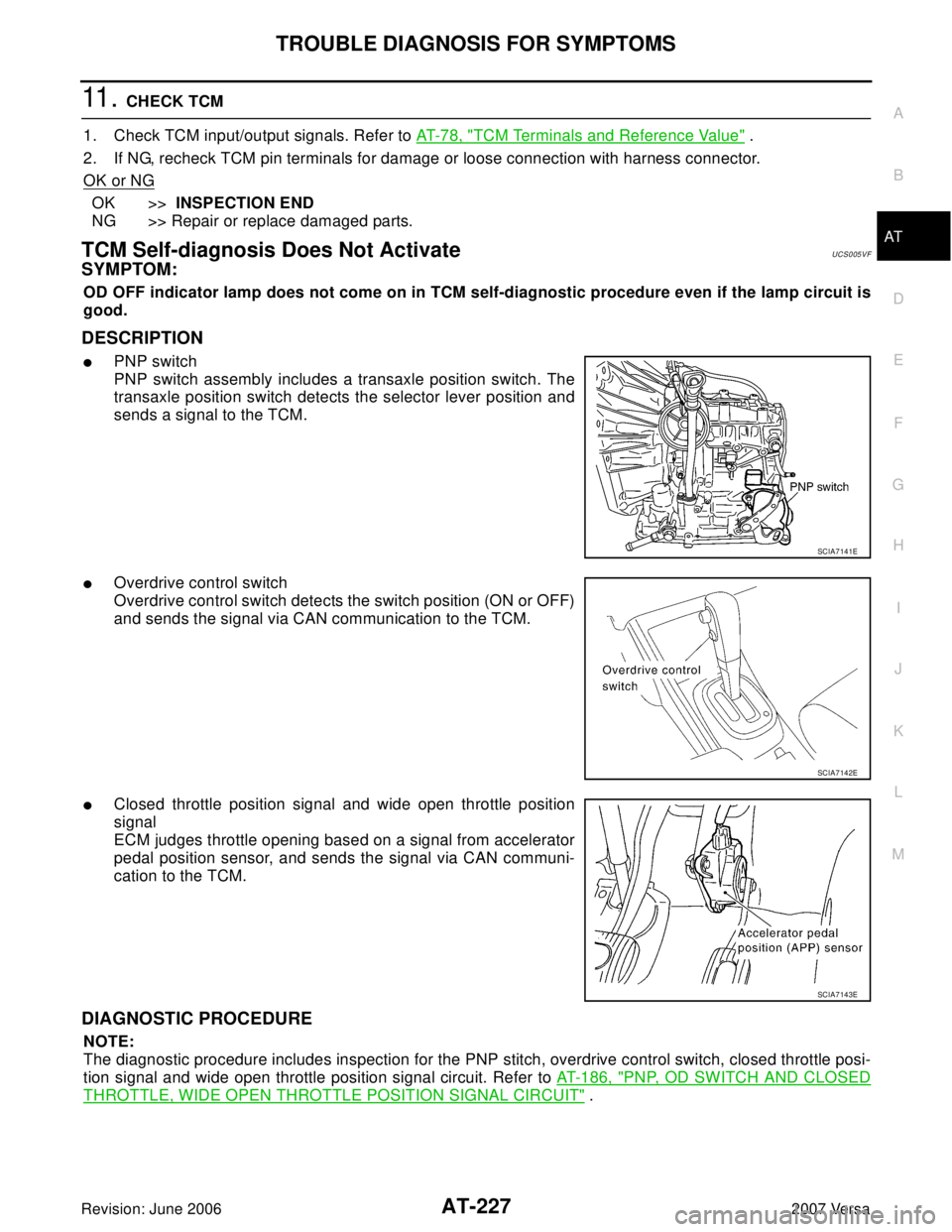

SCIA7141E
SCIA7142E
SCIA7143E
