Installation
Installation is in the reverse order of removal.
NOTE:
Inspect rear washer nozzle for proper spray pattern, adjust as necessary. Refer to WW-43, "
Washer Nozzle
Adjustment" .
WASHER FLUID RESERVOIR
Refer to WW-28, "Removal and Installation of Washer Tank" .
WIPER AND WASHER SWITCH
Refer to WW-28, "Removal and Installation of Front Wiper and Washer Switch" .
WASHER MOTOR
Refer to WW-29, "Removal and Installation of Front Washer Motor" .
Washer Nozzle AdjustmentEKS00ILU
Adjust the washer nozzle to specification using suitable tool as
shown.
Adjustable range : ±15° (In any direction)
LKIA0349E
WEL912A

WW-44
POWER SOCKET
Revision: June 20062007 Versa
POWER SOCKETPFP:253A2

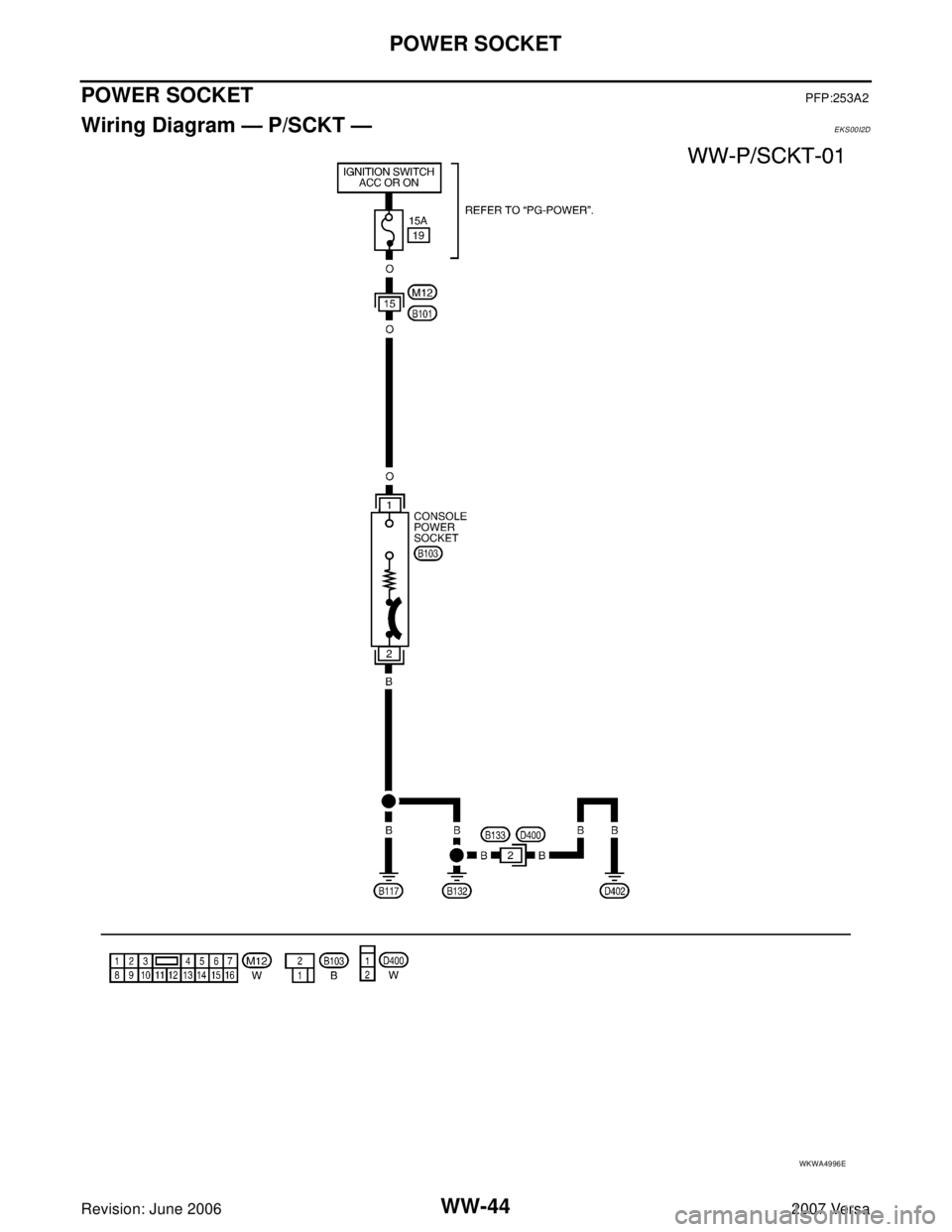

Wiring Diagram — P/SCKT —EKS00I2D
WKWA4996E

POWER SOCKET
WW-45
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
Removal and InstallationEKS00I2E
REMOVAL
1. Remove the console mask. Refer to IP-10, "Component Parts" .
2. Remove the power socket (2) from the power socket ring (3),
while pressing the hook (A) on the ring out from square hole (B).

Console mask (1)

Power socket assembly (C)
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
Install the power socket with its cutout aligned with the power ring.
SKIB5671E

WW-46
HORN
Revision: June 20062007 Versa
HORNPFP:25610

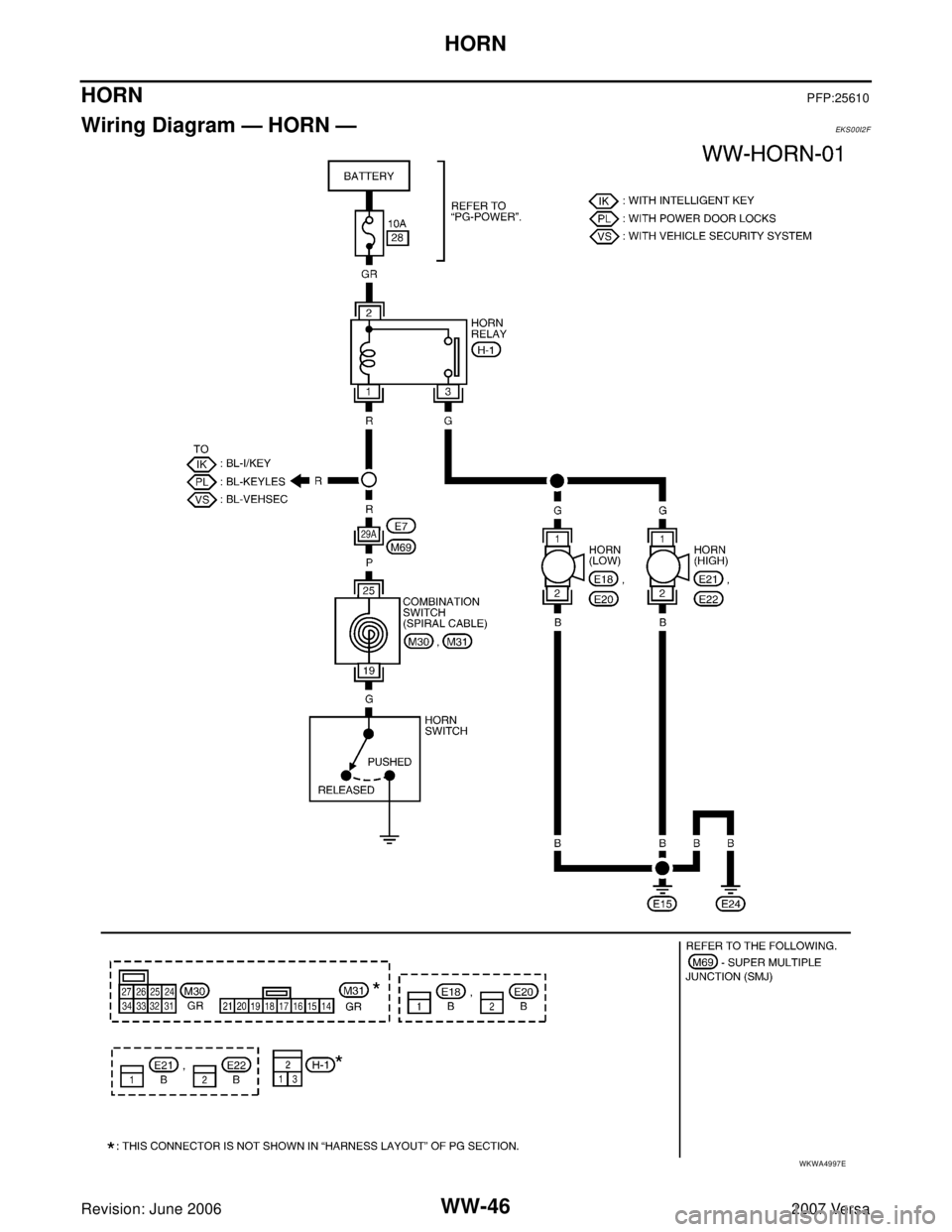

Wiring Diagram — HORN —EKS00I2F
WKWA4997E

HORN
WW-47
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
Removal and InstallationEKS00I2G
REMOVAL
1. Remove the front grille. Refer to EI-19, "Removal and Installation" .
2. Disconnect the horn connectors.
3. Remove the horn nuts (A) and remove the horns (1).
INSTALLATION
Installation is in the reverse order of removal.
SKIB5670E

WW-48
HORN
