FOREWORD
This manual contains maintenance and repair procedures for the NISSAN
TIIDA, model C11 series.
In order to assure your safety and the efficient functioning of the vehicle,
this manual should be read thoroughly. It is especially important that the
PRECAUTIONS in the GI section be completely understood before starting
any repair task.
All information in this manual is based on the latest product information
at the time of publication. The right is reserved to make changes in speci-
fications and methods at any time without notice.
IMPORTANT SAFETY NOTICE
The proper performance of service is essential for both the safety of the
technician and the efficient functioning of the vehicle.
The service methods in this Service Manual are described in such a man-
ner that the service may be performed safely and accurately.
Service varies with the procedures used, the skills of the technician and the
tools and parts available. Accordingly, anyone using service procedures,
tools or parts which are not specifically recommended by NISSAN must
first be completely satisfied that neither personal safety nor the vehicle's
safety will be jeopardized by the service method selected.
NISSAN EUROPE S.A.S.
Service Engineering SectionParis, France

ACC-1
ENGINE
C
D
E
F
G
H
I
J
K
L
M
SECTION ACC
A
ACC
N
O
P
CONTENTS
ACCELERATOR CONTROL SYSTEM
PRECAUTION ...............................................2
PRECAUTIONS ...................................................2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................
2
ON-VEHICLE REPAIR ..................................3
ACCELERATOR CONTROL SYSTEM ..............3
Component ...............................................................3
Removal and Installation ..........................................3

ACC-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001724596
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
 Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
 Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

ACCELERATOR CONTROL SYSTEM
ACC-3
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
ACC
N
P O

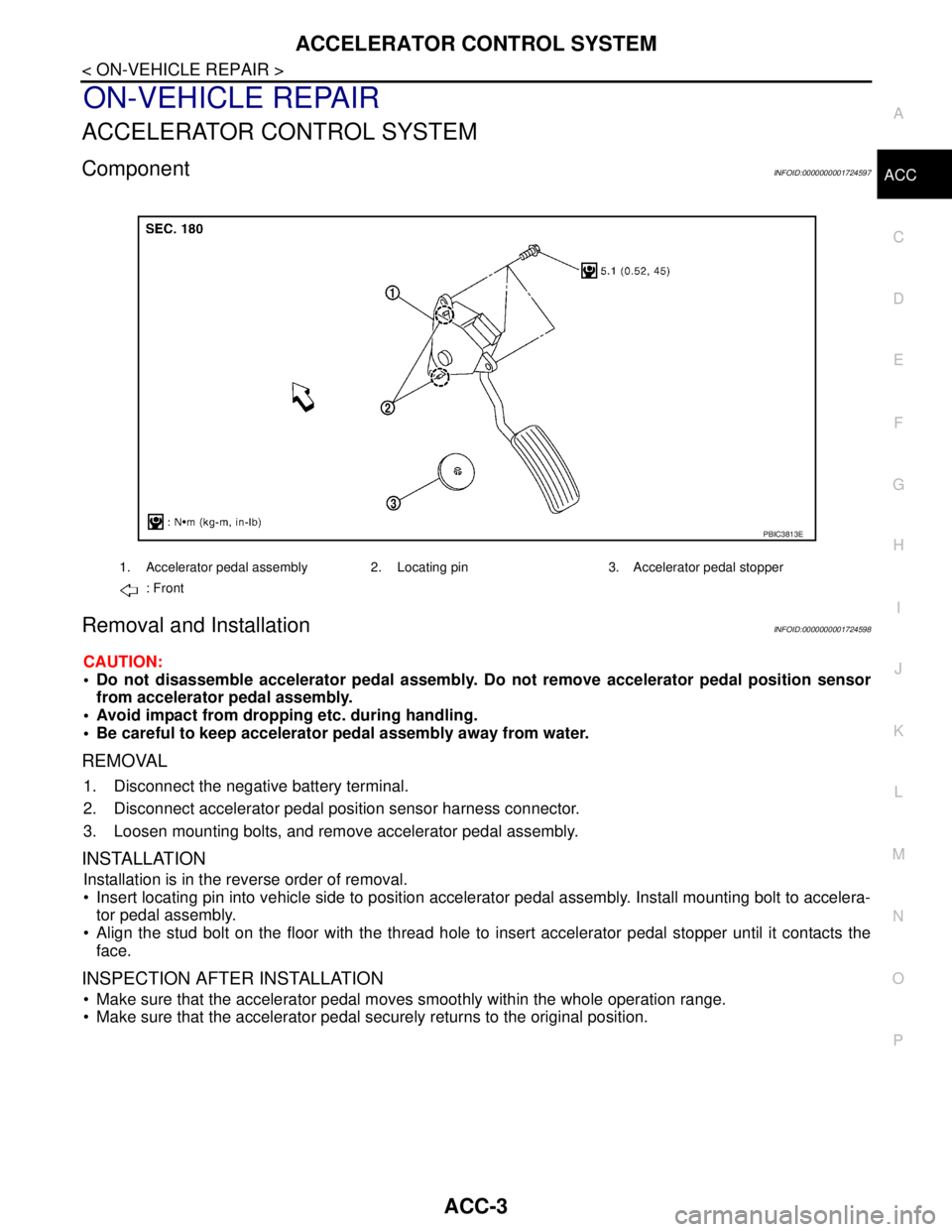

ON-VEHICLE REPAIR
ACCELERATOR CONTROL SYSTEM
ComponentINFOID:0000000001724597
Removal and InstallationINFOID:0000000001724598
CAUTION:
 Do not disassemble accelerator pedal assembly. Do not remove accelerator pedal position sensor
from accelerator pedal assembly.
 Avoid impact from dropping etc. during handling.
 Be careful to keep accelerator pedal assembly away from water.
REMOVAL
1. Disconnect the negative battery terminal.
2. Disconnect accelerator pedal position sensor harness connector.
3. Loosen mounting bolts, and remove accelerator pedal assembly.
INSTALLATION
Installation is in the reverse order of removal.
 Insert locating pin into vehicle side to position accelerator pedal assembly. Install mounting bolt to accelera-
tor pedal assembly.
 Align the stud bolt on the floor with the thread hole to insert accelerator pedal stopper until it contacts the
face.
INSPECTION AFTER INSTALLATION
 Make sure that the accelerator pedal moves smoothly within the whole operation range.
 Make sure that the accelerator pedal securely returns to the original position.
1. Accelerator pedal assembly 2. Locating pin 3. Accelerator pedal stopper
: Front
PBIC3813E

AV
AV-1
DRIVER INFORMATION & MULTIMEDIA
C
D
E
F
G
H
I
J
K
L
MB
SECTION AV
A
O
P
CONTENTS
AUDIO, VISUAL & NAVIGATION SYSTEM
AUDIO WITHOUT NAVIGATION
BASIC INSPECTION ....................................
5
DIAGNOSIS AND REPAIR WORKFLOW ..........5
Work Flow .................................................................5
FUNCTION DIAGNOSIS ...............................6
AUDIO SYSTEM ..................................................6
System Diagram ........................................................6
System Description ...................................................6
Component Parts Location ........................................8
Component Description .............................................8
COMPONENT DIAGNOSIS ..........................9
POWER SUPPLY AND GROUND CIRCUIT .......9
AV CONTROL UNIT ....................................................9
AV CONTROL UNIT : Diagnosis Procedure .............9
MICROPHONE ............................................................9
MICROPHONE : Diagnosis Procedure .....................9
STEERING SWITCH ..........................................11
Description ..............................................................11
Diagnosis Procedure ...............................................11
MICROPHONE SIGNAL CIRCUIT .....................13
Description ..............................................................13
Diagnosis Procedure ...............................................13
ECU DIAGNOSIS .........................................15
AV CONTROL UNIT ...........................................15
Reference Value .....................................................15
Wiring Diagram .......................................................17
SYMPTOM DIAGNOSIS ..............................19
MULTI AV SYSTEM SYMPTOMS ......................19
Symptom Table .......................................................19
NORMAL OPERATING CONDITION ...............20
Description ...............................................................20
PRECAUTION ..............................................21
PRECAUTIONS .................................................21
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
21
PREPARATION ...........................................22
PREPARATION .................................................22
Commercial Service Tool ........................................22
ON-VEHICLE REPAIR .................................23
AUDIO UNIT ......................................................23
Removal and Installation .........................................23
TWEETER .........................................................24
Removal and Installation .........................................24
FRONT DOOR SPEAKER ................................25
Removal and Installation .........................................25
REAR DOOR SPEAKER ..................................26
Removal and Installation .........................................26
STEERING SWITCH .........................................27
Removal and Installation .........................................27
AUDIO ANTENNA .............................................28
Location of Antenna .................................................28
Removal and Installation of Roof Antenna ..............28
AUDIO WITH NAVIGATION
BASIC INSPECTION ...................................
30
DIAGNOSIS AND REPAIR WORKFLOW ........30
Work Flow ................................................................30
FUNCTION DIAGNOSIS ..............................32

AV-2
MULTI AV SYSTEM ...........................................32
System Diagram .....................................................32
System Description .................................................32
Component Parts Location .....................................33
Component Description ..........................................34
NAVIGATION SYSTEM .....................................35
System Diagram .....................................................35
System Description .................................................35
Component Parts Location .....................................37
Component Description ..........................................37
DIAGNOSIS SYSTEM (NAVI CONTROL
UNIT) ..................................................................
39
Diagnosis Description .............................................39
CONSULT - III Function (MULTI AV) ......................48
COMPONENT DIAGNOSIS ........................52
U1000 CAN COMM CIRCUIT ............................52
Description ..............................................................52
DTC Logic ...............................................................52
Diagnosis Procedure .............................................52
U1010 CONTROL UNIT (CAN) .........................53
Description ..............................................................53
DTC Logic ...............................................................53
Diagnosis Procedure ..............................................53
U1310 NAVI CONTROL UNIT ...........................54
Description ..............................................................54
DTC Logic ...............................................................54
U1200 NAVI CONTROL UNIT ...........................55
Description ..............................................................55
DTC Logic ...............................................................55
U1201 NAVI CONTROL UNIT ...........................56
Description ..............................................................56
DTC Logic ...............................................................56
U1216 NAVI CONTROL UNIT ...........................57
Description ..............................................................57
DTC Logic ...............................................................57
U1217 NAVI CONTROL UNIT ...........................58
Description ..............................................................58
DTC Logic ...............................................................58
U1204 GPS ........................................................59
Description ..............................................................59
DTC Logic ...............................................................59
Diagnosis Procedure ..............................................59
U1205 GPS ........................................................60
Description ..............................................................60
DTC Logic ...............................................................60
Diagnosis Procedure ..............................................60
U1206 GPS ........................................................61
Description ..............................................................61
DTC Logic ...............................................................61
Diagnosis Procedure ...............................................61
U1207 GPS ........................................................62
Description ..............................................................62
DTC Logic ...............................................................62
Diagnosis Procedure ...............................................62
U1208 NAVI CONTROL UNIT ...........................63
Description ..............................................................63
DTC Logic ...............................................................63
Diagnosis Procedure ...............................................63
U1209 NAVI CONTROL UNIT ...........................64
Description ..............................................................64
DTC Logic ...............................................................64
Diagnosis Procedure ...............................................64
U120A NAVI CONTROL UNIT ..........................65
Description ..............................................................65
DTC Logic ...............................................................65
Diagnosis Procedure ...............................................65
U120C NAVI CONTROL UNIT ..........................66
Description ..............................................................66
DTC Logic ...............................................................66
Diagnosis Procedure ...............................................66
U120D NAVI CONTROL UNIT ..........................67
Description ..............................................................67
DTC Logic ...............................................................67
Diagnosis Procedure ...............................................67
U120E NAVI CONTROL UNIT ..........................68
Description ..............................................................68
DTC Logic ...............................................................68
Diagnosis Procedure ...............................................68
U120F NAVI CONTROL UNIT ...........................69
Description ..............................................................69
DTC Logic ...............................................................69
Diagnosis Procedure ...............................................69
U1210 NAVI CONTROL UNIT ...........................70
Description ..............................................................70
DTC Logic ...............................................................70
Diagnosis Procedure ...............................................70
U1211 NAVI CONTROL UNIT ...........................71
Description ..............................................................71
DTC Logic ...............................................................71
Diagnosis Procedure ...............................................71
U1212 NAVI CONTROL UNIT ...........................72
Description ..............................................................72
DTC Logic ...............................................................72
Diagnosis Procedure ...............................................72
U1213 NAVI CONTROL UNIT ...........................73
Description ..............................................................73
DTC Logic ...............................................................73
Diagnosis Procedure ...............................................73

AV
AV-3
C
D
E
F
G
H
I
J
K
L
MB A
O
P
U1214 NAVI CONTROL UNIT ............................74
Description ..............................................................74
DTC Logic ...............................................................74
Diagnosis Procedure ...............................................74
U1215 NAVI CONTROL UNIT ............................75
Description ..............................................................75
DTC Logic ...............................................................75
Diagnosis Procedure ...............................................75
U1243 DISPLAY UNIT .......................................76
Description ..............................................................76
DTC Logic ...............................................................76
Diagnosis Procedure ...............................................76
U1244 GPS ANTENNA ......................................78
Description ..............................................................78
DTC Logic ...............................................................78
Diagnosis Procedure ...............................................78
U1300 AV COMM CIRCUIT ...............................79
Description ..............................................................79
POWER SUPPLY AND GROUND CIRCUIT ......80
AV CONTROL UNIT ..................................................80
AV CONTROL UNIT : Diagnosis Procedure ...........80
NAVI CONTROL UNIT ..............................................80
NAVI CONTROL UNIT : Diagnosis Procedure .......80
DISPLAY UNIT ..........................................................81
DISPLAY UNIT : Diagnosis Procedure ...................81
RGB (R: RED) SIGNAL CIRCUIT ......................82
Description ..............................................................82
Diagnosis Procedure ...............................................82
RGB (G: GREEN) SIGNAL CIRCUIT .................83
Description ..............................................................83
Diagnosis Procedure ...............................................83
RGB (B: BLUE) SIGNAL CIRCUIT ....................84
Description ..............................................................84
Diagnosis Procedure ...............................................84
RGB SYNCHRONIZING SIGNAL CIRCUIT .......85
Description ..............................................................85
Diagnosis Procedure ...............................................85
RGB AREA (YS) SIGNAL CIRCUIT ..................86
Description ..............................................................86
Diagnosis Procedure ...............................................86
HORIZONTAL SYNCHRONIZING (HP) SIG-
NAL CIRCUIT .....................................................
87
Description ..............................................................87
Diagnosis Procedure ...............................................87
VERTICAL SYNCHRONIZING (VP) SIGNAL
CIRCUIT .............................................................
88
Description ..............................................................88
Diagnosis Procedure ...............................................88
STEERING SWITCH .........................................89
Description ...............................................................89
Diagnosis Procedure ...............................................89
MICROPHONE SIGNAL CIRCUIT ....................91
Description ...............................................................91
Diagnosis Procedure ...............................................91
ECU DIAGNOSIS .........................................93
AV CONTROL UNIT ..........................................93
Reference Value ......................................................93
Wiring Diagram ........................................................96
NAVI CONTROL UNIT ....................................100
Reference Value ....................................................100
DTC Index .............................................................103
DISPLAY UNIT ................................................105
Reference Value ....................................................105
SYMPTOM DIAGNOSIS ............................108
MULTI AV SYSTEM SYMPTOMS ..................108
Symptom Table .....................................................108
NORMAL OPERATING CONDITION .............111
Description .............................................................111
PRECAUTION ............................................119
PRECAUTIONS ...............................................119
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................
119
PREPARATION .........................................120
PREPARATION ...............................................120
Commercial Service Tool ......................................120
ON-VEHICLE REPAIR ...............................121
AV (NAVI) CONTROL UNIT ............................121
Removal and Installation .......................................121
TWEETER .......................................................122
Removal and Installation .......................................122
FRONT DOOR SPEAKER ..............................123
Removal and Installation .......................................123
REAR DOOR SPEAKER ................................124
Removal and Installation .......................................124
AUDIO ANTENNA ...........................................125
Location of Antenna ...............................................125
Removal and Installation of Roof Antenna ............125
STEERING SWITCH .......................................126
Removal and Installation .......................................126

AV-4
GPS ANTENNA ...............................................127
Removal and Installation .......................................127
DISPLAY UNIT ................................................128
Removal and Installation .......................................128
MICROPHONE .................................................129
Removal and Installation .......................................129
NAVI CONTROL UNIT .....................................130
Removal and Installation .......................................130

AV
DIAGNOSIS AND REPAIR WORKFLOW
AV-5
< BASIC INSPECTION >[AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000001728604
DETAILED FLOW
1.CHECK SYMPTOM
Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-
tion occurred).
 Check the symptom.
>> GO TO 2.
2.PERFORM DIAGNOSIS BY SYMPTOM
Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to AV-19, "
Symptom Table".
>> GO TO 3.
3.REPAIR OR REPLACE MALFUNCTIONING PARTS
Repair or replace the malfunctioning parts.
>> GO TO 4.
4.FINAL CHECK
Perform the operation to check that the malfunction symptom is solved or any other symptoms are present.
Is there any symptom?
YES >> GO TO 2.
NO >> INSPECTION END
