NISSAN TIIDA 2008 Service Repair Manual

REPAIR FOR COMPONENT PARTS
AT-259
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P
1. Drive manual shaft oil seal into transaxle case using a drift [com-
mercial service tool: 22 mm (0.87 in) dia.].
CAUTION:
• Do not reuse manual shaft oil seal.
• Apply ATF to outer surface of manual shaft oil seal.
2. Install parking rod to parking rod plate.
3. Insert manual shaft (1) to transaxle case, and install manual
plate (2) to manual shaft (1).
4. Install parking rod plate (with parking rod) (3) to manual shaft
(1).
5. Align groove of manual shaft and hole of transaxle case using a
pin punch A [commercial service tool: 2 mm (0.08 in) dia.].
6. Drive retaining pin of manual shaft into transaxle case using Tool
B.
CAUTION:
Do not reuse retaining pin.
7. Set parking rod plate (1) onto manual shaft, and drive retaining
pin (2) of parking rod plate (1).
CAUTION:
The retaining pin end should protrude approx. 3mm (0.12
in) (B) from the outer surface of parking rod plate (1).
8. Set manual plate (1) onto manual shaft, and drive retaining pin
(2) of manual plate (1).
CAUTION:
The retaining pin end should protrude approx. 3mm (0.12
in) (B) from the outer surface of manual plate (1).
SAT081D
SCIA7005E
Tool number: ST23540000 (J-25689-A)
SCIA7006E
Tool number: ST23540000 (J-25689-A)
SCIA7107E
Tool number: ST23540000 (J-25698-A)
SCIA7108E

AT-260
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS
9. Install detent spring on transaxle case.
10. Tighten detent spring fitting bolt to the specified torque. Refer to
"COMPONENTS".
Oil PumpINFOID:0000000001703379
COMPONENTS
DISASSEMBLY
1. Remove seal rings (1) from oil pump assembly (2).
SAT042F
1. Oil pump housing oil seal 2. Oil pump housing 3. Outer gear
4. Inner gear 5. Oil pump cover 6. Seal ring
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".
SCIA5908J
SCIA7016E

REPAIR FOR COMPONENT PARTS
AT-261
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P
2. Remove bolts in the order as shown in the figure, and remove oil
pump cover.
3. Remove inner gear and outer gear from oil pump housing.
4. Remove oil pump housing oil seal using a flat-bladed screw-
driver.
CAUTION:
Be careful not to scratch oil pump housing.
INSPECTION
Oil Pump Housing, Oil Pump Cover, Inner Gear and Outer Gear
Check for wear or damage. Replace if necessary.
Side Clearances
SAT091D
SAT092D
SCIA2840E

AT-262
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS
• Measure side clearance of inner gear and outer gear in at least
four places around each outside edge. Clearances measured val-
ues should be within the specified clearance.
• If clearance is less than standard, select inner gear and outer gear
as a set so that clearance is within specifications. Refer to “Parts
Information” for the inner gear and outer gear selection.
• If clearance is more than standard, replace whole oil pump assem-
bly except oil pump cover.
• Measure clearance between outer gear and oil pump housing.
• If not within allowable limit, replace whole oil pump assembly
except oil pump cover.
Seal Ring Clearance
• Measure clearance between seal ring and ring groove.
• If not within allowable limit, replace oil pump cover assembly.
ASSEMBLY
Standard clearance: Refer to AT-345, "Oil Pump".
SCIA4957E
Standard clearance and allowable limit:
Refer to AT-345, "
Oil Pump".
SAT096D
Standard clearance and allowable limit:
Refer to AT-345, "
Oil Pump".
SAT097D

REPAIR FOR COMPONENT PARTS
AT-263
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P
1. Install oil pump housing oil seal on oil pump housing.
CAUTION:
• Do not reuse oil pump housing oil seal.
• Apply ATF to outer surface of oil pump housing oil seal.
2. Install inner gear and outer gear on oil pump housing.
CAUTION:
Be careful with the direction of inner gear.
3. Install oil pump cover on oil pump housing.
a. Wrap masking tape around splines of oil pump cover assembly
to protect seal. Position oil pump cover assembly on oil pump
housing assembly, then remove masking tape.
b. Tighten oil pump cover fitting bolts in the order as shown in the
figure, and then tighten them to the specified torque in the same
order. Refer to "COMPONENTS".
4. Install seal rings (1) to oil pump assembly (2) carefully after
packing ring groove with petroleum jelly.
CAUTION:
Do not spread gap of seal rings (1) excessively while install-
ing. The seal rings (1) may be deformed.
Control Valve AssemblyINFOID:0000000001703380
COMPONENTS
SCIA5386E
SAT092D
SAT101D
SCIA7016E

AT-264
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS
DISASSEMBLY

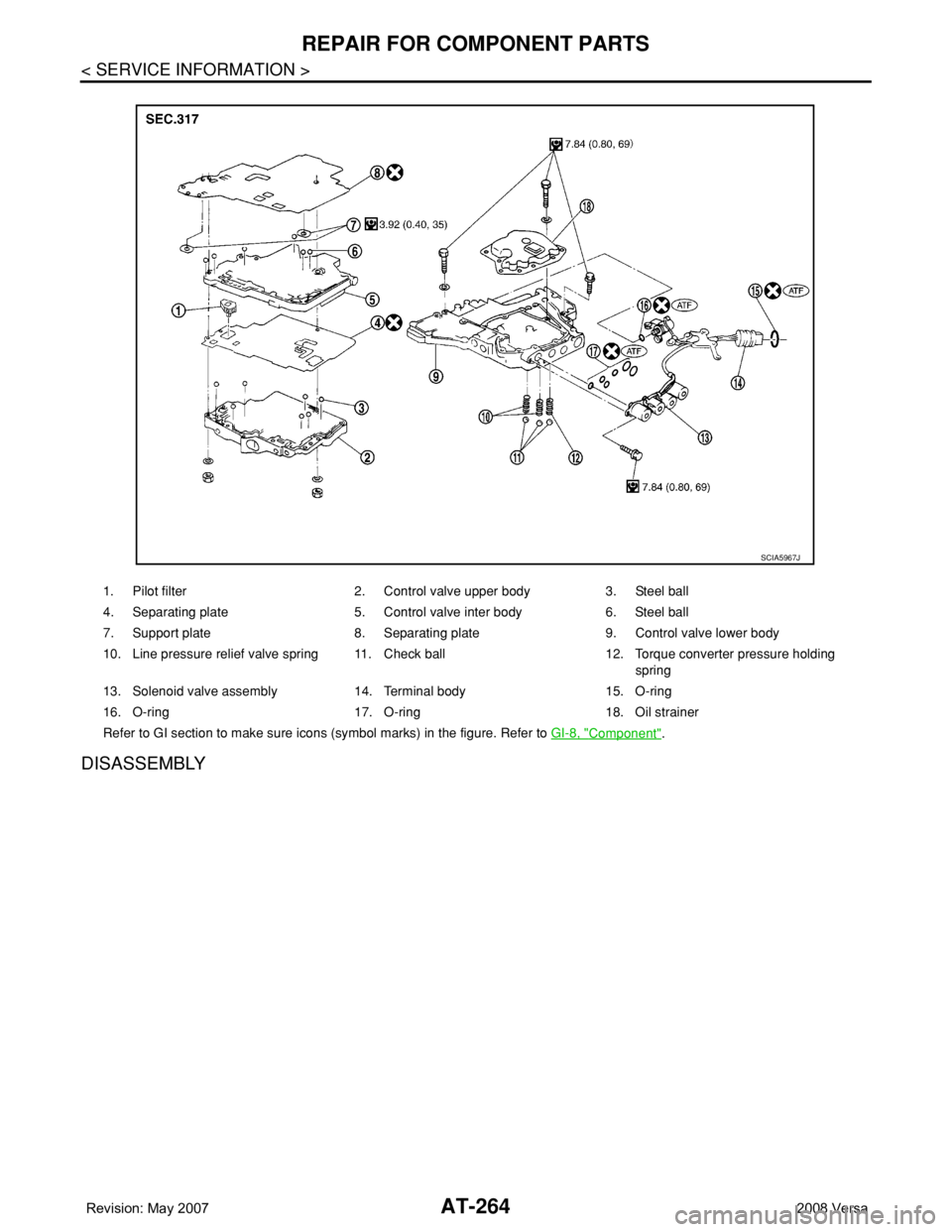

1. Pilot filter 2. Control valve upper body 3. Steel ball
4. Separating plate 5. Control valve inter body 6. Steel ball
7. Support plate 8. Separating plate 9. Control valve lower body
10. Line pressure relief valve spring 11. Check ball 12. Torque converter pressure holding
spring
13. Solenoid valve assembly 14. Terminal body 15. O-ring
16. O-ring 17. O-ring 18. Oil strainer
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".
SCIA5967J

REPAIR FOR COMPONENT PARTS
AT-265
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P

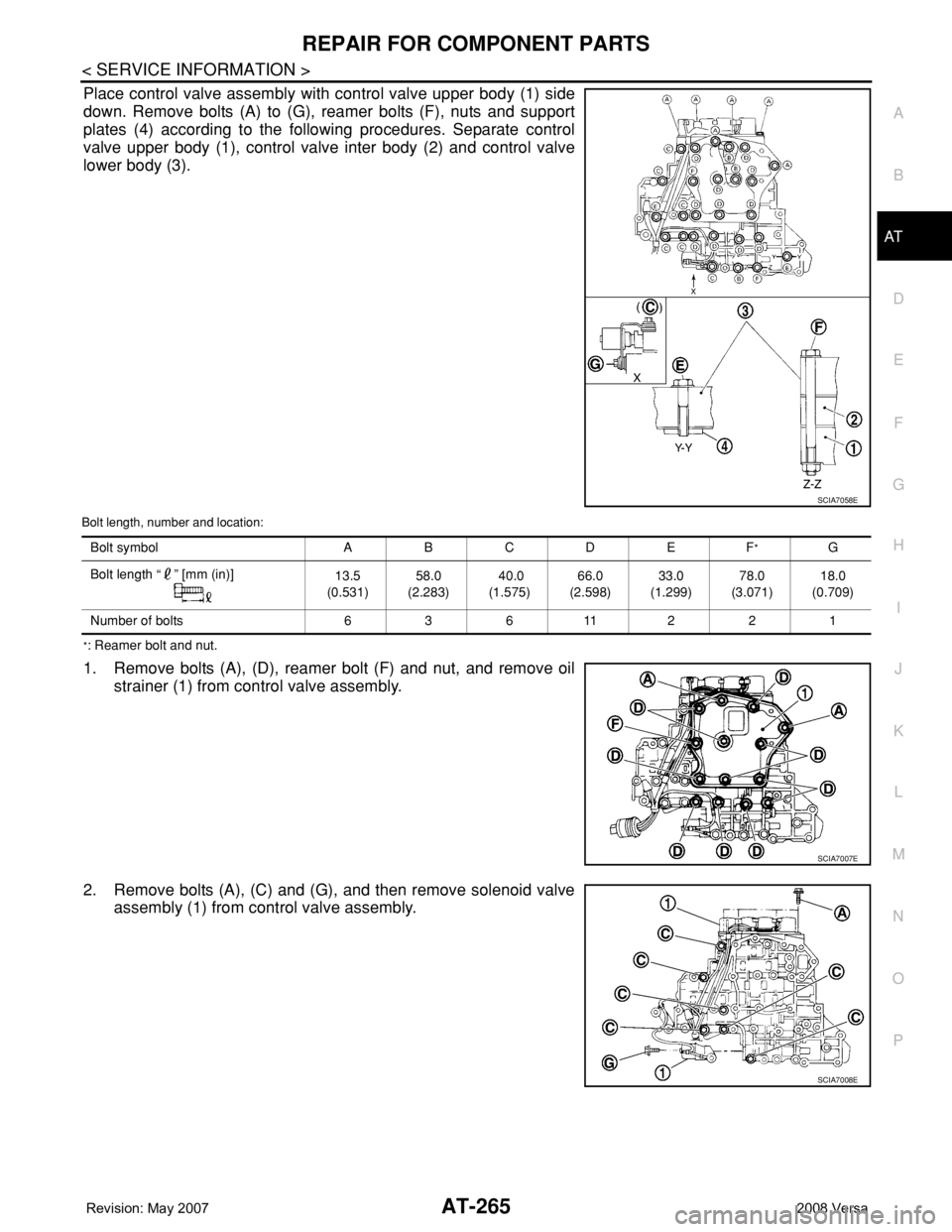

Place control valve assembly with control valve upper body (1) side
down. Remove bolts (A) to (G), reamer bolts (F), nuts and support
plates (4) according to the following procedures. Separate control
valve upper body (1), control valve inter body (2) and control valve
lower body (3).
Bolt length, number and location:
*: Reamer bolt and nut.
1. Remove bolts (A), (D), reamer bolt (F) and nut, and remove oil
strainer (1) from control valve assembly.
2. Remove bolts (A), (C) and (G), and then remove solenoid valve
assembly (1) from control valve assembly.
SCIA7058E
Bolt symbol A B C D E F*G
Bolt length “ ” [mm (in)]
13.5
(0.531)58.0
(2.283) 40.0
(1.575)66.0
(2.598)33.0
(1.299)78.0
(3.071)18.0
(0.709)
Number of bolts 6 3 6 11 2 2 1
SCIA7007E
SCIA7008E

AT-266
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS

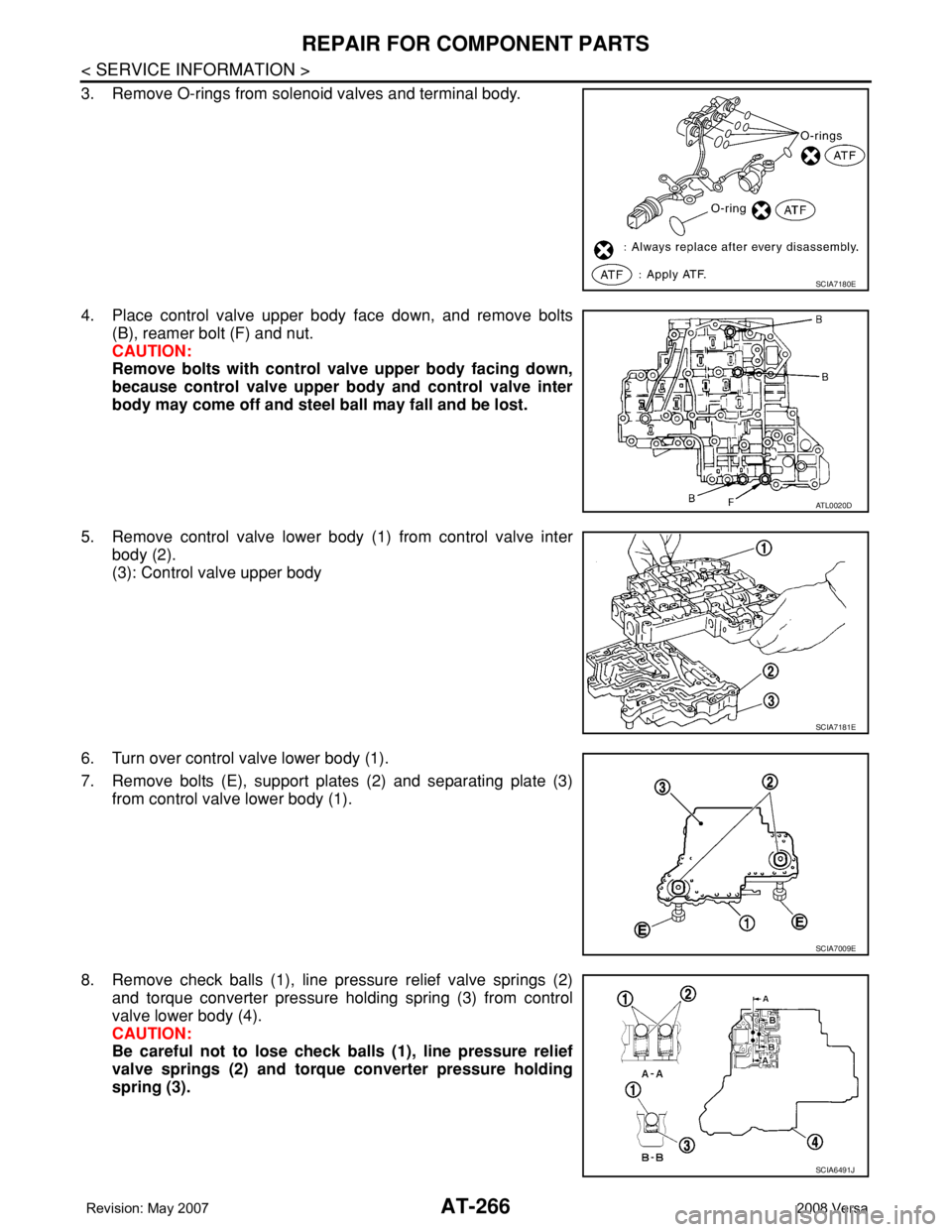

3. Remove O-rings from solenoid valves and terminal body.
4. Place control valve upper body face down, and remove bolts
(B), reamer bolt (F) and nut.
CAUTION:
Remove bolts with control valve upper body facing down,
because control valve upper body and control valve inter
body may come off and steel ball may fall and be lost.
5. Remove control valve lower body (1) from control valve inter
body (2).
(3): Control valve upper body
6. Turn over control valve lower body (1).
7. Remove bolts (E), support plates (2) and separating plate (3)
from control valve lower body (1).
8. Remove check balls (1), line pressure relief valve springs (2)
and torque converter pressure holding spring (3) from control
valve lower body (4).
CAUTION:
Be careful not to lose check balls (1), line pressure relief
valve springs (2) and torque converter pressure holding
spring (3).
SCIA7180E
ATL0020D
SCIA7181E
SCIA7009E
SCIA6491J

REPAIR FOR COMPONENT PARTS
AT-267
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P

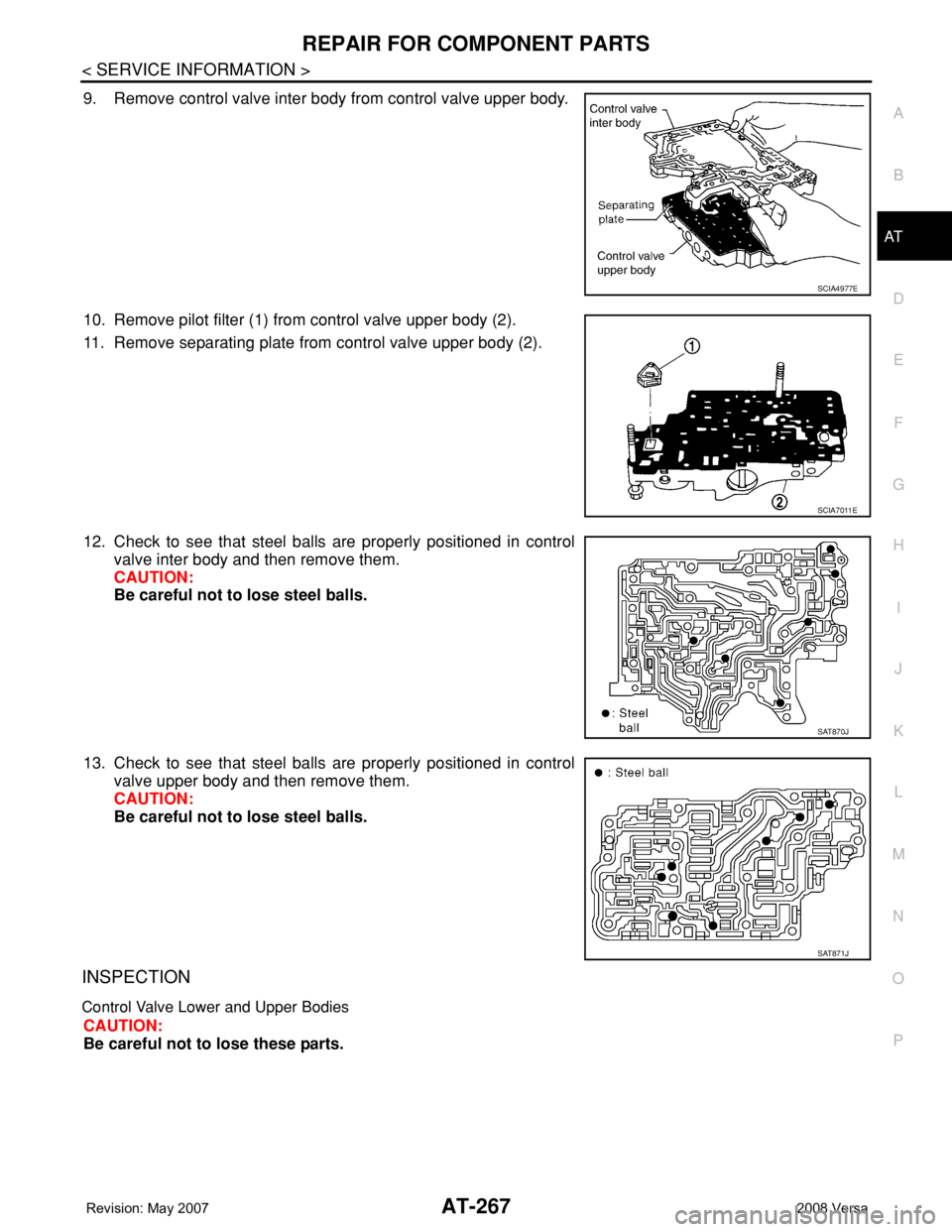

9. Remove control valve inter body from control valve upper body.
10. Remove pilot filter (1) from control valve upper body (2).
11. Remove separating plate from control valve upper body (2).
12. Check to see that steel balls are properly positioned in control
valve inter body and then remove them.
CAUTION:
Be careful not to lose steel balls.
13. Check to see that steel balls are properly positioned in control
valve upper body and then remove them.
CAUTION:
Be careful not to lose steel balls.
INSPECTION
Control Valve Lower and Upper Bodies
CAUTION:
Be careful not to lose these parts.
SCIA4977E
SCIA7011E
SAT870J
SAT871J

AT-268
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS

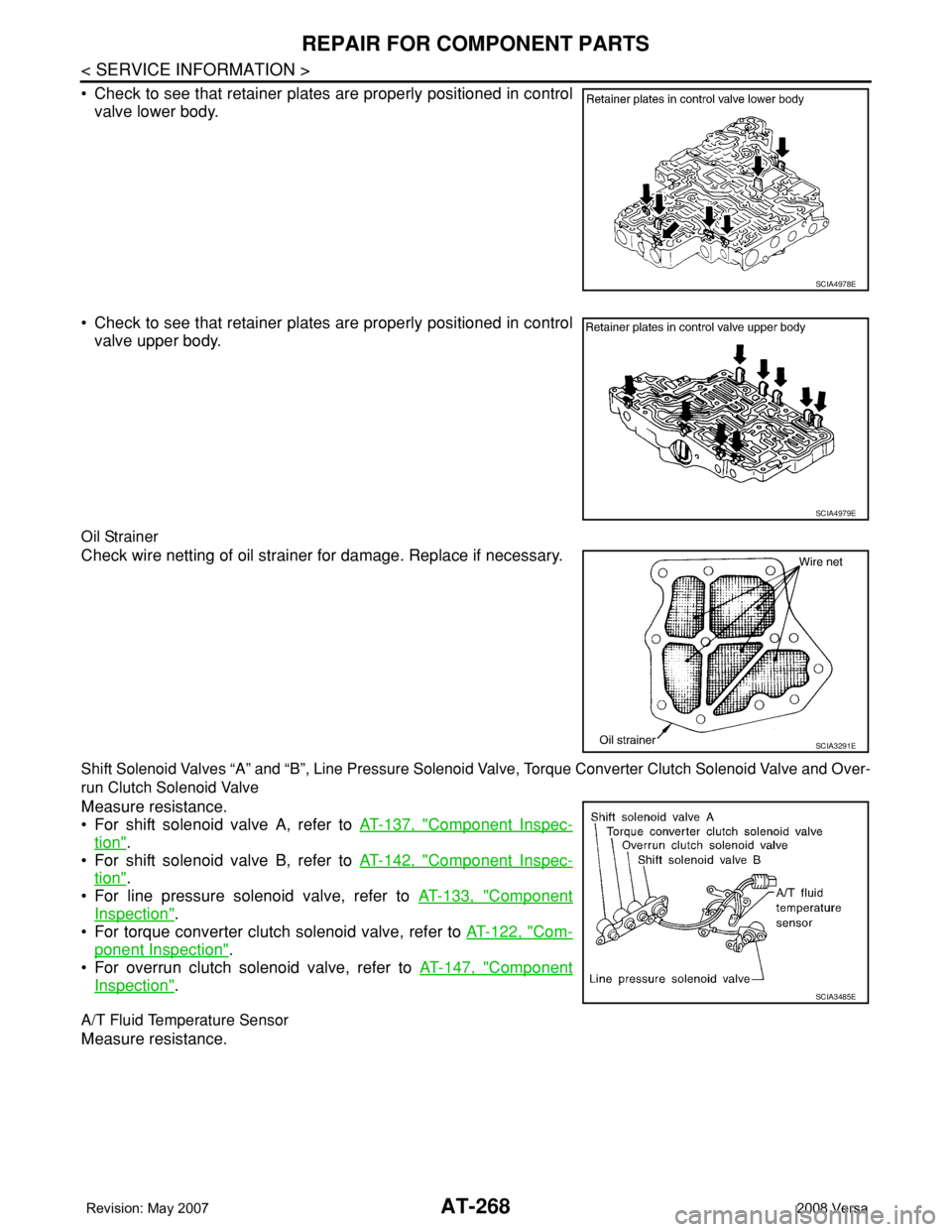

• Check to see that retainer plates are properly positioned in control
valve lower body.
• Check to see that retainer plates are properly positioned in control
valve upper body.
Oil Strainer
Check wire netting of oil strainer for damage. Replace if necessary.
Shift Solenoid Valves “A” and “B”, Line Pressure Solenoid Valve, Torque Converter Clutch Solenoid Valve and Over-
run Clutch Solenoid Valve
Measure resistance.
• For shift solenoid valve A, refer to AT-137, "
Component Inspec-
tion".
• For shift solenoid valve B, refer to AT-142, "
Component Inspec-
tion".
• For line pressure solenoid valve, refer to AT-133, "
Component
Inspection".
• For torque converter clutch solenoid valve, refer to AT-122, "
Com-
ponent Inspection".
• For overrun clutch solenoid valve, refer to AT-147, "
Component
Inspection".
A/T Fluid Temperature Sensor
Measure resistance.
SCIA4978E
SCIA4979E
SCIA3291E
SCIA3485E
