NISSAN TIIDA 2009 Service Repair Manual

SCIA6020J
SCIA5994E
SCIA7769E

AT
N
O P
• MR18DE engine models
(1): Snap ring
(2): Retaining plate
(3): Drive plate
(4): Driven plate
(5): Retaining plate
(6): Dish plate
Drive plate/Driven plate: 5/5
CAUTION:
Be careful with the order of plates
NOTE:
Install two dish plates fitting each installation direction with
groove displaced slightly.
6. Install snap ring (1) using a suitable tool (A).
7. Measure clearance between retaining plate and snap ring. If not within allowable limit, select proper retaining plate (front side).
Refer to “Parts Information” for retaining plate selection.
8. Check operation of low & reverse brake. Refer to "DISASSEM- BLY".
Rear Internal Gear and Forward Clutch Hub INFOID:0000000004305524
COMPONENTS Clutches and Brakes " .

SAT251D
SCIA3691E

AT
N
O P

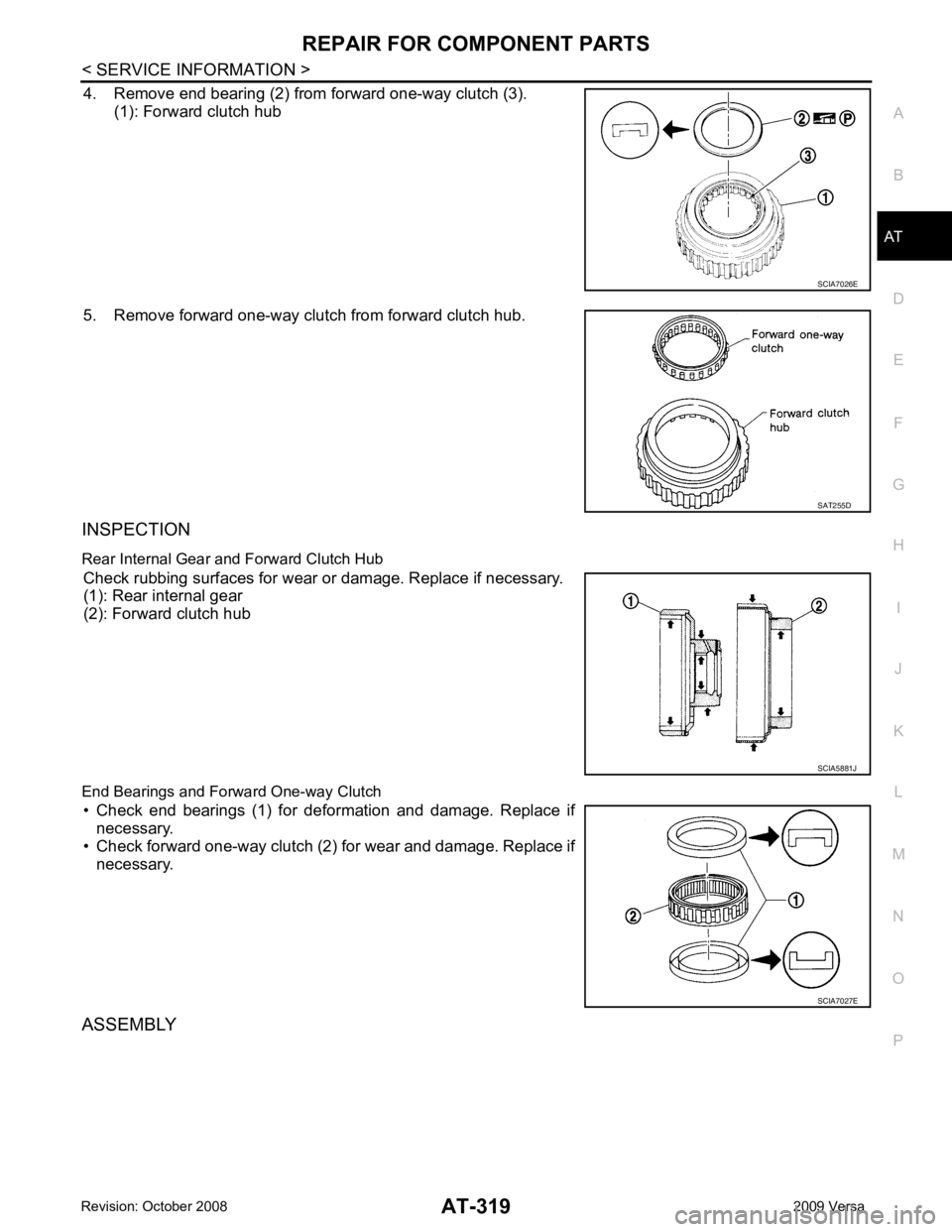

4. Remove end bearing (2) from forward one-way clutch (3).
(1): Forward clutch hub
5. Remove forward one-way clutch from forward clutch hub.
INSPECTION
Rear Internal Gear and Forward Clutch Hub Check rubbing surfaces for wear or damage. Replace if necessary.
(1): Rear internal gear
(2): Forward clutch hub
End Bearings and Forward One-way Clutch • Check end bearings (1) for deformation and damage. Replace if necessary.
• Check forward one-way clutch (2) for wear and damage. Replace if
necessary.
ASSEMBLY SAT255D

SCIA7026E
SCIA3690E
AAT426

AT
N
O P

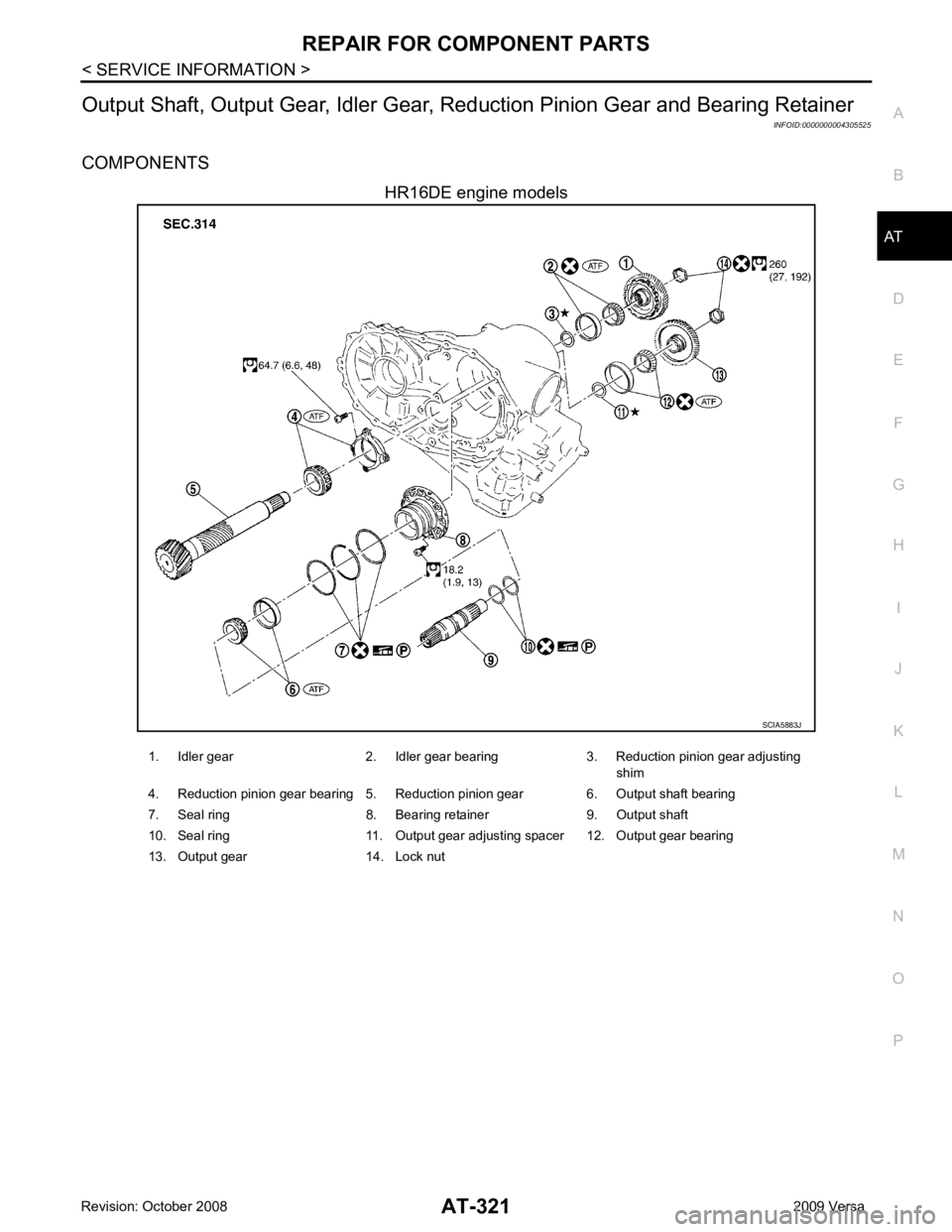

Output Shaft, Output Gear,
Idler Gear, Reduction Pinion Gear and Bearing Retainer
INFOID:0000000004305525
COMPONENTS HR16DE engine models

AT
N
O P

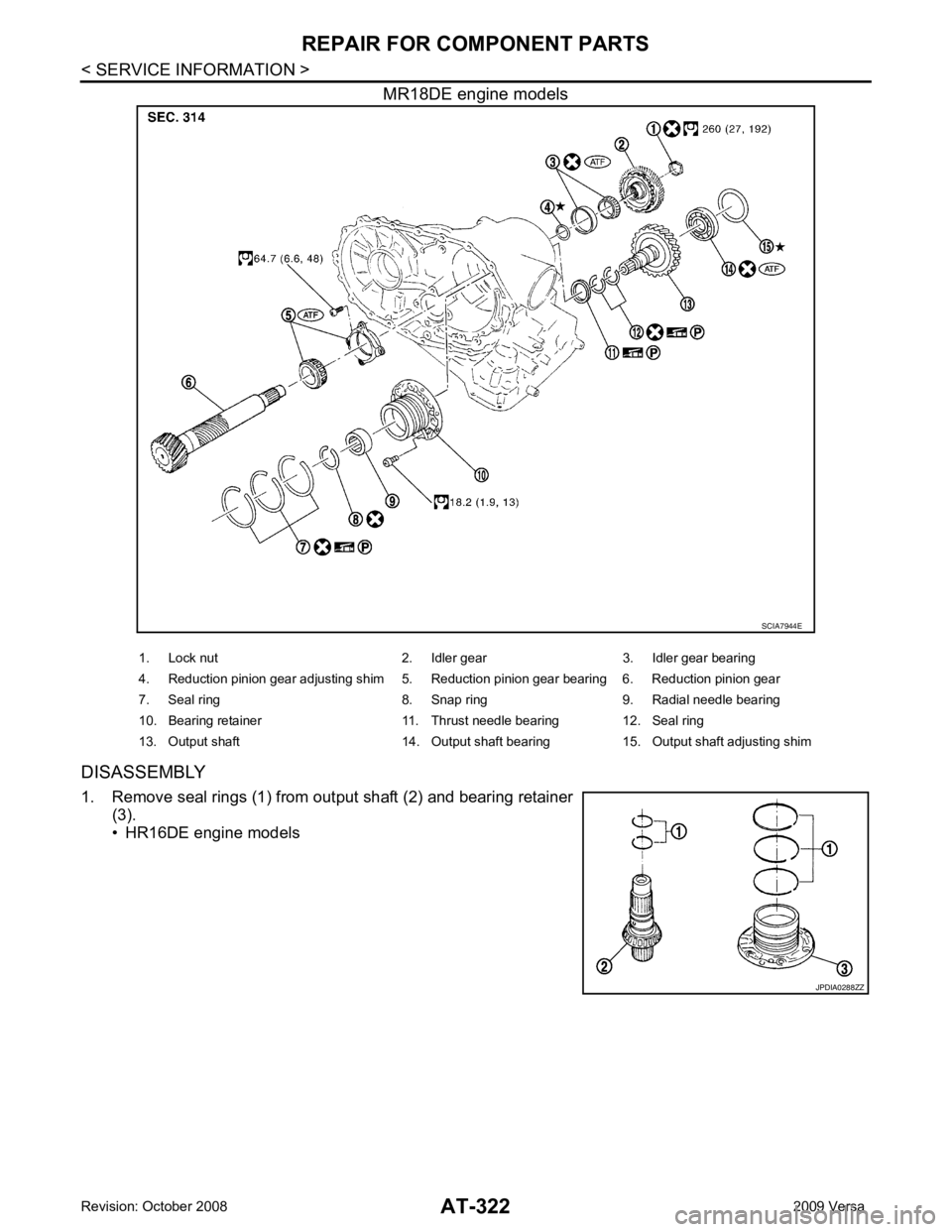

• MR18DE engine models

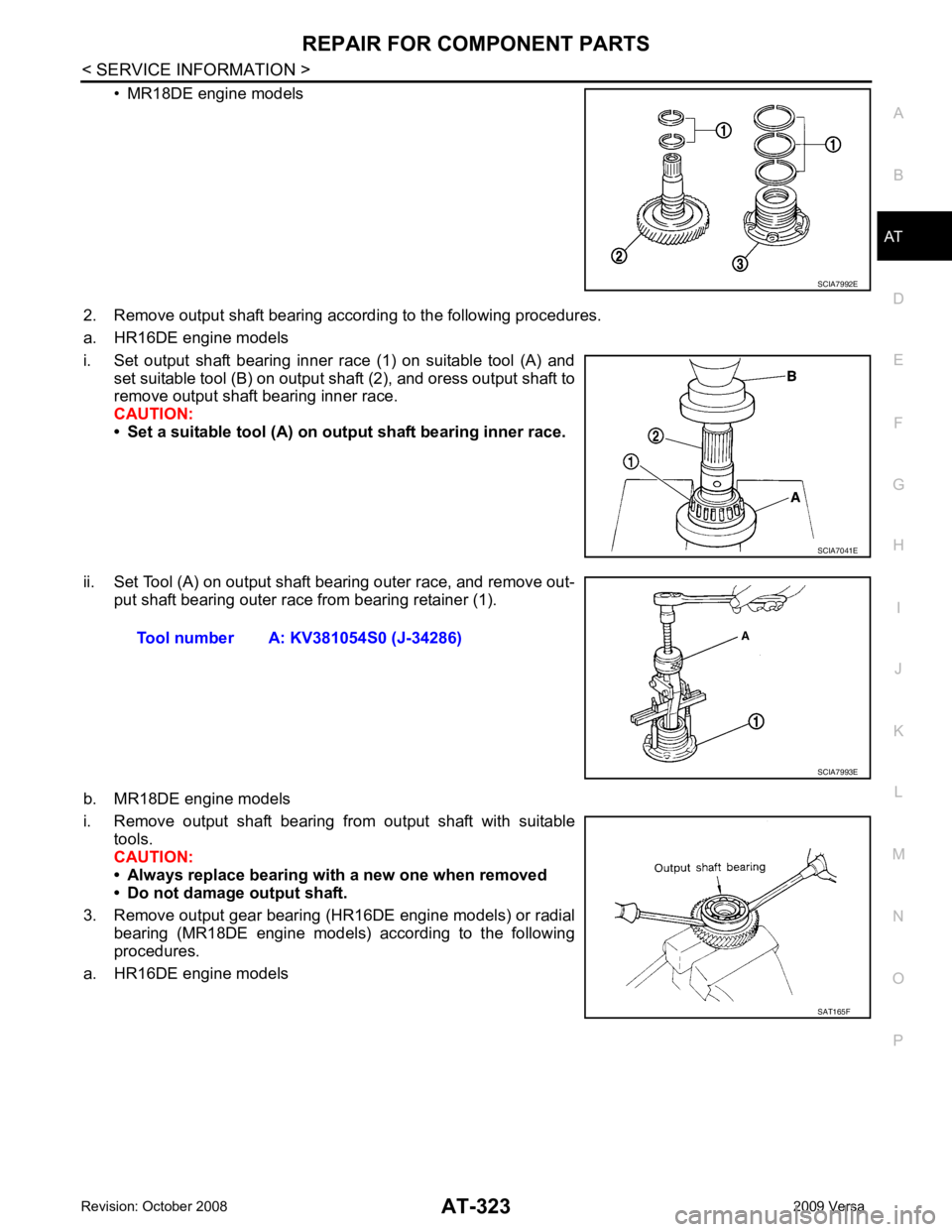

2. Remove output shaft bearing according to the following procedures.
a. HR16DE engine models
i. Set output shaft bearing inner race (1) on suitable tool (A) and set suitable tool (B) on output shaft (2), and oress output shaft to
remove output shaft bearing inner race.
CAUTION:
• Set a suitable tool (A) on output shaft bearing inner race.
ii. Set Tool (A) on output shaft bearing outer race, and remove out- put shaft bearing outer race from bearing retainer (1).
b. MR18DE engine models
i. Remove output shaft bearing from output shaft with suitable tools.
CAUTION:
• Always replace bearing with a new one when removed
• Do not damage output shaft.
3. Remove output gear bearing (HR16DE engine models) or radial bearing (MR18DE engine models) according to the following
procedures.
a. HR16DE engine models SAT165F

SCIA7043E
JSDIA0241ZZ

AT
N
O P

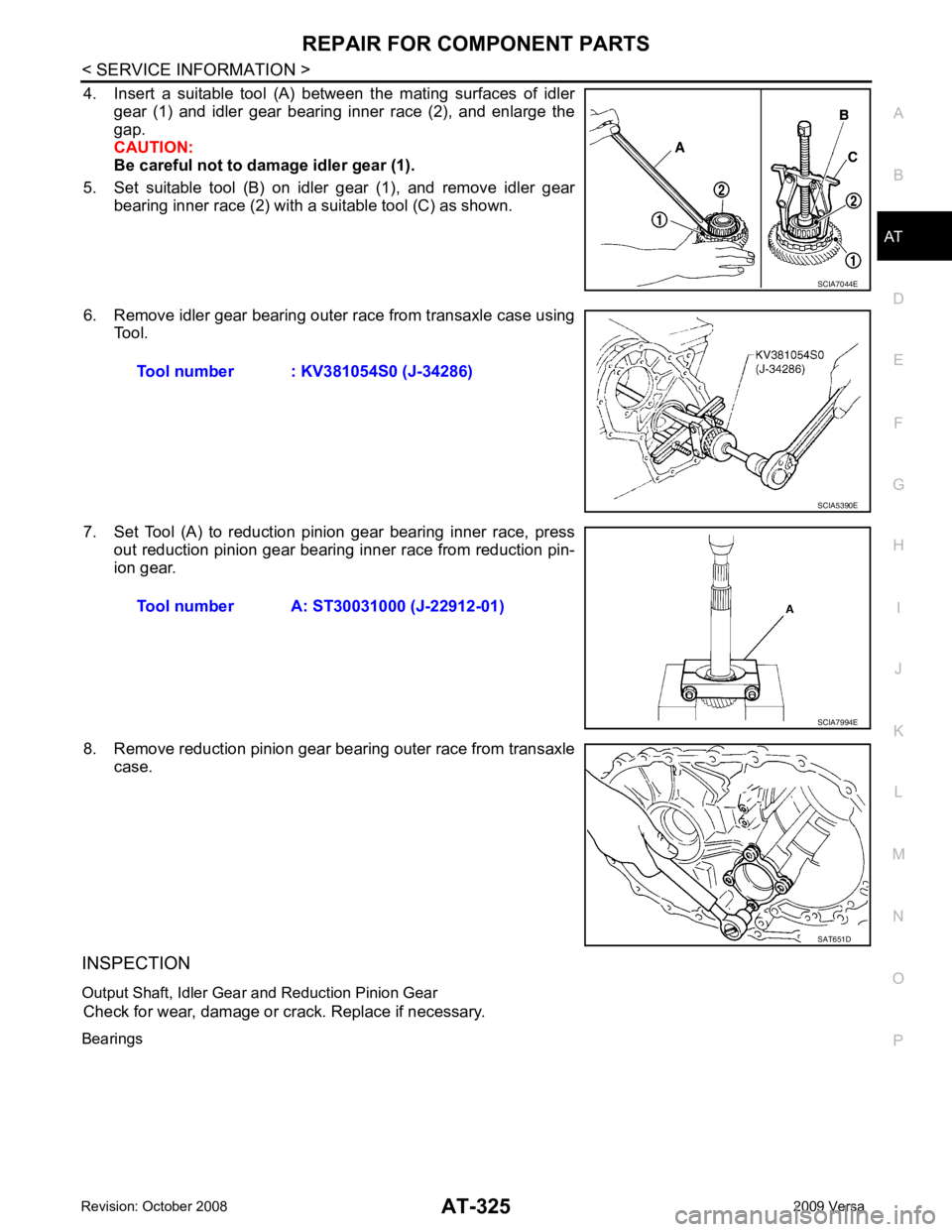

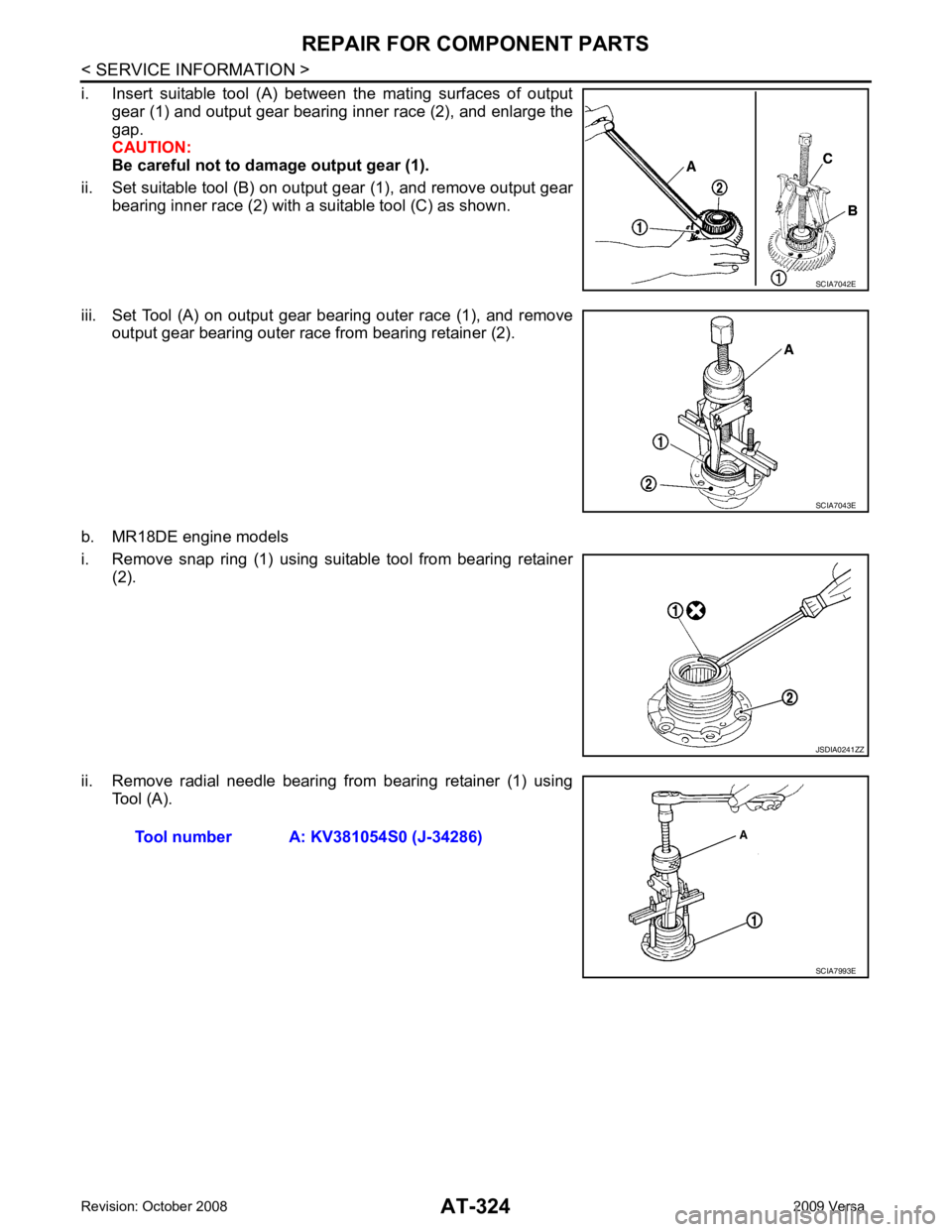

4. Insert a suitable tool (A) between the mating surfaces of idler
gear (1) and idler gear bearing inner race (2), and enlarge the
gap.
CAUTION:
Be careful not to damage idler gear (1).
5. Set suitable tool (B) on idler gear (1), and remove idler gear bearing inner race (2) with a suitable tool (C) as shown.
6. Remove idler gear bearing outer race from transaxle case using Tool.
7. Set Tool (A) to reduction pinion gear bearing inner race, press out reduction pinion gear bearing inner race from reduction pin-
ion gear.
8. Remove reduction pinion gear bearing outer race from transaxle case.
INSPECTION
Output Shaft, Idler Gear and Reduction Pinion Gear Check for wear, damage or crack. Replace if necessary.
Bearings
