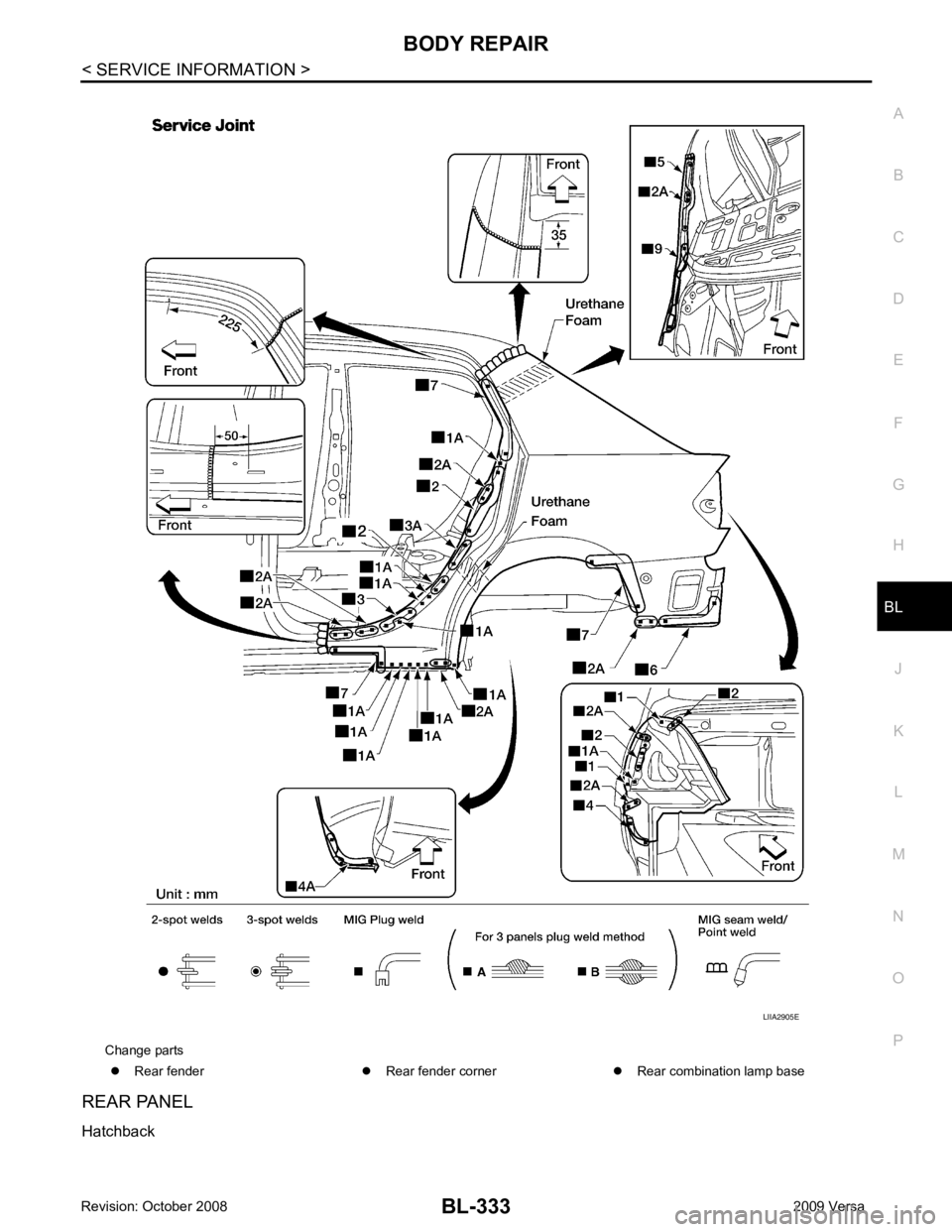

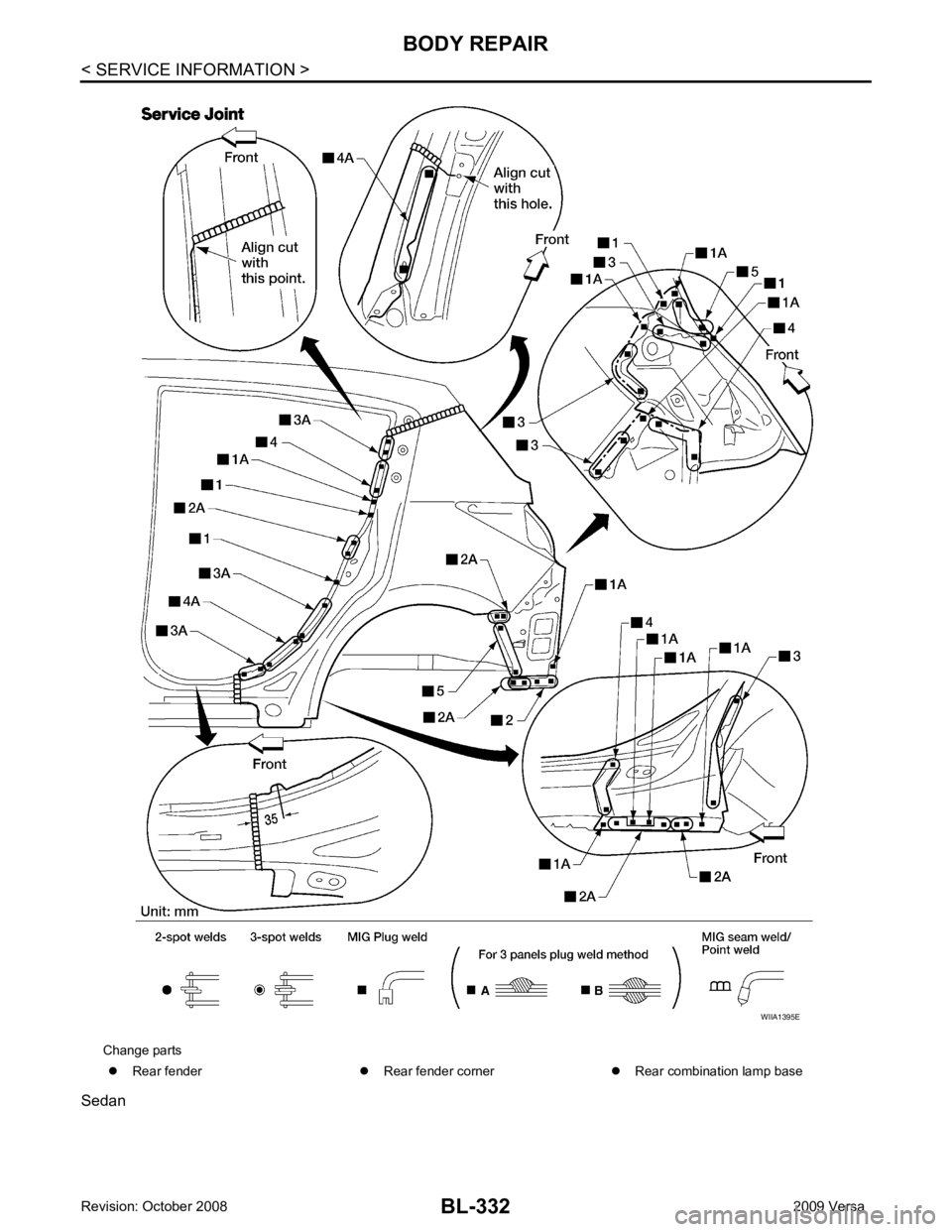

REAR FENDER
Hatchback Change parts

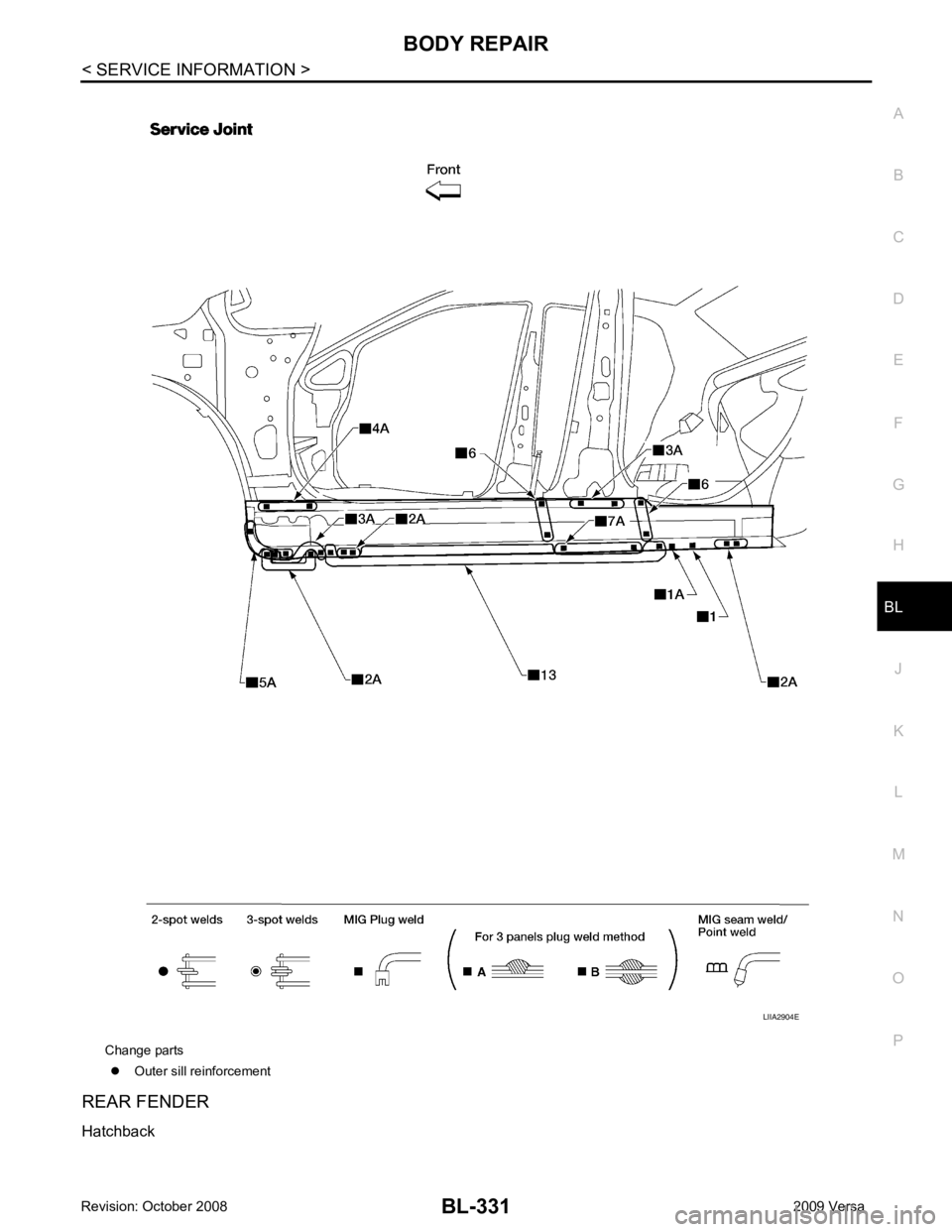

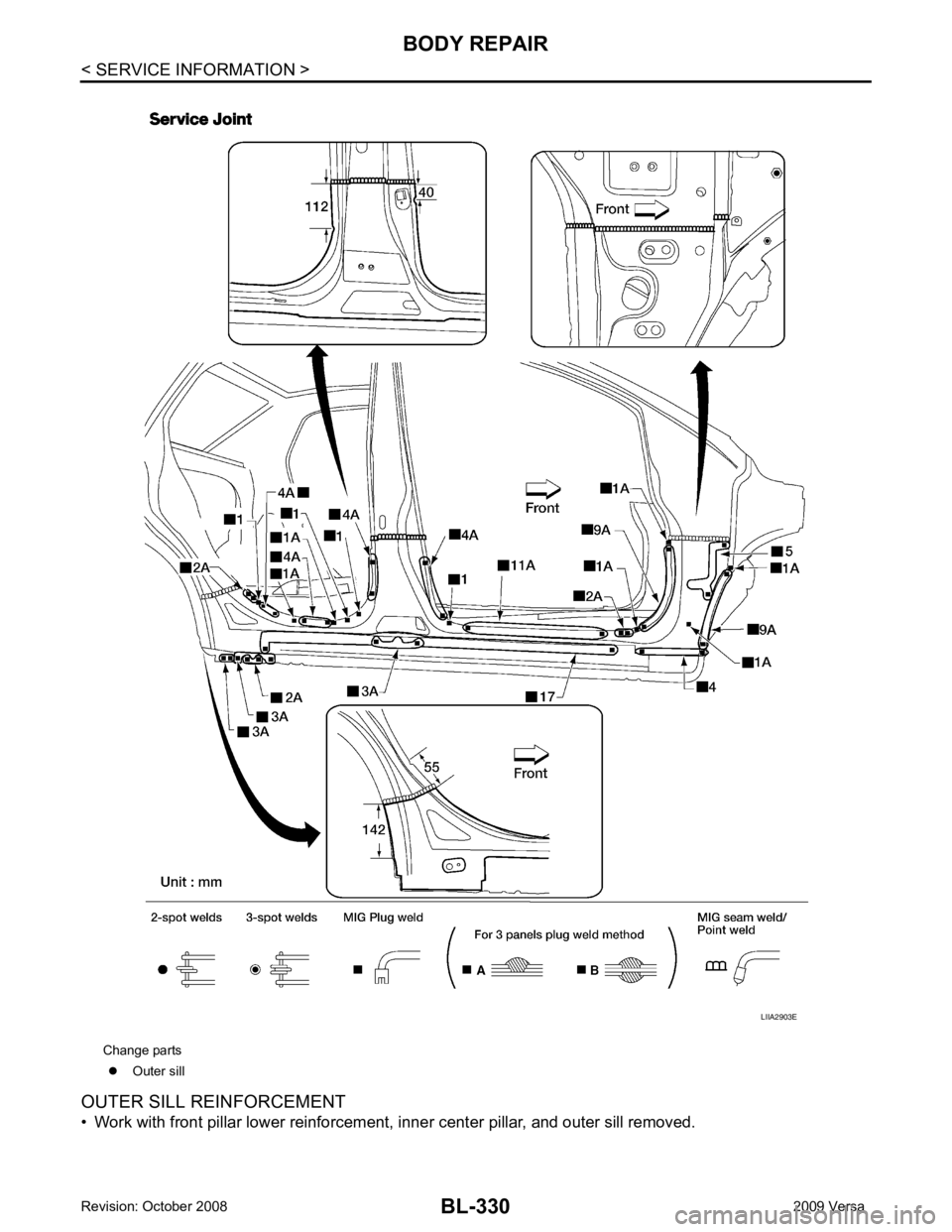

z Outer sill reinforcement

BL
N
O P

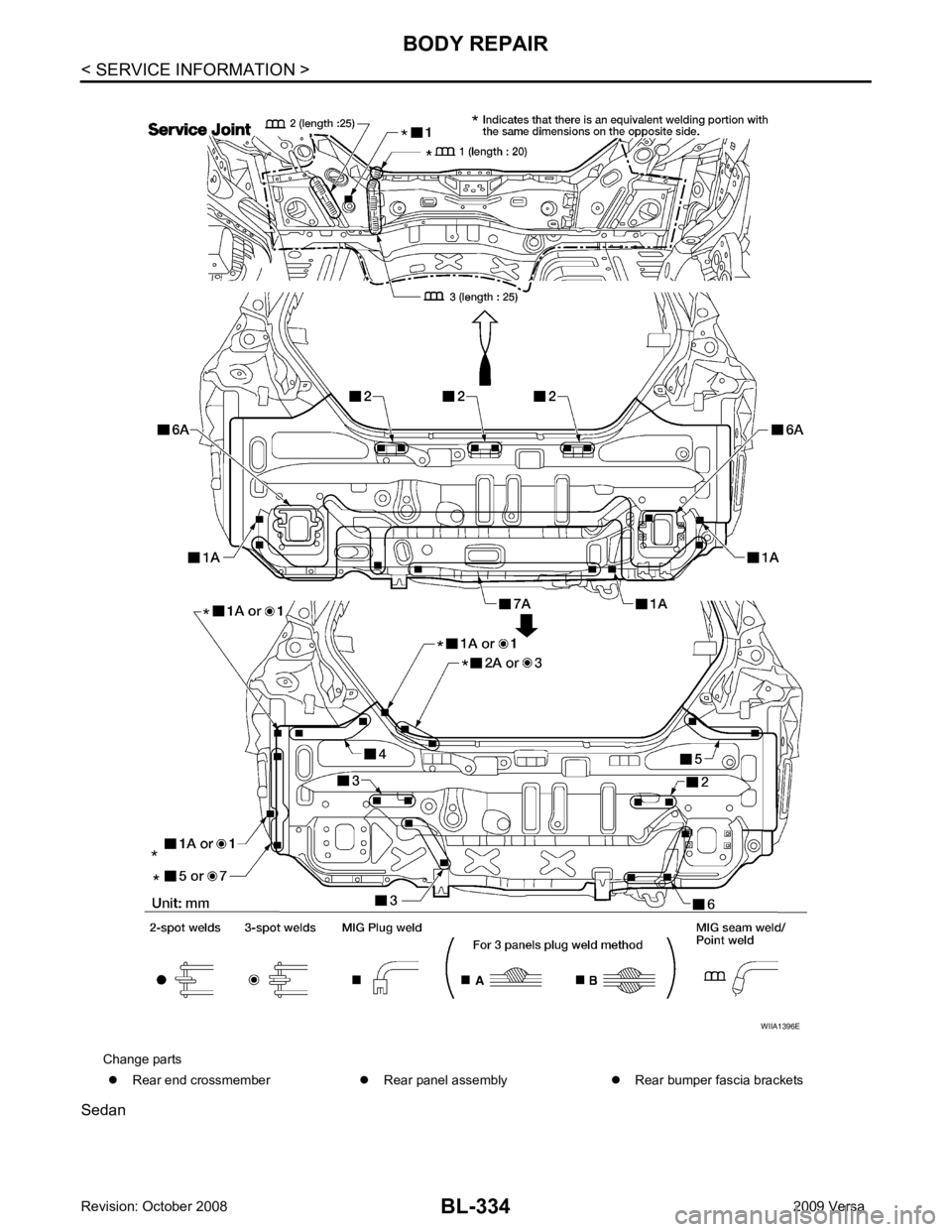

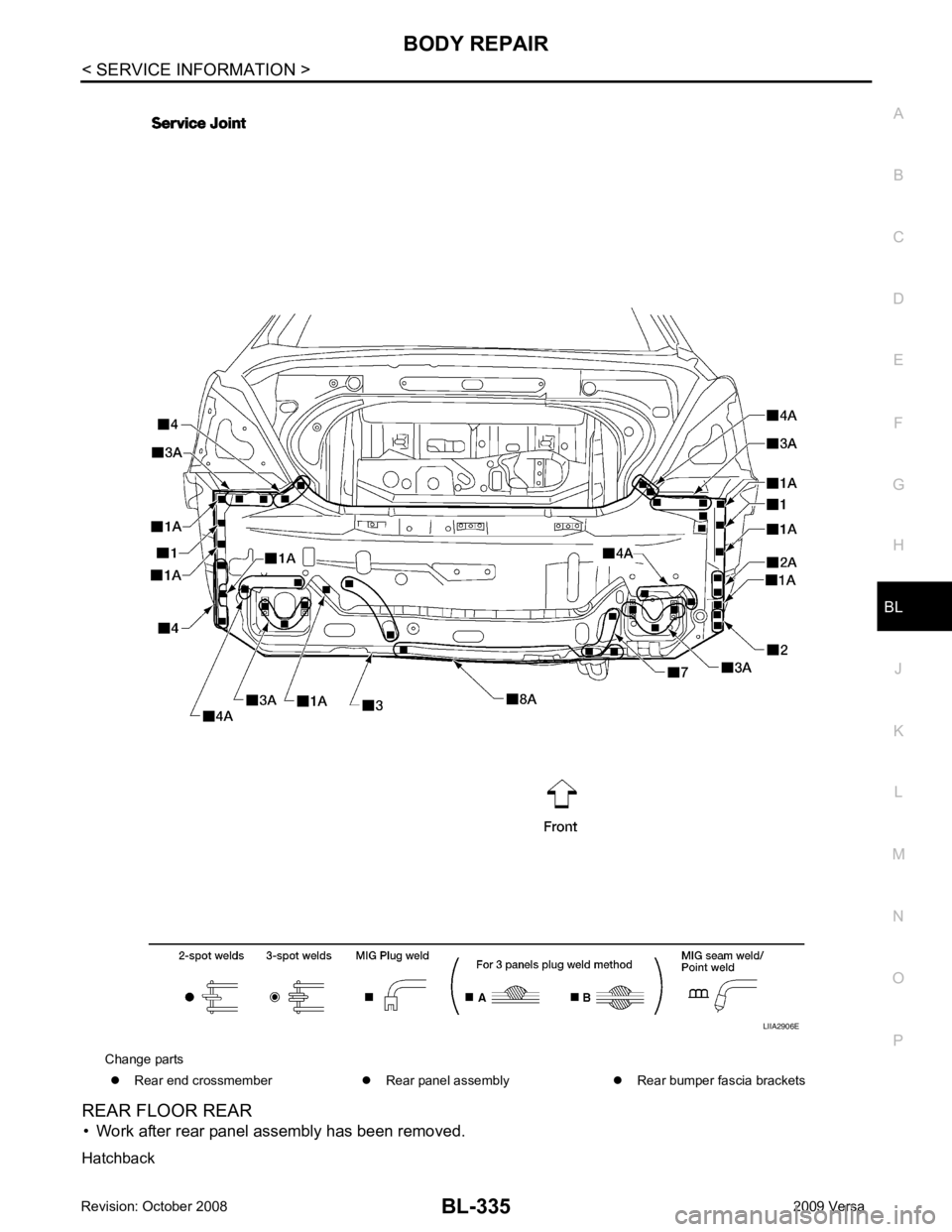

REAR PANEL
Hatchback Change parts
z Rear fender zRear fender corner zRear combination lamp base

BL
N
O P

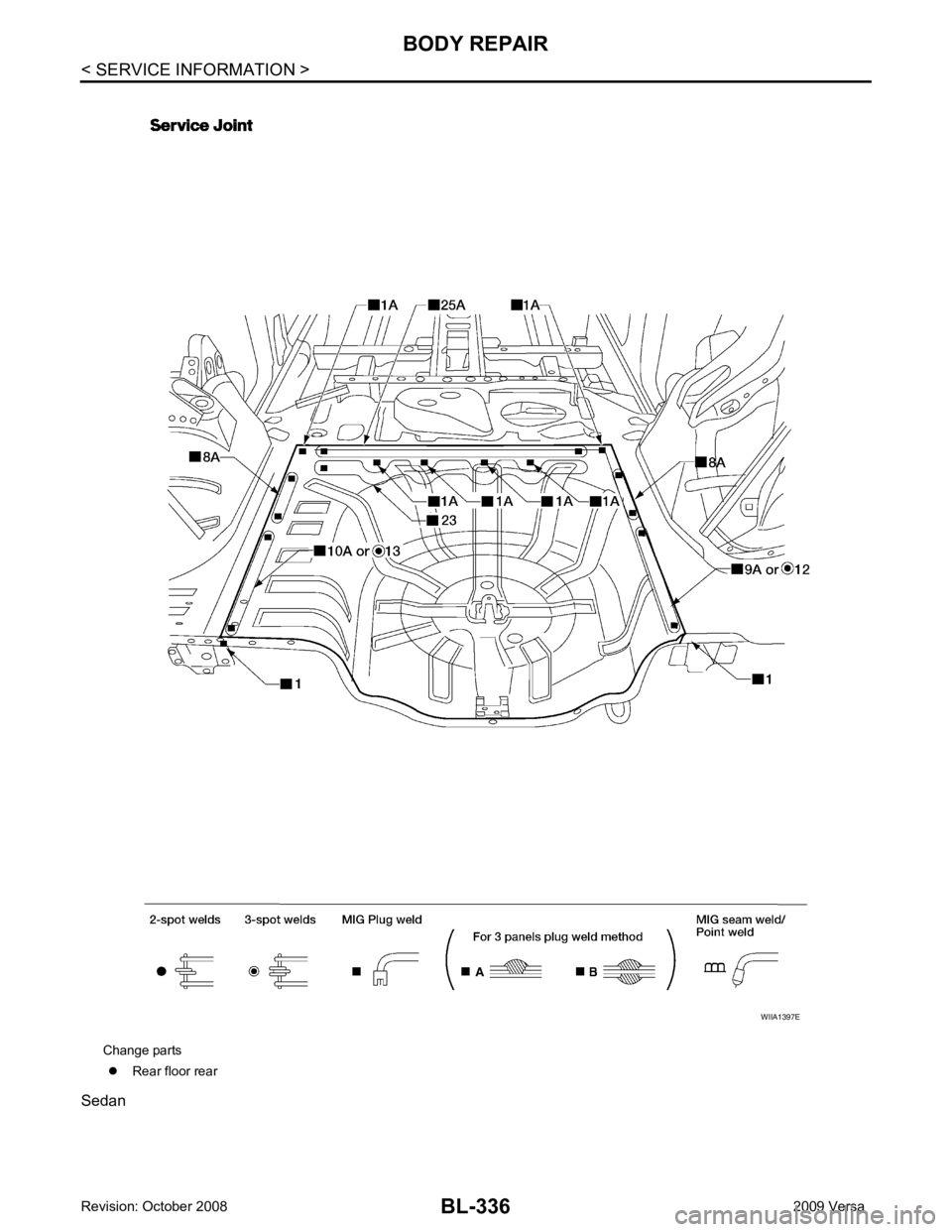

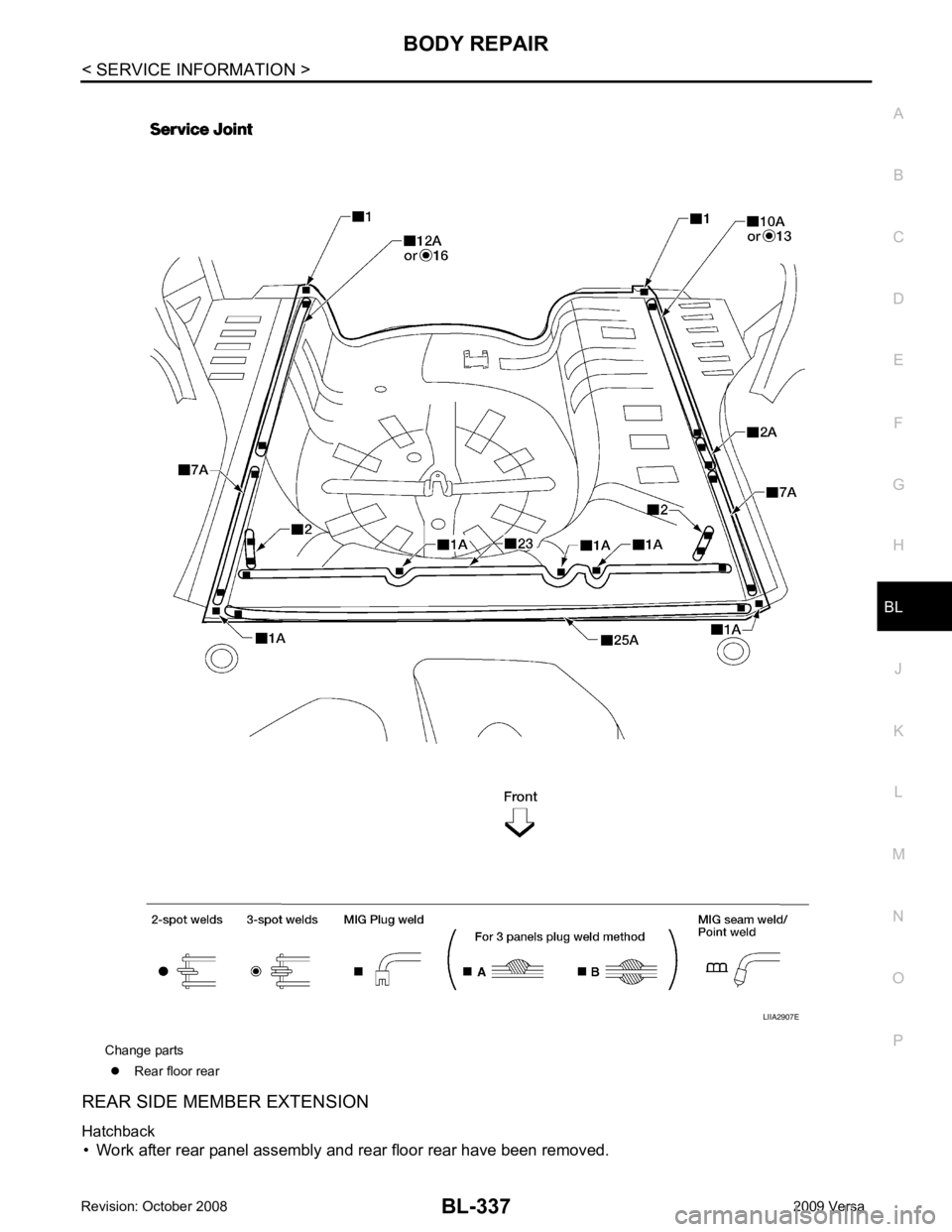

REAR FLOOR REAR • Work after rear panel assembly has been removed.
Hatchback Change parts
z Rear end crossmember zRear panel assembly zRear bumper fascia brackets

BL
N
O P

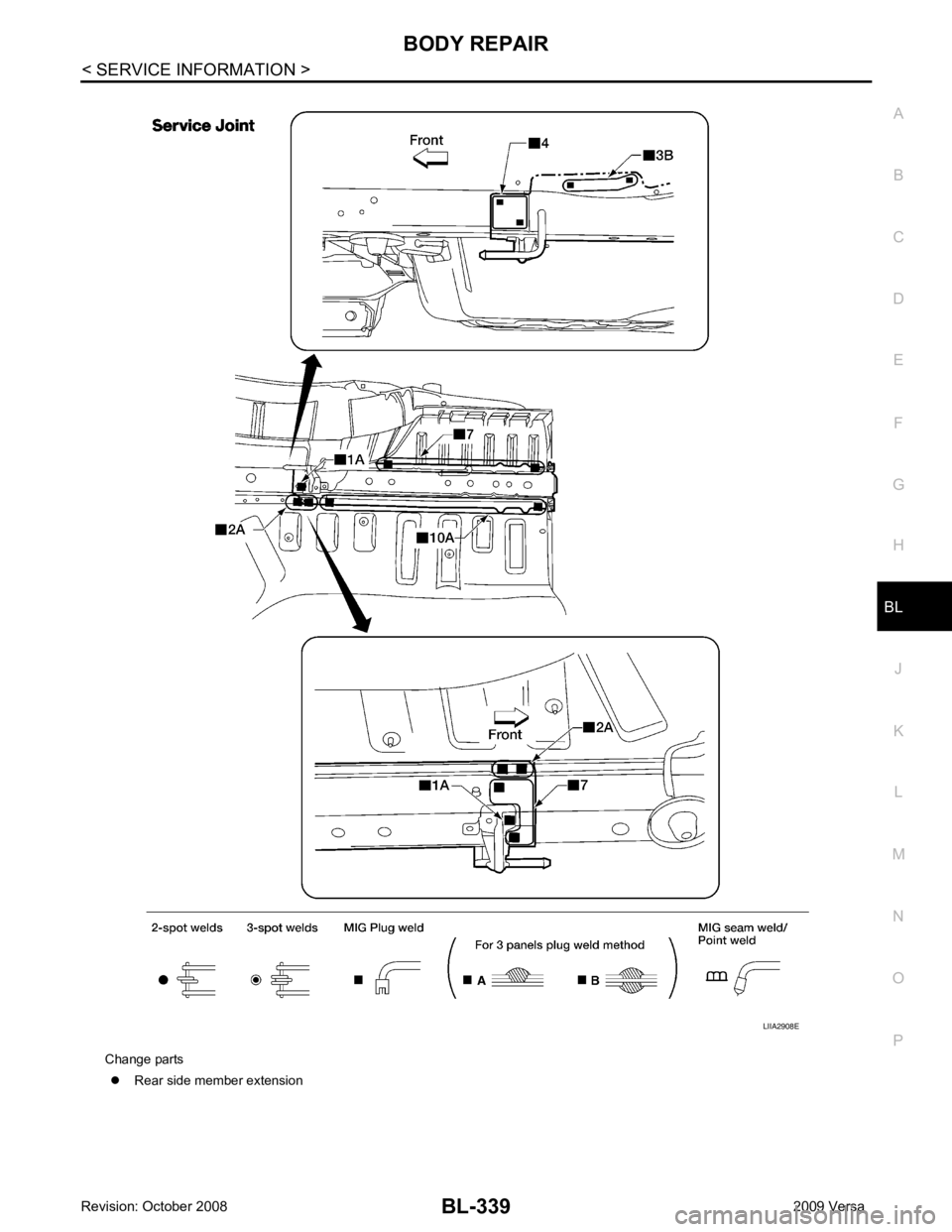

REAR SIDE MEMBER EXTENSION

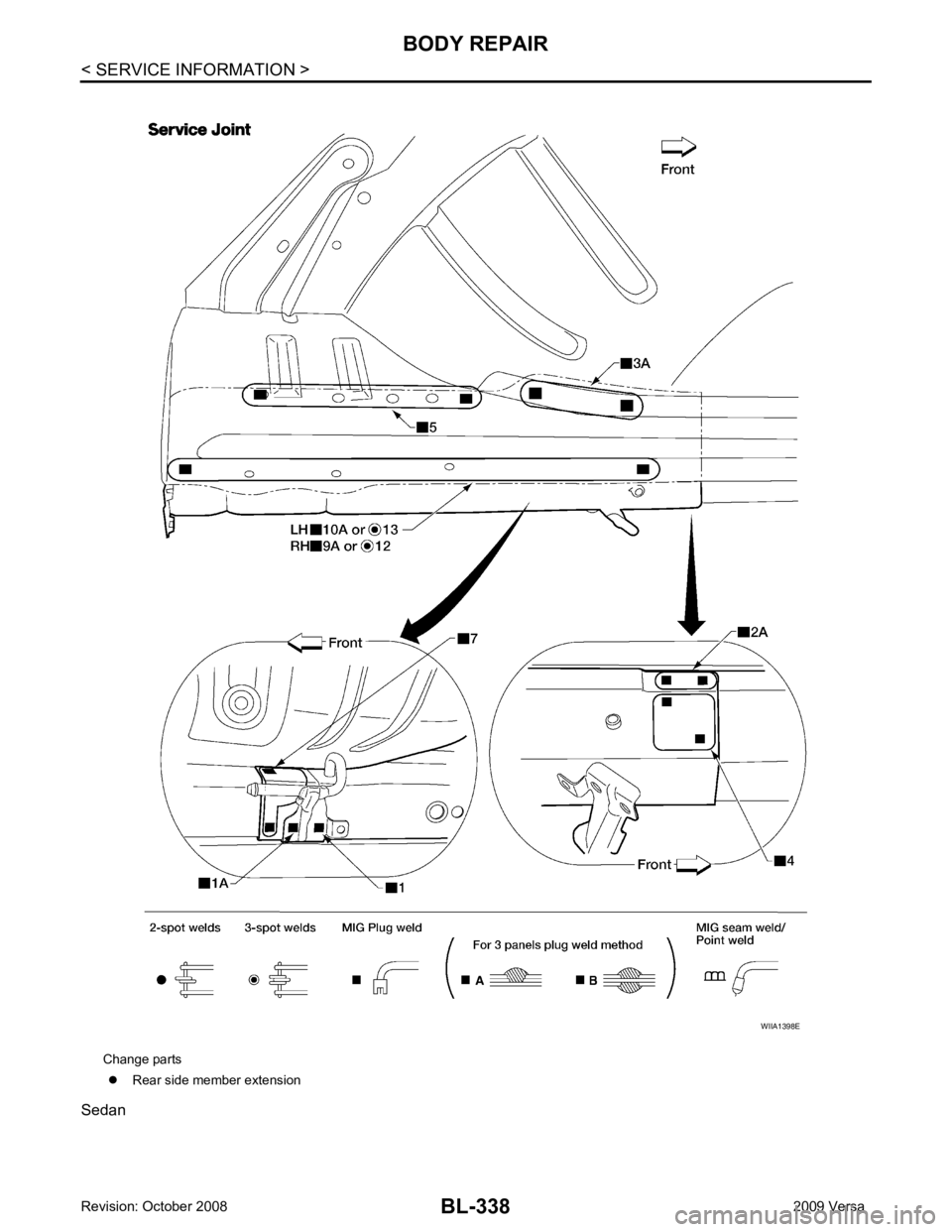

Hatchback • Work after rear panel assembly and rear floor rear have been removed. Change parts
z Rear floor rear

BL
N
O P
Change parts
z Rear side member extension
