NISSAN TIIDA 2009 Service Repair Manual

BL
N
O P

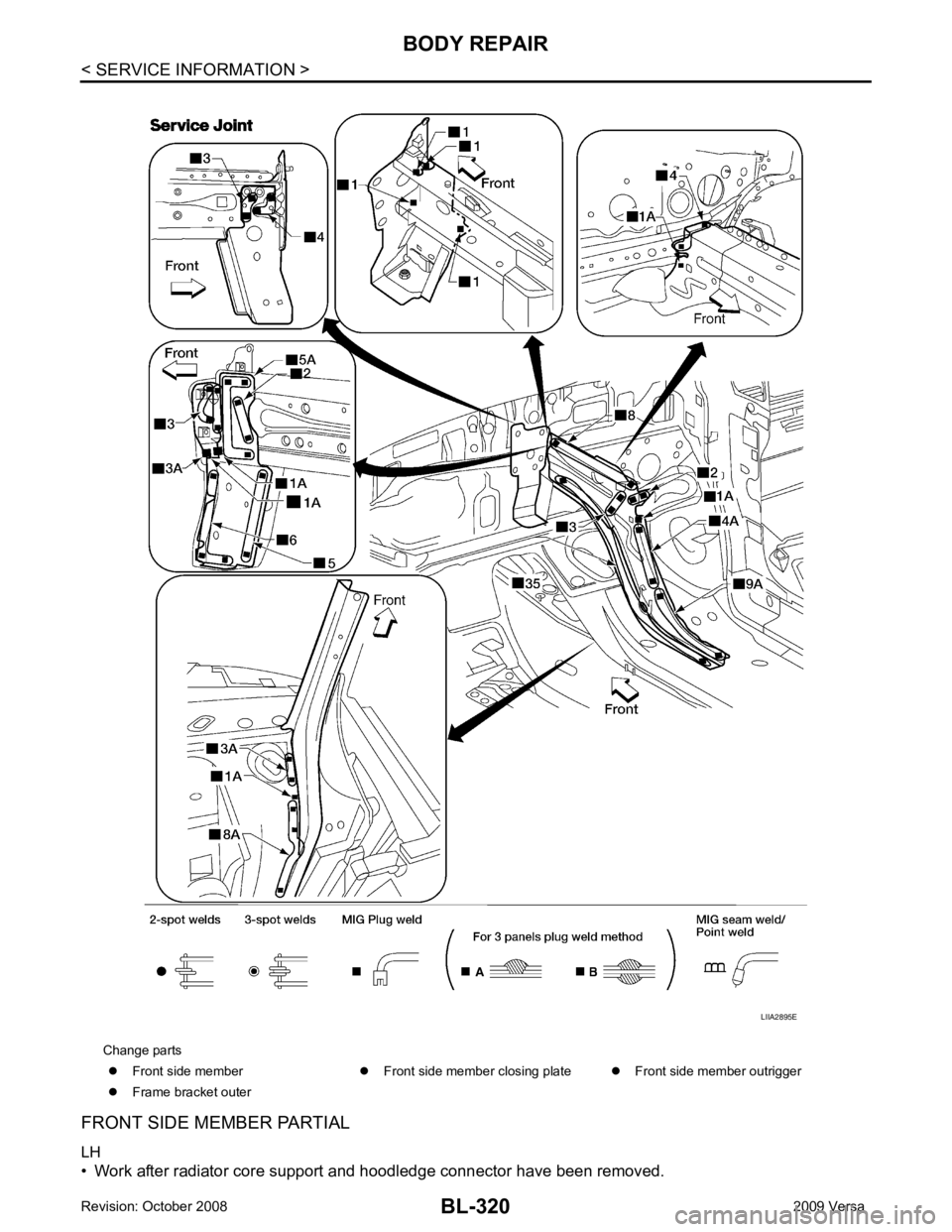

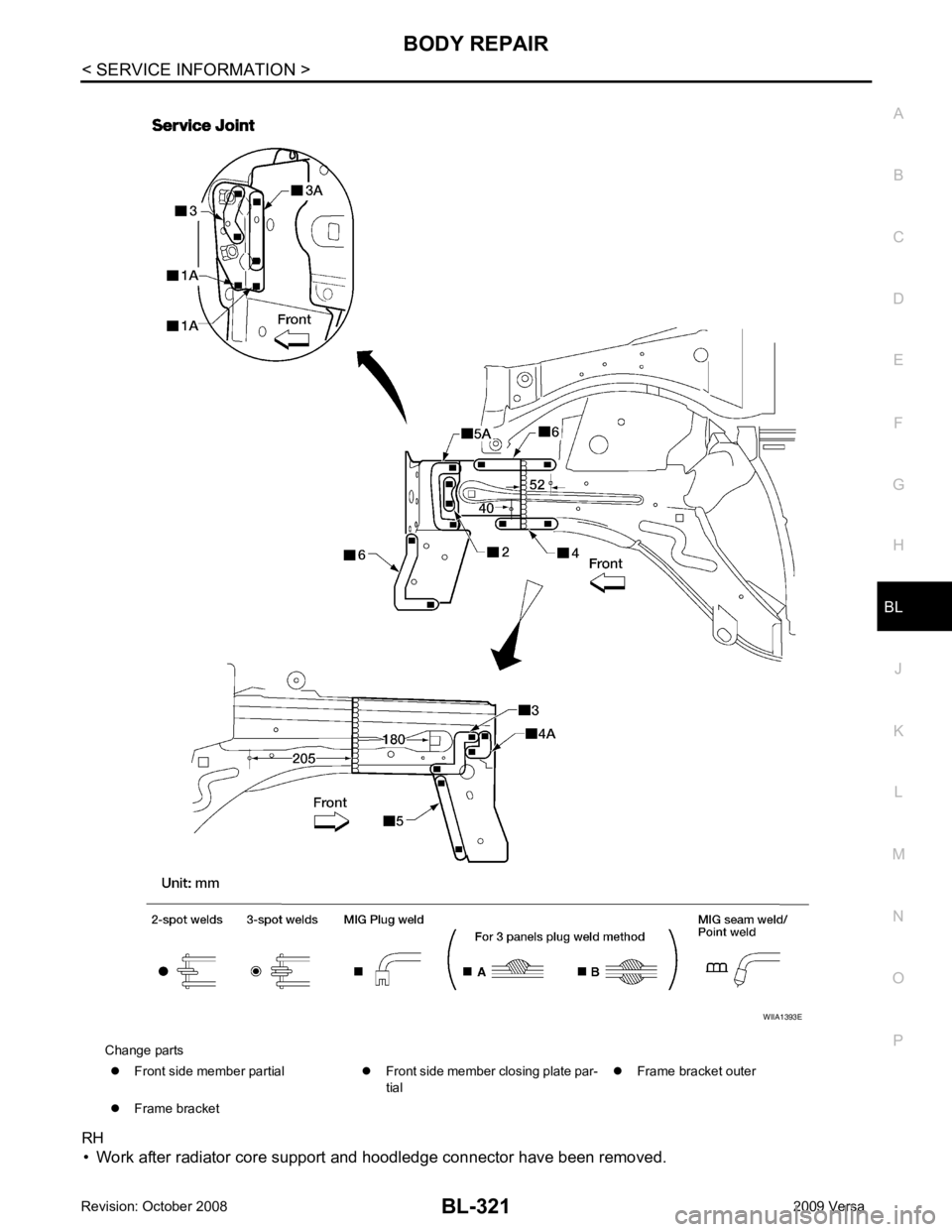

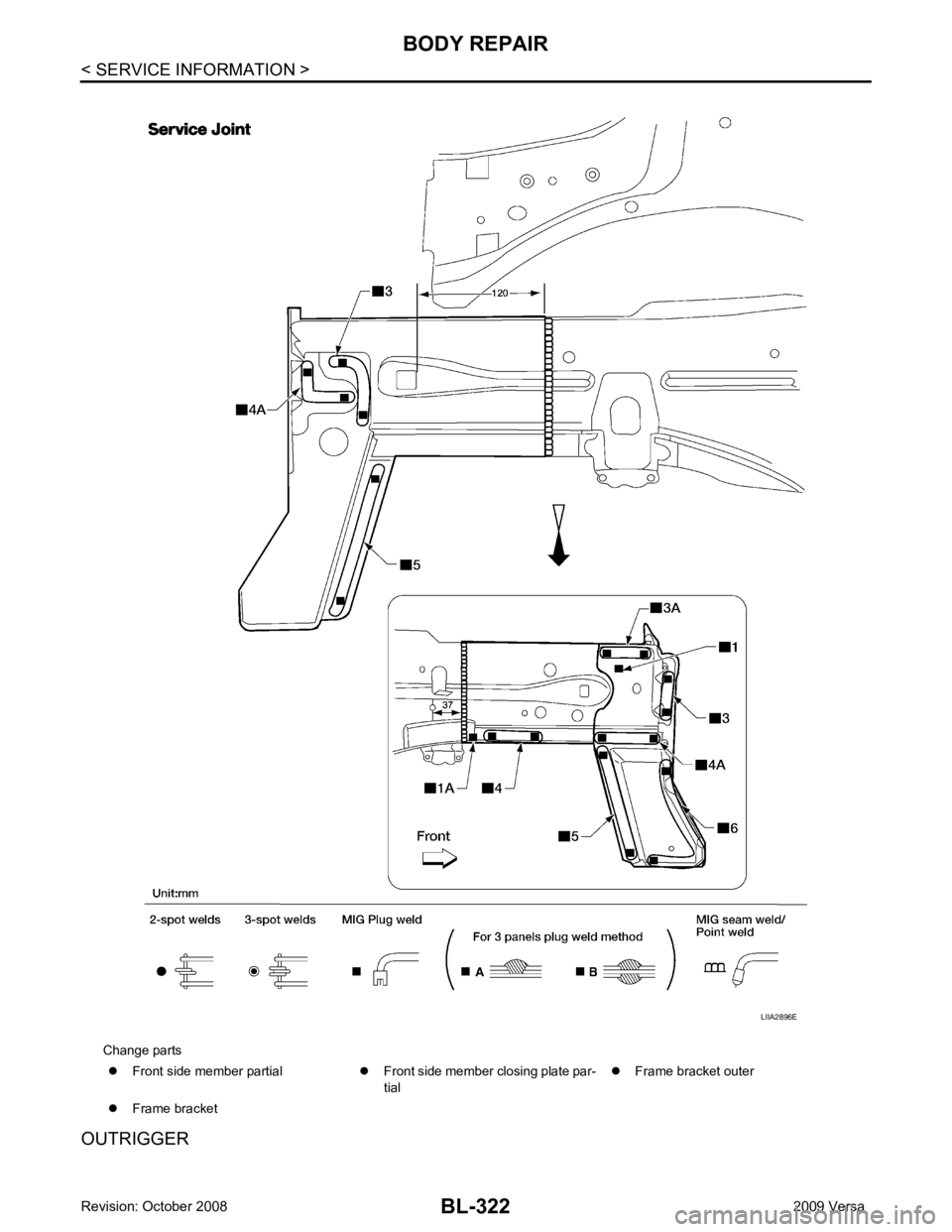

RH • Work after radiator core support and hoodledge connector have been removed. Change parts
z Front side member partial zFront side member closing plate par-
tial z
Frame bracket outer
z Frame bracket

BL
N
O P

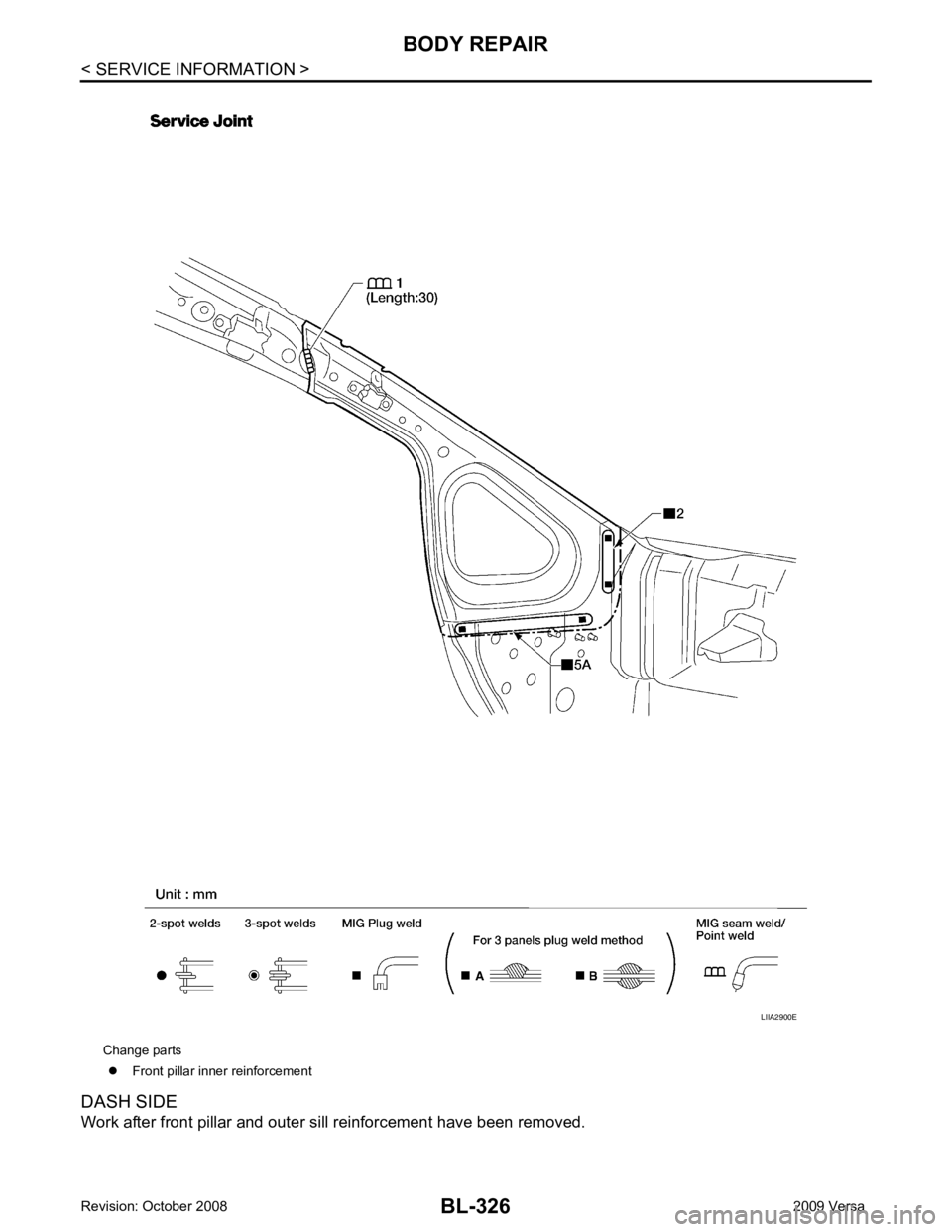

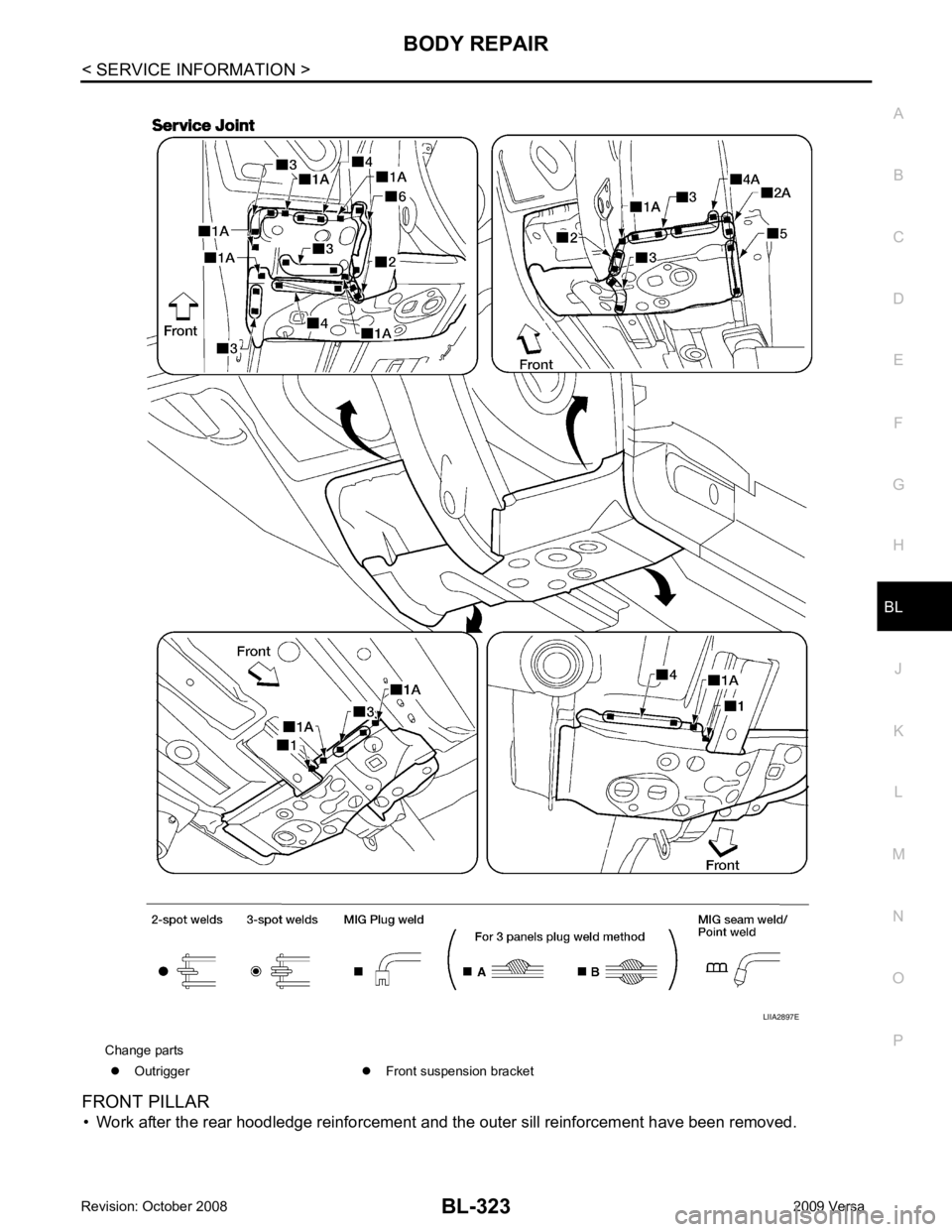

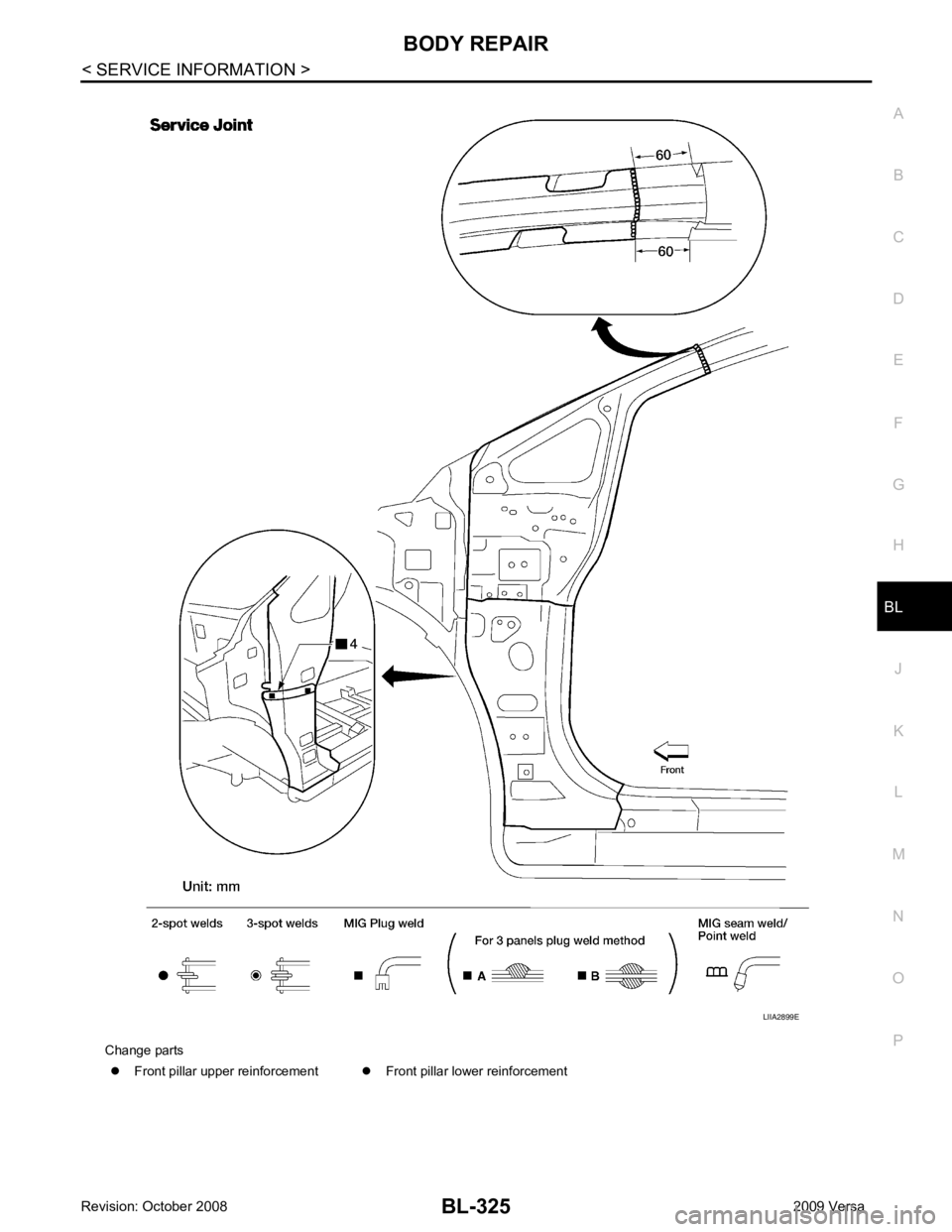

FRONT PILLAR • Work after the rear hoodledge reinforcement and the outer sill reinforcement have been removed. Change parts
z Outrigger zFront suspension bracket

BL
N
O P
Change parts
z Front pillar upper reinforcement zFront pillar lower reinforcement

BL
N
O P

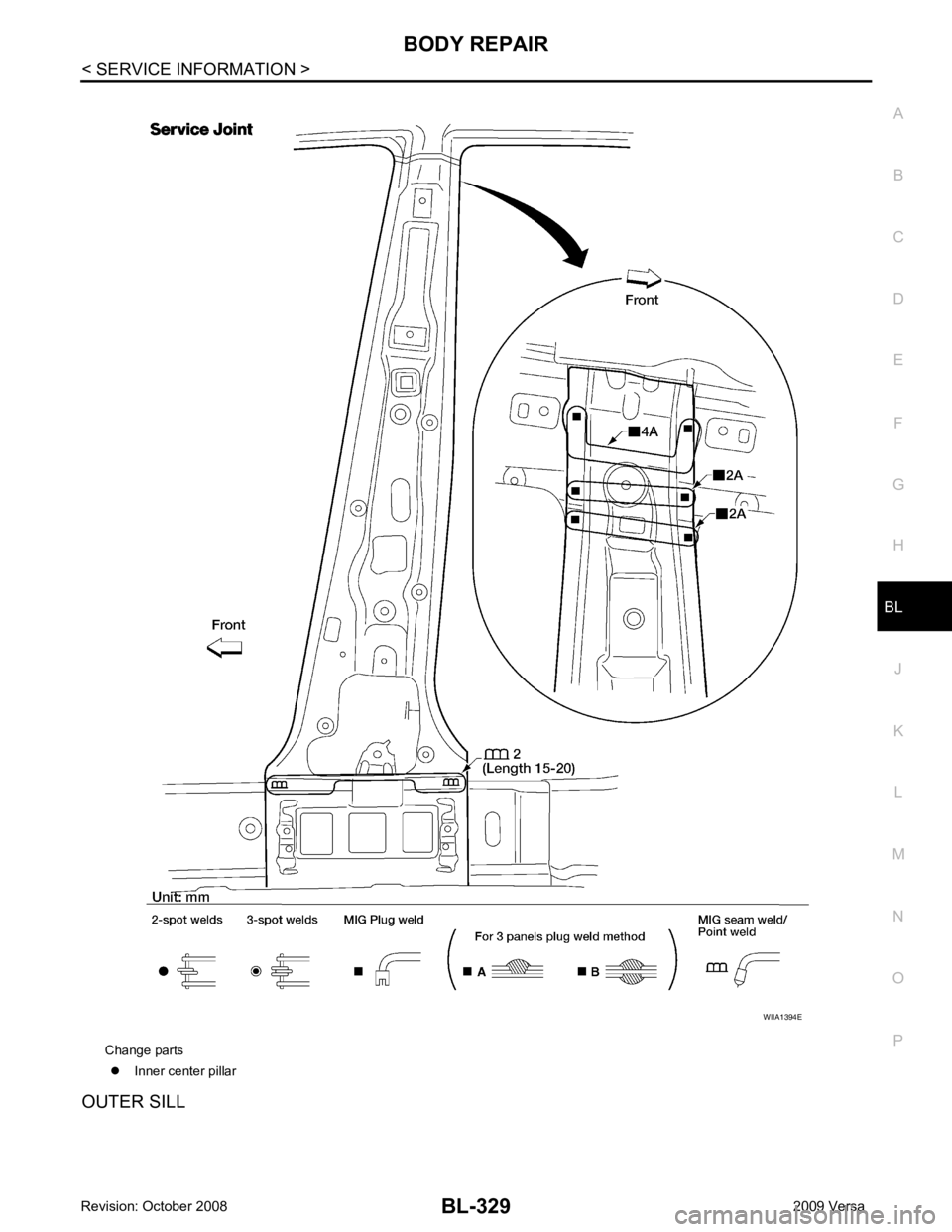

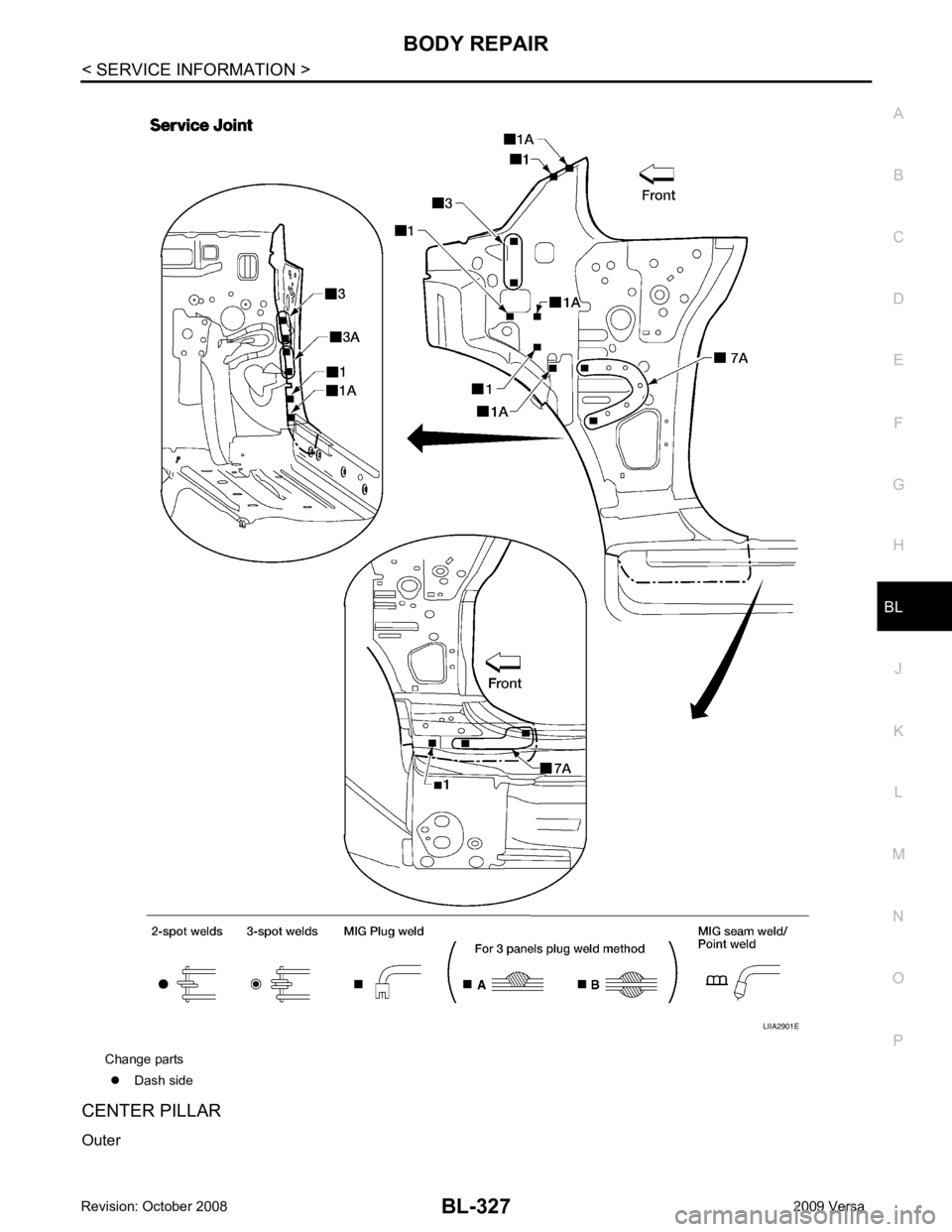

CENTER PILLAR
Outer Change parts
z Dash side

BL
N
O P

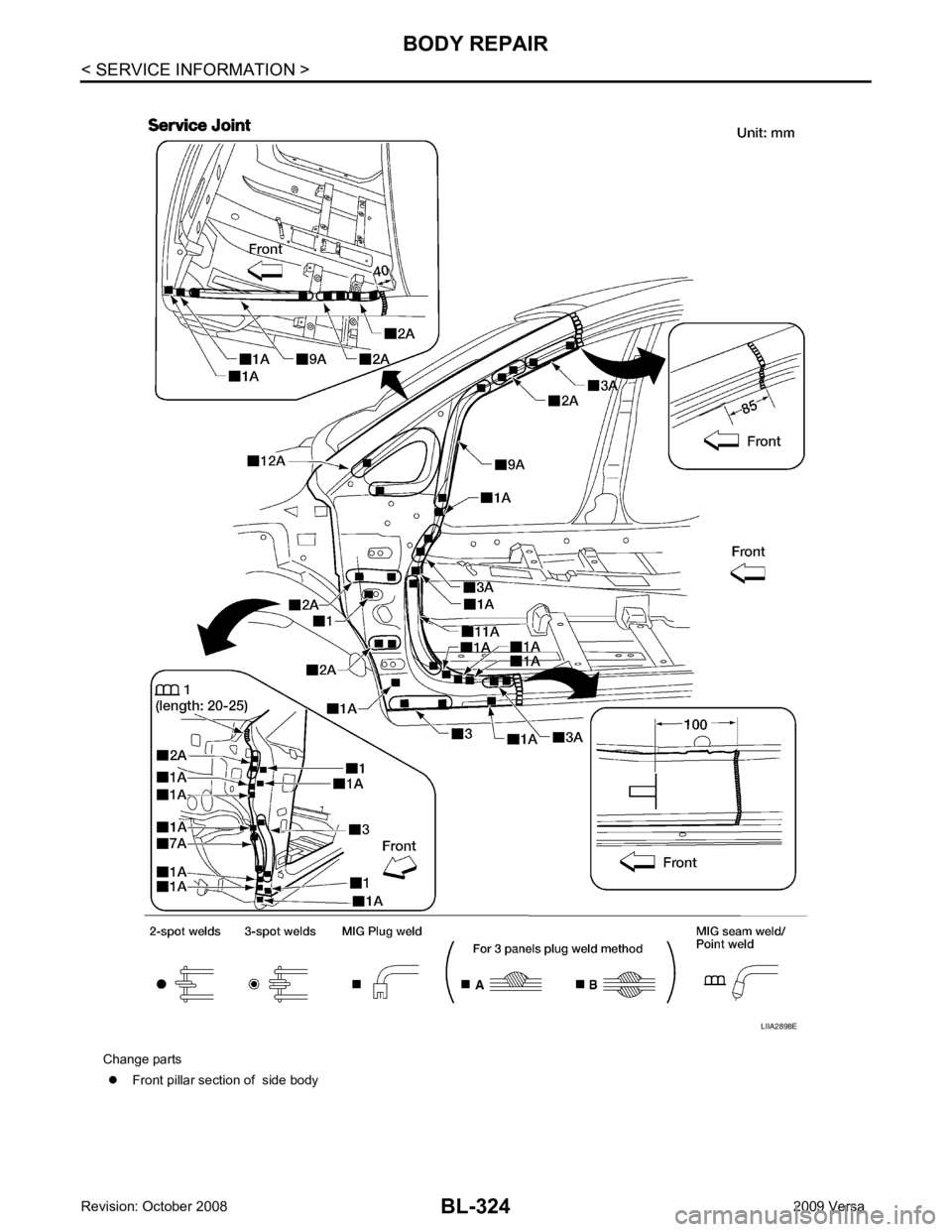

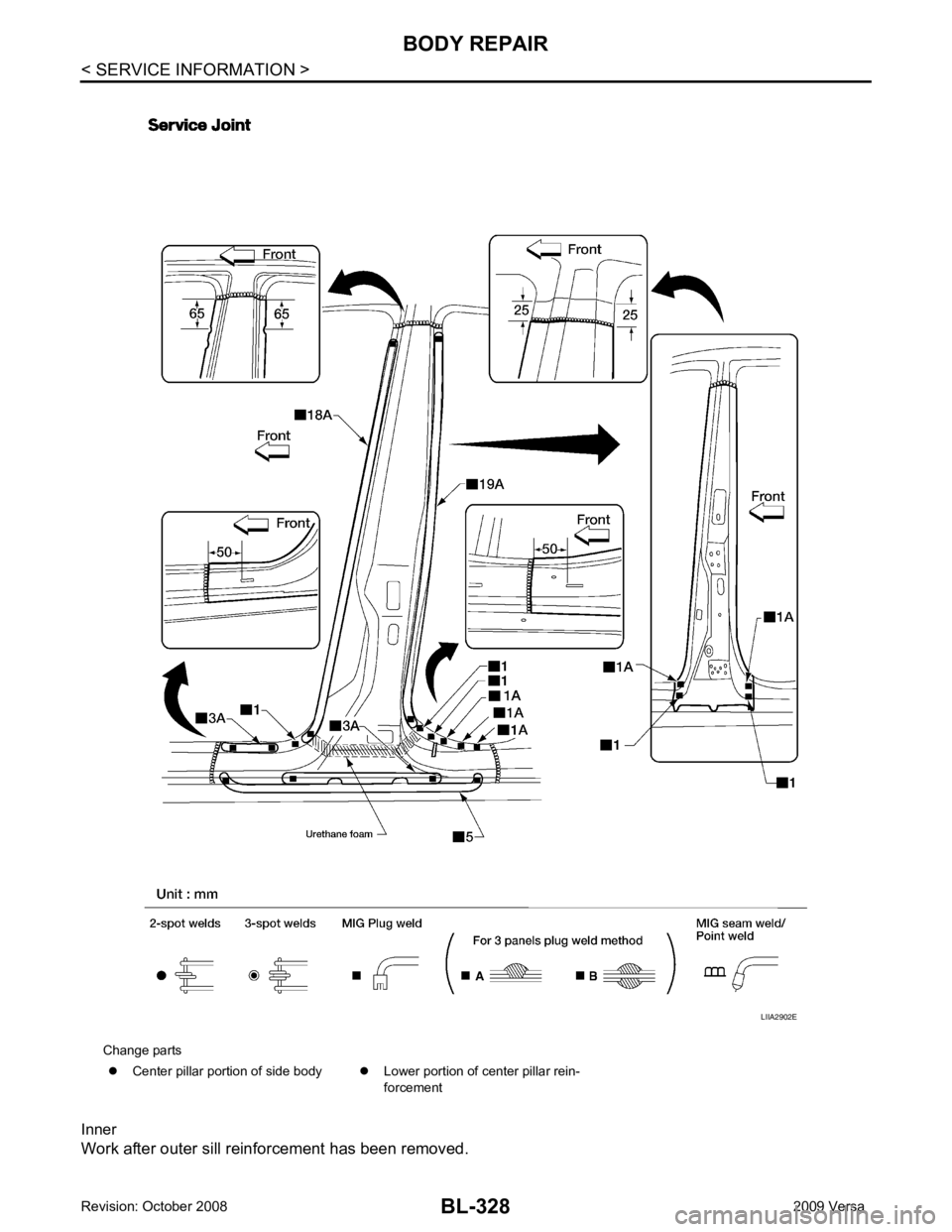

OUTER SILL Change parts
z Inner center pillar
