NISSAN TIIDA 2011 Service Repair Manual

DI-22
< SERVICE INFORMATION >
WARNING LAMPS
Wiring Diagram - WARN -
INFOID:0000000005929180

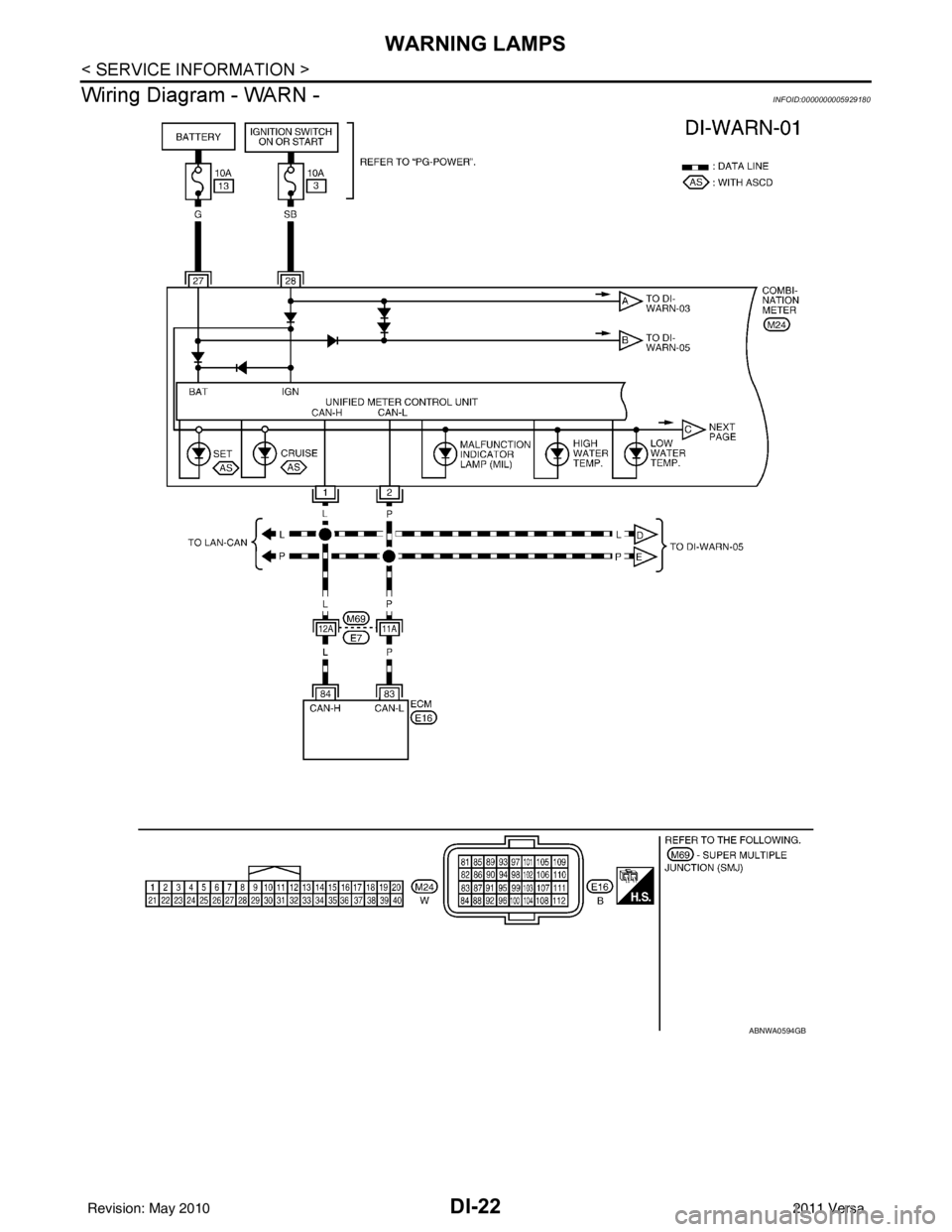

ABNWA0594GB
Revision: May 2010 2011 Versa

WARNING LAMPSDI-23
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P

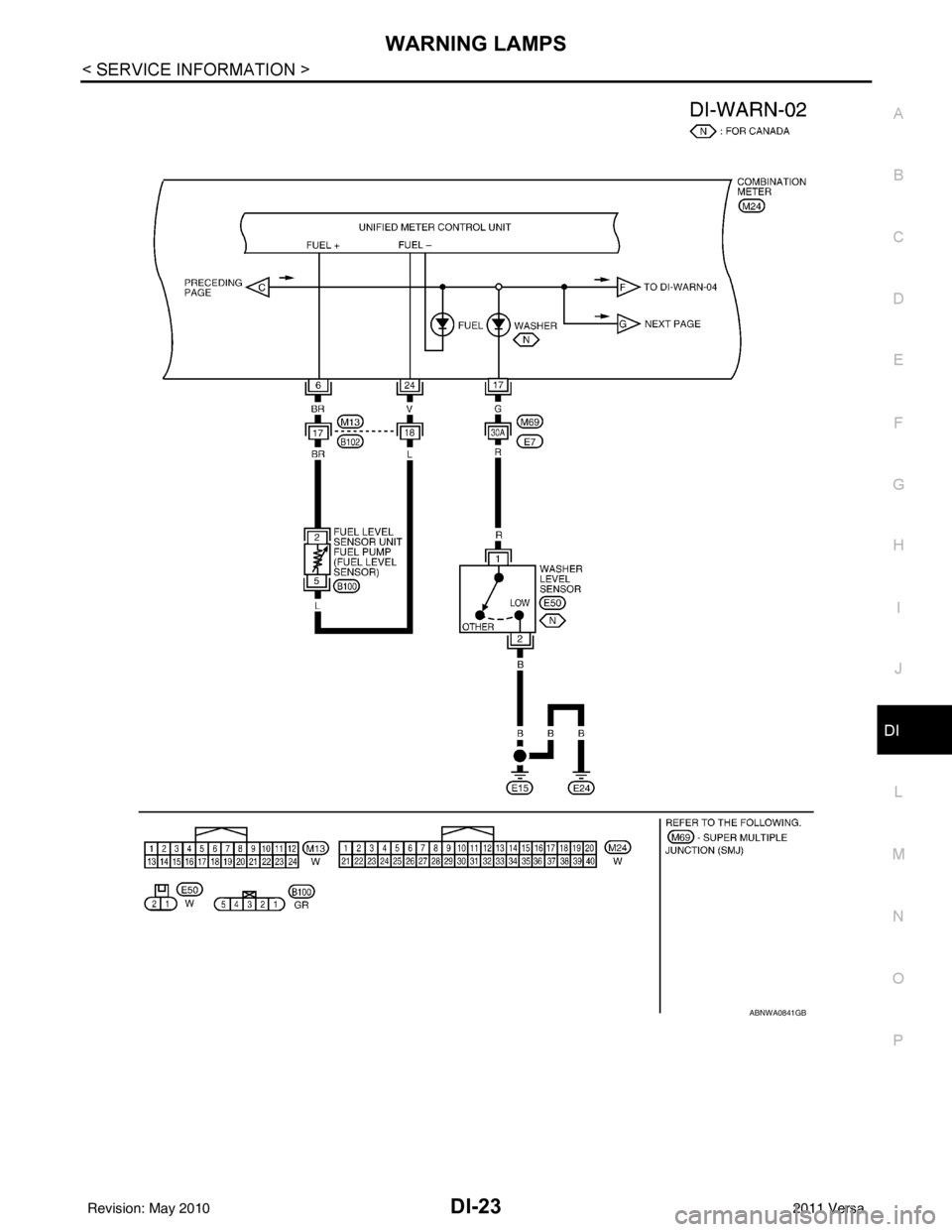

ABNWA0841GB
Revision: May 2010 2011 Versa

DI-24
< SERVICE INFORMATION >
WARNING LAMPS

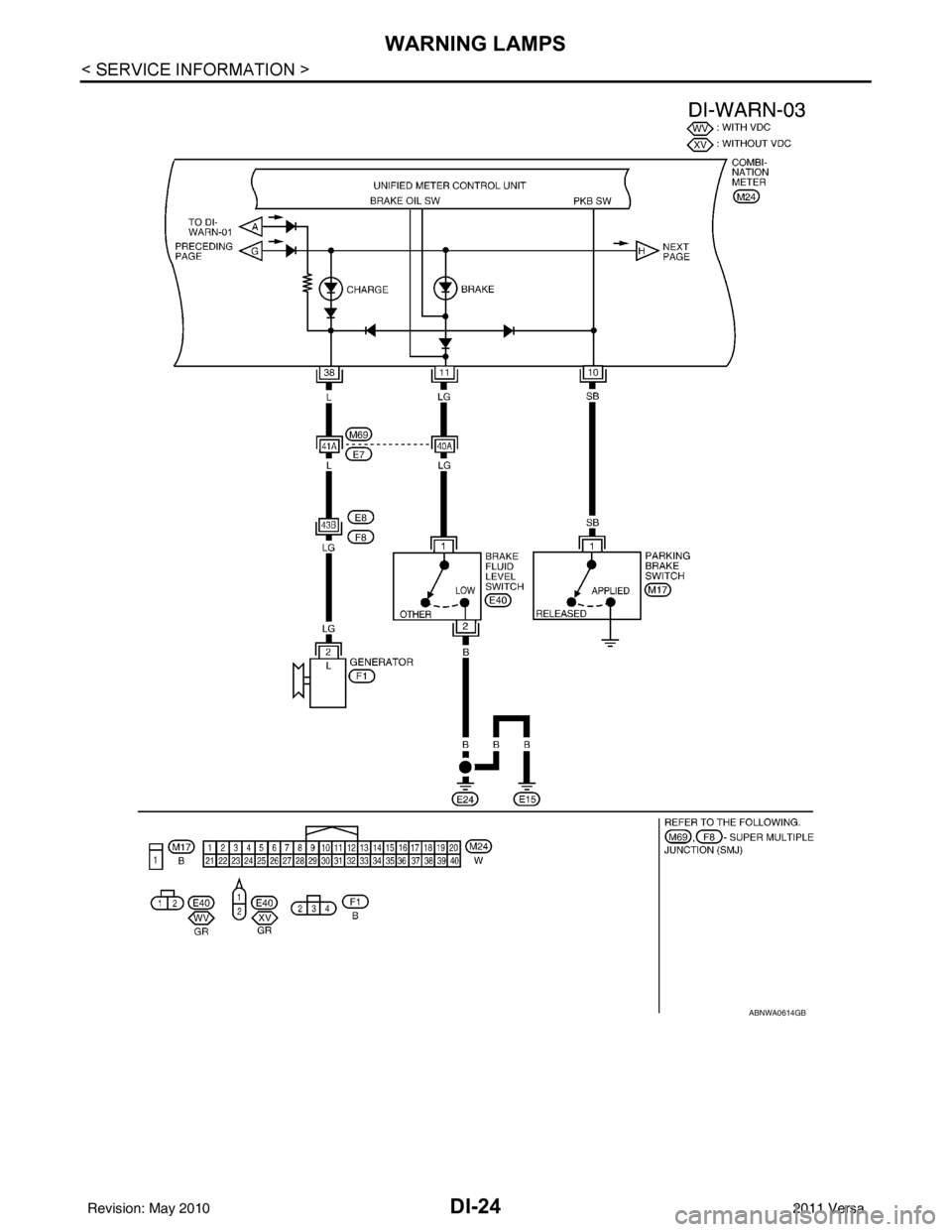

ABNWA0614GB
Revision: May 20102011 Versa

WARNING LAMPSDI-25
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P

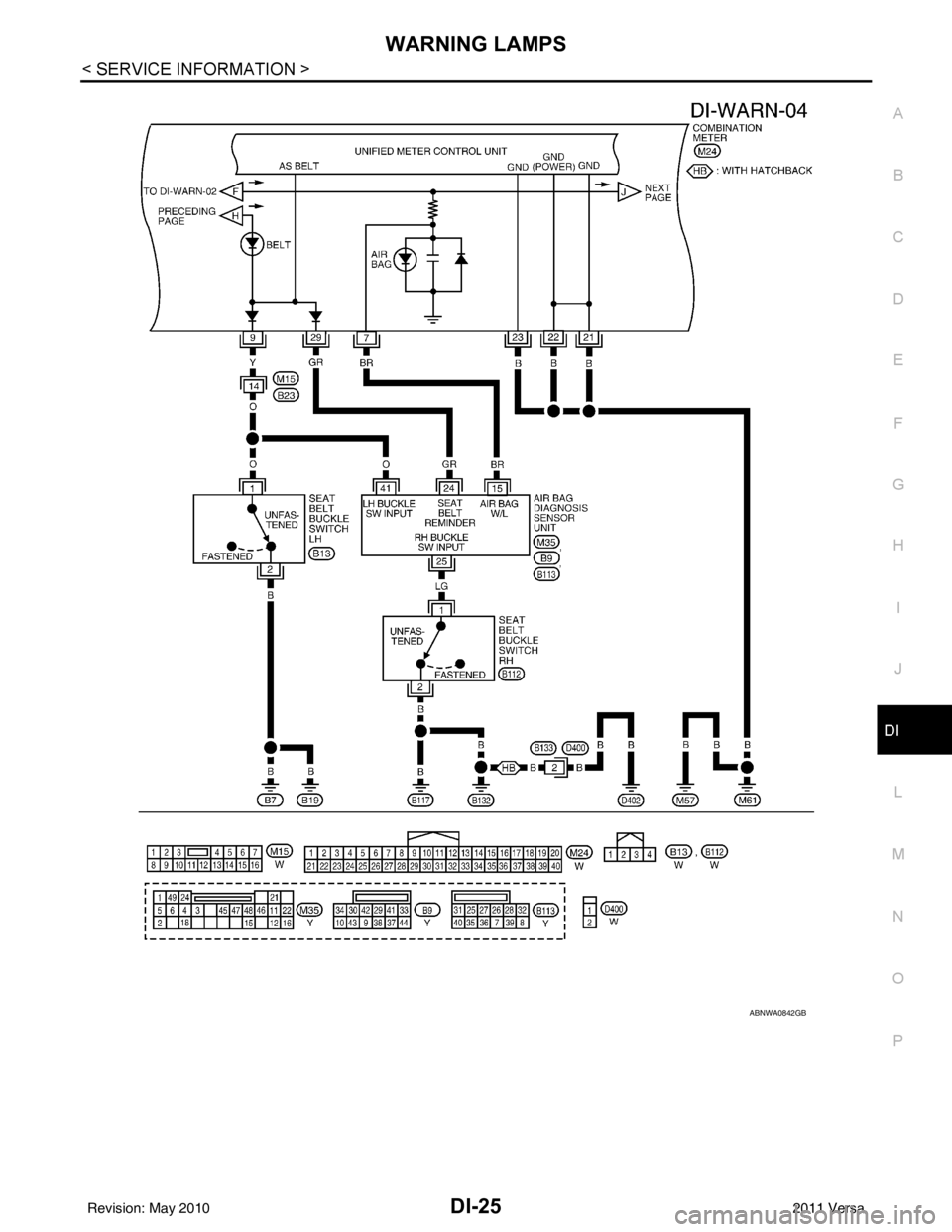

ABNWA0842GB
Revision: May 2010 2011 Versa

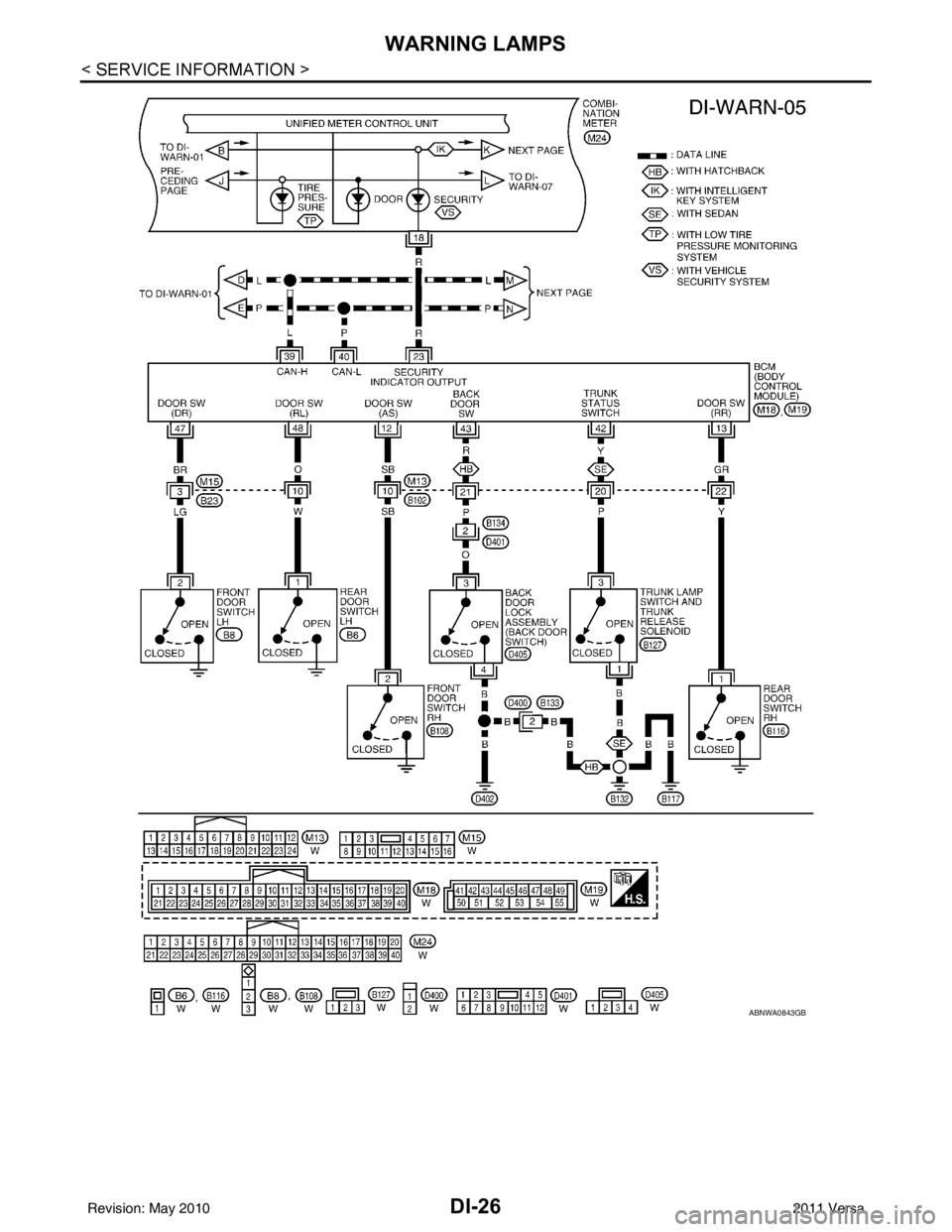

DI-26
< SERVICE INFORMATION >
WARNING LAMPS
ABNWA0843GB
Revision: May 20102011 Versa

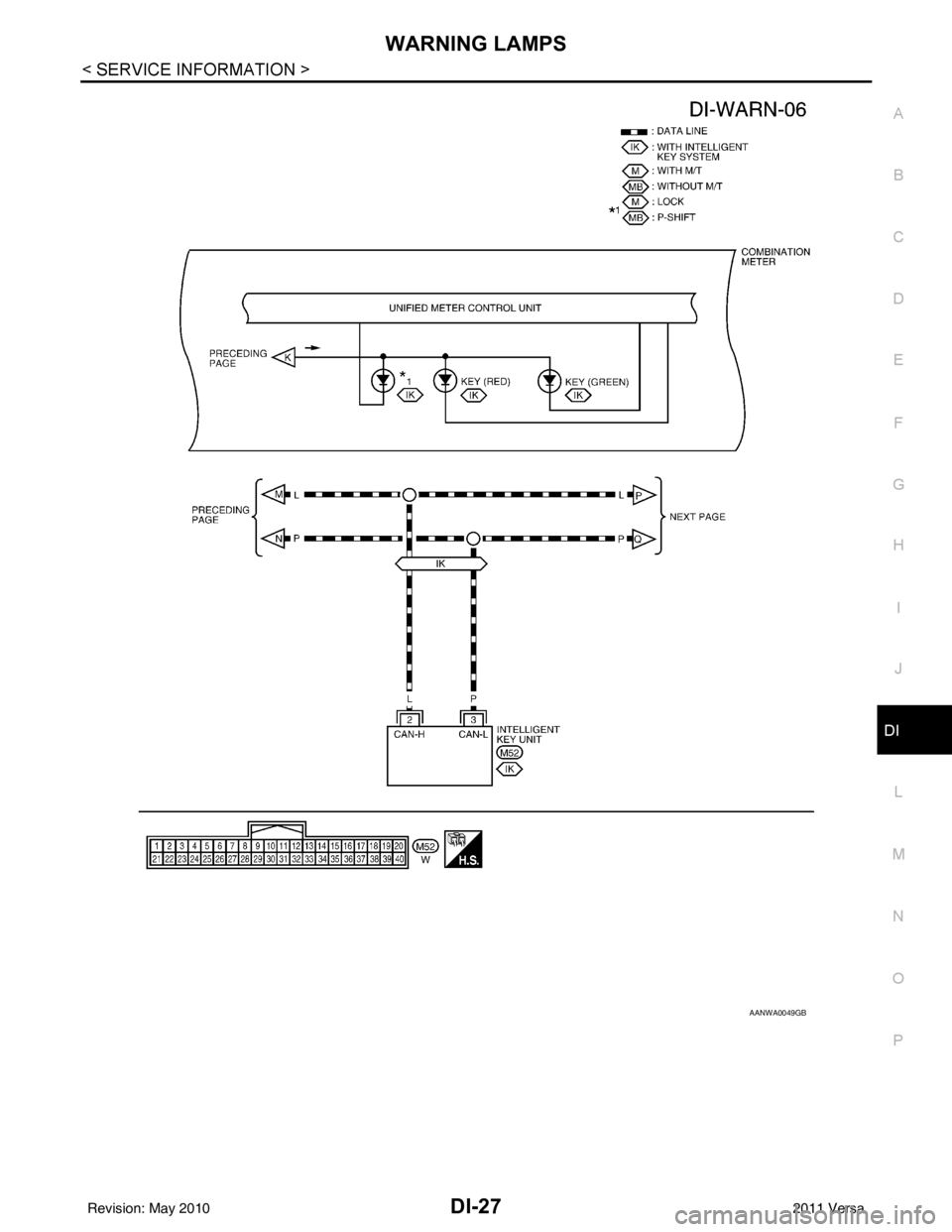

WARNING LAMPSDI-27
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P
AANWA0049GB
Revision: May 2010 2011 Versa

DI-28
< SERVICE INFORMATION >
WARNING LAMPS

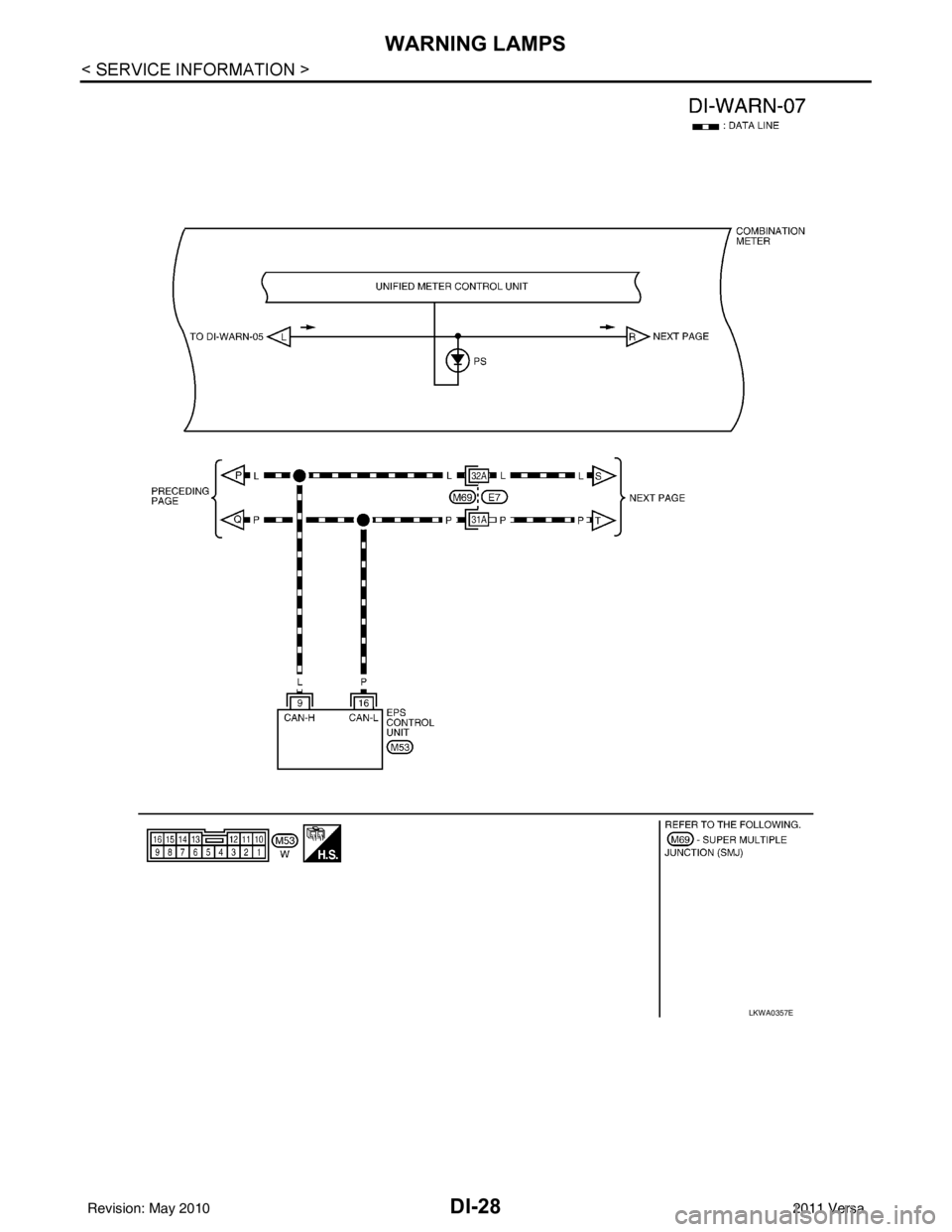

LKWA0357E
Revision: May 20102011 Versa

WARNING LAMPSDI-29
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P

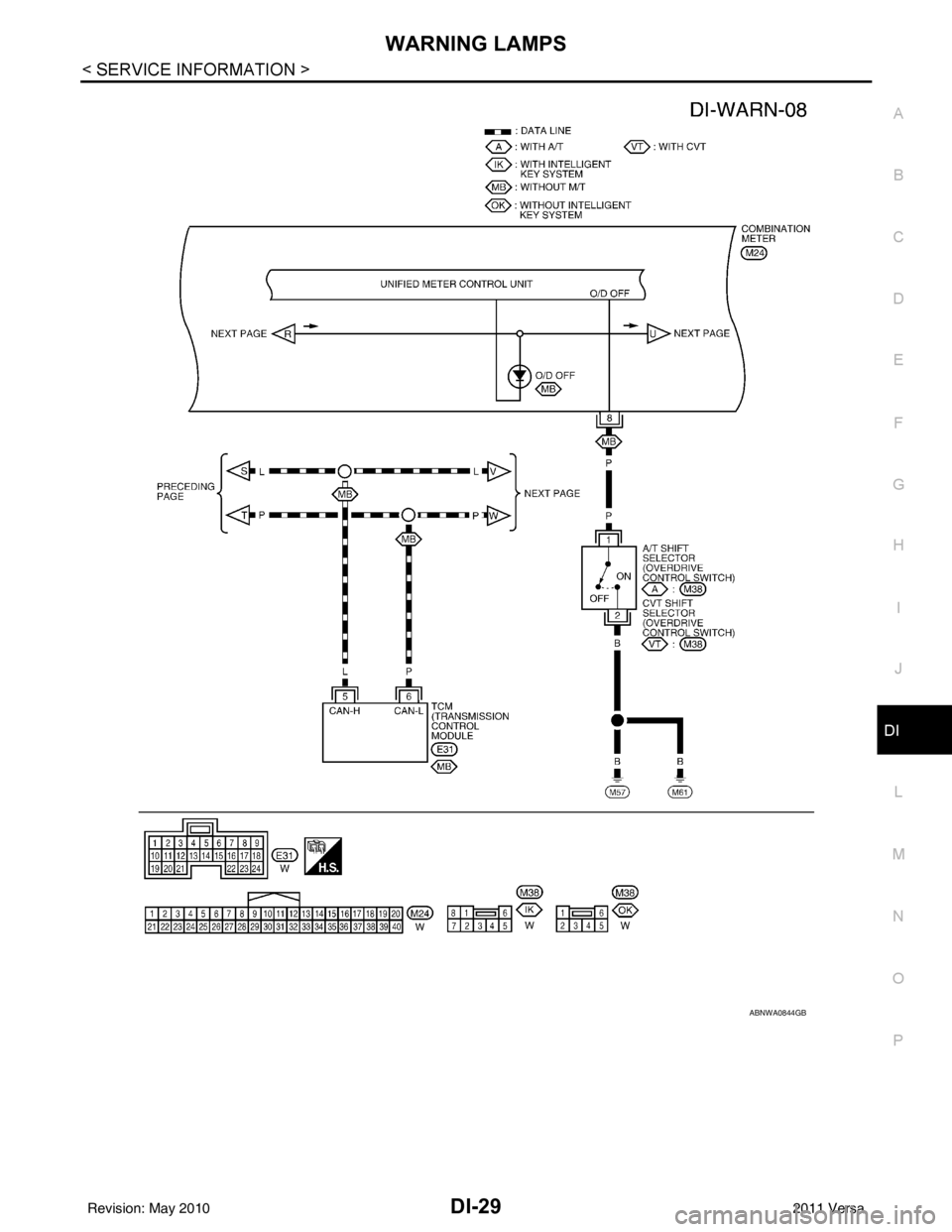

ABNWA0844GB
Revision: May 2010 2011 Versa

DI-30
< SERVICE INFORMATION >
WARNING LAMPS
Oil Pressure Warning Lamp Stays Off (Ignition Switch ON)
INFOID:0000000005929181
1.CHECK OIL PRESSURE WARNING LAMP OPERATION
Activate IPDM E/R auto active test. Refer to PG-20, "
Auto Active Test".
Does oil pressure warning lamp blink?
YES >> GO TO 2.
NO >> GO TO 5.

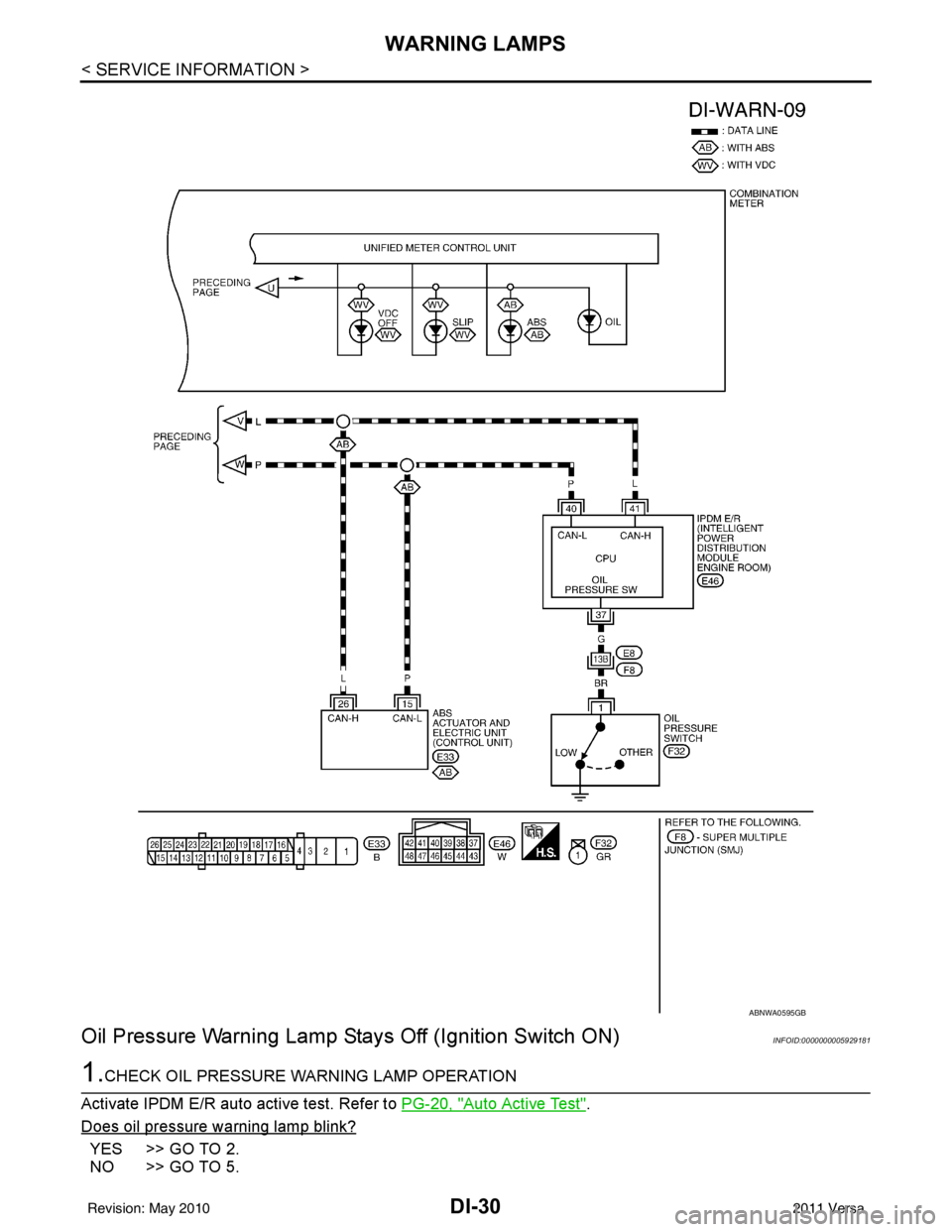

ABNWA0595GB
Revision: May 2010 2011 Versa

WARNING LAMPSDI-31
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
DI
N
O P

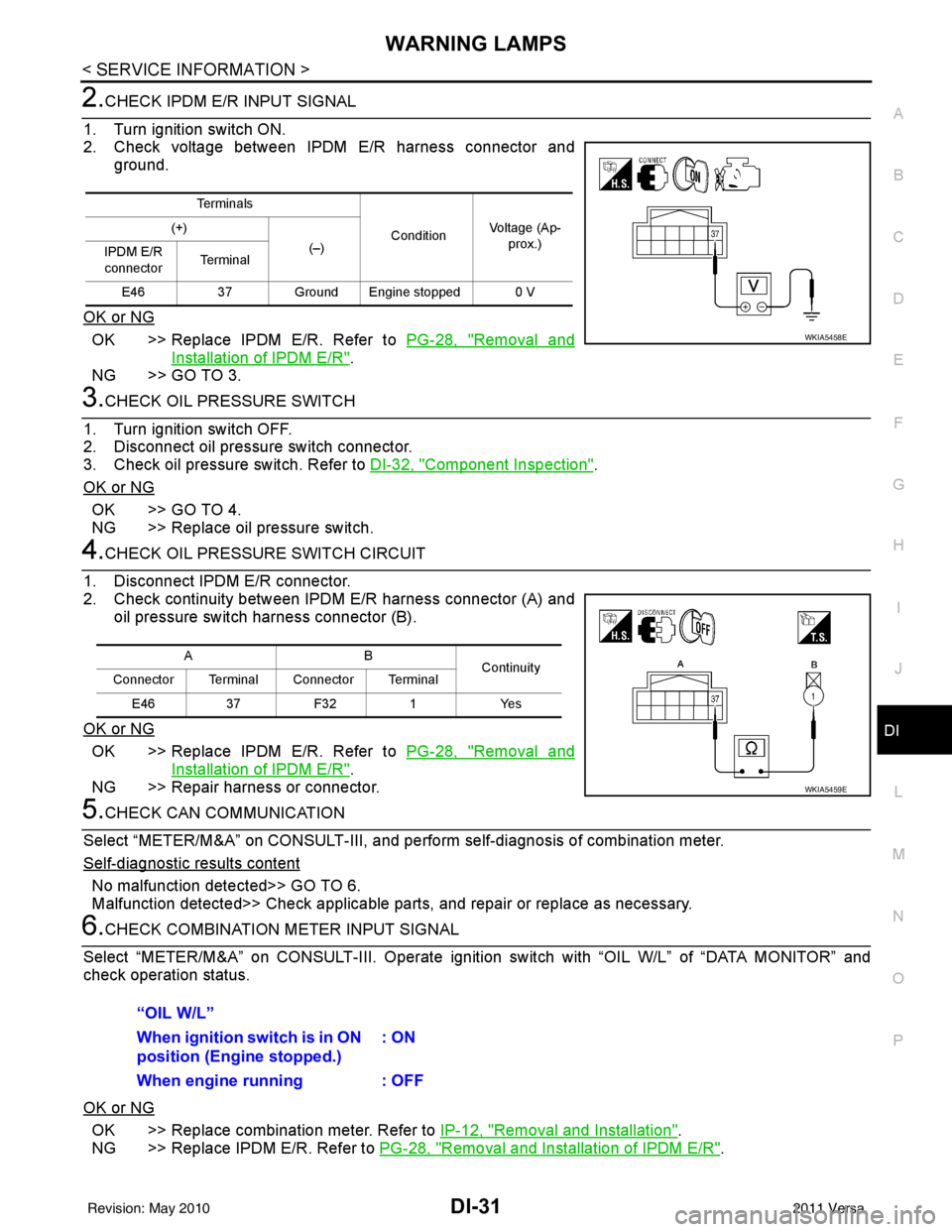

2.CHECK IPDM E/R INPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between IPDM E/R harness connector and ground.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-28, "Removal and
Installation of IPDM E/R".
NG >> GO TO 3.
3.CHECK OIL PRESSURE SWITCH
1. Turn ignition switch OFF.
2. Disconnect oil pressure switch connector.
3. Check oil pressure switch. Refer to DI-32, "
Component Inspection".
OK or NG
OK >> GO TO 4.
NG >> Replace oil pressure switch.
4.CHECK OIL PRESSURE SWITCH CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector (A) and oil pressure switch harness connector (B).
OK or NG
OK >> Replace IPDM E/R. Refer to PG-28, "Removal and
Installation of IPDM E/R".
NG >> Repair harness or connector.
5.CHECK CAN COMMUNICATION
Select “METER/M&A” on CONSULT-III, and per form self-diagnosis of combination meter.
Self
-diagnostic results content
No malfunction detected>> GO TO 6.
Malfunction detected>> Check applicable parts, and repair or replace as necessary.
6.CHECK COMBINATION METER INPUT SIGNAL
Select “METER/M&A” on CONS ULT-III. Operate ignition switch with “OIL W/L” of “DATA MONITOR” and
check operation status.
OK or NG
OK >> Replace combination meter. Refer to IP-12, "Removal and Installation".
NG >> Replace IPDM E/R. Refer to PG-28, "
Removal and Installation of IPDM E/R".
Te r m i n a l s
ConditionVoltage (Ap-
prox.)
(+)
(–)
IPDM E/R
connector Te r m i n a l
E46 37 Ground Engine stopped 0 V
WKIA5458E
AB
Continuity
Connector Terminal Connector Terminal
E46 37 F32 1 Yes
WKIA5459E
“OIL W/L”
When ignition switch is in ON
position (Engine stopped.) : ON
When engine running : OFF
Revision: May 2010 2011 Versa
