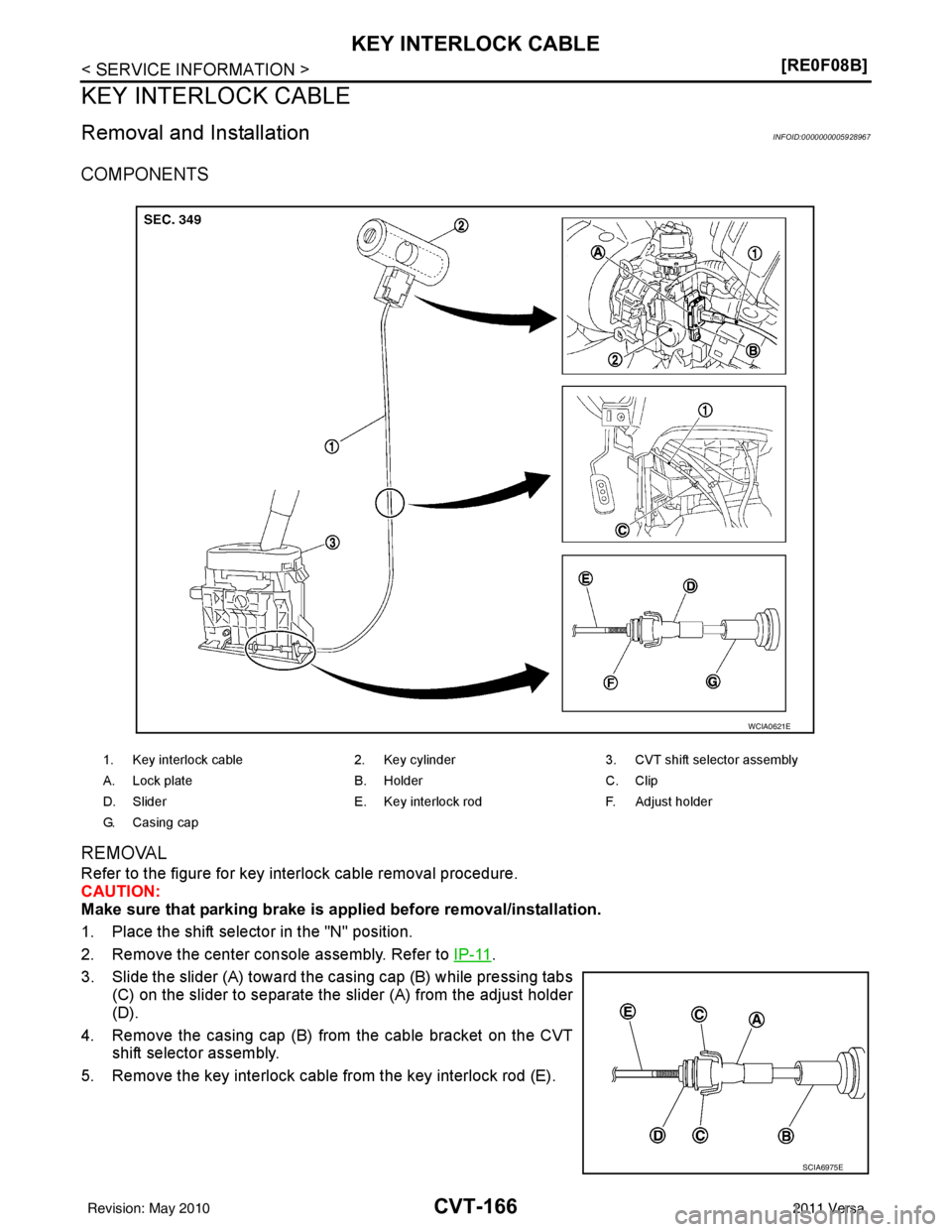

CVT-166
< SERVICE INFORMATION >[RE0F08B]
KEY INTERLOCK CABLE
KEY INTERLOCK CABLE
Removal and InstallationINFOID:0000000005928967
COMPONENTS
REMOVAL
Refer to the figure for key interlock cable removal procedure.
CAUTION:
Make sure that parking brake is applied before removal/installation.
1. Place the shift selector in the "N" position.
2. Remove the center console assembly. Refer to
IP-11
.
3. Slide the slider (A) toward the casing cap (B) while pressing tabs (C) on the slider to separate the slider (A) from the adjust holder
(D).
4. Remove the casing cap (B) from the cable bracket on the CVT shift selector assembly.
5. Remove the key interlock cable from the key interlock rod (E).
1. Key interlock cable 2. Key cylinder 3. CVT shift selector assembly
A. Lock plate B. HolderC. Clip
D. Slider E. Key interlock rod F. Adjust holder
G. C a s i n g c a p
WCIA0621E
SCIA6975E
Revision: May 2010 2011 Versa

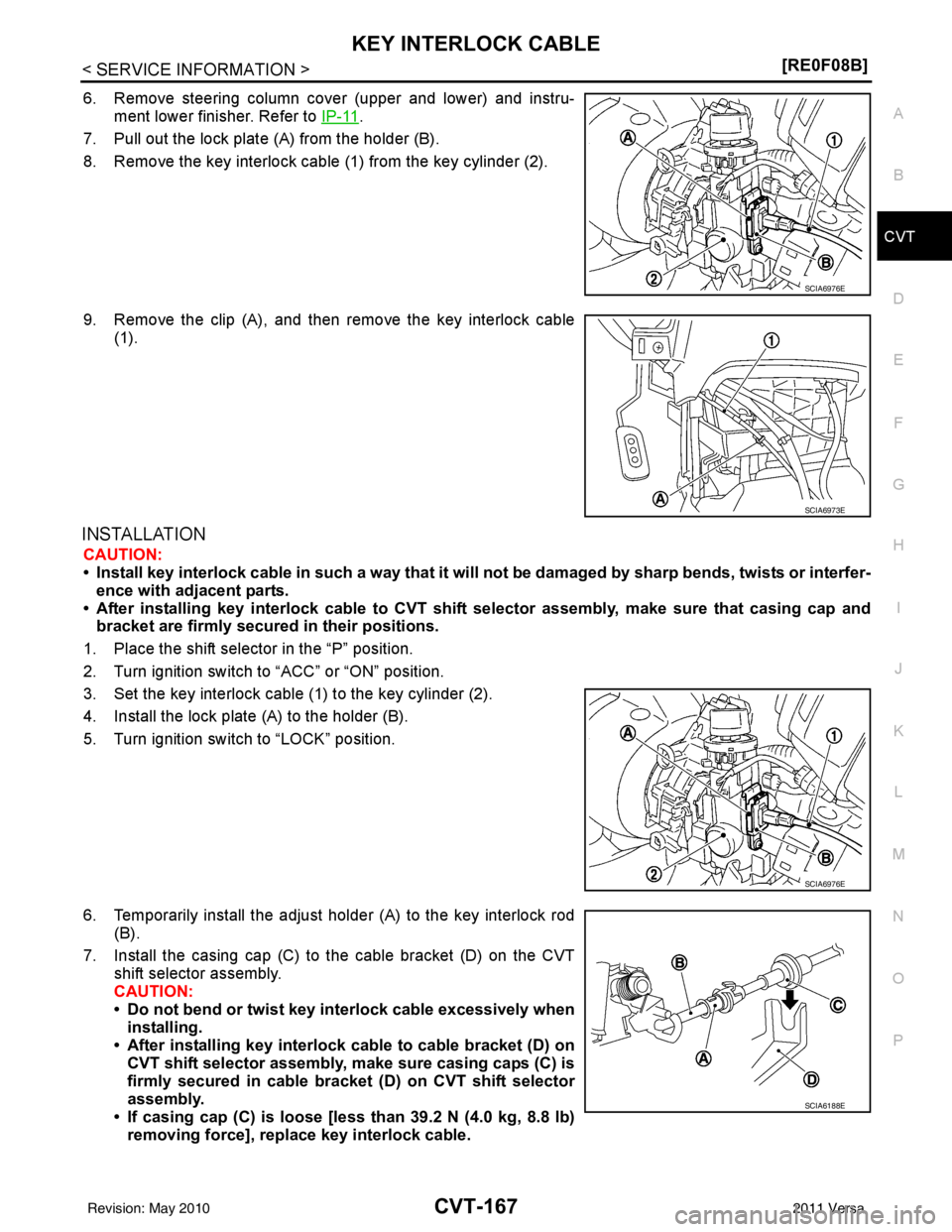

KEY INTERLOCK CABLECVT-167
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
6. Remove steering column cover (upper and lower) and instru- ment lower finisher. Refer to IP-11
.
7. Pull out the lock plate (A) from the holder (B).
8. Remove the key interlock cable (1) from the key cylinder (2).
9. Remove the clip (A), and then remove the key interlock cable (1).
INSTALLATION
CAUTION:
• Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or interfer-
ence with adjacent parts.
• After installing key interlock cab le to CVT shift selector assembly, make sure that casing cap and
bracket are firmly secured in their positions.
1. Place the shift selector in the “P” position.
2. Turn ignition switch to “ACC” or “ON” position.
3. Set the key interlock cable (1) to the key cylinder (2).
4. Install the lock plate (A) to the holder (B).
5. Turn ignition switch to “LOCK” position.
6. Temporarily install the adjust holder (A) to the key interlock rod (B).
7. Install the casing cap (C) to the cable bracket (D) on the CVT shift selector assembly.
CAUTION:
• Do not bend or twist key interlock cable excessively wheninstalling.
• After installing key interlo ck cable to cable bracket (D) on
CVT shift selector assembly, make sure casing caps (C) is
firmly secured in cable bracket (D) on CVT shift selector
assembly.
• If casing cap (C) is loose [less than 39.2 N (4.0 kg, 8.8 lb)
removing force], replace key interlock cable.
SCIA6976E
SCIA6973E
SCIA6976E
SCIA6188E
Revision: May 2010 2011 Versa

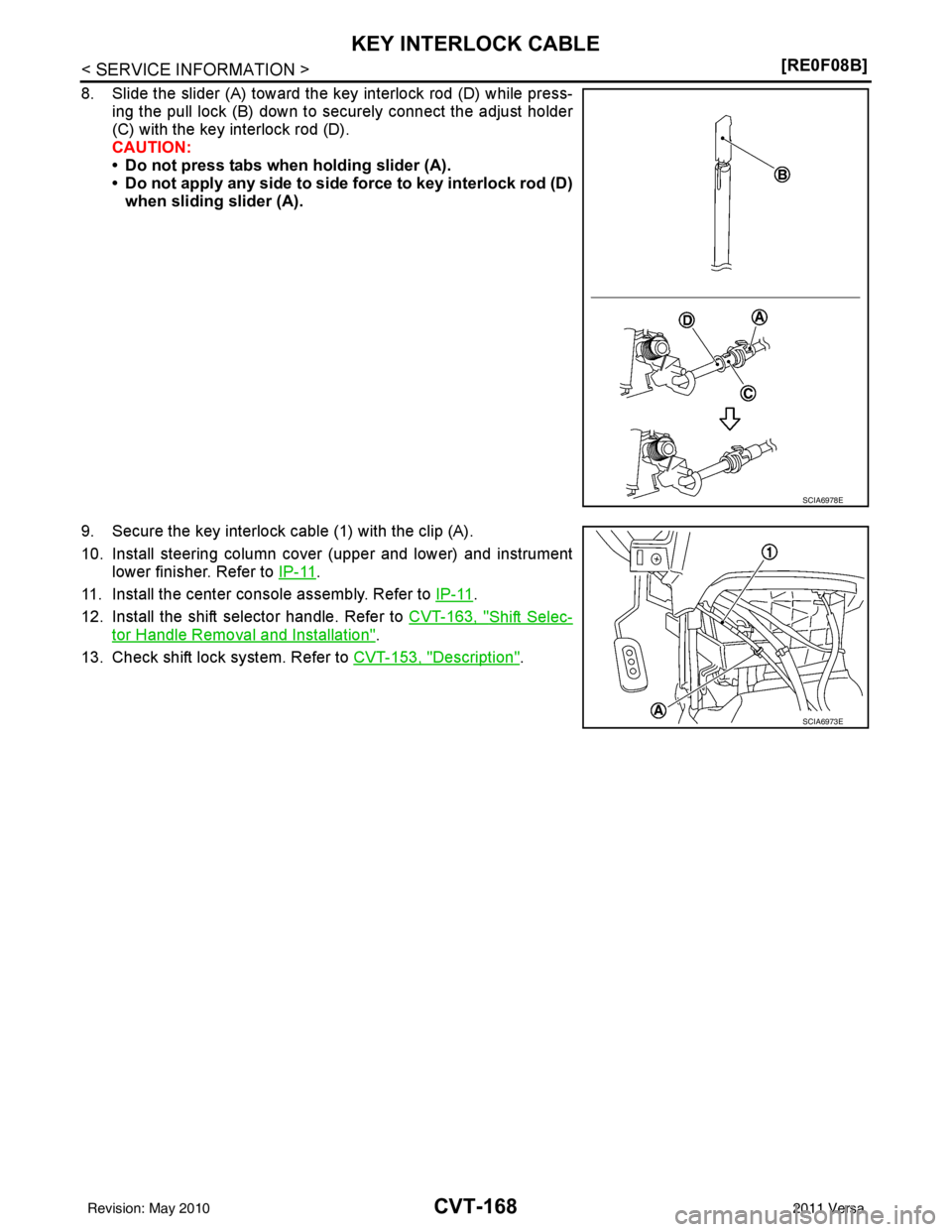

CVT-168
< SERVICE INFORMATION >[RE0F08B]
KEY INTERLOCK CABLE
8. Slide the slider (A) toward the key interlock rod (D) while press-
ing the pull lock (B) down to securely connect the adjust holder
(C) with the key interlock rod (D).
CAUTION:
• Do not press tabs when holding slider (A).
• Do not apply any side to side force to key interlock rod (D)when sliding slider (A).
9. Secure the key interlock cable (1) with the clip (A).
10. Install steering column cover (upper and lower) and instrument lower finisher. Refer to IP-11
.
11. Install the center console assembly. Refer to IP-11
.
12. Install the shift selector handle. Refer to CVT-163, "
Shift Selec-
tor Handle Removal and Installation".
13. Check shift lock system. Refer to CVT-153, "
Description".
SCIA6978E
SCIA6973E
Revision: May 2010 2011 Versa

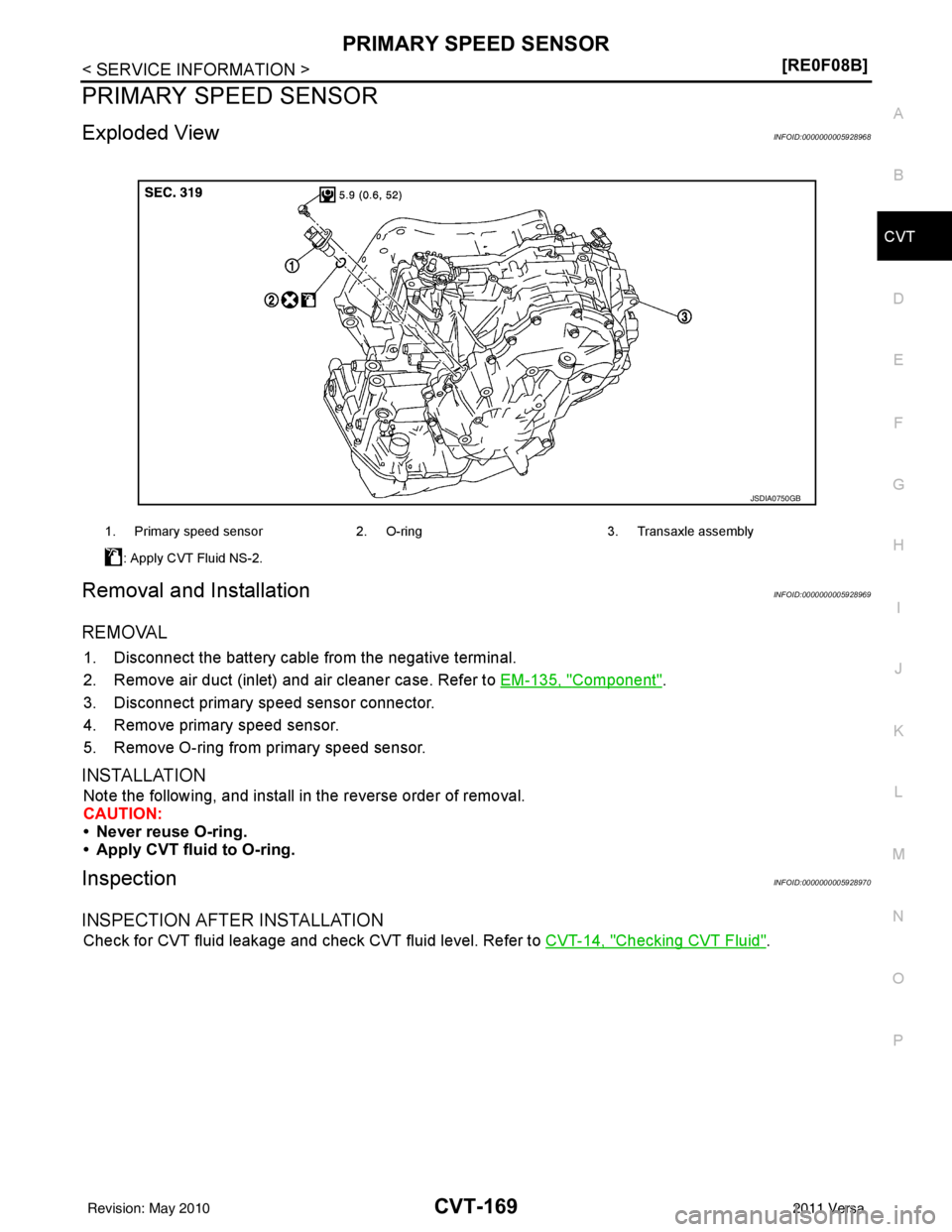

PRIMARY SPEED SENSORCVT-169
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
PRIMARY SPEED SENSOR
Exploded ViewINFOID:0000000005928968
Removal and InstallationINFOID:0000000005928969
REMOVAL
1. Disconnect the battery cabl e from the negative terminal.
2. Remove air duct (inlet) and air cleaner case. Refer to EM-135, "
Component".
3. Disconnect primary speed sensor connector.
4. Remove primary speed sensor.
5. Remove O-ring from primary speed sensor.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
• Never reuse O-ring.
• Apply CVT fluid to O-ring.
InspectionINFOID:0000000005928970
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage and check CVT fluid level. Refer to CVT-14, "Checking CVT Fluid".
1. Primary speed sensor2. O-ring3. Transaxle assembly
: Apply CVT Fluid NS-2.
JSDIA0750GB
Revision: May 2010 2011 Versa

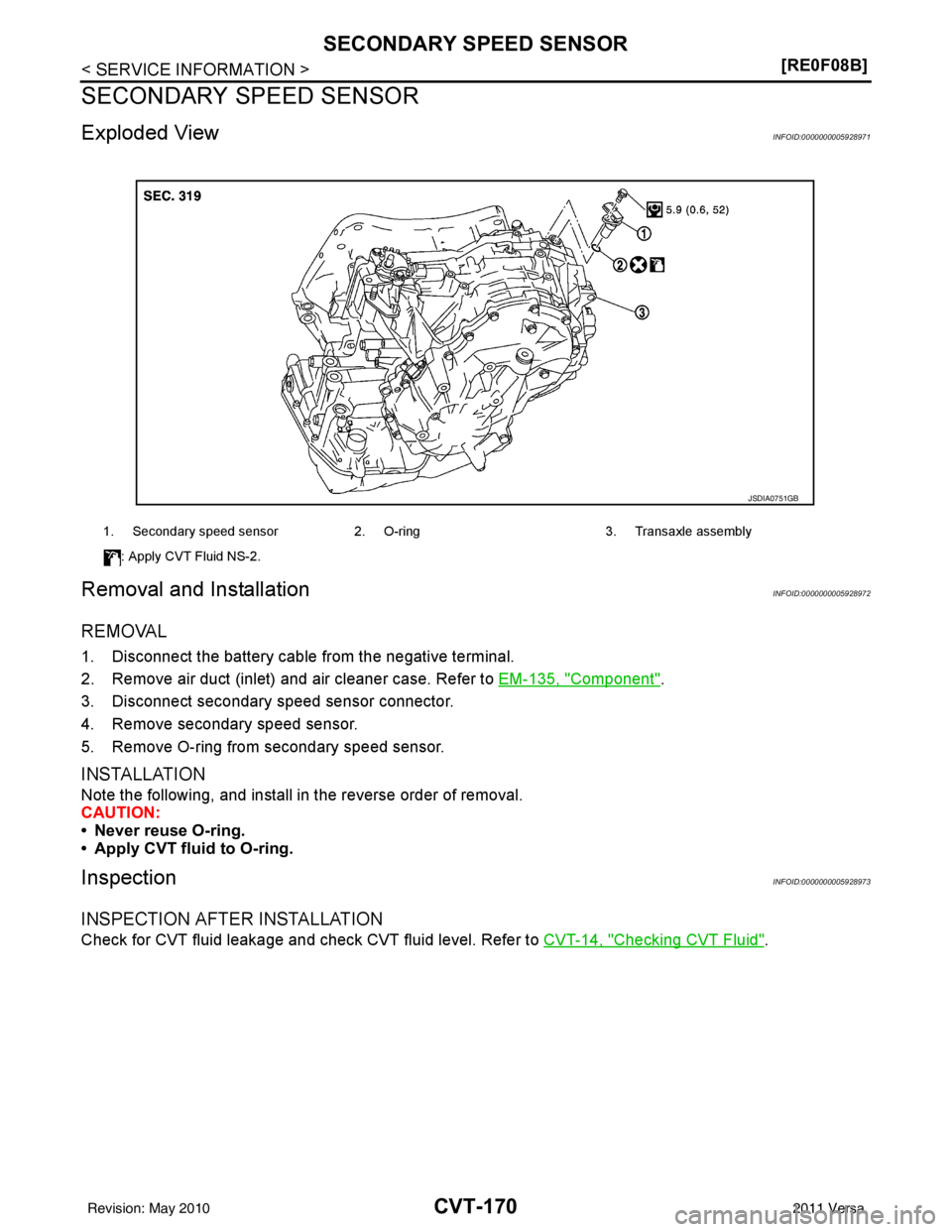

CVT-170
< SERVICE INFORMATION >[RE0F08B]
SECONDARY SPEED SENSOR
SECONDARY SPEED SENSOR
Exploded ViewINFOID:0000000005928971
Removal and InstallationINFOID:0000000005928972
REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove air duct (inlet) and air cleaner case. Refer to
EM-135, "
Component".
3. Disconnect secondary speed sensor connector.
4. Remove secondary speed sensor.
5. Remove O-ring from secondary speed sensor.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
• Never reuse O-ring.
• Apply CVT fluid to O-ring.
InspectionINFOID:0000000005928973
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage and check CVT fluid level. Refer to CVT-14, "Checking CVT Fluid".
1. Secondary speed sensor2. O-ring3. Transaxle assembly
: Apply CVT Fluid NS-2.
JSDIA0751GB
Revision: May 2010 2011 Versa

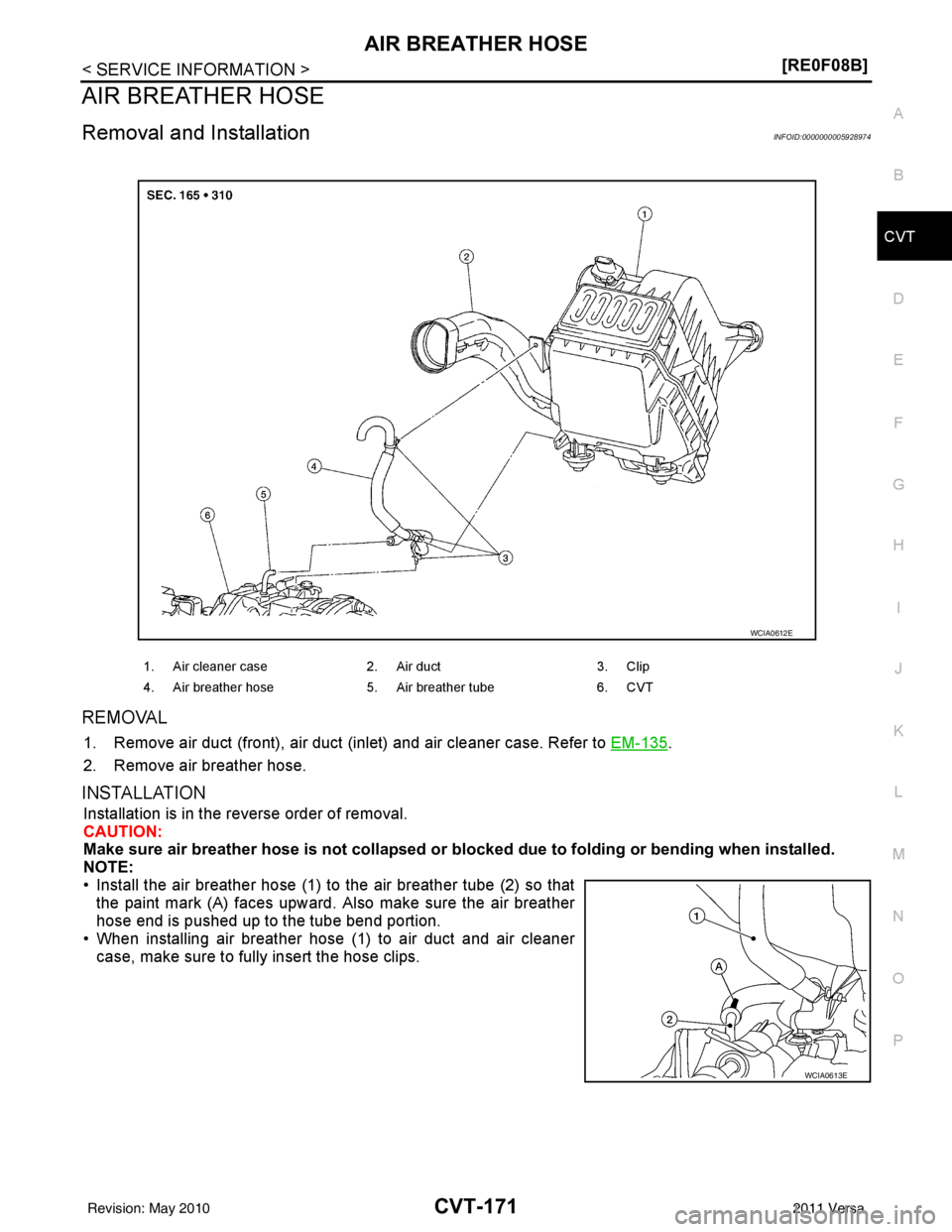

AIR BREATHER HOSECVT-171
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
AIR BREATHER HOSE
Removal and InstallationINFOID:0000000005928974
REMOVAL
1. Remove air duct (front), air duct (inlet) and air cleaner case. Refer to EM-135.
2. Remove air breather hose.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Make sure air breather hose is not collapsed or bl ocked due to folding or bending when installed.
NOTE:
• Install the air breather hose (1) to the air breather tube (2) so that the paint mark (A) faces upward. Also make sure the air breather
hose end is pushed up to the tube bend portion.
• When installing air breather hose (1) to air duct and air cleaner case, make sure to fully insert the hose clips.
1. Air cleaner case 2. Air duct 3. Clip
4. Air breather hose 5. Air breather tube 6. CVT
WCIA0612E
WCIA0613E
Revision: May 2010 2011 Versa

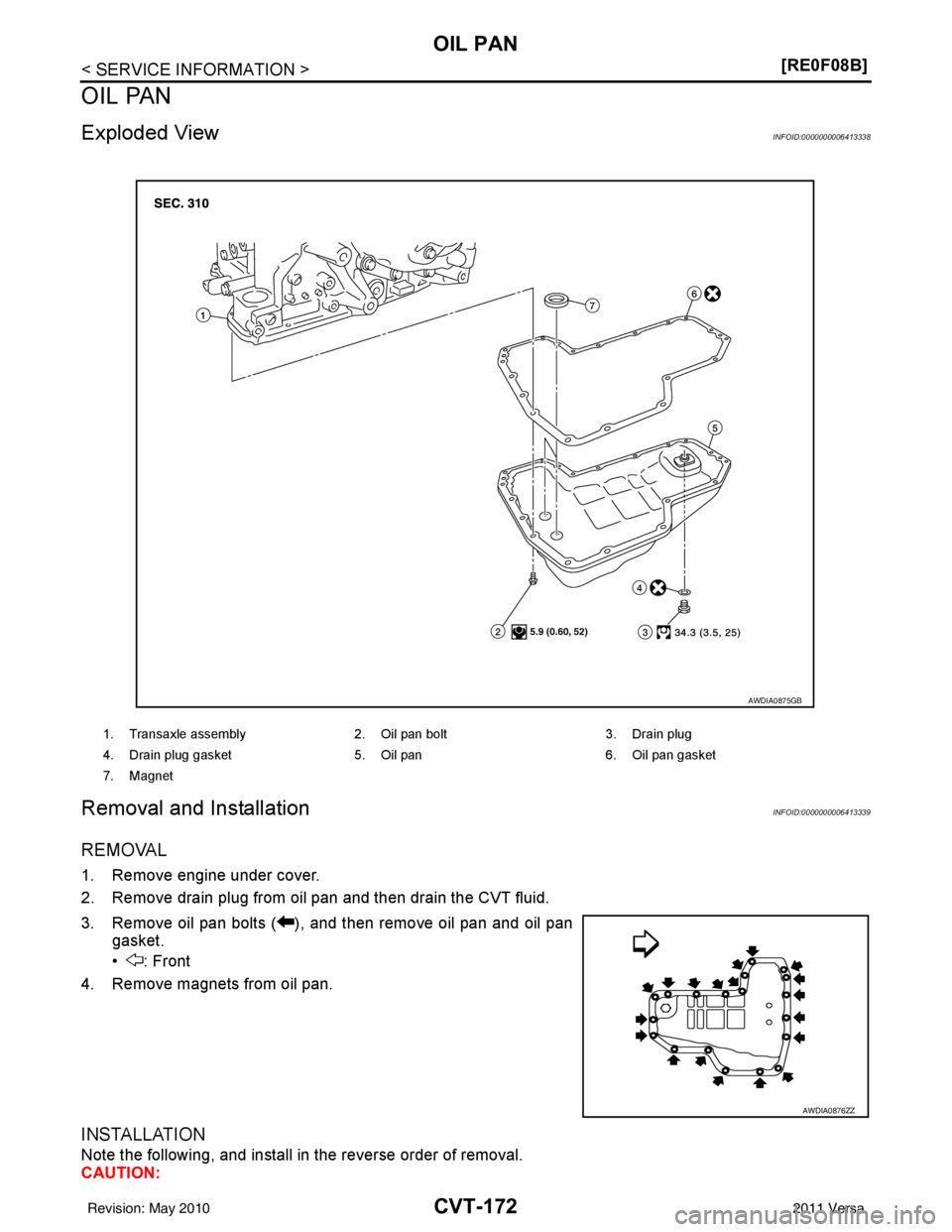

CVT-172
< SERVICE INFORMATION >[RE0F08B]
OIL PAN
OIL PAN
Exploded ViewINFOID:0000000006413338
Removal and InstallationINFOID:0000000006413339
REMOVAL
1. Remove engine under cover.
2. Remove drain plug from oil pan and then drain the CVT fluid.
3. Remove oil pan bolts ( ), and then remove oil pan and oil pan
gasket.
• : Front
4. Remove magnets from oil pan.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
1. Transaxle assembly 2. Oil pan bolt 3. Drain plug
4. Drain plug gasket 5. Oil pan 6. Oil pan gasket
7. Magnet
AWDIA0875GB
AWDIA0876ZZ
Revision: May 2010 2011 Versa

OIL PANCVT-173
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
• Never reuse oil pan gasket and drain plug gasket.
• Completely remove all moisture, oil and old gasket, etc. from the oil pan gasket mounting surface of
transaxle case and oil pan.
InspectionINFOID:0000000006413340
INSPECTION AFTER REMOVAL
Check oil pan for foreign material.
• If a large amount of worn material is found, clutch plate may be worn.
• If iron powder is found, bearings, gears, or clutch plates may be worn.
• If aluminum powder is found, bushing may be worn, or ch ips or burrs of aluminum casting parts may enter.
Check points where wear is found in all cases.
INSPECTION AFTER INSTALLATION
Check for CVT fluid leakage and check CVT fluid level. Refer to CVT-14, "Checking CVT Fluid".
Revision: May 2010 2011 Versa

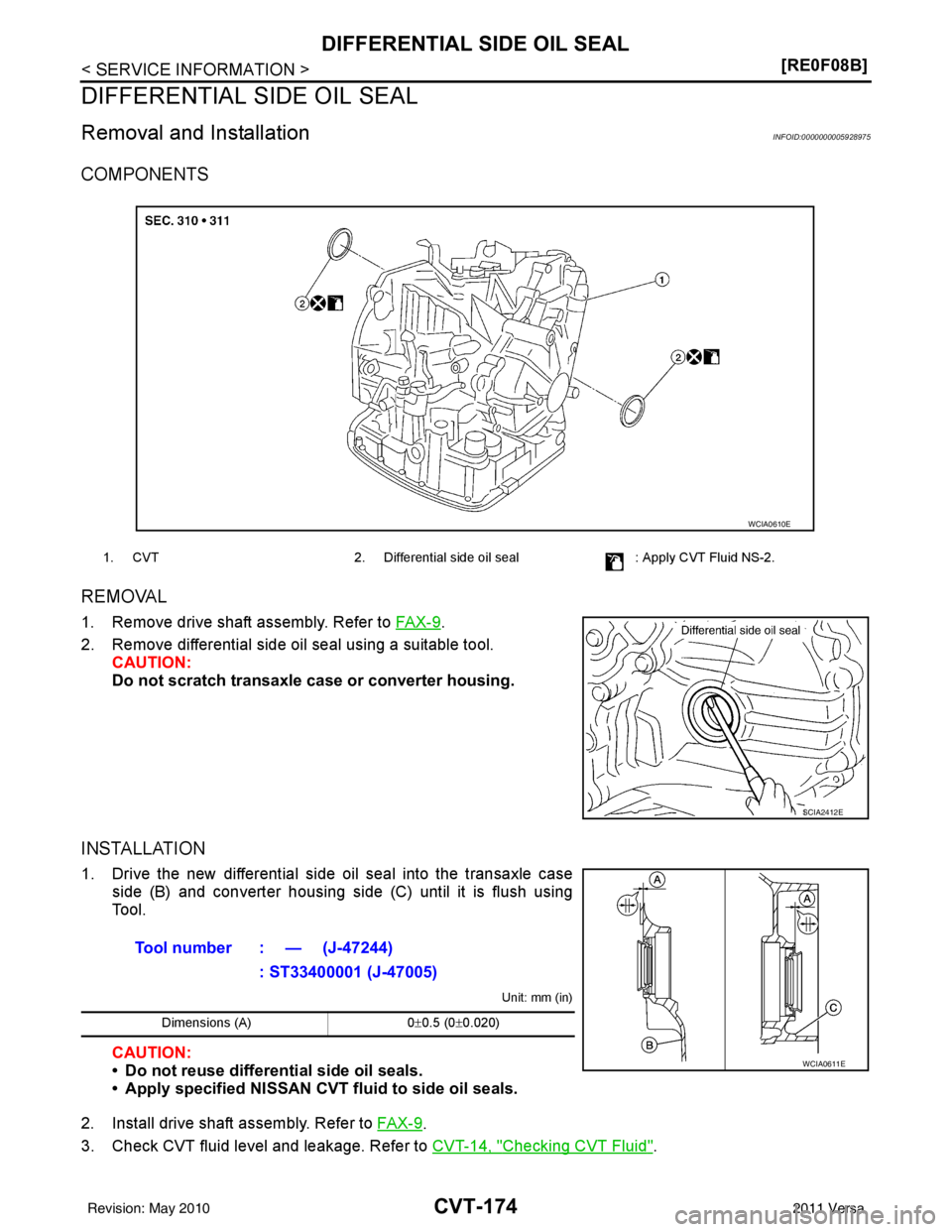

CVT-174
< SERVICE INFORMATION >[RE0F08B]
DIFFERENTIAL SIDE OIL SEAL
DIFFERENTIAL SIDE OIL SEAL
Removal and InstallationINFOID:0000000005928975
COMPONENTS
REMOVAL
1. Remove drive shaft assembly. Refer to
FAX-9.
2. Remove differential side oil seal using a suitable tool. CAUTION:
Do not scratch transaxle case or converter housing.
INSTALLATION
1. Drive the new differential side oil seal into the transaxle caseside (B) and converter housing side (C) until it is flush using
Tool.
Unit: mm (in)
CAUTION:
• Do not reuse differential side oil seals.
• Apply specified NISSAN CVT fluid to side oil seals.
2. Install drive shaft assembly. Refer to FA X - 9
.
3. Check CVT fluid level and leakage. Refer to CVT-14, "
Checking CVT Fluid".
1. CVT2. Differential side oil seal : Apply CVT Fluid NS-2.
WCIA0610E
SCIA2412E
Tool number : — (J-47244)
: ST33400001 (J-47005)
Dimensions (A) 0±0.5 (0 ±0.020)
WCIA0611E
Revision: May 2010 2011 Versa

CVT OIL WARMER SYSTEMCVT-175
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P

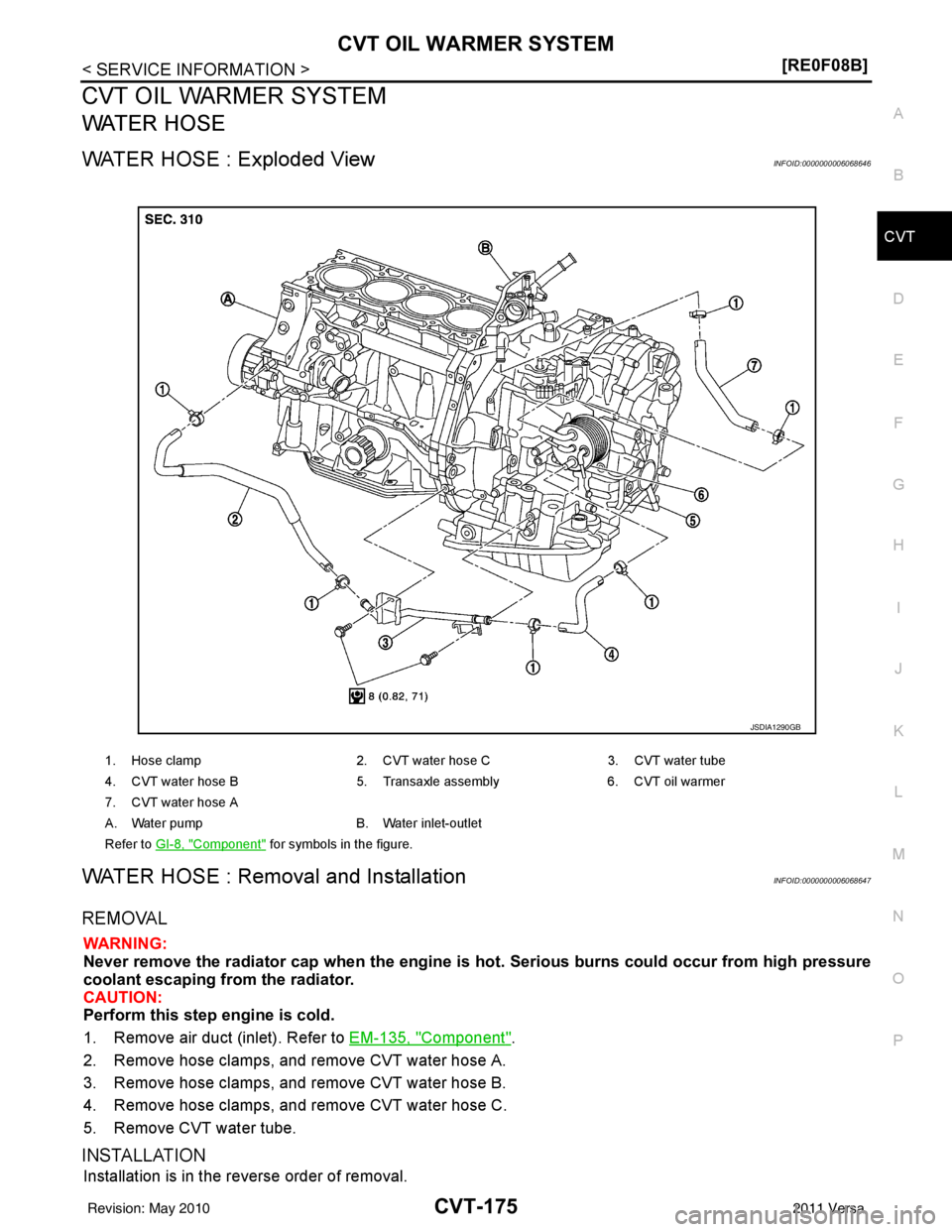

CVT OIL WARMER SYSTEM
WATER HOSE
WATER HOSE : Exploded ViewINFOID:0000000006068646
WATER HOSE : Removal and InstallationINFOID:0000000006068647
REMOVAL
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator.
CAUTION:
Perform this step engine is cold.
1. Remove air duct (inlet). Refer to EM-135, "
Component".
2. Remove hose clamps, and remove CVT water hose A.
3. Remove hose clamps, and remove CVT water hose B.
4. Remove hose clamps, and remove CVT water hose C.
5. Remove CVT water tube.
INSTALLATION
Installation is in the reverse order of removal.
1. Hose clamp 2. CVT water hose C3. CVT water tube
4. CVT water hose B 5. Transaxle assembly6. CVT oil warmer
7. CVT water hose A
A. Water pump B. Water inlet-outlet
Refer to GI-8, "
Component" for symbols in the figure.
JSDIA1290GB
